Page 1

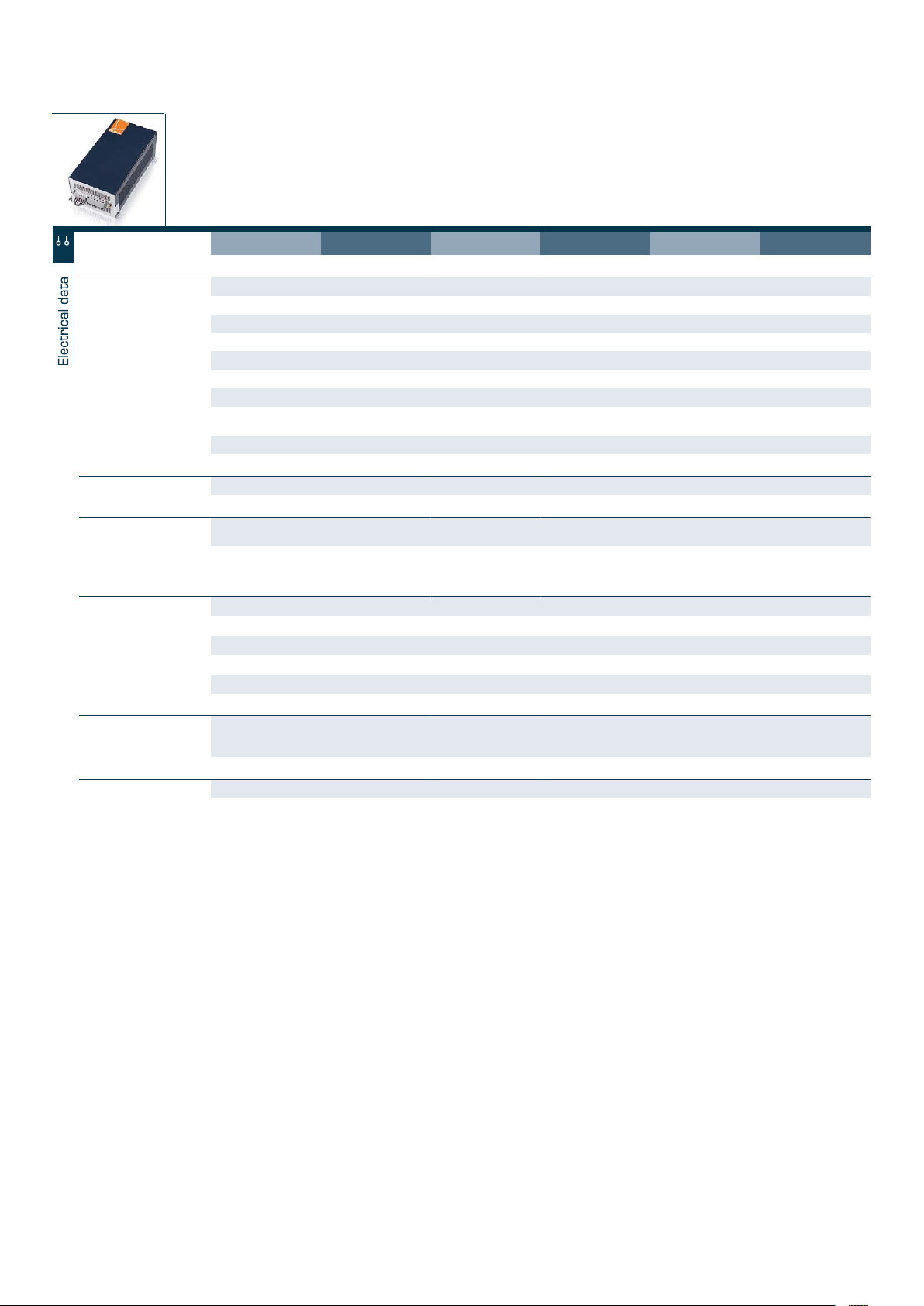

Harmonic filter
HFM-FB 400
Typ HFM-FB 7-400 HFM-FB 13-400 HFM-FB 18-400 HFM-FB 24-400 HFM-FB 30-400 HFM-FB 50-400
Operating data
Rated voltage 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac
Rated current 3 x 10.00 A 3 x 19.00 A 3 x 26.00 A 3 x 35.00 A 3 x 43.00 A 3 x 72.00 A
Voltage range 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac
Rated frequency 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
THD-I 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load
Rated load power* 5.0 kW 7.5 kW 11.0 kW 15.0 and 18.5 kW 22.0 kW 30.0 and 37.0 kW
Description of the load Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter
Overrating Capacity 150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
Efficiency 99.0 % 99.0 % 99.0 % 99.0 % 99.0 % 99.0 %
Approvals
Approvals cURus cURus cURus cURus cURus cURus
Environment
Ambient temperature -10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
MTBF @ 50 °C/500 V (Mil-
HB-217F)
>200.000 h >200.000 h >200.000 h >200.000 h >200.000 h >200.000 h
Safety and protection
Type
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
Insulation class
IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155
Protection index
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
Safety class
I I I I I I
SCCR 100 kA 100 kA 100 kA 100 kA 100 kA 100 kA
Notes
*
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Order numbers
Order Number HFM-FB 7-400 HFM-FB 13-400 HFM-FB 18-400 HFM-FB 24-400 HFM-FB 30-400 HFM-FB 50-400
+
-
Reactors / EMI filters
Harmonic filters
3

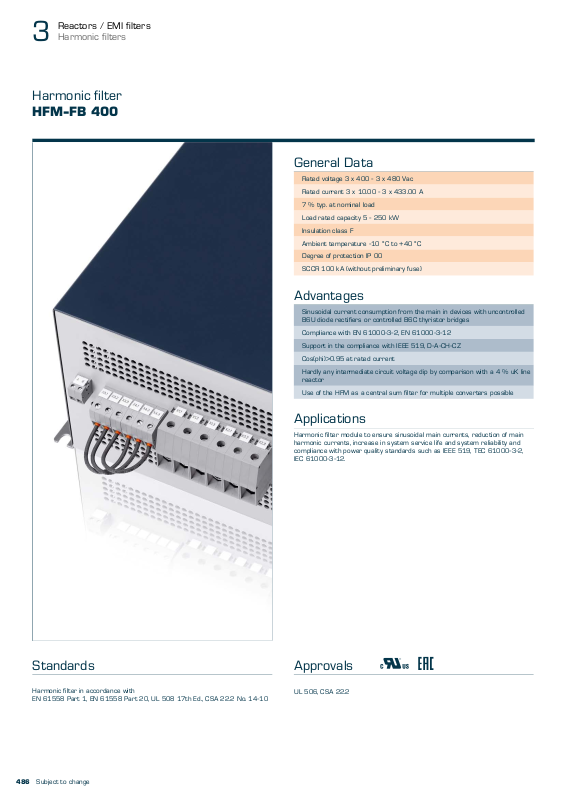

Harmonic filter
HFM-FB 400
General Data
Rated voltage 3 x 400 - 3 x 480 Vac
Rated current 3 x 10.00 - 3 x 433.00 A
7 % typ. at nominal load
Load rated capacity 5 - 250 kW
Insulation class F
Ambient temperature -10 °C to +40 °C
Degree of protection IP 00
SCCR 100 kA (without preliminary fuse)
Advantages
Sinusoidal current consumption from the main in devices with uncontrolled
B6U diode rectifiers or controlled B6C thyristor bridges
Compliance with EN 61000-3-2, EN 61000-3-12
Support in the compliance with IEEE 519, D-A-CH-CZ
Cos(phi)>0.95 at rated current
Hardly any intermediate circuit voltage dip by comparison with a 4 % uK line
reactor
Use of the HFM as a central sum filter for multiple converters possible
Applications
Harmonic filter module to ensure sinusoidal main currents, reduction of main
harmonic currents, increase in system service life and system reliability and
compliance with power quality standards such as IEEE 519, TEC 61000-3-2,
IEC 61000-3-12.
StandardsZ
Harmonic filter in accordance with
EN 61558 Part 1, EN 61558 Part 20, UL 508 17th Ed., CSA 22.2 No. 14-10
Subject to change
486
Approvals W J Z
UL 506, CSA 22.2
Page 2
+
-
Reactors / EMI filters
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Harmonic filters
3
Harmonic filter
HFM-FB 400
Typ HFM-FB 7-400 HFM-FB 13-400 HFM-FB 18-400 HFM-FB 24-400 HFM-FB 30-400 HFM-FB 50-400
Operating data
Rated voltage 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac
Rated current 3 x 10.00 A 3 x 19.00 A 3 x 26.00 A 3 x 35.00 A 3 x 43.00 A 3 x 72.00 A
Voltage range 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac
Rated frequency 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
THD-I 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load
Rated load power* 5.0 kW 7.5 kW 11.0 kW 15.0 and 18.5 kW 22.0 kW 30.0 and 37.0 kW
Description of the load Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter
Overrating Capacity 150 % for 60 sec. every
Efficiency 99.0 % 99.0 % 99.0 % 99.0 % 99.0 % 99.0 %
10 min.
Approvals
Approvals cURus cURus cURus cURus cURus cURus
Environment
Ambient temperature -10 °C to +40 °C,
MTBF @ 50 °C/500 V (MilHB-217F)
without condensation
>200.000 h >200.000 h >200.000 h >200.000 h >200.000 h >200.000 h
Safety and protection
Type
Insulation class
Protection index
Safety class
SCCR 100 kA 100 kA 100 kA 100 kA 100 kA 100 kA
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
I I I I I I
Notes
*
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Order numbers
Order Number HFM-FB 7-400 HFM-FB 13-400 HFM-FB 18-400 HFM-FB 24-400 HFM-FB 30-400 HFM-FB 50-400
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Subject to change
487
Page 3
+
-
Harmonic filter
HFM-FB 400
Typ HFM-FB 255-400 HFM-FB 300-400
Operating data
Rated voltage 3 x 400 Vac 3 x 400 Vac
Rated current 3 x 370,00 A 3 x 433,00 A
Voltage range 380 - 420 Vac 380 - 420 Vac
Rated frequency 50 Hz 50 Hz
THD-I 7 % typ at nominal load 7 % typ at nominal load
Rated load power* 200.0 kW 250.0 kW
Description of the load Balanced load by inverter Balanced load by inverter
Overrating Capacity 150 % for 60 sec. every
10 min.
150 % for 60 sec. every
10 min.
Efficiency 99.0 % 99.0 %
Approvals
Approvals cURus cURus
Environment
Ambient temperature -10 °C to +40 °C,
without condensation
-10 °C to +40 °C,
without condensation
MTBF @ 50 °C/500 V (Mil-
HB-217F)
>200.000 h >200.000 h
Safety and protection
Type
Metal enclosure Metal enclosure
Insulation class
IEC=F, UL=class 155 IEC=F, UL=class 155
Protection index
IP 00 IP 00
Safety class
I I
SCCR 100 kA 100 kA
Notes
*
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Order numbers
Order Number HFM-FB 255-400 HFM-FB 300-400
+
-
Reactors / EMI filters
Harmonic filters
3
Harmonic filter
HFM-FB 400
Typ HFM-FB 70-400 HFM-FB 100-400 HFM-FB 125-400 HFM-FB 150-400 HFM-FB 200-400 HFM-FB 225-400
Operating data
Rated voltage 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac 3 x 400 Vac
Rated current 3 x 101.00 A 3 x 144.00 A 3 x 180.00 A 3 x 217.00 A 3 x 289.00 A 3 x 325.00 A
Voltage range 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac 380 - 440 Vac
Rated frequency 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz 50 Hz
THD-I 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load 7 % typ at nominal load
Rated load power* 55.0 kW 75.0 kW 90.0 kW 110.0 kW 160.0 kW 180.0 kW
Description of the load Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter Balanced load by inverter
Overrating Capacity 150 % for 60 sec. every
Efficiency 99.0 % 99.0 % 99.0 % 99.0 % 99.0 % 99.0 %
Approvals
Approvals cURus cURus cURus cURus cURus cURus
Environment
Ambient temperature -10 °C to +40 °C,
MTBF @ 50 °C/500 V (MilHB-217F)
Safety and protection
Type
Insulation class
Protection index
Safety class
SCCR 100 kA 100 kA 100 kA 100 kA 100 kA 100 kA
Notes
*
Order numbers
Order Number HFM-FB 70-400 HFM-FB 100-400 HFM-FB 125-400 HFM-FB 150-400 HFM-FB 200-400 HFM-FB 225-400
10 min.
without condensation
>200.000 h >200.000 h >200.000 h >200.000 h >200.000 h >200.000 h
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155 IEC=F, UL=class 155
IP 00 IP 00 IP 00 IP 00 IP 00 IP 00
I I I I I I
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Subject to change
488
Page 4
+
-
Reactors / EMI filters
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Harmonic filters
3
Harmonic filter
HFM-FB 400
Typ HFM-FB 255-400 HFM-FB 300-400
Operating data
Rated voltage 3 x 400 Vac 3 x 400 Vac
Rated current 3 x 370,00 A 3 x 433,00 A
Voltage range 380 - 420 Vac 380 - 420 Vac
Rated frequency 50 Hz 50 Hz
THD-I 7 % typ at nominal load 7 % typ at nominal load
Rated load power* 200.0 kW 250.0 kW
Description of the load Balanced load by inverter Balanced load by inverter
Overrating Capacity 150 % for 60 sec. every
Efficiency 99.0 % 99.0 %
Approvals
Approvals cURus cURus
Environment
Ambient temperature -10 °C to +40 °C,
MTBF @ 50 °C/500 V (MilHB-217F)
Safety and protection
Type
Insulation class
Protection index
Safety class
SCCR 100 kA 100 kA
Notes
*
Order numbers
Order Number HFM-FB 255-400 HFM-FB 300-400
10 min.
without condensation
>200.000 h >200.000 h
Metal enclosure Metal enclosure
IEC=F, UL=class 155 IEC=F, UL=class 155
IP 00 IP 00
I I
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
150 % for 60 sec. every
10 min.
-10 °C to +40 °C,
without condensation
IE2 efficiencies of the
motors and an efficiency
>96 % assumed
Subject to change
489
Page 5

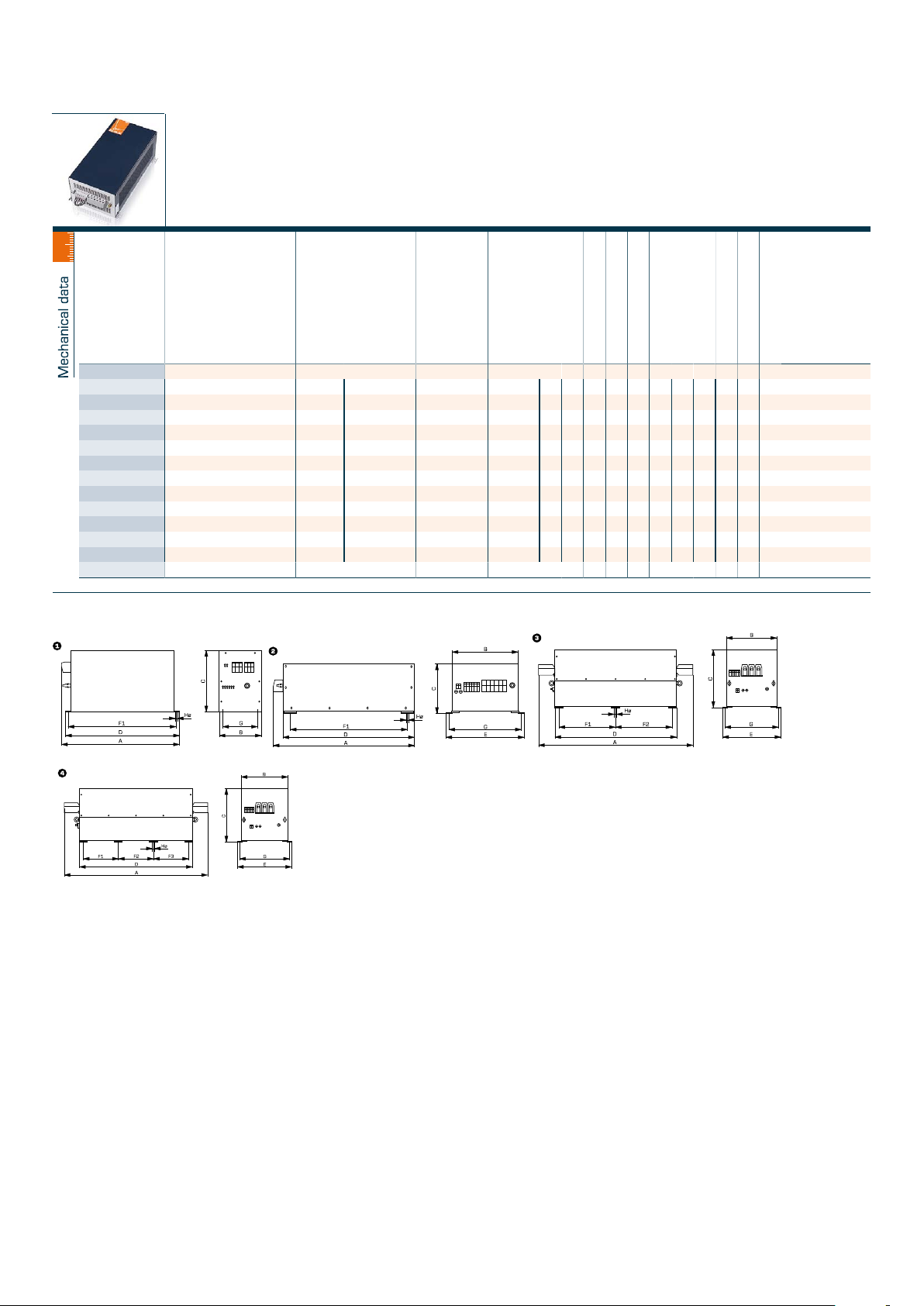

30
Reactors / EMI filters
Harmonic filters
3
Harmonic filter
HFM-FB 400
Typ
HFM-FB 7-400 Screw clamp, 16 mm² Bolt, M8 Mounting lugs 27.0 kg
HFM-FB 13-400 Screw clamp, 16 mm² Bolt, M8 Mounting lugs 28.0 kg
HFM-FB 18-400 Screw clamp, 50 mm² for M8 PRI 50, SEC 16 Mounting lugs 40.0 kg
HFM-FB 24-400 Screw clamp, 50 mm² for M8 PRI 50, SEC 16 Mounting lugs 49.0 kg
HFM-FB 30-400 Screw clamp, 50 mm² for M8 PRI 50, SEC 16 Mounting lugs 52.0 kg
HFM-FB 50-400 Screw clamp, 50 mm² for M8 PRI 50, SEC 16 Mounting lugs 88.0 kg
HFM-FB 70-400 Bolt terminal, M10, 150 mm² for M8 min. 50 Mounting lugs 150.0 kg
HFM-FB 100-400 Bolt terminal, M10, 150 mm² for M8 min. 35 Mounting lugs 152.0 kg
HFM-FB 125-400 Bolt terminal, M16, 240 mm² for M8 min. 95 Mounting lugs 178.0 kg
HFM-FB 150-400 Bolt terminal, M16, 240 mm² for M8 min. 95 Mounting lugs 224.0 kg
HFM-FB 200-400 Bolt terminal, M16, 240 mm² for M8 min. 95 Mounting lugs 271.0 kg
HFM-FB 225-400 Bolt terminal, M16, 240 mm² for M8 min. 95 Mounting lugs 284.0 kg
HFM-FB 255-400 Bolt terminal, M16, 240 mm² for M8 6-300 Mounting lugs 310.0 kg
HFM-FB 300-400 Bolt terminal, M16, 300 mm² for M8 6-300 Mounting lugs 387.0 kg
Terminals phase
Terminals PE
Connection cross section [ mm² ]
Fixing method
Dimension pictures
Weight
Dimension picture (in mm)
A B C D E F1 F2 F3 G H
455 165 242 440 - 416 - - 135 6.5
1
455 165 242 440 - 416 - - 135 6.5
1
645 302 225 600 365.5 532.5 - - 333.5 11
2
645 302 225 600 356.5 532.5 - - 333.5 11
2
885 302 225 840 356.5 772.5 - - 333.5 11
2
885 302 225 840 356.5 772.5 - - 333.5 11
2
1060 345 400 830 393 377 395 - 370 11
3
1060 345 400 830 393 377 395 - 370 11
3
1160 406 420 900 454 430 412 - 430 11
3
1160 406 420 900 454 430 412 - 430 11
3
1330 406 420 1070 454 515 497 - 430 11
3
1330 406 420 1070 454 515 497 - 430 11
3
1350 470 420 1100 530 355 355 355 505 11
4
1450 470 420 1200 530 380 380 380 505 11
4
Subject to change
490
Loading...
