Page 1
Single-phase, non-stabilized
DC power supply
GLC
Typ GLC 230/24-1 GLC 230/24-2 GLC 230/24-3 GLC 230/24-5
Input
Input rated voltage 230 Vac 230 Vac 230 Vac 230 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Power 24.00 W 48.00 W 72.00 W 120.00 W
Output rated current 1.00 A 2.00 A 3.00 A 5.00 A
Ripple factor Ð5 % Ð5 % Ð5 % Ð5 %
Approvals
Approvals cURus (transformer only) cURus (transformer only) cURus (transformer only) cURus (transformer only)
Environment
Type of cooling self-cooling self-cooling self-cooling self-cooling
Ambient temperature max. 60 °C 60 °C 60 °C 60 °C
Safety and protection
Type
Enclosed Enclosed Enclosed Enclosed
Insulation class
E E E E
Protection index
IP 00 IP 00 IP 00 IP 00
Safety class (prepared)
II II II II
Short circuit strength
short-circuit proof short-circuit proof short-circuit proof short-circuit proof
Order numbers
Order Number GLC 230/24-1 GLC 230/24-2 GLC 230/24-3 GLC 230/24-5
+
-
Power supplies
Transformer power supplies non-stabilized
2

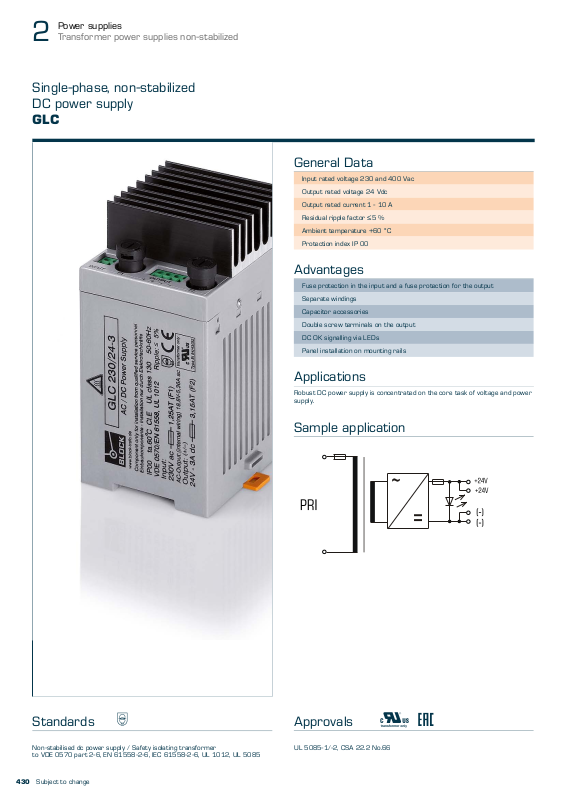

Single-phase, non-stabilized
DC power supply
GLC
General Data
Input rated voltage 230 and 400 Vac
Output rated voltage 24 Vdc
Output rated current 1 - 10 A
Residual ripple factor Ð5 %
Ambient temperature +60 °C
Protection index IP 00
Advantages
Fuse protection in the input and a fuse protection for the output
Separate windings
Capacitor accessories
Double screw terminals on the output
DC OK signalling via LEDs
Panel installation on mounting rails
Applications
Robust DC power supply is concentrated on the core task of voltage and power
supply.
Sample application
Standards 1 Z
Non-stabilised dc power supply / Safety isolating transformer
to VDE 0570 part 2-6, EN 61558-2-6, IEC 61558-2-6, UL 1012, UL 5085
Subject to change
430
Approvals T J Z
UL 5085-1/-2, CSA 22.2 No.66
Page 2
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Transformer power supplies non-stabilized
2
Single-phase, non-stabilized
DC power supply
GLC
Typ GLC 400/24-3 GLC 400/24-5 GLC 400/24-7,5 GLC 400/24-10
Input
Input rated voltage 400 Vac 400 Vac 400 Vac 400 Vac
Frequency range 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Power 72.00 W 120.00 W 180.00 W 240.00 W
Output rated current 3.00 A 5.00 A 7.50 A 10.00 A
Ripple factor Ð5 % Ð5 % Ð5 % Ð5 %
Approvals
Approvals cURus (transformer only) cURus (transformer only) cURus (transformer only) cURus (transformer only)
Environment
Type of cooling self-cooling self-cooling self-cooling self-cooling
Ambient temperature max. 60 °C 60 °C 60 °C 60 °C
Safety and protection
Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength
Order numbers
Order Number GLC 400/24-3 GLC 400/24-5 GLC 400/24-7,5 GLC 400/24-10
Enclosed Enclosed Enclosed Enclosed
E E E E
IP 00 IP 00 IP 00 IP 00
II II II II
short-circuit proof short-circuit proof short-circuit proof short-circuit proof
Subject to change
433
Page 3
30
Single-phase, non stabilized
DC power supply
GNC
General Data
Input rated voltage 230 and 400 Vac
Output rated voltage 24 Vdc
Output rated current 2.5 - 15 A
Residual ripple factor Ð3 %
Ambient temperature +60 °C
Protection index IP 00
Advantages
Unsusceptible to voltage surges or transients
High overload capacity
DC OK signalling via LEDs
Capacitor accessories
Very good corrosion protection and low noise thanks to vacuum
impregnation
Impulse loading MKT-capacitors
Varistor wiring
Contact protected screw connection terminals complying with UVV BGV A3
GNC 24-2,5 with combination footplate for bolted and rail mounting
Applications
Robust DC power supply for harsh industrial applications.
Sample application
Standards 2 Z
Approvals T J Z
Non-stabilised dc power supply / Safety isolating transformer
to VDE 0570 part 2-6, EN 61558-2-6, IEC 61558-2-6, UL 1012, UL 5085
UL 5085-1/-2, CSA 22.2 No.66
Power supplies
Transformer power supplies non-stabilized
2
Typ
GLC 230/24-1 Screw-type terminals DIN Rail system TS35 1.10 kg
GLC 230/24-2 Screw-type terminals DIN Rail system TS35 1.80 kg
GLC 230/24-3 Screw-type terminals DIN Rail system TS35 2.30 kg
GLC 230/24-5 Screw-type terminals
GLC 230/24-7,5 Screw-type terminals
GLC 230/24-10 Screw-type terminals
GLC 400/24-1 Screw-type terminals DIN Rail system TS35 1.10 kg
GLC 400/24-2 Screw-type terminals DIN Rail system TS35 1.80 kg
GLC 400/24-3 Screw-type terminals DIN Rail system TS35 2.30 kg
GLC 400/24-5 Screw-type terminals
GLC 400/24-7,5 Screw-type terminals
GLC 400/24-10 Screw-type terminals
Single-phase, non-stabilized
DC power supply
GLC
Terminals
Fixing method
DIN Rail system TS35, additional with
screws
DIN Rail system TS35, additional with
screws
DIN Rail system TS35, additional with
screws
DIN Rail system TS35, additional with
screws
DIN Rail system TS35, additional with
screws
DIN Rail system TS35, additional with
screws

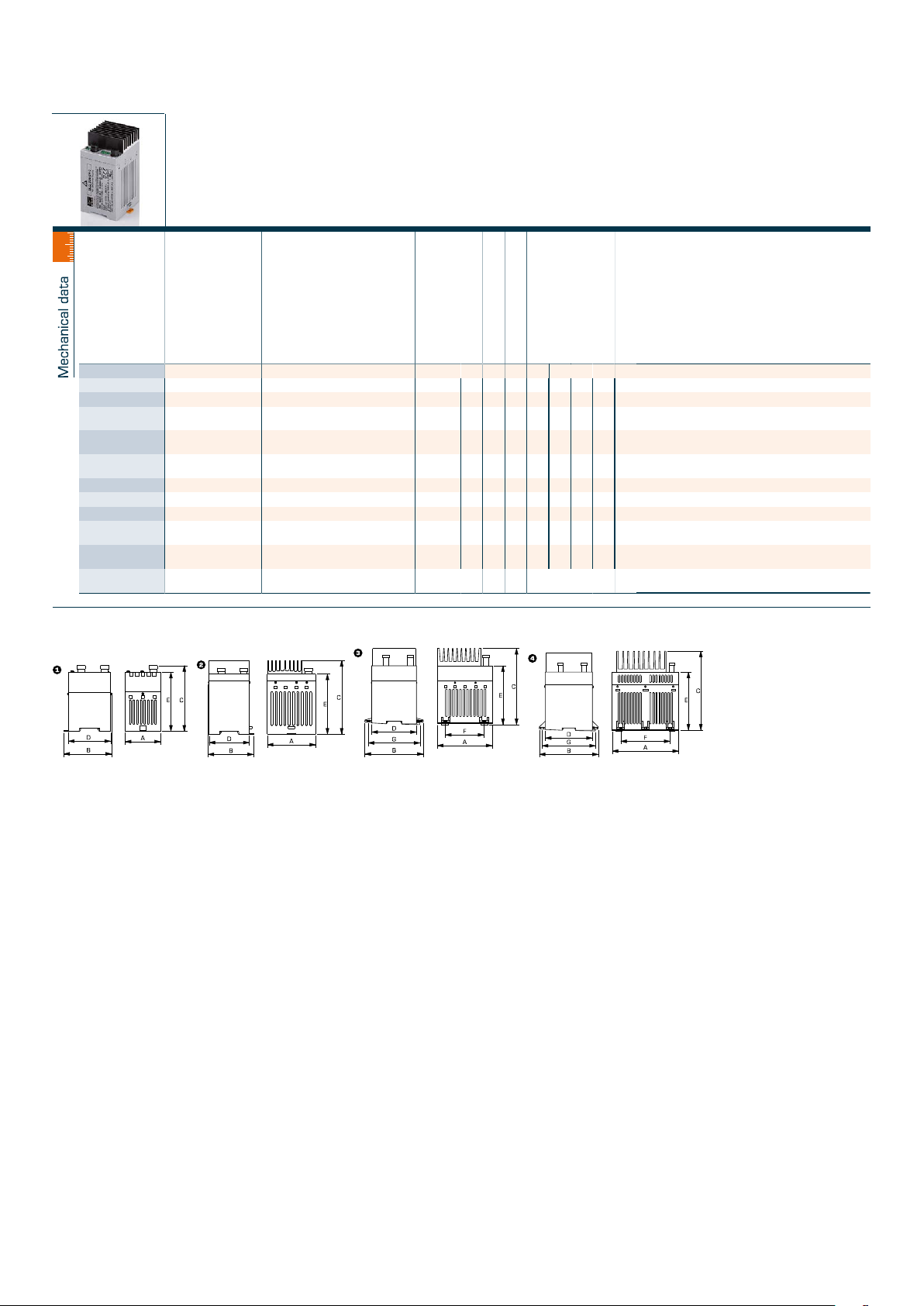

Dimension pictures
Weight
3.50 kg
6.50 kg
7.30 kg
3.50 kg
6.50 kg
7.30 kg
Dimension picture (in mm)
A B C D E F G
62.5 85 116 75 105 - -
1
90 85 138 75 113 - -
2
90 85 138 75 113 - -
2
125 134 175 102 135 87 119
3
175 155 212 124 157 130 140
4
175 155 212 124 157 130 140
4
62.5 85 130 75 105 - -
1
90 85 138 75 113 - -
2
90 85 138 75 113 - -
2
125 134 175 102 135 87 119
3
175 155 212 124 157 130 140
4
175 155 212 124 157 130 140
4
Subject to change
434
