Block HFE156 Catalog Page

Radio interference suppression filter, single-phase
HFE 156
Typ HFE 156-230/1 HFE 156-230/3 HFE 156-230/6 HFE 156-230/10 HFE 156-230/12 HFE 156-230/16
Operating data
Rated voltage 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac
Voltage range 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac
Rated current 1 A 3 A 6 A 10 A 12 A 16 A
Leakage current (50 Hz) 8 mA 8 mA 8 mA 8 mA 8 mA 8 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Power loss 0.9 W 1.8 W 2.6 W 4.0 W 6.2 W 8.9 W
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly
Environment
Climatic category 25/085/21
[in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
25/085/21 [in accordance with EN 60068-1]
Ambient temperature max. 45 °C 45 °C 45 °C 45 °C 45 °C 45 °C
Safety and protection
Type
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
Protection index
IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
Safety class (prepared)
I I I I I I
Test voltage 1700 Vdc Phase/N,
2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Order numbers
+
-
Order Number HFE 156-230/1 HFE 156-230/3 HFE 156-230/6 HFE 156-230/10 HFE 156-230/12 HFE 156-230/16
Terminal and mounting
Terminals phase
2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal
Terminals PE
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Tab connector,
6.3 x 0.8 mm
Fixing method Panel installation on
mounting rails
Panel installation on mounting rails
Panel installation on mounting rails
Panel installation on mounting rails
Panel installation on mounting rails
Panel installation on mounting rails
Measures and weights
Weight 0.32 kg 0.33 kg 0.33 kg 0.34 kg 0.56 kg 0.55 kg
Dimension picture (in mm)
1 1 1 1 1 1
A 107 107 107 107 127 127
B 40 40 40 40 45 45
C 85 85 85 85 110 110
D 22 22 22 22 52 52
E 33 33 33 33 33 33
F 100 100 100 100 120 120
30
Dimension pictures
Reactors / EMI filters
Single-phase radio interference suppression filters
3

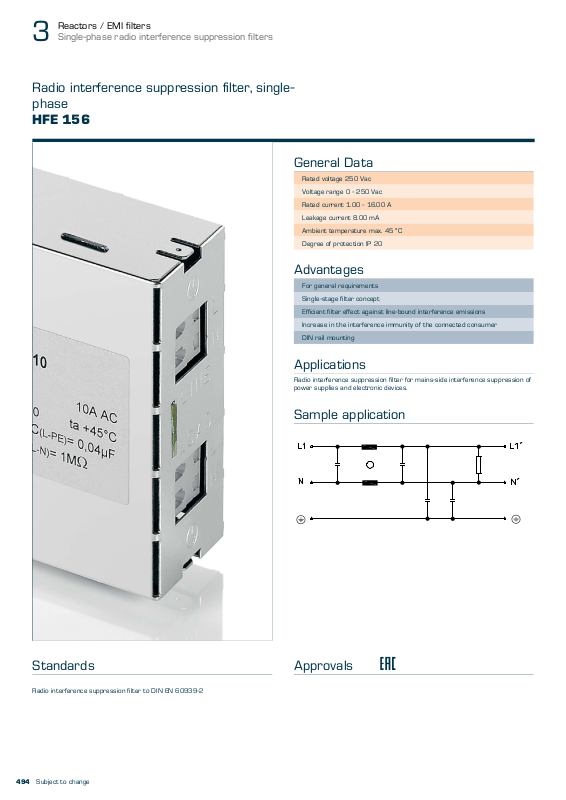

Radio interference suppression filter, single­phase
HFE 156
General Data
Rated voltage 250 Vac
Rated current 1.00 - 16.00 A
Leakage current 8.00 mA
Ambient temperature max. 45 °C
Degree of protection IP 20
Advantages
For general requirements
Single-stage filter concept
Efficient filter effect against line-bound interference emissions
Increase in the interference immunity of the connected consumer
DIN rail mounting
Applications
Radio interference suppression filter for mains-side interference suppression of power supplies and electronic devices.
Sample application
StandardsZ
Radio interference suppression filter to DIN EN 60939-2
Subject to change
494
Approvals J Z
+
-
30
Reactors / EMI filters
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Single-phase radio interference suppression filters
3
Radio interference suppression filter, single-phase
HFE 156
Typ HFE 156-230/1 HFE 156-230/3 HFE 156-230/6 HFE 156-230/10 HFE 156-230/12 HFE 156-230/16
Operating data
Rated voltage 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac 250 Vac
Voltage range 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac 0 - 250 Vac
Rated current 1 A 3 A 6 A 10 A 12 A 16 A
Leakage current (50 Hz) 8 mA 8 mA 8 mA 8 mA 8 mA 8 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Power loss 0.9 W 1.8 W 2.6 W 4.0 W 6.2 W 8.9 W
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly
Environment
Climatic category 25/085/21
Ambient temperature max. 45 °C 45 °C 45 °C 45 °C 45 °C 45 °C
[in accordance with EN 60068-1]
Safety and protection
Type
Protection index
Safety class (prepared)
Test voltage 1700 Vdc Phase/N,
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
I I I I I I
2700 Vdc Phase/PE
Order numbers
Order Number HFE 156-230/1 HFE 156-230/3 HFE 156-230/6 HFE 156-230/10 HFE 156-230/12 HFE 156-230/16
Terminal and mounting
Terminals phase
Terminals PE
Fixing method Panel installation on
2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal 2.5 mm² spring terminal
Tab connector,
6.3 x 0.8 mm
mounting rails
Measures and weights
Weight 0.32 kg 0.33 kg 0.33 kg 0.34 kg 0.56 kg 0.55 kg
Dimension picture (in mm)
A 107 107 107 107 127 127
B 40 40 40 40 45 45
C 85 85 85 85 110 110
D 22 22 22 22 52 52
E 33 33 33 33 33 33
F 100 100 100 100 120 120
1 1 1 1 1 1
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Panel installation on mounting rails
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Panel installation on mounting rails
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Panel installation on mounting rails
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Panel installation on mounting rails
25/085/21 [in accordance with EN 60068-1]
1700 Vdc Phase/N, 2700 Vdc Phase/PE
Tab connector,
6.3 x 0.8 mm
Panel installation on mounting rails
Dimension pictures
Subject to change
495
