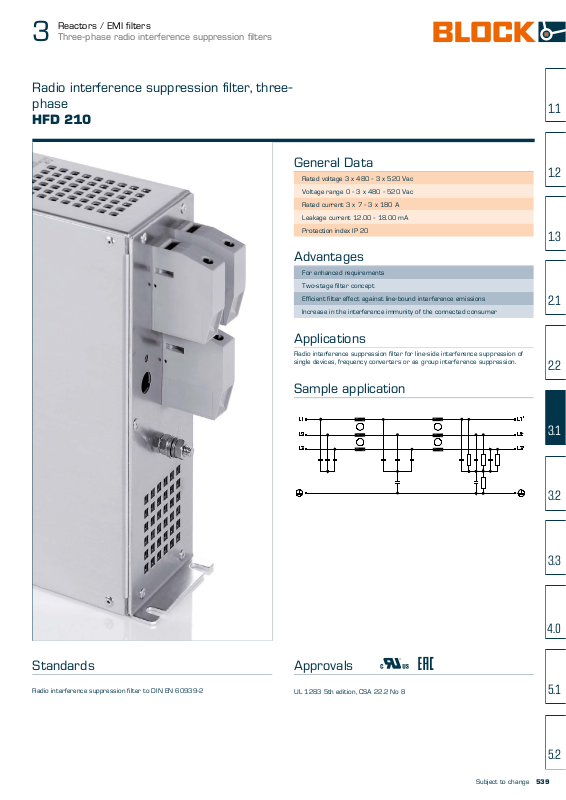

Reactors / EMI filters
Three-phase radio interference suppression filters
3

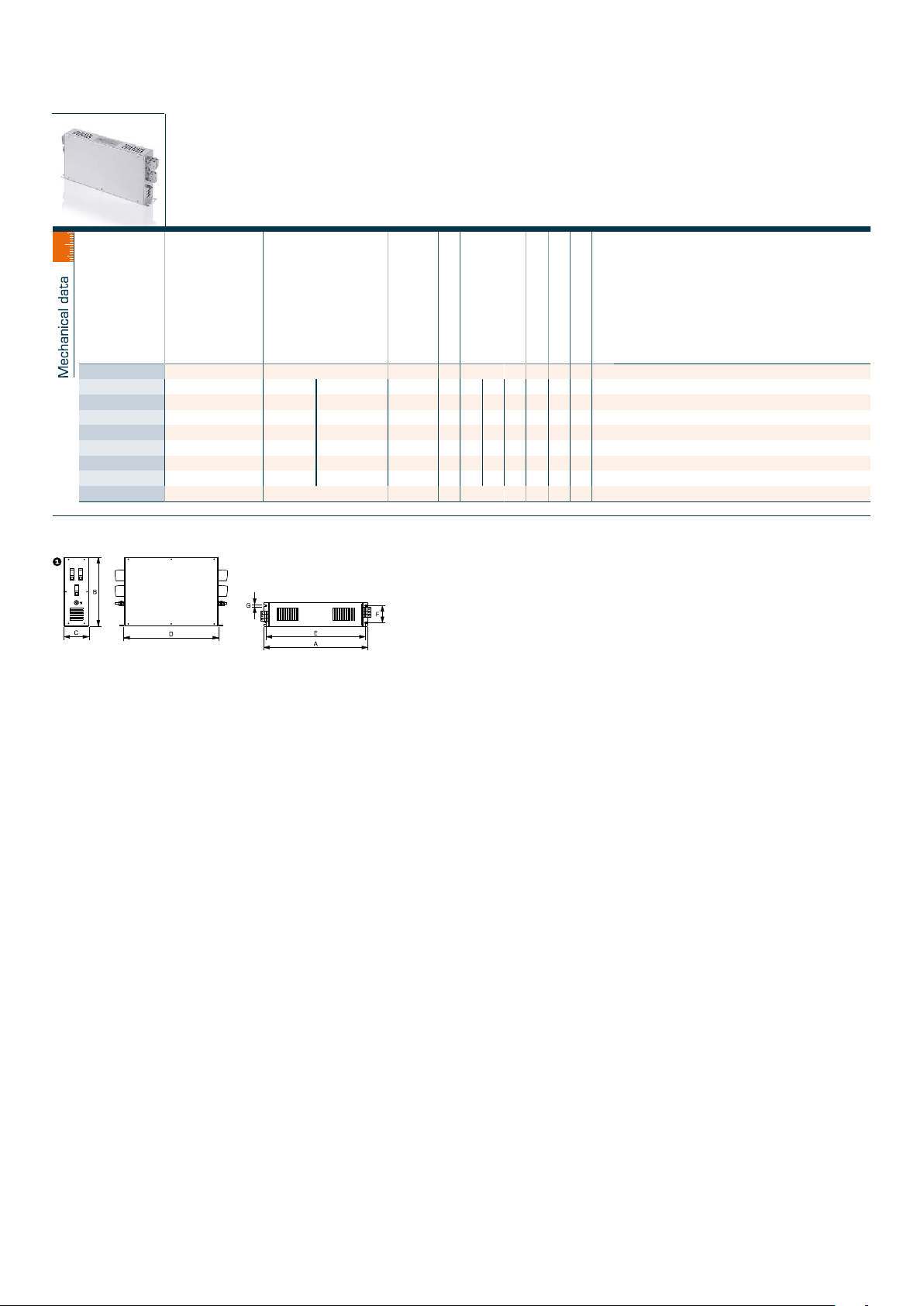

Radio interference suppression filter, threephase
HFD 210
General Data
Rated voltage 3 x 480 - 3 x 520 Vac
Voltage range 0 - 3 x 480 - 520 Vac
Rated current 3 x 7 - 3 x 180 A
Leakage current 12.00 - 18.00 mA
Protection index IP 20
Advantages
For enhanced requirements
Two-stage filter concept
Efficient filter effect against line-bound interference emissions
Increase in the interference immunity of the connected consumer
Applications
Radio interference suppression filter for line-side interference suppression of
single devices, frequency converters or as group interference suppression.
Sample application
StandardsZ
Radio interference suppression filter to DIN EN 60939-2
Approvals W J Z
UL 1283 5th edition, CSA 22.2 No 8
Subject to change
539
+
-
Radio interference suppression filter, three-
phase
HFD 210
Typ HFD 210-500/100 HFD 210-500/130 HFD 210-500/180
Operating data
Rated voltage 3 x 520 Vac 3 x 520 Vac 3 x 520 Vac
Voltage range 0 - 3 x 520 Vac 0 - 3 x 520 Vac 0 - 3 x 520 Vac
Rated current 3 x 100 A 3 x 130 A 3 x 180 A
Leakage current (50 Hz)* 16.00 mA 18.00 mA 18.00 mA
Leakage current (50 Hz)** 154.00 mA 173.00 mA 173.00 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly
Approvals
Approvals cURus, UL 1283 5th edition,
CSA 22.2 No.8
cURus, UL 1283 5th edition,
CSA 22.2 No.8
cURus, UL 1283 5th edition,
CSA 22.2 No.8
Environment
Climatic category 25/085/21
[in accordance with
EN 60068-1]
25/085/21
[in accordance with
EN 60068-1]
25/085/21
[in accordance with
EN 60068-1]
Ambient temperature max. 50 °C 50 °C 50 °C
Safety and protection
Type
Metal enclosure Metal enclosure Metal enclosure
Protection index
IP 20 IP 20 IP 20
Safety class (prepared)
I I I
Test voltage 2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Notes
*
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
**
Leakage current by loss of
two phases
Leakage current by loss of
two phases
Leakage current by loss of
two phases
Order numbers
Order Number HFD 210-500/100 HFD 210-500/130 HFD 210-500/180
+
-
Reactors / EMI filters
Three-phase radio interference suppression filters
3
Radio interference suppression filter, threephase
HFD 210
Typ HFD 210-500/7 HFD 210-500/16 HFD 210-500/30 HFD 210-500/42 HFD 210-500/55 HFD 210-500/75
Operating data
Rated voltage 3 x 520 Vac 3 x 520 Vac 3 x 520 Vac 3 x 520 Vac 3 x 520 Vac 3 x 520 Vac
Voltage range 0 - 3 x 520 Vac 0 - 3 x 520 Vac 0 - 3 x 520 Vac 0 - 3 x 520 Vac 0 - 3 x 520 Vac 0 - 3 x 520 Vac
Rated current 3 x 7 A 3 x 16 A 3 x 30 A 3 x 42 A 3 x 55 A 3 x 75 A
Leakage current (50 Hz)* 13.00 mA 14.00 mA 16.00 mA 16.00 mA 16.00 mA 16.00 mA
Leakage current (50 Hz)** 130.00 mA 133.00 mA 154.00 mA 154.00 mA 154.00 mA 154.00 mA
Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz
Overrating Capacity 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly 150 %, shortly
Approvals
Approvals cURus, UL 1283 5th edition,
Environment
Climatic category 25/085/21
Ambient temperature max. 50 °C 50 °C 50 °C 50 °C 50 °C 50 °C
Safety and protection
Type
Protection index
Safety class (prepared)
Test voltage 2150 Vdc Phase/Phase,
Notes
*
**
Order numbers
Order Number HFD 210-500/7 HFD 210-500/16 HFD 210-500/30 HFD 210-500/42 HFD 210-500/55 HFD 210-500/75
CSA 22.2 No.8
[in accordance with
EN 60068-1]
Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure Metal enclosure
IP 20 IP 20 IP 20 IP 20 IP 20 IP 20
I I I I I I
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
cURus, UL 1283 5th edition,
CSA 22.2 No.8
25/085/21
[in accordance with
EN 60068-1]
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
cURus, UL 1283 5th edition,
CSA 22.2 No.8
25/085/21
[in accordance with
EN 60068-1]
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
cURus, UL 1283 5th edition,
CSA 22.2 No.8
25/085/21
[in accordance with
EN 60068-1]
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
cURus, UL 1283 5th edition,
CSA 22.2 No.8
25/085/21
[in accordance with
EN 60068-1]
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
cURus, UL 1283 5th edition,
CSA 22.2 No.8
25/085/21
[in accordance with
EN 60068-1]
2150 Vdc Phase/Phase,
2700 Vdc Phase/PE
Leakage current measured
against the maximum
permissible input voltage
fluctuation in accordance
with IEC 38 ±10 %
Leakage current by loss of
two phases
Subject to change
540
