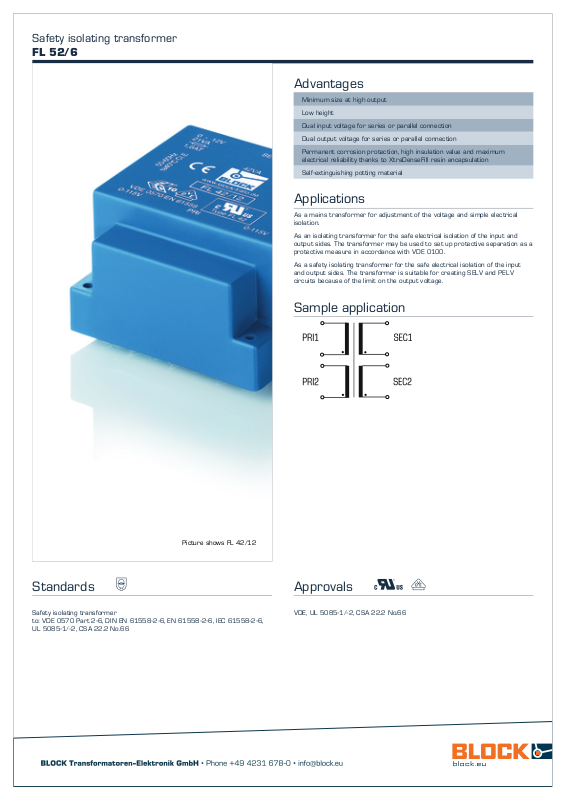

Block FL52/6 Catalog Page

Safety isolating transformer

FL 52/6

Advantages

Minimum size at high output

Low height

Dual input voltage for series or parallel connection

Dual output voltage for series or parallel connection

Permanent corrosion protection, high insulation value and maximum
electrical reliability thanks to XtraDenseFill resin encapsulation

Self-extinguishing potting material

Applications

As a mains transformer for adjustment of the voltage and simple electrical
isolation.

As an isolating transformer for the safe electrical isolation of the input and
output sides. The transformer may be used to set up protective separation as a
protective measure in accordance with VDE 0100.

As a safety isolating transformer for the safe electrical isolation of the input
and output sides. The transformer is suitable for creating SELV and PELV
circuits because of the limit on the output voltage.

Sample application

Picture shows FL 42/12

Standards 2 Z

Safety isolating transformer
to: VDE 0570 Part 2-6, DIN EN 61558-2-6, EN 61558-2-6, IEC 61558-2-6,
UL 5085-1/-2, CSA 22.2 No.66

Approvals W w Z

VDE, UL 5085-1/-2, CSA 22.2 No.66

Safety isolating transformer

3.1

0.0

PRI SEC

53.5

75.0

86.5

16.5

49.0

x

10.0

37.0

60.0

15.0

27.0

6.5

0.5

70.0

1.0

+

-

30

FL 52/6

Type FL 52/6

Input

Rated input voltage
Rated frequency

Output

Rated output voltage
Rated Power
No-load voltage (app. x factor)
No-load loss (typ.)
Efficiency

Standards

Classification

Approvals

Approvals

Environment

Ambient temperature max.

Safety and protection

Type
Insulation class
Protection index
Safety class (prepared)
Short circuit strength

Order numbers

Order Number

2 x 115 Vac
50 - 60 Hz

2 x 6 Vac
52 VA

1.12

4.00 W

81.0 %

Safety isolating transformer

cURus, VDE

40 °C

Encapsulated
VDE=E, UL=class 105
IP 00
II
non-short-circuit proof

FL 52/6

Type FL 52/6

Terminal and mounting

Terminals

Measures and weights

Core type
Weight

Pins for PCB

UI 48/26

0.98 kg
