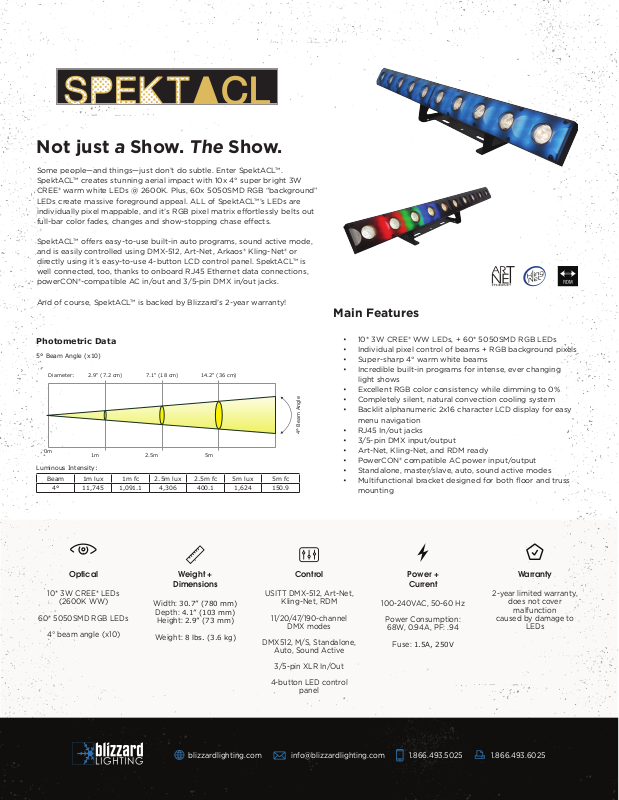

Page 1
Not just Show. Show.
Some people—and things—just don’t do subtle. Enter SpektACL™.
SpektACL™ creates stunning aerial impact with 10x 4° super bright 3W
CREE® warm white LEDs @ 2600K. Plus, 60x 5050SMD RGB “background”
LEDs create massive foreground appeal. ALL of SpektACL™’s LEDs are
individually pixel mappable, and it’s RGB pixel matrix eortlessly belts out
full-bar color fades, changes and show-stopping chase eects.
SpektACL™ oers easy-to-use built-in auto programs, sound active mode,
and is easily controlled using DMX-512, Art-Net, Arkaos® Kling-Net® or
directly using it’s easy-to-use 4-button LCD control panel. SpektACL™ is
well connected, too, thanks to onboard RJ45 Ethernet data connections,
powerCON®-compatible AC in/out and 3/5-pin DMX in/out jacks.
And of course, SpektACL™ is backed by Blizzard’s 2-year warranty!
Thea
Main Features
Photometric Data
5° Beam Angle (x10)
2.9" (7.2 cm) 7.1" (18 cm) 14.2" (36 cm)Diameter:
0m
Luminous Intensity:
Beam 1m lux 1m fc 2.5m lux 2.5m fc 5m lux 5m fc
4° 11,745 1,091.1 4,306 400.1 1,624 150.9
1m 2.5m 5m
Optical
Weight +
Dimensions
10* 3W CREE® LEDs
(2600K WW)
60* 5050SMD RGB LEDs
4° beam angle (x10)
Width:
Depth:
Height:
Weight:
30.7” (780 mm)
4.1” (103 mm)
2.9” (73 mm)
8 lbs. (3.6 kg)
• 10* 3W CREE® WW LEDs, + 60* 5050SMD RGB LEDs
• Individual pixel control of beams + RGB background pixels
• Super-sharp 4° warm white beams
• Incredible built-in programs for intense, ever changing
• Excellent RGB color consistency while dimming to 0%
• Completely silent, natural convection cooling system
• Backlit alphanumeric 2x16 character LCD display for easy
4° Beam Angle
• RJ45 In/out jacks
• 3/5-pin DMX input/output
• Art-Net, Kling-Net, and RDM ready
• PowerCON® compatible AC power input/output
• Standalone, master/slave, auto, sound active modes
• Multifunctional bracket designed for both floor and truss
Control
USITT DMX-512, Art-Net,
Kling-Net, RDM
11/20/47/190-channel
DMX modes
DMX512, M/S, Standalone,
Auto, Sound Active
3/5-pin XLR In/Out
4-button LED control
panel
light shows
menu navigation
mounting
Power +
Current
100-240VAC, 50-60 Hz
Power Consumption:
68W, 0.94A, PF: .94
Fuse:
1.5A, 250V
Warranty
2-year limited warranty,
does not cover
malfunction
caused by damage to
LEDs
blizzardlighting.com
info@blizzardlighting.com 1.866.493.6025
1.866.493.5025
