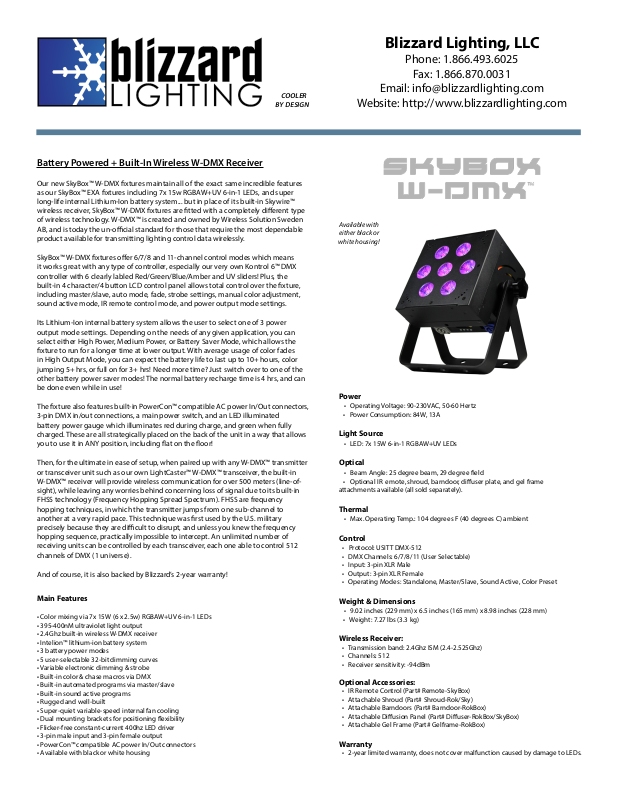

Blizzard SkyBox W-DMX Datasheet

COOLER

BY DESIGN

Battery Powered + Built-In Wireless W-DMX Receiver

Our new SkyBox™ W-DMX xtures maintain all of the exact same incredible features
as our SkyBox™ EXA xtures including 7x 15w RGBAW+UV 6-in-1 LEDs, and super
long-life internal Lithium-Ion battery system... but in place of its built-in Skywire™
wireless receiver, SkyBox™ W-DMX xtures are tted with a completely dierent type
of wireless technology. W-DMX™ is created and owned by Wireless Solution Sweden
AB, andis today the un-ocial standard for those that require the most dependable
product available for transmitting lighting control data wirelessly.

SkyBox™ W-DMX xtures oer 6/7/8 and 11-channel control modes which means
it works great with any type of controller, especially our very own Kontrol 6™ DMX
controller with 6 clearly labled Red/Green/Blue/Amber and UV sliders! Plus, the
built-in 4 character/4 button LCD control panel allows total control over the xture,
including master/slave, auto mode, fade, strobe settings, manual color adjustment,
sound active mode, IR remote control mode,and power output mode settings.

Its Lithium-Ion internal battery system allows the user to select one of 3 power
output mode settings. Depending on the needs of any given application, you can
select either High Power, Medium Power, or Battery Saver Mode, which allows the
xture to run for a longer time at lower output. With average usage of color fades
in High Output Mode, you can expect the battery life to last up to 10+ hours, color
jumping 5+ hrs, or full on for 3+ hrs! Need more time? Just switch over to one of the
other battery power saver modes! The normal battery recharge time is 4 hrs, and can
be done even while in use!

The xture also features built-in PowerCon™ compatible AC power In/Out connectors,
3-pin DMX in/out connections, a main power switch, and an LED illuminated
battery power gauge which illuminates red during charge, and green when fully
charged.These are all strategically placed on the back of the unit in a way that allows
you to use it in ANY position, including at on the oor!

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

Available with
either black or
white housing!

Power

• Operating Voltage: 90-230VAC, 50-60 Hertz

• Power Consumption: 84W, 13A

Light Source

• LED: 7x 15W 6-in-1 RGBAW+UV LEDs

Then, for the ultimate in ease of setup, when paired up with any W-DMX™ transmitter
or transceiver unit such as our own LightCaster™ W-DMX™ transceiver, the built-in
W-DMX™ receiver will provide wireless communication for over 500 meters (line-of­sight), while leaving any worries behind concerning loss of signal due to its built-in
FHSS technology (Frequency Hopping Spread Spectrum). FHSS are frequency
hopping techniques, in which the transmitter jumps from one sub-channel to
another at a very rapid pace. This technique was rst used by the U.S. military
precisely because they are dicult to disrupt, and unless you knew the frequency
hopping sequence, practically impossible to intercept. An unlimited number of
receiving units can be controlled by each transceiver, each one able to control 512
channels of DMX (1 universe).

And of course, it is also backed by Blizzard’s 2-year warranty!

Main Features

• Color mixing via 7x 15W (6 x 2.5w) RGBAW+UV 6-in-1 LEDs

• 395-400nM ultraviolet light output

• 2.4Ghz built-in wireless W-DMX receiver

• Intelion™ lithium-ion battery system

• 3 battery power modes

• 5 user-selectable 32-bit dimming curves

• Variable electronic dimming & strobe

• Built-in color & chase macros via DMX

• Built-in automated programs via master/slave

• Built-in sound active programs

• Rugged and well-built

• Super-quiet variable-speed internal fan cooling

• Dual mounting brackets for positioning exibility

• Flicker-free constant-current 400hz LED driver

• 3-pin male input and 3-pin female output

• PowerCon™ compatible AC power In/Out connectors

• Available with black or white housing

Optical

• Beam Angle: 25 degree beam, 29 degree eld

• Optional IR emote, shroud, barndoor, diuser plate, and gel frame
attachments available (all sold separately).

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512

• DMX Channels: 6/7/8/11 (User Selectable)

• Input: 3-pin XLR Male

• Output: 3-pin XLR Female

• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Weight & Dimensions

• 9.02 inches (229 mm) x 6.5 inches (165 mm) x 8.98 inches (228 mm)

• Weight: 7.27 lbs (3.3 kg)

Wireless Receiver:

• Transmission band: 2.4Ghz ISM (2.4-2.525Ghz)

• Channels: 512

• Receiver sensitivity: -94dBm

Optional Accessories:

• IR Remote Control (Part# Remote-SkyBox)

• Attachable Shroud (Part# Shroud-Rok/Sky)

• Attachable Barndoors (Part# Barndoor-RokBox)

• Attachable Diusion Panel (Part# Diuser-RokBox/SkyBox)

• Attachable Gel Frame (Part# Gelframe-RokBox)

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
