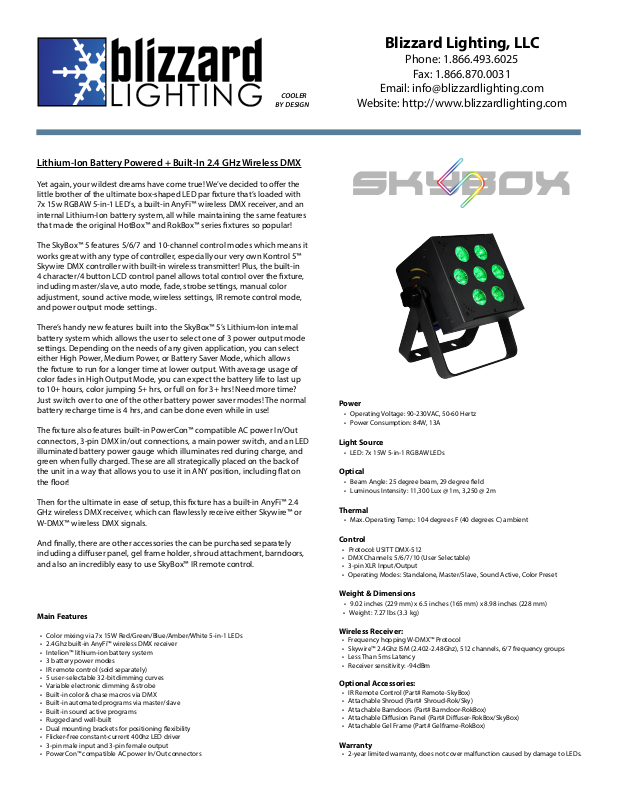

Blizzard SkyBox 5 Datasheet

COOLER

SKYBOX

BY DESIGN

Lithium-Ion Battery Powered + Built-In 2.4 GHz Wireless DMX

Yet again, your wildest dreams have come true! We’ve decided to oer the
little brother of the ultimate box-shaped LED par xture that’s loaded with
7x 15w RGBAW 5-in-1 LED’s, a built-in AnyFi™ wireless DMX receiver, and an
internal Lithium-Ion battery system, all while maintaining the same features
that made the original HotBox™ and RokBox™ series xtures so popular!

The SkyBox™ 5 features 5/6/7 and 10-channel control modes which means it
works great with any type of controller, especially our very own Kontrol 5™
Skywire DMX controller with built-in wireless transmitter! Plus, the built-in
4 character/4 button LCD control panel allows total control over the xture,
including master/slave, auto mode, fade, strobe settings, manual color
adjustment, sound active mode, wireless settings, IR remote control mode,
and power output mode settings.

There’s handy new features built into the SkyBox™ 5’s Lithium-Ion internal
battery system which allows the user to select one of 3 power output mode
settings. Depending on the needs of any given application, you can select
either High Power, Medium Power, or Battery Saver Mode, which allows
the xture to run for a longer time at lower output. With average usage of
color fades in High Output Mode, you can expect the battery life to last up
to 10+ hours, color jumping 5+ hrs, or full on for 3+ hrs! Need more time?
Just switch over to one of the other battery power saver modes! The normal
battery recharge time is 4 hrs, and can be done even while in use!

The xture also features built-in PowerCon™ compatible AC power In/Out
connectors, 3-pin DMX in/out connections, a main power switch, and an LED
illuminated battery power gauge which illuminates red during charge, and
green when fully charged. These are all strategically placed on the back of
the unit in a way that allows you to use it in ANY position, including at on
the oor!

Then for the ultimate in ease of setup, this xture has a built-in AnyFi™ 2.4
GHz wireless DMX receiver, which can awlessly receive either Skywire™ or
W-DMX™ wireless DMX signals.

And nally, there are other accessories the can be purchased separately
including a diuser panel, gel frame holder, shroud attachment, barndoors,
and also an incredibly easy to use SkyBox™ IR remote control.

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

Power

• Operating Voltage: 90-230VAC, 50-60 Hertz

• Power Consumption: 84W, 13A

Light Source

• LED: 7x 15W 5-in-1 RGBAW LEDs

Optical

• Beam Angle: 25 degree beam, 29 degree eld

• Luminous Intensity: 11,300 Lux @ 1m, 3,250 @ 2m

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512

• DMX Channels: 5/6/7/10 (User Selectable)

• 3-pin XLR Input/Output

• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset

Main Features

• Color mixing via 7x 15W Red/Green/Blue/Amber/White 5-in-1 LEDs

• 2.4Ghz built-in AnyFi™ wireless DMX receiver

• Intelion™ lithium-ion battery system

• 3 battery power modes

• IR remote control (sold separately)

• 5 user-selectable 32-bit dimming curves

• Variable electronic dimming & strobe

• Built-in color & chase macros via DMX

• Built-in automated programs via master/slave

• Built-in sound active programs

• Rugged and well-built

• Dual mounting brackets for positioning exibility

• Flicker-free constant-current 400hz LED driver

• 3-pin male input and 3-pin female output

• PowerCon™ compatible AC power In/Out connectors

Weight & Dimensions

• 9.02 inches (229 mm) x 6.5 inches (165 mm) x 8.98 inches (228 mm)

• Weight: 7.27 lbs (3.3 kg)

Wireless Receiver:

• Frequency hopping W-DMX™ Protocol

• Skywire™ 2.4Ghz ISM (2.402-2.48Ghz), 512 channels, 6/7 frequency groups

• Less Than 5ms Latency

• Receiver sensitivity: -94dBm

Optional Accessories:

• IR Remote Control (Part# Remote-SkyBox)

• Attachable Shroud (Part# Shroud-Rok/Sky)

• Attachable Barndoors (Part# Barndoor-RokBox)

• Attachable Diusion Panel (Part# Diuser-RokBox/SkyBox)

• Attachable Gel Frame (Part# Gelframe-RokBox)

Warranty

• 2-year limited warranty, does not cover malfunction caused by damage to LEDs.
