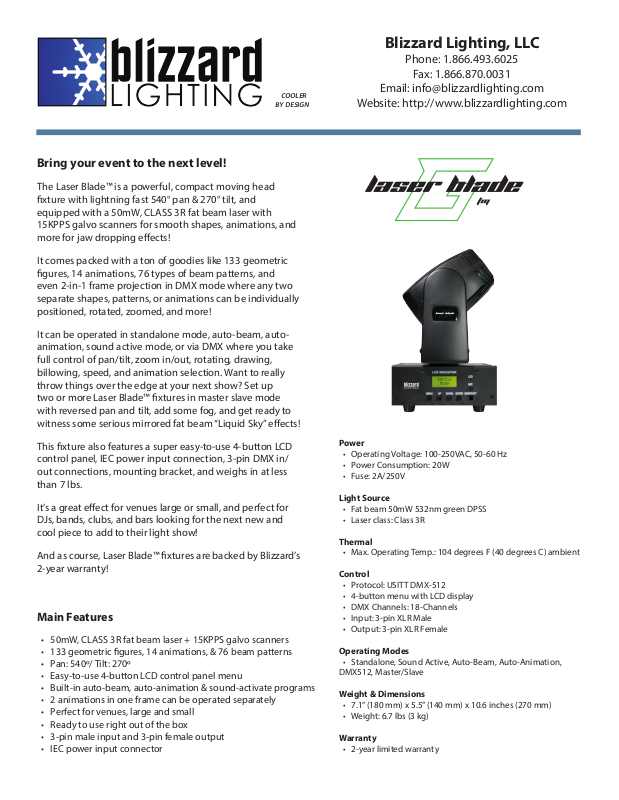

Blizzard Laser Blade G Datasheet

COOLER

BY DESIGN

Bring your event to the next level!

The Laser Blade™ is a powerful, compact moving head
xture with lightning fast 540° pan & 270° tilt, and
equipped with a 50mW, CLASS 3R fat beam laser with
15KPPS galvo scanners for smooth shapes, animations, and
more for jaw dropping eects!

It comes packed with a ton of goodies like 133 geometric
gures, 14 animations, 76 types of beam patterns, and
even 2-in-1 frame projection in DMX mode where any two
separate shapes, patterns, or animations can be individually
positioned, rotated, zoomed, and more!

It can be operated in standalone mode, auto-beam, auto­animation, sound active mode, or via DMX where you take
full control of pan/tilt, zoom in/out, rotating, drawing,
billowing, speed, and animation selection. Want to really
throw things over the edge at your next show? Set up
two or more Laser Blade™ xtures in master slave mode
with reversed pan and tilt, add some fog, and get ready to
witness some serious mirrored fat beam “Liquid Sky” eects!

Blizzard Lighting, LLC

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Website: http://www.blizzardlighting.com

This xture also features a super easy-to-use 4-button LCD
control panel, IEC power input connection, 3-pin DMX in/
out connections, mounting bracket, and weighs in at less
than 7 lbs.

It’s a great eect for venues large or small, and perfect for
DJs, bands, clubs, and bars looking for the next new and
cool piece to add to their light show!

And as course, Laser Blade™ xtures are backed by Blizzard’s
2-year warranty!

Main Features

• 50mW, CLASS 3R fat beam laser + 15KPPS galvo scanners

• 133 geometric gures, 14 animations, & 76 beam patterns

• Pan: 540º/ Tilt: 270º

• Easy-to-use 4-button LCD control panel menu

• Built-in auto-beam, auto-animation & sound-activate programs

• 2 animations in one frame can be operated separately

• Perfect for venues, large and small

• Ready to use right out of the box

• 3-pin male input and 3-pin female output

• IEC power input connector

Power

• Operating Voltage: 100-250VAC, 50-60 Hz

• Power Consumption: 20W

• Fuse: 2A/250V

Light Source

• Fat beam 50mW 532nm green DPSS

• Laser class: Class 3R

Thermal

• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

Control

• Protocol: USITT DMX-512

• 4-button menu with LCD display

• DMX Channels: 18-Channels

• Input: 3-pin XLR Male

• Output: 3-pin XLR Female

Operating Modes

• Standalone, Sound Active, Auto-Beam, Auto-Animation,
DMX512, Master/Slave

Weight & Dimensions

• 7.1” (180 mm) x 5.5” (140 mm) x 10.6 inches (270 mm)

• Weight: 6.7 lbs (3 kg)

Warranty

• 2-year limited warranty
