Instruction Manual

2004-up models 5speed and Automatic

Scion xA/xB

Blitz Global Network Authorized Distributor
Options Auto Salon

985 N. Todd Ave., Azusa, CA 91702
phone: [phone]
fax: [phone]
www.blitzpowerusa.com

VERSION 2.0 3/05

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

Safety Note

■ In beginning

* Please read this throughly and fully understand this instruction manual.
* Please have a factory service manual on hand. Refer to service manual for any addition
procedures not provided in this instruction manual.
* By installing this product, Blitz Co., Ltd. (Japan) will not be responsible for any damages,
injuries, incidential parts and be liable for any type of cost and damages.
* Please acknowledge that Blitz Co., Ltd. (Japan) and any of Blitz Co., Ltd. (Japan)‘s Dealers will
not be liable for any damages to the vehicle or injuries.
* Blitz Co., Ltd. (Japan) has the right to change/upgrade any kits without prior notice.
* Please look through the parts list before the installation of this product. Make sure that all parts
are available before installation. If any parts are missing, please contact your place of purchase.
* Please tighten the nuts/bolts securely with a suitable tool. Please do not over-tighten the bolts.
Over-tightening the bolts may result in damage to the bolts, to the unit itself, and cause operating
malfuctions.

Important Note:

* This kit was produced for a standard stock car. In the case where this kit is installed on a vehicle
other than stock, we are unable to guarantee its fuctional efficiency and durability of the product.
* Please be careful when installing this product, whereas no foreign objects or liquids get into it.
The result of foreign materials getting mixed into the products may cause malfuctions in the
products.
* During installation, incase of any uncertainties, it is important to have a factory service manual
at hand. When there is no techinical assistance, please refer to service manual.
* Before test-driving the vehicle, make sure that everything is fully functioning in the vehicle.
Check fluid levels such as oil, fuel, and water. Driving the vehicle with leaks may result in engine
damage or even car fire.
* This kit requires High Octane fuel. Low Octane fuel may generate knocking, and if knocking
persists, it may result in engine detonation. Please use High Octane gas to prevent such a
situation.
* In the case where the kit is installed, please replace the “stock” spark plugs with “high heat­range” spark plugs. <We recommend Blitz Iridium 77 Spark Plugs>
* Please do not attempt to disassemble the items within the kit. It may cause a change in
computer pitch settings which may result in engine damage.
* Blitz also recommends the use of intake systems (Sus Power Air Cleaner#26059/Sus Power
Core type LM () to increase response and top-end power.
*Blitz also recommends using a Nur W axle back exhaust system for less bask pressure and
increased flow #67050B/Mt2010xA.
* Remove the EFI fuse for 15 second or more to reset ECU. Reconnect the fuse and check it.
* Let the engine idle for 5-10 minutes until idle settles.
* In the kits that include Fuel Controllers, please do not disassemble it for any reason. Doing so
may cause the pitch settings to falter, which may result in engine damage.
< Installer >
After installation is complete, please be sure to return this instruction manual to the customer.
Before starting job, please be sure to inspect the parts before installation.

■Please make sure that there are no cracks in the factory hoses and belts. Also the car is in

good running condition and does not need any type of maintance or repair. If the car needs
service please do so before installing the Blitz Compressor kit.
Check and familiarize yourself with all parts provided in this kit before installing.

(2) Application
* Product name: BLITZ COMPRESSOR SYSTEM

For Scion xA/xB 2004-up Models
Automatic and 5 speed

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

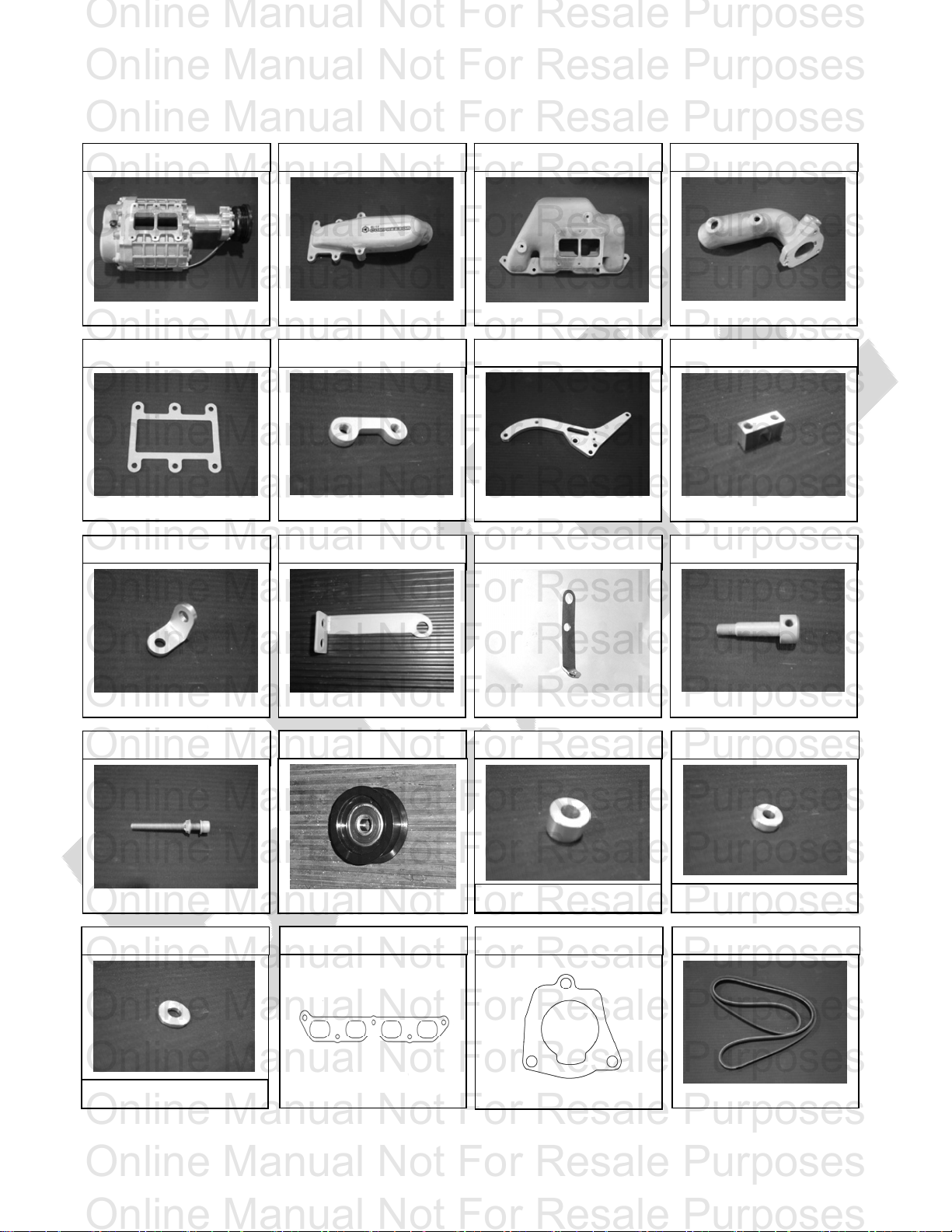

(3) Part list

1.Compressor Assy x1 2. Compressor tube x1 3. Intake manifold x 1 4. Intake pipe x 1

5. Compressor gasket x 1

9．Bracket x 1

13．Tension adjuster x 1

17．Spacer B x 2

φ２２-φ１０ ｈ=４mm

6．Alternator bracket x 1 7．Bracket A x 1 8．Tension bracket B x 1

10．Trans. Bracket x 1

14．Pulley x 1

18. Ex. Manifold gasket x 1

11．Dip stick bracket x 1

15．Spacer x 1

φ２２-φ１２ ｈ=１６．５mm

19. Throttle body gasket x 1

12．Tension bolt x 1

16．Spacer A x 1

φ１８-φ８ ｈ=７mm

20. Belt x1

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

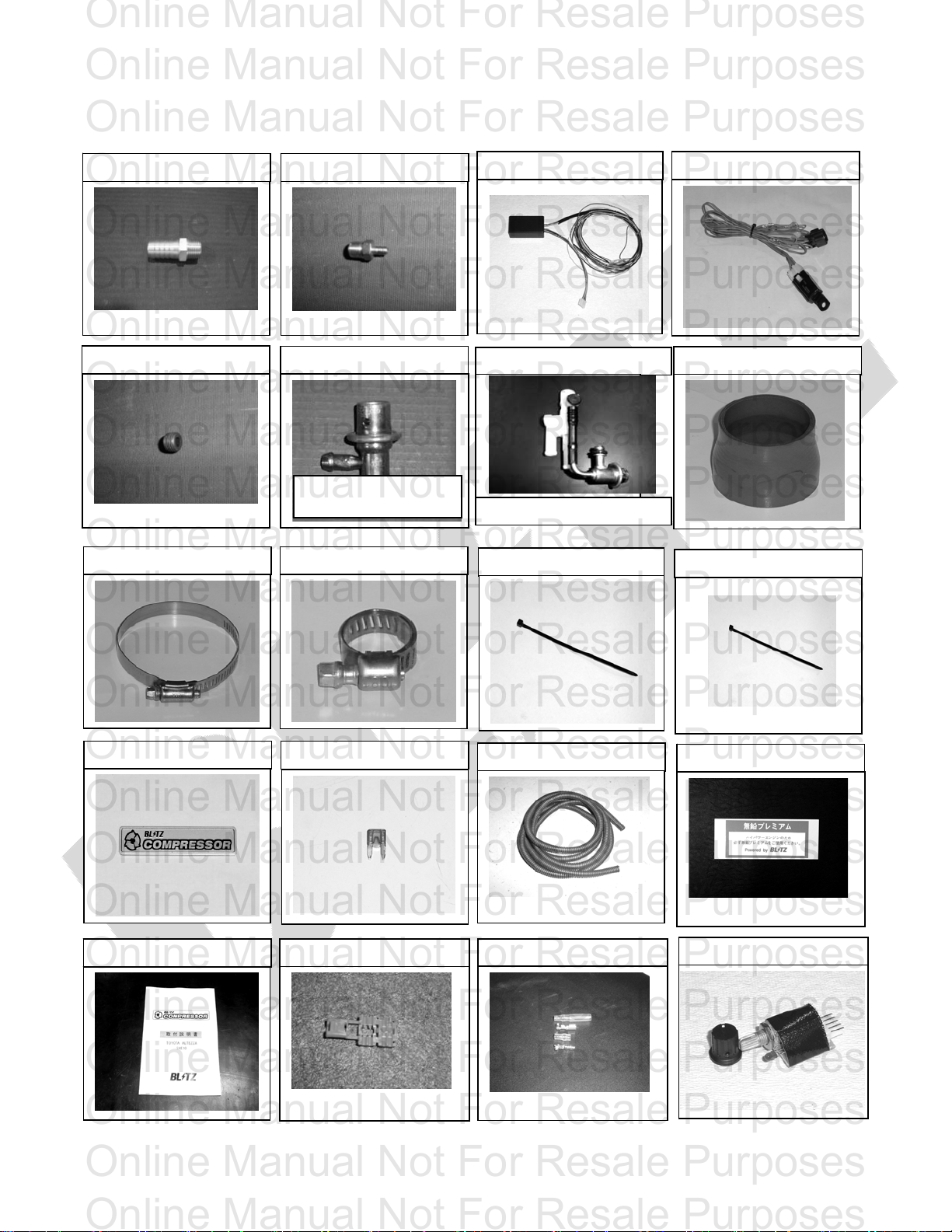

21. V acuum fitting large x 2

25．Press port plug x１

28. Large hose clamp x2

32．Blitz emblem x 1

36．Instruction manual x1

22. V acuum fitting small x 1

26. Fuel regulator x1

NOT USED IN USA

29．Small hose clamp x2

33. 20v Amp fuse x 1

37．Wire taps x１１

23．S/C activation box x1

26Ｂ．Fuel regulator x１

NOT USED IN USA MODELS

30．Large wire ties x1０

34. Wire loom x 1

38. M/F bullet connectors

27．Silicone hose x１

31. Small wireties x１０

35. Blitz warning decal x２

39．Activation switch x１

①

②

③

④

⑤

⑥

⑦

⑧Big

⑨Cap

⑩Cap

⑪Cap

⑫

⑬

⑭

⑮

⑰

⑯

⑱

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

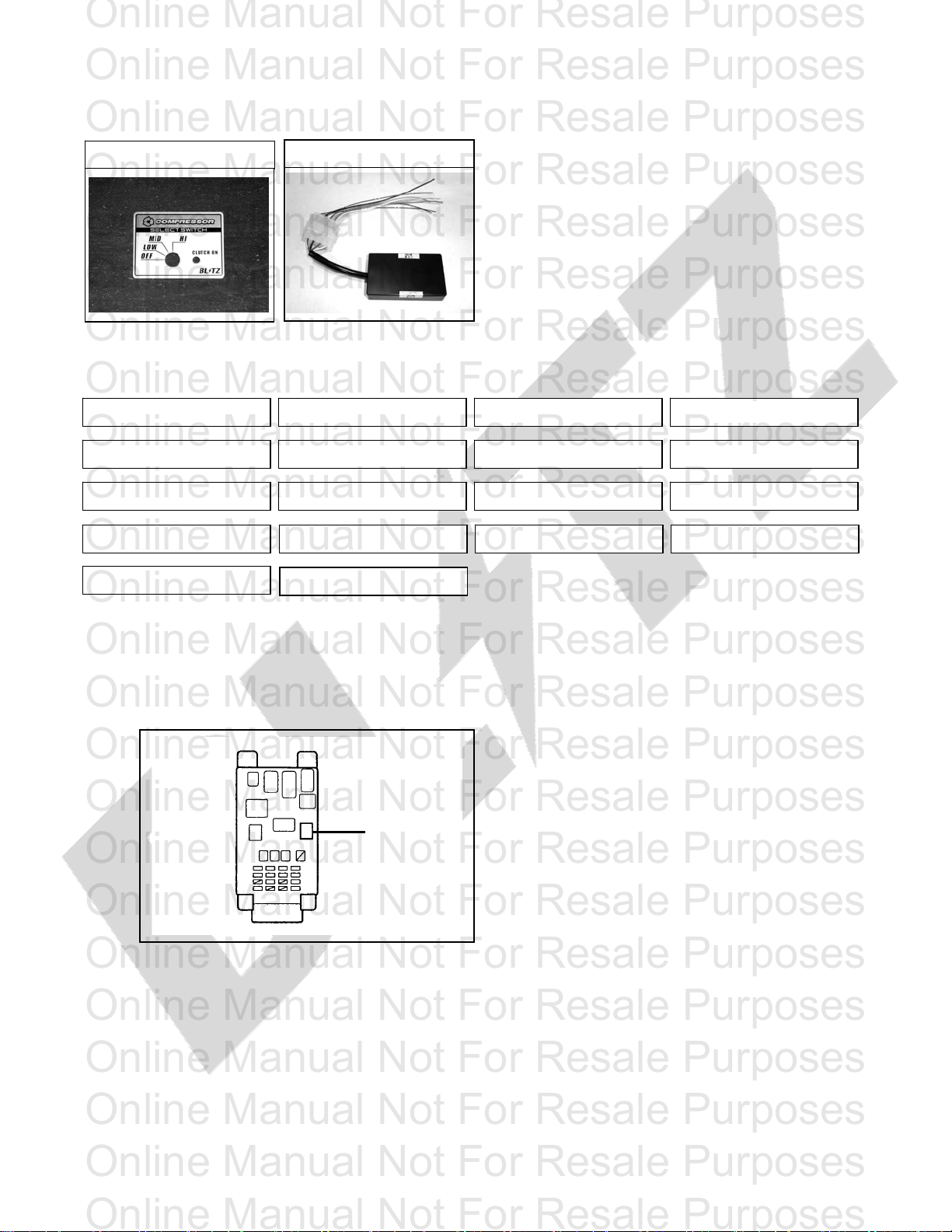

40．Switch template x1

Flange Bolt M6×16 7ヶ

Flange Bolt M8×35 1ヶ

Bolt M6×25 2ヶ

Flange Nut M8 2ヶ

Stud Bolt M8 3ヶ

(4) Relieving fuel pressure on fuel pump

Under Dash Fuse box

41．Fuel control unit x１

Flange Bolt M6×35 2ヶ

Flange Bolt M10×25 1ヶ

Bolt M8×20 2ヶ

Flange Nut M10 2ヶ

Flange Bolt M8×45 1ヶ

Fuel Pump
relay

Flange Bolt M8×20 1ヶ

Flange Bolt M10×35 1ヶ

Bolt M8×30 2ヶ

Washer M10 3ヶ

(1) Locate and remove the fuse box panel
under dash. (It is located under the dash on
the drivers side). Locate and remove fuel
pump relay. It is the blue relay on the right
hand side above the fuses

(2) Start motor and let the engine use up the
excess fuel pressure (motor will stop in 10-15
sec due to no fuel pressure). Turn Ignition off
after the car has stopped.

(3) Remove the negative terminal of the
battery.

(4) Reinstall fuel pump relay.
* As for circuit opening relay it is under the

right of the driver's seat handle.

Flange Bolt M8×30 2ヶ

Bolt M10×55 3ヶ

Flange Nut M6 6ヶ

Stud Bolt M6 5ヶ

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

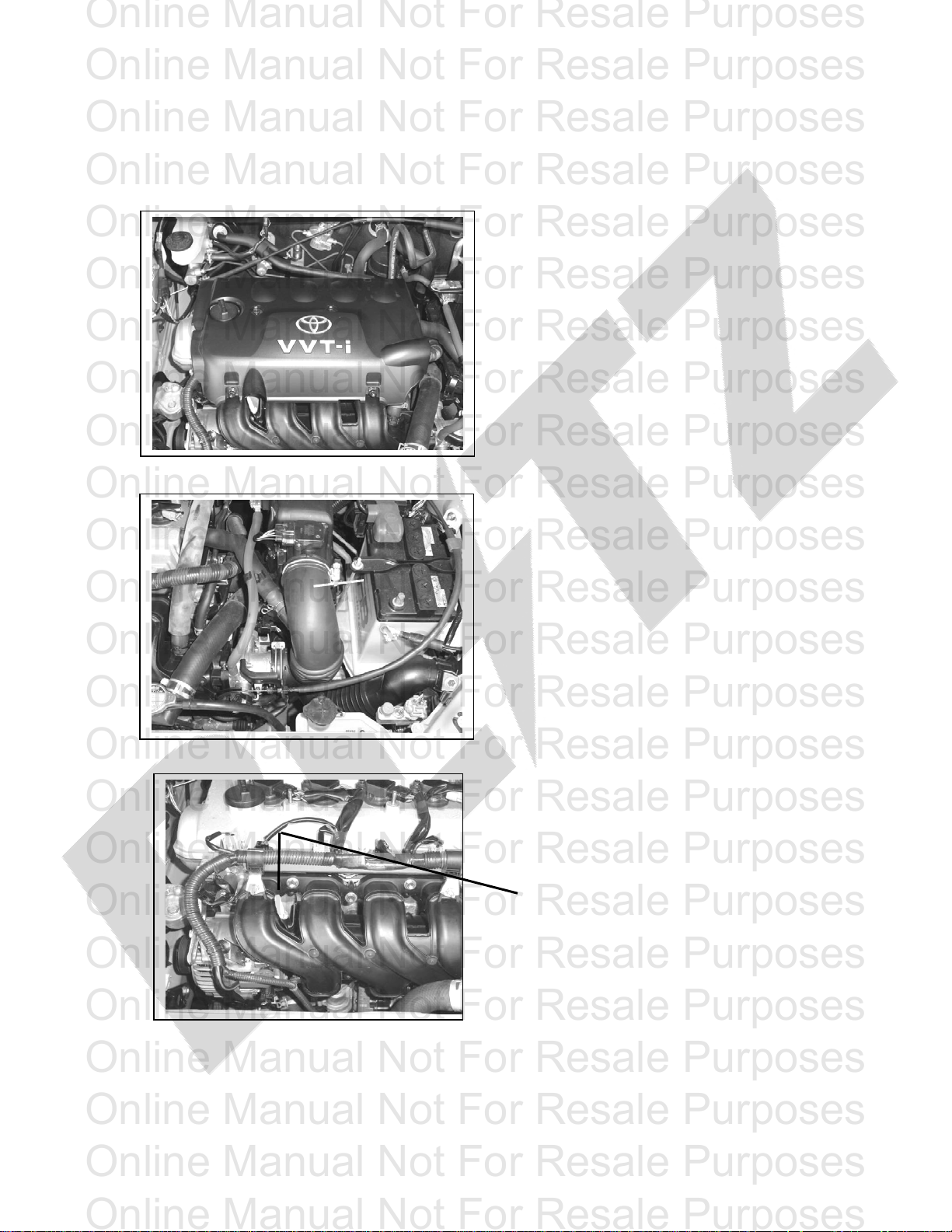

(5) Removal of OEM/factory parts

Harness brackets

Air cleaner
Hose

1. Remove engine cover.

2. Remove the factory air cleaner hose.

3. Remove the 2 bolts connecting engine

harness to intake manifold. Remove brackets
from engine harness.

A

Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes
Online Manual Not For Resale Purposes

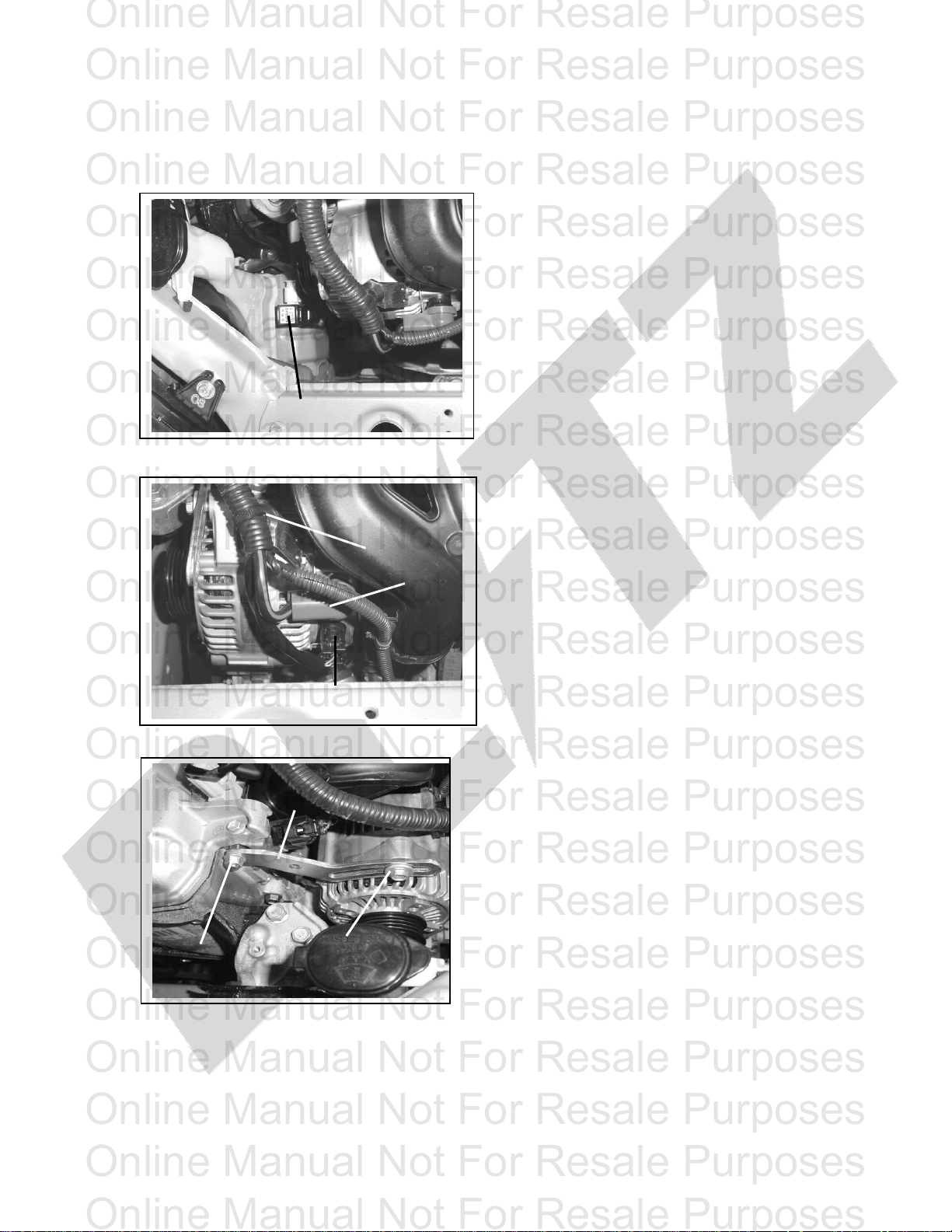

Nut

ir bag sensor

Clamp

B
terminal

Coupler

Bracket

Bolt

4. Remove air bag sensor. *WARNING
Make sure the battery is disconnected*

5. Remove alternator harness. Remove
strap, +12V terminal, and the connector
plug.

6. Loosen adjustment bolt, Remove
alternator belt.

7. Remove nut, bolt, and alternator bracket
as illustrated.
