XLf 180 A
ACTIVE SUBWOOFER
Operating and Installation Instructions
Enjoy it.
INTRODUCTION
Proper system planning is vital in order to
maximize the device’s performance and road
safety. Plan your installation carefully to avoid
compromising performance reliability of the
system. Consult an authorized Blaupunkt
dealer for installation or reparation. Read the
manual carefully before operating the device
for the rst time.
Safety Notes
Ensure to follow below safety notes during
installation and wiring connection : -
•
Disconnect the negative terminal of the
battery. Refer to the safety notes of vehicle
manufacturer.
•
Ensure positions of the holes are nowhere
near the vehicle component to avoid any
damage during drilling.
Ensure cross section of the cable is no less
•
than 2.5mm2 if the positive and negative
cables are too long.
Incorrect installation may result in
•
malfunction of the device or the car sound
system.
Installation and Connection Instructions
Select a dry and well-ventilated location
•
to install the device.
The device must not be installed in overly
•
exposed location such on the rear shelf,
rear seat etc.
The installation location must be suitable for
•
screw holes and have stable ground support.
Disclaimer
In no event shall Blaupunkt be liable for any
•
direct, indirect, punitive, incidental, special
consequential damages, to property or life,
improper storage, whatsoever arising out of
or connected with the use or misuse of our
products.
USA & CANADA : Product not intended for
•
sale in the United States and Canada. If
purchased in the U.S. or Canada, this product
is purchased as-is. No warranty, express or
implied is provided in the U.S. and Canada.
Voltage Supply
Use the supplied power extension cable to
•
connect to the positive battery terminal.
Firmly and carefully connect the ground lead
•
to a bare metal point on the vehicle chassis.
The control of the device should be a
•
two-channel control, either via the preamplier
outputs or the loudspeaker, output of the car
sound system.
A control solely via the right or left channel is
•
also possible since the low-frequency portion
of the music is generally identical on both
channels.
Integrated Fuse
The integrated fuse in the device protects the
output voltage and the entire electrical system in
case of malfunction. Do not replace damaged
fuse with higher current.
Switching On/O
This device will automatically turn on if a music
signal is detected. The device will also
automatically turn o if no music signal is received.
Remote Control
1. Power Indicator
2. Gain adjustment
Turn the gain knob to adjust
the volume to the
desired level.
Recycling and Disposal
Please dispose responsibly.
Subject to change.
1
FUNCTION CONTROLLING DIAGRAM
1. SPEAKER POWER/SPEAKER INPUT (COMMON COUPLER)
2. RCA INPUT (LCH, RCH)
3. REMORE CONTROL INPUT
4. GAIN INPUT
5. BASS BOOST (0dB ~ +18dB)
6. LOW PASS (50Hz ~ 150Hz)
7. POWER LIGHT
8. PROTECTION LED LIGHT
9. PHASE (0° ~ 180°)
10. AUTO POWER ON (ON/OFF)
Specications
Amplier
Amplier Technology : Class AB
•
Normal Output Power (RMS) : 180W
•
Max Output Power : 450W
•
Audio in Sensitivity : RCA input 0.2V-10V,
•
Speaker input 0.6V-12V
Signal/Noise Ratio : 91dB
•
Output Impedance : 2 ohms
•
Frequency Response : 30Hz-150Hz
•
Low Pass Filter (LPF) : 50Hz-150Hz
•
Voltage : 14.4V (10V-16V)
•
Phase Switch : 0 deg /180 deg
•
Automatic On/O : High Level Only
•
Fuse Rating : 25A
•
Gain : 200mV – 6V
•
Passive Radiator : 192 x 60mm
•
Variable Bass Boost : 0 – 18dB
•
Subwoofer
Speaker Size : 8”
•
Cone Composition : Aluminium
•
Magnet Type : Ferrite
•
Enclosure Housing Material : Aluminium
•
Enclosure Dimension (WxDxH) : 345 x 260 x 75mm
•
Enclosure Net Weight : 2.65kg
•
2
INSTALLATION POSITION
DOWN FIRING POSITION
SIDE FIRING POSITION
UP FIRING POSITION
3

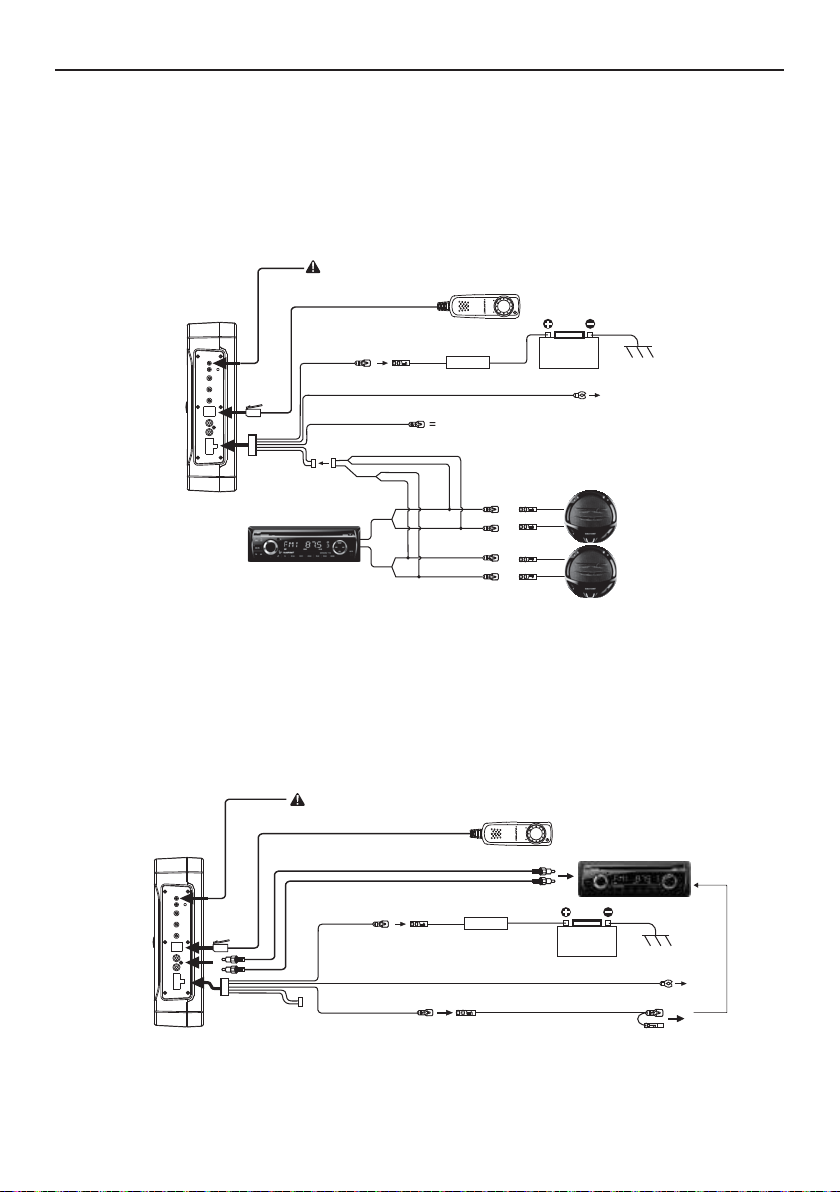

WIRING DIAGRAM
Use the supplied cable and wire harness to connect the outputs correctly by referring to
Diagram 1 & Diagram 2
Diagram 1 (High Level Input - Speaker Input)
AUTO POWER ON/OFF
REMOTE CONTROL
12V
CHASSIS
GROUND
WHITE/BLACK (-) &
WHITE WIRE (+)
AUDIO DEVICE
YELLOW WIRE
CONNECT BLACK WIRE TO THE CHASSIS OF THE VEHICLE
BLUE/WHITE WIRE
GREY/BLACK (-) & GREY WIRE (+)
AUDIO
DEVICE
25A
FUSE
NOT IN USE IN THIS TYPE OF INSTALLATION
SPEAKER
RIGHT CHANNEL OUTPUT WIRE
SPEAKER
LEFT CHANNEL OUTPUT WIRE
BATTERY
Diagram 2 (Low Level Input - RCA Input)
AUTO POWER ON/OFF
REMOTE CONTROL
RCA SIGNAL WIRE (NOT INCLUDED)
YELLOW WIRE
CONNECT BLACK WIRE TO THE CHASSIS OF THE VEHICLE
NOT IN USE
IN THIS TYPE
OF INSTALLATION
BLUE/WHITE WIRE AUDIO DEVICE CONTROL WIRE
25A
FUSE
12V
BATTERY
AUDIO DEVICE
CHASSIS
GROUND
4
TROUBLESHOOTING
Examine if your wiring diagram is correct by referring to Diagram 1 & Diagram 2 in case of device
operation or performance failure. The following table indicate other possible problems and
solutions. Refer an authorized Blaupunkt dealer if problem persist.
Problem
Amplier power
up failure
Protection LED
lights on when
amplier turn on
No sound output
Low sound output
Buzzing noise
Squealing noise
interference
Distorted sound
output
Amplier
temperature
increased
Engine noise
(static sound)
interference
Engine noise
(alternator whine)
interference
Solution
Examine if the ground connection is intact.
Examine if remote input has at least 5V DC.
Examine if battery power is connected correctly to the + terminal.
Ensure supplied voltage is minimum 12V.
Examine if fuse is broken and replace if necessary.
Restart the device if protection LED light is on.
Examine speaker wire had short-circuit.
Turn volume down from head unit to prevent overdriving the device.
Device might need service or repair, if protection LED light is still on after
resetting the device.
Examine fuses and replace if necessary.
Examine ground connection is intact.
Examine if remote input has at least 5V DC.
Examine if RCA audio cables are connected to the right inputs.
Examine if speaker wiring is intact.
Reset Level Control
Examine the Crossover Control setting.
Observe if the device is still producing noise after turning on and o the
amplier. If yes, examine if the cables are correctly connected and if the
cables and radio are in good condition. Repair or replace if the cables or the
radio are not in good condition.
Ensure RCA connections are properly connected.
Ensure input level of the device matches the signal level of the head unit.
Always set the input level to the lowest.
Examine if crossover frequency is set correctly.
Examine if speaker wire had short-circuit.
Examine the minimum speaker impedance for the amp models is correct.
Ensure good air ventilation around the device. Add external cooling fan if
necessary.
Usually caused by poor RCA cable quality, which release noise. Use only the
best quality cables, and route them away from power cables.
Examine if RCA cable are nowhere near or attached to the vehicle chassis.
Examine if head unit is properly connected to the wires.
