Blaupunkt PCA460 User Manual

www.midwestelectronics.com

All power ratings conform to CEA-2006 standards.

PARAMETER/FEATURE PCA460

Channels 4/3/2

Size ( W x H x D) 10x1.9x12 inches (254x49x305mm)

Weight 6.0 lbs (2.7 kg)

Spade screw speaker terminals? YES

Maximum terminal wire size 14 ga.

Subsonic filter YES (10 Hz)

Separate front/rear or left/right gains? F/R-YES L/R-NO

Fuse Type ATC spade -Two 30A

Speaker short, short to +12V, and short to ground protection? YES

High, low, and reverse voltage protection? YES

Power output transistors BTL

Power supply transistors MOSFET

Minimum speaker impedance (non-bridged) 2 ohms

(bridged) 4 ohms

PERFORMANCE DATA

Rated power output @ 0.1% THD, 14.4V (CEA-2006)

4 channels into 4 ohms / 2 ohms (watts rms) 4 x 60 W / 4 x 80 W

2 channels into 4 ohms (watts rms) 2 x 120 W

Max Dynamic Power (watts rms) 300W

Total Harmonic Distortion @ full power 0.1% THD

Signal/Noise ratio (gain controls in center)

Measured @ 1 watt / 1 kHz dBA >80

Measured @ full rated power (0.1% THD) dBA >97

Damping factor >100

Frequency response (full-range mode) 20 - 30,000 Hz

High-pass crossover frequency limits 50 H z - 250 Hz (variable), 12dB/oct

Low-pass crossover frequency limits 50 H z - 250 Hz (variable), 12dB/oct

Bass Boost Variable (0-12dB)

Input impedance 10 kohms

Input signal voltage control range 0.3 - 6.0 vrms

Current Draw @ 13.8 VDC (typical values @ X watts / Efficiency %)

@ full rated power, unbridged (@ 4 ohms) 34 A (50%)

@ 33% rated power, unbridged (@ 4 ohms) 17 A (35%)

@ idle (@ 4 ohms) 2.5 A

Minimum battery voltage to maintain rated power 13.8 VDC

Usable battery voltage 10 - 16 VDC

Trigger line voltage range 10 - 16 VDC

Trigger line current draw < 10 mA

Turn on delay time @ 2.0 seconds

Thermal shutoff temperature (average heat-sink temp) @ 85˚ C (185˚ F)

NOTE: DUE TO ONGOING PRODUCT IMPROVEMENTS, DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT ADVANCED NOTICE TO THE CONSUMER OR RETAILER.

BLAUPUNKT SPECIFICATIONS - PCA460, 4/3/2 CHANNEL AMPLIFIER

www.midwestelectronics.com

– 1 –

Key features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Concerns & installation warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

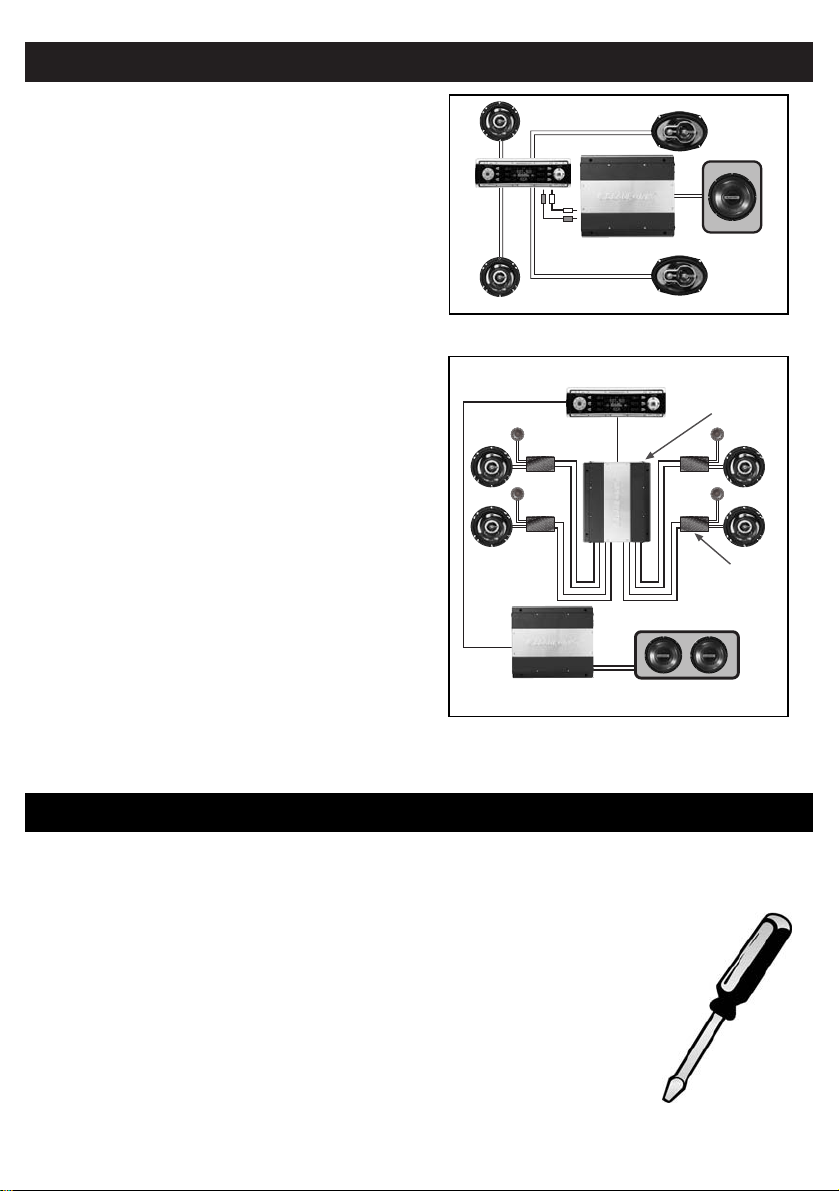

System planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Installation tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Vehicle wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Connections & controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-7

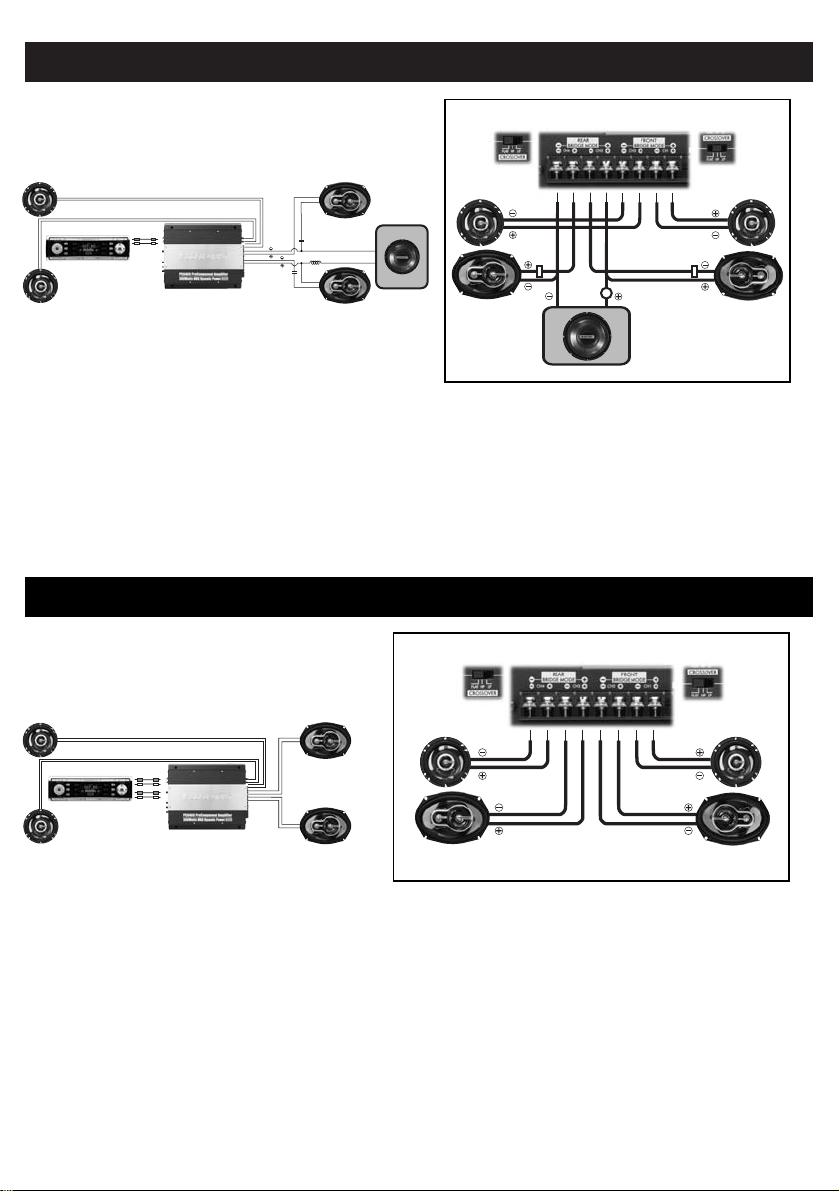

System configurations 1 & 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

System configurations 3 & 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Warranty information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Blaupunkt technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Assembly & Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

TABLE OF CONTENTS

Caractéristiques principales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Consignes de sécurité et avertissements relatifs à l’ installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Planification du système . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Outils d’installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Câblage du véhicule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Connexions & Commandes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16-17

Configuration des systèmes 1 et 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Configuration des systèmes 3 et 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Tableau de dépannage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Assistance technique de Blaupunkt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Assemblage & Montage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Couverture de dos

TABLE DES MATIÈRES

Características principales . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Consideraciones de seguridad y precauciones en la instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Planificación del sistema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Herramientas de instalación . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Alambrado del vehículo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Conexiones y Controles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-27

Configuración de los sistemas 1 y 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Configuración de los sistemas 3 y 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Cuadro de solución de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Información de garantía . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Apoyo técnico de Blaupunkt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Armadura y Montaje . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Portada Trasera

INDICE

Características-chave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Medidas de Segurança e advertências para a instalação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Planejamento do sistema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Ferramentas para a instalação . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Fiação do veículo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Conexões e controles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36-37

Configurações 1 e 2 do sistema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Configurações 3 e 4 do sistema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Quadro para solução de problemas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Informações sobre a garantia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Assistência técnica da Blaupunkt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Montagem e instalarão . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Tampa preta

ÍNDICE DAS MATÉRIAS

www.midwestelectronics.com

– 2 –

Congratulations! You are the now the owner of an exceptional car audio amplifier from the audio enthusiasts at

Blaupunkt. Our engineering staff has spent considerable time refining our PCA series amplifiers in order to introduce great
sound to the consumer at an affordable price. With these products we focus on sonic performance but balanced with
rugged design and flexible installation.

Not only do we offer you a great product but also a supportive owners manual. This manual can be used as a teaching
guide due to its brief, but informative, explanations of amplifier and system design. We are also very concerned about the
end consumer using proper installation techniques for the highest performance possible from their new audio products.
MOST important to us are the concerns with safety and the installation process. Since our Blaupunkt retail dealers have
the tools and experience for an optimized and safe installation, we always recommend they do the final vehicle integration.
But, should you choose to install these products yourself, please take the time to read this manual completely and abide
by all precautions.

THANK YOU FOR CHOOSING BLAUPUNKT!

PCA AMPLIFIER BENEFITS & FEATURES

There is a constant push for entry level amps to “play with the big dogs” yet for a low
price point. Rarely are they able to do so…. until now.

Rock solid Class AB designs ensure “in your face” sound with little fear for reliability or
performance. The rugged designs of the PCA amp line, and their remarkable input
frequency and gain setting flexibility, enable nearly any system configuration. Fat power
and speaker leads make sure all that power going in comes out the best sound possible.

Should something go wrong in the installation, have no fear. Protection for
output short circuits and short to grounds or 12 volts are all covered
and a safety “Protect” light lets you know. Peace of mind, and
big power, at low price points…look no further.

• Real, RMS watts. No need for “bogus”
watts. This is the real stuff in a great
amp so there is no need to
exaggerate - it does what it says.

• Reinforced Class AB designs with
reinforced output stages ensure solid
performance and reliability.

• Big heat sinks to ensure adequate heat
dissipation regardless of the load (they look
cool too).

• Monster size, gold plated power and speaker
terminals for reliable, low resistance connections.

•Protection LED for notification should the unit shut
down due to installation problems.

• Wide range input voltages of 0.3-6.0Vrms.

• Continuously variable crossover frequency settings.

•2 ohm output stable (unbridged mode)
