REVERSE CAMERA
BC TY 1.0
Operating and Installation Instructions
Enjoy it.
CAUTIONS
Safety Notes
This vehicle security system has been man
ufactured according to established safety
guidelines. However, dangers may still occur
if the safety notes in this manual is not ob
served. This manual is intended to familiarize
the user with the reverse camera important
functions. Read this carefully, prior to using
the reverse camera. Keep this manual in an
easily accessible location. In addition, do
observe the instructions of the devices used
in conjunction with this reverse camera.
Attentions
Assign a mounting location that will not
•
obstruct driver in any circumstances. Or
cause injuries to drives and passengers in
case of emergency brake or accidents.
Ensure all wires are connected properly,
•
and that the unit is functioning well before
tting the unit into the mount.
Any unauthorized installation, disassembly
•
or modication may cause malfunction to
the unit and void warranty of the unit.
Always use only the parts that are includ
•
ed with the units only.
•
Do not damage vehicle components when
drilling holes for the mount.
•
Vehicle may dier from the description
provided here. Consult an authorized
Blaupunkt dealer or vehicle’s manufacturer
if the information provided here does not
t your specic installation requirement.
•
This unit is applicable for front and reverse
camera use. Consult an authorized
Blaupunkt dealer during installation.
Unit does not record video.
•
Avoid automatic car wash or high-pressure
•
water to prevent water and pressure
from damaging the camera or causing
it to fall o.
-
Do not install this unit near heater outlet.
•
This manual may be updated from time to
time without any notice.
Disclaimer
In no event shall Blaupunkt be liable for any
direct, indirect, punitive, incidental, special
consequential damages to property or life
and whatsoever arising out of or connected
with the use or misuse of our products.
USA & CANADA: This product is not intended
for sale in the United States and Canada. If
purchased in the U.S. or Canada, this product
is purchased on as-is basis. No warranty,
whether expressed or implied is provided in
the U.S. or Canada.
-
1
SPECIFICATION
Features
Image Sensor
TV System
Eective Pixels
Image Resolution
Frame Frequency
Exposure
Gain Control
Electronic Shutter
Auto White Balance
Illumination Min.
Horizontal View
Vertical View
Diagonal View
Operating Voltage
Operating Current
Operating Temperature
Storage Temperature
Protection Grade
Connector Type
Lens
BC TY 1.0
CMOS
NTSC/PAL
720 (H) x 480 (V)
750TVL
25/30 fps
Automatic
Automatic
1/60~1/100000sec
Auto (2500K~9500K)
0.2 Lux/F
160°H
140°V
170°D
DC 12V (DC9-16V)
27.1mA
-20~+70 °C
-30~+75°C
IP68
RCA/ 4 PIN DIN
5-glass
2

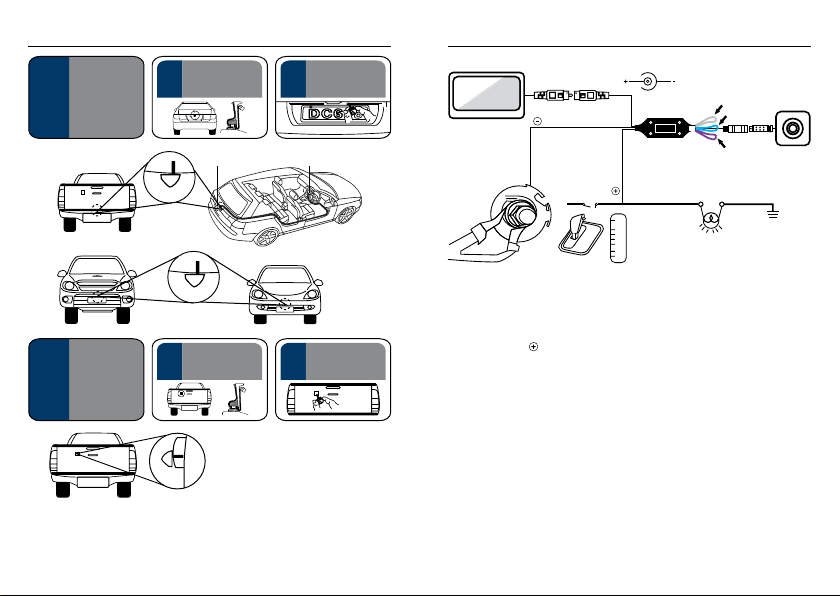

INSTALLATION LOCATION
Mount the camera
2
onto the access
hole & secure it with
screws
Display Monitor/Car Radio
Mount the camera
2
onto the access
hole & secure it with
screws
Car
Plate
TYPE 1
a) Reverse Camera
b) Front Camera
Tailgate
Drill an access hole for
1
the camera cables
Reverse Camera
Drill an access hole for
1
the camera cables
TYPE 2
Remarks :
1. Pictures are for illustration purpose only, see actual vehicle for accurate installation location.
2. Ensure diameter of hole size is correct before drilling.
3. Ensure drilling process does not harm the component of the vehicle.
4. Assign mounting location that will not obstruct camera view.
3 4
INSTALLATION DIAGRAM
White
Display Monitor/
Car Radio
Ground the wire through the exterior body of the vehicle and keep connection intact.
Attention
Remove protective lm from camera lens before use.
•
Take extra precautions when setting up the connection near petrol tank and wires.
•
Connect Red Wire with reverse light.
•
Black Wire (Ground)
Reverse Trigger
Red Wire
P
R
N
D
L
2
Blue
Purple
Reverse Light
Reverse
Camera
FRONT / REAR CAMERA INSTALLATION

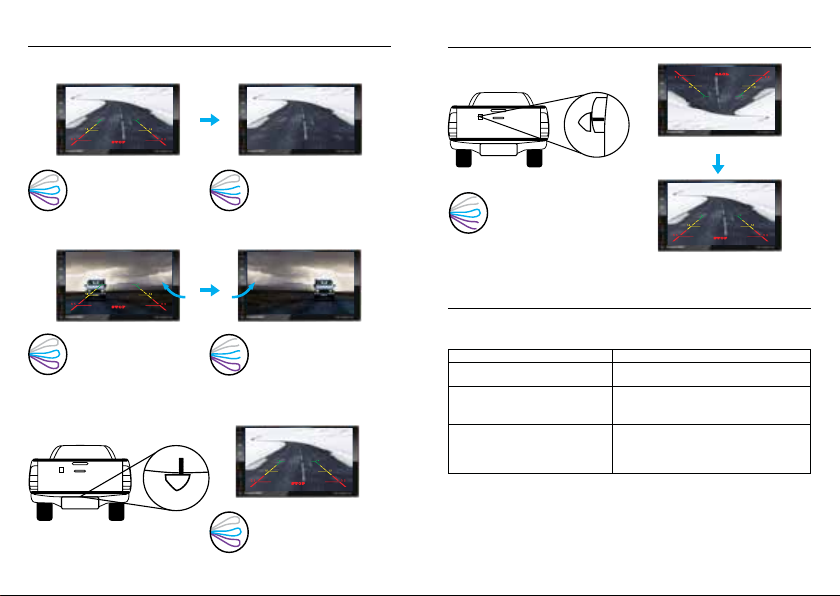

Rear Camera Wiring (Remove Parking Line)
Reverse Camera
Do not cut the wires when using
as reverse camera.
Front Camera Wiring (Flip Viewing Display)
Reverse Camera
Do not cut the wire when using
as reverse camera.
Type 1 Installation Wiring
5 6
Rear Camera
Cut blue wire when using as front
camera to remove parking line.
Front Camera
Cut white wire when using as front
camera to ip viewing display.
Reverse Camera Wiring
Do not cut the wires when
using as reverse camera near
license plate.
FRONT / REAR CAMERA INSTALLATION
Type 2 Installation Wiring
Before Cutting Wires
Reverse Camera Wiring
Cut white and purple wires when
using as reverse camera on rear
back door.
After Cutting Wires
TROUBLESHOOTING
If any of the following problem occur, please resort to Troubleshooting for the possible
solutions. Consult Blaupunkt authorized dealer if problem persist.
Problem
Display monitor / car radio does not
show reverse view when reversing.
Reverse view does not show even
after restarting the display monitor/
car radio.
Reverse view does not show even
though power supplies of the reverse
light or the rear car plate light is
properly connected.
Solution
Restart the display monitor / car radio.
Examine if the power supplies of the reverse
light or the rear car plate light is properly
connected.
Examine if the power supply cables of the
reverse light or the rear car plate light is
damaged. Repair/replace if the cables are
damaged.
