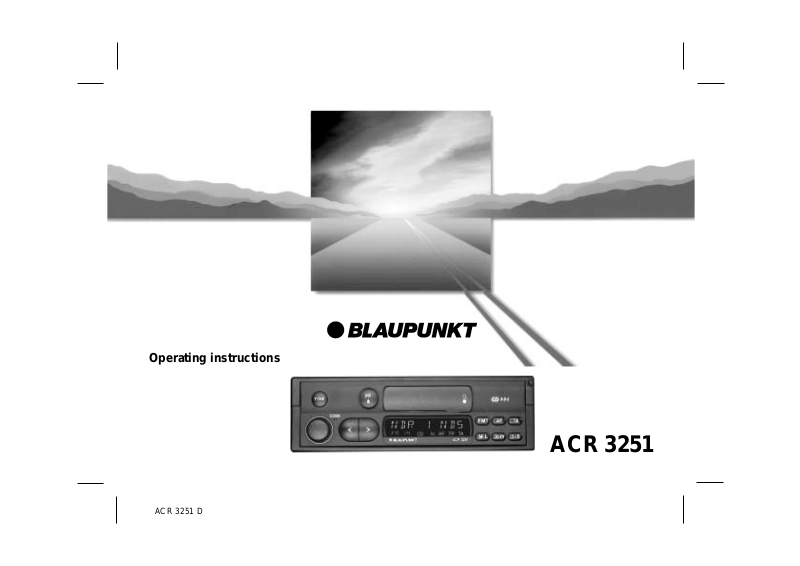

Blaupunkt ACR 3251 User Manual

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

Operating instructions

ACR 3251

SVENSKA

ESPAÑOL

PORTUGUÊS

1

DEUTSCH

=

<

4321

;

5

6

QuickOut (Option)

7

89:

b

QuickOut (Option)

ENGLISH

a

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

3

Table of contents

Short instructions ........................ 14

Important notes ............................ 16

Precautions ........................................... 16

Traffic safety ......................................... 16

QuickOut ............................................... 16

Installation/Connection.......................... 16

Anti-theft protection..................... 16

Entry of a wrong code number.............. 16

Switching on security coding................. 17

Re-start following an interruption of the

power supply......................................... 17

Switching off security coding................. 17

CODE LED............................................ 17

Radio operation with RDS ........... 18

AF - Alternative frequency .................... 18

REG - regional programme................... 18

Selecting a waveband........................... 18

Selecting a station................................. 18

Automatic tuning................................ 18

Manual tuning .................................... 19

Selecting the seek tuning sensitivity ..... 19

Switching from stereo to mono (FM)..... 19

Changing the memory bank.................. 19

Storing stations ..................................... 19

Automatically storing the strongest

stations with Travelstore ....................... 19

Recalling stored stations....................... 20

Receiving traffic programme

stations with RDS-EON................ 20

Traffic announcement priority on/off ..... 20

Warning beep........................................ 20

Switching the warning beep off.......... 20

Automatic seek tuning start................... 21

Adjusting the volume for traffic
announcements and the warning

beep ...................................................... 21

Tape operation.............................. 21

Inserting a tape ..................................... 21

Removing a tape................................... 21

Fast Forward......................................... 21

Appendix ....................................... 21

Mechanism/cassette tapes ................... 21

Specifications........................................ 22

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

13

PORTUGUÊS

Short instructions

1 On / Off:

Turn the knob.
On

Off

To adjust the volume:

Turn the knob.

2 TONE – audio

To adjust the

BASS
TREBLE (Treble control)

To alter a setting:

Toggle the TONE button until the corre­sponding abbreviation and the adjusted
value appear in the display.

Use the buttons to alter the selec­ted setting. The adjusted value is indi­cated in the display.
The last setting will be stored automati­cally.
If the setting remains unchanged within
8 seconds, the display will switch back
to the previous condition.

3 Fast winding/Cassette removal

FF: Fast forward; stop by pressing FF.

Cassette removal

Push the button fully.

4 Cassette loading slot

Insert tape (side A or 1 up; the open
side facing to the right).

5 FM·T - FM, Travelstore

Changeover button for switching be­tween the FM memory banks I, II or “T”
(Travelstore).
To switch between the FM memory
banks:
Toggle button until the desired bank is
indicated in the display.
To automatically store the six most
powerful stations with Travelstore:
To store: Press the FM·T button until
the seek tuning process begins and is
indicated in the display.
To recall: Toggle the FM·T button until
the display shows “T”. Then briefly
press one of the preset buttons 1-6.

6 AF

(Alternative Frequency during RDS
operation)
When “AF” lights up in the display, the
radio will automatically search for a
frequency offering better reception of
the same RDS programme.
To switch AF on/off: Press AF briefly.

Extra functions:
Hold down the button for approximately
2 seconds. REG ON/REG OFF is dis­played for approximately 2 seconds.
REG ON / REG OFF - With REG ON
the system will only switch to a better
alternative frequency if it offers the
same regional programme (see “REG ­regional programme”).

7 TA (Traffic Announcement = priority for

traffic anouncements)
If “TA” is displayed, the system will play
traffic programme stations only.
TA on/off: Press the TA button.
Extra function:
Coding: Read chapter “Anti-theft pro­tection” first.

8 1-6

To store and recall stations.

14

9 lo·m

lo (local) - To alter the seek tuning sen-

sitivity during radio operation.
If “lo” is displayed, the radio will only
pick up strong, local stations (normal
sensitivity).
If “lo” does not light up, the radio will
also pick up weaker, distant stations
(high sensitivity).
If the display shows “m”, manual tuning
is adjusted.
To toggle the function: Press lo·m
briefly during radio operation.

Extra function:

To switch between stereo and
mono:

Hold down the button for approximately
2 seconds. With stereo playback, the
stereo sign “

” will appear in the dis-

play.

: M·L

Changeover button for switching to
medium or long wave.

; Display

Radio operation:

NDR1 - Station abbreviation or frequency
FM - Waveband
I, II, T - Memory bank (I, II, or Travelstore)
4 - Preset buttons (1 - 6)

- Stereo
lo - Seek tuning sensitivity
AF - Alternative RDS frequency
TP - You are listening to a traffic

programme station.

TA - Priority for traffic programme

stations

Tape operation:

TAPE - tape operation

<

Station tuning – automatically, if “m”

has disappeared from
the display.

– manual, if “m” lights

up in the display.

Toggle by pressing the lo·m button.

= Code LED

Flashes for additional theft protection
when the ignition has been switched
off.

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

15

ESPAÑOL

PORTUGUÊS

Important notes

Anti-theft protection

Precautions

Before starting to use your new car radio,
please read the information on “Traffic safe­ty” and “Anti-theft protection” carefully.

Traffic safety

As the driver of a motor vehicle, it is your
responsibility to pay attention to the traffic
situation at all times. Never use your car radio
in a way that could distract you.
Please keep in mind that you travel a di­stance of 14 m per second at a speed of only
50 km/h.
Should the traffic situation become particu­larly demanding, we advise you not to use the
radio.
Always make sure that you are still able to
hear any warning signals coming from out­side of the vehicle, such as police or fire
engine sirens, so that you can react accord­ingly.
Therefore, you should always select a
moderate volume for playing your car radio
while you are driving.

QuickOut

This unit is available with or without the
“QuickOut” (quick release) option.
The QuickOut handle facilitates removal of

the car radio from its bracket which enables
you to carry it out anywhere. The memory of
the preset buttons is maintained also for long
periods of time.
If you wish to remove the unit:

• Press button “a” and pull handle “b”
firmly.

If you wish to resume radio or cassette op­eration:

• Push the unit into the bracket as far as
it will go and lock the handle into place
on the front plate.

Operation of the car radio can begin as long
as the security coding system is switched off.
If the coding system is active, proceed as
described in the chapter “Re-start following
an interruption of the power supply” each
time the unit is reinserted.

Installation/Connection

If you would like to install this equipment
yourself or add any new components, please
carefully read the installation and connection
instructions following the appendix.
Do not ground the loudspeaker outputs!
Use only the accessory and replacement
parts approved by Blaupunkt.

This car radio is supplied with inactive code
protection. In order to switch the security
coding system on, proceed as described in
the following.
If the coding system is active while the power
supply to the system is interrupted (e.g. theft,
disconnection of the car battery), the set will
be electronically blocked. In such a case it
can only be made operable again by entering
the correct code number given in the car
radio passport.

Entry of a wrong code number

It should not be possible for a thief to find out
the correct code number by trial and error.
This is why the set will be blocked for a certain
period of time after a wrong code number has
been entered. The display will then show
“CODE ERR”.
After the first three unsuccessful attempts
the system will lock for 10 seconds; after
further attempts, the waiting time extends to
one hour.
After 19 unsuccessful attempts the display
will show “OFF”. In this case you can no
longer re-start the unit.

Note:

Keep your car radio passport with the code
number in a safe place in order to avoid

16

“unauthorised access” to your car radio.
When the security code system is activated,
the unique code must be entered each time
the power to the unit was interrupted.
The radio will function again as soon as you
have entered the correct code.
If you have lost your radio passport and
forgotten the code number, your radio can
only be made operable again by one of our
authorised service workshops, which is sub­ject to payment.

Switching on security coding

To activate the coding system:

• Turn off the radio.

• Press buttons AF and > simultaneously

and hold down.

• Turn on the radio.
The display shows “CODE”.

• Briefly press the FM·T button; the dis-
play shows “0000”.

• Enter the code number given in the
Blaupunkt car radio passport.

Example: The code number is 2521.

- Press the FM·T button twice; the

display shows “2000”.

- Press the AF button five times; the

display shows “2500”.

- Press the TA button twice; the dis­play shows “2520”.

- Press the M·L button once; the dis­play shows “2521”.

• To confirm the code number:
Press the > button.

Now the security coding system is active.
The display will briefly show “C” each time the
set is turned on.
If the display shows “CODE ERR”, you have
entered a wrong code. Re-enter the correct
code after the waiting time (“CODE” will ap­pear in the display).
If you switch off the set while it is blocked, the
waiting time will start anew as soon as the
radio is turned on again.

Re-start following an interrup­tion of the power supply

(coding system is activated)

• Turn on the radio.
The display shows “CODE”.

• Enter the code number given in the
Blaupunkt car radio passport and con­firm (see example under “Switching on
security coding”).

The unit is now ready for use.

Switching off security coding

• Turn off the radio.

• Press AF and > buttons simultaneously

and hold down while

• switching the set on again.
The display shows “CODE”.

• Now enter the code number to be found
in the car radio passport and confirm
(see example under “Switching on se­curity coding”).

Security coding is now switched off.

CODE LED

To indicate that your unit is equipped with
security coding, the LED flashes for extra
security when the car is stationary.

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

17

PORTUGUÊS

Radio operation with RDS (Radio Data System)

The Radio Data System offers you more
convenience when listening to FM radio sta­tions.
More and more radio stations have begun to
broadcast RDS information alongside their
programmes.
As soon as a programme has been identified,
the station name including a regional identi­fier, if applicable, will appear in the display,
for example, NDR1 NDS (regional program­me in Lower Saxony, Germany).
When RDS is activated, the station buttons
become programme buttons. You now know
exactly which programme you have tuned
into, making it easy to find the desired station
quickly.
But RDS offers you further advantages:

AF - Alternative frequency

The AF (Alternative Frequency) function
makes sure that the strongest frequency of
the currently selected programme is always
tuned in automatically.
This function is activated when “AF” appears
in the display.
In order to switch this function on or off,

• press the AF button briefly.
The radio will switch to mute briefly while

searching for the strongest reception signal.
If “SEARCH” appears in the display when

switching on the radio or recalling one of the
stored frequencies, the unit is automatically
searching for an alternative frequency.
“SEARCH” will disappear from the display
when the alternative frequency has been
found or after the frequency band has been
run through completely.
If the reception quality of the selected pro­gramme becomes too poor:

• Tune into another station.

REG - regional programme

Certain radio programmes are split up at
times into regional programmes offering lo­cal information. The 1st programme broad­cast by NDR, for example, offers program­mes with different contents in the northern
states of Germany Schleswig-Holstein,
Hamburg and Lower Saxony at certain times
of the day.
If you are tuned into a regional programme
and wish to continue listening to this pro­gramme,

• press the AF button for approximately
2 seconds.
“REG ON” appears in the display.

If you leave the service area of the regional
programme tuned into, or if you would like to
take advantage of the full RDS service,
switch to “REG OFF”.

• Press the AF button for approximately
2 seconds until “REG OFF” appears.

When active, “REG ON” will be briefly dis­played each time the radio is switched on.

Selecting a waveband

You can choose between the following wave­bands:
FM 87.5 - 108 MHz

MW 531 - 1602 kHz
LW 153 - 279 kHz

• Set the desired waveband by pressing
FM·T or M·L.

To switch from MW to LW or vice versa

• press the M·L button.

Selecting a station

Using the buttons there are several
different ways of tuning into a station:

Automatic tuning

Prerequisite: “AF” and “m” do not light up in
the display, i.e. the Alternative Frequency
function and manual tuning are switched off.
Use the AF and lo·m buttons (lo, m, -, lo) to
adjust the respective modes.

• Press
cally search for the next station.

; the car radio will automati-

18

When keeping the

or the button de­pressed, seek tuning will speed up in up­wards or downwards direction.

Manual tuning

Prerequisite: “m” lights up in the display.
Toggle the lo·m button until “m” is displayed.

• Press

; the frequency will change in
short intervals in upwards or down­wards direction.

When holding the

or button down, the

frequency scan is speeded up.

Selecting the seek tuning sensi­tivity

You can alter the automatic seek tuning
sensitivity.
For this,

• press the lo·m button briefly.
If “lo” is displayed, the radio will only pick up

strong, local stations (low sensitivity).
If “lo” does not light up, the radio will also pick
up weaker, distant stations (high sensitivity).
Make sure that “m” is not indicated in the
display.

Switching from stereo to mono
(FM)

If reception is poor, you may get better sound
quality by switching to mono:

• Press the lo·m button until a beep
sound is released and the stereo sign

disappears from the display.

Each time the radio is switched on, stereo
playback is activated ( is displayed).
The unit will automatically switch to mono if
the received signal is not strong enough for
stereo playback.

Changing the memory bank

You can shift between the memory banks I, II
and T in order to store stations and recall
them later.
The currently selected memory bank is indi­cated in the display.

• Toggle the FM·T button until the desi-
red memory bank lights up in the dis­play.

Storing stations

On FM, you can store six stations on the
preset buttons 1 to 6 for each of the memory
banks I, II and T. On MW/LW it is possible to
store six stations on each waveband.

• Select the waveband with the FM·T or
M·L button and for FM select the mem-

ory bank with FM·T.
Toggle FM·T until the desired memory

bank is indicated in the display.

• Select the desired preset button (1 to 6)
for the new station to be stored using
preset buttons 1-6.

• Tune in a station either automatically or
manually by pressing < or >.

• Press the desired preset button (1-6)
until the radio resumes play after the
muting and you hear the beep.

Now the station has been stored.
The activated preset button (1-6) is indicated
in the display.

Note:

If you select an already stored station, the
corresponding memory bank and preset but­ton will flash in the display for about 6
seconds.

Automatically storing the
strongest stations with Travel­store

You can automatically store the six most
powerful FM stations of your current recep­tion area sorted according to their signal
strength.

19

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

ESPAÑOL

PORTUGUÊS

Receiving traffic programme stations with RDS-EON

This function is particularly convenient on
longer trips.

• Press the FM·T button until the search
process begins.

The radio will search for the strongest FM
stations and store them on the memory bank
“T” (Travelstore). When this process has
been completed, the radio will play the first
station.
If desired, stations can also be stored manu­ally on the Travelstore bank (see “Storing
stations”).

Recalling stored stations

You can recall any stored station at the touch
of a button.

• Select the waveband by pressing the
FM·T or M·L button and for FM select
the memory bank with FM·T.

Toggle FM·T until the desired memory
bank is indicated in the display

• Toggle the corresponding preset button
until the desired preset station appears
in the display.

20

Many FM broadcasters offer traffic mess­ages for their service area at regular inter­vals.
All traffic programme stations transmit a spe­cial carrier signal alongside their program­mes, which is decoded by your car radio. If
this signal is identified, “TP” will appear in the
display (Traffic Programme).
In addition to these, there are also stations
which do not actually transmit traffic pro­grammes themselves, but by using RDS­EON they offer the possibility to receive the
traffic messages broadcast by another traffic
programme station in the same radio net­work. If you listen to one of these stations
(e.g. NDR3), “TP” will appear in the display
as soon as the priority for traffic programme
stations has been activated, i.e. “TA” must be
displayed.
If a traffic announcement is broadcast, the
radio will automatically switch to the linked
traffic programme station (in this case,
NDR2) for the duration of the message and
return to the original programme (NDR3)
afterwards.

Traffic announcement priority
on/off

If the priority for traffic announcement pro­grammes is activated, “TA” will light up in the
display.

To switch the priority on or off:

• Press the TA button.
When pressing TA while a message is being

broadcast, this message will be interrupted.
The unit will then switch back to the previous
condition. The priority for other traffic messa­ges remains active.

Warning beep

If you leave the reception area of the traffic
programme station currently tuned into, you
will hear a warning beep after approximately
30 seconds.
This alarm tone will also be released when
recalling a preset button which has no traffic
programme allocated to it.

Switching the warning beep off

a) Tune into another station offering traffic

information:

• Press

• press a preset button which has a
traffic programme station allocated
to it.

Alternatively:
b) Switch off the priority for traffic an-

nouncements:

• Press TA.
“TA” will disappear from the display.

or

Tape operation

Appendix

Automatic seek tuning start

Prerequisite:
The priority for traffic announcements has
been activated.
When leaving the reception area of the tuned
in traffic programme station while listening to
a tape or after having turned down the vol­ume completely, the system will automati­cally start searching for a new TA
programme.
If no such station is found within approxi­mately 30 seconds, tape operation will be
stopped and a warning beep will sound. To
switch the warning beep off, proceed as
described above.

Adjusting the volume for traffic
announcements and the warning
beep

This volume was preset at the factory.

Inserting a tape

• Turn on the set.

• Insert a tape.

Insert the tape with side A or 1 showing up, the
open side facing to the right.

=Press to eject the tape.

The display shows “TAPE” while the tape is
being played.

Removing a tape

• Press .
The cassette will eject.

Fast forward

To begin and end fast forwarding

• Press

gently.

Mechanism/cassette tapes

To avoid possible problems, you should not
use cassette tapes longer than 60 or 90
minutes (C60/C90). Store your tapes in a
cool place away from dirt, dust and tempera­tures exceeding 50 ° Celsius. Allow very cold
tapes to warm up before playing them in
order to avoid uneven transport. After ap­proximately 100 hours of use, dust particles
collected on the playback head or roller may
lead to tape run problems and sound distor­tions.
Use a head cleaning tape to remove normal
dirt build-up. For tougher cases, use a cotton
swab (Q-Tip) soaked with alcohol. Do not
attempt to clean by inserting a hard object
into the player!

DEUTSCH

ENGLISH

FRANÇAIS

ITALIANO

NEDERLANDS

SVENSKA

21

ESPAÑOL

PORTUGUÊS

Specifications

Amplifier

Output power: 2 x 10 W RMS power

acc. to DIN 45324/3.1
into 2 Ω

FM waveband

Sensitivity: 1.3 µV at 26 dB

signal-to-noise ratio
Frequency
response: 35 - 15 000 Hz

Tape player

Frequency
response: 30 - 14 000 Hz

Subject to modifications!
22
