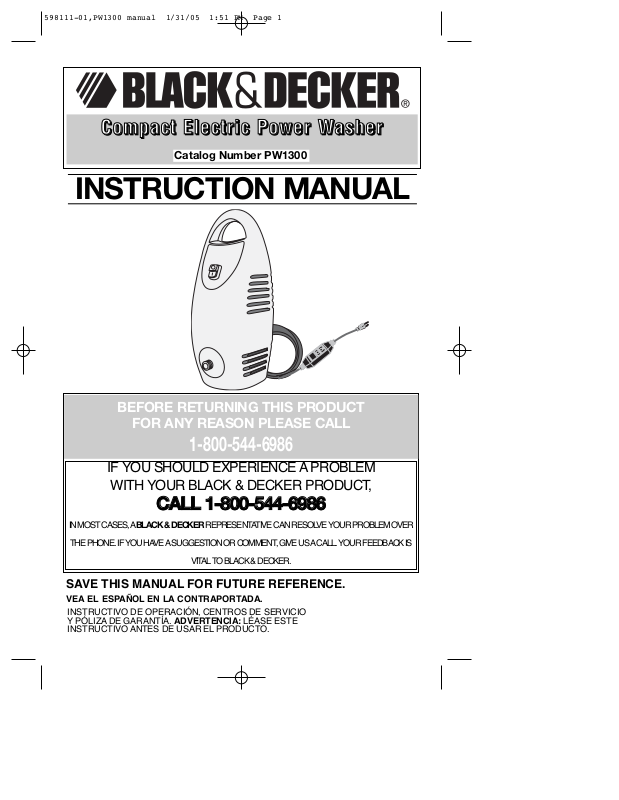

Black & Decker PW1300, 598111-01 User Manual

VEA EL ESPAÑOL EN LA CONTRAPORTADA.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

INSTRUCTION MANUAL

CCCCoooommmmppppaaaacccctttt EEEElllleeeeccccttttrrrriiiicccc PPPPoooowwwweeeerrrr WWWWaaaasssshhhheeeerr

BEFORE RETURNING THIS PRODUCT

FOR ANY REASON PLEASE CALL

1-800-544-6986

IF YOU SHOULD EXPERIENCE A PROBLEM

WITH YOUR BLACK & DECKER PRODUCT,

CCAALLLL 11--880000--554444--66998866

IN MOST CASES, ABLACK & DECKER REPRESENTATIVE CAN RESOLVE YOUR PROBLEM OVER

THE PHONE. IF YOU HAVE A SUGGESTION OR COMMENT, GIVE US A CALL. YOUR FEEDBACK IS

VITALTO BLACK & DECKER.

Catalog Number PW1300

598111-01,PW1300 manual 1/31/05 1:51 PM Page 1

WARNING: When using this product, basic precautions should always be followed, including the following:

1. Read and understand all instructions before using the product.

2. To reduce the risk of injury, close supervision is necessary when a product is used near children.

3. Know how to stop this product and bleed pressure quickly. Be thoroughly familiar with the controls.

4. Stay alert - watch what you are doing.

5. Do not operate this product when

fatigued or under the influence of alcohol or drugs.

6. Keep operating area clear of all persons.

7. Do not use on ladder. Loss of balance and serious injury could result. Do not overreach or stand on unstable support. Keep good footing and balance at all times.

8. Follow the maintenance instructions specified in the manual.

9. This product is provided with a Ground Fault Circuit Interrupter (GFCI) built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

10. WARNING: Risk of Injection or Injury. Do Not Direct Discharge Stream at Persons.

GENERAL SAFETY RULES

WARNING: When using this product, basic precautions should always be followed, including the following:

1. Always follow detergent manufacturer’s label recommendations for proper use of detergents. Always protect eyes, skin and respiratory system from detergent if used.

2. Never try to stop or deflect leaks with any body part.

3. Never put hand or fingers over the spray tip while operating the unit.

4. Always wear safety glasses or goggles, hearing and respiratory protection and protective clothing when operating or performing maintenance.

5. Always engage the trigger safety latch in the safe position when spraying is stopped even if only for a few moments.

6. Keep clear of nozzle. Never direct high pressure spray at any person, animal or self.

7. Use only with accessories rated at a minimum of 140 Bar. Do not use pressure that exceeds the operating pressure of any of the parts (hoses, fittings, etc.) in the pressurized system. Never use with any other manufacturers accessories or components.

8. Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquids or vapors.

9. Never operate this machine in or near an explosive environment.

10. Do not spray electrical apparatus and wiring.

11. Never disconnect the high pressure discharge hose from the machine while the system is pressurized. To depressurize machine, turn power and water supply off, then press gun trigger

2-3 times.

12. Never permanently engage the trigger mechanism on the gun.

13. Never operate the machine without all components properly connected to the machine (handle, gun/wand assembly, nozzle, etc.).

14. Always turn water supply “on” before turning pressure washer “on” unless draining for storage. Running pump dry causes serious damage.

15. Do not operate the pressure washer with the inlet water filter removed. Keep filter clear of debris and sediment.

16. Never operate pressure washer with broken or missing parts. Check equipment regularly and repair or replace worn or damaged parts immediately.

17. Use only the nozzles, parts and accessories supplied with this machine.

18. Never leave the wand unattended while the machine is running or switched on.

19. Always hold gun and wand firmly when starting and operating the machine.

IMPORTANT SAFETY INSTRUCTIONS

598111-01,PW1300 manual 1/31/05 1:51 PM Page 2

20. Pressure washer is not meant to pump hot water. Never connect it to a hot water supply as it will significantly reduce the life of the pump.

21. Never store the pressure washer outdoors or where it could freeze. The pump will be seriously damaged.

22. Discharge residual pressure by pressing the trigger until no more water comes out of the nozzle.

CAUTION: Wear appropriate hearing

and respiratory protection during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

WARNING: This product contains

chemicals, including lead, known to the state of California to cause cancer, and birth defects or other reproductive harm.

Wash hands after handling.

ash hands

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER: Improper connection of the

equipment-grounding conductor can result in a risk of electrocution. Check with a qualified electrician or service personnel if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the product - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use any type of adapter with this product.

WARNING: To reduce the risk of

electrocution, keep all connections dry and off the ground. Do not touch plug with wet hands.

GROUND FAULT CIRCUIT

INTERRUPTER PROTECTION

This pressure washer is provided with a Ground Fault Circuit Interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electrical shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection. See Figure 7 for testing procedure.

WARNING: Connect directly to outlet. Do not use with extension cord. The use of an extension cord will override the GFCI built into the plug of the power supply cord resulting in the risk of electrical shock.

• The label on your tool may include the following symbols.

V..............volts

A..............amperes

Hz............hertz

W ............watts

min ..........minutes

............alternating current

........direct current

no ............no load speed

............Class II Construction

…/min......revolutions or reciprocation

................per minute

............earthing terminal

............safety alert symbol

SAVE THESE INSTRUCTIONS

598111-01,PW1300 manual 1/31/05 1:51 PM Page 3

Figure 3 - Connect the threaded end of the Quick Connect adapter (I) to your garden hose as shown in Fig. 3.

Figure 4 - With the quick connect adapter (I) attached to your garden hose, pull back on the top section and push onto the water inlet connector (B) of the pressure washer, then release.

Figure 5 - Connect garden hose to the cold water source and turn water on full.

The intake water temperature must NOT exceed 50°C (122°F). The water supply pressure must NOT exceed 10 bar (145psi).

A. Water outlet B/B1. Water inlet connector with filter C. High pressure turbo wand D. Adjustable fan wand E/E1/E2 Gun with safety catch/hose

assembly

F. Power supply cord with GFCI G. Detergent applicator H. On/off switch I. Garden hose Quick Connect

SET-UP / ADJUSTMENT

Figure 1 - Insert the fan wand (D) into the gun wand (E) by pushing and rotating until the two parts are locked as shown in

Figure 1.

Figure 2 - Connect the high pressure

hose (E2) to the water outlet (A) on the cleaner by first inserting the brass end of the hose into the threaded brass outlet, then snugly threading on the coupling.

High pressure hose

Garden hose

((CLICK.))

598111-01,PW1300 manual 1/31/05 1:51 PM Page 4

CAUTION: The pressure washer must only be used with clean water; use of unfiltered water or corrosive chemicals will damage the pressure washer.

OPERATION

NOTE: Before cleaning any surface, an inconspicuous area should be cleaned to test spray pattern and distance for maximum cleaning results. If painted surfaces are peeling or chipping, use extreme caution as pressure washer may remove the loose paint from the surface.

The PW1300 Pressure Washer is equipped with automatic delivery flow cut-off:

When the trigger is released, the dynamic pressure automatically cuts out the motor.

When the trigger is pressed the pressure drop automatically starts the motor and the pressure is restored with a very slight delay.

Figure 6 - Plug the Ground Fault Circuit Interrupter (GFCI) (F) into a working grounded outlet. TEST BEFORE EACH USE. The indicator at the top of the GFCI should turn red when product is ready to use. Press the “TEST” button (bottom). The red indicator should disappear. Press “RESET” button for use. Do not use if the above test fails.

Figure 7 - Release the safety catch shown in Figure 7, by pressing down on the latch behind the trigger, or by pushing the trigger forward, then press the trigger for a few seconds to allow air to escape and to discharge residual pressure in the hoses.

Figure 8 - Turn on the pressure washer by depressing the bottom half of the switch (H) marked “I”. The unit will run for a few seconds as it builds up pressure, then will shut off. It will run on demand as the gun trigger is depressed. Turn off the pressure washer by depressing the top half of the switch marked “0”.

598111-01,PW1300 manual 1/31/05 1:51 PM Page 5

YOUR PRESSURE WASHER IS NOW READY TO USE - PLEASE REVIEW THE FOLLOWING FOR DETAILS ON ACCESSORIES APPLICATION.

ACCESSORIES

CAUTION: Before changing accessories, turn unit off, pull trigger to release pressure, and activate safety catch.

• ADJUSTABLE FAN WAND

1.) Insert the fan wand (D) into the gun

wand (E) by pushing and rotating until the two parts are locked as shown in

Figure A.

2.) To obtain maximum pressure, rotate

the fan wand nozzle in a clockwise direction as shown in FIgure B. This narrow stream results in deeper cleaning in a concentrated area. For a wider fan pattern rotate the fan wand nozzle in the counterclockwise direction. The wider fan pattern reduces the risk of surface damage and allows for cleaning large surface areas quickly.

3.) To remove, press wand into gun and twist as shown in Figure C.

• TURBO NOZZLE

1.) Insert the turbo nozzle (C) into the gun wand (E) by pushing and rotating until the two parts are locked as shown in

Figure D.

2.) There is no adjustment required with

the turbo nozzle.

3.) To remove, press nozzle into gun and twist as shown in Figure E.

• DETERGENT APPLICATOR Follow manufacturer’s label directions for

mixing correct concentrations of soap and detergents.

To use the applicator:

1.) Unscrew top of detergent applicator (G) and fill with detergent.

2.) Replace top.

3.) Insert detergent applicator (G) into

gun wand (E). Twist detergent bottle until it clicks firmly into place as shown in

Figure F.

4.) Apply detergent from the bottom to

the top to prevent detergent from sliding down and streaking.

5.) Leave detergent on the surface for a few minutes but do not allow it to begin to dry.

6.) Remove detergent applicator from the gun wand by turning the detergent bottle 1/4 turn and pulling straight out.

7.) Rinse detergent from surface.

8.) Flush detergent applicator with clean

water.

598111-01,PW1300 manual 1/31/05 1:51 PM Page 6

particles to imbed in the surface. When working on vertical surfaces, it is best to apply detergent starting at the bottom and working upwards which will prevent the detergent from sliding down and causing streaks.

SHUTDOWN

1. Depress the off switch and unplug the cord from the outlet.

2. Turn off water at the faucet.

3. Discharge residual pressure by

pressing the trigger until no more water comes out of the adjustable nozzle.

4. Engage the gun safety catch.

5. Disconnect the garden hose from the

water inlet.

6. Disconnect the high pressure hose from the high pressure outlet and drain hose.

STORAGE

1. Store pressure washer indoors away from areas that might freeze.

2. Do not allow high pressure hose to become kinked.

3. Turn unit on for a few seconds until all water is removed from the pump. Turn off immediately.

MAINTENANCE

Use only mild soap and damp cloth to clean the tool. CAUTION: Never use the pressure washer to clean itself.

IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service personnel, always using identical replacement parts.

ACCESSORIES

Recommended accessories for use with your pressure washer are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory

not recommended for use with this pressure washer could be hazardous.

NOTE: DO NOT USE:

• Bleach, chlorine products and other corrosive chemicals.

• Liquids containing solvents (i.e., paint thinners, gasoline, oils)

• Tri-sodium phosphate products

• Ammonia products

• Acid-based products These chemicals will harm the unit and

will damage the surface being cleaned.

SURFACE PREPARATION

Before starting any cleaning task it is important to inspect the area for objects which could create a hazard. Remove objects from the area which could be tripped over such as children's toys or outdoor furniture. Insure that all doors and windows are closed tight. Also make sure that all plants and trees in the adjacent area are protected by a drop cloth ensuring that they will not be harmed by any overspray.

GENERAL CLEANING TIPS

• Remove the spray wand from the gun as shown in Figure G. Remove any dirt from the spray wand nozzle hole and rinse.

• For cleaning tasks such as deck or brick patio cleaning, limit your work area to approximately 25 square feet at a time.

• Pre-rinse cleaning area with fresh water.

• Use only detergents formulated for pressure washers.

• Always test detergent in an inconspicuous area before use.

• Begin with a wide fan nozzle spray and adjust the pressure to the desired spray pattern.

• The best angle for spraying water against a cleaning surface is 45 degrees. Spraying head on tends to cause dirt

598111-01,PW1300 manual 1/31/05 1:51 PM Page 7

SERVICE INFORMATION

Black & Decker offers a full network of company-owned and authorized service locations throughout North America. All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service.

Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you.

To find your local service location, refer to the yellow page directory under “Tools—Electric” or call: 1-800-544-6986.

FULL TWO-YEAR HOME USE

WARRANTY

Black & Decker (U.S.) Inc. warrants this product for two years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways.

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges.

The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Service Centers are listed under “ToolsElectric” in the yellow pages of the phone directory.

This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state and province to province. Should you have any questions, contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use.

Free Warning Label Replacement: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

See ‘Tools-Electric’

– Yellow Pages –

for Service & Sales

Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286 U.S.A.

598111-01,PW1300 manual 1/31/05 1:51 PM Page 8

Unit not plugged in. On/Off switch is in the Off position. Wand trigger not being squeezed. GFCI tripped.

Water faucet not fully turned on. Water inlet filter clogged. Nozzle worn.

Pump is sucking air.

Water supply restricted.

Not enough inlet water supply. Pump is sucking air.

Water inlet filter clogged.

Discharge nozzle is obstructed. Detergent container is empty. Detergent bottle or suction tube not properly connected. Detergent is too thick.

Filter on detergent suction tube is clogged. Damaged or clogged detergent suction tube. Discharge nozzle is obstructed. Loose fittings. Missing/worn rubber washer.

Spray wand not properly attached.

Plug in power cord. Turn switch to the “On” position.

Squeeze trigger with switch in “ON” position. Press reset button at GFCI on plug end of cord. Open water valve fully.

Remove filter and rinse to clean. Contact B&D Customer Service Representative at 1-800-544-6986. Check that hoses and fittings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle. Check water hose for kinks, leaks and blockage. Turn water on full force - check hose for leaks and kinks. Check that hoses and fittings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle. Unscrew inlet connector (B) and remove inlet filter (B1) FIG. H. Rinse to clean, then replace filter and inlet connector. Blow out or remove debris.

Add more detergent. Check connections.

Use detergent recommended for use in pressure washers only. Run warm water through filter to remove debris. Remove obstruction or replace detergent suction tube. Blow out or remove debris.

Tighten fittings. Replace washer in hose adapter.

Insert the spray wand into the wand extension. Push in and turn to lock spray wand into place.

Motor does not start.

Unit does not reach high pressure.

Output pressure varies high/low.

No detergent.

Garden hose connection leaks.

Spray wand or extension leaks.

TROUBLESHOOTING GUIDE

Symptom Cause Solution

598111-01,PW1300 manual 1/31/05 1:51 PM Page 9

Broken O-ring.

Pump is sucking air.

Loose fittings. Water seals are damaged or worn. Oil seals are damaged or worn. Supply voltage below minimum. System has residual pressure.

Voltage loss due to extension cord. Cleaner not used for long periods.

Contact B&D Customer Service Representative at 1-800-544-6986. Check that hoses and fittings are air tight. Turn off machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle. Check that all fittings are tight. Contact B&D Customer Service Representative at 1-800-544-6986. Contact B&D Customer Service Representative at 1-800-544-6986. Verify that only the pressure washer is running on this circuit. Turn unit off, squeeze trigger on spray wand to release pressure, then turn unit on. Do not use extension cord with this unit - plug directly into outlet. Contact B&D Customer Service Representative at 1-800-544-6986.

Spray wand or extension leaks. Pump is excessively noisy.

Water leaks from pump.

Oil leak.

Motor buzzes but fails to run.

TROUBLESHOOTING GUIDE - continued

Symptom Cause Solution

598111-01,PW1300 manual 1/31/05 1:51 PM Page 10

MANUEL D’UTILISATION

NNNNeeeettttttttooooyyyyeeeeuuuurrrr àààà pppprrrreeeessssssssiiiioooonnnn éééélllleeeeccccttttrrrriiiiqqqquuuuee

ccccoooommmmppppaaaacccctt

AVANT DE RETOURNER CE PRODUIT POUR

QUELQUE RAISON QUE CE SOIT, APPELEZ

BLACK & DECKER AU 1 800 544-6986

No de catalogue PW1300

598111-01,PW1300 manual 1/31/05 1:51 PM Page 11

+ 24 hidden pages
