First Use Safety Recommendation

Please read through this booklet for safe and efficient use of the appliance. We urge you to read the "Important Safeguards" section and also follow all detailed instructions even if you are familiar with a similar appliance.

Keepthis guide handy for future reference.

'MX20P

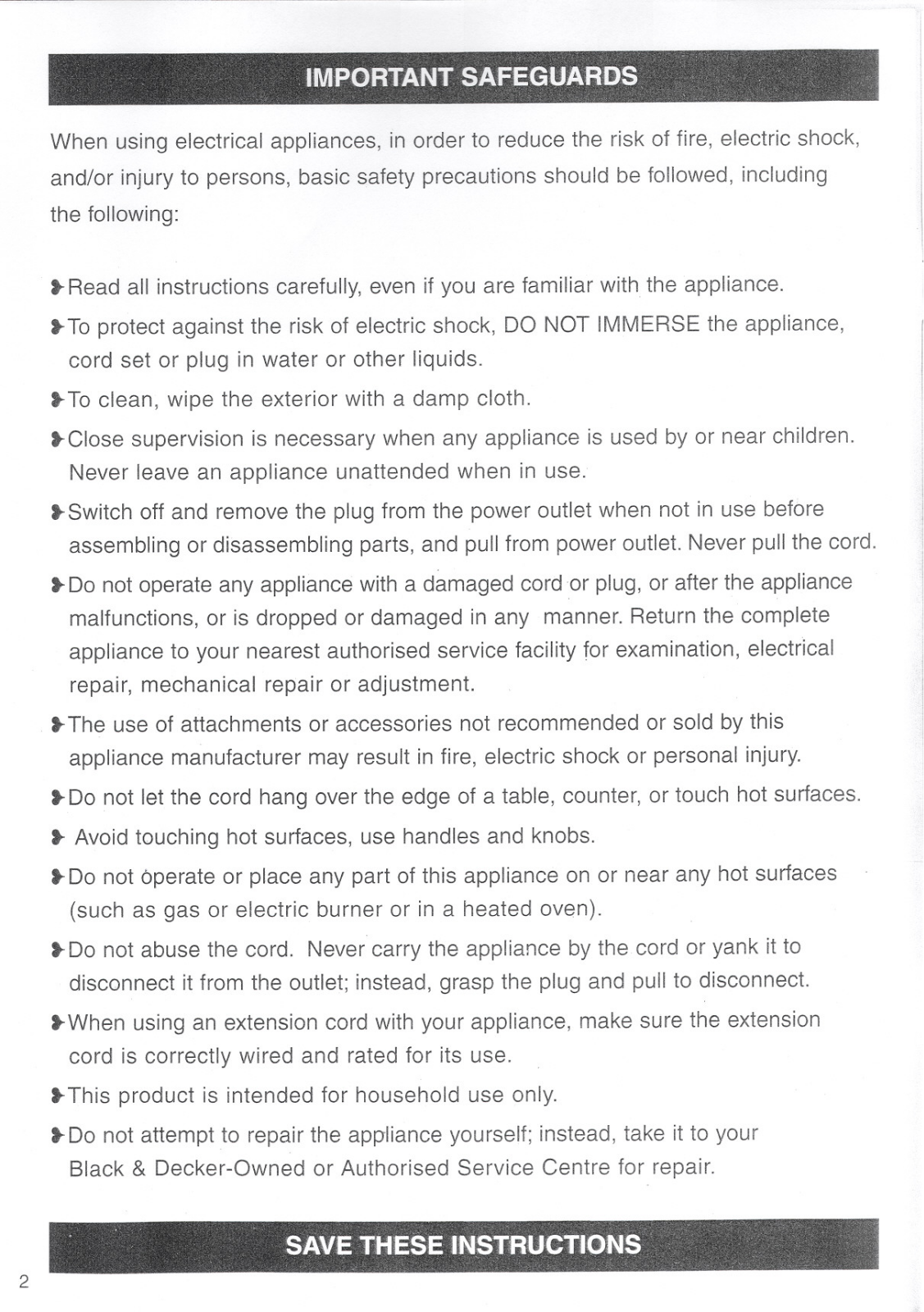

When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should be followed, including the following:

. Read all instructions carefully, evenif you are familiar with the appliance. . To protect against the risk of electric shock, DO NOT IMMERSE the appliance,

cord set or plug in water or other liquids.

. To clean, wipe the exterior with a damp cloth.

.Close supervision is necessary when any appliance is used by or near children.

Never leave an appliance unattended when in use.

.Switch off and remove the plug from the power outlet when not in use before

assembling or disassembling parts, and pull from power outlet. Never pull the cord.

. Do not operate any appliance with a damaged cord or plug, or after the appliance

malfunctions, or is dropped or damaged in any manner. Return the complete appliance to your nearest authorised service facility for examination, electrical

repair, mechanical repair or adjustment.

. The use of attachments or accessories not recommended or sold by this

appliance manufacturer may result in fire, electric shock or personal injury. . Do not let the cord hang over the edge of a table, counter, or touch hot surfaces. .. Avoid touching hot surfaces, use handles and knobs. . Do not operate or place any part of this appliance on or near any hot surfaces

(such as gas or electric burner or in a heated oven). .. Do not abuse the cord. Never carry the appliance by the cord or yank it to

disconnect it from the outlet; instead, grasp the plug and pull to disconnect. . When using an extension cord with your appliance, make sure the extension

cord is correctly wired and rated for its use. . This product is intended for household use only.

.. Do not attempt to repair the appliance yourself; instead, take it to your

Black & Decker-Owned or Authorised Service Centre for repair.

Ch/2iJ'!~i.;)s,':,'*"LYo,;{,p'JiHt.>'j;i!'$"y,Y{'i,,!!','J":,'';i£itii,{I;';''',;;{';;;il:'.fii~~';Jilj'~~;11;;.'i;'$:.

;~\lE!~mIjU;$I;~;IN;$mBu.~mION

.A't'.;~tir~~rfit~it*i!;fui;!tf~i;'('dl;'¥'@dt;llr~;%\;~ji\%g;~

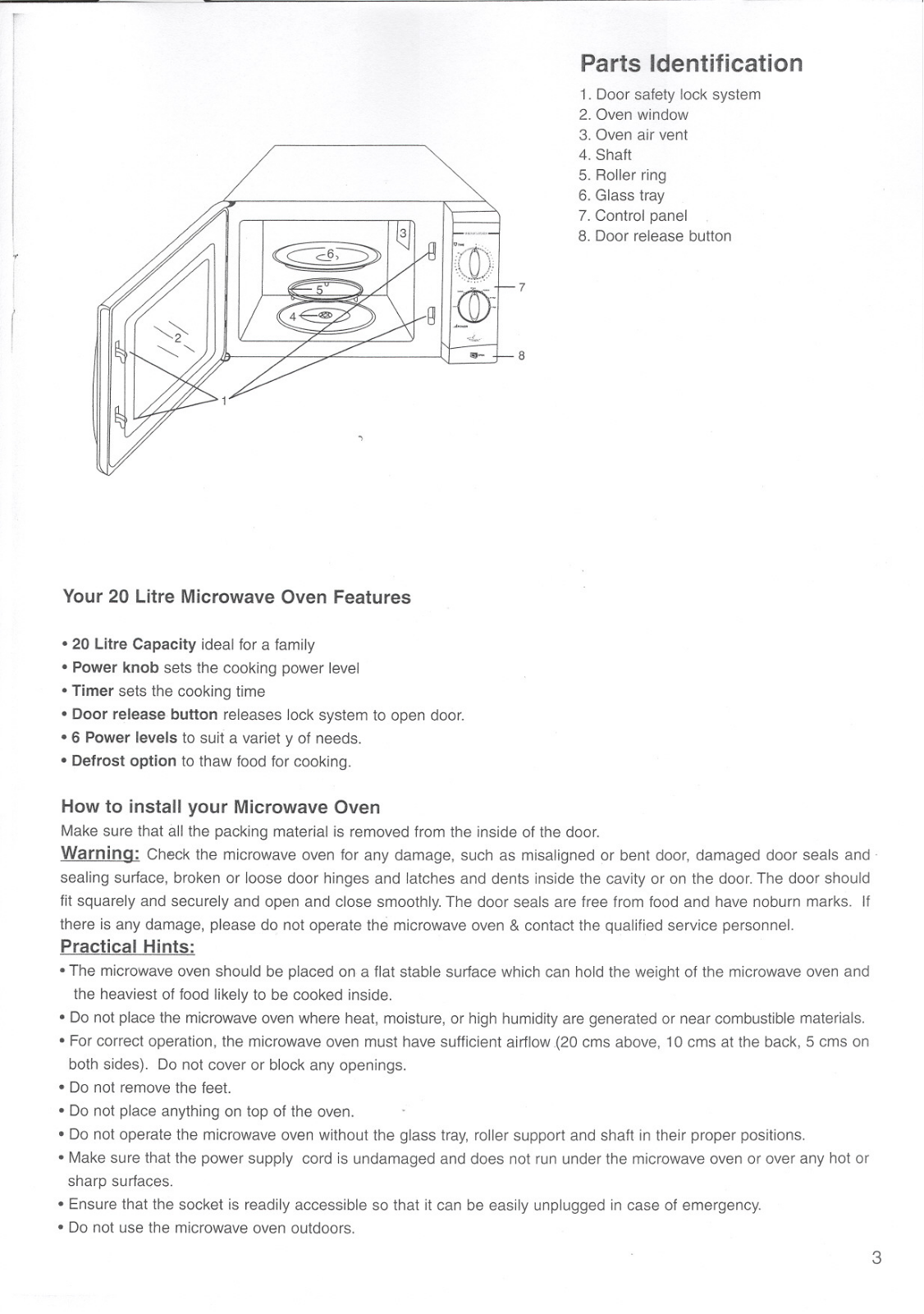

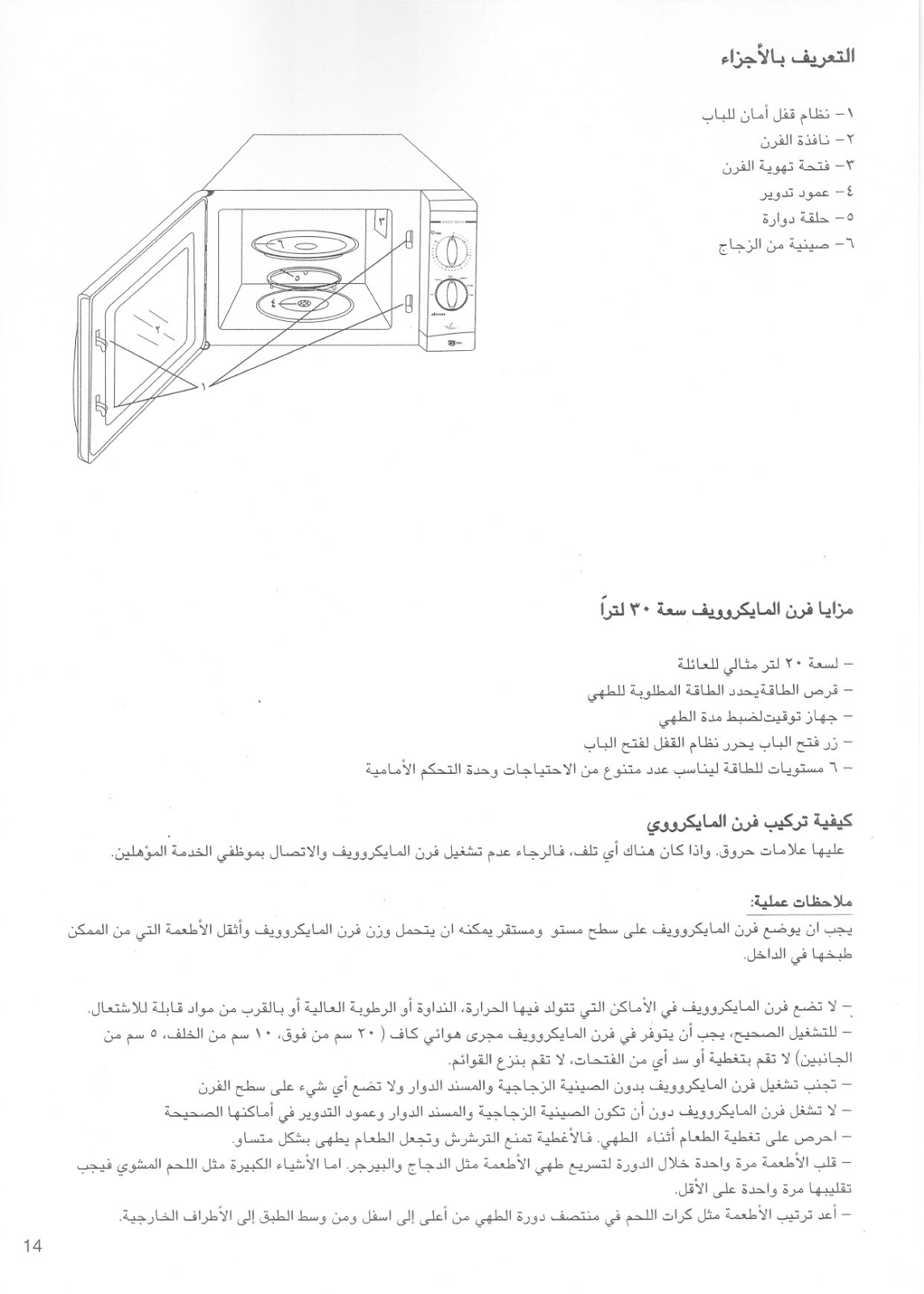

Parts Identification

1. Door safety lock system

2. Oven window

3. Oven air vent

4. Shaft

5. Roller ring

6. Glass tray

7. Control panel

8. Door release button

1iI-

Your 20 Litre Microwave Oven Features

.20 Litre Capacity ideal for a family

.Power knob sets the cooking power level

.Timer sets the cooking time

.Door release button releases lock system to open door.

. 6 Power levelsto suit a variet y of needs.

.Defrost option to thaw food for cooking.

How to install your Microwave Oven

Make sure that all the packing material is removed from the inside of the door. Warning: Check the microwave oven for any damage, such as misaligned or bent door, damaged door seals and. sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door.The door should fit squarely and securely and open and close smoothly.The door seals are free from food and have noburn marks. If there is any damage, please do not operate the microwave oven & contact the qualified service personnel.

Practical Hints:

.The microwaveoven should be placed on a flat stable surface which can hold the weight of the microwave oven and

the heaviest of food likely to be cooked inside. . Do not placethe microwaveoven where heat, moisture,or high humidityare generatedor near combustiblematerials. . For correct operation, the microwaveoven must have sufficient airflow (20 cms above, 10 cms at the back, 5 cms on

both sides). Do not cover or block any openings.

. Do not remove the feet. . Do not place anything on top of the oven.

. Do not operatethe microwave oven without the glass tray, roller support and shaft in their proper positions.

.Makesure that the power supply cord is undamaged and does not run under the microwave oven or over any hot or

sharp surfaces.

. Ensure that the socket is readily accessible so that it can be easily unplugged in case of emergency. . Do not use the microwaveoven outdoors.

. The appliance must be grounded. The oven is equipped with a cord having a grounding wire with a grounding plug.

It must be plugged into a wall socket that is properly installed and grounded as it reauces the risk of electric shock in

case of short circuit. Using a high voltage is dangerous and may result in a fire or other accidents causing the oven

damage. Note: Improper use of the grounding plug can result in a risk of electric shock. The microwave oven should be operat- ed on a separate circuit from other appliances. Failure to do so may cause the power board fuse to blow, and or food

to cook slower.

How to use your Microwave Oven

The appliance is intended to heat, cook or dry food for household use only. . Arrange the food carefully. Place the thickest areas towards the outside of the dish. . Watch the cooking time. Cook for the shortest amount of time and add more as required. Foodseverelyovercooked

can smoke or ignite thereby causing damage. . Ensure that you cover the food while cooking. Covers prevent splattering and the food cooks evenly. . Turn foods over once during the cycle to speed cooking of foods such as chicken & burgers. Large items like roasts

must be turned over at least once.

.Rearrange foods such as meat balls halfway through the cooking cycle both from top to bottom and centre of the dish

to the outside.

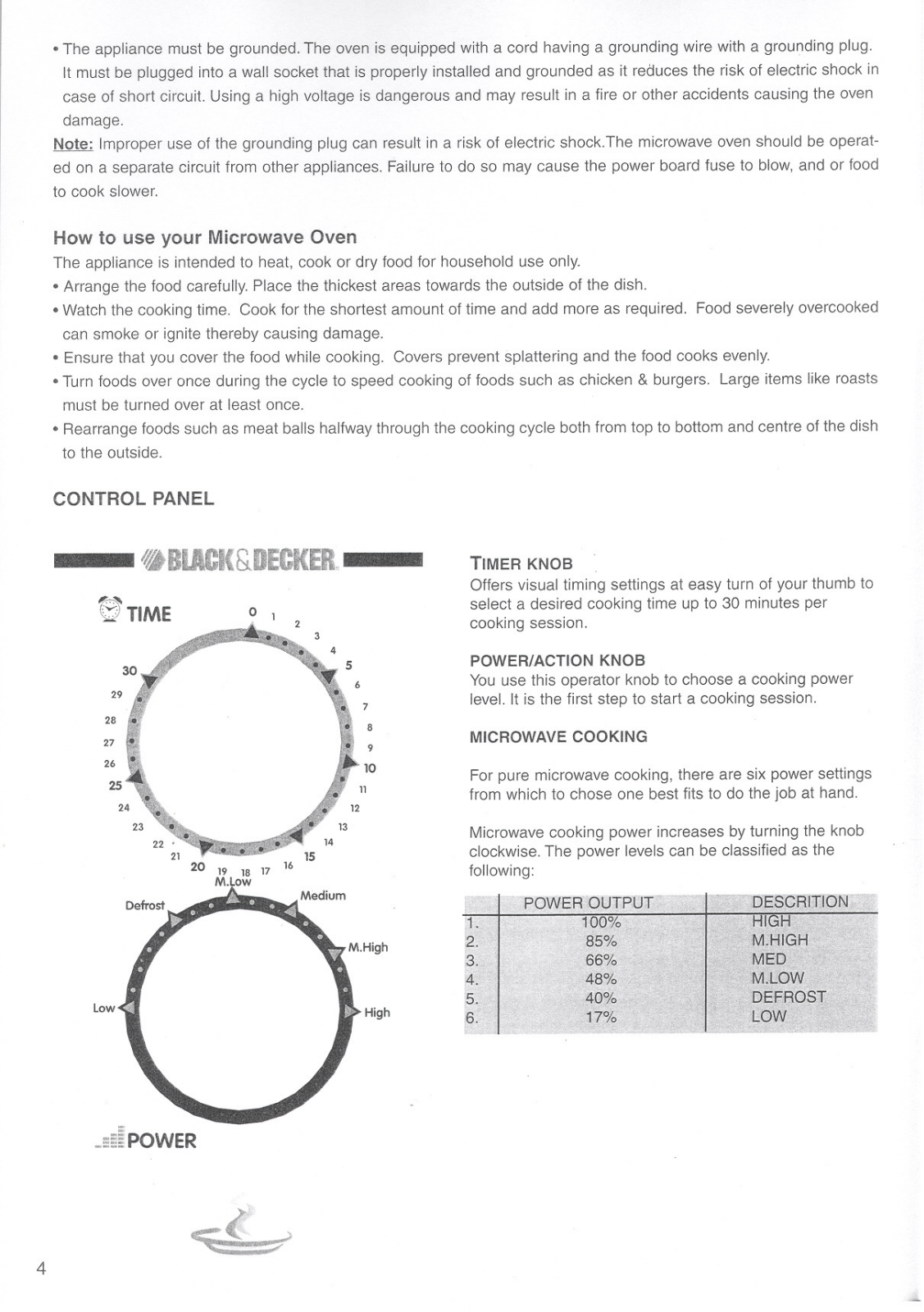

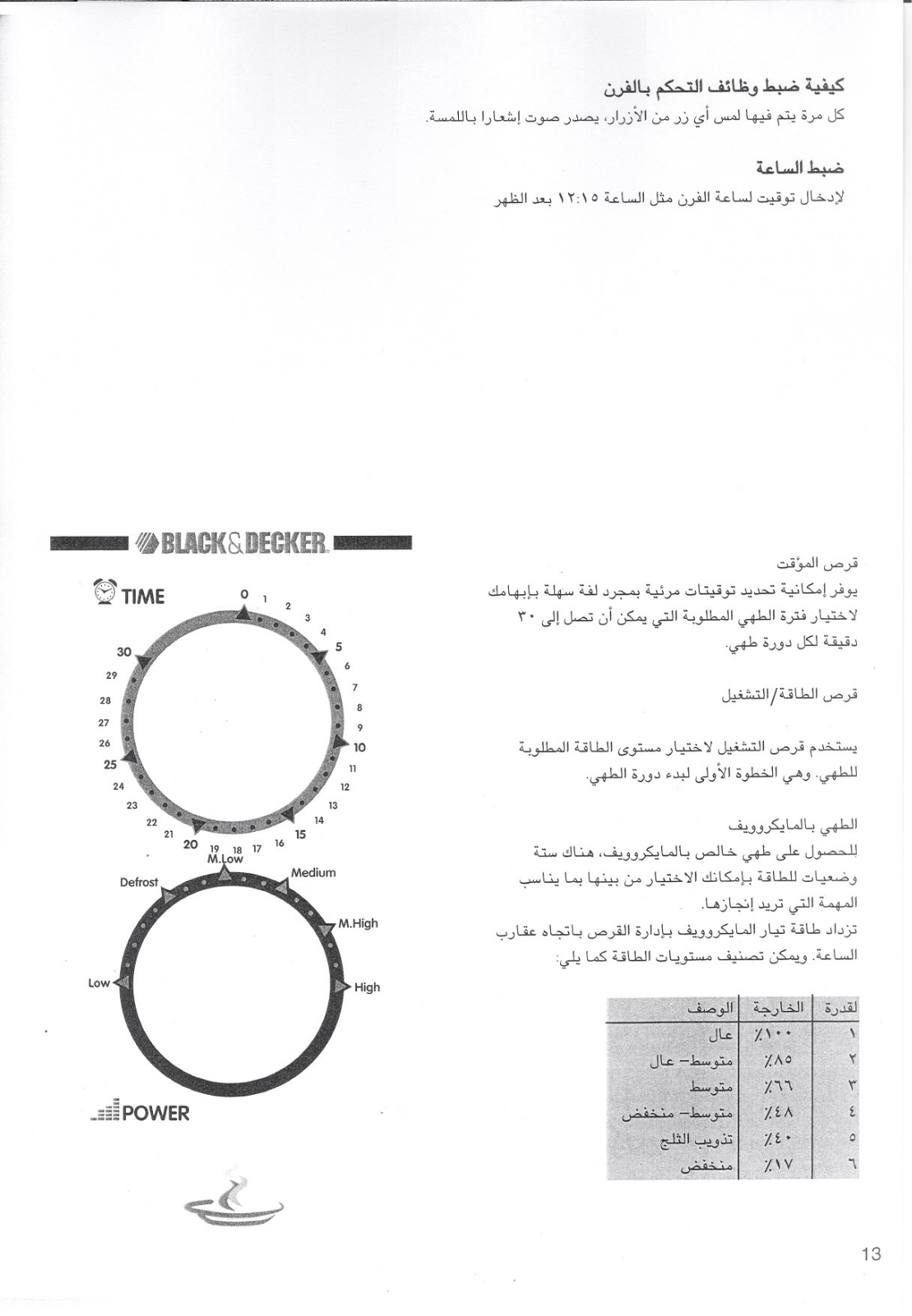

CONTROL PANEL

~BLACK&DECKER,

f2PTIME

28 27 26

Low

0 1

High

TIMER KNOB

Offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

POWER/ACTION KNOB

Youuse this operator knob to choose a cooking power level.It is the first step to start a cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power settings from which to chose one best fits to do the job at hand.

Microwave cooking power increases by turning the knob clockwise.The power levels can be classified as the

following:

_=5~POWER

r;:?

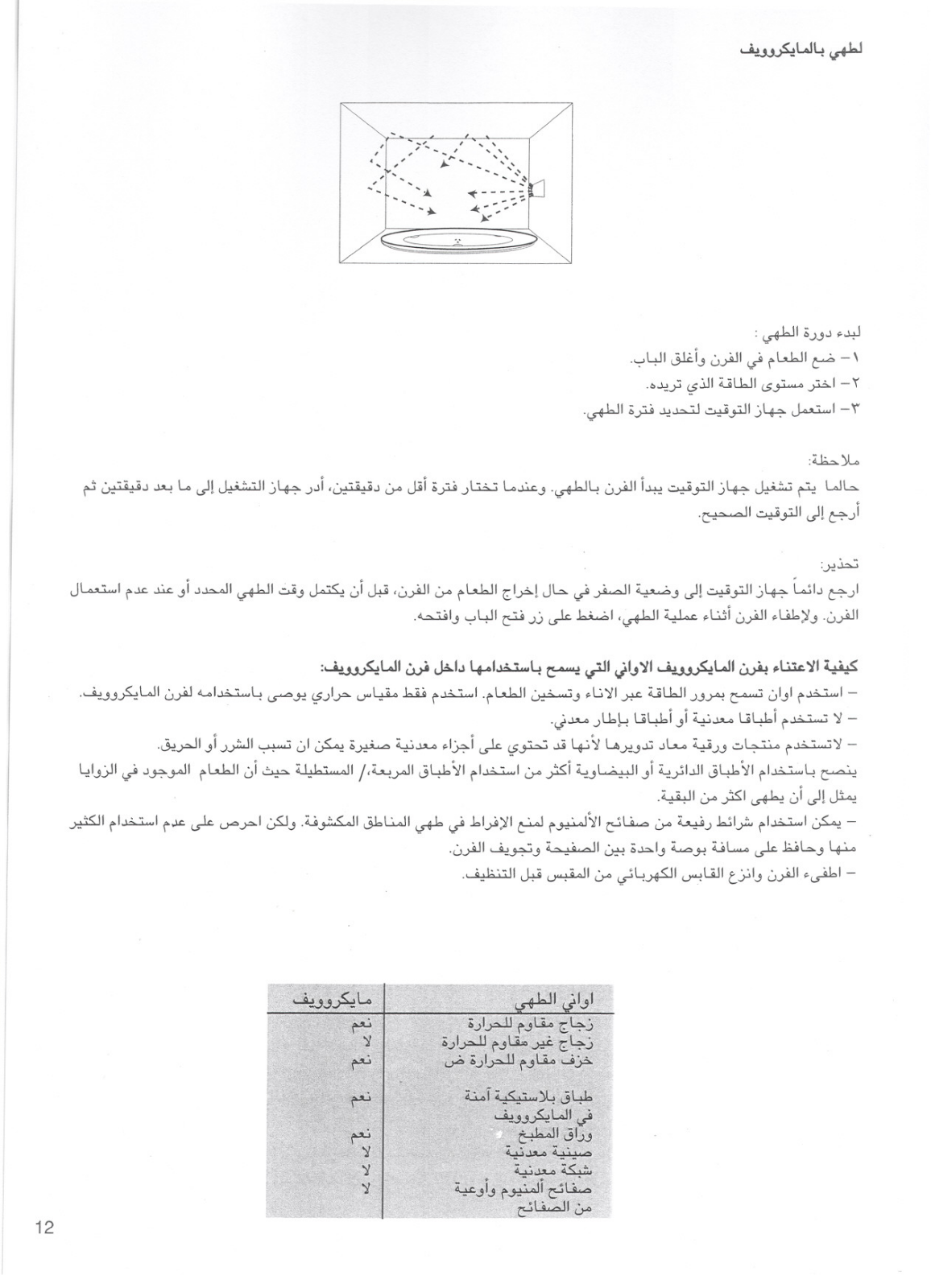

MICROWAVE COOKING

To start a cooking session,

Place food in oven and close the door.

;-~ ~ ~,' , , :' ,

~ ~ ~ ~ ~ ',\,

=:::>

' --

.~ - ~~~~

-', _:

~-~ ' , ;6. ~ - -..:-:.-;

, ~'.. .4(;' , '

NOTE:

Turn Power Selector to select a power level.

Use Timer knob to set a cooking time.

As soon as the timer is turned, oven starts cooking. When selecting time for less than 2 minutes, turn timer past 2 minutes and then return to the correct time.

CAUTION:ALWAYSRETURNTIMER BACK TO ZERO POSITION if food is removed from oven before the set cook- ingtime iscomplete or when oven is not in use.Tostop ovenduring cooking process,pushthe door release buttonand

open the door.

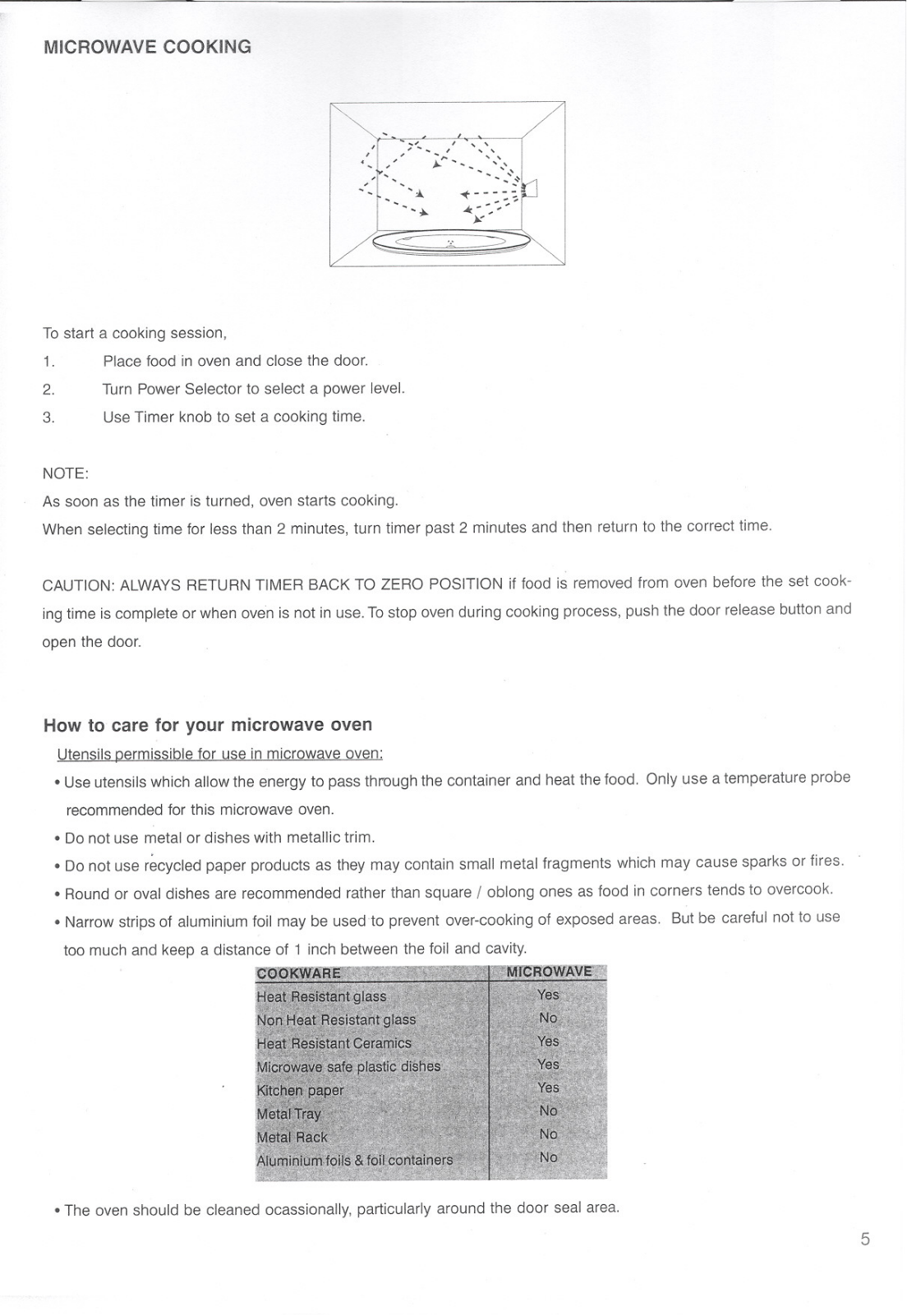

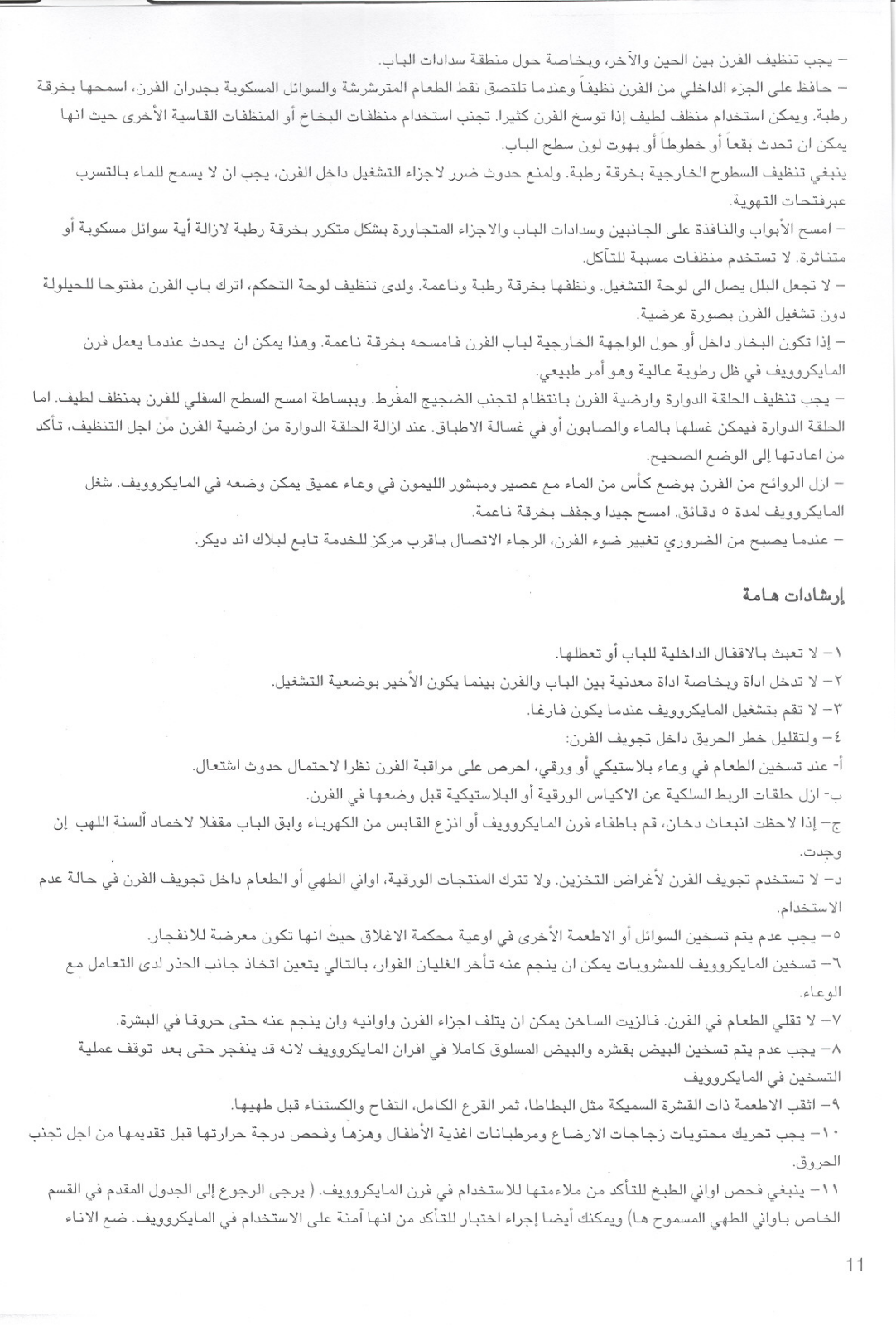

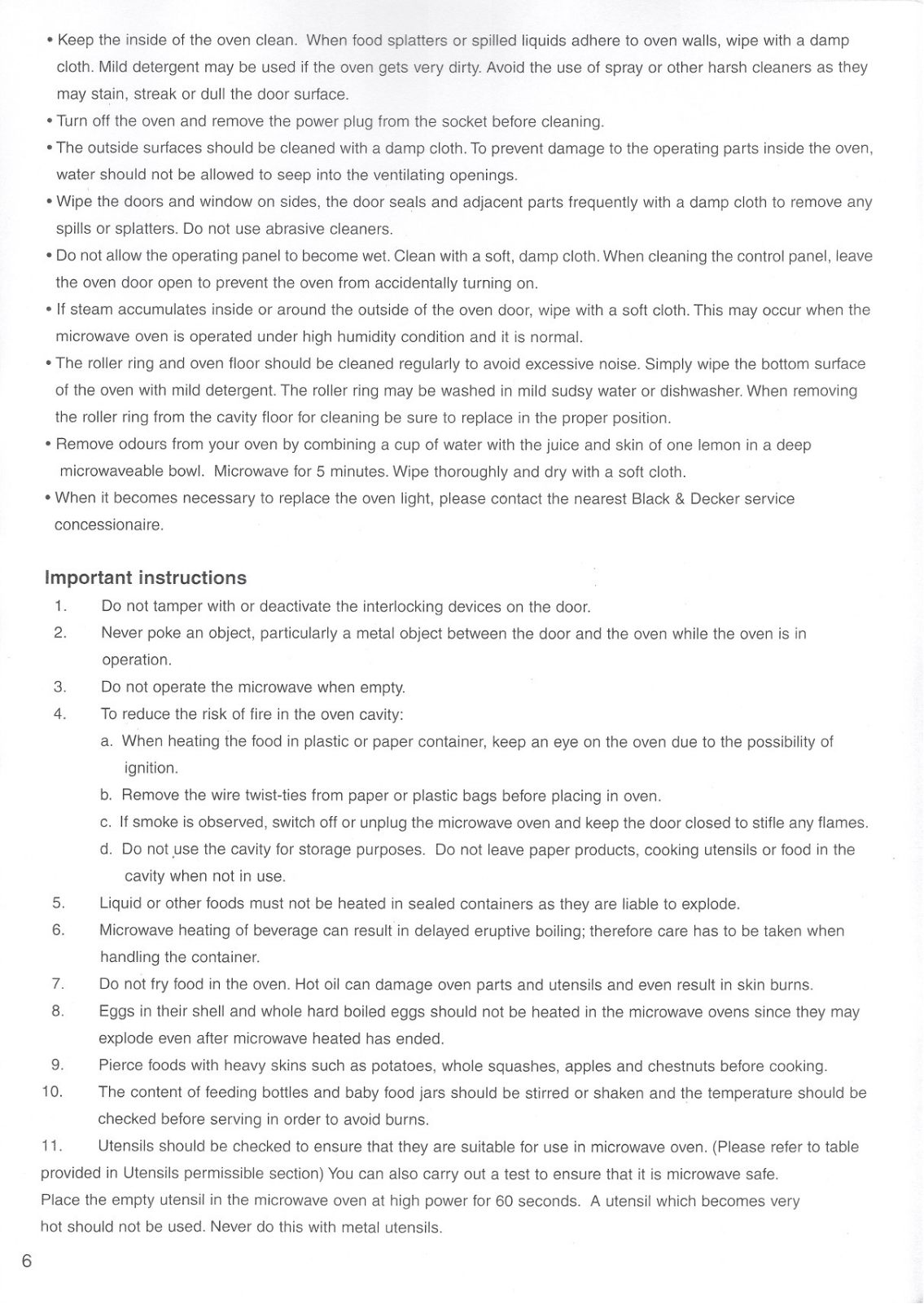

How to care for your microwave oven

Utensilspermissiblefor useinmicrowaveoven:

. Useutensilswhich allowthe energy to passthroughthe container and heat the food. Only use atemperatureprobe

recommendedfor this microwave oven.

. Do not use metal or dishes with metallic trim. . Do not use recycled paper products as they may contain small metal fragments which may cause sparks or fires.

. Round or oval dishes are recommended rather than square / oblong ones as food in corners tends to overcook. . Narrow strips of aluminiumfoil may be used to prevent over-cooking of exposed areas. But be careful not to use

too much and keep a distance of 1 inch between the foil and cavity.

. The oven should be cleaned ocassionally, particularly around the door seal area.
