Black Box RM610A-R2 User Manual

RM610A- R2

Server Side-Mount Wall Cabinet User’s Manual

Save space when mounting servers in long
or narrow rooms.

RM6 10A- R2

Customer

Support

Information

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018

Web site: w ww.blackbox.com • E-mail: [e-mail]

Trademarks Used in this Manual

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

Page 2

We‘re here to help! If you have any questions about your application

or our products, contact Black Box Tech Support at 724-746 -5500

or go to blackbox.com and click on “Talk to Black Box.”

You’ll be live with one of our technical experts in less than 30 seconds.

724-746-5500 | blackbox.com

RM6 10A- R2

Table of Contents

Preface ................................................................................................................................................................................................... 4

Safety ................................................................................................................................................................................... 4

Safety Symbols Used in this Manual .......................................................................................................................................... 4

Safety Considerations ............................................................................................................................................................... 4

1. Specifications ................................................................................................................................................................................... 5

2. Overview ................................................................................................................................................................................... 8

2.1 Introduction ............................................................................................................................................................................. 8

2.2 Features ................................................................................................................................................................................... 8

2.3 What’s Included ....................................................................................................................................................................... 8

2.4 Optional Accessories ................................................................................................................................................................ 8

3. Mounting Instructions ....................................................................................................................................................................... 9

3.1 Receiving, Unpacking, and Removing the Server Side-Mount Wall Cabinet from the Box ......................................................... 9

3.2 Wood Studded Wall ................................................................................................................................................................. 9

3.3 Masonry Wall Surface .............................................................................................................................................................. 9

3.4 Loading Equipment .................................................................................................................................................................10

3.5 Power ..................................................................................................................................................................................10

3.6 Protective Grounding ..............................................................................................................................................................10

3.6.1 Connecting the Main Protective Grouding Stud to the Dedicated Branch Ground.......................................................10

3.6.2 Connecting the Main Protective Grounding Stud to the Protective Bonding Conductors .............................................10

4. Operation ..................................................................................................................................................................................11

4.1 Operating the Door .................................................................................................................................................................11

4.2 Removing or Installing a Door .................................................................................................................................................11

4.3 Removing the Front Panel .......................................................................................................................................................11

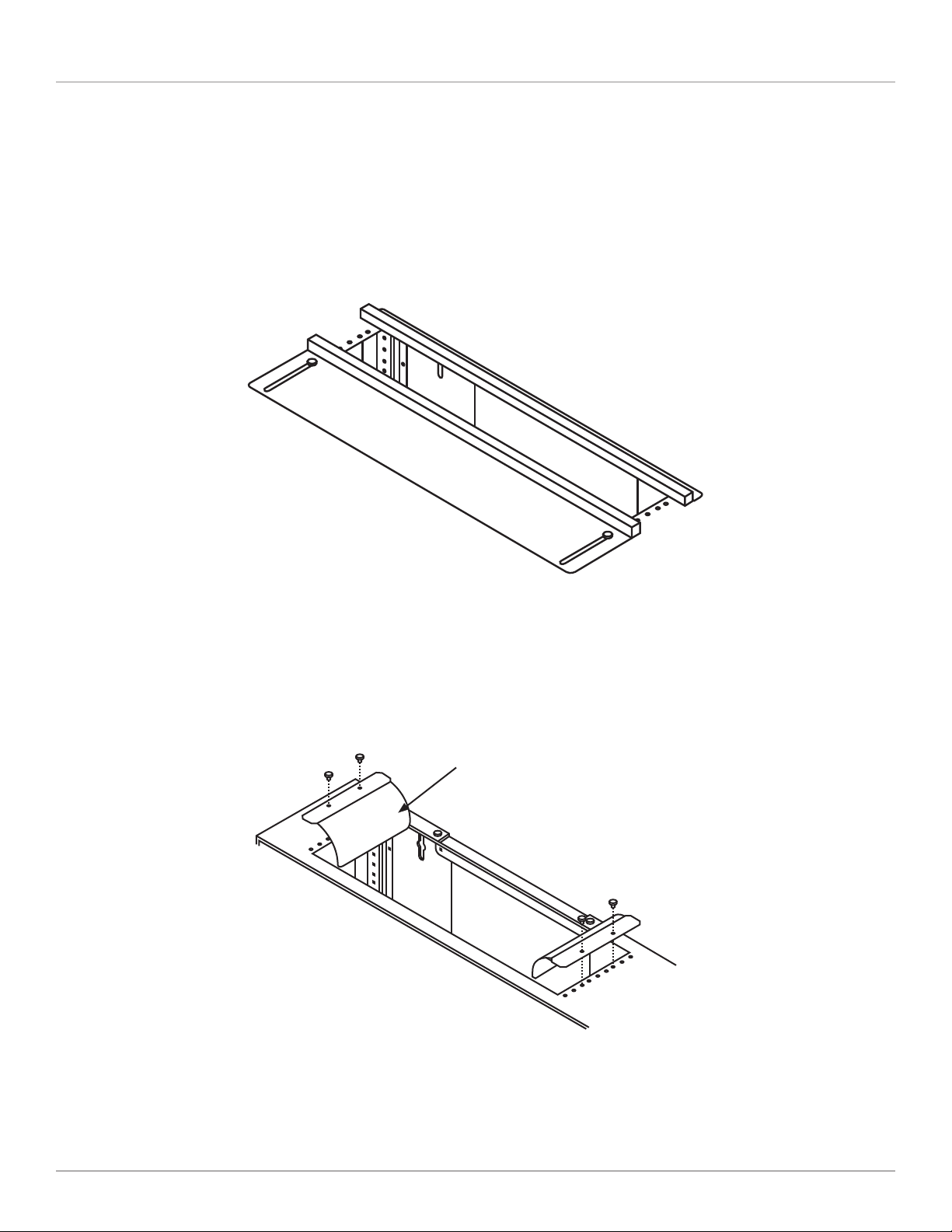

5. Optional Accessories Drawings .........................................................................................................................................................12

RM6 10A- R2

Page 3

Preface/Safety Information

Preface

This manual is provided to prevent service personnel from committing an act that results in the risk of fire, electric shock, or injury
to persons. Only trained service personnel should receive, unpack, and assemble the Server Side-Mount Wall Cabinet. In addition,
only trained service personnel should install equipment in enclosures.

Safety

Safety Symbols Used in this Manual

This manual provides general safety guidelines to be observed during installation, operation, and maintenance of the Server Side­Mount Wall Cabinet.

WARNING: Failure to follow directions in the warning could result in injury to persons or loss of life.

CAUTION: Failure to follow directions in the caution could result in damage to equipment or storage data.

Safety Considerations

WARNING: Improper handling and use of the RM610A-R2 could result in equipment damage, serious injury,

or possible death.

Only trained service personnel should be used to remove the enclosure from the pallet. Also be sure you have a sufficient number
of service personnel. Do not attempt to move enclosures by yourself.

Only UL® Listed ITE units should be installed inside the RM610A-R2.

Be sure to read and follow all individual manufacturer equipment manuals for safety and installation instructions.

The RM610A-R2 was not evaluated as a fire enclosure.

Proper spacing is required when installing electrical equipment to avoid electrical shock.

The ambient temperature operating range for the RM610A-R2 and accessories is +50 to +95° F (+10 to +35° C).

The non-operating temperature is -4 to +140° F (-20 to +60° C).

Page 4

724-746-5500 | blackbox.com

RM6 10A- R2

1. Specifications

Construction —

Body: 14-gauge steel;
Doors: 16-gauge steel;
Rails: 12-gauge steel

Door Height — 24" (60.1 cm)

Door Width — 18.5" (46.7 cm)

Finish — Black powder coat

Maximum Rail Depth — 29.75" (75.6 cm)

Mounting Holes — Designed for

Number of Rack Units (RUs) — 10

Rail Type — M5

Size — 24"H x 36.1"W x 20.5"D (60.1 x 91.7 x 52.1 cm)

Weight Capacity — 250 lb. (113.6 kg)

1

⁄4" hardware

Chapter 1: Specifications

36.1" (96.1 cm)

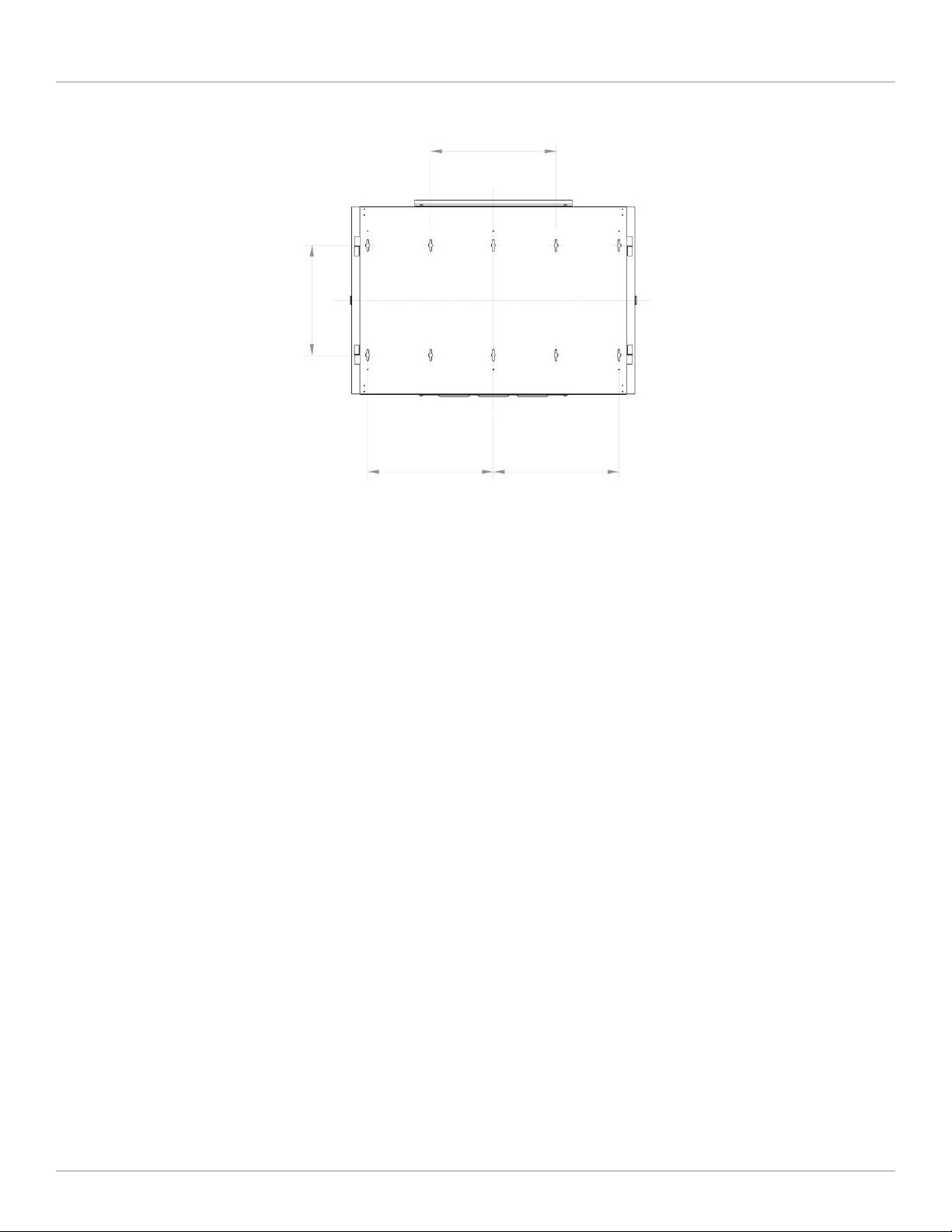

Figure 1-1. Front view.

EC24U3032
