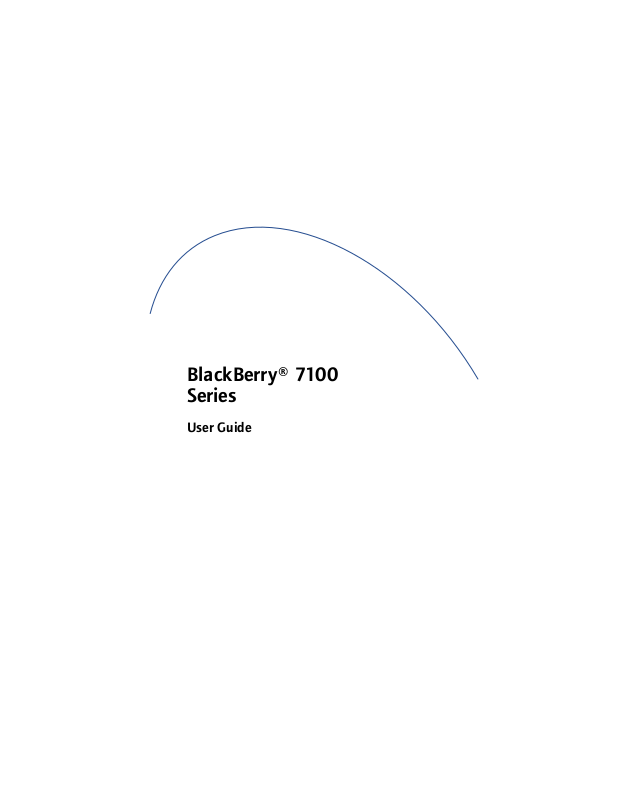

BlackBerry 7100 User Guide
BlackBerry® 7100
Series
User Guide
User Guide, BlackBerry® 7100 Series
Model Number: RAQ4xGW
Last modified: 30 March 2005
Part number: SWD_X_HH(EN)-039.001
At the time of publication, this documentation complies with handheld software version 4.0.2.
© 2005 Research In Motion Limited. All rights reserved. The BlackBerry and RIM families of related marks, images and
symbols are the exclusive properties and trademarks of Research In Motion Limited. RIM, Research In Motion, 'Always
On, Always Connected' and BlackBerry are registered with the U.S. Patent and Trademark Office and may be pending
or registered in other countries.
Microsoft and Outlook are registered trademarks of Microsoft Corporation in the United States and/or other countries.
IBM, Lotus, Domino, and Lotus Notes are trademarks of IBM in the United States. Novell and GroupWise are registered
trademarks of Novell Inc. in the United States and other countries. The Bluetooth® word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks by Research In Motion Limited is under license.
All other brands, product names, company names, trademarks, and service marks are the properties of their respective
owners.
The BlackBerry handheld and/or associated software are protected by copyright, international treaties, and various
patents, including one or more of the following U.S. patents: 6,278,442; 6,271,605; 6,219,694; 6,075,470; 6,073,318;
D445,428; D433,460; D416,256. Other patents are registered or pending in various countries around the world. Visit
www.rim.com/patents.shtml for a current listing of applicable patents.
This document is provided “as is” and Research In Motion Limited (RIM) assumes no responsibility for any
typographical, technical, or other inaccuracies in this document. RIM reserves the right to periodically change
information that is contained in this document; however, RIM makes no commitment to provide any such changes,
updates, enhancements, or other additions to this document to you in a timely manner or at all. RIM MAKES NO
REPRESENTATIONS, WARRANTIES, CONDITIONS, OR COVENANTS, EITHER EXPRESS OR IMPLIED (INCLUDING,
WITHOUT LIMITATION, ANY EXPRESS OR IMPLIED WARRANTIES OR CONDITIONS OF FITNESS FOR A PARTICULAR
PURPOSE, NON-INFRINGEMENT, MERCHANTABILITY, DURABILITY, TITLE, OR RELATED TO THE PERFORMANCE OR
NON-PERFORMANCE OF ANY SOFTWARE REFERENCED HEREIN, OR PERFORMANCE OF ANY SERVICES
REFERENCED HEREIN). IN CONNECTION WITH YOUR USE OF THIS DOCUMENTATION, NEITHER RIM NOR ITS
AFFILIATED COMPANIES AND THEIR RESPECTIVE DIRECTORS, OFFICERS, EMPLOYEES, OR CONSULTANTS SHALL BE
LIABLE TO YOU FOR ANY DAMAGES WHATSOEVER BE THEY DIRECT, ECONOMIC, COMMERCIAL, SPECIAL,
CONSEQUENTIAL, INCIDENTAL, EXEMPLARY, OR INDIRECT DAMAGES, EVEN IF RIM HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES, INCLUDING, WITHOUT LIMITATION, LOSS OF BUSINESS REVENUE OR EARNINGS,
LOST DATA, DAMAGES CAUSED BY DELAYS, LOST PROFITS, OR A FAILURE TO REALIZE EXPECTED SAVINGS.
This document might contain references to third-party sources of information and/or third-party web sites (“ThirdParty Information”). RIM does not control, and is not responsible for, any Third-Party Information, including, without
limitation, the content, accuracy, copyright compliance, legality, decency, links, or any other aspect of Third-Party
Information. The inclusion of Third-Party Information in this document does not imply endorsement by RIM of the third
party in any way. Any dealings with third parties, including, without limitation, compliance with applicable licenses,
and terms and conditions are solely between you and the third party. RIM shall not be responsible or liable for any part
of such dealings.
You are solely responsible for the selection, implementation, and performance of any third-party applications that you
use with the handheld or desktop software. Research In Motion does not in any way endorse or guarantee the security,
compatibility, performance, or trustworthiness of any third-party application and shall have no liability to you or any
third-party for issues arising from such third-party applications.
Research In Motion Limited
295 Phillip Street
Waterloo, ON N2L 3W8
Canada
Research In Motion UK Limited
Centrum House, 36 Station Road
Egham, Surrey TW20 9LF
United Kingdom
Published in Canada
Contents
Enterprise activation .....................................................5
Phone .................................................................................7
Email messages .......................................................... 15
PIN messages ................................................................21
SMS messages ..............................................................23
MMS messages .............................................................25
Search ..............................................................................27
Attachments ..................................................................29
Synchronizing data .....................................................31
Backing up and restoring handheld data ........... 33
Typing .............................................................................35
Browser ...........................................................................39
Downloading ................................................................ 43
Contacts .........................................................................45
Calendar ......................................................................... 49
Tasks ................................................................................53
Memos ............................................................................55
Alarm ...............................................................................57
Calculator .......................................................................59
Bluetooth® ....................................................................61
Date and time ..............................................................63
Profiles ............................................................................65
Screen display ...............................................................67
Language .......................................................................69
Power and battery ....................................................... 71
Network coverage .......................................................73
SIM card ......................................................................... 77
Security ........................................................................... 79
BrickBreaker ..................................................................85
Service books ................................................................87
Frequently asked questions ..................................... 89
Phone — frequently asked questions .................... 91
Email and PIN messages — frequently asked ques-
tions .................................................................................95
SMS messages — frequently asked questions ..101
MMS messages — frequently asked questions 103
Attachments — frequently asked questions .....105
Synchronization — frequently asked questions .......
109
Browser — frequently asked questions ...............111
Contacts — frequently asked questions .............115
Calendar — frequently asked questions .............117
Bluetooth® — frequently asked questions ........119
Security — frequently asked questions ...............121
Tips .................................................................................123
Legal notice .................................................................129
Index ..............................................................................131
3
4
Enterprise activation
• About enterprise activation
• Activate the handheld over the wireless
network
About enterprise activation
Use the enterprise activation feature to integrate
your handheld with your corporate Microsoft®
Outlook®, IBM® Lotus® Domino®, or Novell®
Groupwise® email account if you have access to
BlackBerry Enterprise Server™ version 4.0. You can
also use this feature to load or restore handheld
data saved as part of an automatic wireless
backup, a personal information management
synchronization, or a wireless email reconciliation.
If you have access to BlackBerry Enterprise Server
version 4.0, and Enterprise Activation does not
appear in the handheld options, verify with your
service provider that you have been provisioned
for enterprise activation. If you have been
provisioned for the service and the option does
not appear, contact your system administrator.
If you do not have access to BlackBerry Enterprise
Server version 4.0, refer to the printed
documentation that accompanied your handheld
for more information on integrating your
handheld with an email account.
Notes:
If the handheld has not yet been activated, or you
are upgrading your software, Enterprise Activation
might appear on the Home screen. Click
Enterprise Activation to verify the status of the
activation.
If the Enterprise Activation does not appear on
the Home screen, in the handheld options, click
Enterprise Activation to verify the activation
status.
Activate the handheld over the wireless network
In the handheld options, click Enterprise
Activation. Type your corporate email address and
the password provided to you by your system
administrator. Click the trackwheel. Click Activate.
Related topic
• Why are some messages already on my
handheld?
5
6
Phone
• Find your phone number
• Make a call
• Make an emergency call
• Use speed dial
• Check your voice mail
• Answer a call
• Mute a call or place a call on hold
• Adjust the phone volume
• Turn the speaker on and off
• Phone features
• Dial using letters
• Make a conference call
• Assign a speed dial number
• Change speed dial assignments
• Log calls
• Use call logs
• Block calls
• Forward calls
• Set call waiting
• Set default country and area codes
• Set corporate extension dialing
• Set voice mail options
• Set the TTY option
• Set the default call volume
• Use fixed dialing
• Reset call timers
• Phone — frequently asked questions
Find your phone number
In the phone, the My Number field displays your
phone number.
Make a call
1. On the Home screen, type a phone number.
2. Press the Send key.
3. To end the call, press the End key.
Notes:
Press the Send key on any screen to open the
phone.
Select a contact, call log, or phone number link on
any screen and press the Send key to make a call.
Related topics
• Add a pause or wait
• Can I use the phone when the handheld or
keyboard is locked?
Make an emergency call
You can make an emergency call even if the SIM
card is not inserted or the radio is off.
Perform one of the following actions:
• Unlocked keyboard or handheld: In the
phone, type the emergency number. Press
the Send key.
• Locked keyboard or handheld: Click the
trackwheel. Click Emergency Call. Click Yes.
Use speed dial
In the phone, press and hold the number key that
is assigned to the contact or phone number.
7
Note:
You can also use speed dial to make a phone call
on the Home screen or in the messages list.
To place a call on hold, click the trackwheel. Click
Hold. To resume the call, click the trackwheel.
Click Resume.
Check your voice mail
In the phone, click the trackwheel. Click Call
Voicemail.
Answer a call
To answer a call, click Answer. If you do not want
to answer the call, click Ignore.
If you are already connected to a call and receive
another call, perform one of the following actions:
• Click Answer - Drop Current to end your
current call and answer the incoming call.
• Click Answer - Hold Current to place the
current call on hold and answer the incoming
call.
• Click Answer - Drop All to end all current
calls and answer the incoming call during a
conference call.
To end the call, press the End key.
Note:
You can also press the Send key to answer a call. If
you are already connected to a call and receive
another call, press the Send key to place the
current call on hold and answer the incoming call
Related topic
• Can I use the phone when the handheld or
keyboard is locked?
Adjust the phone volume
During a call, roll the trackwheel up to increase
the volume or roll the trackwheel down to
decrease the volume.
Turn the speaker on and off
To turn the speaker on, during a call, click the
trackwheel. Click Activate Speakerphone.
To turn off the speaker, click the trackwheel. Click
Activate Handset.
Warning:
Do not hold the handheld near your ear while
using the speaker. Hearing damage can occur. For
more information on using the speaker safely,
refer to the
Related topic
BlackBerry Safety Information Booklet.
• Use Bluetooth® wireless technology during a
call
Phone features
During a call, your handheld has all the functions
that are available to a regular phone, such as hold
and mute.
To alternate between two connected calls, click
the trackwheel. Click Swap.
To use other applications during a call, click the
trackwheel. Click Home Screen.
Mute a call or place a call on hold
To mute a call, click the trackwheel. Click Mute. To
turn mute off, click the trackwheel. Click Turn
Mute Off.
8
Dial using letters
To type letters in phone numbers, use the multitap input method. Hold the Alt key. Press the key
once to type the first letter on the key, or press the
key twice to type the second letter on the key.
Note:
When you type a letter in a phone number, your
handheld dials the number that is associated with
the letter on a conventional phone keypad.
Make a conference call
1. During a call, press the Send key.
2. Type a phone number or select a contact.
3. Press the Send key.
4. During the second call, click the trackwheel.
5. Click Join.
Assign speed dial to a contact in your address book
1. In the phone, click the trackwheel.
2. Click View Speed Dial List.
3. Select an unassigned number.
4. Click the trackwheel.
5. Click New Speed Dial.
6. Select a contact.
7. Click the trackwheel.
8. Click Add Speed Dial To <contact name>.
Note:
When adding more than two numbers to a
conference call, place the conference call on hold
before calling the next phone number or contact.
Related topic
• Manage contacts during a conference call
Manage contacts during a conference call
To speak privately with one contact, click the
trackwheel. Click Split Call.
To disconnect one contact from the conference
call, click the trackwheel. Click Drop Call. Select a
contact. Click the trackwheel.
To disconnect from a conference call while leaving
the other parties connected, click the trackwheel.
Click Transfer.
Assign a speed dial number
In the phone, select a contact or phone number.
Press and hold any unassigned number key. Click
OK.
Related topic
• Assign speed dial to a contact in your
address book
Change speed dial assignments
In the phone, click the trackwheel. Click View
Speed Dial List. Select a contact or phone number.
Click the trackwheel. Perform one of the following
actions:
• Change the contact assigned to a speed dial
number: Click Edit. Click a new contact. Click
Speed Dial <contact name>.
• Assign the contact to a different speed dial
number: Click Move. Click a different speed
dial number.
• Remove a contact from the speed dial list:
Click Delete.
Log calls
Call logs appear when you open the phone.
Missed call logs also appear in the messages list.
To set whether call logs appear in the messages
list, in the phone options, click Call Logging.
Select the call log type that you want to appear in
the messages list. Press the Space key.
If you do not want any call logs to appear in the
messages list, select None. Press the Space key.
9
Related topic
• Can I set the phone to display frequently
called numbers?
Use call logs
In the phone, or in the messages list, open a call
log. Click the trackwheel. Perform one of the
following actions:
• Add Notes
• Edit Notes
• Forward
To delete notes, in the open call log, click the
trackwheel. Click Edit Notes. Click the trackwheel.
Click Clear Field.
Block calls
1. In the phone options, click Call Barring.
2. Click the trackwheel.
3. Click Enable.
4. Click the trackwheel.
5. Click Save.
Related topics
• Change the call block password
• Can I block calls?
Change the call block password
1. In the phone options, click Call Barring.
2. Click the trackwheel.
3. Click Change Password.
4. Type your current password.
5. Click the trackwheel.
6. Type your new password.
7. Click the trackwheel.
8. Type your new password again.
9. Click the trackwheel.
Related topic
• Can I block calls?
Forward calls
1. In the phone options, click Call Forwarding.
2. Select the type of calls that you want to
forward.
3. Press the Space key.
4. Select Do Not Forward or the current
forwarding phone number.
5. Click the trackwheel.
6. Click Change Number.
7. Select a forwarding phone number from the
list.
8. Click the trackwheel.
9. Click Save.
Note:
Before enabling call forwarding, verify that you
have call forwarding phone numbers added.
Depending on your SIM card, the phone numbers
for the call forwarding profiles might already be
specified. You might not be able to change them
or add new ones. For more information, contact
your service provider.
Related topics
• Can I use call forwarding?
• Add a call forwarding phone number
• Delete call forwarding phone numbers
• How do I edit the phone number to which
my calls are forwarded?
10
Add a call forwarding phone number
1. In a call forwarding profile, click Do Not
Forward.
2. Click Edit Numbers.
3. Click the trackwheel.
4. Click New Number.
5. Type the phone number and click the
trackwheel.
6. Click the trackwheel.
7. Click Close.
Related topic
• How do I edit the phone number to which
my calls are forwarded?
Delete call forwarding phone numbers
1. In a call forwarding profile, click the phone
number to which your calls are currently
being forwarded.
2. Click Edit Numbers.
3. Click the phone number that you want to
delete from the list.
4. Click Delete.
Related topic
• How do I edit the phone number to which
my calls are forwarded?
Set call waiting
1. In the phone options, click Call Waiting.
2. Set the Call Waiting Enabled field to Yes.
3. Click the trackwheel.
4. Click Save.
Related topic
• Can I use call waiting?
About smart dialing
You can specify default country and area codes so
that any numbers specified as links, or any
numbers in your address book that do not contain
these codes, are dialed correctly.
If you call a corporation frequently, you can also
set your smart-dialing options so that you do not
have to type the main number for the corporation.
To call a contact in the corporation, you only need
to press the X key and type the extension number.
Set default country and area codes
1. In the phone options, click Smart Dialing.
2. Set the Country Code and Area Code fields.
3. In the National Number Length field, set the
default length for phone numbers in your
country.
4. Click the trackwheel.
5. Click Save.
Note:
When calculating the default length for phone
numbers, include your area code and local
number, but do not include your country code or
the National Direct Dialing prefix.
Related topic
• About smart dialing
Set corporate extension dialing
1. In the phone options, click Smart Dialing.
2. In the Number field, type the main phone
number for the corporation.
3. Set how long the handheld waits before
dialing extensions.
4. Set the default length for extensions.
5. Click the trackwheel.
6. Click Save.
11
Related topic
• About smart dialing
Set voice mail options
1. In the phone options, click Voicemail.
2. Type a voice mail access number and any
additional numbers, such as a password or
extension.
3. Click the trackwheel.
4. Click Save.
Notes:
If your SIM card is provisioned for voice mail, the
voice mail access number might already be
completed. For more information on voice mail for
your SIM card, contact your service provider.
If your SIM card is not provisioned for voice mail,
you can type the access number for a different
voice mail system.
About TTY
You can use text telephone (TTY) to make calls to,
and receive calls from, other TTY devices. If you
connect your handheld to a TTY device, calls that
you receive on your handheld are converted to
text.
Note:
The TTY option is only available with certain
BlackBerry Wireless Handhelds.
Set the TTY option
1. In the phone options, click TTY.
2. Set the TTY Mode field.
3. Click the trackwheel.
4. Click Save.
Related topics
• About TTY
• Can I use a TTY device with my handheld?
About default call volume
You can specify a default volume level for any call,
regardless of whether you adjusted the volume
during a previous call.
Set the default call volume
1. In the phone options, click General Options.
2. Set the Default Call Volume field.
3. Click the trackwheel.
4. Click Save.
Related topic
• About default call volume
About fixed dialing
If you enable fixed dialing number (FDN) mode,
your handheld only makes calls to contacts on
your FDN list.
Notes:
Your handheld can dial emergency numbers in
FDN mode, even if the numbers are not in the
FDN list.
If your service provider plan includes SMS, you can
also send SMS messages to contacts on your FDN
list.
Use fixed dialing
1. In the phone options, click FDN Phone List.
2. Click the trackwheel.
3. Click Enable FDN mode.
4. Type the PIN2 code provided by your service
provider.
5. Click the trackwheel.
12
Related topics
• About fixed dialing
• Add a contact to the FDN list
• Change fixed dialing entries
• Can I use FDN mode on my handheld?
Add a contact to the FDN list
1. In the phone options, click FDN Phone List.
2. Click the trackwheel.
3. Click New.
4. Type the PIN2 code provided by your service
provider.
5. Click the trackwheel.
6. Type a name and a phone number.
7. Click the trackwheel.
8. Click Save.
Related topic
• Can I use FDN mode on my handheld?
Change fixed dialing entries
On the FDN list, click a contact. Perform one of
the following actions:
• Edit
• Delete
Reset call timers
1. In the phone, click the trackwheel.
2. Click Status.
3. Click Last Call or Total Calls.
4. Click Clear Timer.
5. Click the trackwheel.
6. Click Save.
13
14
Email messages
• Open a message
• Send a message
• Save draft messages
• Add contacts to a message
• Set the importance level
• Change sent messages
• Manage messages
• File messages
• View filed messages
• Delete multiple messages at one time
• Mark a message as opened or unopened
• Search the messages list
• Search the handheld
• Save a copy of messages sent from the
handheld
• Add an auto signature
• Set an out of office reply
• Create a filter
• Set folder redirection
• Email and PIN messages — frequently asked
questions
Open a message
An unopened message appears in the messages
list with a closed envelope icon. After you open
the message, the closed envelope changes to an
open envelope.
Send a message
1. In the messages list, click the trackwheel.
2. Click Compose Email.
3. Click [Use Once].
4. Click Email.
5. Type an email address.
6. Click the trackwheel.
7. Click Continue.
8. Type a message.
9. Click the trackwheel.
10. Click Send.
Notes:
If you have added contacts to the address book,
you can select a contact from the list after you
click Compose Email.
If your handheld is integrated with multiple email
services, you can select the service from which
your message should be sent. At the top of the
message, in the Using field, press the Space key
until the preferred service appears. All subsequent
messages to the current recipient are also sent
from this service.
Save draft messages
To save a draft of a message, click the trackwheel.
Click Save Draft.
Add contacts to a message
To send a message to multiple contacts, click the
trackwheel. Click Add To, Add Cc, or Add Bcc.
To attach a contact to a message, click the
trackwheel. Click Attach Address.
Set the importance level
When composing a message, click the trackwheel.
Click Options. Set the Importance field to High or
Low. Save your changes.
15
Change sent messages
To change the text in a sent message and resend
it, open the message. Click the trackwheel. Click
Edit. Change the text. Click the trackwheel. Click
Send.
To change the recipient of a sent message and
resend it, open the message. Click the trackwheel.
Click Edit. Select a contact. Click the trackwheel.
Click Change Address. Click a new contact. Send
your message.
To resend your message to the same contact, open
the message. Click the trackwheel. Click Resend.
View filed messages
To display all filed messages in the messages list,
in the messages options, click General Options.
Set the Hide Filed Messages field to No.
To view messages within a specific folder, in the
messages list, click the trackwheel. Click View
Folder. Click a folder. Click Select Folder.
Note:
To view sent messages, in the messages list, click
the trackwheel. Click View Folder. Click Sent Items.
Click Select Folder.
Manage messages
Open a message. Click the trackwheel. Perform
one of the following actions:
• Save
• Reply
• Forward
• Reply To All
• Delete
To delete the original message from a reply, click
the trackwheel. Click Delete Original Text.
File messages
To file a message, click the message. Click File.
Click a folder. Click File.
Notes:
To expand a folder, click a folder with a plus sign
(+) beside it. Click Expand.
To collapse a folder, click a folder with a minus
sign (-) beside it. Click Collapse.
Related topics
• Can I file messages?
• View filed messages
Delete multiple messages at one time
To delete multiple messages, hold the Shift key
and select a series of messages. Press the Delete
key.
To delete sent and received messages prior to and
including a date, click a date. Click Delete Prior.
Note:
When you reconcile your handheld with your
mailbox, any messages that you deleted from your
handheld using the Delete Prior option are not
deleted from your mailbox.
Related topic
• Reconcile deleted messages
Mark a message as opened or unopened
To change the status of a message, click a
message. Click Mark Opened or Mark Unopened.
To change the status of multiple unread messages
to read, click a date field. Click Mark Prior Opened.
16
Save a copy of messages sent from the handheld
Set this option to save messages sent from your
handheld in the Sent Items folder of your mailbox.
1. In the messages options, click Email Settings.
2. Set the Save Copy In Sent Folder field to Yes.
3. Click the trackwheel.
4. Click Save.
Related topic
• View filed messages
About out of office reply
The out of office reply is automatically sent to
your contacts the first time that the contact sends
you a message.
To set an out of office reply from your handheld,
your handheld must be integrated with an
account using the BlackBerry Enterprise Server™
version 4.0. Alternatively, you can set an out of
office reply in your mailbox.
If you use BlackBerry Internet Service, log into
your account using a desktop browser to set an
auto reply.
About auto signatures
The signature is added to your messages after you
send them. It does not appear on your handheld
when you compose the message.
To add a signature to messages sent from your
handheld, your handheld must be integrated with
an account using the BlackBerry Enterprise
Server™ version 4.0. Alternatively, you can add a
signature in the BlackBerry Desktop Software.
If you use BlackBerry Internet Service, log into
your account using a desktop browser to add an
auto signature.
Add an auto signature
1. In the messages options, click Email Settings.
2. Set the Use Auto Signature field to Yes.
3. Type a signature.
4. Click the trackwheel.
5. Click Save.
Related topic
• About auto signatures
Set an out of office reply
1. In the messages options, click Email Settings.
2. Set the Use Out Of Office Reply field to Yes.
3. Type a reply.
4. If you use a Lotus Notes® mailbox, in the
Until field, set the date on which the out of
office reply should be disabled.
5. Click the trackwheel.
6. Click Save.
Related topic
• About out of office reply
About filters
You create filters to specify which messages are
forwarded to your handheld and which messages
remain in your mailbox. To forward messages to
your handheld, select Forward with Level 1
Notification (sends messages with higher priority)
or Forward header only (sends messages with only
the To, Sent, and From fields).
If the message does not meet any filter criteria
and should not be forwarded, set the If no filters
apply, send email to handheld field to No.
17
Filters are applied to messages based on the order
in which they appear. If you create multiple filters
that could apply to the same message, you must
decide which one to apply first by placing that
filter higher in the list.
To create filters on your handheld, your handheld
must be integrated with an account using the
BlackBerry Enterprise Server™ version 4.0.
Alternatively, you can use the BlackBerry Desktop
Software to create filters.
If you use BlackBerry Internet Service, log into
your account using a desktop browser to create
filters.
Create a filter
1. In the messages options, click Email Filters.
2. Click the trackwheel.
3. Click New.
4. Set the filter information.
5. Click the trackwheel.
6. Click Save.
Notes:
To add a contact to the From or Sent to fields,
click the trackwheel. Click Select Name. Click a
name. Click Continue.
To make the filter detect messages from multiple
contacts, use semicolons to separate your contacts
in the From or Sent to fields.
Related topics
• About filters
• Use filters
• Create a filter quickly
Use filters
Click a filter. Perform one of the following actions:
• Enable filter
• Disable filter
• View
• Edit
• Delete
• Move up
• Move down
Create a filter quickly
In the messages list, click a message on which to
base your filter.
To create a filter based on the sender, click Filter
Sender. Add a title and save the filter.
To create a filter based on the subject, click Filter
Subject. Add a title and save the filter.
About folder redirection
If rules within your mailbox direct new messages
into different folders, you must specify which
folders should forward messages to your
handheld.
To set folder redirection on your handheld, your
handheld must be integrated with an account
using the BlackBerry Enterprise Server™ version
4.0. Alternatively, you can use the BlackBerry
Desktop Software to specify folder redirection
settings.
If you use BlackBerry Internet Service, log into
your account using a desktop browser to specify
folder redirection settings.
Set folder redirection
1. In the messages options, click Email Settings.
2. Click the trackwheel.
3. Click Folder Redirection.
4. Select the check boxes.
5. Click the trackwheel.
18
6. Click Save.
Notes:
Verify that you selected the Inbox check box. If
you do not select the Inbox check box, messages
are not forwarded from this folder.
To specify all of your folders for redirection,
including your Sent Items folder, select the Select
All check box. All messages sent from your
mailbox also appear on your handheld.
Related topics
• About folder redirection
• View filed messages
• How do I make changes to the folders on my
handheld?
19
20
PIN messages
• About PIN messages
• Find your PIN
• Open a message
• Send a PIN message
• Save draft messages
• Add contacts to a message
• Change sent messages
• Manage messages
• Delete multiple messages at one time
• Mark a message as opened or unopened
• Search the messages list
• Search the handheld
• Email and PIN messages — frequently asked
questions
About PIN messages
A personal identification number (PIN) uniquely
identifies each BlackBerry Wireless Handheld on
the network. If you know the PIN of another
BlackBerry Wireless Handheld user, you can send a
PIN message to that person. PIN messages are not
routed through an existing email account.
When your PIN message is delivered to the
recipient, a D appears with a check mark in the
messages list.
Note:
If your handheld is integrated with an account
using the BlackBerry Enterprise Server™ version
4.0, your PIN is displayed on the Enterprise
Activation screen.
Send a PIN message
1. In the messages list, click the trackwheel.
2. Click Compose PIN.
3. Click [Use Once].
4. Click PIN.
5. Type a PIN number.
6. Click the trackwheel.
7. Click Continue.
8. Type a message.
9. Click the trackwheel.
10. Click Send.
Note:
If you have added contacts to the address book,
you can select a contact from the list after you
click Compose PIN.
Find your PIN
In the handheld options, click Status.
21
22
SMS messages
• About SMS messages
• Find your SMS number
• Type an SMS number
• Open an SMS message
• Send an SMS message
• Save draft messages
• Manage messages
• Resend an SMS message
• Enable cell broadcast messages
• Manage cell broadcast channels
• Delete multiple messages at one time
• Mark a message as opened or unopened
• Search the messages list
• Search the handheld
• Leave SMS messages on the SIM card
• SMS messages — frequently asked questions
About SMS messages
With an SMS-compatible phone number, you can
send and receive short message service (SMS)
messages. An SMS-compatible number is a phone
number (work, home, mobile, or pager) that your
service provider enables for SMS.
You can send SMS messages to contacts who have
SMS-compatible phone numbers.
Type an SMS number
When you type an SMS-compatible number,
include the country code and the area code.
Note:
In the phone, set your smart-dialing options to
avoid typing the country code and area code.
Related topic
• About smart dialing
Open an SMS message
An unopened SMS message appears in the
messages list with a closed italic envelope icon.
After you open the message, the closed italic
envelope changes to an open italic envelope.
Send an SMS message
1. In the messages list, click the trackwheel.
2. Click Compose SMS.
3. Click [Use Once].
4. Click SMS.
5. Type the SMS-compatible phone number.
6. Click the trackwheel.
7. Click Continue.
8. Type a message.
9. Click the trackwheel.
10. Click Send.
Find your SMS number
In the phone, the My Number field displays your
phone number. If your handheld is enabled for
SMS, this number is also your SMS number.
Note:
If you have added contacts to the address book,
you can select a contact from the list after you
click Compose SMS.
23
To send an SMS message quickly from the phone,
type a phone number. Click the trackwheel. Click
SMS
<XXXXXXX>
Related topic
.
• Why can’t I send SMS messages?
Manage messages
Open a message. Click the trackwheel. Perform
one of the following actions:
• Save
• Reply
• Forward
• Delete
To remove the history from an SMS message,
when replying, click the trackwheel. Click Remove
History.
Resend an SMS message
To resend your SMS message to the same contact,
open the message. Click the trackwheel. Click
Resend.
Related topic
• About cell broadcast messages
Manage cell broadcast channels
The cell broadcast channels that you subscribe to
determine the kind of information messages that
you receive. In the handheld options, click SMS.
Select a channel from the list. Click the
trackwheel. Perform one of the following actions:
• To receive messages from a new channel,
click Add Channel.
• To specify a preferred name for the selected
channel, click Set Nickname.
• To stop receiving messages from the selected
channel, click Disable.
• To remove the selected channel, click Delete
Channel.
Note:
To specify the languages in which you would like
to receive cell broadcast messages, scroll down the
list and select a cell broadcast language. Click the
trackwheel. Click Enable or Disable.
About cell broadcast messages
If your service provider supports cell broadcasting,
and provides you with access to a cell
broadcasting channel, you can receive information
messages from the wireless network. These SMS
messages can communicate information about
weather, sports, traffic, or other news directly to
your handheld. For more information on cell
broadcasting, contact your service provider.
Enable cell broadcast messages
To enable cell broadcasting, in the handheld
options, click SMS. Set the Cell Broadcasting
Service field to On.
24
Related topic
• About cell broadcast messages
MMS messages
• About MMS messages
• Find your MMS number
• Open an MMS message
• Send an MMS message
• Send an MMS message from the browser or
pictures list
• Save draft messages
• Add contacts to a message
• Set the importance level
• Manage vCalendar attachments
• Manage MMS messages
About MMS messages
With an MMS-compatible number, you can send
and
receive multi-media message service (MMS)
messages. An MMS-compatible number is a phone
number (work, home, mobile, or pager) that your
service provider enables for MMS.
If your service provider supports MMS, you can
send MMS messages that contain .jpg, .gif, .wbmp,
or .png content and receive MMS messages that
contain .jpg, .gif, .wbmp, .png, .txt, .midi, .vcf
(vCard
®), .vcs (vCalendar®), or .smil content.
Find your MMS number
In the phone, the My Number field displays your
phone number. If your service provider supports
MMS, this number is also the number at which
you receive MMS messages.
Open an MMS message
An unopened MMS message appears in the
messages list with a closed italic envelope icon.
After you open the message, the closed italic
envelope changes to an open italic envelope.
Send an MMS message
1. In the messages list, click the trackwheel.
2. Click Compose MMS.
3. Click [Use Once].
4. Click MMS.
5. Select how you want to send your MMS
message.
6. Type an MMS-compatible phone number or
email address.
7. Click the trackwheel.
8. Click Continue.
9. Type a message.
10. Click the trackwheel.
11 . Click Attach Picture.
12 . Select an image to include in your MMS
message.
13 . Click the trackwheel.
14 . Click the trackwheel.
15. Click Send.
Notes:
If you have added contacts to the address book,
you can select a contact from the list after you
click Compose MMS.
To send an MMS message quickly from the phone,
type a phone number. Click the trackwheel. Click
MMS
<XXXXXXX>
.
25
You can add one or more images that are not
copyright protected to your message, but the
message cannot exceed 100 KB.
Related topic:
• Can I send and receive MMS messages?
Send an MMS message from the browser or pictures list
1. In the browser or pictures list, click an image.
2. Click Send As MMS.
3. Add a recipient for your MMS message.
4. Type a message.
5. Click the trackwheel.
6. Click Send.
Manage vCalendar attachments
vCalendar attachments are non-recurring calendar
appointments that can be saved to your calendar.
1. In the open message, select the vCalendar
attachment.
2. Click the trackwheel.
3. Click View Appointment.
4. Click the trackwheel.
5. Click Add to Calendar.
To view MMS content if it does not appear
automatically, click Retrieve.
Additional options might also be available if the
message contains .smil content.
Notes:
When you reply to an MMS message, the previous
message is not included.
You cannot edit the content of an MMS message
that you forward. You can only forward an MMS
message if the content is not copyright protected.
Manage MMS messages
Open a message. Click the trackwheel. Perform
one of the following actions:
• Save
• Reply
• Forward
• Reply To All
• Delete
26
Search
• About search
• Search the messages list
• Search the handheld
About search
You can search the messages list using criteria
that you set and save those searches for future
use. You can also search for contacts or search for
all messages containing the same subject.
You can also search the handheld to find content
across all programs. With the global search, files
that appear in the search results can be used just
as they would in the original program. For
example, you can manage messages in your
search results the same way that you would in the
messages list.
Search the messages list
1. In the messages list, click the trackwheel.
2. Click Search.
3. Set the search criteria.
4. Click the trackwheel.
5. Click Save.
6. Add a name and a shortcut key for your
search.
7. Click the trackwheel.
8. Click Save.
Note:
You can search without saving the details for the
search. After you set the criteria, click the
trackwheel. Click Search.
Related topics
• Use saved searches
• Search for a specific contact
• Search for a subject
Use saved searches
To view your saved searches, in the messages list,
click the trackwheel. Click Search. Click the
trackwheel. Click Recall.
Click a search. Perform one of the following
actions:
• View
• Edit
• Delete
To view the te rms of you r las t search qui ckly, in the
list of searches, click the trackwheel. Click Last.
Search for a specific contact
To search for all messages from a specific sender,
click the message. Click Search Sender.
To search for all messages to a specific recipient,
click the message. Click Search Recipient.
Search for a subject
To search for all messages with the same subject,
click a message. Click Search Subject.
Search the handheld
1. In the search program, type text in the Text
field to search the records on your handheld.
2. In the Name field, type text to search using
the names of contacts in your address book,
calendar, or messages list.
3. Select the check boxes for the programs to
search.
4. Click Search.
27
Notes:
If you type more than one word in the Text or
Name field, all the words must appear in the same
field for the search to be successful.
File attachments are not searched when you
search across the handheld programs.
To expand a folder, click a folder with a plus sign
(+) beside it. Click Expand.
To collapse a folder, click a folder with a minus
sign (-) beside it. Click Collapse.
Related topic
• How do I search for text within a file
attachment?
28
Attachments
• About attachments
• Use address book attachments
• View information about an attachment
• Open a file attachment
• Navigate attachments
• Preview a table in an attachment
• Navigate spreadsheet attachments
• Navigate image attachments
• Attachments — frequently asked questions
About attachments
Address book attachments enable recipients of
your messages to view and add contacts to their
handheld address books. When you open a
message that contains an address book
attachment, a book icon appears at the bottom of
the message with the name of the attached
contact.
You can view certain types of file attachments on
your handheld, including .zip, .htm, .html, .doc,
.dot, .ppt, .pdf, .wpd, .txt, and .xls files. You can
also view .bmp, .gif, .jpg, .png, and .tif image
attachments.
A message with a file attachment appears in the
messages list with a paper clip icon.
Related topic
• Can I view file attachments on my handheld?
Use address book attachments
To view an address book attachment, in an open
message, click the trackwheel. Click View
Attachment.
To add the contact information to your address
book, when viewing an address book attachment,
click the trackwheel. Click Add to Address Book.
To update contact information, when viewing an
address book attachment, click the trackwheel.
Click Update Address.
View information about an attachment
Attachment information might include the size of
the attachment, the author of the attachment,
and when the attachment was created.
Click the trackwheel. Click Open Attachment. Click
the attachment. Click View Info.
Open a file attachment
1. Click the trackwheel.
2. Click Open Attachment.
3. Click the attachment.
4. Click Expand.
5. Perform one of the following actions:
• To open an automatically generated table
of contents for the file attachment, click
Table of Contents.
• To open the complete file attachment,
click Full Content.
6. Click Retrieve.
Navigate attachments
To open content that is embedded within a
document or spreadsheet, click a content link.
Click Retrieve. Examples of embedded content
include tables, images, footnotes, text boxes, or
comments. Press the Escape button to return to
the main attachment content.
29
Preview a table in an attachment
To preview a table that is embedded within a
document, click the table link. Click Retrieve.
To view the full table from the table preview,
select the Table Link link at the top of the table
preview. Click the trackwheel. Click Retrieve.
Navigate spreadsheet attachments
To scroll horizontally in a spreadsheet, hold the Alt
key and roll the trackwheel.
To move to a specific cell within a spreadsheet,
click the trackwheel. Click Go to Cell. Type the cell
co-ordinates, and then click the trackwheel.
To display the contents of a specific cell in a
spreadsheet, click the trackwheel. Click View Cell.
To view the previous worksheet in a workbook,
click the trackwheel. Click Prev Sheet.
To view the next worksheet in a workbook, click
the trackwheel. Click Next Sheet. If the next
worksheet has not yet been retrieved, click More
to retrieve it.
To switch to a different worksheet in a workbook,
click the trackwheel. Click Table of Contents.
Worksheets that have already been retrieved are
underlined with a solid line and worksheets that
have not yet been retrieved are underlined with a
broken line. Click a worksheet in the table of
contents. Perform one of the following actions:
• If the worksheet has been retrieved, click
View.
• If the worksheet has not been retrieved, click
Retrieve.
Navigate image attachments
To view the previous page in a multiple-page
image, click the trackwheel. Click Prev Page.
To view the next page in a multiple-page image,
click the trackwheel. Click Next Page. If the next
page has not yet been retrieved, click More to
retrieve it.
To pan horizontally across an image, hold the Alt
key and roll the trackwheel.
To zoom into or out of an image, click the
trackwheel. Click Zoom In or Zoom Out.
To zoom to the original image size, click the
trackwheel. Click Zoom 1:1.
To turn an image 90 degrees in a clockwise
direction, click the trackwheel. Click Rotate.
To view an image in more detail after zooming in,
click the trackwheel. Click Enlarge Area.
To switch to a different page in a multiple-page
image, click the trackwheel. Click Table of
Contents. Pages that have already been retrieved
are underlined with a solid line and pages that
have not yet been retrieved are underlined with a
broken line. Click a page in the table of contents.
Perform one of the following actions:
• If the page has been retrieved, click View.
• If the page has not been retrieved, click
Retrieve.
Note:
To view all the pages in the table of contents, click
More.
Note:
To view all the worksheets in the table of contents,
click More.
30
Loading...
