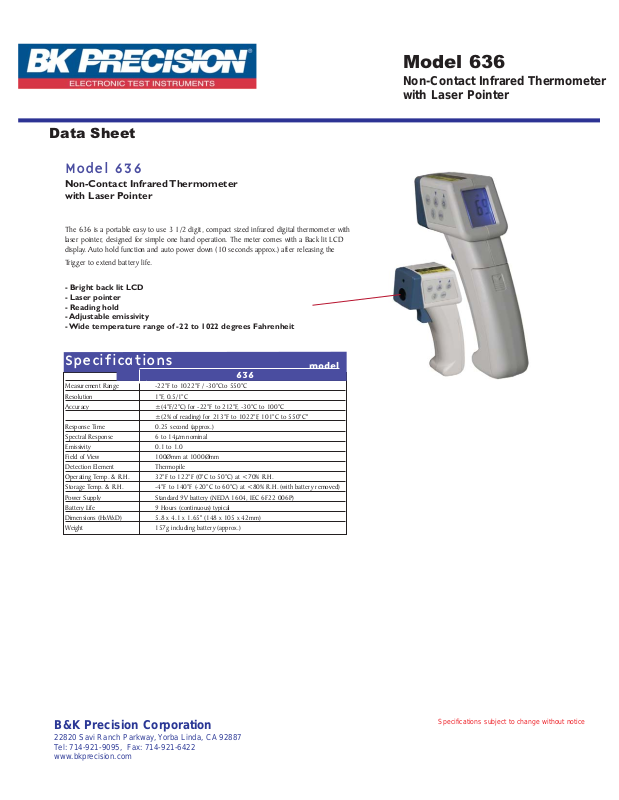

B&K Precision 636 Datasheet

B&K Precision Corporation

22820 Savi Ranch Parkway, Yorba Linda, CA 92887
Tel: [phone], Fax: [phone]
www.bkprecision.com

Specifications subject to change without notice

Data Sheet

Model 636

Non-Contact Infrared Thermometer
with Laser Pointer

The 636 is a portable easy to use 3 1/2 digit, compact sized infrared digital thermometer with
laser pointer, designed for simple one hand operation. The meter comes with a Back lit LCD
display. Auto hold function and auto power down (10 seconds approx.) after releasing the

Trigger to extend battery life.

- Bright back lit LCD

- Laser pointer

- Reading hold

- Adjustable emissivity

- Wide temperature range of -22 to 1022 degrees Fahrenheit

Measurement Range -22°F to 1022°F / -30°Cto 550°C

Resolution 1°F, 0.5/1°C

Accuracy ±(4°F/2°C) for -22°F to 212°F, -30°C to 100°C

±(2% of reading) for 213°F to 1022°F, 101°C to 550°C"

Response Time 0.25 second (approx.)

Spectral Response 6 to 14µm nominal

Emissivity 0.1 to 1.0

Field of View 100Ømm at 1000Ømm

Detection Element Thermopile

Operating Temp. & R.H. 32°F to 122°F (0°C to 50°C) at <70% R.H.

Storage Temp. & R.H. -4°F to 140°F (-20°C to 60°C) at <80% R.H. (with battery removed)

Power Supply Standard 9V battery (NEDA 1604, IEC 6F22 006P)

Battery Life 9 Hours (continuous) typical

Dimensions (HxWxD) 5.8 x 4.1 x 1.65" (148 x 105 x 42mm)

Weight 157g including battery (approx.)
