B&K Precision 4005DDS Datasheet

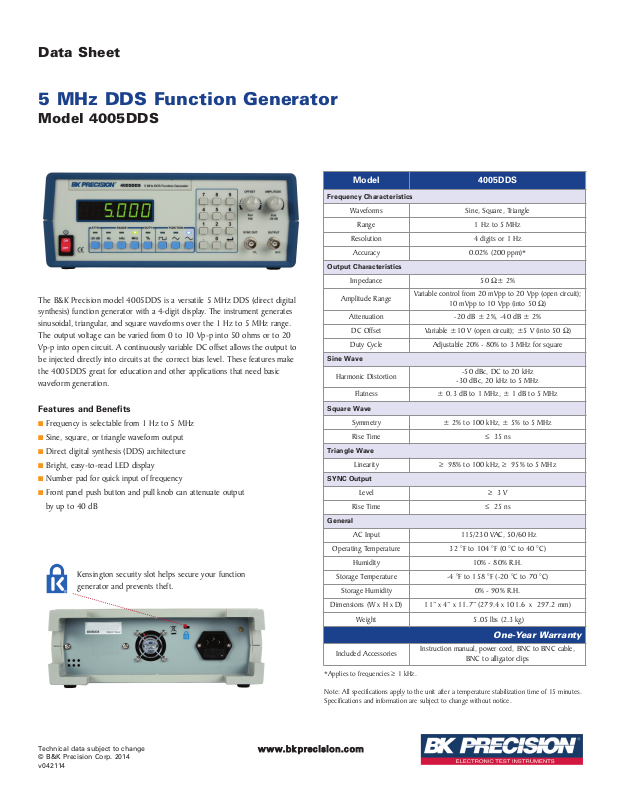

Data Sheet

5 MHz DDS Function Generator

Model 4005DDS

F

Output Characteristics

The B&K Precision model 4005DDS is a versatile 5 MHz DDS (direct digital
synthesis) function generator with a 4-digit display. The instrument generates
sinusoidal, triangular, and square waveforms over the 1 Hz to 5 MHz range.
The output voltage can be varied from 0 to 10 Vp-p into 50 ohms or to 20
Vp-p into open circuit. A continuously variable DC offset allows the output to
be injected directly into circuits at the correct bias level. These features make
the 4005DDS great for education and other applications that need basic
waveform generation.

Features and Benefits

■ Frequency is selectable from 1 Hz to 5 MHz

■ Sine, square, or triangle waveform output

■ Direct digital synthesis (DDS) architecture

■ Bright, easy-to-read LED display

■ Number pad for quick input of frequency

■ Front panel push button and pull knob can attenuate output

by up to 40 dB

Kensington security slot helps secure your function
generator and prevents theft.

Sine Wave

Square Wave

Triangle Wave

SYNC Output

General

*Applies to frequencies ≥ 1 kHz.

Model 4005DDS

requency Characteristics

Waveforms Sine, Square, Triangle

Range 1 Hz to 5 MHz

Resolution 4 digits or 1 Hz

Accuracy 0.02% (200 ppm)*

Impedance 50 Ω± 2%

Amplitude Range

Attenuation -20 dB ± 2%, -40 dB ± 2%

DC Offset Variable ±10 V (open circuit); ±5 V (into 50 Ω)

Duty Cycle Adjustable 20% - 80% to 3 MHz for square

Harmonic Distortion

Flatness ± 0.3 dB to 1 MHz, ± 1 dB to 5 MHz

Symmetry ± 2% to 100 kHz, ± 5% to 5 MHz

Rise Time ≤ 35 ns

Linearity ≥ 98% to 100 kHz, ≥ 95% to 5 MHz

Level ≥ 3 V

Rise Time ≤ 25 ns

AC Input 115/230 VAC, 50/60 Hz

Operating Temperature 32 °F to 104 °F (0 °C to 40 °C)

Humidity 10% - 80% R.H.

Storage Temperature -4 °F to 158 °F (-20 °C to 70 °C)

Storage Humidity 0% - 90% R.H.

Dimensions (W x H x D) 11” x 4” x 11.7” (279.4 x 101.6 x 297.2 mm)

Weight 5.05 lbs (2.3 kg)

Variable control from 20 mVpp to 20 Vpp (open circuit);

10 mVpp to 10 Vpp (into 50 Ω)

-50 dBc, DC to 20 kHz

-30 dBc, 20 kHz to 5 MHz

One-Year Warranty

Included Accessories

Instruction manual, power cord, BNC to BNC cable,

BNC to alligator clips

Technical data subject to change
© B&K Precision Corp. 2014
v042114

Note: All specifications apply to the unit after a temperature stabilization time of 15 minutes.
Specifications and information are subject to change without notice.
