BJM Pumps LWA75H-575T User Manual

CAST IRON w/ STAINLESS SHELL

SINGLE PHASE

THREE PHASE

LWA1500
LWA2200

LWA15
LWA22
LWA37
LWA55

LWA55H

LWA75

LWA75H

INSTALLATION, OPERATION & MAINTENANCE MANUAL

LWA SERIES

TOP DISCHARGE

Electric Submersible Pumps

Single Phase

230V

Three Phase

230V, 460V & 575V

Read this manual carefully before installing, operating or servicing these pump models.
Observe all safety information. Failure to comply with instructions may result in personal
injury and/or property damage. Please retain these instructions.

Version 2/3/2014

TABLE OF CONTENTS

INTRODUCTION ............................................................................................................................................................ 4

SAFETY ......................................................................................................................................................................... 4

INSPECTION ................................................................................................................................................................. 5

PRE-INSTALLATION INSPECTION ......................................................................................................................... 5

OIL FILL QUANTITY/TYPE ....................................................................................................................................... 5

PUMP INSTALLATION ............................................................................................................................................. 6

POSITIONING THE PUMP ....................................................................................................................................... 6

PUMP ROTATION .................................................................................................................................................... 7

PUMP OPERATION ....................................................................................................................................................... 8

TYPICAL MANUAL DEWATERING INSTALLATION ..................................................................................................... 8

STOPPING ................................................................................................................................................................ 9

TYPICAL AUTOMATIC DEWATERING INSTALLATION .............................................................................................. 9

STOPPING .............................................................................................................................................................. 10

INTENDED METHODS OF CONNECTION ................................................................................................................. 10

SINGLE & THREE PHASE WIRING INSTRUCTIONS ........................................................................................... 10

TROUBLE SHOOTING ................................................................................................................................................ 12

PUMP WILL NOT RUN ........................................................................................................................................... 12

PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY ............................................................................... 12

SERVICING YOUR SUBMERSIBLE PUMP............................................................................................................ 13

MAINTAINING YOUR PUMP .................................................................................................................................. 13

CHANGING SEAL OIL ............................................................................................................................................ 14

DISASSEMBLY/ASSEMBLY PROCEDURE FOR LWA TO REVIEW/REPLACE THE MECHANICAL SEAL ........ 14

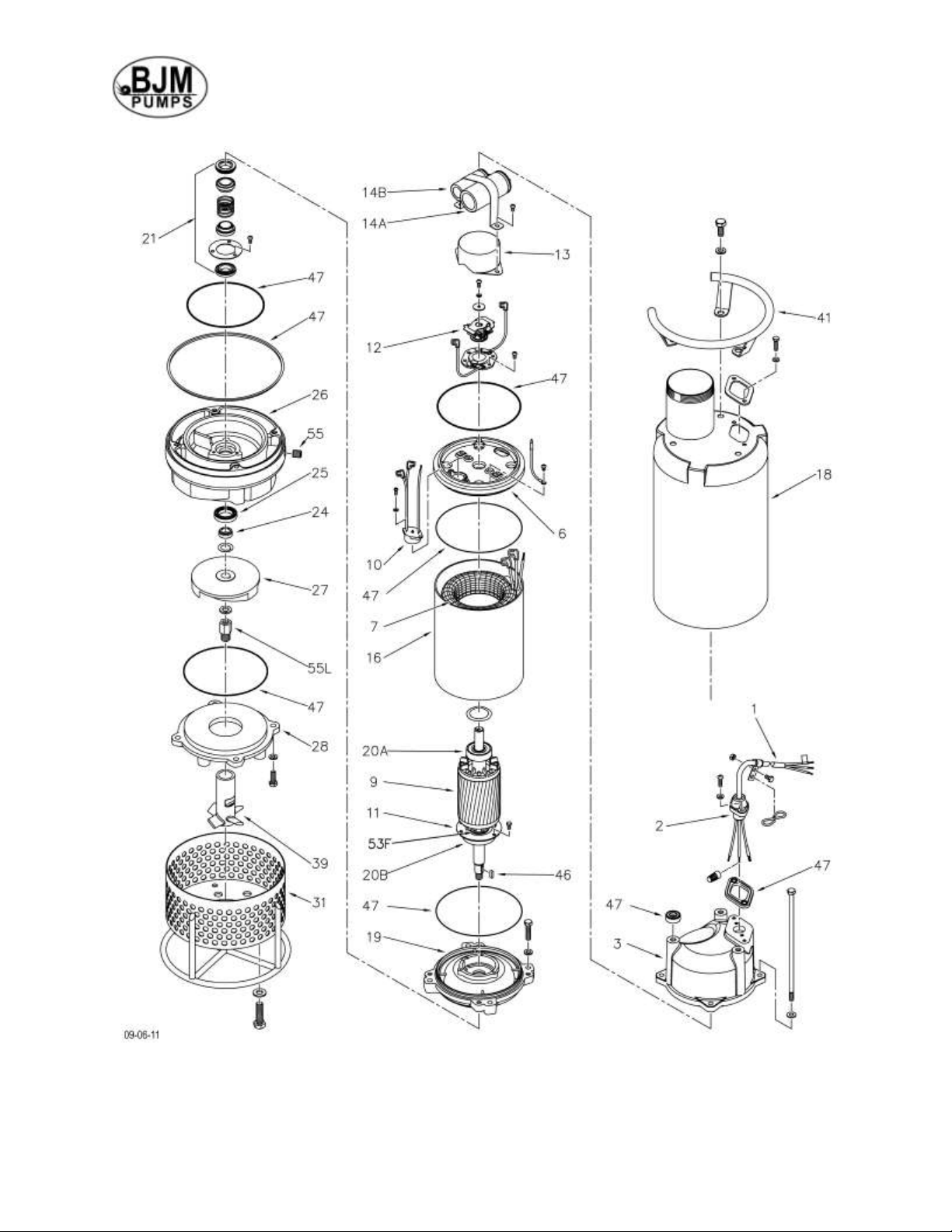

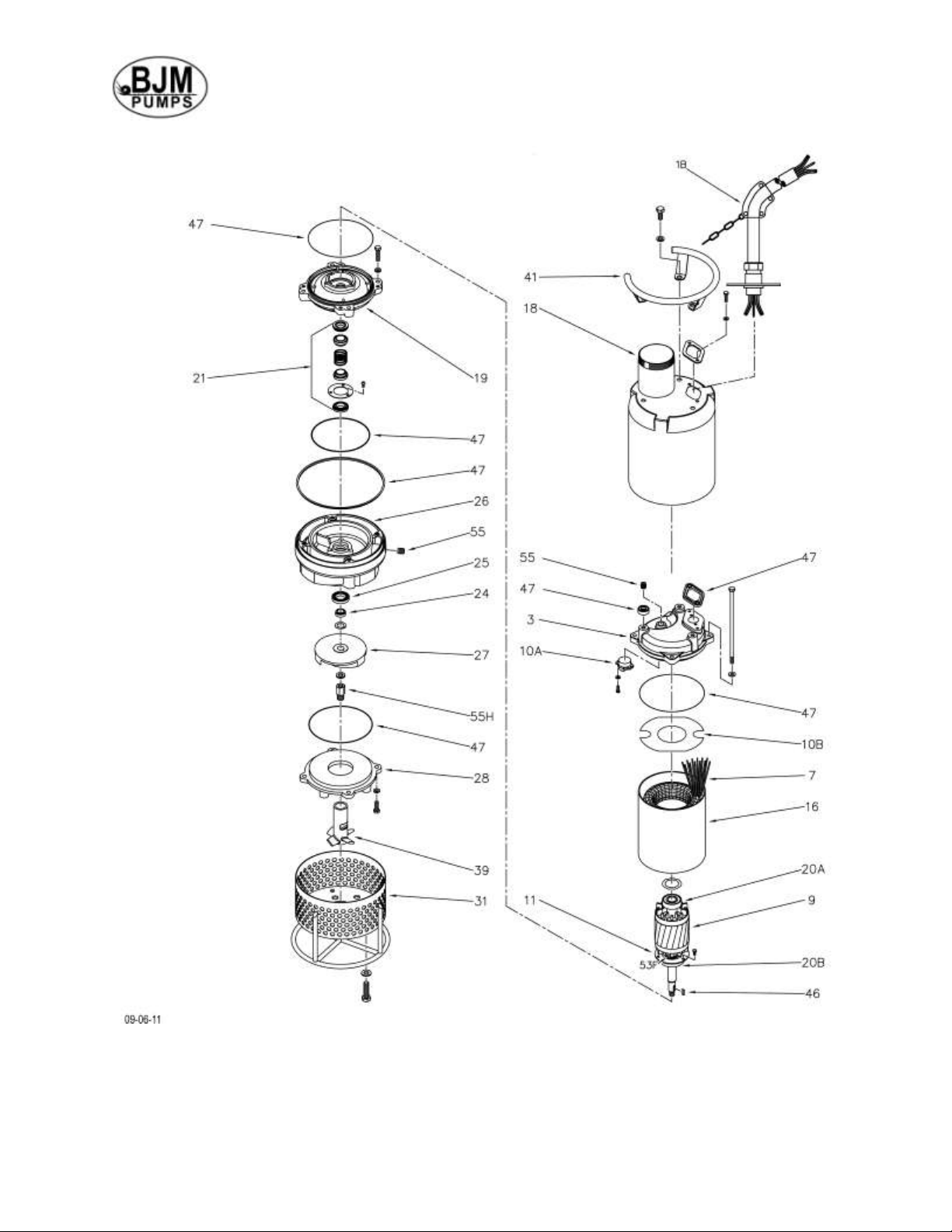

EXPLODED VIEW LWA1500 & 2200 .......................................................................................................................... 16

EXPLODED VIEW LWA15, 22 ..................................................................................................................................... 17

EXPLODED VIEW LWA37 ........................................................................................................................................... 18

EXPLODED VIEW LWA55 ........................................................................................................................................... 19

EXPLODED VIEW LWA55H ................................ ................................ ........................................................................ 20

EXPLODED VIEW LWA75 ........................................................................................................................................... 21

EXPLODED VIEW LWA75H ................................ ................................ ........................................................................ 22

LWA SERIES PARTS LIST .......................................................................................................................................... 23

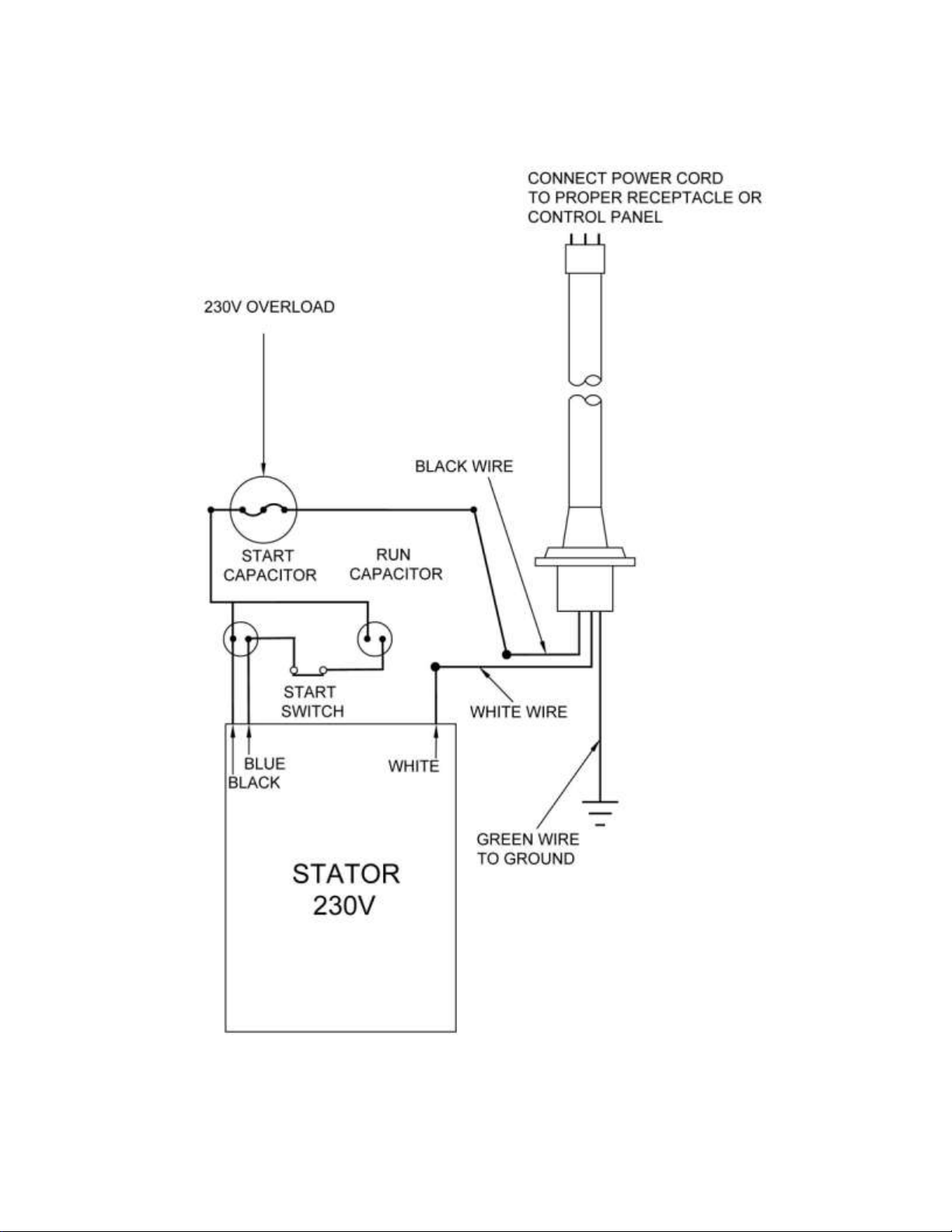

SINGLE PHASE WIRING DIAGRAM 230V ................................................................................................................. 25

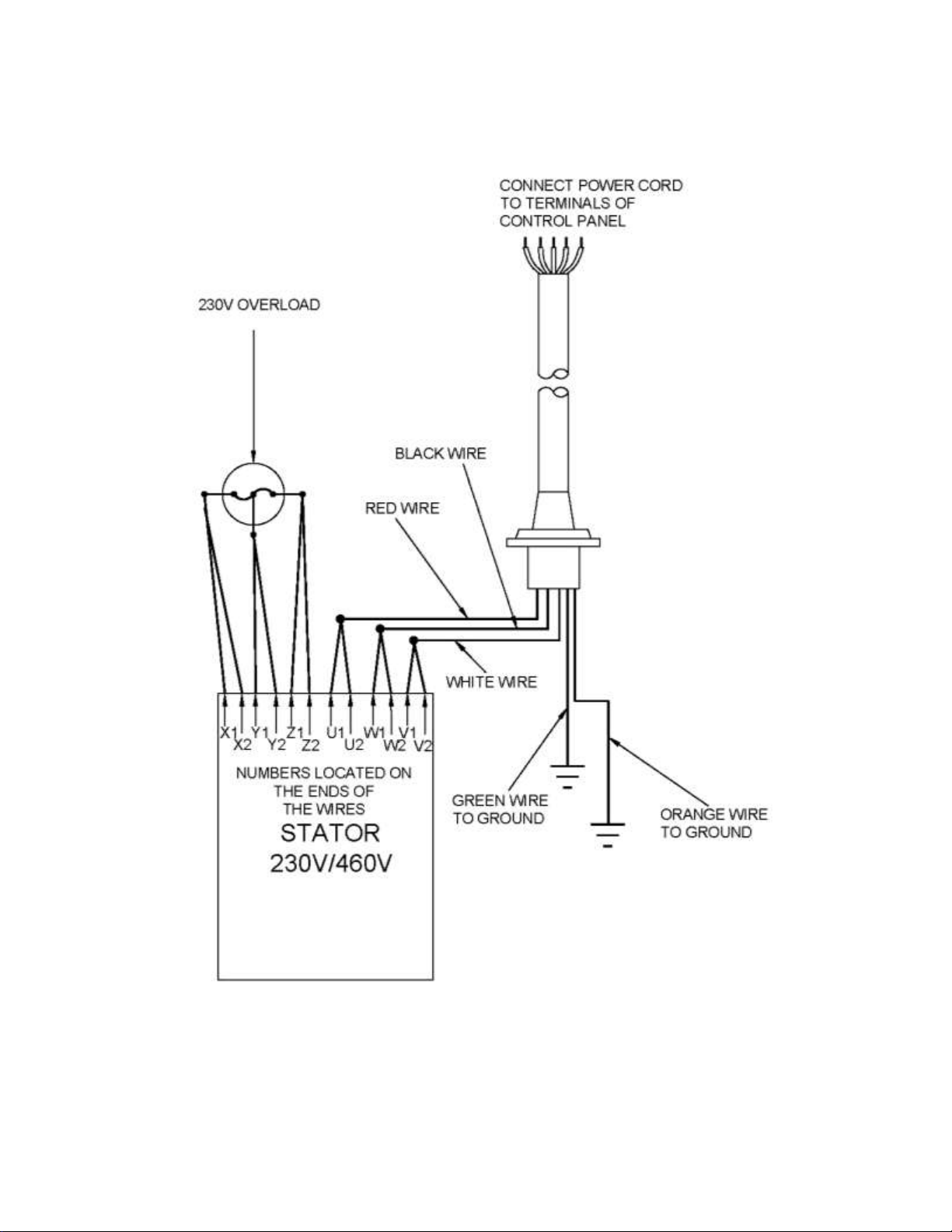

THREE PHASE WIRING DIAGRAM 230V DUAL VOLTAGE ................................ ...................................................... 26

MODELS LWA15-75H ........................................................................................................................................ 26

THREE PHASE WIRING DIAGRAM 460V DUAL VOLTAGE ................................ ...................................................... 27

MODELS LWA15-75H ........................................................................................................................................ 27

WARRANTY AND LIMITATION OF LIABILITY ............................................................................................................ 29

START-UP REPORT FORM ........................................................................................................................................ 30

NOTES: ........................................................................................................................................................................ 33

4

INTRODUCTION

This Installation, Operation and Maintenance manual provides important information on
safety and the proper inspection, disassembly, assembly and testing of the BJM
Pumps® LWA™ Series submersible pump. This manual also contains information to
optimize performance and longevity of your BJM Pumps submersible pump.

The submersible LWA Series pumps are designed to pump water and light water
slurries. The LWA Series pumps are not explosion-proof. They are not designed
to pump volatile or flammable liquids.

Note: Consult chemical resistance chart for compatibility between pump
materials and liquid before operating pump.

If you have any questions regarding the inspection, disassembly, assembly or testing
please contact your BJM Pumps distributor, or BJM Pumps, LLC.

BJM Pumps, LLC
123 Spencer Plain Rd.
Old Saybrook, CT 06475, USA

Fax: [phone]
Phone: [phone]
Phone: [phone]

Information, including pump data sheets and performance curves, is also available on
our web site: www.bjmpumps.com

For assistance with your electric power source, please contact a certified electrician.
Please pay attention to the following alert notifications. They are used to notify

operators and maintenance personnel to pay special attention to procedures, to avoid
causing damage to the equipment, and to avoid situations that could be dangerous to
personnel.

NOTE: Instructions to aid in installation, operation, and maintenance or which
clarify a procedure.

Immediate hazards that WILL result in severe personal injury or
death. These instructions describe the procedure required and the injury which will
result from failure to follow the procedure.

Hazards or unsafe practices that COULD result in severe personal
injury or death. These instructions describe the procedure required, and the injury which
could result from failure to follow the procedure.

Hazards or unsafe practices which COULD result in personal injury
or product or property damage. These instructions describe the procedure required and
the possible damage which could result from failure to follow the procedure.

4

SAFETY

Pump installations are seldom identical. Each installation and application can vary due
to many different factors. It is the owner/service mechanics responsibility to repair,
service, and test to ensure that the pump integrity is not compromised according to this
manual.

Risk of electric shock – this pump has not been investigated for use

in swimming pool areas.

Do not pump flammable or volatile liquids. Death or serious

injury will result.

Before attempting to open or service the pump:

1) Familiarize yourself with this manual.

2) Unplug or disconnect the pump power cable to ensure that the pump will remain

inoperative.

3) Allow the pump to cool if overheated.

Do not operate the pump with a worn or damaged electric power

cable. Death or serious injury could occur.

Never attempt to alter the length or repair any power cable with a
splice. The pump motor and pump motor and cable must be completely waterproof.
Damage to the pump or personal injury may result from alterations.

After the pump has been installed, make sure that the pump and all
piping are secure before operation.

Do not lift the pump by the power cable piping or discharge hose.
Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do
not suspend the pump by the power cable.

Obtain the services of a qualified electrician to troubleshoot, test
and/or service the electrical components of this pump.

Pumps and related equipment must be installed and operated

according to all national, local and industry standards/codes.

5

Pump Models

Qty. oil in seal chamber

Type of oil

(U.S. fl. oz.)

Metric C.C.

LWA1500

21

620

ISO 32 NSF Food Grade Mineral Oil

LWA15

21

620

ISO 32 NSF Food Grade Mineral Oil

LWA2200

21

620

ISO 32 NSF Food Grade Mineral Oil

LWA22

21

620

ISO 32 NSF Food Grade Mineral Oil

LWA37

21

620

ISO 32 NSF Food Grade Mineral Oil

LWA55, LWA55H

28.8

850

ISO 32 NSF Food Grade Mineral Oil

LWA75, LWA75H

28.8

850

ISO 32 NSF Food Grade Mineral Oil

INSPECTION

Review all safety information before servicing pump.

The following are recommended installation practices/procedures for the pump. If there
are questions in regards to your specific application, contact your local BJM Pumps
distributor or BJM Pumps, LLC.

PRE-INSTALLATION INSPECTION

1) Check the pump for damage that may have occurred during shipment.

2) Inspect the pump for any cracks, dents, damaged threads, etc.

3) Check power cord for any cuts or damage.

4) Check for, and tighten any hardware that appears loose.

5) Carefully read all tags, decals and markings on the pump.

If anything appears to be abnormal, contact your BJM Pumps distributor or BJM
Pumps, LLC. If damaged, the pump may need to be repaired before use. Do not install
or use the pump until appropriate action has been taken.

Lubrication:

No additional lubrication is necessary. The shaft seal and bearings are fully lubricated
from the factory. Seal oil should be checked once per year. See table below.

OIL FILL QUANTITY/TYPE

6

PUMP INSTALLATION

LWA Series pumps have been evaluated for use with water or water based solutions.

Please contact the manufacturer for additional information.

Risk of electric shock. All LWA Pump models; do not come with
electric plug connectors. To reduce the risk of electric shock, be certain that it is
connected only to a properly grounded, grounding-type receptacle or terminal box
control.

Lifting:

Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of
the pump.

Do not lift the pump by the power cable or discharge hose/piping.

Proper lifting equipment (rope/chain) must be used.

POSITIONING THE PUMP

BJM Pumps, LWA Series pumps are designed to operate fully or partially submerged.

Do not run the pump dry. Refer to data sheet for minimum submersion depth for your
particular model. Data sheets can be obtained online at www.bjmpumps.com or by
calling BJM Pumps, LLC at 860-399-5937. As a general rule, LWA Series top discharge
pumps can pump down to a level above the suction screen. Pumping lower than screen
will permit air to enter the pump and cavitate, lose prime or become air bound.

 Do not run the pump dry.
 Pump liquid should not exceed a maximum temperature of 104°F.
 Never place the pump on loose or soft ground. The pump may sink, preventing

water from reaching the impeller. Place on a solid surface or suspend the pump
with a lifting rope/chain. The LWA Series pumps are provided with a suction
strainer to prevent large solids from clogging the impeller. Any spherical solids
which pass through the strainer should pass through the pump.

 For maximum pumping capacity, use the proper size non-collapsible hose or rigid

piping. A check valve may be installed after the discharge to prevent back flow
when the pump is shut off.

7

PUMP ROTATION

Two ways to check the correct pump rotation:

1. By looking at the impeller; the rotation of the impeller should be counter
clockwise as shown in the picture below.

2. By looking from the top of the pump. Since the impeller cannot be seen, the best
way to check the rotation is to check the kick back motion of the pump when the
pump just starts. The kick back motion of the pump should be counter clockwise
as shown in the picture below.

8

PUMP OPERATION

This pump is designed to handle dirty water that contains some
solids. It is not designed to pump volatile or flammable liquids. Do not attempt to pump
any liquids which may damage the pump or endanger personnel as a result of pump
failure.

Do not operate this pump where explosive vapors or

flammable material exist. Death or Serious injury will result.

TYPICAL MANUAL DEWATERING INSTALLATION

NOTE: Maximum recommended starts should not exceed 10 times per hour.

LWA models are provided with a 50’ (10 m) power cord. NEVER splice the power cable
due to safety and warranty considerations. Always keep the power supply connection
end dry.

Note: 230V, single phase and 230V, 460V & 575V three phase units do not have a
plug and have to be provided separately or connection made to a proper
termination control box.

Typical 3 phase manual control 1

Do not alter the length or repair any power cable with a splice. The
pump motor and cable must be completely waterproof. Damage to the pump or
personal injury may result from alterations.

For manual operation: Attach the proper plug or connect directly to the power source or
control box. Check the direction of the rotation on 3 phase models. Tilt the pump and
start it. It should twist in the opposite direction of the arrow (on pump). It is

9

recommended that a Ground Fault Interrupter (GFI) type receptacle (or equivalent) be
used.

STOPPING

To stop the pump (manual and automatic mode), turn off the breaker, or turn the power
source off (generator).

TYPICAL AUTOMATIC DEWATERING INSTALLATION

NOTE: Maximum recommended starts should not exceed 10 times per hour.

All LWA Pumps require a separate control box with float(s) for automatic
operation.

10

STOPPING

To stop the pump (manual and automatic mode), turn off the breaker, or turn the power
source off (generator).

INTENDED METHODS OF CONNECTION

Use with approved motor control that matches motor input in full

load amperes.

SINGLE & THREE PHASE WIRING INSTRUCTIONS

FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP
FROM ITS POWER SOURCE BEFORE HANDLING.

“Risk of electrical shock” Do not remove power supply cord and
strain relief or connect conduit directly to the pump.

11

Installation and checking of electrical circuits and hardware should
be performed by a qualified licensed electrician.

To automatically operate a non-automatic LWA pump, a control panel is required.
Follow the instructions provided with the panel to wire the system. For automatic three
phase pumps see automatic three phase wiring diagram.

Typical 3 phase Auto Control 1

Before installing a pump, check the pump rotation to insure that wiring has been
connected properly to power source; and that the green lead of power cord (See wiring
diagram) is connected properly. LWA three phase models are supplied with two
grounding wires; one green for grounding to the panel; the other is orange and is to be
used for grounding check systems or can be also connected to the grounding point on
the control. Once connections are validated, momentarily energize the pump, observing

12

the directions of kick back due to starting torque. Rotation is correct if kick back is in the
opposite direction of rotation arrow on the pump casing. If rotation is not correct,
switching of any two power leads other than ground will provide the proper rotation.

LWA pumps have integral motor overload protection. It is recommended that all LWA
pumps use a motor starting device also incorporate motor overload protection. Pumps
must be installed in accordance with the National Electrical Code and all applicable
local codes and ordinances. Pumps are not to be installed in locations classified as
hazardous in accordance with National Electrical Code, ANSI/NFPA 70.

Connect pump to a junction box, outlet box, control box, enclosure with a wiring
compartment that meets NEC and local codes. The provision for supply connection
shall reduce the risk of water entry during temporary, limited submersion and shall
comply with the applicable requirements of the Standard for Enclosures for Electrical
Equipment, UL 50, or the standard for Metallic Outlet Boxes, UL 514A, and the standard
for Motor-Operated Water Pumps. UL 778.

TROUBLE SHOOTING

Disconnect the power source to the pump BEFORE attempting

any type of trouble shooting, service or repair.

PUMP WILL NOT RUN

1. Check power supply (fuses, breaker). Reset power.

2. Blocked impeller. Remove strainer, check and clean.

3. Defective cable or incorrect wiring.

4. Strainer clogged. Check and clean as necessary.

5. Float switch tangled/obstructed. Clean and free float switch from obstruction.

6. Float switch defective. Replace float switch.

7. Pump overheated or temperature of liquid exceeds pump operating
temperature.

Warning: Pump will restart automatically when motor over-heat protection switch
cools.

PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY

1. Discharge line clogged, restricted or hose kinked. Check discharge hose/pipe.

2. Worn impeller and/or suction cover. Inspect and replace as necessary.

3. Pump overloaded due to liquid pumped being too thick.

4. Pumping air. Check liquid level and position of pump.

5. Excessive voltage drops due to long cables.

6. Three phase only; pump running backwards, check rotation.

13

SERVICING YOUR SUBMERSIBLE PUMP

Pump should be disconnected from the electric power supply before proceeding to do
any service or maintenance.
To service or repair your pump, please contact your local BJM Pumps distributor.
Service should only be performed by a qualified electrician.

MAINTAINING YOUR PUMP

 Pump should be disconnected from the electric power supply before proceeding

to do any service or maintenance.

 Pump should be inspected at regular intervals.
 More frequent inspections are required if the pump is used in a harsh

environment.

 Preventative maintenance should be performed to reduce the chance of

premature failure.

 Worn impellers and lip seals should be replaced.
 Cut or cracked power cords must be replaced. (Never operate a pump with a

cut, cracked or damaged power cord.)

 Seal oil should be checked once per year.
 Maintenance should always be done when taking a pump out of service before

storage.

1) Clean pump of dirt and other build up.

2) Check condition of oil around the shaft seals.

3) Check hydraulic parts: check for wear.

4) Inspect power cable. Make sure that it is free of nicks or cuts.

14

CHANGING SEAL OIL

Checking the seal chamber by following step one of the disassembly/assembly
procedures listed below. To change the seal chamber oil, drain the oil by removing drain
plug (55). Replace with the proper amount of ISO 32 NSF Food Grade Mineral Oil. Note
that a 10-15% air gap should be maintained in the seal chamber to allow for heat
expansion.

DISASSEMBLY/ASSEMBLY PROCEDURE FOR LWA TO REVIEW/REPLACE THE

MECHANICAL SEAL

1. Remove drain plug (55) from the seal housing (26) and take a sample of the oil. If
the oil is clear and shows no signs of water, then replace the drain plug. No
further inspection or disassembly is necessary until the next service period is
reached.

2. If the oil is milky and shows signs of water and/or other contaminants, then the
mechanical seal should be replaced. Proceed with draining the oil into a catch
basin for proper disposal.

3. Remove the suction strainer/stand (31) from the bottom of the pump by removing
the four retaining cap screws.

4. Remove the suction/wear plate (28) and O-Ring (47) by removing the four cap
screws that retain this.

5. Remove the agitator (39) by turning the agitator counter clockwise to the shaft. If
the agitator is difficult to turn, a plastic mallet or hammer and block of wood can
be used to strike against the agitator blades to break it loose from the shaft.

6. Remove the retaining nut by holding the impeller or shaft. Not do not damage the
shaft.

7. Remove the impeller (27) by sliding it off of the shaft with the shaft key (46). Take
note of any shims that are placed behind the impeller, these will need to be
reinstalled during assembly.

8. Remove the seal housing (26) by removing the four retaining cap screws. Note
that some residual oil will be found in the chamber.

9. Once the seal housing has been removed, remove all of the old seal parts. This
will require the removal of the stationary seal clamping ring and retaining screws.

10. Clean all parts and inspect for any damage. It is recommended that O-Rings and
lip seals be replaced when replacing the mechanical seal assembly (21).

11. Lubricate the cup of the stationary seal with a light amount of the Shell FM32 oil.
Using a pushing tool (PVC pipe), press the stationary seal into the pocket.
Repeat this step for both the upper and lower stationary seal.

15

12. Lubricate the lip seal (25) with oil, and press this into the bore on the opposite
side of the lower stationary seal, using the proper pressing tool.

13. Lubricate the shaft with a light coating of Shell FM32 oil. Using a pushing tool,
press the rotating element for the upper seal onto the shaft and down to the point
of contact with the stationary seal. Add the spring. Re-lubricate the shaft with a
light amount of oil and install the lower rotating element onto the shaft using a
pushing tool.

14. With all O-Rings in place, replace the seal housing and retain with the four cap
screws.

15. At this time the seal chamber should be able to be air checked. With the proper
gauge set up, apply 10 PSIG (do not add more that 10 PSIG of air pressure). No
pressure drop should be seen in five minutes under air pressure. The shaft
should be rotated a few times during this testing to insure that the mechanical
seals are operating properly.

16. Fill the seal oil chamber with the proper amount of Shell FM 32 NSF approved
oil. Note that a 10-15% air gap should be maintained in the seal chamber to allow
for heat expansion.

17. The impeller (27) with shims and the shaft key (46) can be placed onto the shaft
and secured with the retaining nut and lock washer.

18. The suction wear plate (28), agitator (39) and suction strainer/stand can be
replaced and tightened down properly.

16

EXPLODED VIEW LWA1500 & 2200

17

EXPLODED VIEW LWA15, 22

18

EXPLODED VIEW LWA37

19

EXPLODED VIEW LWA55

20

EXPLODED VIEW LWA55H

21

EXPLODED VIEW LWA75

22

EXPLODED VIEW LWA75H

23

Pump Model LWA1500 LWA2200 LWA15 LWA22 LWA37 LWA55 LWA55H LWA75 LWA75H

Pos. No. Part Description Item # Item # Item # Item # Item # Item # Item # Item # Item #

1 CABLE, POWER, SJOW, 12/4 - 15M, LWA 2200

- 200099 - - - - - - -

1 CABLE, POWER, SJOW, 14/4 - 15M, LWA 1500

200100 - - - - - - - -

1B CABLE, POWER, ASSY., SOOW 14-5, 230, 460, 575V

- - 200047 200047 - - - - -

1B CABLE, POWER, ASSY., SOOW 12-5, 230, 460, 575V

- - - - 200055 - - - -

1B CABLE, POWER, ASSY., SOOW 12-5, 460, 575V

- - - - - - - 200289 200289

1B CABLE, POWER, ASSY., SOOW 10-5, 230, 460, 575V

- - - - - 200062 200062 - -

2 BASE, CABLE

200087 200087 - - - - - - -

3 COVER, MOTOR HOUSING, CI

200105 200105 200106 200106 200106 200107 200107 200107 200107

6 BRACKET, LWA1500-2200

200095 200095 - - - - - - -

7 STATOR, 10HP, 460/3/60, 3600 RPM, CLASS F

- - - - - - - 200154 200154

7 STATOR, 10HP, 575/3/60, 3600 RPM, CLASS F

- - - - - - - 200155 200155

7 STATOR, 2HP, 230/1/60, 3600 RPM, CLASS F

200156 - - - - - - - -

7 STATOR, 2HP, 230/460/ 3/60, 3600 RPM, CLASS F

- - 200157 - - - - - -

7 STATOR, 2HP, 575/3/60, 3600 RPM, CLASS F

- - 200158 - - - - - -

7 STATOR, 3HP, 230/1/60, 3600 RPM, CLASS F

- 200159 - - - - - - -

7 STATOR, 3HP, 230/460/3/60, 3600 RPM, CLASS F

- - - 200160 - - - - -

7 STATOR, 3HP, 575/3/60, 3600 RPM, CLASS F

- - - 200161 - - - - -

7 STATOR, 5HP, 230/460/3/60, 3600 RPM, CLASS F

- - - - 200162 - - - -

7 STATOR, 5HP, 575/3/60, 3600 RPM, CLASS F

- - - - 200163 - - - -

7 STATOR, 7.5HP, 230/460/3/60, 3600 RPM, CLASS F

- - - - - 200164 200164 - -

7 STATOR, 7.5HP, 575/3/60, 3600 RPM, CLASS F

- - - - - 200165 200165 - -

9 ROTOR, SHAFT ASSY., 2HP, 1 PHASE, 304 SS

200142 - - - - - - - -

9 ROTOR, SHAFT ASSY., 2HP, 3 PHASE, 304 SS

- - 200143 - - - - - -

9 ROTOR, SHAFT ASSY., 3HP, 1 PHASE, 304 SS

- 200144 - - - - - - -

9 ROTOR, SHAFT ASSY., 3HP, 3 PHASE, 304 SS

- - - 200145 - - - - -

9 ROTOR, SHAFT ASSY., 5HP, 3 PHASE, 304 SS

- - - - 200146 - - - -

9 ROTOR, SHAFT ASSY., 7.5-10HP, 3 PHASE, 304 SS

- - - - - 200147 200147 200182 200182

10 SWITCH, OVERLOAD 3HP, 230V, 1PH, LWA2200

- 200132 - - - - - - -

10 SWITCH, OVERLOAD 2HP, 230V, 1PH

200175 - - - - - - - -

10A SWITCH, OVERLOAD 5HP/230V, 10HP/460V, 3PH

- - - - 200173 - - 200173 200173

10A SWITCH, OVERLOAD 10HP, 575V, 3PH

- - - - - - - 200174 200174

10A SWITCH, OVERLOAD 2HP, 230V, 3PH

- - 200176 - - - - - -

10A SWITCH, OVERLOAD 3HP/230V, 5HP/460V, 3PH

- - - 200177 200177 - - - -

10A SWITCH, OVERLOAD 2HP, 460V, 3PH

- - 200178 - - - - - -

10A SWITCH, OVERLOAD 3HP, 460V, 3PH

- - - 200179 - - - - -

LWA SERIES PARTS LIST

24

10A SWITCH, OVERLOAD 2HP, 575V, 3PH

- - 200180 - - - - - -

10A SWITCH, OVERLOAD 3HP, 575V, 3PH

- - - 200181 - - - - -

10A Bolt - Suction Cover

- - - - 200184 - - - -

10A SWITCH, OVERLOAD 7.5HP, 230V, 3PH

- - - - - 200185 200185 - -

10A SWITCH, OVERLOAD 7.5HP, 460V, 3PH

- - - - - 200186 200186 - -

10A SWITCH, OVERLOAD 7.5HP, 575V, 3PH

- - - - - 200187 200187 - -

10B PLATE, OVERLOAD SWITCH

- - 200133 200133 200133 200134 200134 200134 200134

11 RETAINER, BEARING

200139 200139 200139 200139 202818 200141 200141 200141 200141

12 SWITCH, CENTRIFUGAL

200171 200171 - - - - - - -

13 COVER, CENTRIFUGAL SWITCH, LWA 1500-2200

200104 200104 - - - - - - -

14A CAPACITOR, RUN, LWA 1500-2200

200101 200101 - - - - - - -

14B CAPACITOR, START

200102 200103 - - - - - - -

16 FRAME, MOTOR

200113 200113 200114 200114 200115 200116 200116 200116 200116

18 HOUSING, OUTER W/ 3" NPT DISCH, 304SS

200120 200120 200121 200121 200119 - - - -

18 HOUSING, OUTER, 304SS

- - - - - 200122 200122 200122 200122

19 BRACKET, BEARING

200183 200183 200183 200183 200093 200094 200094 200094 200094

20A BEARING, UPPER, LWA

200088 200088 200088 200088 200088 200959 200959 200959 200959

20B BEARING, LOWER, LWA

200959 200959 200959 200959 200968 200963 200963 200963 200963

21 SEAL, MECH., SI/SI X CARB/CER

200151 200151 200151 200151 200152 200153 200153 200153 200153

24 BUSHING, LIP SEAL, 304SS

200096 200096 200096 200096 200097 200098 200098 200098 200098

25 SEAL, LIP

200148 200148 200148 200148 200149 200150 200150 200150 200150

26 VOLUTE, HARDENED DI

200188 200188 200188 200188 200189 200190 200190 200190 200190

27 IMPELLER, HI CHROME CI

200123 200124 200123 200124 200125 200128 200127 200129 200126

28 COVER, SUCTION, HARDENED DI

200108 200108 200108 200108 200109 200111 200112 200110 200111

29 PLATE, WEAR HI CHROME CI

- - - - - 200167 200136 200137 200167

31 STRAINER, BOTTOM COVER

200166 200166 200166 200166 200166 200168 200168 200168 200168

37 ADAPTER, DISCHARG, 4", MALE NPT

- - - - - 200082 - - 200082

37 ADAPTER, DISCHARGE, 3" MALE NPT

- - - - - - 200083 - -

37 ADAPTER, DISCHARGE, 6" MALE NPT

- - - - - - - 200084 -

39 AGITATOR, HARDENED DI

200085 200085 200085 200085 200085 200086 200086 200086 200086

41 HANDLE, LIFT

200117 200117 200117 200117 200117 200118 200118 200118 200118

46 KEY, IMPELLER

200130 200130 200130 200130 200131 200131 200131 200131 200131

47 KIT, O-RING

200211 200211 200212 200212 200212 200213 200213 200213 200213

53C WASHER, FLAT

- - - - - 202910 202910 202910 202910

53E SPACER WASHER (LOWER BEARING)

- - - - - 200997 200997 200997 200997

53F SPACER WASHER (LOWER BEARING)

200995 200995 200995 200995 200996 - - - -

54B WASHER, LOCK - - - - - 202909 202909 202909 202909

55 PLUG, OIL, LWA

200138 200138 200138 200138 200138 200138 200138 200138 200138

55H STUB, AGITATOR JOINT

- - 200169 200169 200169 - - 200170 200170

25

SINGLE PHASE WIRING DIAGRAM 230V

MODELS LWA1500 & LWA2200

26

THREE PHASE WIRING DIAGRAM 230V DUAL VOLTAGE

MODELS LWA15-75H

27

THREE PHASE WIRING DIAGRAM 460V DUAL VOLTAGE

MODELS LWA15-75H

28

THREE PHASE WIRING DIAGRAM 460/575V SINGLE VOLTAGE

29

BJM PUMPS, LLC

123 Spencer Plain Road

Old Saybrook, CT 06475, U.S.A.

WARRANTY AND LIMITATION OF LIABILITY

Unless otherwise expressly authorized in writing, specifying a longer or shorter period, BJM
Pumps, LLC warrants for a period of eighteen (18) months from the date of shipment from the
Point of Shipment, or one (1) year from the date of installation, whichever occurs first, that all
products or parts thereof furnished by BJM Pumps, LLC under the brand name BJM Pumps,

hereinafter referred to as the “Product” are free from defects in materials and workmanship and

conform to the applicable specification.
BJM Pumps, LLC’s liability for any breach of this warranty shall be limited solely to replacement

or repair, at the sole option of BJM Pumps, LLC, of any part or parts of the Product found to be
defective during the warranty period, provided the Product is properly installed and is being
used as originally intended. Any breach of this warranty must be reported to BJM Pumps, LLC

or BJM Pumps, LLC’s authorized service representative within the aforementioned warranty

period, and defective Product or parts thereof must be shipped to BJM Pumps, LLC or BJM

Pumps, LLC’s authorized representative, transportation charges prepaid. Any cost associated

with removal or installation of a defective Product or part is excluded.
IT IS EXPRESSLY AGREED THAT THIS SHALL BE THE SOLE AND EXCLUSIVE REMEDY

OF BJM PUMPS, LLC’S DISTRIBUTORS AND CUSTOMERS. UNDER NO CIRCUMSTANCES

SHALL BJM PUMPS, LLC BE LIABLE FOR ANY COSTS, LOSS, EXPENSE, DAMAGES,
SPECIAL DAMAGES, INCIDENTAL DAMAGES OR CONSEQUENTIAL DAMAGES ARISING
DIRECTLY OR INDIRECTLY FROM THE DESIGN, MANUFACTURE, SALE, USE OR REPAIR
OF THE PRODUCT, WHETHER BASED ON WARRANTY, CONTRACT, NEGLIGENCE, OR
STRICT LIABILITY. IN NO EVENT WILL LIABILITY EXCEED THE PURCHASE PRICE OF
THE PRODUCT.

THE WARRANTY AND LIMITS OF LIABILITY CONTAINED HEREIN ARE IN LIEU OF ALL
OTHER WARRANTIES AND LIABILITIES, EXPRESSED OR IMPLIED. ALL IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
HEREBY DISCLAIMED BY BJM PUMPS, LLC AND EXCLUDED FROM THIS WARRANTY.

BJM Pumps, LLC neither assumes, nor authorizes any person to assume for it, any other
warranty obligation in connection with the sale of the Product. This warranty shall not apply to
any Product or parts of Product which have (a) been repaired or altered outside of BJM Pumps,
LLC’s facilities unless such repair was authorized in advance by BJM Pumps, LLC or by its
authorized representative; or (b) have been subject to misuse, negligence or accident; or (c)
have been used in a manner contrary to BJM Pumps, LLC’s instruction.

In any case of products not manufactured and sold under the BJM Pumps, LLC brand name,
there is no warranty from BJM Pumps, LLC; however BJM Pumps, LLC will extend any warranty
received from BJM Pumps, LLC’s supplier of such products.

START-UP REPORT FORM

Pump Owner’s Name

Location of Installation

Person in Charge

Phone( )

Purchased From

Model

Serial No

Voltage

Phase

Hertz

HP

Does impeller turn freely
by hand?

Yes No

Condition of Equipment

New Good Fair Poor

Condition of Cable Jacket

New Good Fair Poor

Rotation: Direction of Impeller Rotation (Use C/W for clockwise, CC/W for counterclockwise):
Method used to check rotation (viewed from bottom)

Resistance of cable and Pump Motor (measured at pump control)

Red-Black

ohms

Red-White

ohms

White-Black ohms

Resistance of ground circuit between control panel and outside of pumps
Ohms

MEG OHM CHECK OF INSULATION

Red to ground White to ground Black to ground

Condition of location at start-up

Dry Wet Muddy

Was equipment stored
If YES, length of storage:

Yes No.

Liquid being pump

Debris in bottom of station?

Yes No

Was debris removed in your

Yes No

START-UP REPORT FORM

This form is designed to record the initial installation, and to serve as a guide for troubleshooting at a
later date (if needed).

BJM Pumps, LLC

123 Spencer Plain Road

Old Saybrook, CT. 06475

START-UP REPORT FORM

presence?

Are guide rails exactly vertical?

Yes No

Is base elbow installed level?

Yes No

Liquid level controls: Model

Is control installed away from
turbulence?

Yes No

Operation Check

Tip lowest float (stop float), all pumps should remain off.
Tip second float (and stop float), one pump comes on.
Tip third float (and stop float), both pumps on (alarm on simplex).
Tip fourth float (and stop float), high level alarm on (omit on simplex).

If not on levels controls, describe type of controls

Does liquid level ever drop below
volute top?

Yes No

Control Panel MFG & model no.

Number of pumps operated by control panel

NOTE: At no time should hole be made in top of control panel, unless proper sealing
devices are utilized.

Short Circuit protection:

Type:

Number and size of short circuit device(s)

Amp rating:

Overload type:

Size:

Amp rating:

Do protective devices comply with
pump motor amp rating?

Yes No

Are all pump connections tight?

Yes No

Is the interior of the panel dry?

Yes No

If No, correct moisture problem.

SINGLE PHASE

Voltage supply at panel line
connection, pump off

L1

L2

Voltage supply at panel line
connection, pump on

L1

L2
Amperage load connection, pump on

L1

L2

THREE PHASE

Voltage supply at panel line connection, pump off
L1-L2

L2-L3

L3-L1

START-UP REPORT FORM

Voltage supply at panel line connection, pump on
L1-L2

L2-L3

L3-L1

Amperage load connection, pump on

L1

L2

L3

FINAL CHECK

Is pump secured properly?

Yes No

Was pump checked for leaks?

Yes No

Do check valves operate properly?

Yes No

Flow: Does station appear to operate at
proper rate?

Yes No

Noise level:

Acceptable

Unacceptable

Comments:

Describe and equipment difficulties during start-up

Installed by:
Company:
Person:
Date:

Maintained by:
Company:
Person:

Date and time of start-up
Present at start-up:
( ) Engineer’s name
( )Contractor’s name
( ) Operator’s name
( ) others

NOTES:

BJM Pumps, LLC

123 Spencer Plain Road • PO Box 1138 • Old Saybrook, CT 06475, USA

• Phone: [phone] • Fax: [phone]

Email: [e-mail] • Web Site: www.bjmpumps.com

BJM Pumps is a registered trademark of BJM Pumps, LLC.

LWA is a trademark of BJM Pumps, LLC.

Copyright © 2010-2013 BJM Pumps, LLC All rights reserved.
