INSTALLATION, OPERATION & MAINTENANCE MANUAL

KZN (R) SERIES

HEAVY DUTY AGITATOR

TOP DISCHARGE

Electric Submersible Pumps



CAST IRON



Three Phase



208V, 230V, 460V, & 575V

KZN37

KZN55CH

KZN37R

KZN55R

KZN55

KZN55CHR



Three Phase



230V, 460V & 575V

KZN75

KZN110H

KZN75R

KZN110R

KZN110

KZN110HR



Three Phase



460V & 575V

KZN150

KZN220

KZN150L

KZN220L

KZN150LR

KZN220LR

KZN150R

KZN220R

Read this manual carefully before installing, operating or servicing these pump models. Observe all safety information. Failure to comply with instructions may result in personal injury and/or property damage. Please retain these instructions.

Version 2/3/2014

TABLE OF CONTENTS

INTRODUCTION...........................................................................................................................................

4

SAFETYH ........................................................................................................................................................

5

INSPECTION ................................................................................................................................................

6

PRE-INSTALLATION INSPECTION ........................................................................................................

6

OIL FILL QUANTITY/TYPE ......................................................................................................................

6

PUMP INSTALLATION.............................................................................................................................

7

POSITIONING THE PUMP.......................................................................................................................

7

PUMP ROTATION ....................................................................................................................................

7

PUMP OPERATION......................................................................................................................................

9

TYPICAL MANUAL DEWATERING INSTALLATION ...................................................................................

9

STOPPING ...............................................................................................................................................

9

TYPICAL AUTOMATIC DEWATERING INSTALLATION...........................................................................

10

STOPPING .............................................................................................................................................

11

INTENDED METHODS OF CONNECTION ...............................................................................................

11

THREE PHASE WIRING INSTRUCTION ..............................................................................................

11

TROUBLE SHOOTING ...............................................................................................................................

13

PUMP WILL NOT RUN...........................................................................................................................

13

PUMP RUNS BUT DOES NOT DELIVER RATED CAPACITY .............................................................

13

SERVICING YOUR SUBMERSIBLE PUMP ..........................................................................................

13

MAINTAINING YOUR PUMP .................................................................................................................

13

CHANGING SEAL OIL ...........................................................................................................................

14

CHANGING SEALS* ..............................................................................................................................

15

EXPLODED VIEW OF KZN37, 55, 55R, 55CH, 55CHR, 75, 75R..............................................................

16

EXPLODED VIEW OF KZN110, 110R, 110H, 110HR, 150, 150R, 150L, 150LR ......................................

17

EXPLODED VIEW OF KZN220, 220R, 220L, 220LR.................................................................................

18

KZN SERIES PARTS LIST .........................................................................................................................

19

KZN R PARTS LIST ....................................................................................................................................

21

THREE PHASE WIRING DIAGRAMS ........................................................................................................

23

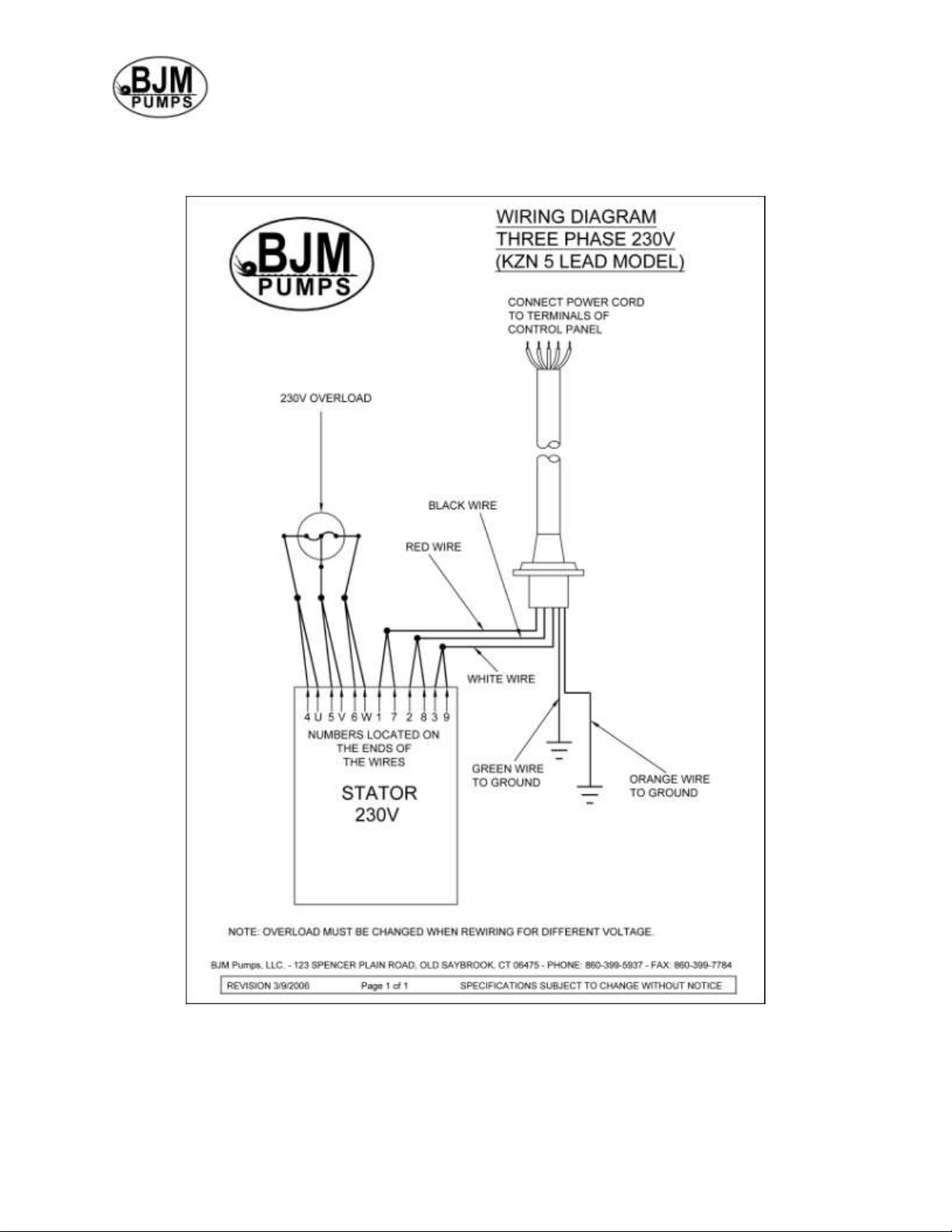

230V (5 LEAD)........................................................................................................................................

23

MODELS KZN37, 37R, 55, 55CH, 55R, 55CHR, 75, 75R, 110, 110H, 110R, 110HR ......................

23

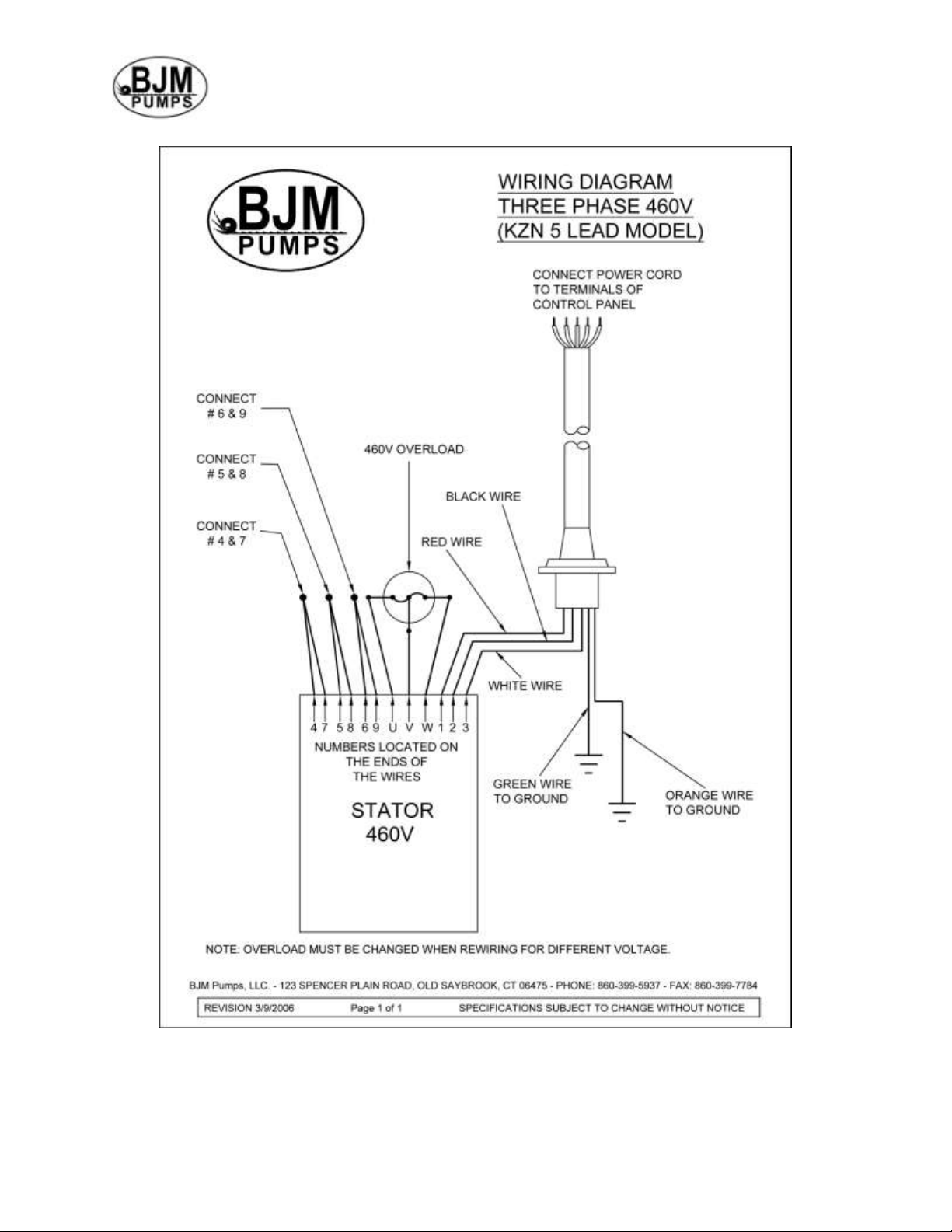

460V (5 LEAD)........................................................................................................................................

24

MODELS KZN37, 37R, 55, 55R, 55CHR, 75, 75R, 110, 110H, 110HR, 150, 150L, 150L, 150LR,



150R, 220, 220L, 220LR, 220R..........................................................................................................

24

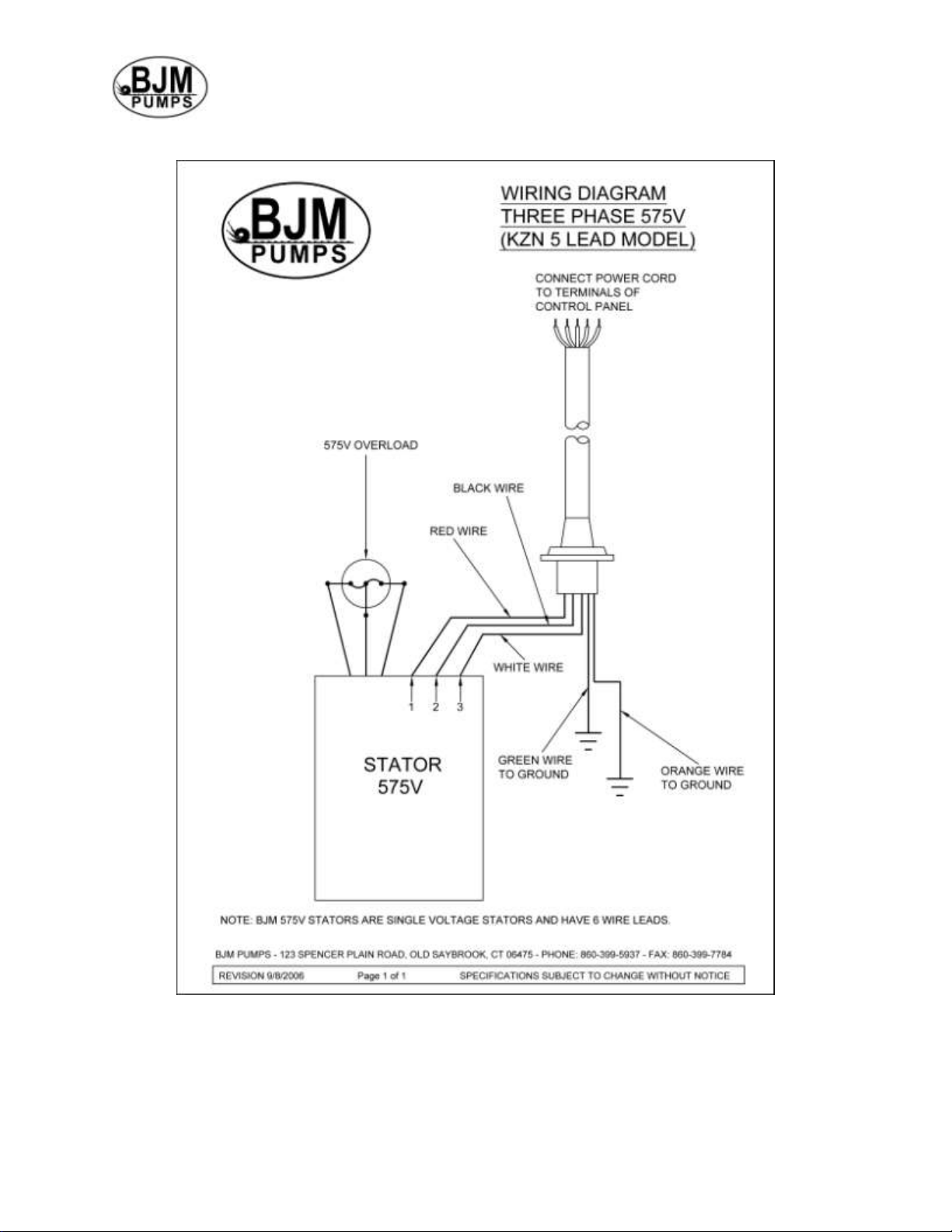

575V (5 LEAD)........................................................................................................................................

25

MODELS KZN37, 37R, 55, 55R, 55CHR, 75, 75R, 110, 110H, 110HR, 150, 150L, 150L, 150LR,



150R, 220, 220L, 220LR, 220R..........................................................................................................

25

SEAL MINDER® .........................................................................................................................................

26

WARRANTY AND LIMITATION OF LIABILITY......................................................................................

28

START-UP REPORT FORM.......................................................................................................................

29

NOTES: .......................................................................................................................................................

32

INTRODUCTION

This Installation, Operation and Maintenance manual provides important information on safety and the proper inspection, disassembly, reassembly and testing of the BJM Pumps® KZN Series submersible pump. This manual also contains information to optimize performance and longevity of your BJM Pumps submersible pump.

The submersible KZN Series pumps are designed to pump water and water based slurries. The KZN Series pumps are not explosion-proof. They are not designed to pump volatile or flammable liquids.

Note: Consult chemical resistance chart for compatibility between pump materials and liquid before operating pump.

If you have any questions regarding the inspection, disassembly, assembly or testing please contact your BJM Pumps distributor, or BJM Pumps, LLC.

BJM Pumps, LLC

Fax: 860-399-7784

123 Spencer Plain Rd.

Phone: 877-256-7867

Old Saybrook, CT 06475, USA

Phone: 860-399-5937

Information, including pump data sheets and performance curves, is also available on our web site: www.bjmpumps.com

For assistance with your electric power source, please contact a certified electrician.

Please pay attention to the following alert notifications. They are used to notify operators and maintenance personnel to pay special attention to procedures, to avoid causing damage to the equipment, and to avoid situations that could be dangerous to personnel.

NOTE: Instructions to aid in installation, operation, and maintenance or which clarify a procedure.

Immediate hazards that WILL result in severe personal injury or death. These instructions describe the procedure required and the injury which will result from failure to follow the procedure.

Hazards or unsafe practices that COULD result in severe personal injury or death. These instructions describe the procedure required, and the injury which could result from failure to follow the procedure.

Hazards or unsafe practices which COULD result in personal injury or product or property damage. These instructions describe the procedure required and the possible damage which could result from failure to follow the procedure.

4

SAFETY

Pump installations are seldom identical. Each installation and application can vary due to many different factors. It is the owner/service mechanics responsibility to repair, service, and test to ensure that the pump integrity is not compromised according to this manual.

Risk of electric shock – this pump has not been investigated for use in swimming pool areas.

Do not pump flammable, inflammable or volatile liquids. Death or serious injury will result.

Before attempting to open or service the pump:

1)Familiarize yourself with this manual.

2)Unplug or disconnect the pump power cable to ensure that the pump will remain inoperative.

3)Allow the pump to cool if overheated.

Do not operate the pump with a worn or damaged electric power cable. Death or serious injury could occur.

Never attempt to alter the length or repair any power cable with a splice. The pump motor and pump motor and cable must be completely waterproof. Damage to the pump or personal injury may result from alterations.

After the pump has been installed, make sure that the pump and all piping are secure before operation.

Do not lift the pump by the power cable piping or discharge hose. Attach proper lifting equipment to the lifting handle (or lifting rings) fitted to the pump. Do not suspend the pump by the power cable.

Obtain the services of a qualified electrician to troubleshoot, test and/or service the electrical components of this pump.

Pumps and related equipment must be installed and operated according to all national, local and industry standards.

5

INSPECTION

Review all safety information before servicing pump.

The following are recommended installation practices/procedures for the pump. If there are questions in regards to your specific application, contact your local BJM Pumps distributor or BJM Pumps, LLC.

PRE-INSTALLATION INSPECTION

1)Check the pump for damage that may have occurred during shipment.

2)Inspect the pump for any cracks, dents, damaged threads, etc.

3)Check power cord (and seal minder cord, if installed) for any cuts or damage.

4)Check for, and tighten any hardware that appears loose.

5)Carefully read all tags, decals and markings on the pump.

6)Important: Always verify that the pump nameplate, amps, voltage, phase, and HP ratings match your control panel and power supply.

Warranty does not cover damage caused by connecting pumps and controls to an incorrect power source (voltage/phase supply). Record the model numbers and serial numbers from the pumps and control panel on the front of this instruction manual for future reference. Give it to the owner or affix it to the control panel when finished with the installation.

If anything appears to be abnormal, contact your BJM Pumps distributor or BJM Pumps, LLC. If damaged, the pump may need to be repaired before use. Do not install or use the pump until appropriate action has been taken.

Lubrication:

No additional lubrication is necessary. The shaft seal and bearings are fully lubricated from the factory. Seal oil should be checked one per year. See table below.

OIL FILL QUANTITY/TYPE





Qty. oil in seal chamber









Models

U.S. fl. oz.

C.C.

Type of oil

KZN37, 37R, 55, 55CH, 55R, 55CHR,







75, 75R

49

1450

ISO 32 NSF Food Grade Mineral Oil

KZN110, 110H, 110R, 110HR, 150,







150L, 150LR, 150R

125

3700

ISO 32 NSF Food Grade Mineral Oil

KZN220, 220L, 220LR, 220R

213

6300

ISO 32 NSF Food Grade Mineral Oil

6

PUMP INSTALLATION

KZN Series pumps have been evaluated for use with water or water based solutions. Please contact the manufacturer for additional information.

Risk of electric shock. KZN Series pump models do not come with electric plug connectors. To reduce the risk of electric shock, be certain that it is connected only to a properly grounded, grounding-type receptacle or control panels.

Lifting:

Attach a rope or lifting chain (not included) to the handle (or lifting rings) on the top of the pump.

Do not lift the pump by the power cable or discharge hose/piping. Proper lifting equipment (rope/chain) must be used.

POSITIONING THE PUMP

BJM Pumps, KZN Series pumps are designed to operate fully or partially submerged. Do not run the pump dry. Refer to data sheet for minimum submersion depth for your particular model. Data sheets can be obtained online at www.bjmpumps.com or by calling BJM Pumps, LLC at 860-399-5937. As a general rule, KZN Series top discharge pumps can pump down to a level above the suction screen. Pumping lower than screen will permit air to enter the pump and cavitate, lose prime or become air bound.

Do not run pump dry.

Pump liquid should not exceed a maximum temperature of 104°F.

Never place the pump on loose or soft ground. The pump may sink, preventing water from reaching the impeller. Place on a solid surface or suspend the pump with a lifting rope/chain. The KZN Series pumps are provided with a suction strainer to prevent large solids from clogging the impeller. Any spherical solids which pass through the strainer should pass through the pump.

For maximum pumping capacity, use the proper size non-collapsible hose or rigid piping. A check valve may be installed after the discharge to prevent back flow when the pump is shut off.

PUMP ROTATION

Two ways to check the correct pump rotation:

7

1.By looking at the impeller; the rotation of the impeller should be counter clockwise as shown in the picture below.

2.By looking from the top of the pump. Since the impeller cannot be seen, the best way to check the rotation is to check the kick back motion of the pump when the pump just starts. The kick back motion of the pump should be counter clockwise as shown in the picture below.

8

PUMP OPERATION

This pump is designed to handle dirty water that contains some solids. It is not designed to pump volatile or flammable liquids. Do not attempt to pump any liquids which may damage the pump or endanger personnel as a result of pump failure.

Do not operate this pump where explosive vapors or flammable material exist. Death or Serious injury will result.

TYPICAL MANUAL DEWATERING INSTALLATION

NOTE: Maximum recommended starts should not exceed 10 times per hour.

All KZN models are provided with a 50’ (10m) power cord. NEVER splice the power cable due to safety and warranty considerations. Always keep the plug end dry.

Note: 208V, 230V, 460V & 575V three phase units do not have a plug and have to be provided separately.

Do not alter the length or repair any power cable with a splice. The pump motor and cable must be completely waterproof. Damage to the pump or personal injury may result from alterations.

For manual operation: 208, 230, 460 & 575 volt: Attach the proper plug or connect directly to the power source or control box. KZN model pumps are supplied with two grounding wires; one green for grounding to the panel; the other is orange and is to be used for grounding check systems or can be also connected to the grounding point on the control. Check the direction of the rotation. Tilt the pump and start it. It should twist in the opposite direction of the arrow (on pump). It is recommended that a Ground Fault Interrupter (GFI) type receptacle (or equivalent) be used.

STOPPING

To stop the pump (manual and automatic mode), unplug it from the power source, turn off the breaker, or turn the power source off (generator).

9

BJM Pumps KZN (R) User Manual

Typical 3 phase manual control 1

TYPICAL AUTOMATIC DEWATERING INSTALLATION

NOTE: Maximum recommended starts should not exceed 10 times per hour.

Float switches (wired into the pump motor or piggy-back style) are available from the factory as an option.

Note: 208V, 230V, 460V & 575V pumps do not have a plug installed.

Three phase pumps need a separate control box with float(s) for automatic operation.

10
