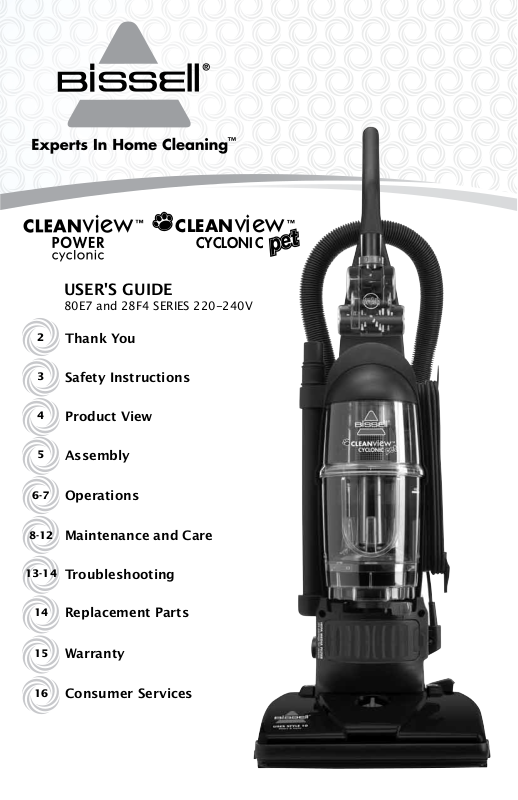

Bissell CLEANVIEW 28F4, CLEANVIEW 80E7 User Manual

USER'S GUIDE

80E7 and 28F4 SERIES 220-240V

2

Thank You

3

Safety Instructions

4

Product View

5

Assembly

6-7

Operations

8-12

Maintenance and Care

CLEANview

CYCLONI C

13-14

14

15

16

Troubleshooting

Replacement Parts

Warranty

Consumer Services

Thanks for buying a BISSELL Cleanview™ Cyclonic

We’re glad you purchased a BISSELL Cleanview cyclonic vacuum.
Everything we know about floor care went into the design and
construction of this complete, high-tech home cleaning system.

Your BISSELL Cleanview cyclonic vacuum is well made, and we back it
with a limited one year warranty. We also stand behind it with a knowl­edgeable, dedicated Consumer Services department, so, should you
ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today,
BISSELL is a global leader in the design, manufacture, and service of
high quality homecare products like your BISSELL Cleanview cyclonic
vacuum.

Thanks again, from all of us at BISSELL.

Mark J. Bissell
Chairman, President & CEO

2

www.bissell.com

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical
basic precautions should be observed,
including the following:

appliance,

READ ALL
INSTRUCTIONS
BEFORE USING YOUR
UPRIGHT VACUUM.

WARNING: To

reduce the risk of fire,
electric shock, or injury:

■

Do not use outdoors or on wet surfaces.

■

Do not leave machine when it is plugged in.

■

Do not use with damaged cord or plug.

■

If appliance is not working as it should, has

been dropped, damaged, left outdoors, or
dropped into water, return it to a service agent.

■

Do not pull or carry by cord, use cord as a

handle, close door on cord, pull cord around
sharp corners or edges, run appliance over
cord, or expose cord to heated surfaces.

■

Do not unplug by pulling on cord. Unplug

by grasping plug.

■

Do not handle plug or appliance with wet hands.

■

Do not expose hair, loose clothing, fingers

or body parts to openings or moving parts.

■

Do not pick up hot or burning objects such

as cigarettes, matches, or hot ashes.

■

Do not pick up flammable or combustible

materials (lighter fluid, petrol, kerosene, etc.) or
use in the presence of explosive liquids or vapour.

■

Do not use appliance in an enclosed space filled

with vapours given off by oil base paint, paint
thinner, some moth proofing substances,
flammable dust, or other explosive or toxic
vapours.

■

Not intended for use by persons (including

children) with reduced physical, sensory or
mental capabilities, or lack of experience
and knowledge, unless they have been
given supervision or instruction concerning
use of the appliance by a person
responsible for their safety

www.bissell.com

■

Young children should be supervised to ensure

that they do not play with the appliance.

■

Remove plug from electrical outlet before
cleaning or maintaining the appliance.

■

If the supply cord is damaged, it must be

replaced by the manufacturer or its service
agent in order to avoid a hazard.

■

Do not pick up toxic material (chlorine

bleach, ammonia, drain cleaner, petrol, etc.).

■

Do not allow to be used as a toy.

■

Do not use for any purpose other than

described in this User’s Guide.

■

Use only manufacturer’s recommended

attachments.

■

Do not use with any opening blocked; keep

free of dust, lint, hair, and anything that
may reduce air flow.

■

Keep appliance on a level surface.

■

Turn off all controls before unplugging.

■

Be extra careful when cleaning stairs.

■

This appliance is provided with double

insulation. Use only identical replacement
parts.

■

Do not use without the dirt container and

filters in place.

■

Pay close attention when working around

children.

■

Unplug before attaching TurboBrush™ tool.

■

Do not pick up hard or sharp objects such as

glass, nails, screws, coins, etc.

SAVE THESE
INSTRUCTIONS
FOR FUTURE USE

This model is for household use only.

IMPORTANT

FOR OPERATION ON A 220-240 VOLT
A.C. 50/60 Hz POWER SUPPLY ONLY.

If your appliance is fitted with a
nonrewireable BS 1363 plug it must not be
used unless a 13 amp (ASTA approved to BS

1362) fuse is fitted in the carrier contained
in the plug. (Spares may be obtained from
your BISSELL supplier). If for any reason the
plug is cut off, it must be disposed of, as it is
an electric shock hazard should it be inserted
into a mains socket.

3

Product view

Cord Clip

Hose Clip

Deluxe
Stretch Hose

Handle

Twist 'n

™

Hose

Snap
Connector

Combination
Dusting
Brush/
Upholstery
Tool

Power Switch

Handle
Release
Pedal

Foot Hose

Crevice Tool

Carrying
Handle

Extension
Wand

Quick

™

Reach
Handle

Hose Wand

Hose
Wand Base

Dirt
Container

Filter Cup

Pre-Motor
Filter

Height
Adjustment
Knob

TurboBrush™ Tool

(select models only)

Quick

™

Release
Cord Wrap

Primary
Separator

Upper Tank

Power Cord

Inner and
Outer
Circular
Filters

Lock ’n

™

Lever

Seal

HEPA Media
Post-Motor
Filter*

CAUTION:

Do not plug in your vacuum
cleaner until you are familiar with
all instructions and operating
procedures.

*The Filter Media, not the vacuum as a whole, complies with the High Efficiency Particulate
Air (HEPA) filter specification (EN 1822-1:2009).

4

www.bissell.com

Powerfoot

Furniture Protection
Guard

Assembly

The only tool you’ll need to assemble
your vacuum cleaner is a screwdriver.

Attach handle to vacuum

1. Locate the vacuum handle and remove

the screw packet taped to the base of
the handle.

2. Stand the vacuum upright and place the

handle on the top of the vacuum body.

3. Insert the screws into the existing holes

on each side. Tighten securely with a
screwdriver.

Attach vacuum hose and tools

1. Attach the Twist ‘n Snap hose by

lining up the tabs on the base with the
corresponding notches on the back of
the vacuum.

2. Turn the Twist ‘n Snap hose to the right

to lock the hose into place.

3. Grasping the Quick Reach handle, slide

the end of the hose wand into the hose
wand base. Snap the hose into the hose
clip.

NOTE: The powerfoot will not
operate effectively unless the hose
wand is firmly attached.

4. Slide the extension wand and the crevice

tool together into the storage clip on the
side of the vacuum.

5. Snap the combination tool into the

storage clip on the back of the vacuum.

6. Select models only: The TurboBrush

tool bracket slides into the front of the
handle. Attach the bracket by aligning
the pegs with the holes on the handle
and pulling down until it locks into
place.

WARNING:

Plastic film can be dangerous. To
avoid danger of suffocation, keep
away from babies and children.

7. Select models only: Place the

TurboBrush tool in the bracket by aligning
the bottom of the bracket with the opening of
the brush roll and snap the TurboBrush tool
into place.

www.bissell.com

5
