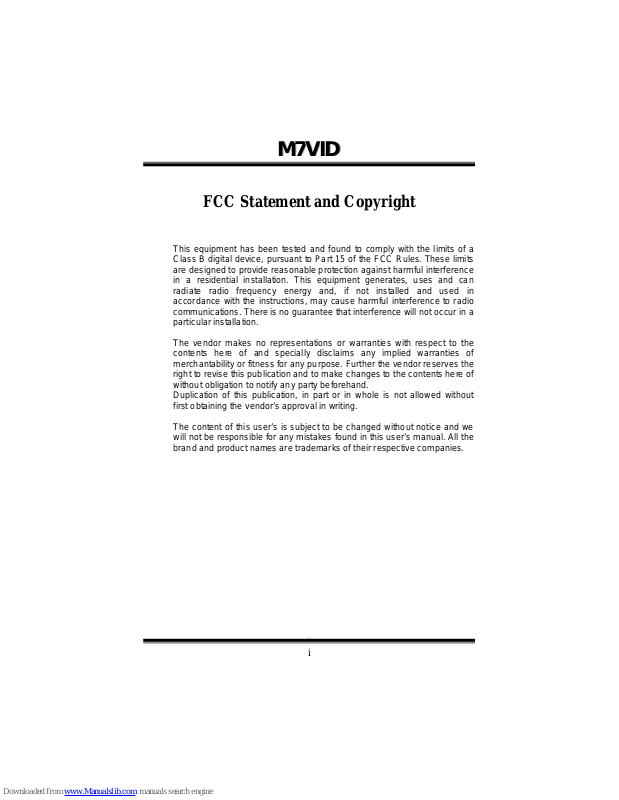

FCC Statement and Copyright

This equipment has been tested and found to comply with the limits of a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. There is no guarantee that interference will not occur in a
particular installation.

The vendor makes no representations or warranties with respect to the
contents here of and specially disclaims any implied warranties of
merchantability or fitness for any purpose. Further the vendor reserves the
right to revise this publication and to make changes to the contents here of
without obligation to notify any party beforehand.
Duplication of this publication, in part or in whole is not allowed without
first obtaining the vendor’s approval in writing.

The content of this user’s is subject to be changed without notice and we
will not be responsible for any mistakes found in this user’s manual. All the
brand and product names are trademarks of their respective com pan ies .

i

C

o

n

t

e

n

t

s

C

o

n

C

o

n

ENGLISH.....................................................................................................3

M7VID Features...............................................................................................................3

Package contents...........................................................................................................4

Layout of M7VID.............................................................................................................4

CPU Installation..............................................................................................................5

DDR DIMM Modules: DIMM1-2-3....................................................................................6

Jumpers, Headers, Connectors & Slots........................................................................7

t

e

n

t

s

t

e

n

t

s

SPANISH ................................................................................................... 11

Características del M7VID............................................................................................ 11

Contenido del Paquete................................................................................................. 12

Disposición del M7VID.................................................................................................12

Instalación de la CPU...................................................................................................13

Módulos DDR DIMM: DIMM1-2-3.................................................................................. 14

Conectores, Cabezales, Puentes y Ranuras ............................................................... 15

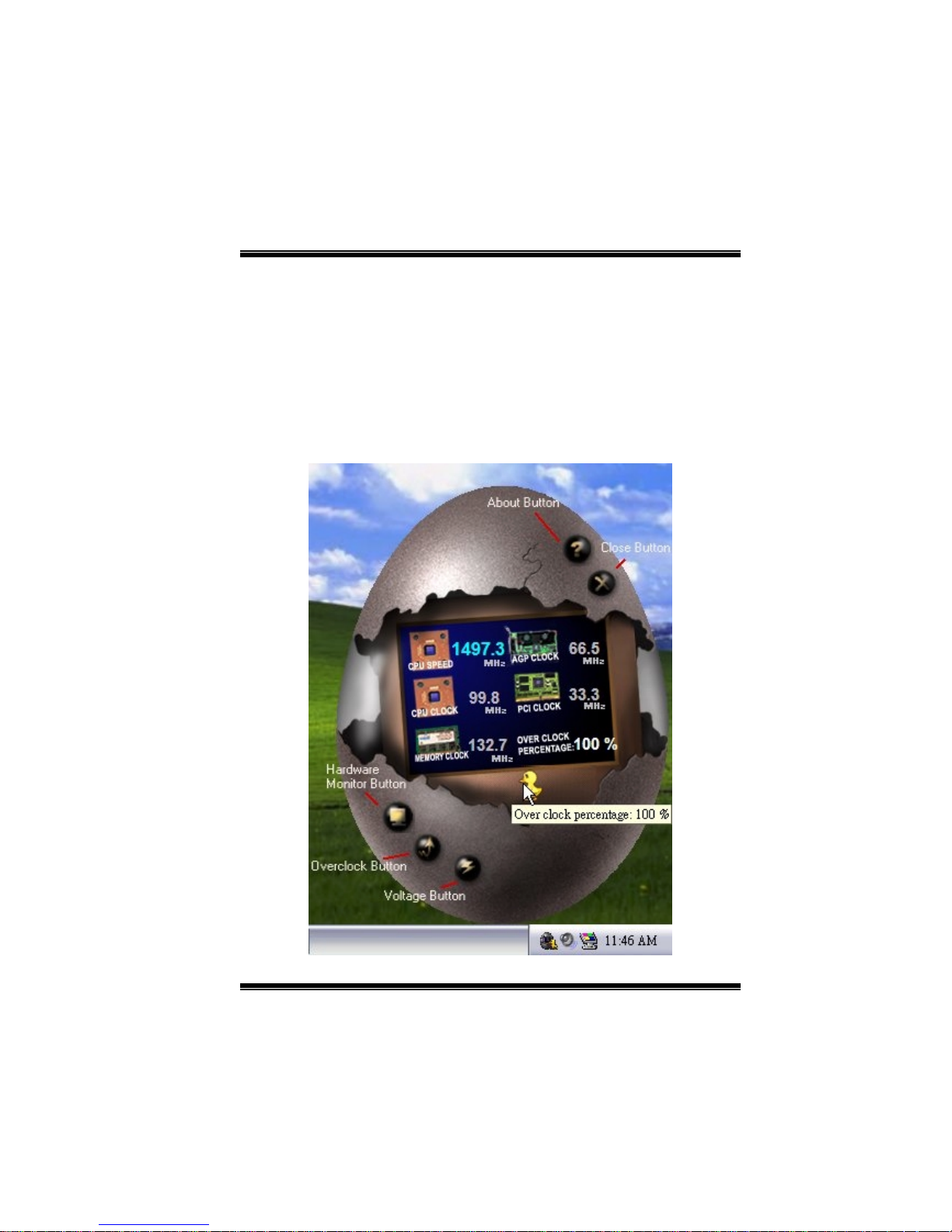

WARPSPEEDER.......................................................................................19

Introduction.................................................................................................................. 19

System Requirement.................................................................................................... 20

Installation ....................................................................................................................20

Usage............................................................................................................................ 21

TROUBLE SHOOTING .............................................................................30

SOLUCIÓN DE PROBLEMAS..................................................................31

ii

English

M7VID Features

 Use VIA KT333 / VT8233A Chipset, Winbond W83697HF.
 Contains on board I/O facilities, which include two serial ports, a parallel

port, a PS/2 mouse port, a PS/2 keyboard port, audio ports, USB ports a
game port and a monitor port.

 Supports Single Socket-A for an AMD Athlon/ Duron Family processor,

running at 200 or 266 MHz Front Side Bus frequency.

 The AMD Athlon/ Duron system bus supports the 200/266 MHz high-speed,

split-transaction AMD Athlon/ Duron system bus interface.

 Supports Ultra DMA 33/66/100/133 Bus Master Modes, PIO Mode 4,

Master Mode, and high performance hard disk drives.

 Supports USB2.0 High Speed Device.
 The KT333 system controller is designed to support 200/266/333 MHz

DDR SDRAM DIMMs.

 Supports one CNR Slot (Type B only), one AGP Slot, and five 32-bit PCI

Bus slots.

 Complies with PC ATX form factor specifications.
 Supports popular operating systems such as Windows NT, Windows 98SE,

Windows 2000, Windows ME, Windows XP and LINUX.

 DIMM Power Selection by BIOS setup to adjust DDR DIMM voltage. (If you

meet the DDR DIMM compatible program, try to adjust the DDR Voltage to
fix the compatible program.)

 CPU over temperature protection.
 Intel® AC’97 2.2 compatible. High S/N ratio meets PC 99 requirements.
 4CH DAC, applicable for leading motherboard chipsets.
 Line-in phonejack share with rear Audio out for 4 channels Audio.

3

Package contents

 HDD Cable X 1, FDD Cable X 1, Fully Setup Driver CD X 1
 Flash Memory Writer for BIOS update X 1
 USB Cable X 2 (Optional)
 Rear I/O Panel for ATX Case X 1 (Optional)

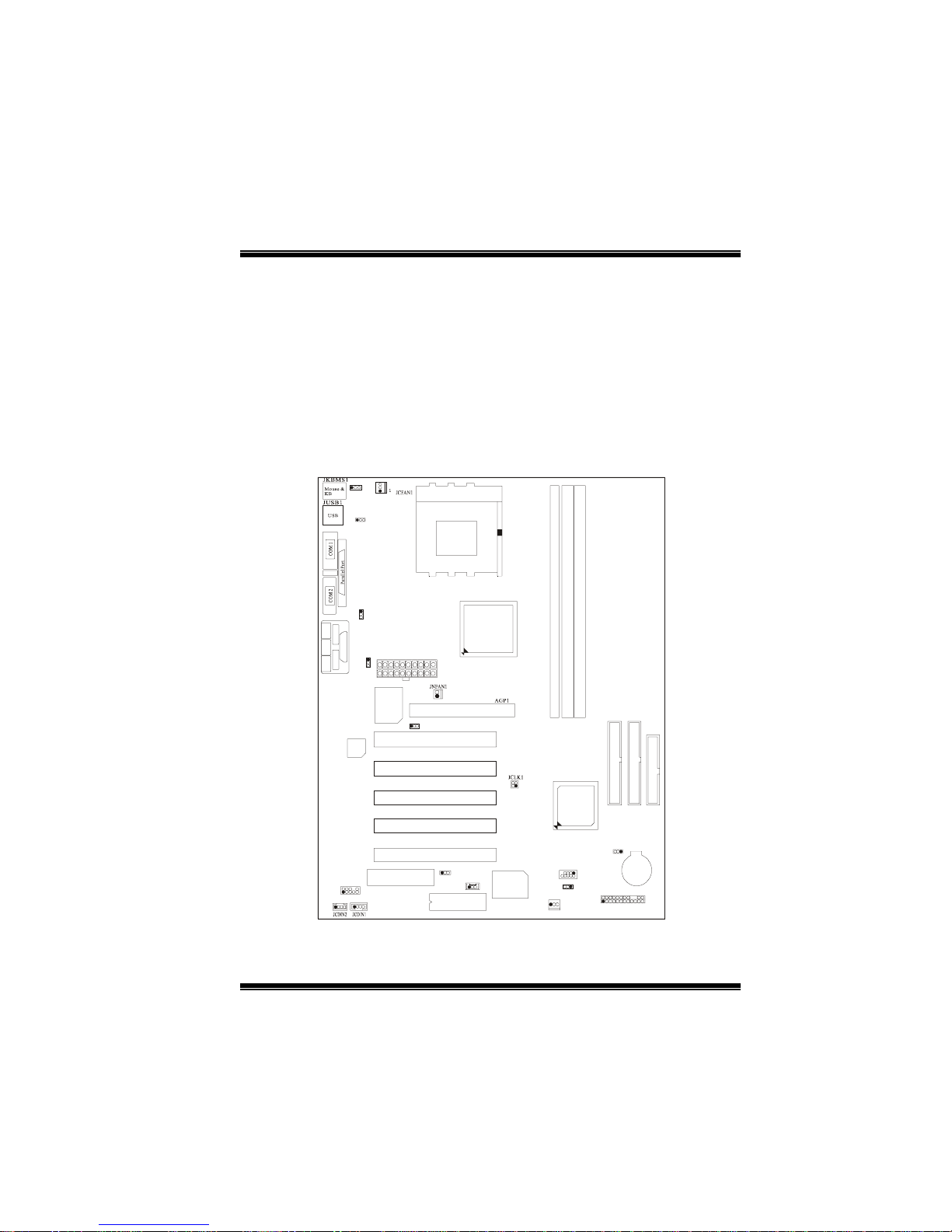

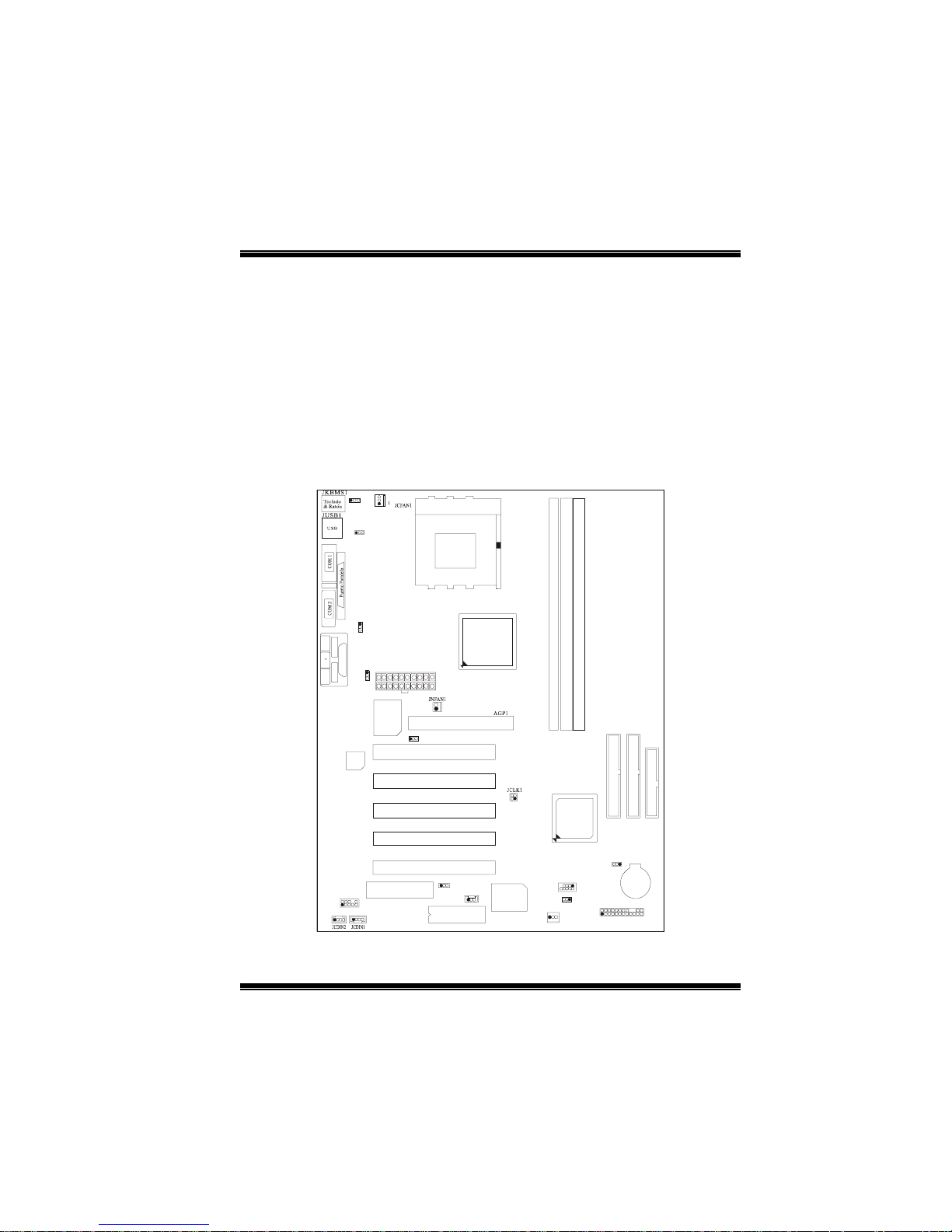

Layout of M7VID

JCOM1

1

JKBV1

JUSBV1

Socket A

1

CPU1

CPU

KT333

JWOL1

4

U2

4
2

Winbond
W83697

DIMM1

DIMM3

DIMM2

3
1

VT8233A

JUSB2

10

JUSBV2

JSFAN1

1

PRIMARY IDE CONN.

SECONDARY IDE CONN.

FLOPPY DISK CONN.

JCMOS1

1

2
1

JPANEL1

BAT1

24
23

129

1

JPRNT1

1

JUSBV5

JCOM2

SP-OUTMIC-IN LINE -IN

USB 1USB 2

JATXPWR1

GAME Port

1

J9

JGAME_USB1

PCI1

PCI2

PCI3

PCI4

PCI5

CNR SLOT

1

J10

PCI S LOT

PCI S LOT

PCI S LOT

PCI S LOT

PCI S LOT

1

JCODECSEL

AGP SLOT

1

BIOS

1

1

JAUDIO1

1

VT6202

Codec

CNR1

1

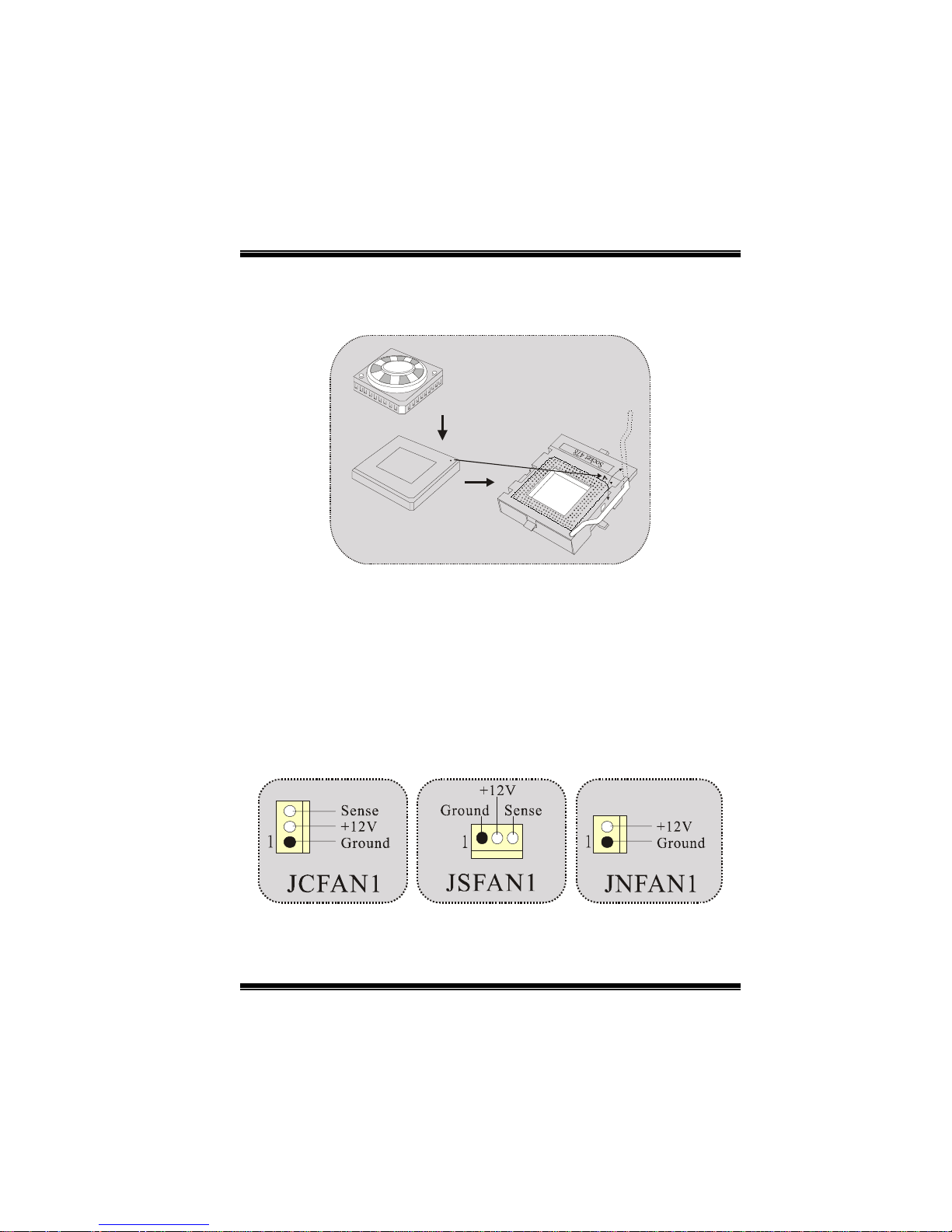

CPU Installation

C

P

U

1. Pull the lever sideways away from the socket then raise the lever up
to 90-degree angle.

2. Locate Pin A in the socket and lock for the white dot or cut edge in
the CPU. Match Pin A with the white dot/cut edge then insert the
CPU.

3. Press the lever down. Then Put the fan on the CPU and buckle it
and put the fan’s power port into the JCFAN1, then to complete the
installation.

CPU/ System Fan Headers: JCFAN1/ JSFAN1/

JNFAN1(Optional)

5

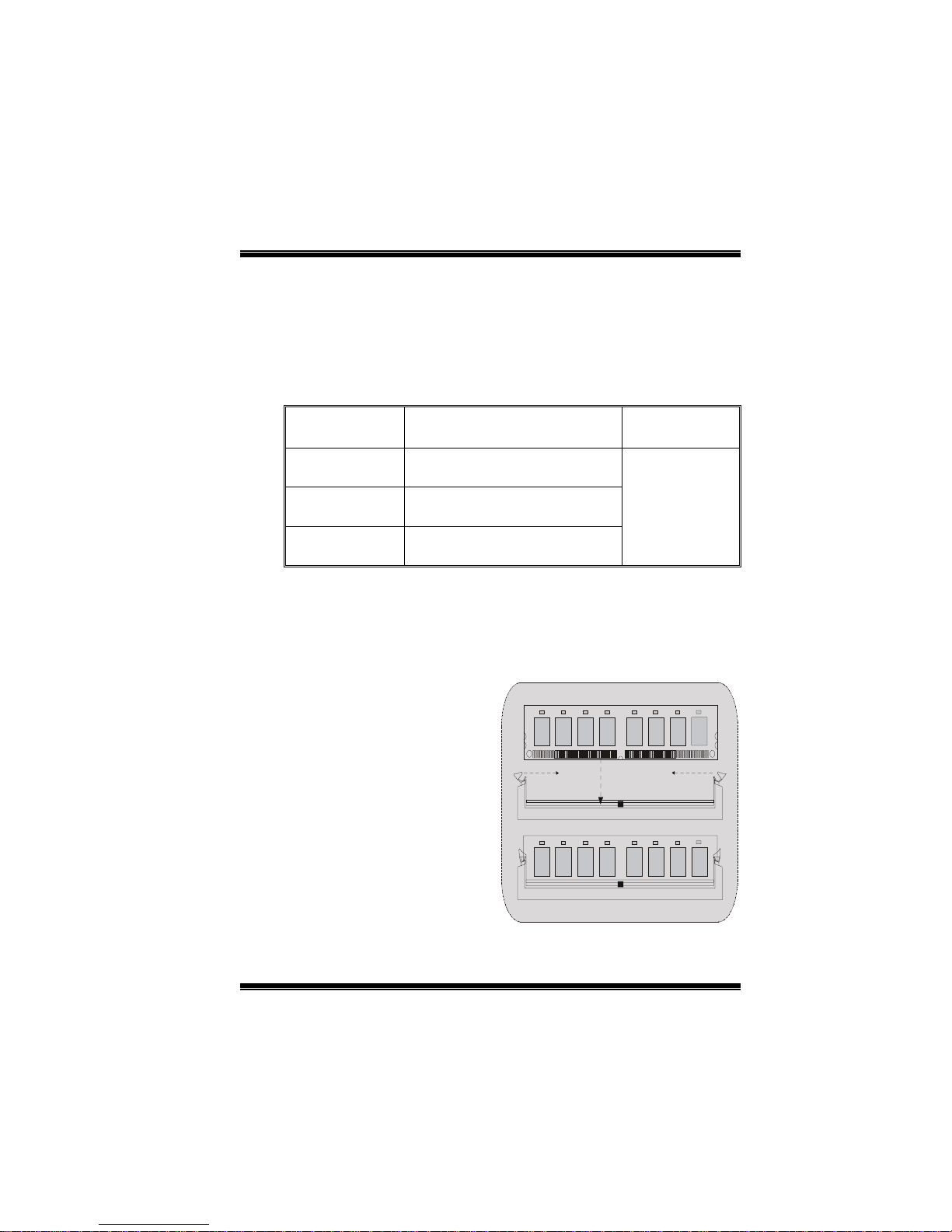

DDR DIMM Modules: DIMM1-2-3

DRAM Access Time: 2.5V Unbuffered/ Registered DDR 1600/ 2100/
2700 Type required.
DRAM Type: 64MB/ 128MB/ 256MB/ 512MB/ 1GB DIMM Module (184
pin)

DIMM Socket

Location

DIMM 1 64MB/128MB/256MB/512MB/1GB

DIMM 2 64MB/128MB/256MB/512MB/1GB

DIMM3 64MB/128MB/256MB/512MB/1GB

* The list shown above for DRAM configuration is only for reference.

How to install a DIMM Module

1. The DIMM socket has a
“ Plastic Safety Tab”, and the
DIMM memory module has an
“Asymmetrical notch”, so the
DIMM memory module can only
fit into the slot in one direction.

2. Push the tabs out. Insert the
DIMM memory modules into the
socket at a 90-degree angle, then
push down vertically so that it will
fit into the place.

3. The Mounting Holes and plastic
tabs should fit over the edge and
hold the DIMM memory modules
in place.

DDR Module Total Memory

Size (MB)

*1

Max i s

*1

*1

3GB

6

Jumpers, Headers, Connectors & Slots

Hard Disk Connectors: IDE1/ IDE2

The motherboard has a 32-bit Enhanced PCI IDE Controller that
provides PIO Mode 0~4, Bus Master, and Ultra DMA 33/ 66/ 100/ 133
functionality. It has two HDD connectors IDE1 (primary) and IDE2
(secondary).
The IDE connectors can connect a master and a slave drive, so you can
connect up to four hard disk drives. The first hard drive should always be
connected to IDE1.

Floppy Disk Connector: FDD1

The motherboard provides a standard floppy disk connector that
supports 360K, 720K, 1.2M, 1.44M and 2.88M floppy disk types. This
connector supports the provided floppy drive ribbon cables.

Communication Network Riser Slot: CNR1

The CNR specification is an open Industry Standard Architecture, and it
defines a hardware scalable riser card interface, which supports audio,
network and modem only.

Peripheral Component Interconnect Slots: PCI1-5

This motherboard is equipped with 5 standard PCI slots. PCI stands for
Peripheral Component Interconnect, and it is a bus standard for
expansion cards, which has, supplanted the older ISA bus standard in
most ports. This PCI slot is designated as 32 bits.

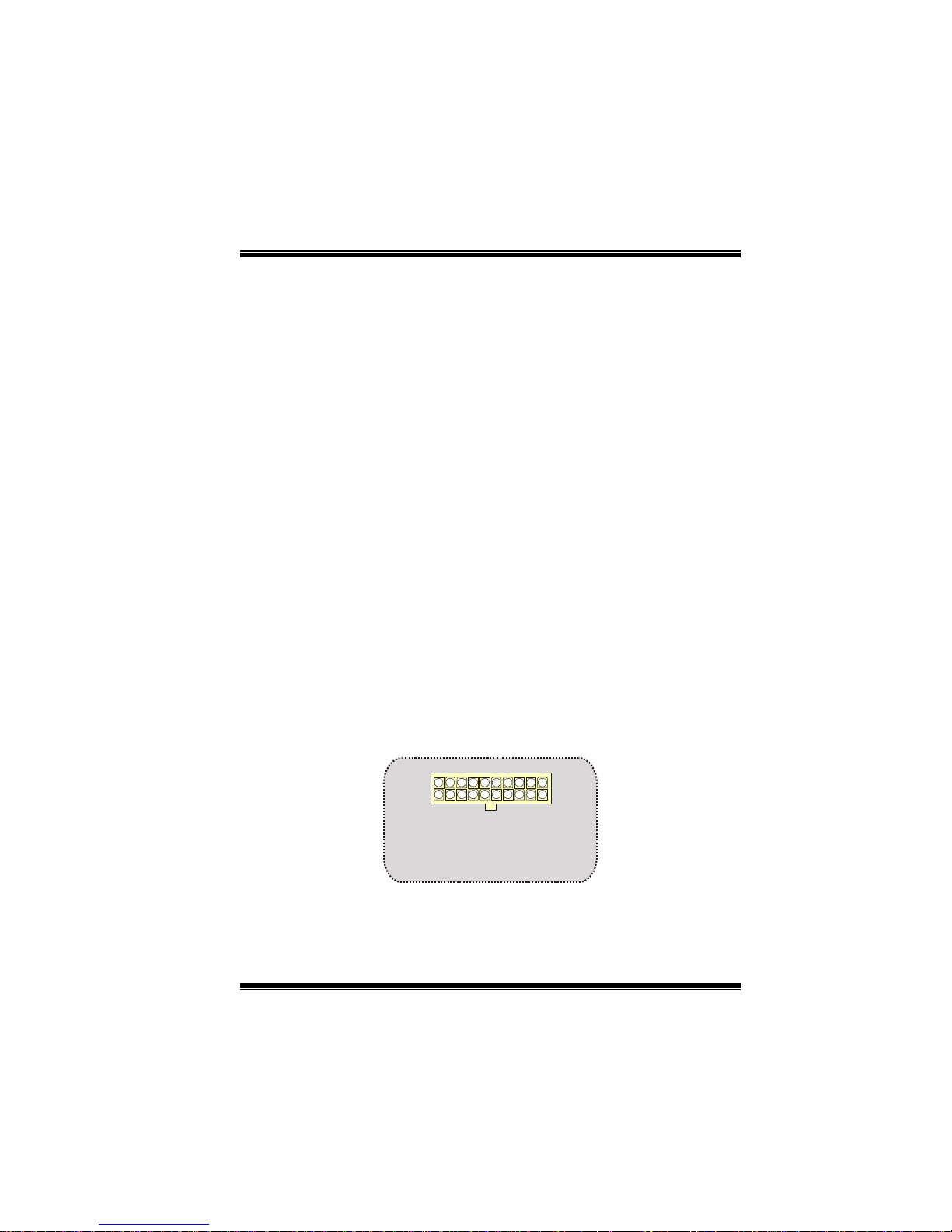

Power Connectors: JATXPWR1

JATXPWR1

JATXPWR1

(ATX Main P ower Conn.)

(ATX Power Conn.)

7

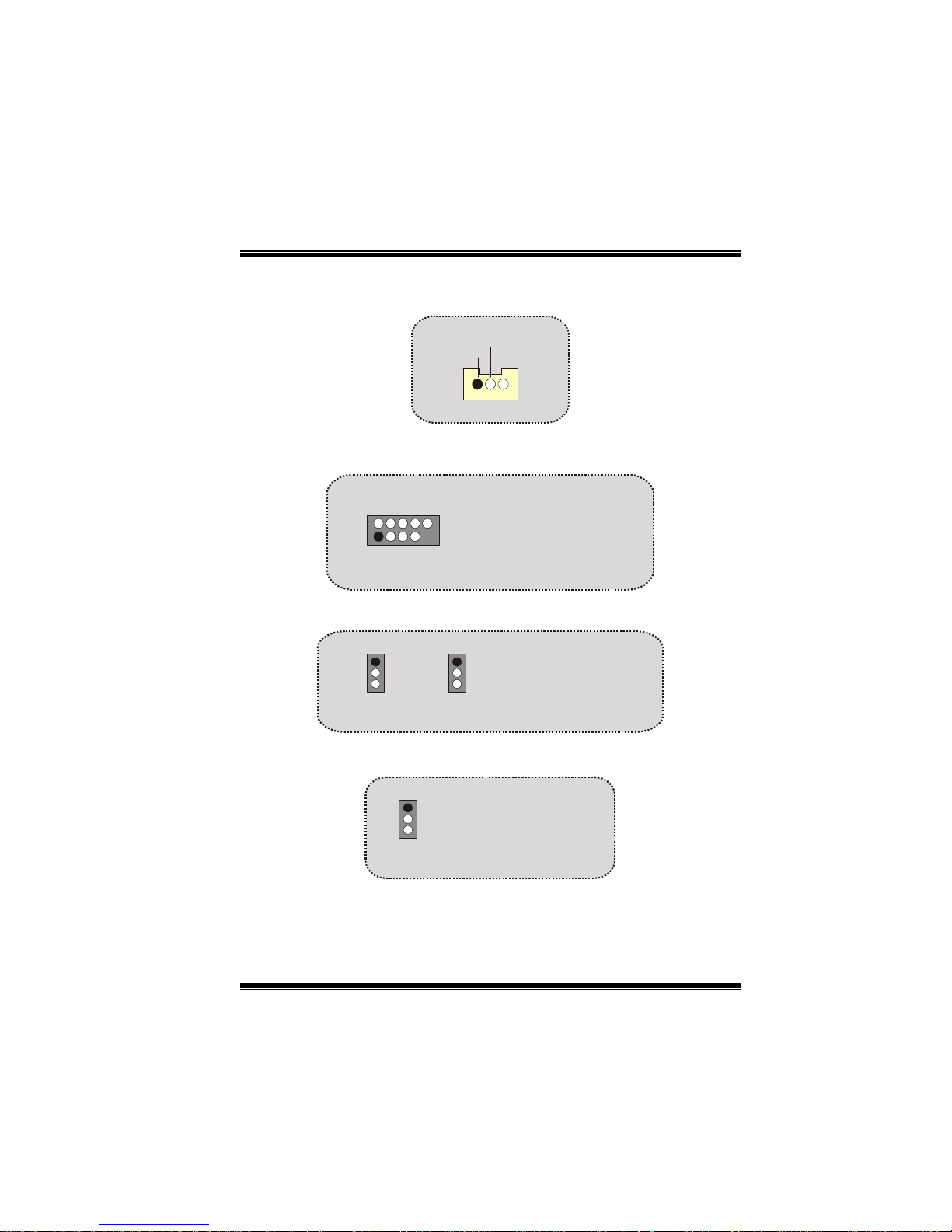

Wake On LAN Header: WOL1

Ground

5V_SB Wake up

1

WOL1

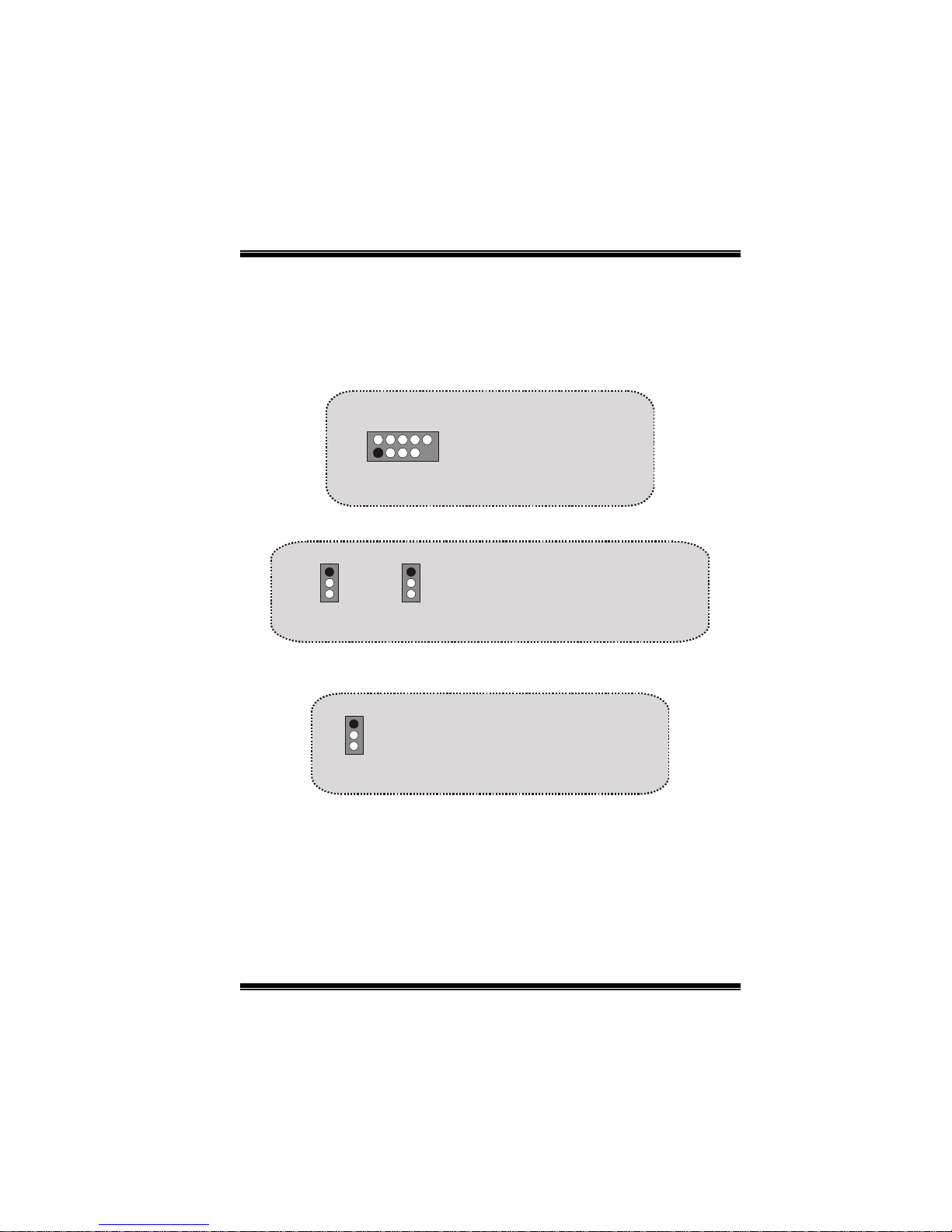

Front USB Header: JUSB2 (Optional)

2
1

JUSB2

Pin1,2 ==> +5 V
Pin3 ,4 ==> Da ta(-)
Pin5 ,6 ==> Da ta(+)
Pin7,8 ==> Ground
Pin9 ==> KEY
Pin10 ==> NA

5V/ 5VSB Selection for USB/KB: JUSBV1/2/5/ JKBV1

1

JUSBV1/2/5

1

JKBV1

Pin 1-2 on ==> 5V
Pin 2-3 on ==> 5V_SB

USB 2.0 Device Wake-Up: J9/ J10

1

J9-10

Pin 1-2 on ==> Enabled
Pin 2-3 on ==> Disabled

8

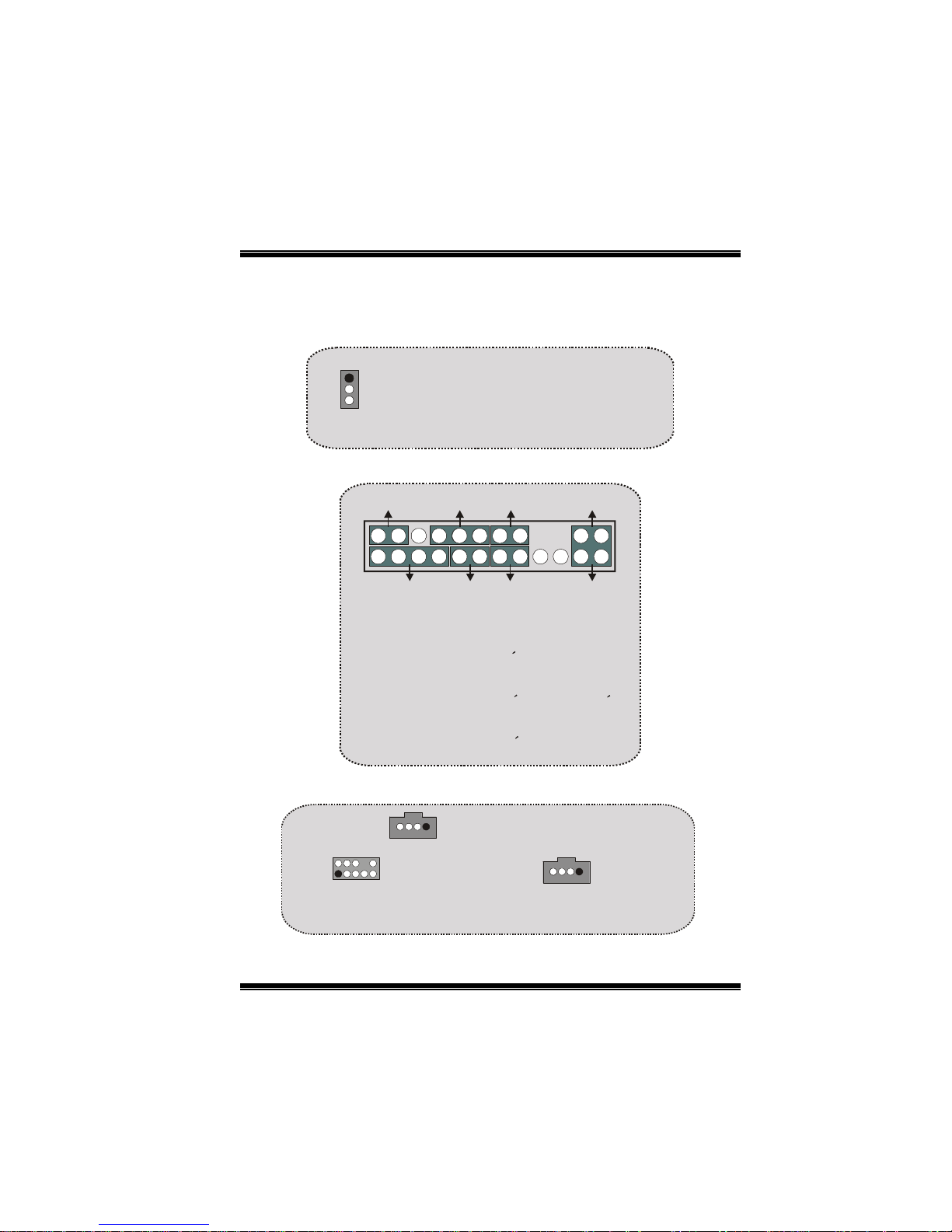

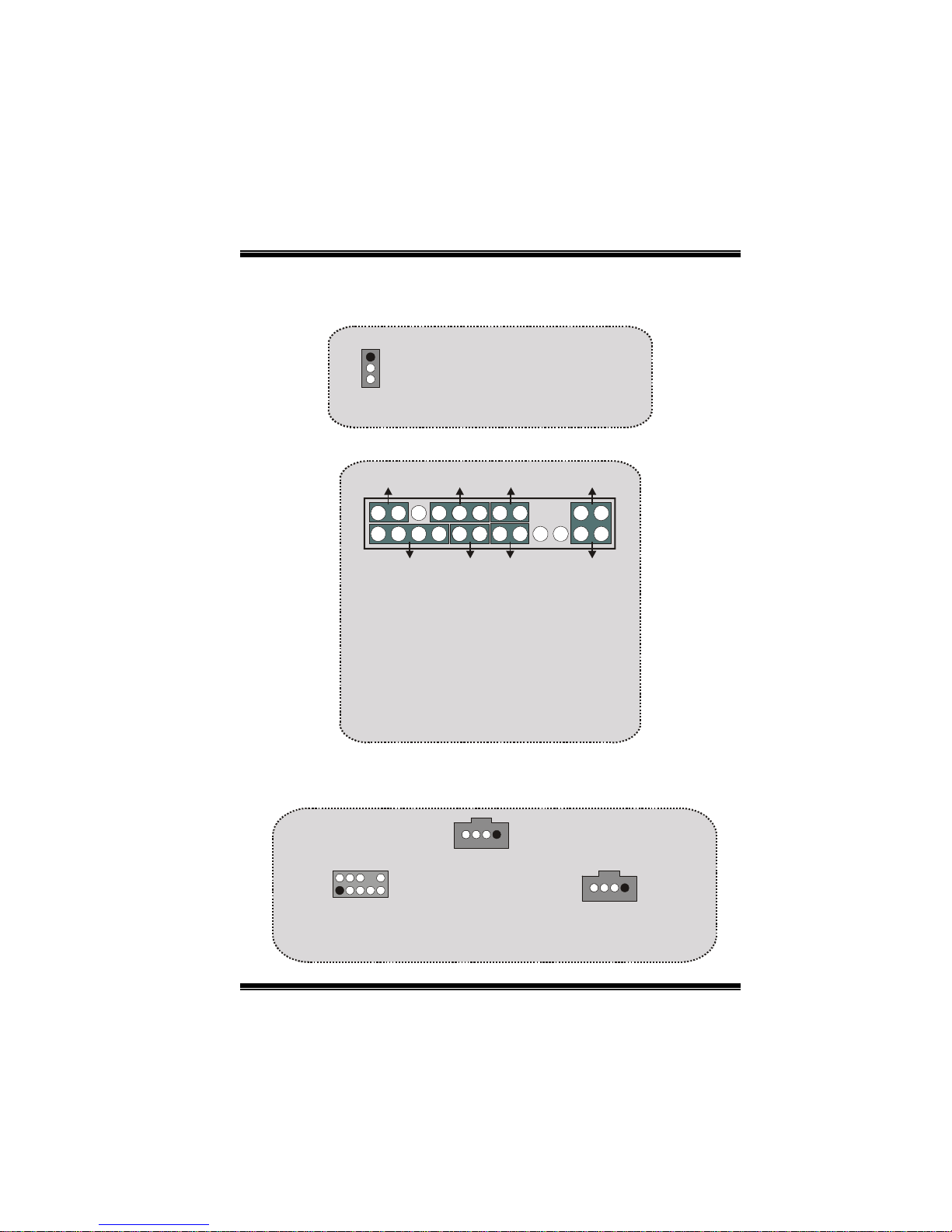

CNR Codec Primary/Secondary Selection: JCODECSEL

1

Pin 1-2 ==> On-board Prim ary Co dec
Pin 2-3 ==> CNR Primary Codec

JCODECSEL

Front Panel Connector: JPANEL1

SPK

PWR_LED

HLED

RST

IRON/OFF

24
23

IR

SLP

2
1

SPK ==> Speaker Conn.
HLED ==> Hard Driver LED
RST == > Reset Button
IR ==> Infrared Conn.
SLP ==> Sleep Button
PWR_LE D ==> P o w er LE D
ON/ OFF ==> Power-on Button

Audio Subsystem: JAUDIO1/ JCDIN1-2

(Front Audio Header)

2
1

JAUDIO1

1

JCDIN2

(CD-ROM Audio-In Header)

1

JCDIN1

(CD-ROM Audio-In Header)

9

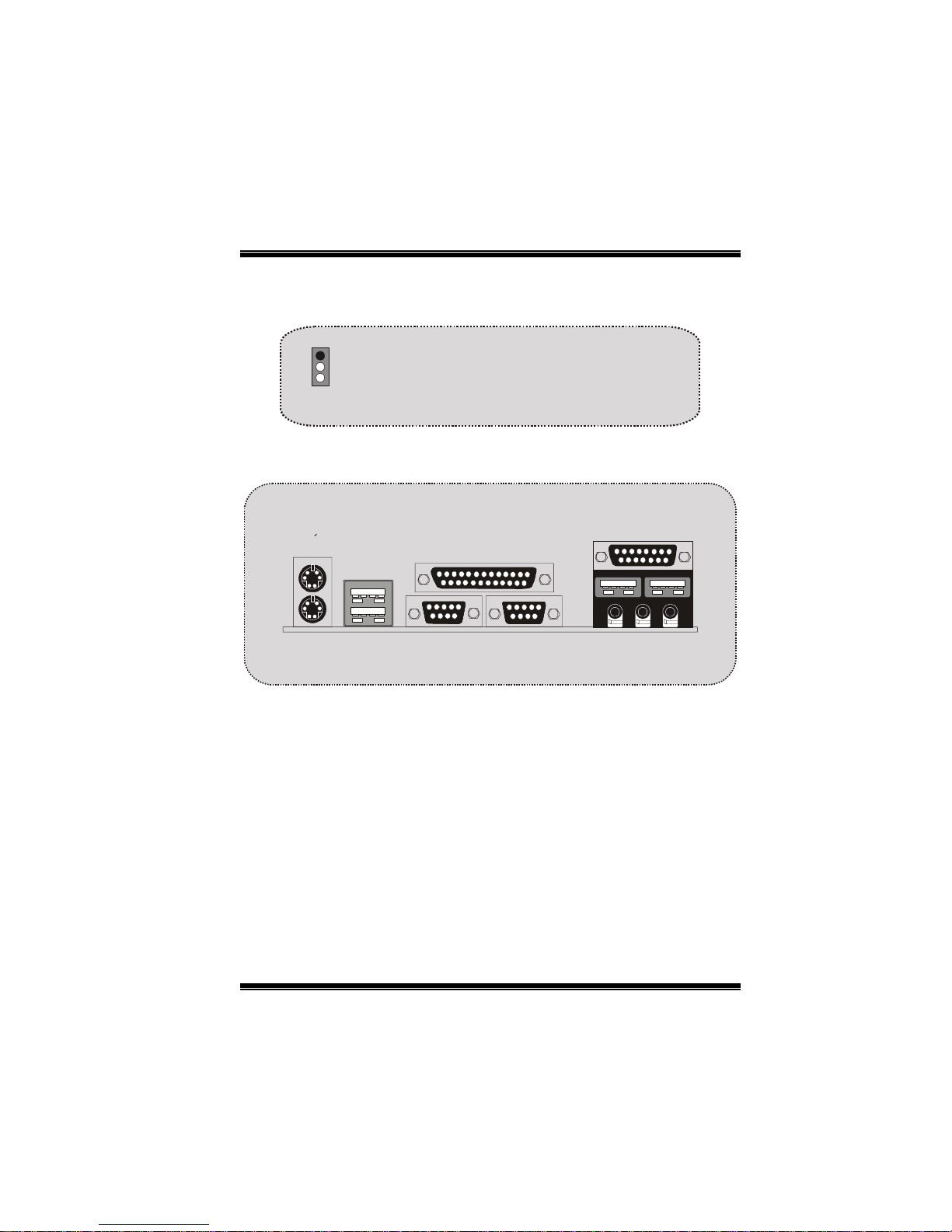

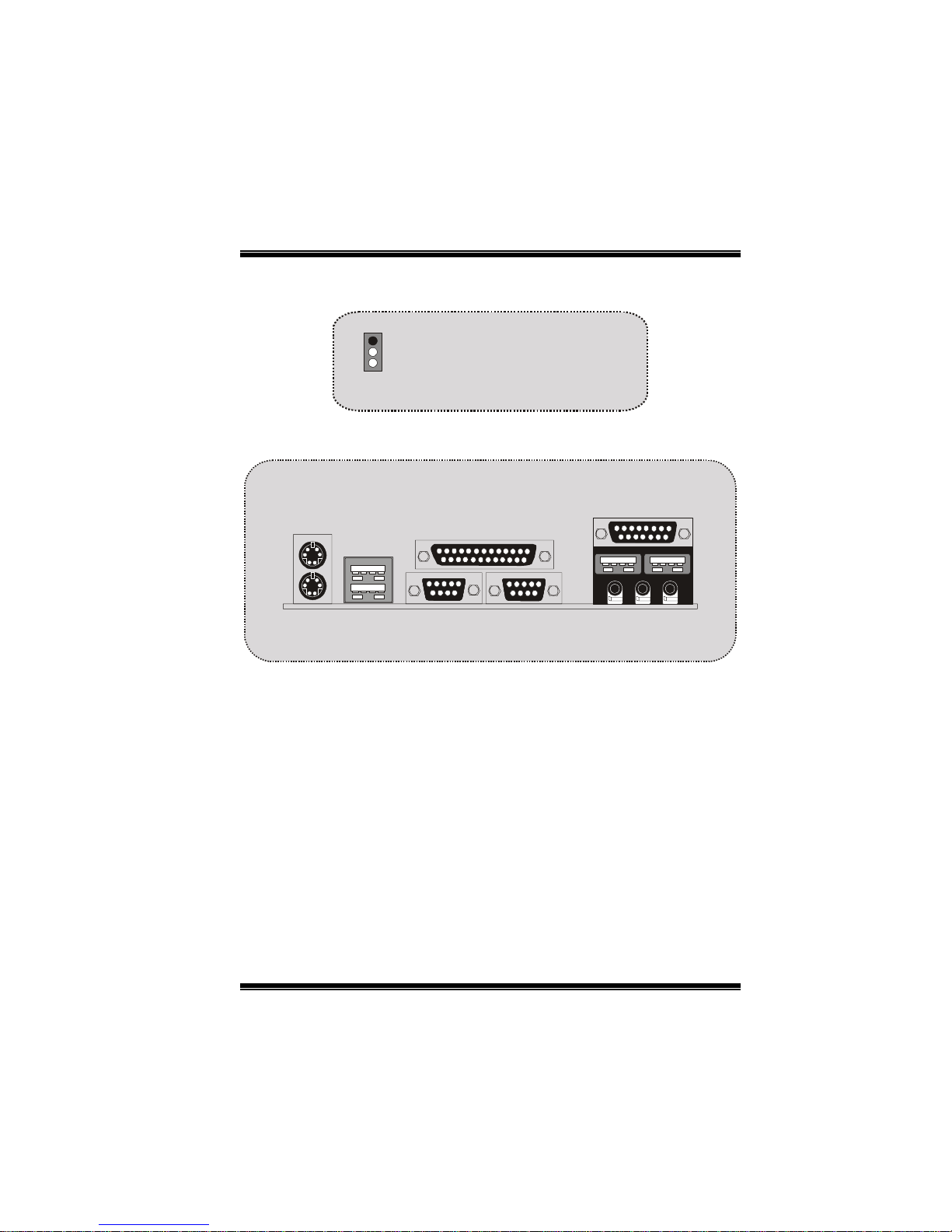

Clear CMOS Jumper: JCMOS1

1

JCMOS1

Pin 1-2 on ==> Normal Operation
(default)
Pin 2-3 on ==> Clear CMOS Data

Back Panel Connectors

JKBMS1

PS/2
Mouse

PS/2
Keyboard

JUSB1

USB

JPRNT1

Parallel

COM1

COM1

COM1

COM1 COM2

JCOM1

JCOM1

JCOM2

JGAME1_USB1

Game Port/

USB Ports (optio nal)

Speaker

Line In

Out

Mic
In

10

Spanish

Características del M7VID

 Usa Chipset VIA KT333 / VT8233A, Winbond W83697HF.
 Contiene facilidades I/O integrados en la placa madre en el que incluye un

puerto en serie paralelo, un puerto paralelo, un puerto para el ratón PS/2,
un puerto para teclado PS/2, puertos de audio, puertos USB, puerto LAN
(opcional), un puerto para juegos y un puerto para el monitor.

 Soporta Single Socket-A para procesador de la familia AMD Athlon/ Duron,

corriendo a 200 o 266 MHz frecuencia Front Side Bus.

 El sistema bus AMD Athlon/ Duron soporta una alta velocidad de 200/266

MHz, interface del sistema bus split-transaction AMD Athlon/ Duron.

 Soporta Ultra DMA 33/66/100/133 Bus Modos Master, Modo PIO 4, Modo

Master, y alta performancia en discos duros.

 Soprta USB2.0 dispositivo de alta velocidad.
 El sistema controlador KT333 es diseñado para soportar 200/266/333 MHz

DDR SDRAM DIMMs.

 Soporta un ranura CNR(solamente de Tipo B), una ranura AGP, y cinco

ranuras de 32-bit PCI Bus.

 Compatible con la forma de PC ATX.
 Soporta sistemas operativos populares tales como Windows NT, Windows

98SE, Windows 2000, Windows ME, Windows XP y LINUX.

 Corriente de Selección DIMM para configuración BIOS utilizado para

ajustar voltaje DDR DIMM. (Si se encuentra con un programa compatible
al DDR DIMM, trate de ajustar el voltaje DDR para fijar con el programa
compatible.)

 Protección contra sobre calentamiento de CPU.
 Intel® AC’97 2.2 compatible. Alto S/N ratio para requerimiento PC 99.
 4CH DAC, aplicable para chipsets de principales placas madres.
 Entrada de línea phonejack compartido con el Audio de salida trasero para

canales de 4 Audios.

11

Contenido del Paquete

 Cable HDD X 1, Cable FDD X 1, Configuración completa del Driver CD X 1
 Memoria de Escritura Flash para actualización del BIOS X 1
 Cable USB X 2 (Opcional)
 Panel trasero I/O para caja ATX X 1 (Opcional)

Disposición del M7VID

JCOM1

1

JKBV1

JUSBV1

Socket A

1

CPU1

CPU

KT333

JWOL1

12

U2

4
2

Winbond
W83697

DIMM1

DIMM3

DIMM2

3
1

VT8233A

JUSB2

10

JUSBV2

JSFAN1

1

Conector IDE Primario

Conector IDE Secundario

Conector para Disquete

JCMOS1

1

JPANEL1

2
1

BAT1

24
23

129

1

JPRNT1

1

JUSBV5

JCOM2

Salida de

Audio

USB 1USB 2

Entrada

de Linea

Entrad a

del MIC

JGAME_USB1

1

Puert o de Juego

JAUDIO1

1

JATXPWR1

1

J9

PCI1

PCI2

PCI3

PCI4

PCI5

1

J10

Ranura PCI

Ranura PCI

Ranura PCI

Ranura PCI

Ranura PCI

1

Ranura AGP

JCODECSEL

1

1

BIOS

VT6202

Codec

Ranura CNR

CNR1

1

Instalación de la CPU

C

P

U

1. Tire de la palanca del lado del zócalo, luego levante la palanca
hasta un ángulo de 90 grados.

2. Sitúe el contacto A del zócalo y busque el punto blanco o corte el
borde en la CPU. Empareje el contacto A con el punto blanco/
corte del borde, luego inserte la CPU.

3. Presione la palanca para abajo. Ponga el ventilador en la CPU y
abróchelo. Luego ponga el puerto de corriente del ventilador en el
JCFAN1. Y ya habrá completado su instalación.

CPU/ Cabezales del Sistema de Ventilación: JCFAN1/

JSFAN1/ JNFAN1(Opcional)

13

Módulos DDR DIMM: DIMM1-2-3

DRAM Tiempo de Acceso: 2.5V Unbuffered/ Registered DDR 1600/
2100/ 2700 Tipo requerido.
DRAM Tipo: 64MB/ 128MB/ 256MB/ 512MB/ 1GB Módulo DIMM
(184contactos)

Localización

del Módulo

Módulo DDR

DIMM

DIMM 1 64MB/128MB/256MB/512MB/1GB

*1

DIMM 2 64MB/128MB/256MB/512MB/1GB

*1

DIMM3 64MB/128MB/256MB/512MB/1GB

*1

* La lista de arriba para la configuración DRAM es solamente para
referencia.

Cómo instalar un Módulo DIMM

1. El zócalo DIMM tiene una
lengüeta plástica de seguridad y
el módulo de memoria DIMM
tiene una muesca asim étrica, así
el módulo de memoria DIMM
puede caber solamente en la
ranura de una sóla dirección.

2. Tire la lengüeta hacia afuera.
Inserte los módulos de memoria
DIMM en el zócalo a los 90
grados, luego empuje hacia abajo
verticalmente de modo que
encaje en el lugar.

3. Los agujeros de montaje y las lengüetas plásticas deben caber por
sobre el borde y sostenga los módulos de memoria DIMM en el lugar.

Total del

Tamaño de

Memoria (MB)

Máximo de 3GB

14

Conectores, Cabezales, Puentes y Ranuras

Conectores del Disco Duro: IDE1/ IDE2

La placa madre tiene un controlador de 32-bit PCI IDE que proporciona
Modo PIO 0~4, Bus Master, y funcionalidad Ultra DMA / 33/ 66/ 100.
Tiene dos conectores HDD IDE1 (primario) y IDE2 (secundario).
El conector IDE puede conectar a un master y un drive esclavo, así
puede conectar hasta cuatro discos rígidos. El primer disco duro debe
estar siempre conectado al IDE1.

Conector para el Disquete: FDD1

La placa madre proporciona un conector estándar del disquete (FDC)
que soporta 360K, 720K, 1.2M, 1.44M y 2.88M tipos de disquete. És te
conector utiliza los cables de cinta propor ci ona dos por el dis quete.

Canalización Vertical de la Red de Comunicaciones:

La especificación CNR es una abierta Industria de Arquitectura Estándar,
que define una tarjeta de interface escalable del hardware en el que
soporta audio, network y modem.

Ranura de Interconexión del Componente Periférico:

La placa madre está equipada con una ranura estándar ISA. ISA es la
sigla para Configuración Estándar de la Industria de Arquitectura, y fue
diseñando como el bus estándar para la tarjeta de expansion en los ’90
para las máquinas PC XT/AT. Ésta placa madre conserva
compatibilidad hacia atrás con el antiguo y configuración lenta del bus.

Conector de Corriente: JATXPWR1

Cabezal Wake On LAN:

CNR1

PCI1-5

WOL1

JATXPWR1

JATXPWR1

(ATX Main Power Conn.)

(Conector de Corriente ATX)

Tierra

5V_SB Wake up

1

WOL1

15

Cabezal frontal USB: JUSB2 (Opcional)

2
1

JUSB2

Contacto1,2 ==> +5V
Contacto3,4 ==> Dato(-)
Contacto5,6 ==> Dato(+)
Contacto7,8 ==> Tierra
Contacto9 == > KE Y
Contacto10 ==> NA

5V/ 5VSB Selección para USB/KB: JUSBV1/2/5/ JKBV1

1

JUSBV1/2/5

1

JKBV1

Contacto 1-2 encendido ==> 5V
Contacto 2-3 encendido ==> 5V_SB

USB 2.0 Dispositivo Wake-Up: J9/ J10

1

J9-10

Contacto 1-2 encendido ==> Habilitado
Contacto 2-3 encendido ==> Deshabilitado

16

CNR Selección Codec Primario/Secundario:

JCODECSEL

1

JCODECSEL

Contacto 1-2 ==> Codec Primario Integrado
Contacto 2-3 ==> CNR Codec Primario

Conector del Panel Frontal: JPANEL1

SLP

2
1

SPK ==> Conector de Altavoz
HLED ==> LED del Disco Duro
RST ==> Boton de Reini cio
IR ==> Conector Infrarojo
SLP ==> Boto n de Suspension
PWR_LED ==> Corriente L ED
ON/ OFF ==> Boton de Encendido

SPK

PWR_LED

HLED

RST

IRON/OFF

24
23

IR

Subsistema de Audio: JAUDIO1/ JCDIN1-2

(Cabezal de Audio Frontal)

2
1

JAUDIO1

1

(Cabezal de Entrada de Audio CD-ROM)

(Cabezal de Entrada de Audio CD-ROM)

JCDIN2

1

JCDIN1

17

Puente de Borrar CMOS: JCMOS1

1

Contacto 1-2 encendido ==> Operac ion No rm al
(predeterminado)

JCMOS1

Contacto 2-3 encendido ==> Dato de Borra r CM OS

Conectores del Panel Trasero

JKBMS1

Raton
PS/2

Teclado
PS/2

JUSB1

USB

JPRNT1

Paralelo

COM1

COM1

COM1

COM1 COM2

JCOM1

JCOM1

JCOM2

JGAME1_USB1

Puerto de Juego/

Puertos USB (opcio nal )

Salida

Entrada
de Linea

Entrada
de MIC

de Audio

18

WarpSpeeder

Introduction

[ WarpSpeeder™ ], a new powerful control utility, features three user-friendly
functions including Overclock Manager, Overvoltage Manager, and Hardware
Monitor.

With the Overclock Manager, users can easily adjust the frequency they prefer
or they can get the best CPU performance with just one click. The Overvoltage
Manager, on the other hand, helps to power up CPU core voltage and Memory
voltage. The cool Hardware Monitor smartly indicates the temperatures, voltage
and CPU fan speed as well as the chipset information. Also, in the About panel,
you can get detail descriptions about BIOS model and chipsets. In addition, the
frequency status of CPU, memory, AGP and PCI along with the CPU speed are
synchronically shown on our main panel.

Moreover, to protect users' computer systems if the setting is not appropriate
when testing and results in system fail or hang, [ WarpSpeeder™ ] technology
assures the system stability by automatically rebooting the computer and then
restart to a speed that is either the original system speed or a suitable one.

19

System Requirement

OS Support: Windows 98 SE, Windows Me, Windows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operating system includes

DirectX 8.1. If you use Windows XP, you do not need to install DirectX 8.1.)

Installation

1. Execute the setup execution file, and then the following dialog will
pop up. Please click “Next” button and follow the default procedure
to install.

20

2. When you see the following dialog in setup procedure, it means
setup is completed. If the “Launch the WarpSpeeder Tray Utility”
checkbox is checked, the Tray Icon utility and [WarpSpeeder™]
utility will be automatically and immediately launched after you click
“Finish” button.

Usage

The following figures are just only for reference, the screen printed in this user
manual will change according to your motherboard on hand.

[WarpSpeeder™] includes 1 tray icon and 5 panels:

1. Tray Icon:

21

Whenever the Tray Icon utility is launched, it will display a little tray icon on the
right side of Windows Taskbar.

This utility is responsible for conveniently invoking [W arpSpeeder™] Utility. You
can use the mouse by clicking the left button in order to invoke [WarpSpeeder™]
directly from the little tray icon or you can right-click the little tray icon to pop up
a popup menu as following figure. The “Launch Utility” item in the popup menu
has the same function as mouse left-click on tray icon and “Exit” item will close
Tray Icon utility if selected.

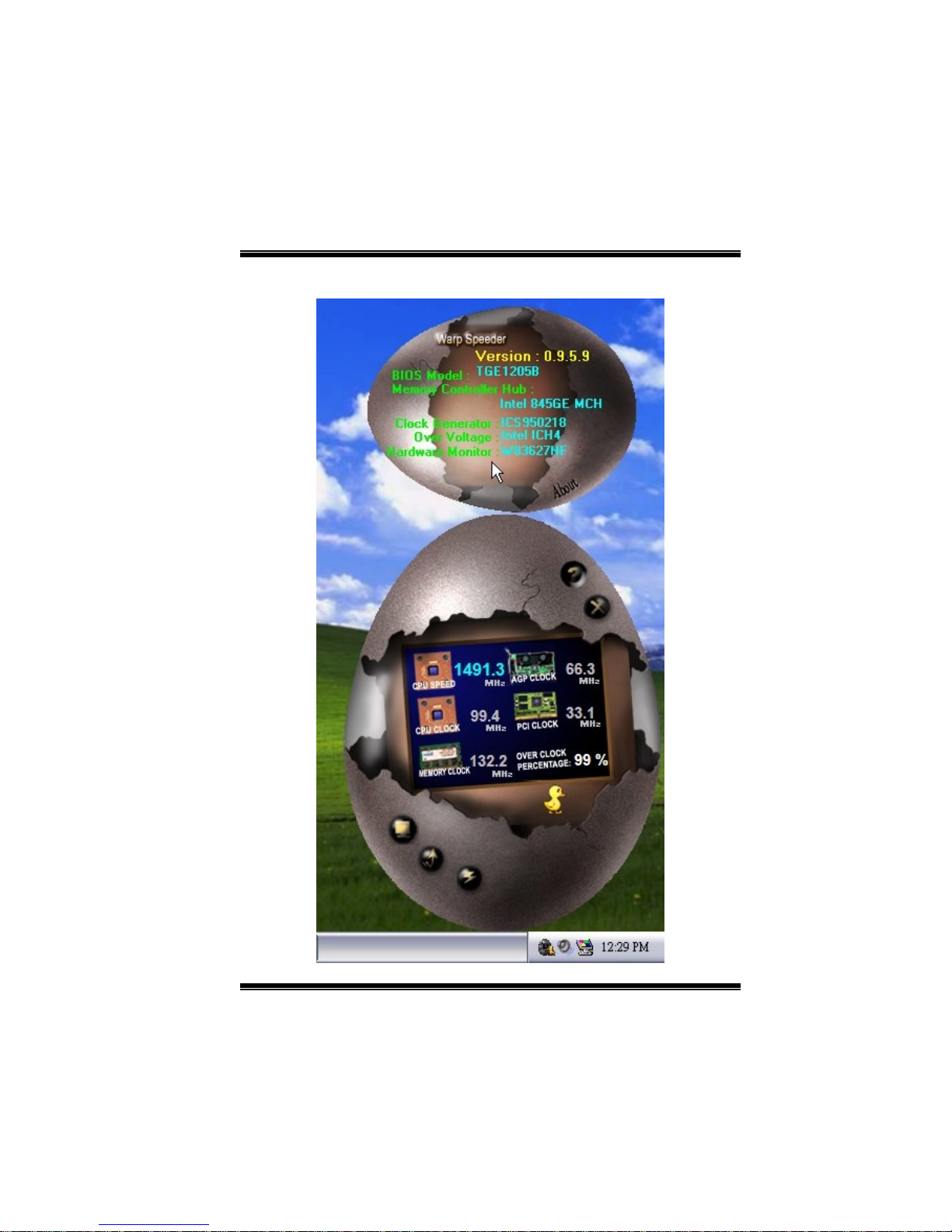

2. Main Panel
If you click the tray icon, [ WarpSpeeder™ ] utility will be invoked. Please refer
do the following figure; the utility’s first window you will see is Main Panel.

Main Panel contains features as follows:

a. Display the CPU Speed, CPU external clock, Memory clock, AGP clock,
and PCI clock information.

22

b. Contains About, Voltage, Overclock, and Hardware Monitor Buttons for
invoking respective panels.

c. With a user-friendly Status Animation, it can represent 3 overclock
percentage stages:

Duck walking => overclock percentage from 100% ~ 110 %
Duck running => overclock percentage from 110% ~ 120%
Duck burning => overclock percentage from 120% ~ above

23

3. Voltage Panel
Click the Voltage button in Main Panel, the button will be highlighted and the

Voltage Panel will slide out to up as the following figure.
In this panel, you can decide to increase CPU core voltage and Memory voltage

or not. The default setting is “No”. If you want to get the best performance of
overclocking, we recommend you click the option “Yes”.

24

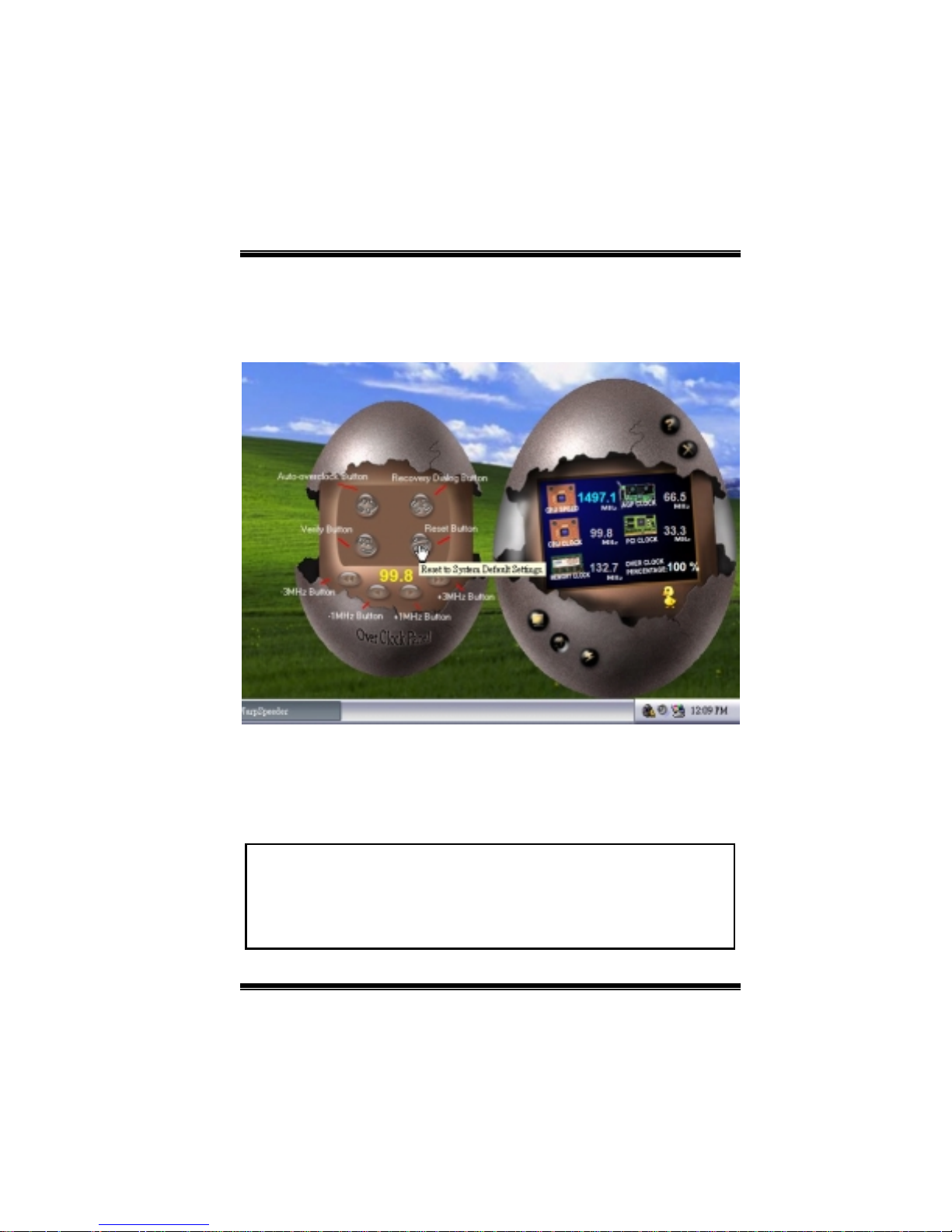

4. Overclock Panel
Click the Overclock button in Main Panel, the button will be highlighted and the

Overclock Panel will slide out to left as the following figure.

Overclock Panel contains these features:

a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”:
provide user the ability to do real-time overclock adju stm ent.

Warning: Manually overclock is potentially dangerous, especially
when the overclocking percentage is over 110 %. We strongly
recommend you ver ify ev er y s peed y ou ov erc l ock by c lic k th e Verify
button. Or, you can just click Auto overclock button and let
[ WarpSpeeder™ ] automatically gets the best result for you.

25

b. “Recovery Dialog button”: Pop up the following dialog. Let user select a
restoring way if system need to do a fail-safe reboot.

c. “Auto-overclock button”: User can click this button and [ WarpSpeeder™ ]

will set the best and stable performance and frequency automatically.
[ WarpSpeeder™ ] utility will execute a series of testing until system fail.
Then system will do fail-safe reboot by using Watchdog function. After
reboot, the [ WarpSpeeder™ ] utility will restore to the hardware default
setting or load the verified best and stable frequency according to the
Recovery Dialog’s setting.

d. “Verify button”: User can click this button and [ WarpSpeeder™ ] will

proceed a testing for current frequency. If the testing is ok, then the
current frequency will be saved into system registry. If the testing fail,
system will do a fail-safe rebooting. After reboot, the [ WarpSpeeder™ ]
utility will restore to the hardware default setting or load the verified best
and stable frequency according to the Recovery Dialog’s setting.

Note: Because the testing pr ograms, invoked i n Auto-overcloc k and
Verify, include DirectDraw, Direct3D and DirectShow tests, the
DirectX 8.1 or new er runtime library is requir ed. And please make
sure your display card’s color depth is High color (16 bit) or True
color( 24/32 bit ) that is required for Direct3D rendering.

26

5. Hardware Monitor Panel
Click the Hardware Monitor button in Main Panel, the button will be highlighted

and the Hardware Monitor panel will slide out to left as the following figure.
In this panel, you can get the real-time status information of your system. The

information will be refreshed every 1 second.

6. About Panel
Click the About button in Main Panel, the button will be highlighted and the

About Panel will slide out to up as the following figure.
In this panel, you can get model name and detail information in hints of all the

chipset that are related to overclocking. You can also get the mainboard’s BIOS
model and the Version number of [ WarpSpeeder™ ] utility.

27

28

Note: Because the overclock, overvoltage, and hardware monitor
features are controlled by several separate chipset,
[ WarpSpeeder™ ] div ide these features to separ ate panels. If one
chipset is not on board, th e correlative button in Ma in panel will be
disabled, but will n ot interfere ot her panels ’ functions. This property
can make [ WarpSpeeder™ ] utility more robust.

29

Trouble Shooting

PROBABLE SOLUTION

No power to t he system at al l Power light don’t
illuminate, fan inside po wer supply does not turn
on. Indicator light on keyboard does not turn on

PROBABLE SOLUTION

System inoperative. Keyboard lights are on,
power indicator lights are lit, hard drive is
spinning.

PROBABLE SOLUTION

System does not boot fr om hard disk dri ve, can
be booted from CD-ROM drive.

PROBABLE SOLUTION

System only boots from CD-ROM. Hard disk can
be read and applications can be used but
booting from hard disk is impossible.

* Make sure power cable is securely plugged in
* Replace cable
* Contact technical support

* Using even pressure on both ends of the

DIMM, press down firmly until the module
snaps into place.

* Check cable running from disk to disk

controller board. Make sure both ends are
securely plugged in; check the drive type in
the standard CMOS setup.

* Backing up the hard drive is extremely

important. All hard disks are capable of
breaking down at any time.

* Back up data and appl i cations files. Reformat

the hard drive. Re-install applications and
data using backup disks.

PROBABLE SOLUTION

Screen message says “Invalid Con figuration” or
“CMOS Failure.”

* Review system’s equipment . Make sure

correct information is in setup.

PROBABLE SOLUTION

Cannot boot system after installing second hard
drive.

* Set master/slave jumper s correctly.
* Run SETUP program and select correct drive

types. Call drive manufacturers for
compatibility with other drives.

30

Solución de Problemas

CAUSA PRO BABLE SOLUCIÓN

No hay corriente en el sistema. La luz de
corriente no ilumina, ventilador dentro de la
fuente de alimentación apagada. Indicador de
luz del teclado apagado.

CAUSA PROBABLE SOLUCIÓN

Sistema inoperativo. Luz del tecla do encendido,
luz de indicador de corriente iluminado, disco
rígido está girando.

CAUSA PROBABLE SOLUCIÓN

Sistema no arranca desde el disco rígido, puede
ser arrancado desde el CD-R O M driv e.

CAUSA PRO BABLE SOLUCIÓN

Sistema solamente arranca des de el CD-ROM.
Disco rígido puede le er y aplicaciones pueden
ser usados pero el arranque desde el disco
rígido es imposible.

CAUSA PRO BABLE SOLUCIÓN

Mensaje de pantalla ”Invalid Configuration” o
“CMOS Failure.”

CAUSA PRO BABLE SOLUCIÓN

No puede arrancar después de instalar el
segundo disco rígido.

* Asegúrese que el cable de transmisión esté

* Reemplace el cable.
* Contacte ayuda técnica.

* Presione los do s e xtr em os del DIMM, presione

* Controle el cable de ejecución desde el di sco

* Copiando el disc o rígido es extremadamente

* Copie datos y documentos de aplicación.

* Revise el equipo del sistema. Asegúrese de

* Fije correctamente el puente master/esclavo.
* Ejecute el programa SETUP y seleccione el

seguramente enchufado.

para abajo firmemente hasta que el módulo
encaje en el lugar.

hasta el disco del cont rolador. Asegúrese de
que ambos lados estén enchufados con
seguridad; controle el tipo de disco en la
configuración estándar CMOS.

importante. Todos los discos rígidos son
capaces de dañarse en cualquier momento.

Vuelva a formatea r el disco rígido. Vuelva a
instalar las aplicaciones y datos usando el
disco de copiado.

que la información configurada sea correcta.

tipo de disco correcto. Llame a una
manufacturación del disco para
compatibilidad con otros discos.

31

03/17/2002

32
