PERSONLAL HYGIENE APPLIANCE
lifestyle Upgrade
Installation Manual and
Operating Instructions
BB-800 & BB-1000
This Product should be installed according to this manual.
Please read this manual carefully and install properly.
Please keep this manual for future reference.
Please register Warranty for proper service.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 1 |
|
2018-02-08 11:20:56 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
Thank you for purchasing Bio Bidet Advanced Toilet Seat
This unit was manufactured for household use.
2Installation Manual and Operating Instructions
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 2 |
|
2018-02-08 11:20:56 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade |
|
Contents |
|
IMPORTANT SAFEGUARDS / |
4 |
GENERAL CAUTIONS |
|
CAUTIONS BEFORE INSTALLATION |
6 |
CARTON CONTENTS / IDENTIFICATION |
8 |
OPERATION (BASIC) |
9 |
OPERATION (DETAILS) |
10 |
INSTALLATION |
14 |
SEPARATION OF THE UNIT FROM
17
THE TOILET BOWL
MAINTENANCE |
18 |
WATER DRAINING |
19 |
TROUBLE SHOOTING |
20 |
SPECIFICATIONS |
21 |
WARRANTY |
22 |
INFORMATION TO THE USER |
23 |
MAINTENANCE INSTALLATION OPERATION PREPARATION
Installation Manual and Operating Instructions |
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 3 |
|
2018-02-08 11:20:57 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
1 IMPORTANT SAFEGUARDS / GENERAL CAUTIONS
READ ALL INSTRUCTIONS BEFORE INSTALLATION AND USE
The following terms are used in this manual to indicate hazards of varying degrees of severity
DANGER |
Indicates an imminently hazardous situation which, if not avoided, |
will result in death or serious injury. |
|
|
|
WARNING |
Indicates potentially hazardous situation which, if not avoided, |
could result in death or serious injury. |
|
|
|
CAUTION |
Indicates potentially hazardous situation which, if not avoided, may result in minor or |
moderate injury or in damage to the product or other property. |
|
|
|
DANGER - To reduce the risk of electrocution
WARNING - To reduce the risk of burns, electrocution, fire, or injury to persons
PLEASE OBSERVE THE FOLLOWING PRECAUTION BEFORE USING THIS PRODUCT
Do not dismantle
Prohibited
Prohibited
Prohibited
Do not open the product to repair or remodel.
Only qualified service personnel should service this product.
Do not use attachments not recommended by the manufacturer.
Connect this product to cold water supply pipe carrying portable water.
Do not connect to an industrial water supply line that does not carry water of drinking quality.
This will negatively effect hygiene and performance.
About Low Temperature Burns-
A burn occurs when the skin has been exposed to high temperatures. However, a low temperature burn may occur when the skin has been in contact with an object at relatively low temperature (about 104 ). Close supervision is necessary when this product is used by children or adults with sensitive skin.
If using any chemical toilet bowl cleaner, be sure to wipe up any spills that splash onto Electric Bidet. Do not use benzene or any acid chemical detergent. Only neutral detergent permitted.
4Installation Manual and Operating Instructions
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 4 |
|
2018-02-08 11:20:57 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
Do not plug in the power cord before connecting the water supply hose.
Prohibited
This product must be grounded.
An approved Ground Fault Circuit Interrupt must be used.
Grounding
Do not spray water
Wet hands prohibited
Observe at all times
Observe at all times
Use of fire prohibited
Do not splash water on this product. Please provide adequate ventilation to avoid damage to electronic components due to high level of humidity.
It is necessary to provide adequate ventilation with a fan, open door or open window when bathing.
Do not touch the power cord with wet hands. Do not reach for a product that has fallen into water.
Unplug immediately!
This product must be connected to a standard voltage power source. Do not connect power cord if the cord is damaged or broken.
Do not plug the unit into a loose electric outlet.
Please disconnect the power cord when you clean this product or detach it from toilet bowl.
Do not supply electrical power to the unit until the plumbing work has been completed.
Keep the electrical cord away from heated surfaces to prevent a fire hazard. Also, keep any flammable materials away from this product at all times.
Installation Manual and Operating Instructions |
5 |
PREPARATION
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 5 |
|
2018-02-08 11:20:58 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
CAUTION
Prohibited
Prohibited
Never operate this product if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the product to a service center for examination and repair.
Do not stand or sit on the seat cover lid. It is not designed to support a user’s body weight.
Do not obstruct or put anything into the dry air outlet. Do not apply excessive force
Prohibited |
to the shower nozzle. |
|
|
|
Allow the seat |
|
and lid to close |
|
automatically |
|
do not force the |
Prohibited |
lid closed. |
|
|
Do not strain or push the connected hose and tube connecter |
|
it may cause water leakage. Never drop or insert any object |
|
into any opening or hose. Use proper plumbing supplies if any |
Prohibited |
modification is to be made. |
Use this product only as described in the operating instructions. Never use while sleeping or drowsy.
Observe at all times Do not use while bathing.
Be careful so that this product does not become stained
with excrement and
Observe at all times urine.
Drain the water from unit and unplug the power if it is not going to be used for an extended period of time. Refer to page 19
Observe at all times
- SAVE THESE INSTRUCTIONS -
2 CAUTIONS BEFORE INSTALLATION
WIRING REQUIREMENT
THIS PRODUCT MUST BE PLUGGED into a regular voltage Grounded GFCI outlet (North America 120V ac, 60Hz / Europe 220-240V~ , 50/60Hz). The rated power consumption is 660W / 600-700W. In locations where only a standard two-prong outlet is available, it is the responsibility of the user to install a grounded three-prong outlet. Using a higher voltage is dangerous and may
result in a fire or other accident. This product is not responsible for damage resulting from the use of it on other than specified voltage, or operating it without proper grounding.
6Installation Manual and Operating Instructions
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 6 |
|
2018-02-08 11:20:58 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
This Product must be on a separate circuit. No other
appliance should share the circuit with this product. WARNING Sharing a circuit could cause the branch circuit fuse to blow
or the circuit breaker to trip. Continuous usage under these conditions could result in fire or property damage.
GROUND INSTRUCTIONS
(1)This product has a three-prong grounding plug, which must be plugged into an outlet that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire. Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly grounded.
(2)This product is for use on a nominal 120V circuit, and has a grounding plug that looks like the plug illustrated in sketch A in Figure 1. A temporary adapter, which looks like the adapter illustrated in sketches B and C, may be
used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet (sketch A) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by thescrew.
GROUNDED |
|
ADAPTER |
ADAPTER |
|
OUTLET |
|
|||
|
|
|
||
GROUNDING PIN |
|
METAL SCREW |
TAB for |
|
GROUNDED |
Grounding Screw |
|||
|
||||
|
|
|||
|
OUTLET BOX |
|
|
- Figure 1-
This appliance has to be earthed.
OPTIONAL GROUND INSTRUCTIONS
PREPARATION
IMPROPER GROUNDING CAN RESULT IN A RISK OF ELECTRIC SHOCK. DANGER Electric wiring has to be done in accordance with all local codes,
or in the absence of local codes, with the National Electrical Codes.
The use of an extension cord is not recommended or advised. If it is necessary to use an extension cord, use only a three-prong extension cord (one to one), and a three slot built-in GFCI receptacle that will accept the plug on this product. The marked rating of the extension cord should be equal to or greater than the electrical rating of the unit (10amp). Consult a qualified electrician or service person if you are not sure whether the unit is properly grounded.
Installation Manual and Operating Instructions |
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 7 |
|
2018-02-08 11:20:59 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
lifestyle Upgrade
3 IDENTIFICATION
1 MAIN UNIT
BB-800

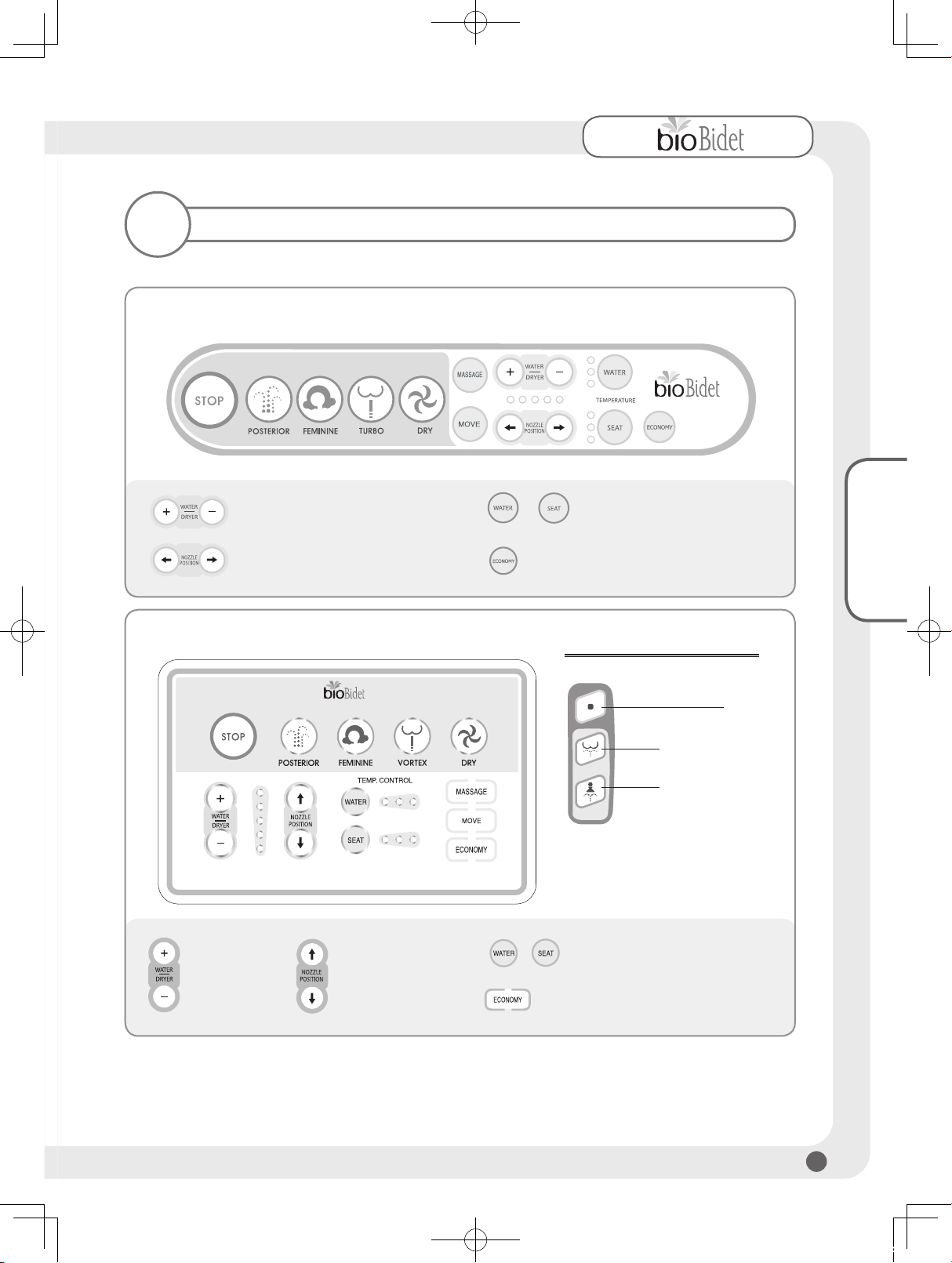

Control Panel for BB-800
Caution Label
Lid
|
Operation LED Window |
Posterior Wash Nozzle |
|
Feminine Wash Nozzle |
Deodorizer |
|
(Only BB-1000) |
|
Dryer Vent |
Turbo Wash Nozzle
BB-1000
Simple Operation Panel
For
BB-1000
Feminine Wash Nozzle
Posterior Wash Nozzle
VORTEX Wash Nozzle
Drain / Quick Release
Digital Occupied Sensor
Heated Seat
2 ACCESSORIES
Cone Packing (2 pcs)
T-Valve and Washer
Water Supply Hose to Bidet (for electronic bidet)
Water Supply Hose to Fill Valve
(for toilet flush water tank)
3/8” Spare Nut
(With Packing)
Operation |
User |
Guide |
Operating |
|
Manual |
Mounting Bolts (2 pcs)
Nuts (2 pcs)
Bolt case (2 pcs) |
Catch Plate (1 pcs) |
Deodorizer Filter Cartridge/
Carbon Deodorant
(BB-1000 Models)
Parts for BB-1000 only
Remote |
Remote |
Battery (2pcs) |
control |
control holder |
1.5V AA |
8Installation Manual and Operating Instructions
|
|
|
|
|
|
|
|
|
|
|
|
|
|
180205_BB-800,1000 USER's MANUAL_ .indd 8 |
|
2018-02-08 11:21:00 |
|
|
||
|
|
|||||
|
|
|
|
|
|
|
