Binatone D430 - V2 User Manual
User Guide
D430
2
nd
edition
www.binatonegps.com
Binatone Navigation software
IMPORTANT
1 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
IMPORTANT
Satellite signals are required for this product to function in Navigation Mode.
There may be occasions within your home or surrounding area when the signal
strength is limited and Navigation may not be possible. This is quite normal for
products of this type.

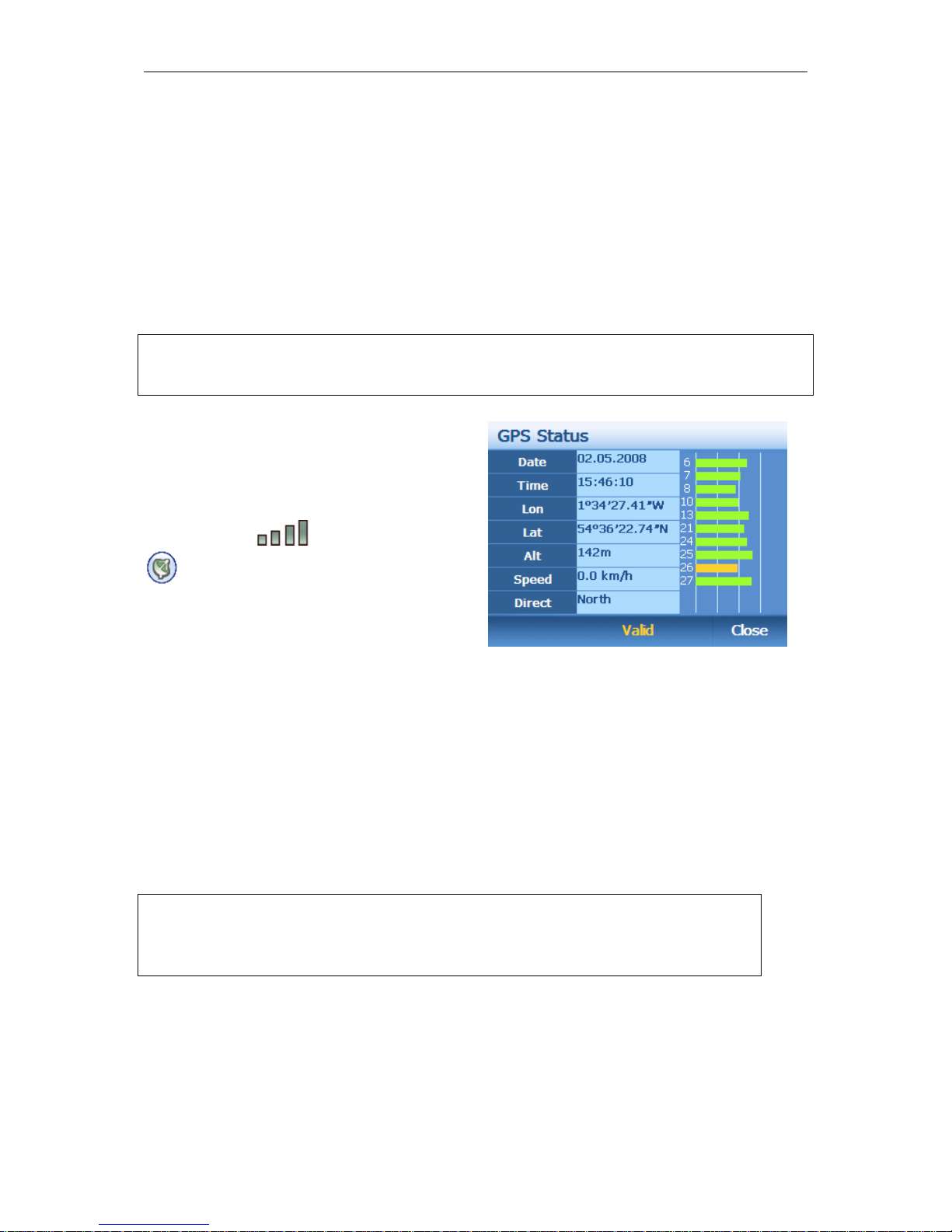

You can check the number of satellite signals that the unit is receiving and the
strength of those signals by viewing the GPS Receiver.
If you need help....
The Help line is available from 9:00am to 5:00pm, Monday to Friday, on 0845
345 9677 Calls are charged al Local Call rate (for UK only)
Unpacking your Binatone Navigation System
In the box you will find
·GPS navigation device
·Car mounting kit
·In-car charger
·USB Cable
·User guide
Keep the packaging materials in a safe place in
case you later need to transport the unit. Keep your
sales (till) receipt, which is your guarantee. Before
you can use the unit, you’ll need to fully charge the
battery as described on page 6, please also read
the notes on the page 2.
WARNING:
Your GPS device operates under open sky
conditions in order to receive a satellite signal.
Please ensure that you are not using the device
indoors or in areas where the satellite signal is
weak.
For the first time of use or after a few days of no
use, it may take up to 10 minutes to acquire a
satellite signal. It is recommended to be stationary
during the start up process.
*USB cable can be either used to charge your device with you computer or
update your system (latest map and software, latest safety camera information)
via your computer and the internet (updates are payable). Charging via USB
cable will be faster when the unit is powered off.
SAFETY
2 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Safety
The Global Positioning System
The Global Positioning System (GPS) is a satellite based system that provides
location and timing information around the globe. GPS is operated and controlled
under the sole responsibility of the Government of the United States of America,
who are responsible for its availability and accuracy. Any changes in GPS
availability and accuracy, or in environmental conditions, may impact the
operation of you Binatone Carrera Personal Navigation Device (PND).
Using Your PND in the Car
When using your PND while driving it is essential that you drive with due care
and attention. Never modify the settings or program your PND while driving. Only
look at the PND map when it is safe to do so. When mounting the PND in your
car make sure that it does not obscure your view or impede the operation of any
driving controls.
Prohibited Areas
Do not operate your PND in hospitals or near any electrical medical equipment.
Do not operate your PND in aircraft.
Do not operate while sat in a petrol station forecourt.
Battery
Your PND uses a Li-polymer battery. Do not use it in humid, wet or corrosive
environments. Do not operate or store your PND in high temperatures (>60℃) or
in direct sun light. Do not pierce or break the battery casing.
Failure to follow these cautions will invalidate the warranty and may
cause the battery to leak acid, become hot, explode or ignite and
cause injury or damage.
If you come into contact with leaked battery acid wash the contact
area thoroughly and seek medical attention.
The Li-polymer battery contained in this unit must be recycled or
disposed of properly.
Do not dispose of in household waste or burn.
CONTENTS
3 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
CONTENTS
Important………………………………………………………………………. 01
In the Box ……….………………………………………………………... 01
Safety …………………………………………………………………………… 02
The Global Positioning System …………………………………………… 02
Using Your PND in the Car .…………………………………………….. 02
Prohibited Area’s .…………………………………………………….…… 02
Battery..…………………………………………………………………….. 02
Contents .………………………………………………………………………. 03
Quick Start Guide …………………………………………………………… 06
Position of the Controls ………………………………………………… 06
Charging the Battery ……………………………………………………. 07
SD Memory Card ………………………………………………………... 07
Car Adaptor ……………………………………………………………… 07
Turning the Sat Nav Unit On/Off ……………………………………….. 08
Turning the Sat Nav Unit Off (Sleep Mode) .………………………….. 08
System Reset ……………………………………………………………. 08
Windscreen Holder Installation ………………………………………… 09
Getting Started …….…………………………………………………………. 10

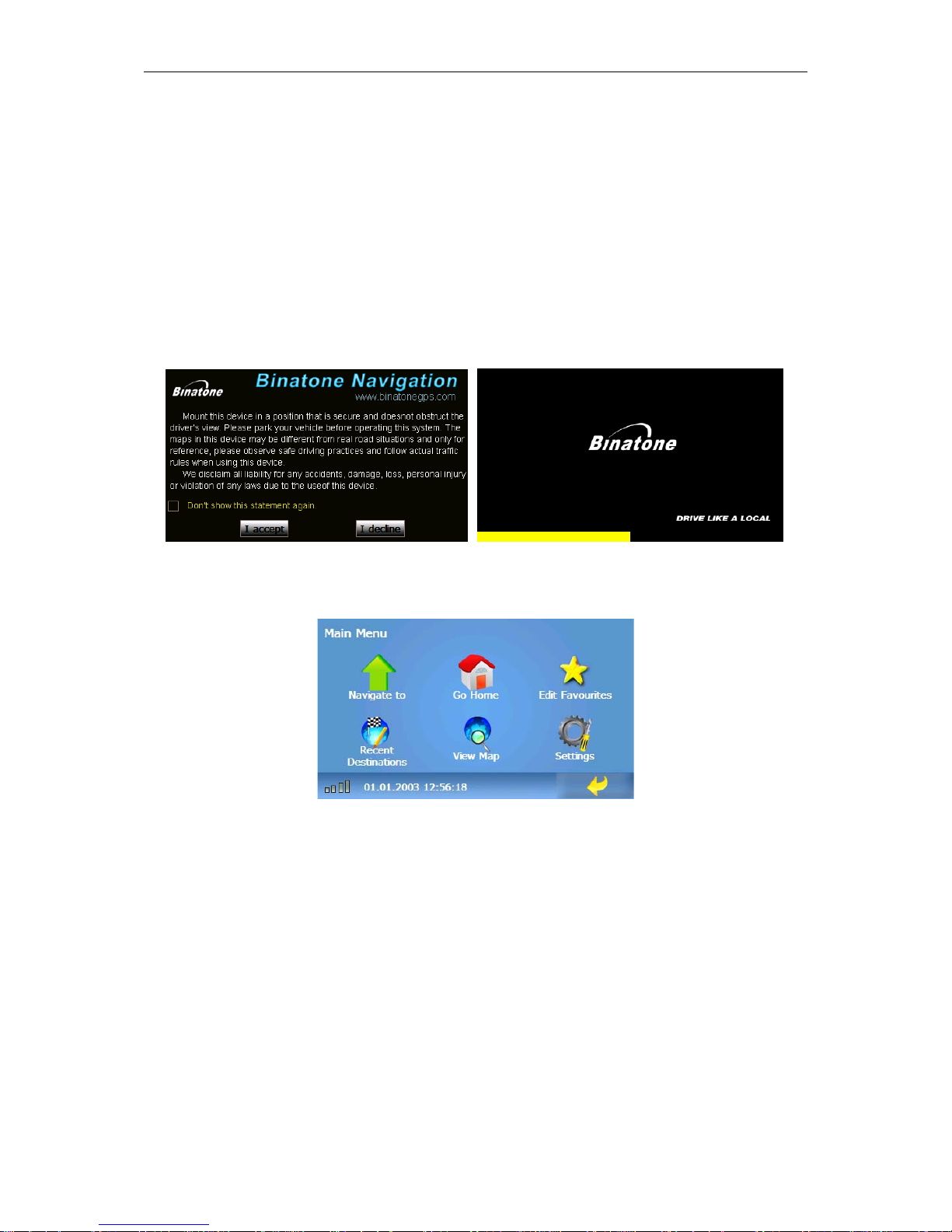

Starting Up ... ……………………………………………………………… 10
Settings ……………………………………………………………………. 11
Multi-Media ………………………………………………………………… 12
Picture Viewer..……………………………………………………... 12
Document Viewer …………………………………………………... 13
Bluetooth …… ……………………………………………………………… 14
How to select the Bluetooth function ……………………………... 14
Bluetooth menu ……………………………………………………… 15
Information ……………………………………………………….. 15
Turn On / Off the Bluetooth Function ………………………….. 16

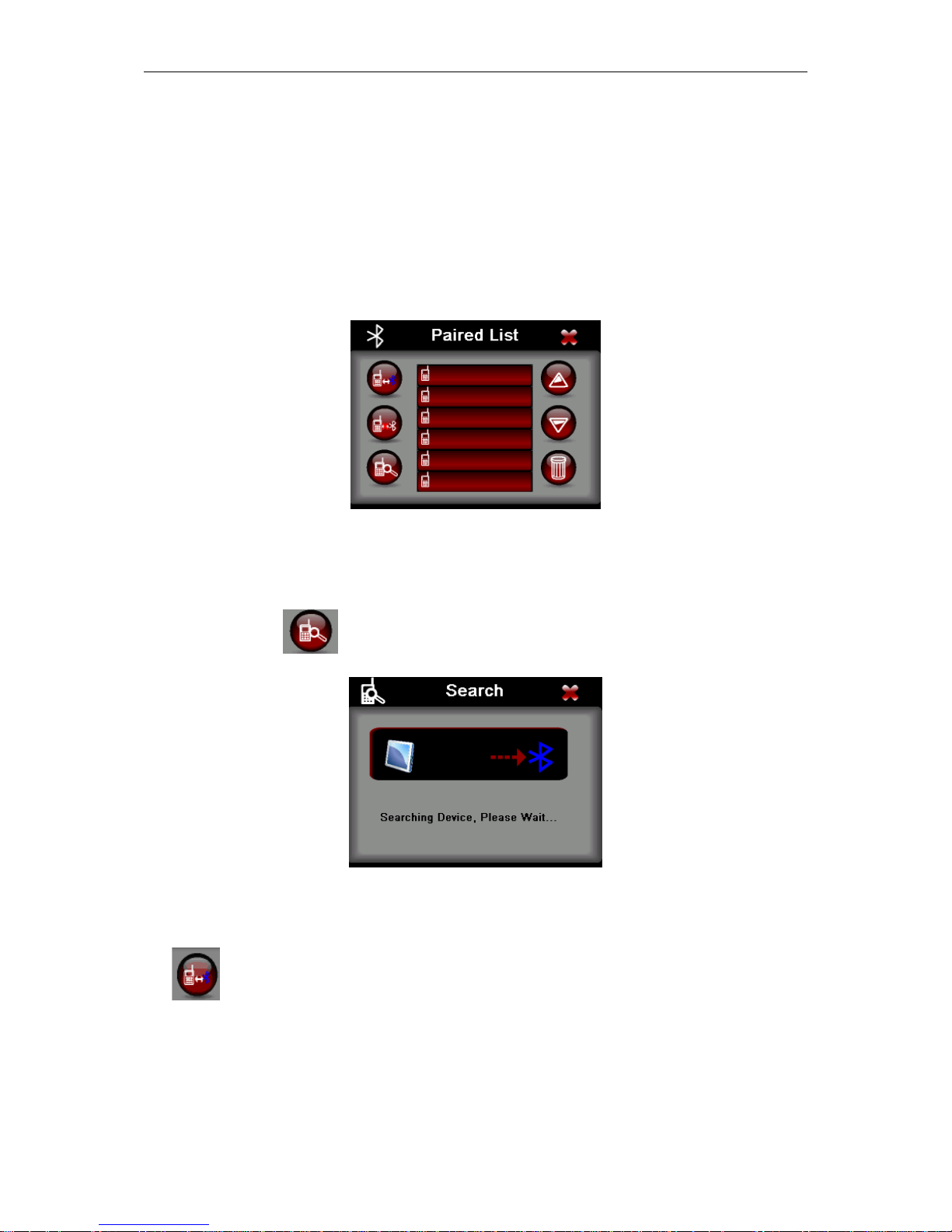

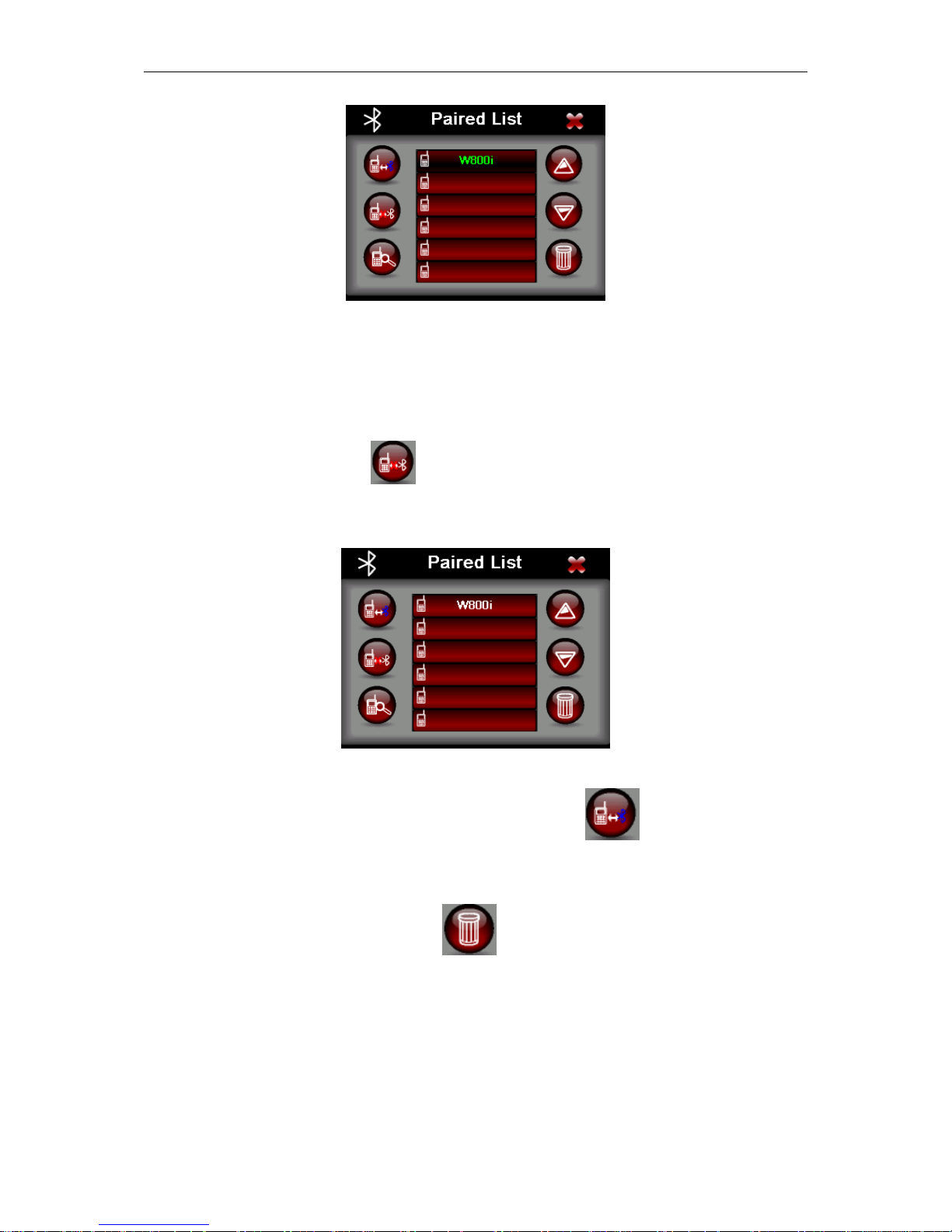

Pairing with a Mobile Phone ……………………………………. 16

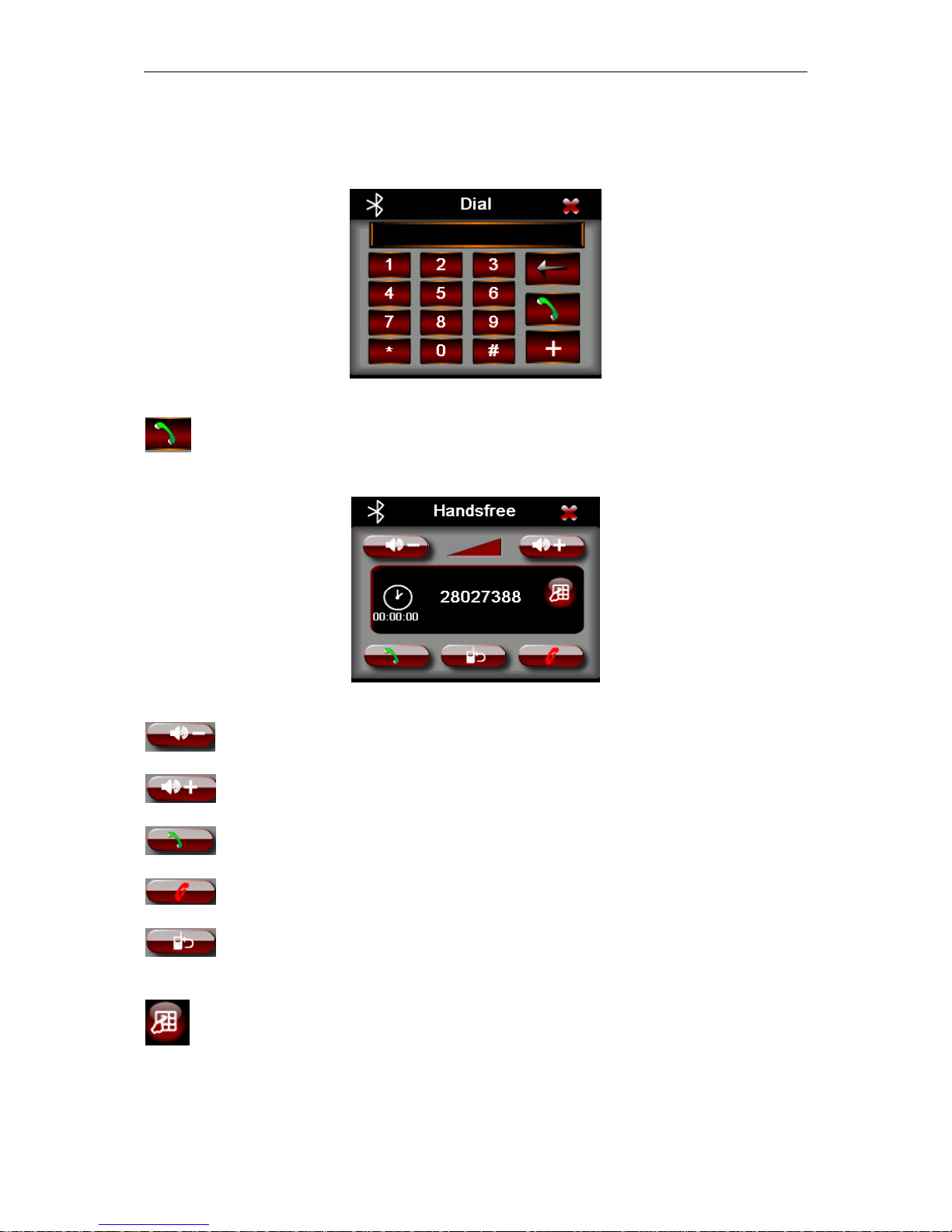

Dial A number ………………………………………………….. 18

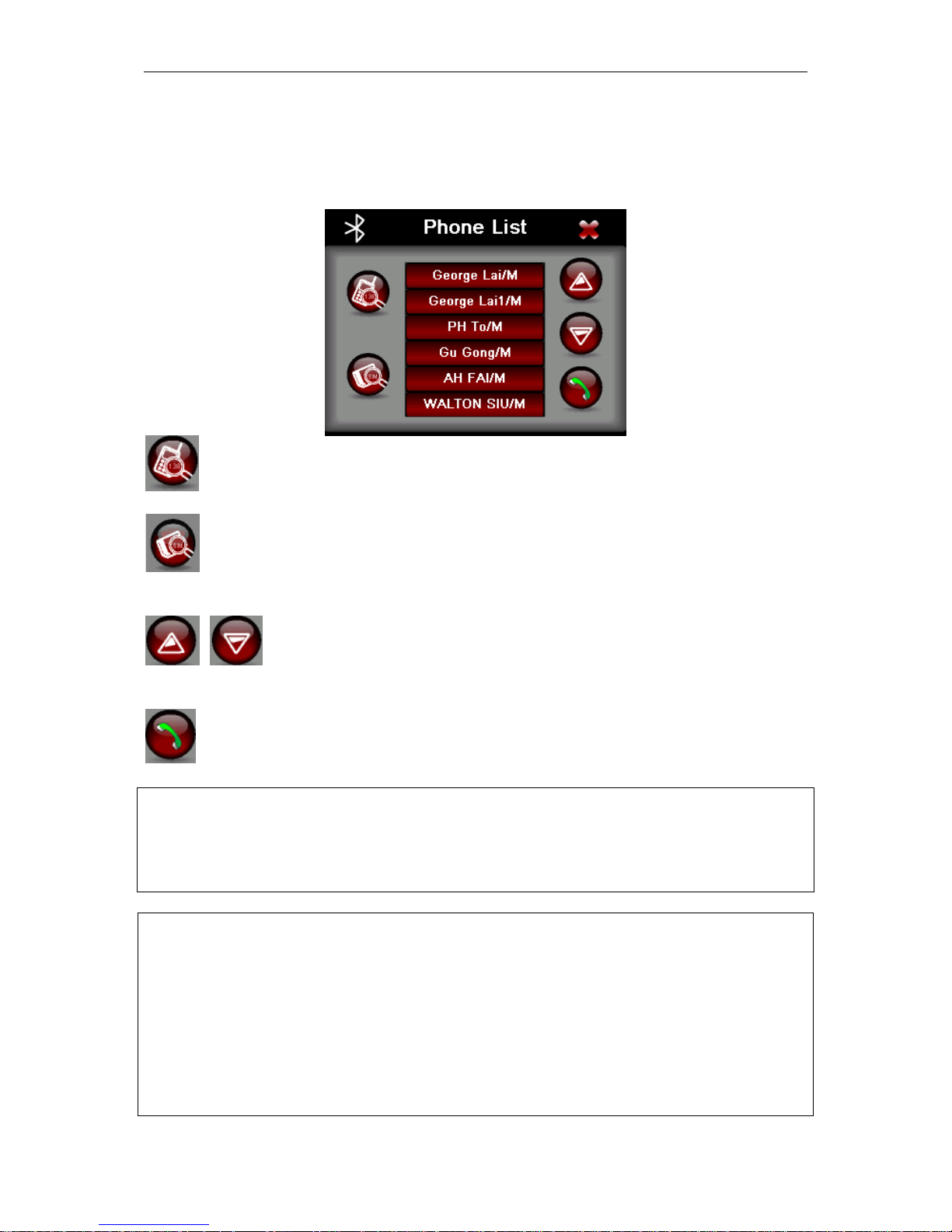

Phonebook ……………………………………………………….. 19
Calls List ………………………………………………………….. 20
GPS Receiver ……………………………………………………………… 21
Additional maps and upgrades …………………………………………… 21
INTRODUCTION……………………………………………………………….. 22
Navigate to .…………………………………………………………………… 25
Entering your Waypoints/destination ………………………………….. 26

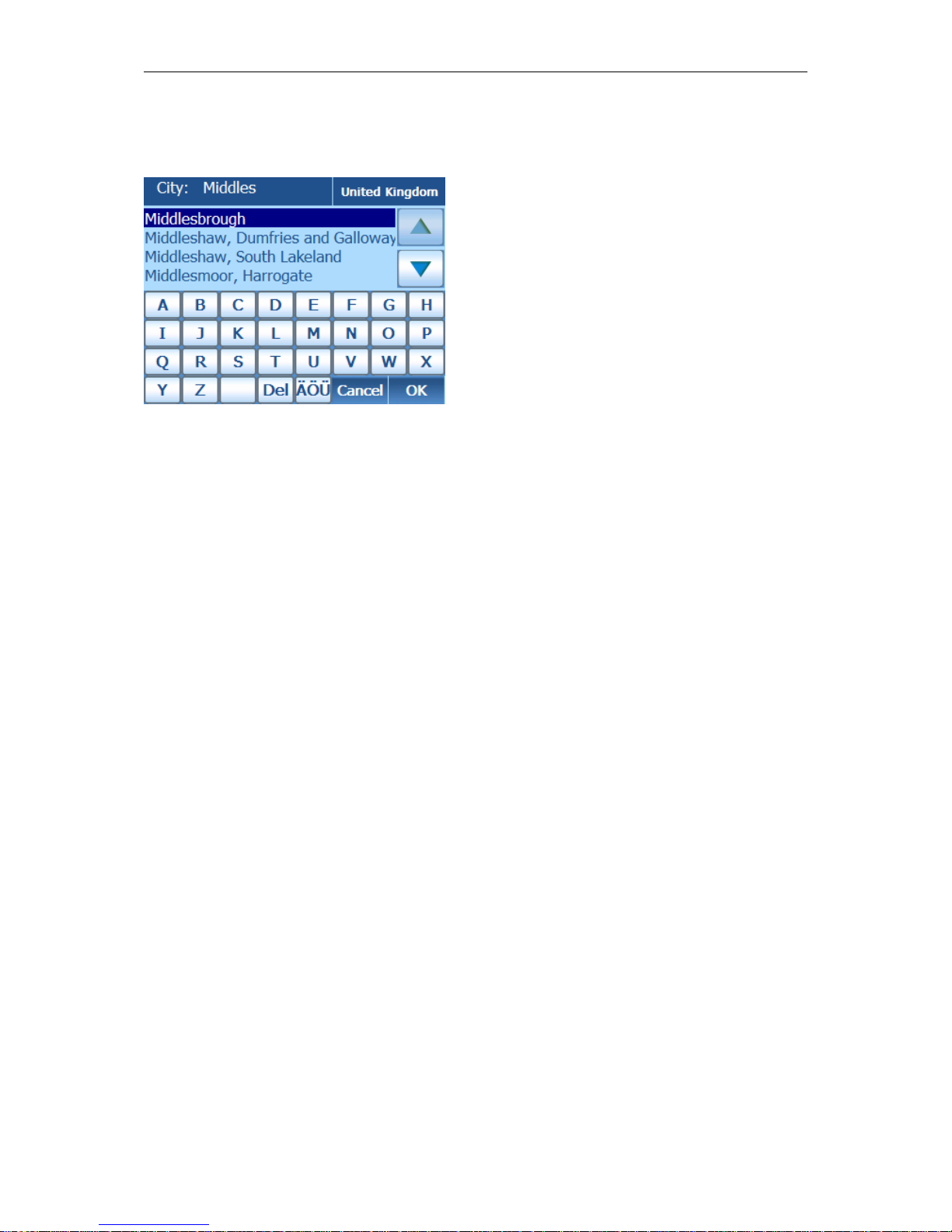

Address ……………………………………………………………... 26

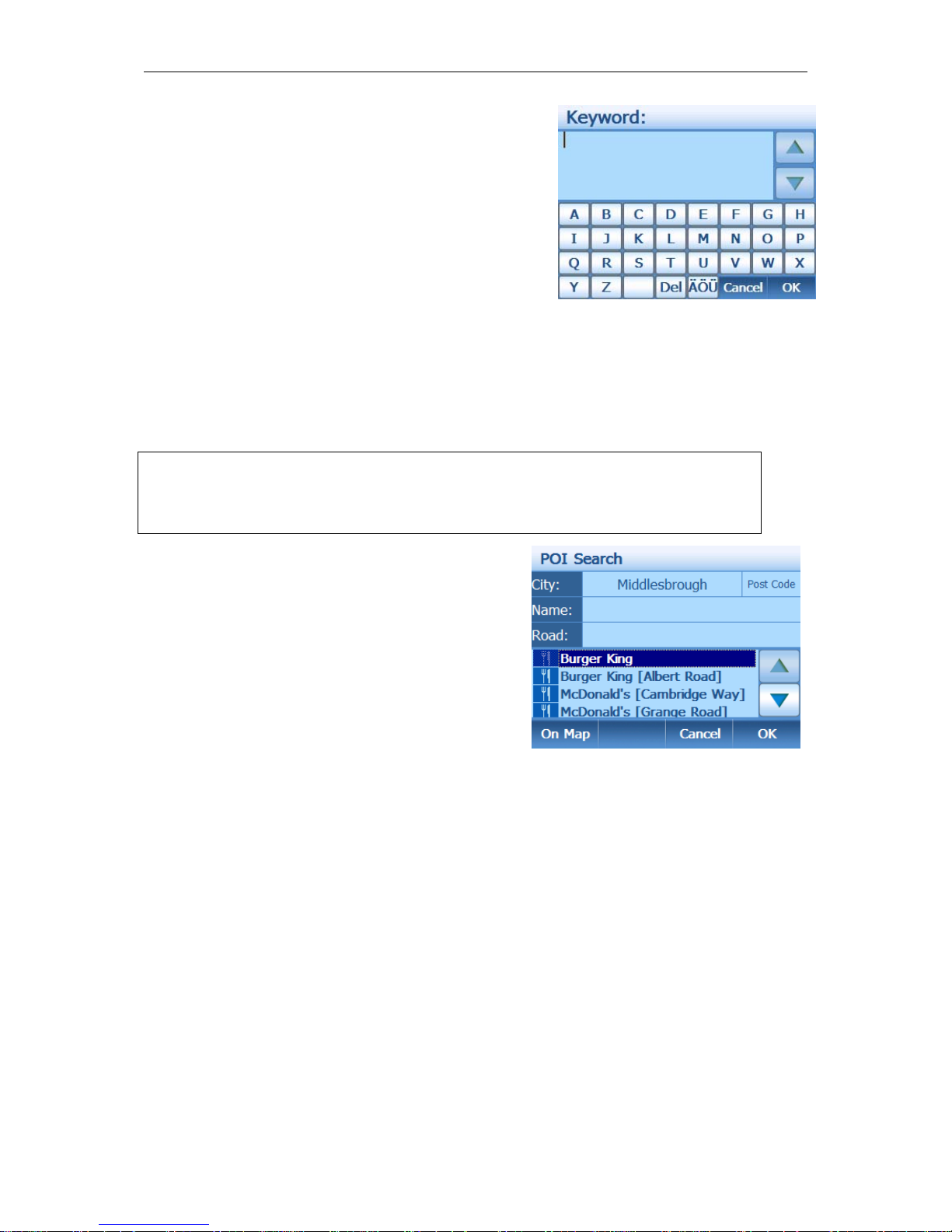

POI (Points of Interest).……………………………………………. 28
POI Near You ………………………………………………………. 28
POI in City …………………………………………………………... 29

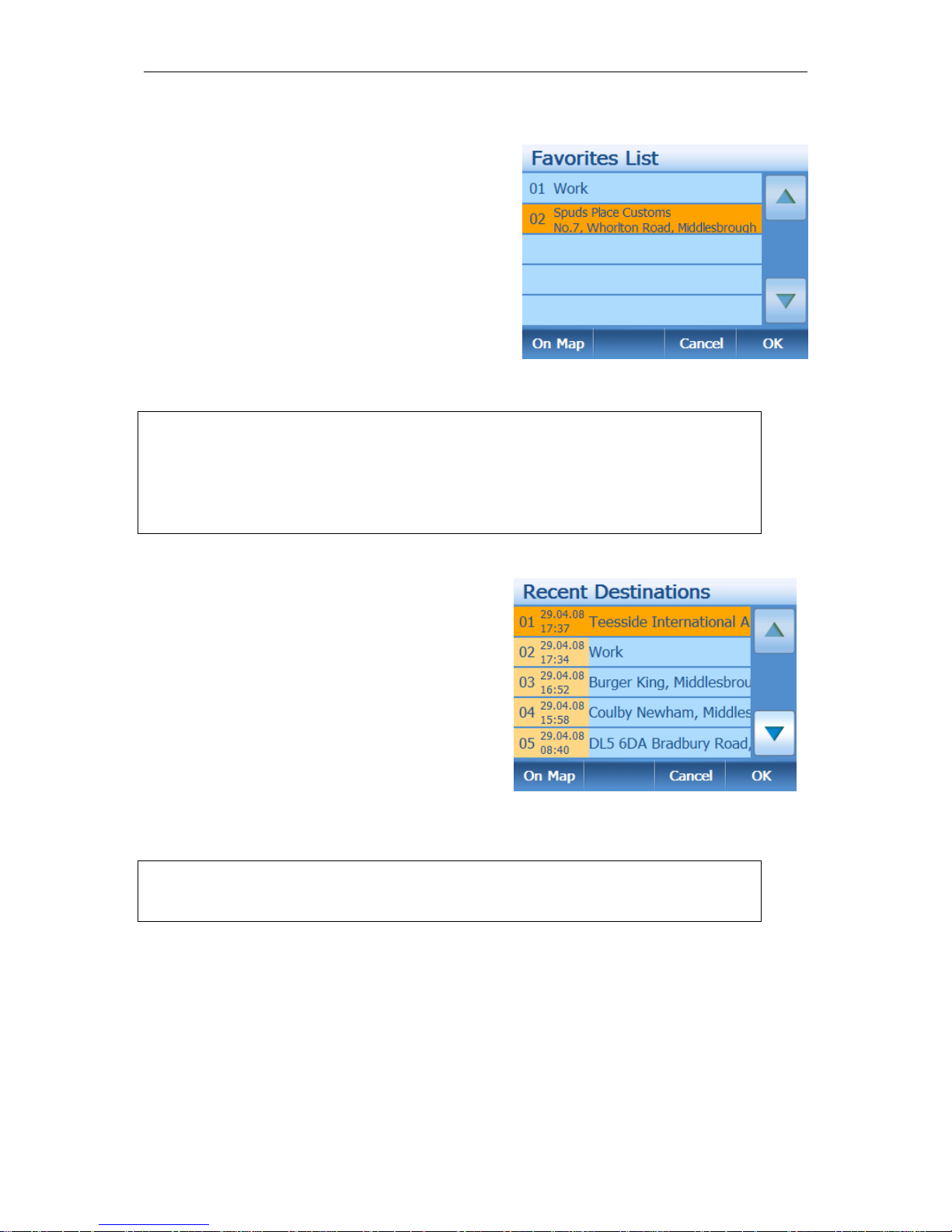

Favourites …………………………………………………………… 30
Recent Destinations………………………………………………... 30
Map …………………………………………………………………... 31
CONTENTS
4 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)

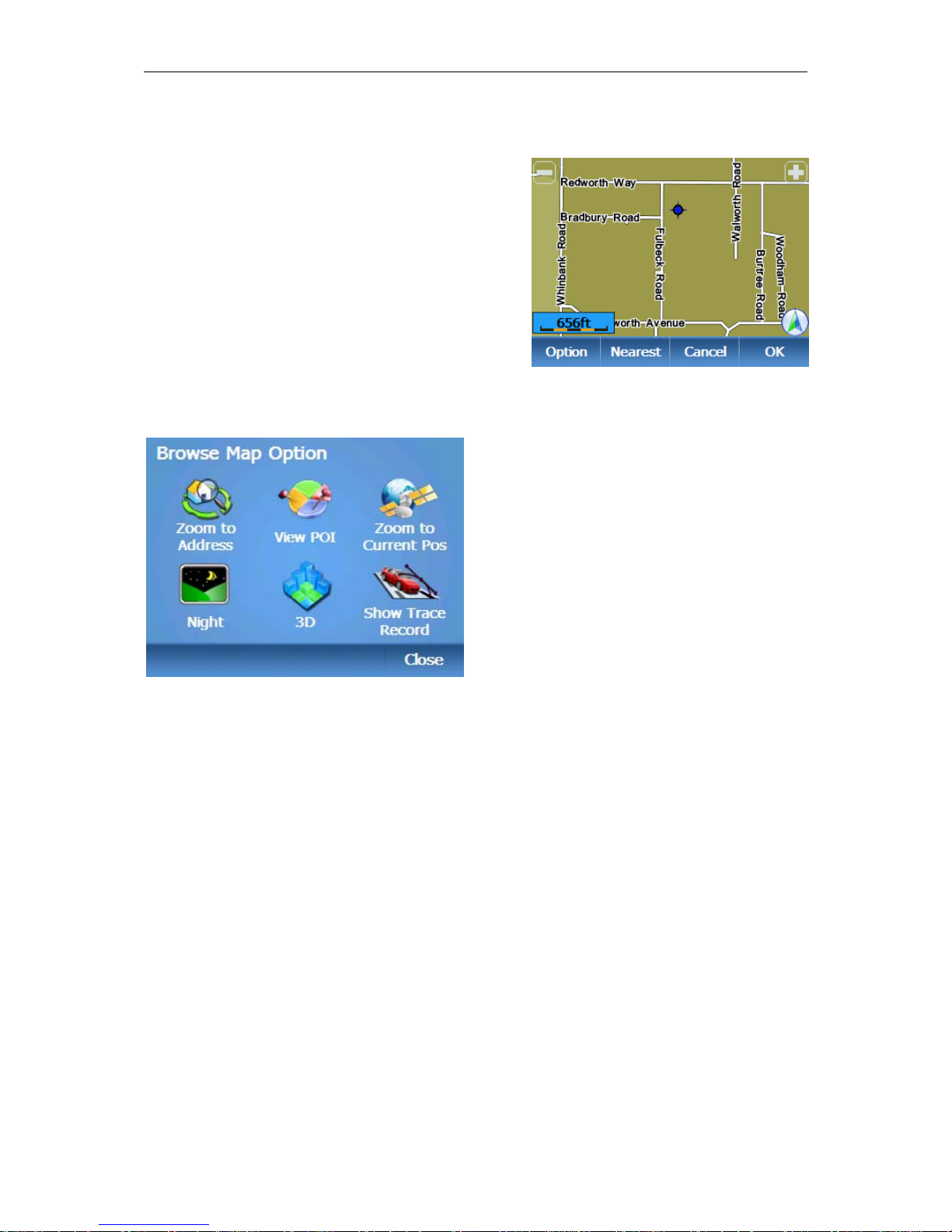

Browse Map Options …………………………………………… 31
Zoom to Address ……………………………………………….. 31
View POI ………………………………………………………… 31
Zoom to Current Position …………………………………….. 31
Night/Day ………………………………………………………. 31
3D/2D Map View ………………………………………………. 32
Show Trace Record …………………………………………… 32
Coordinates…………………………………………………………. 33
Navi/Simulate …………………………………………………………….. 34

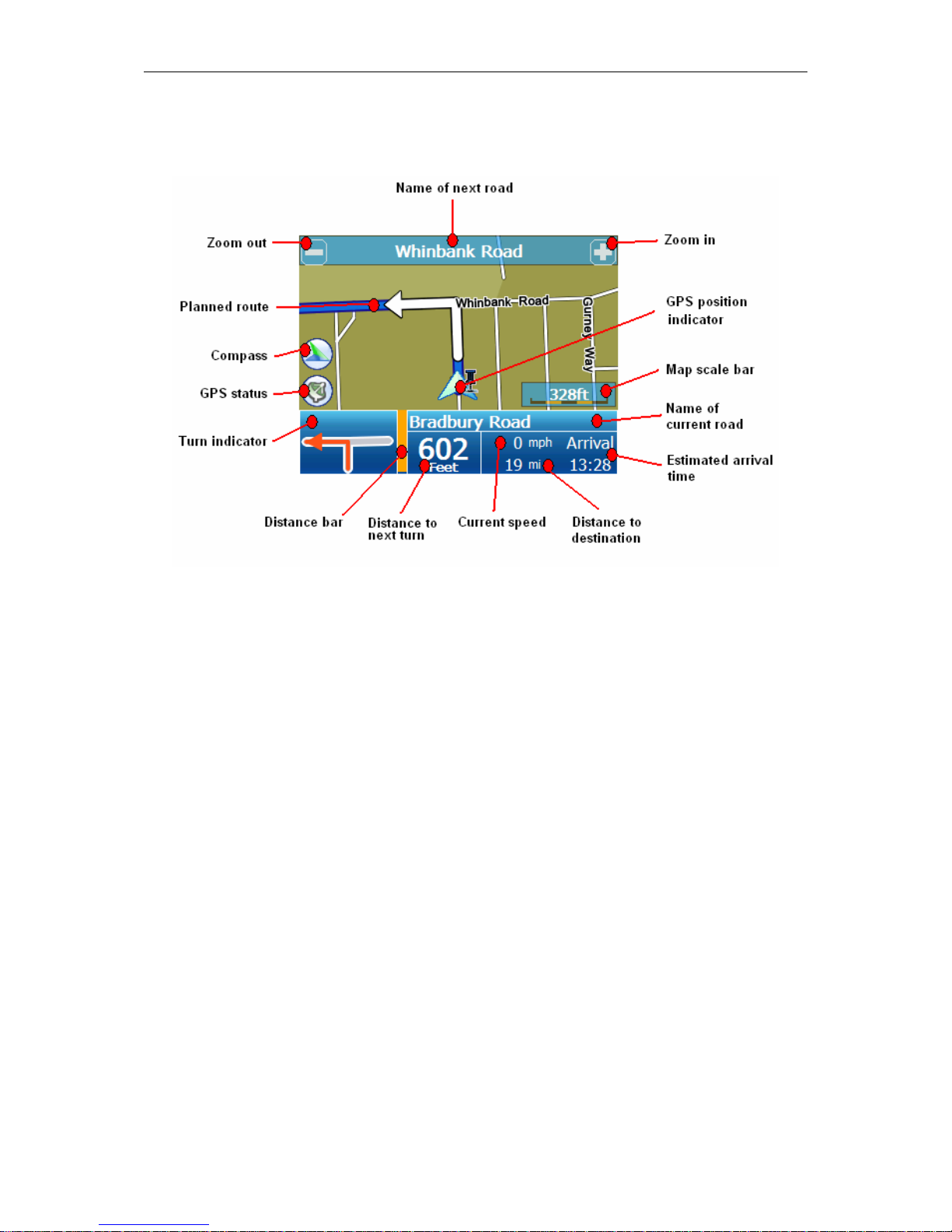

Navigation Screen…………………………………………………... 35

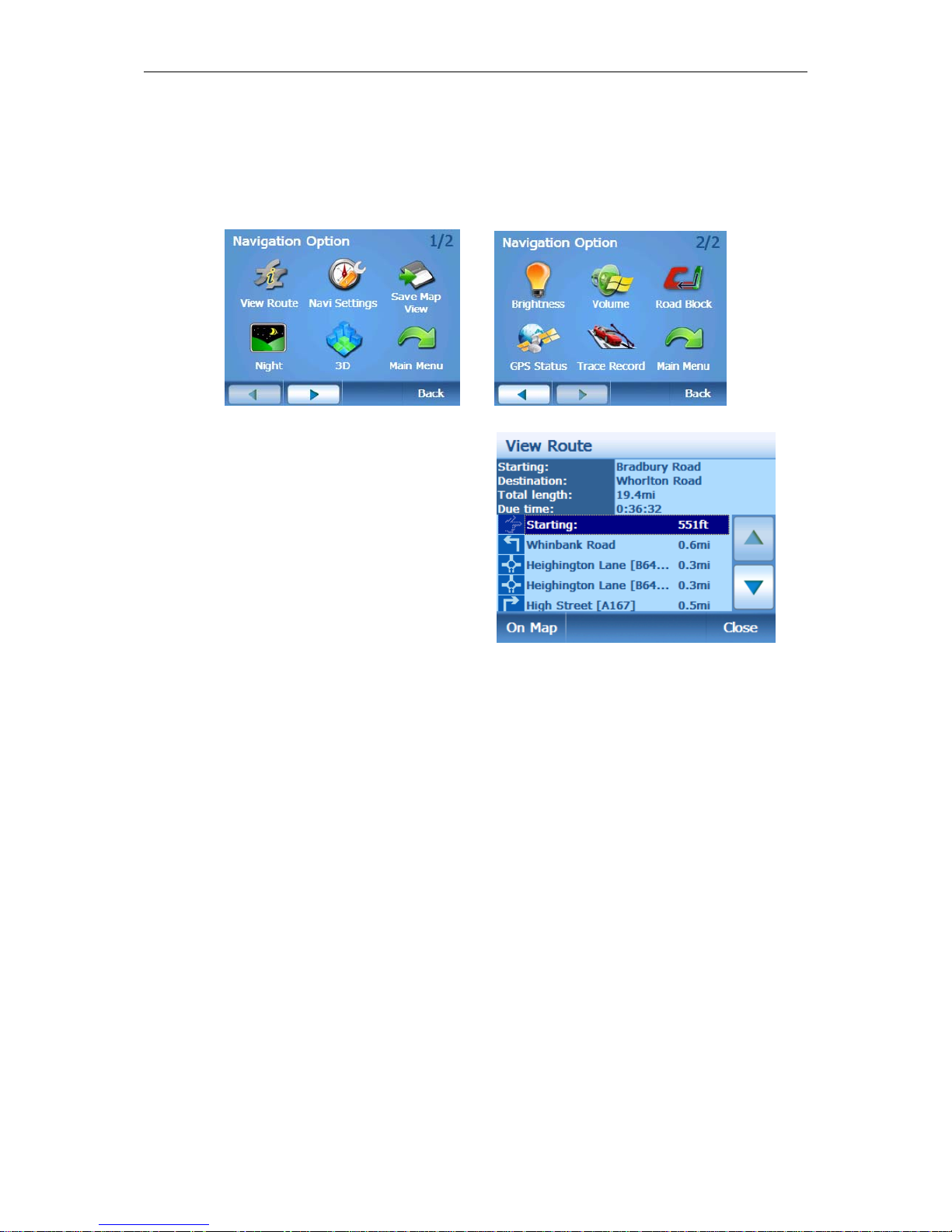

Navigation Options…………………………………………………. 36
View Route ……………………………………………………… 36
Navi Settings…………………………………………….……... 36
Save Map View………………………………………………… 37
Night/Day ……………………………………………………….. 37
3D/2D …………………………………………………………… 37
Brightness….…………………………………………………… 38
Volume …………………………………………………………. 38
Road Block……………………………………………………... 38
Trace Record…………………………………………………… 38
GPS Status ……………………………………………………. 38
Main Menu.……………………………………………………… 38
Simulation Screen…………………………………………………... 39
View Route ……………………………………………………... 39
Simulate.………………………………………………………… 39
Back …………………………………………………………….. 39
GO .……………………………………………………………… 39
Route Options………………………………………………….. 40
Driving Method………………………………………….. 40
Routing Style .…………………………………………. 40
Routing Parameters……………………………………. 40
Go Home……………………………………………………………………….. 41

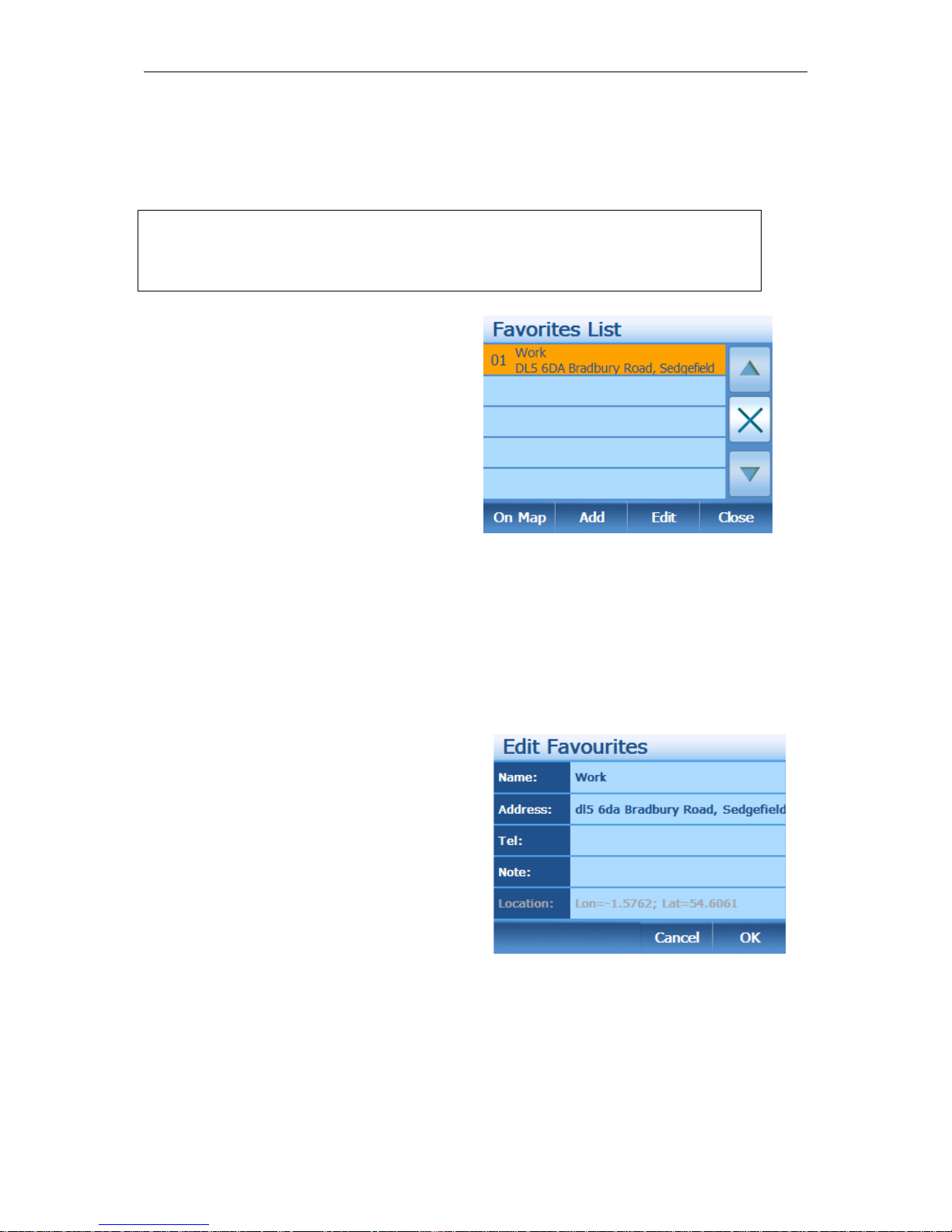

Edit Favourites ………………………………………………………………. 41
Add………………………………………………………………………... 41
Edit………………………………………………………………………… 42
On Map.…………………………………………………………………… 42

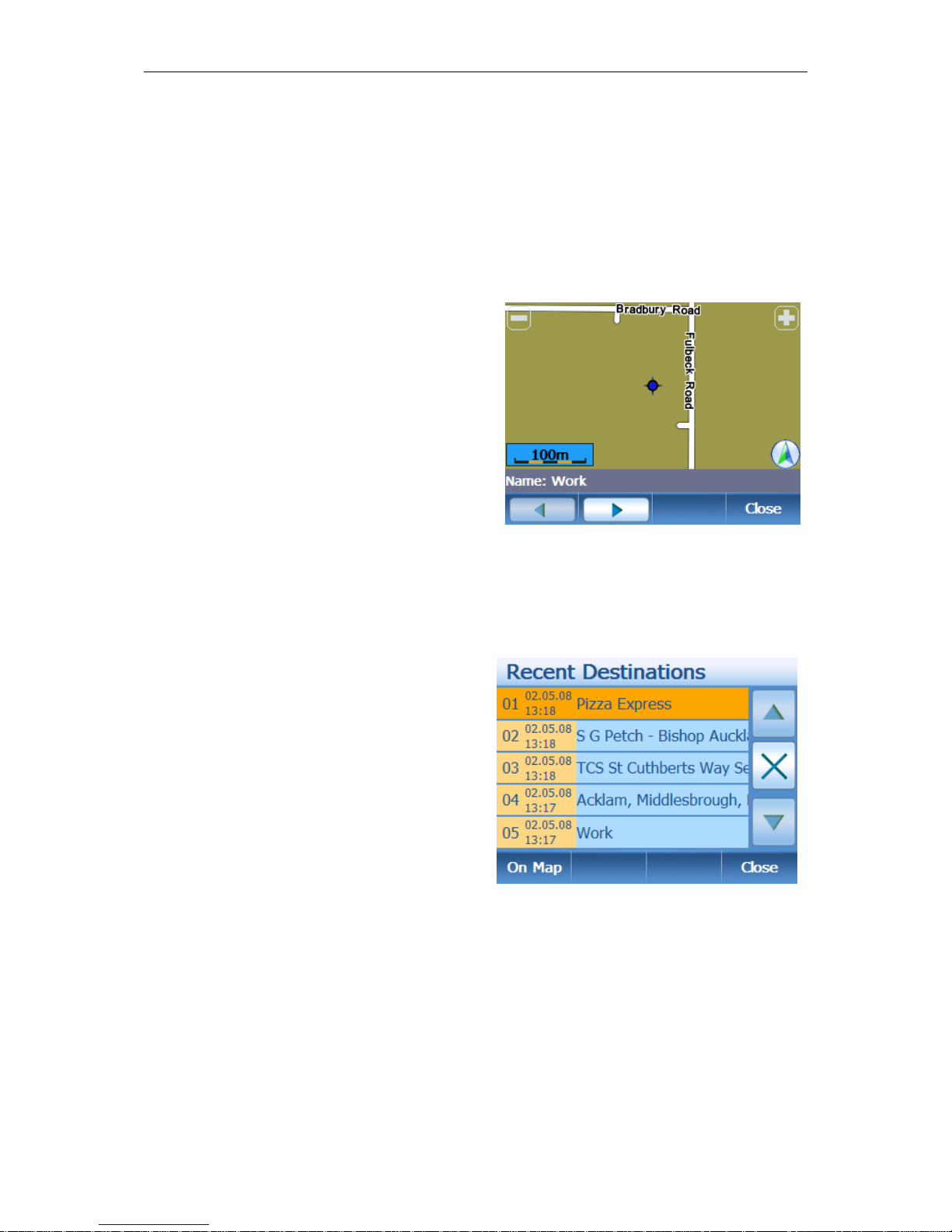

Recent Destinations ……………………………………………………… 42
View Map …………………………………………………………………….. 43

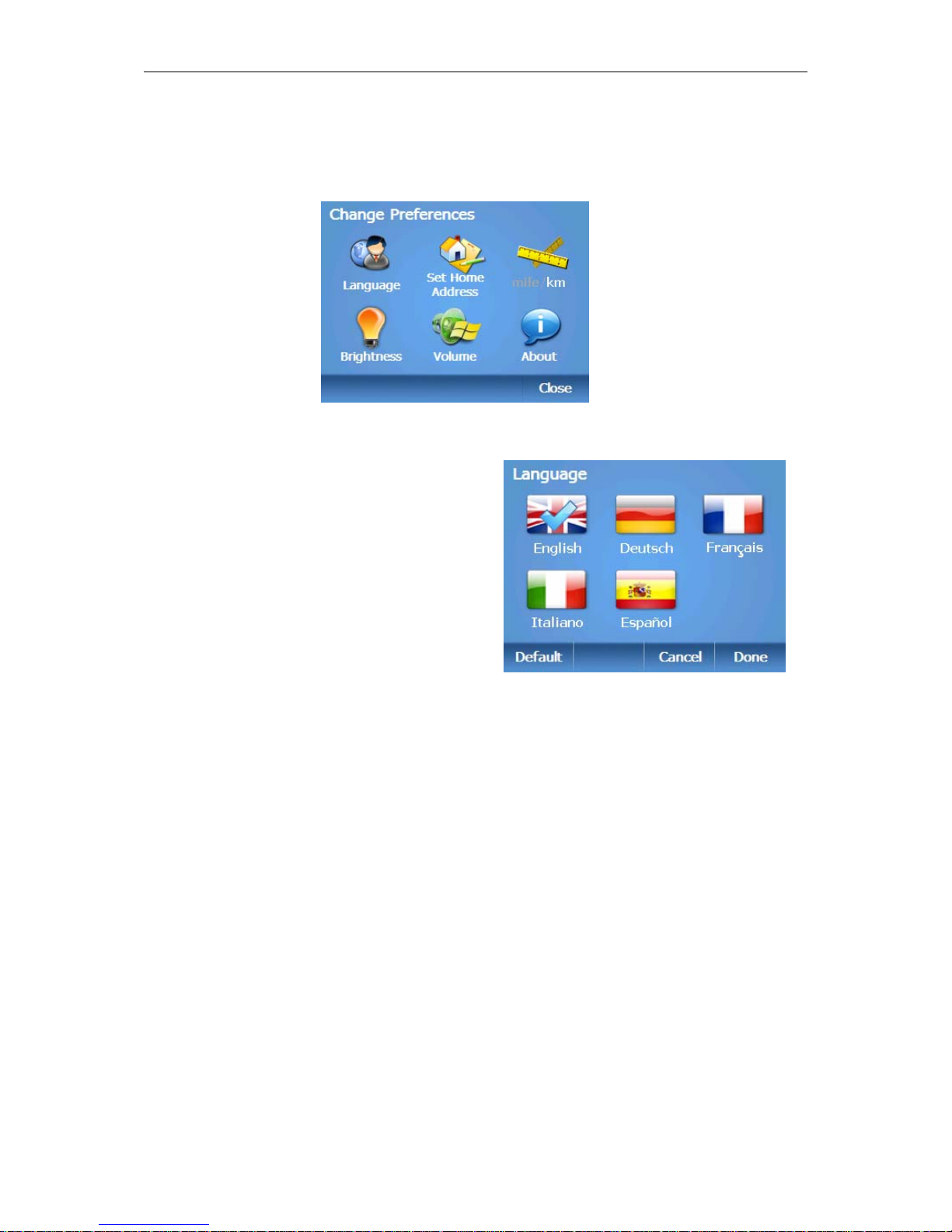

Settings ……………………………………………………………………….. 44
Language…………………………………………………………………. 44
Set Home Address………………………………………………………. 44
Units ………………………………………………………………………. 44
Brightness………………………………………………………………… 44
Volume ……………………………………………………………………. 45
About ……………………………………………………………………… 45
CONTENTS
5 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
GPS Status …………………………………………………………………… 45

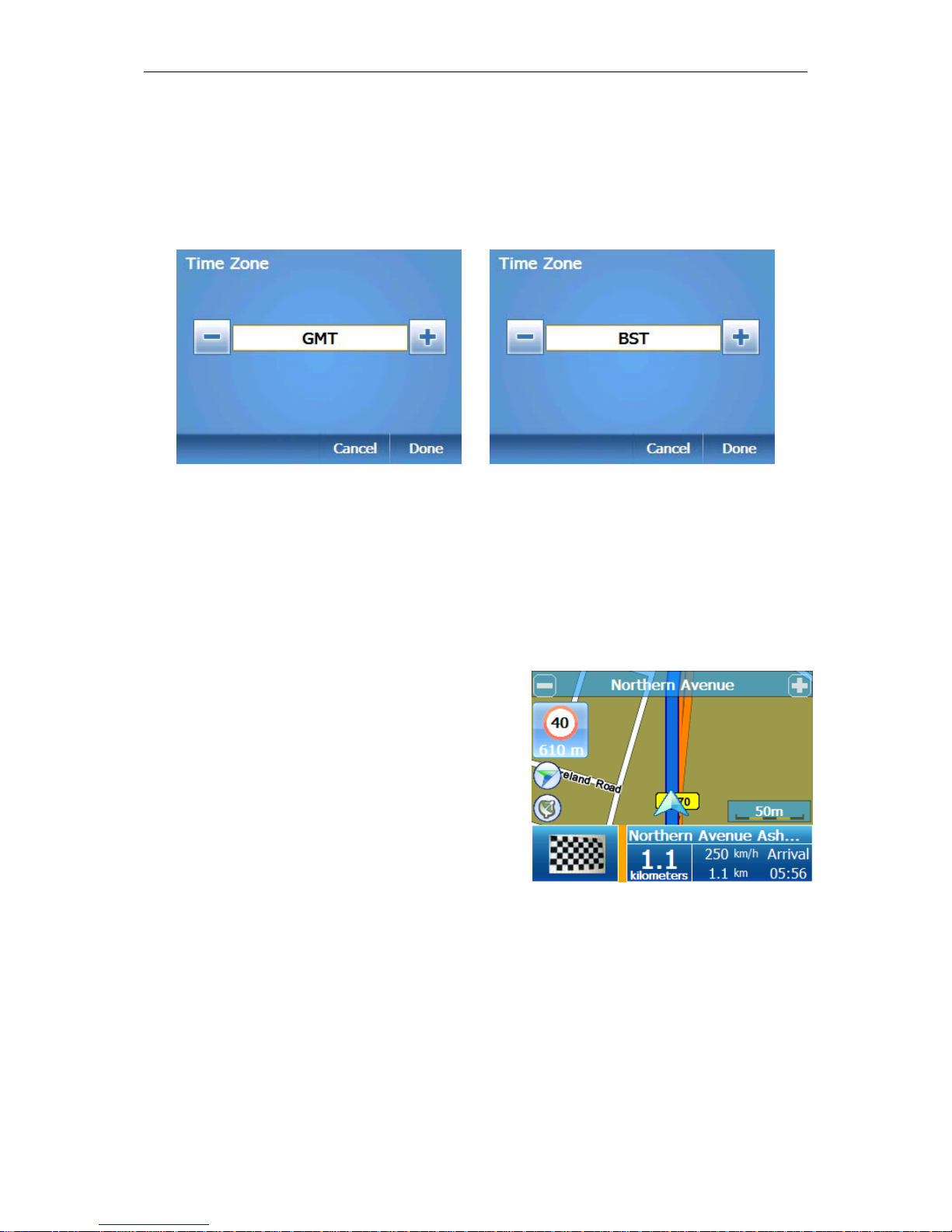

Time Zone Setting ………………………………………………… 46
Safety Cameras …………………………………………………………… 46
Frequently asked questions ………………………………………… 47
Technical Specifications ………………………………………………. 48
QUICK START GUIDE
6 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Quick Start Guide
Please make sure that your read all of the information contained within this user
guide before operating this unit.
If you experience any problems, please go through the user guide before contacting
the customer helpline.
Position of the controls
1. Touch Screen
2. Charge Indicator – Displays the battery charging status.
Red or Orange; charging, Green; fully charged.
3. On/Off Switch – Turn the unit On/Off using this switch, if the unit is not to be
used for long periods of time.
4. Reset – System reset switch.
5. Speaker – For voice guidance instructions.
6. Memory Card Slot – For use with SD type cards. Do not remove memory
card while in use.
7. Headph one Jack – Connects to external headphones.
8. USB con nector – For data transfer and charging.
9. Sleep mode Button – Switches the unit In/Out off sleep mode, handy when
stopping for short periods to conserve battery power.
10. Microphone – For handsfree conversation when connecting to Mobile Phone.
QUICK START GUIDE
7 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Charging the Battery
Before using your PND for the first time, we recommend that you charge the unit for
5 hours via the USB cable or 2 hours via the car charger in order to charge the
battery.
Plug the USB cable or car charger into the USB socket .
The charging indicator on the top of the unit will light up red or orange. When the unit
is fully charged the red light will turn green.
When you use the PND in you car, we recommend that you always use the car
charger in order to maintain the battery level.
If you have a SD memory Card, you may install it refer to the picture
(Below)
Switch the unit off first before installing or removing the SD card.
When installing it can only be fitted one way – contacts towards you and the cut-off
corner at the top. Slide the card in and push it in so that it clicks in place.
Once the card is installed it does not need to be removed.
If you need to remove the card, push the card in and it will eject from the slot.
Car Adapter
When using your PND in the car we recommend that you always use the in-car
charger to power the unit, especially on long journeys.
Plug the in-car charger into the USB socket of the unit. Pug the other end of the
adapter into the car’s cigarette-lighter / 12V DC socket.
The adaptor is also compatible with 24V DC sources, as found in many heavy goods
vehicles.
QUICK START GUIDE
8 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Turning the Sat Nav Unit On/Off
To switch the unit on slide the power switch located on the rear of the unit to the On
position, the unit will power up and display the warning screen.
To switch the unit off slide the power switch to the Off position.
Turning the Sat Nav Unit Off Via Sleep Mode
Press and hold down the sleep button on the top of the unit, after about 3 seconds
the unit will enter sleep mode. Press and hold the button again, to bring the unit out
of sleep mode. When brought out of sleep mode the unit will show the same screen
as when the unit entered sleep mode.
If the unit is not to be used for a long period of time it is advised that you slide the
power switch on the rear of the unit to Off.
System Reset
Under extreme circumstances it may be necessary to reboot the system. Reset the
system if the following situation occurs:
• Long delay experienced with screen refresh rate or operation, resulting in an
inoperable unit.
• The system will not turn off with the power button.
• No response with selection made on the screen.
The reset button can be found on the back of the unit. Insert a small pointed
implement into the reset switch hole in order to press. The system will be
immediately reset.
QUICK START GUIDE
9 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Windscreen Holder Installation
The car mount has a suction pad that fits to the windscreen or a flat area on the
dashboard.
A. Fitting to windscreen
Pull the lever away from the suction pad. Place the pad on the widescreen and push
the lever towards the pad until it clicks into place.
B. Fitting the holding bracket
It is best to fit this to the unit before it is attached to the windscreen.
With the lever facing up, slide the bracket onto the securing lug on the end of the car
mount, making sure that the top of the bracket is located on the same side as the
lever.
C. Fitting the Unit
Slide the unit into the bottom of the bracket and carefully push the unit in until it
clicks into place at the top.
To remove the unit from the car mount; Press and lift the tab at the top of the bracket
then pull the unit forward out of the bracket.
To remove the Car mount from the windscreen; Lift the lever away from the
windscreen, then gentle pull the tab on the suction cup to release the suction as you
pull the mount away from the windscreen.
GETTING STARTED
10 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Starting Up
Turn the ON/OFF button on the back of the unit to ON.
The following screens will be displayed:
On the warning screen press OK to accept and continue.
When you press MENU, the following screen will be displayed:
GETTING STARTED
11 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Settings
NOTE: You do not need to enter the SETTINGS menu before you start to navigate.
If you press on the SETTINGS icon the following screen is displayed.
To exit this page or exit any subsequent page, press the cross at the right top of the
screen.
Volume
Press ’volume’ you can modify the volume level of the voice prompts. You can
increase or decrease the level by clicking “ ” or “ ”. This can also be done via
the navigation software later.
Backlight
Press ‘Backlight’ to change the brightness of the screen. You can make it darker or
brighter by clicking “ ” or “ ”. This can also be done via the navigation software
later.
Time & Date
This device can auto-set the current date and time by receiving three GPS signals.
However you can also change it by yourself by
1.) Click
2.) Clicking on and to scroll to the right year, month, date, time and time format.
Note: the unit does not save the time & date when the unit is switched off, this
is because the unit automatically sets the time & date from the satellite signals.
Power
The power page contains the information of your battery level.
Language
Press ”Language” to change the language by clicking and
About
The About page contains information about your operating system software version.
It also allows you to default the unit or to calibrate the screen to your touches.
Default
Reset to factory default settings.
GETTING STARTED
12 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
The unit will be returned to how it was when it left the factory. After selecting this
option you will be asked to confirm.
Calibrate
This function calibrates the unit to respond to your screen taps. You will need to use
this function only if the unit begins to respond inconsistently to your screen taps.
After selecting follow the on screen directions. Once the calibration has been
completed, press anywhere on the screen to return to the previous menu.
Multi Media
NOTE: if you press on the MULTI MEDIA icon the following screen is displayed.
Picture Viewer
This device supports, .bmp, .jpg and .gif file formats only (recommended picture size
for optimum usage: 500kb – it is not recommended to view pictures over 2mb). Press
the “Picture viewer” to show a list of names for all the picture files then click on the
file you want to view.
To view pictures:
1) Copy all the pictures you want to view onto a SD card.
2) Insert your SD card into the PND.
3) Select Multi Media and then Picture viewer a list of pictures or folders containing
pictures will be shown.
4) Click on folder to open it and then click on a picture to load it into the viewer.
The following screen will be shown:
GETTING STARTED
13 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)
Document Viewer
This device supports, txt file format viewing only. Press the “Doc Viewer” to show the
list of files available for viewing. The procedure for viewing documents is the same
for viewing pictures. But once loaded the following screen will be shown.
GETTING STARTED
14 Binatone Help Line: 0845 345 9677 (for UK only. Local Call rate)

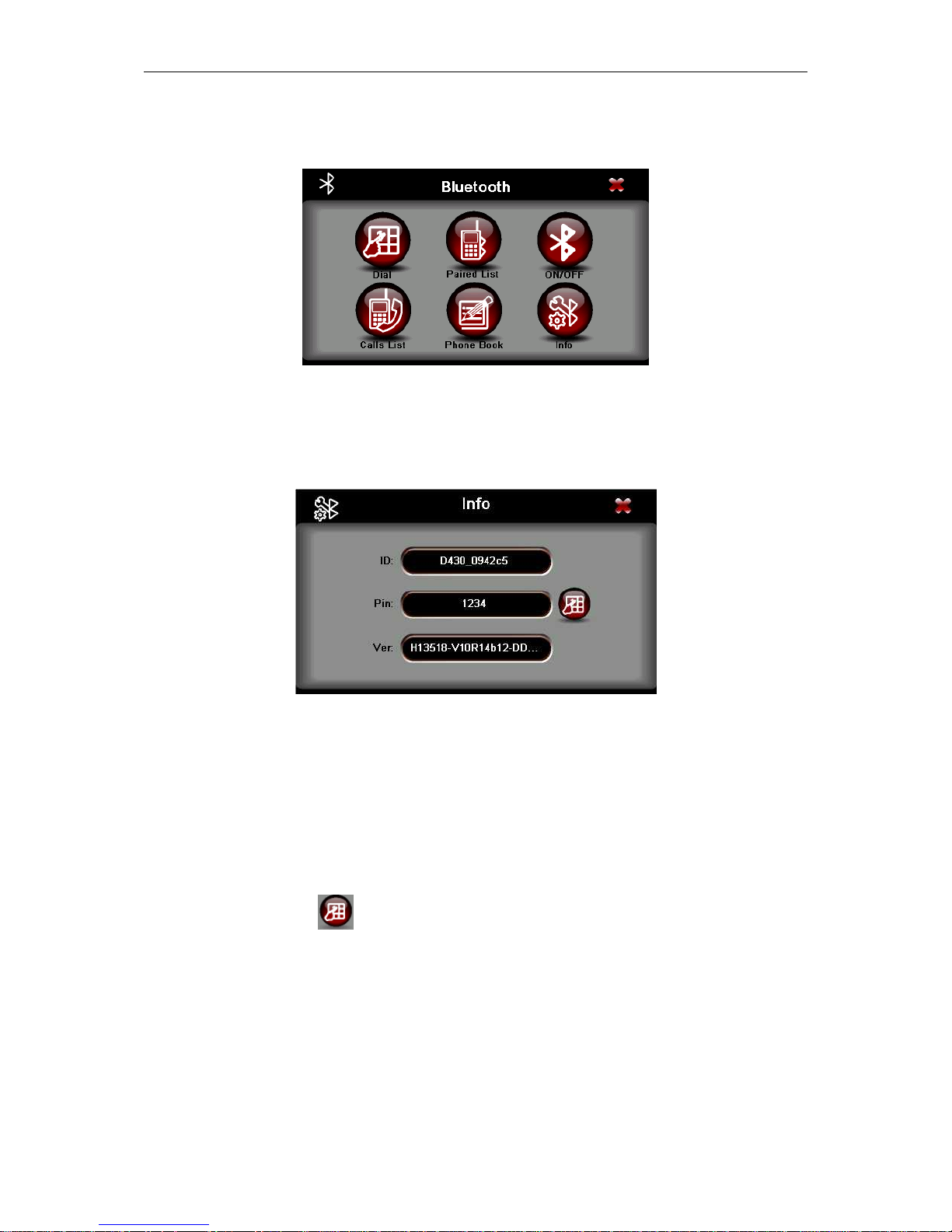

Bluetooth Function
Your GPS device has built-in Bluetooth 2.0 technology which can connect to
other Bluetooth devices like mobile phones to perform the following functions:
- Making a call using the PND in hands-free mode.
- Answering a call using the PND in hands-free mode.
- Browse the phonebook of your mobile phone via the PND and then make a
call to a phonebook entry.
How to select the Bluetooth function
There are two ways to select the Bluetooth function menu:
(1) In the Main Menu, press the Bluetooth icon to select this function.
(2) Tap the Bluetooth icon on the Navigation Main Menu or on the map
during navigation
Loading...
