Page 1

STP-10 Hardware Manual

Hardware Manual

STP-10-E

STP-10-EIP STP-10-2

STP-10-5

Page 2

Contents

Introduction ..............................................................................................................................................3

Features ....................................................................................................................................................3

Block Diagrams ....................................................................................................................................... 4

Getting Started ........................................................................................................................................ 5

Connecting to the PC using RS-232 ...................................................................................................... 6

Connecting the Drive to Your PC using Ethernet ................................................................................. 7

Addresses, Subnets, and Ports ...............................................................................................................................7

Option 1: Connect a Drive to Your Local Area Network ...........................................................................................9

Using DCHP ..................................................................................................................................................10

Option 2: Connect a Drive Directly to Your PC ......................................................................................................11

Option 3: Use Two Network Interface Cards (NICs) ...............................................................................................12

Connecting to a Host using RS-485 Option Card ...............................................................................13

RS-232 to RS-485 2-wire Converter ......................................................................................................................14

Converting USB to RS-485 ...................................................................................................................................14

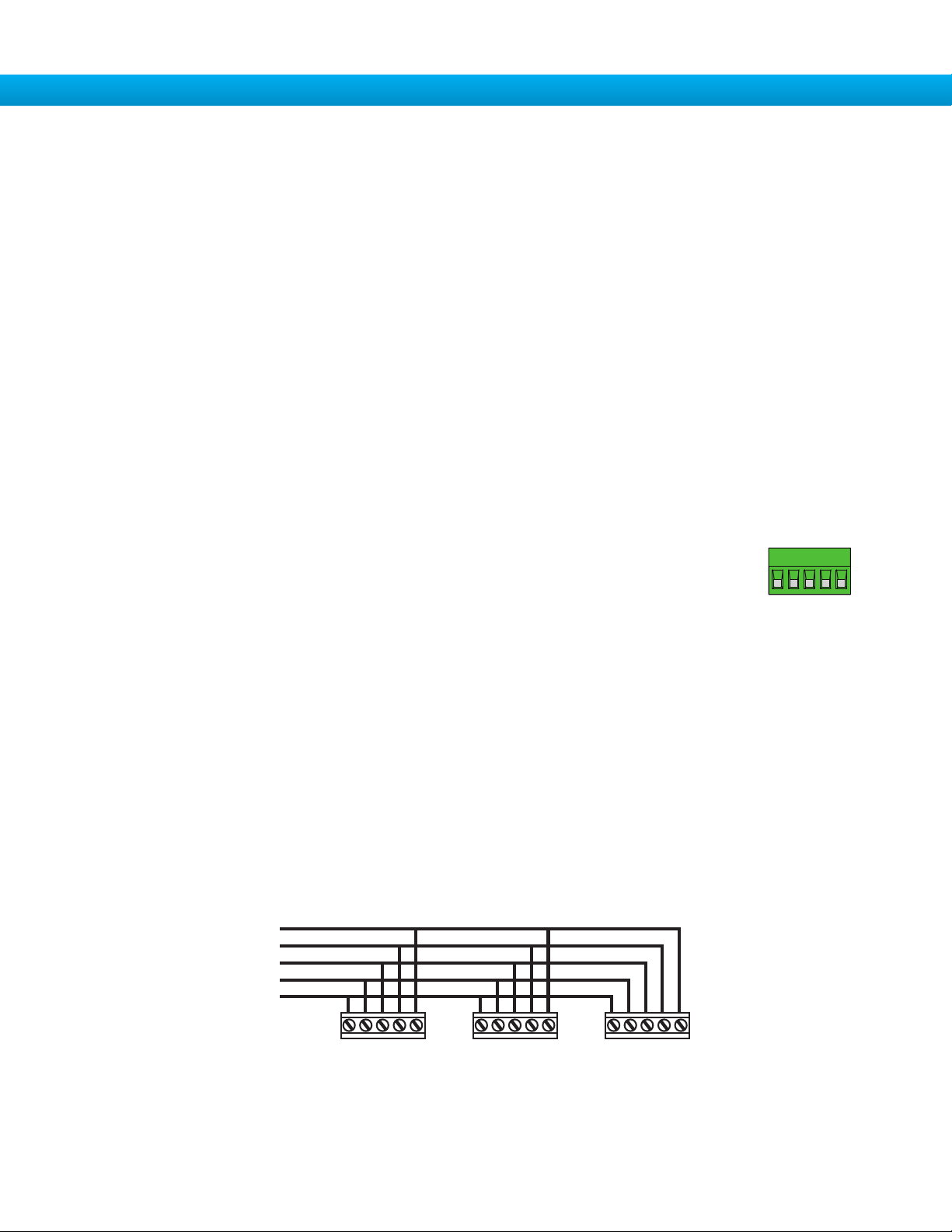

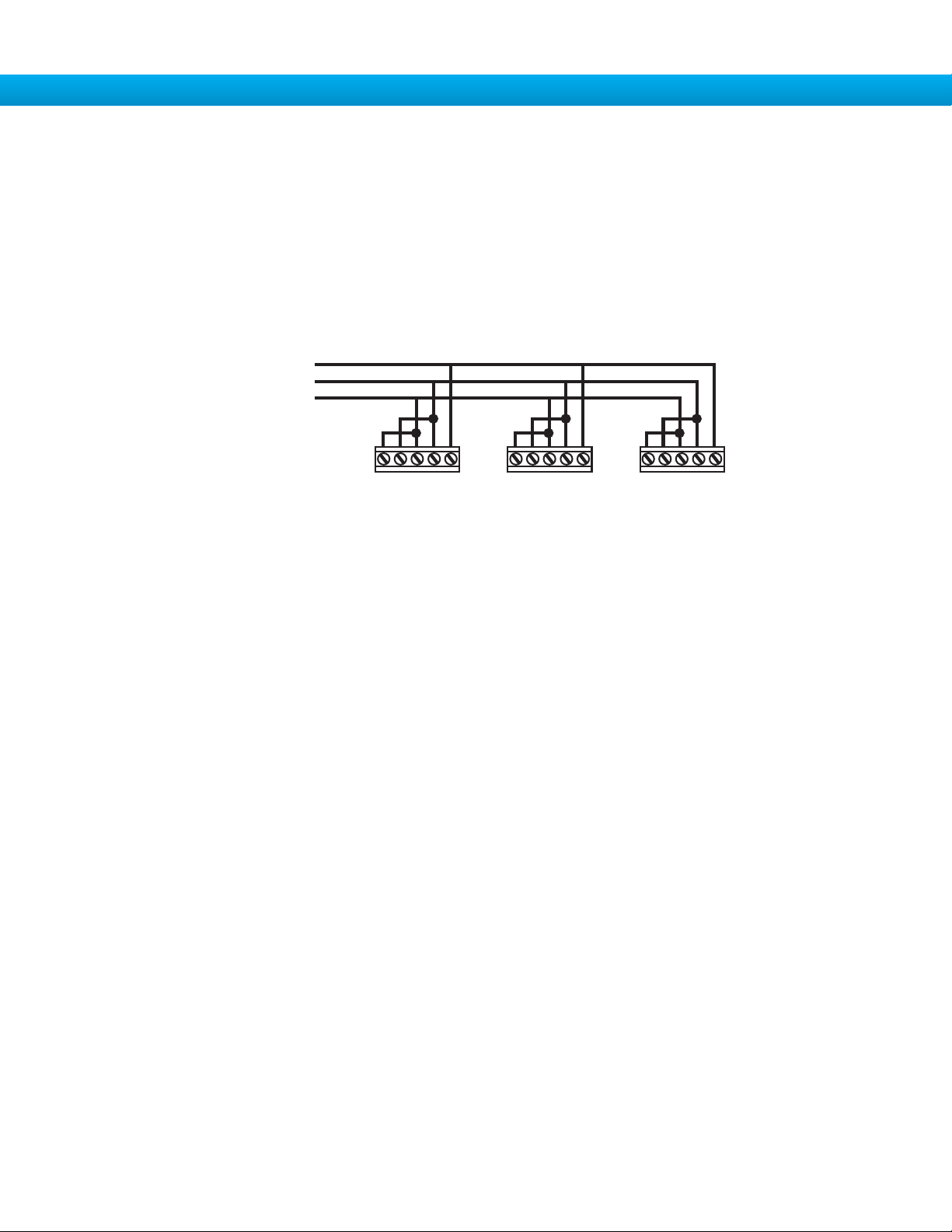

Assigning Multi-Drop Addresses ............................................................................................................................14

Connecting the Power Supply .............................................................................................................. 15

Connecting the Motor ........................................................................................................................... 16

Connecting an Encoder (Requires the Optional Encoder Feedback Card) .....................................17

Connecting Input Signals ..................................................................................................................... 18

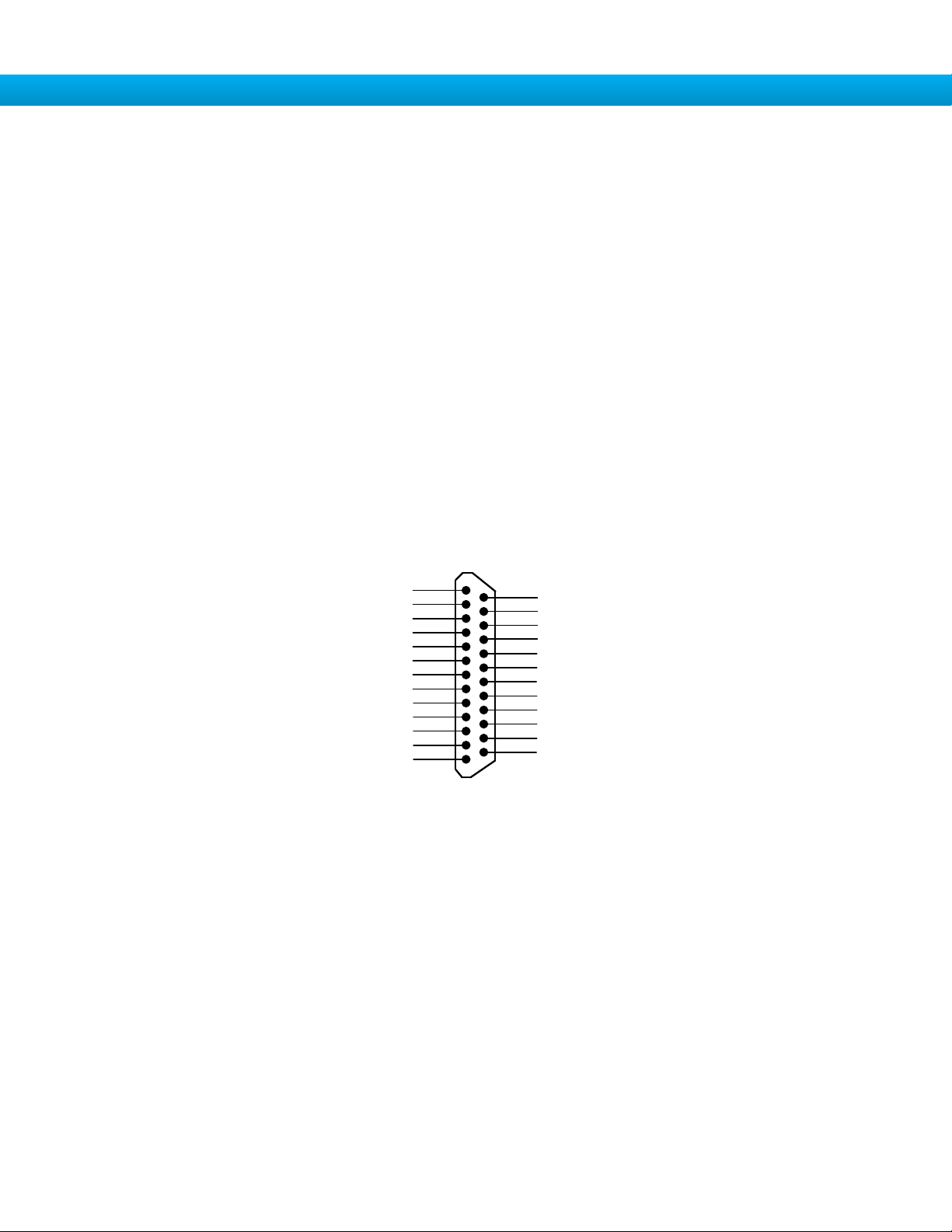

Connector Pin Diagram .........................................................................................................................................18

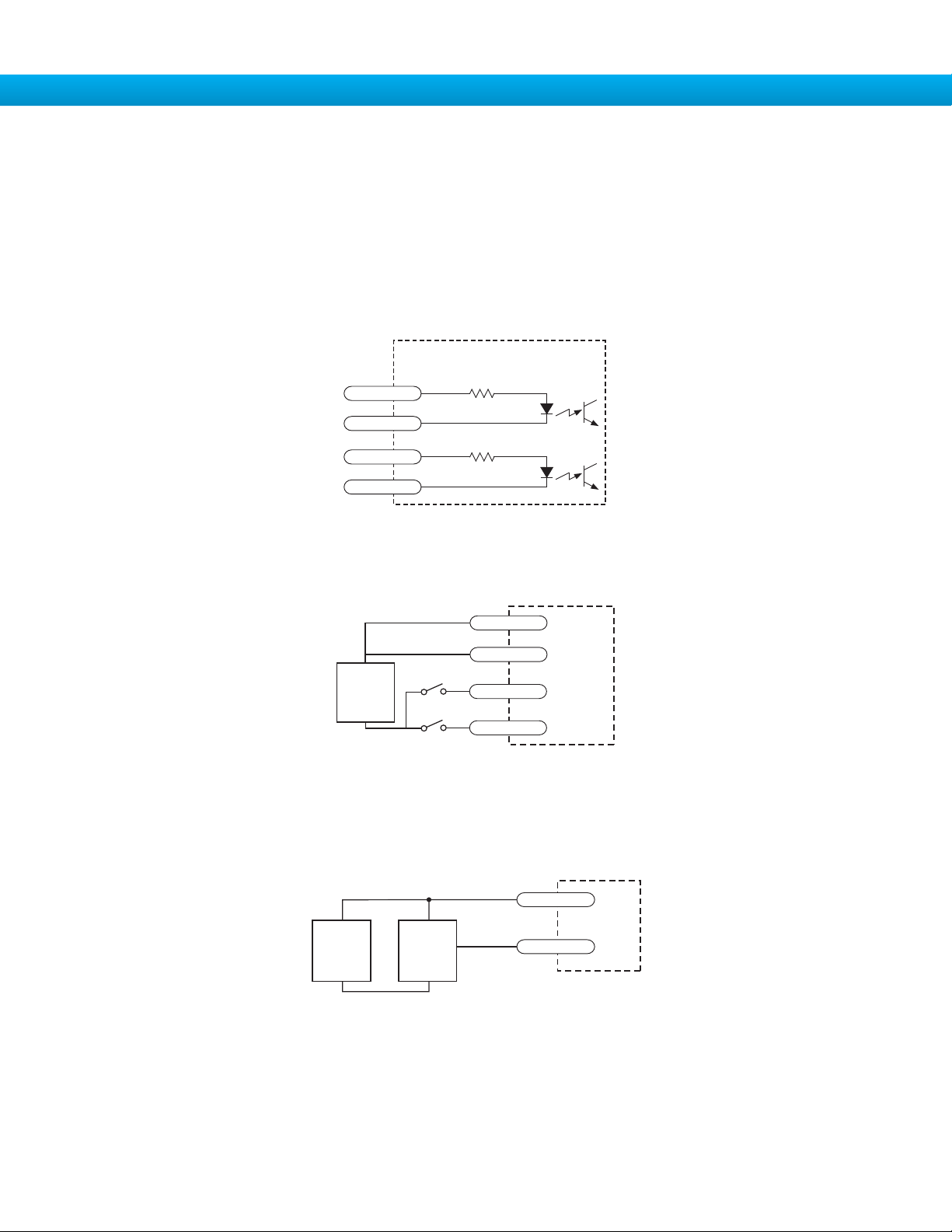

High Speed Digital Inputs ......................................................................................................................................18

Using High Speed Inputs with 12-24 Volt Signals ..................................................................................................20

Other Digital Inputs ............................................................................................................................... 21

Single Ended Inputs ..............................................................................................................................................21

What is COM? .....................................................................................................................................................21

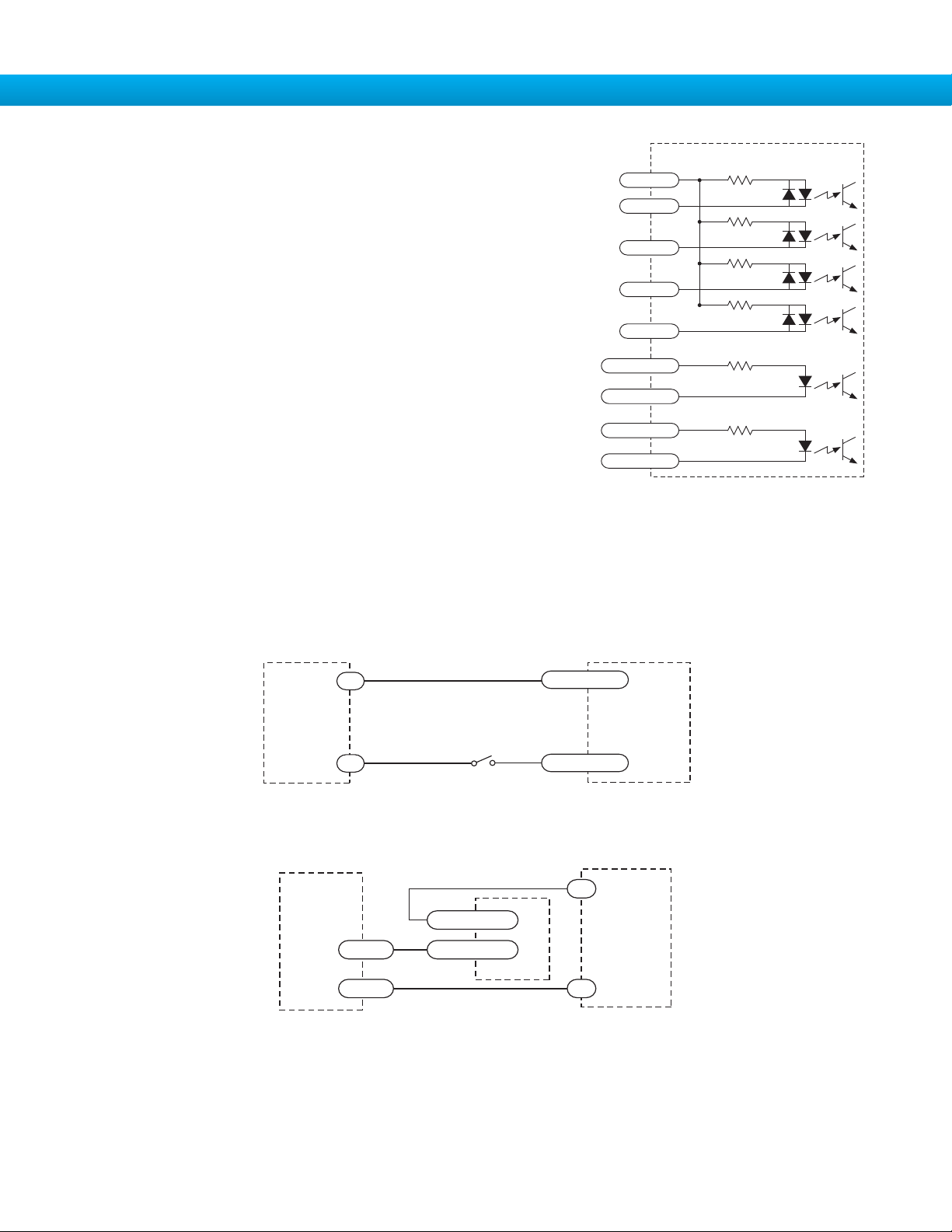

Connecting Limit Switches ................................................................................................................... 23

Wiring a Mechanical Limit Switch...........................................................................................................................23

Wiring a Limit Sensor .............................................................................................................................................23

Analog Inputs ........................................................................................................................................................24

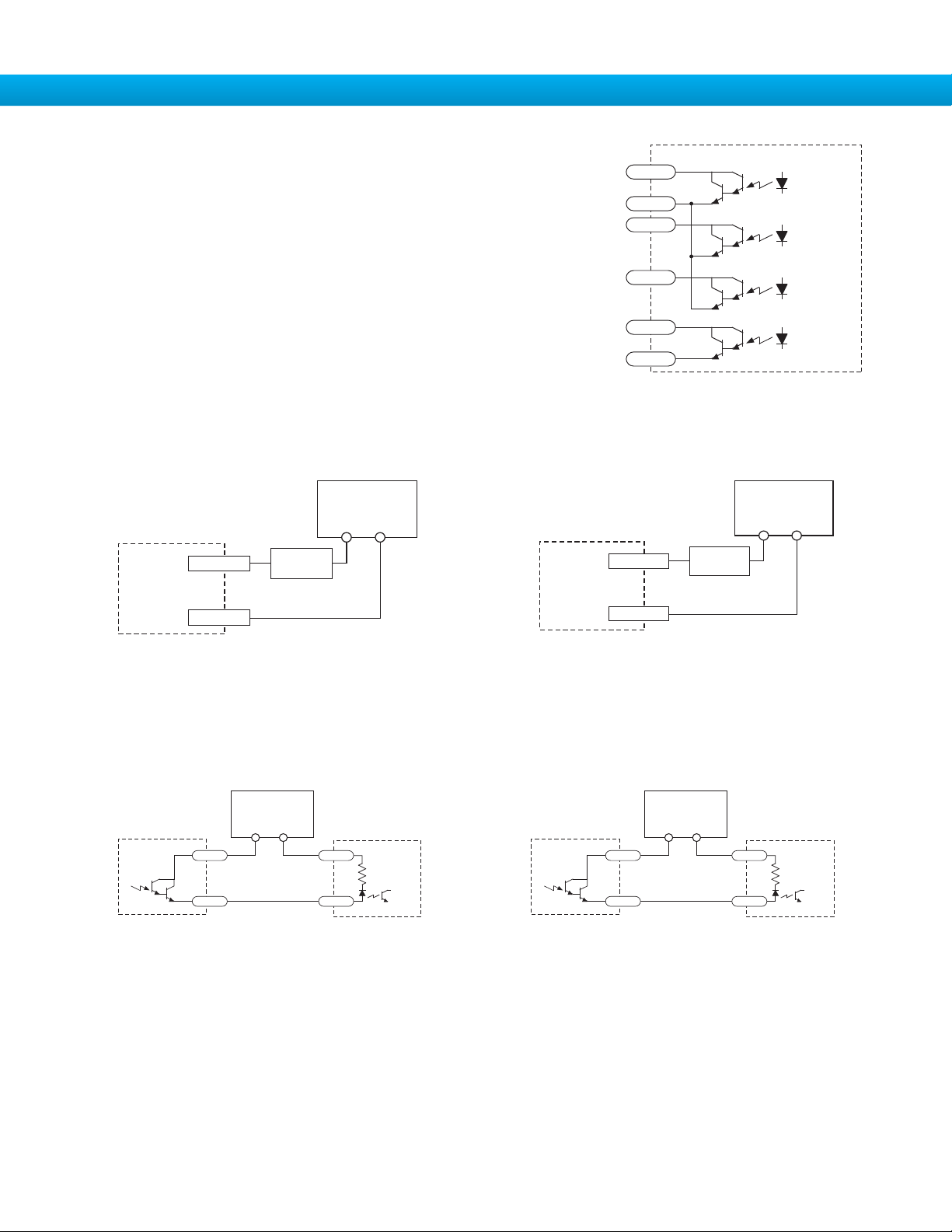

Programmable Outputs ........................................................................................................................25

Sinking Output Using Y1, Y2, Y3 ...........................................................................................................................25

Sinking Output Using Y4 .......................................................................................................................................25

Sourcing Output Using Y1, Y2, Y3 .........................................................................................................................25

Sourcing Output Using Y4 .....................................................................................................................................25

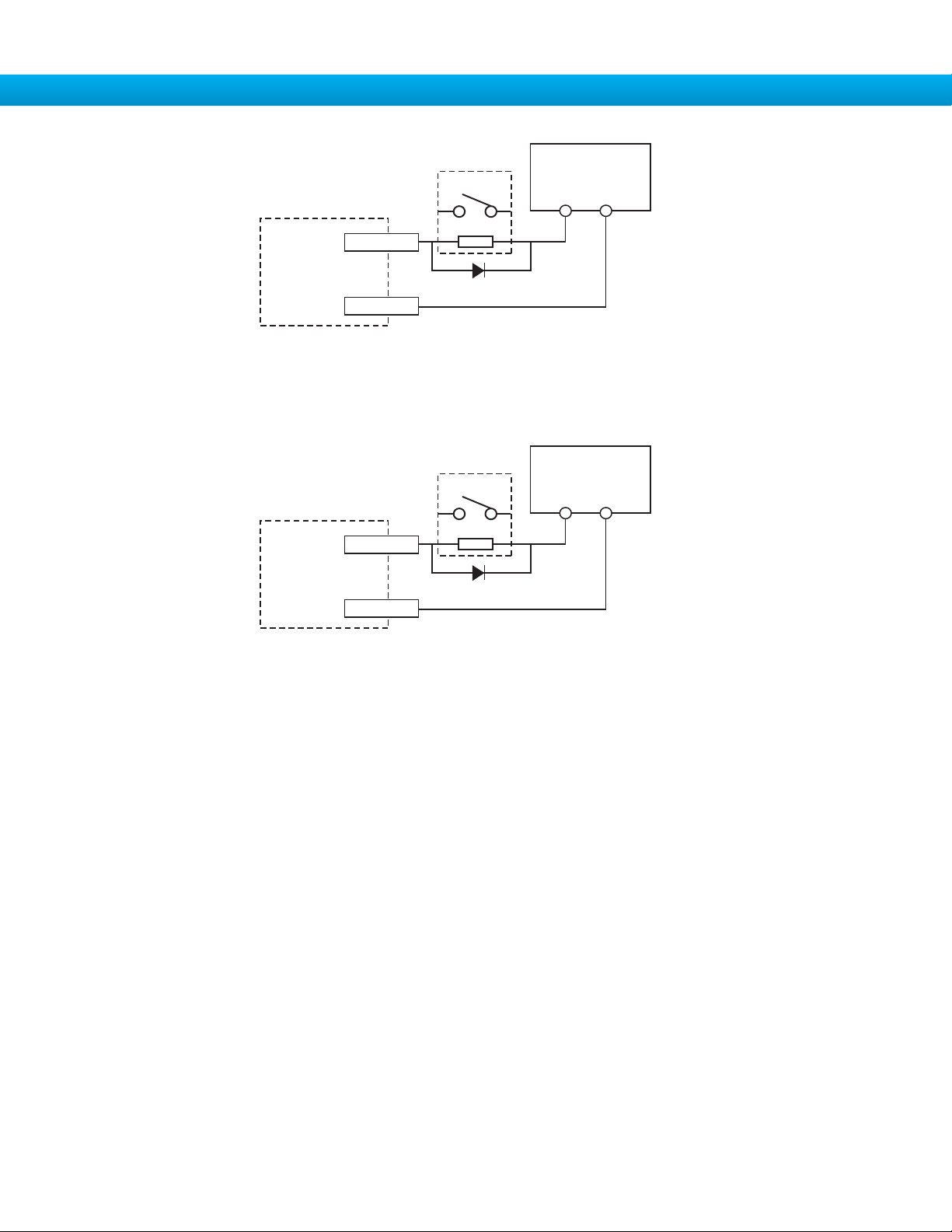

Driving a Relay Using Y1, Y2, Y3 ...........................................................................................................................26

Driving a Relay Using Y4 ........................................................................................................................................26

Choosing a Power Supply .................................................................................................................... 27

Voltage ..................................................................................................................................................................27

Current ..................................................................................................................................................................27

Recommended Motors ......................................................................................................................... 28

Specications and Sizing ..................................................................................................................... 29

Motor Heating ........................................................................................................................................ 32

Motor Dimensions ................................................................................................................................. 33

Mounting the Drive ................................................................................................................................ 35

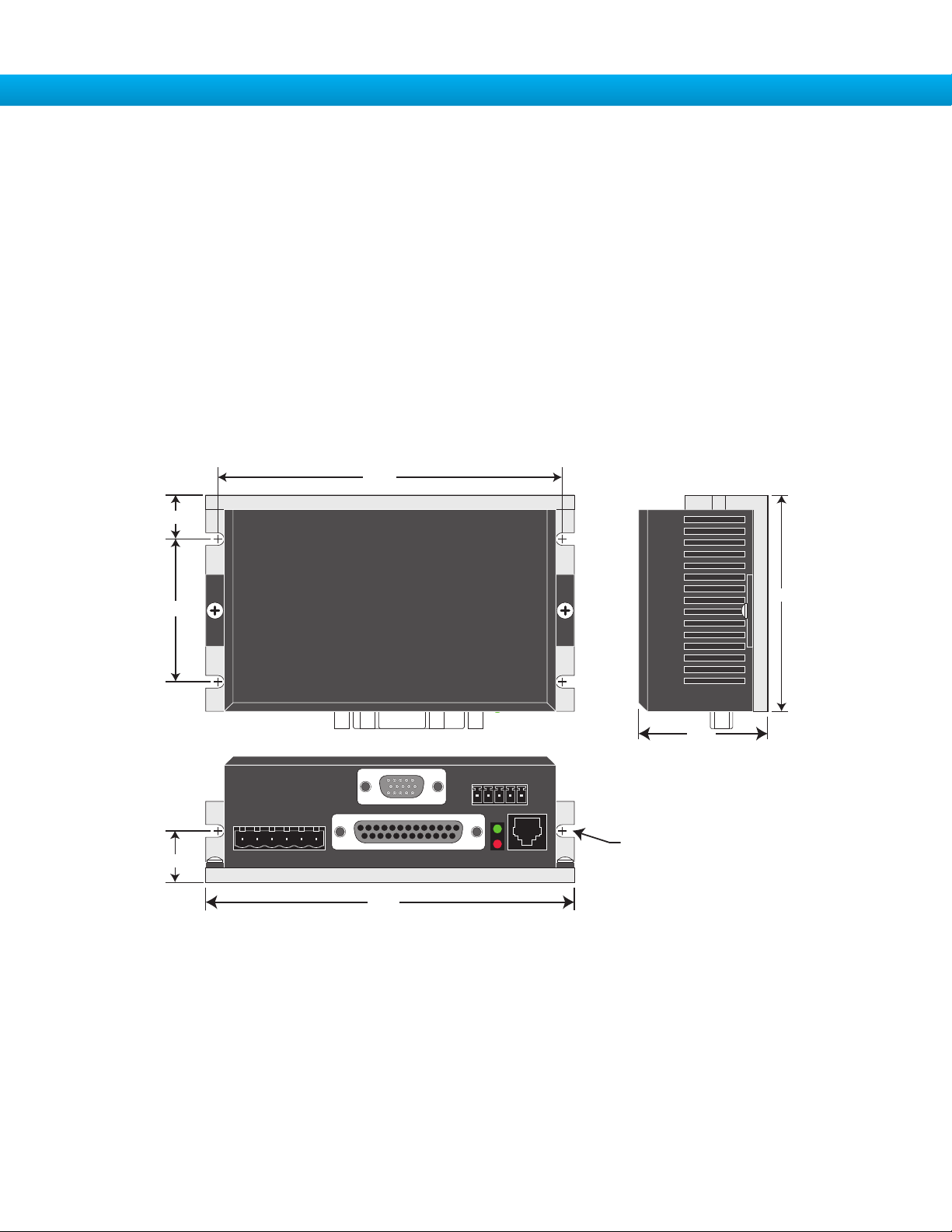

Mechanical Outline ................................................................................................................................ 35

Technical Specications ...................................................................................................................... 36

Mating Connectors and Accessories .................................................................................................. 37

Alarm Codes .......................................................................................................................................... 38

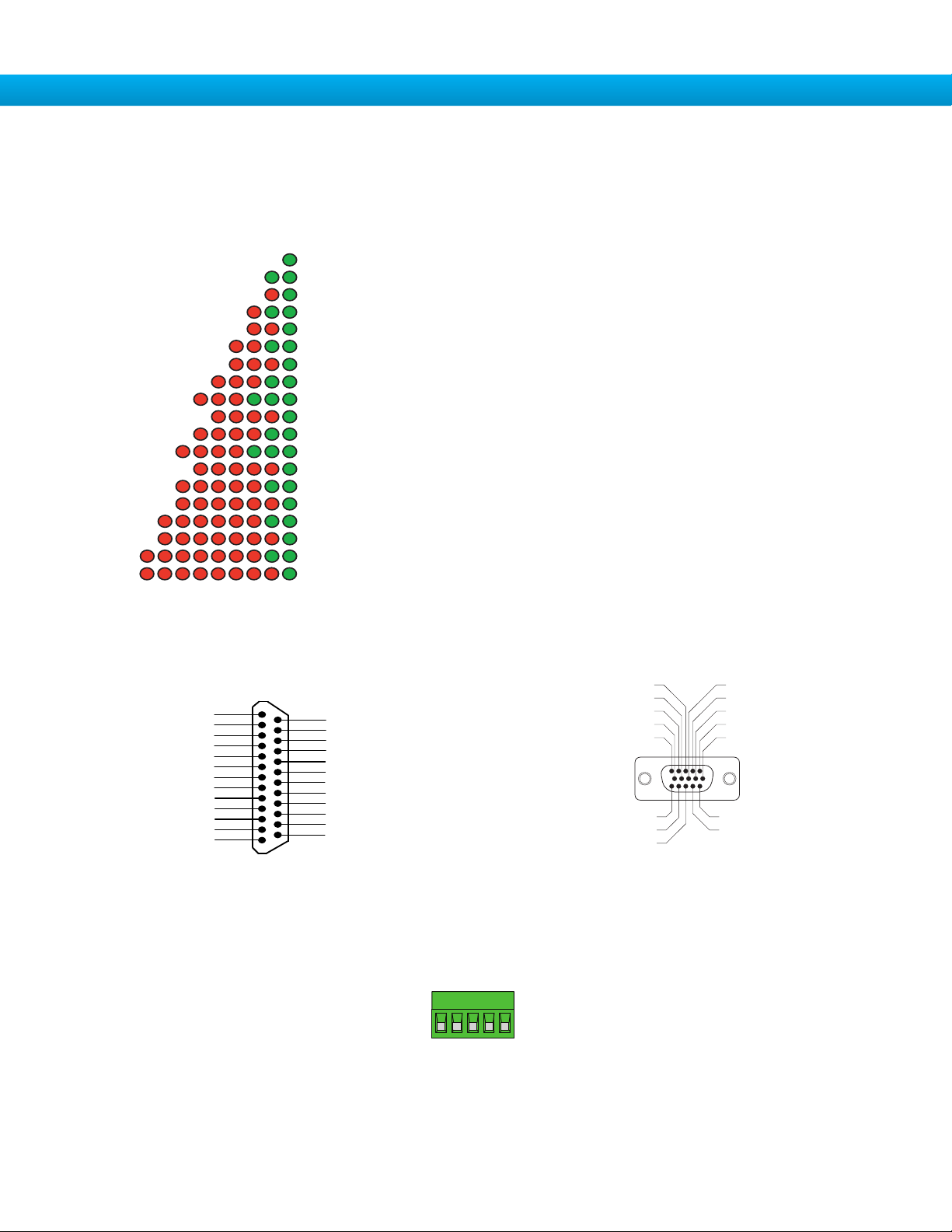

Connector Diagrams ............................................................................................................................. 38

Page 3

STP-10 Hardware Manual

Introduction

Thank you for selecting a Bimba DC stepper motor control. We hope our dedication to performance, quality and economy will make your motion control project successful.

If there’s anything we can do to improve our products or help you use them better, please call or fax. We’d like to hear from you. Our phone number is (800) 44-BIMBA, or you can reach us by fax at (708) 235-2014. You can also email support@bimba.com.

Features

• Programmable, microstepping digital step motor driver in compact package

• STP-10 operates from a 24 to 80 volt DC power supply

• Operates in velocity or position mode

• Accepts analog signals, digital signals and RS-232 serial commands

• Optional RS-422/485 communication

• Optional encoder feedback

• Optional 100 Mbit Ethernet communication using SCL and IQ Programming

• Optional Ethernet/IP protocol communication

• STP-10 provides motor current up to 10 amps/phase (peak of sine)

• Eight optically isolated digital inputs

• Four optically isolated digital outputs

• Two ±10 volt analog inputs for speed and position control. Can also be congured for 0 to 10V, ±5V or 0 to 5V signal

ranges.

Page 4

STP-10 Hardware Manual

motor

encoder

24 - 48 VDC*

INPUT X1

INPUT X2

INPUT X3

INPUT X4

INPUT X5

INPUT X6

X7/CWLIM

*24 - 80 VDC for STP-10

to PC/MMI

X8/CCWLIM

OUTPUT Y1

OUTPUT Y2

OUTPUT Y3

OUTPUT Y4

ANALOG IN2

ANALOG IN1

DSP

Optical

Isolation

RS-232

Option Card

MOSFET

PWM Power

Amplifier

Internal

Logic

Supply

Status

RS485 (Optional on STP-10 Drives only)

Option Card

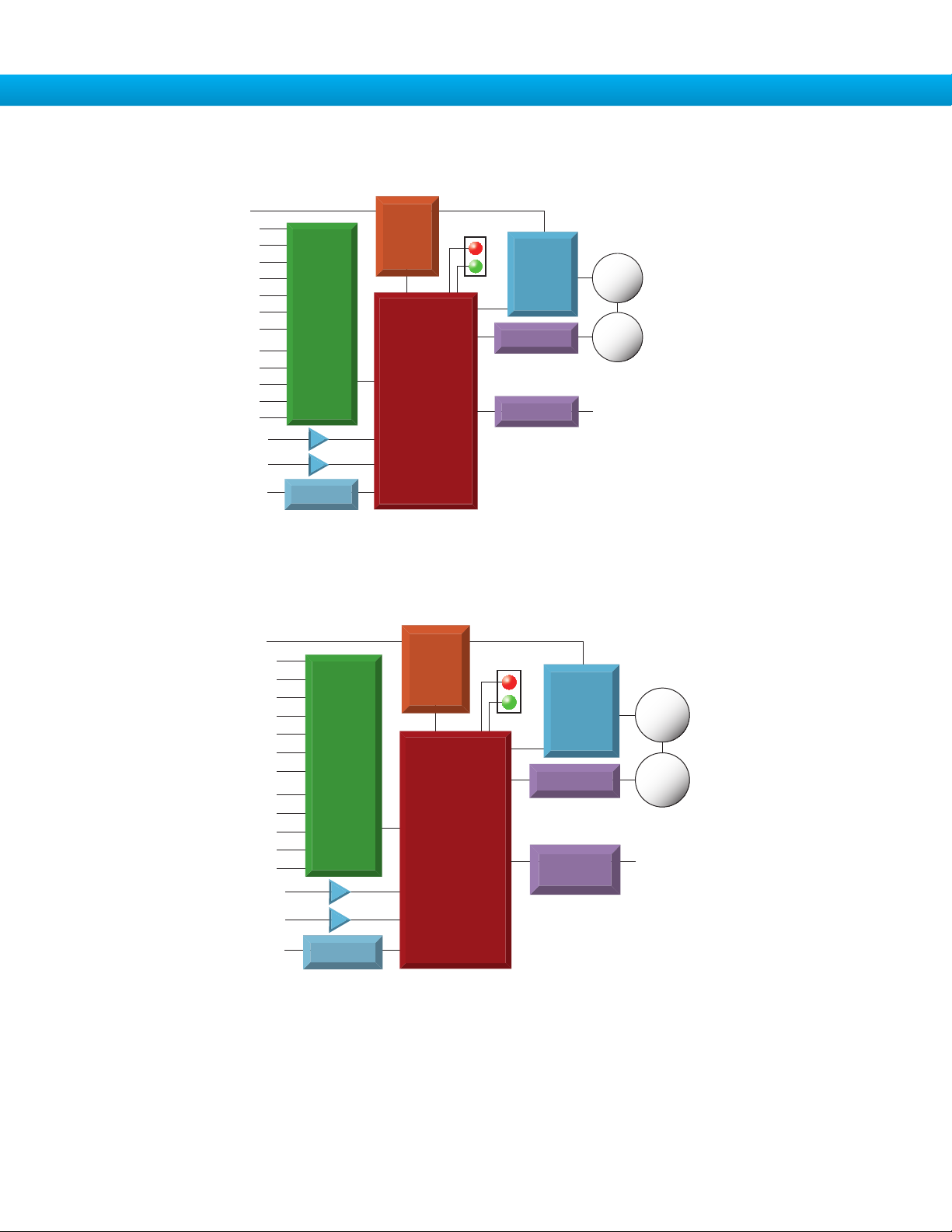

Block Diagrams

STP-10-2, STP-10-5

24 - 48 VDC*

INPUT X1

INPUT X2

INPUT X3

INPUT X4

INPUT X5

INPUT X6

X7/CWLIM

X8/CCWLIM

OUTPUT Y1

OUTPUT Y2

OUTPUT Y3

OUTPUT Y4

ANALOG IN1

ANALOG IN2

not used

*24 - 80 VDC for STP-10

Optical

Isolation

RS-232

Internal

Logic

Status

Supply

Option Card

DSP

Option Card

STP-10-E, -EIP

MOSFET

PWM Power

Amplifier

Ethernet

motor

encoder

to Ethernet switch or network interface card

Page 5

STP-10 Hardware Manual

Getting Started

This manual describes the use of six different drive models. What you need to know and what you must have depends on the

drive model. For all models, you’ll need the following:

• A 24-48 volt DC power supply. Please read the section entitled Choosing a Power Supply for help in choosing the right power

supply.

• A compatible Bimba stepper motor. See section on Recommended Motors.

• A small at blade screwdriver for tightening the connectors (included).

• A personal computer running Microsoft Windows 98, 2000, NT, Me, XP, Vista or 7.

• A Bimba programming cable (included with non-Ethernet drives).

• For Ethernet drives, you will need a CAT5 cable (not included).

• Relevant software applications, as outlined below. All software is available as a free download from www.bimba.com.

If you’ve never used a STP drive before, you’ll need to get familiar with the drive and the set up software before you try to deploy the system in your application. We strongly recommend the following:

1. For -S drives, -Q drives, and -EIP drives, install the IQ® Stepper software application. Bimba IQ® stepper contains a link to the IQ® Programmer software applications.

2. Launch the software by clicking Start...Programs...Bimba...

3. Connect the drive to your PC using the programming cable. For RS-232 drives, select the correct COM port. For Ethernet drives, ensure that the IP address is correct. See page 7 of this manual for more information on “Connecting the Drive to Your PC using Ethernet.”

4. Connect the drive to the power supply.

5. Connect the drive to the motor.

6. Apply power to the drive.

7. The software will recognize your drive, display the model and rmware version and be ready for action.

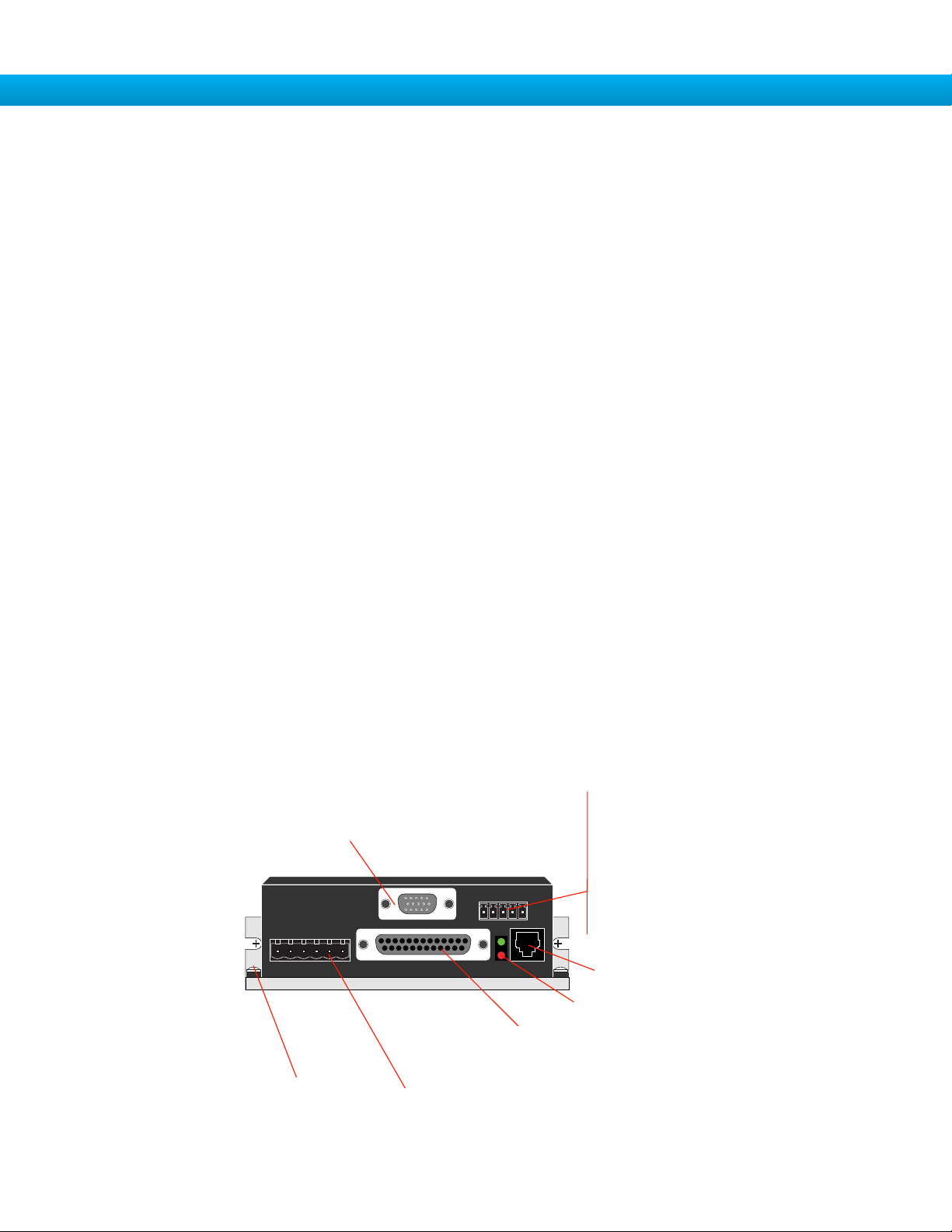

The connectors and other points of interest are illustrated below. Depending on your drive model and application, you’ll need to make connections to various parts of the drive. These are detailed later in the manual.

screw terminal connector

• optional RS-485 port

spring terminal connector and rotary switches

RJ45 connector and rotary address switch

• optional Ethernet interface

RJ11 connector

• RS-232 port

LEDs

• status & error codes

grounding screw

HD-15 connector

• optional encoder feedback

screw terminal connector

• motor

• power supply

DB-25 connector

• digital inputs

• digital outputs

• analog input

Page 6

STP-10 Hardware Manual

ground (to PC ground)

TX (to PC RX)

No connection

RX (to PC TX)

Connecting to the PC using RS-232

• Locate your computer within 8 feet of the drive.

• If you have an Ethernet drive, this port is not used. All communcation uses the RJ45 Ethernet connector.

• RS-232 drives are shipped with a communication cable. Plug the large end into the serial port of your PC and the small end into the PC/MMI jack on your drive. Secure the cable to the PC with the screws on the sides.

Never connect a drive to a telephone circuit. It uses the same connectors and cords as telephones and modems, but the voltages are not compatible.

If your PC does not have a serial port, you should purchase a “USB Serial Converter”. We have had good results with the USBCOM-CBL from byterunner.com. If you wish to use a different converter, it is recommended to use one that makes use of the FTDI

chipset to perform the actual conversion.

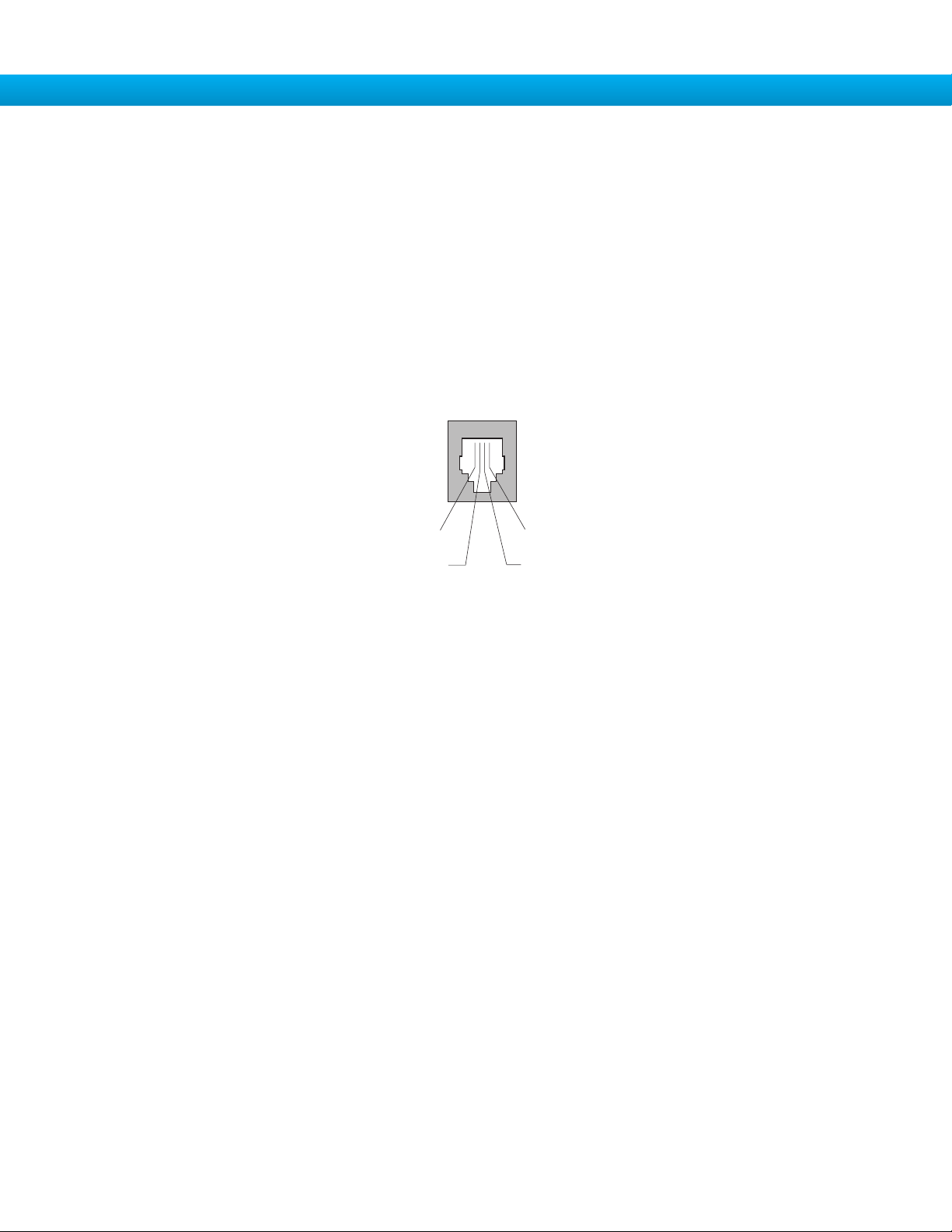

Pin Assignments of the PC/MMI Port

(RJ11 connector)

Page 7

STP-10 Hardware Manual

Connecting the Drive to Your PC using Ethernet

This process requires three steps

• Physically connect the drive to your network (or directly to the PC)

• Set the drive’s IP address

• Set the appropriate networking properties on your PC.

Addresses, Subnets, and Ports

Every device on an Ethernet network must have a unique IP address. In order for two devices to communicate with each other, they must both be connected to the network and they must have IP addresses that are on the same subnet. A subnet is a logical

division of a larger network. Members of one subnet are generally not able to communicate with members of another unless they

are connected through special network equipment (e.g. router). Subnets are dened by the choices of IP addresses and subnet

masks.

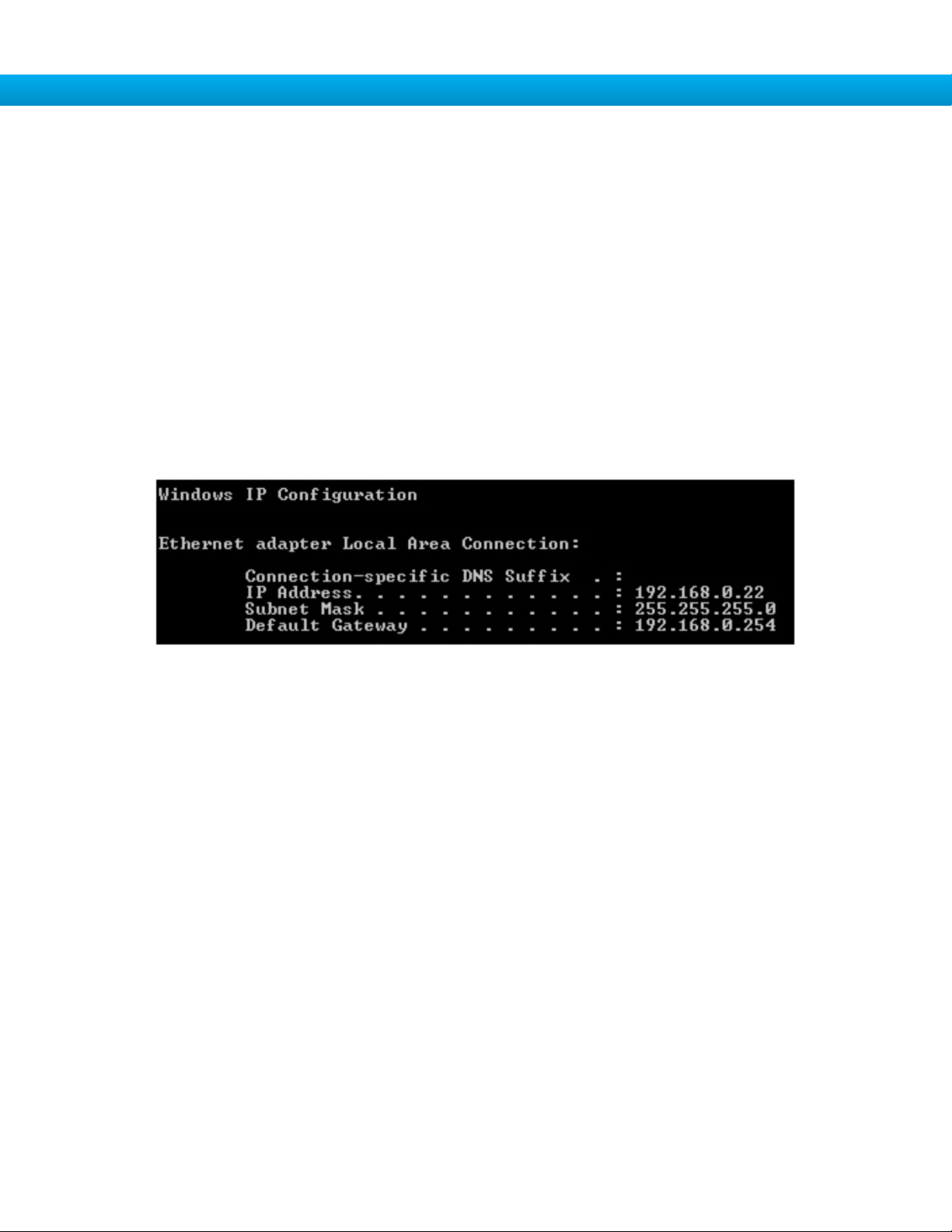

If you want to know the IP address and subnet mask of your PC, select Start…All Programs…Accessories…Command Prompt. Then type “ipcong” and press Enter. You should see something like this:

If your PC’s subnet mask is set to 255.255.255.0, a common setting known as a Class C subnet mask, then your machine can only talk to another network device whose IP address matches yours in the rst three octets. (The numbers between the dots in an IP address are called octets.) For example, if your PC is on a Class C subnet and has an IP address of 192.168.0.20, it can talk to a device at 192.168.0.40, but not one at 192.168.1.40. If you change your subnet mask to 255.255.0.0 (Class B) you can talk to any device whose rst two octets match yours. Be sure to ask your system administrator before doing this. You network

may be segmented for a reason.

Your drive includes a 16 position rotary switch for setting its IP address. The factory default address for each switch setting is

shown in the table on the next page.

Page 8

STP-10 Hardware Manual

Rotary Switch IP Address

0 10.10.10.10

1 192.168.1.10

2 192.168.1.20

3 192.168.1.30

4 192.168.0.40

5 192.168.0.50

6 192.168.0.60

7 192.168.0.70

8 192.168.0.80

9 192.168.0.90

A 192.168.0.100

B 192.168.0.110

C 192.168.0.120

D 192.168.0.130

E 192.168.0.140

F DHCP

Settings 1 through E can be changed using the Bimba IQ® Stepper software (use Bimba IQ® Servo for servo drives). Setting 0 is always “10.10.10.10”, the universal recovery address. If someone were to change the other settings and not write it down or tell anyone, then you will not be able to communicate with your drive. The only way to “recover” it is to use the universal recovery

address.

Setting F is “DHCP”, which commands the drive to get an IP address from a DHCP server on the network. The IP address automatically assigned by the DHCP server may be “dynamic” or “static” depending on how the administrator has congured DHCP. The DHCP setting is reserved for advanced users.

Your PC, or any other device that you use to communicate with the drive, will also have a unique address.

On the drive, switch settings 1 through E use the standard class B subnet mask (i.e. “255.255.0.0”). The mask for the universal recovery address is the standard class A (i.e. “255.0.0.0”).

One of the great features of Ethernet is the ability for many applications to share the network at the same time. Ports are used to direct trafc to the right application once it gets to the right IP address. The UDP eSCL port in our drives is 7775. To send and receive commands using TCP, use port number 7776. You’ll need to know this when you begin to write your own application. You will also need to choose an open (unused) port number for your application. Our drive doesn’t care what that is; when the rst command is sent to the drive, the drive will make note of the IP address and port number from which it originated and direct any responses there. The drive will also refuse any trafc from other IP addresses that is headed for the eSCL port. The rst application to talk to a drive “owns” the drive. This lock is only reset when the drive powers down.

If you need help choosing a port number for your application, you can nd a list of commonly used port numbers at www.iana.org/ assignments/port-numbers.

One nal note: Ethernet communication can use one or both of two “transport protocols”: UDP and TCP. eSCL commands can be sent and received using either protocol. UDP is simpler and more efcient than TCP, but TCP is more reliable on large or very busy networks where UDP packets might occasionally be dropped.

Page 9

STP-10 Hardware Manual

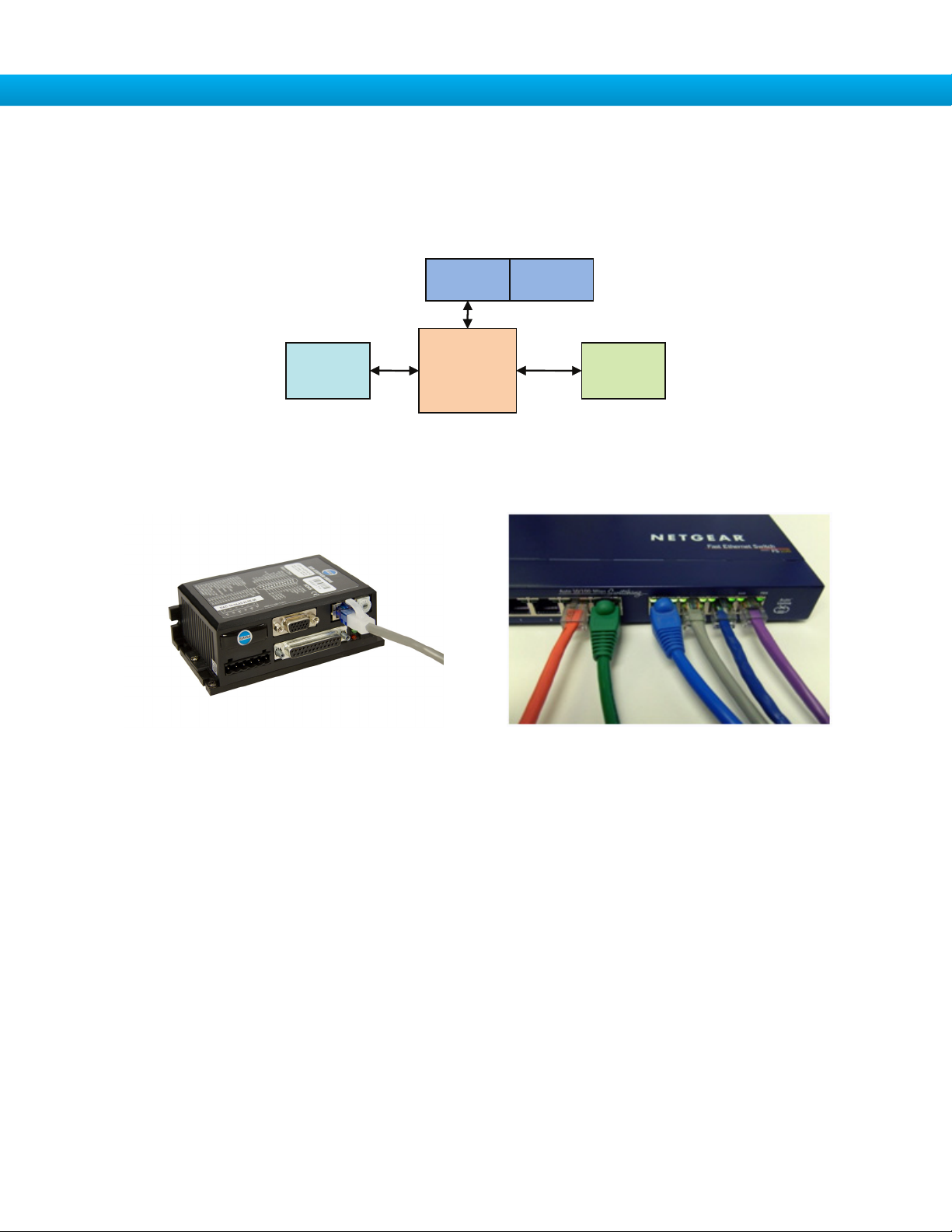

Option 1: Connect a Drive to Your Local Area Network

If you have a spare port on a switch or router and if you are able to set your drive to an IP address that is compatible with your

network, and not used by anything else, this is a simple way to get connected. This technique also allows you to connect multiple

drives to your PC. If you are on a corporate network, please check with your system administrator before connecting anything new to the network. He or she should be able assign you a suitable address and help you get going.

PC NIC

SWITCH

LAN DRIVE

If you are not sure which addresses are already used on your network, you can nd out using “Angry IP scanner”, which can be downloaded free from www.angryip/w/Download. But be careful: an address might appear to be unused because a computer or other device is currently turned off. And many networks use dynamic addressing where a DHCP server assigns addresses “on demand”. The address you choose for your drive might get assigned to something else by the DHCP server at another time.

ROUTER

Once you’ve chosen an appropriate IP address for your drive, set the rotary switch according the address table above. If none of the default addresses are acceptable for your network, you can enter a new table of IP addresses using Congurator. If your network uses addresses starting with 192.168.0, the most common subnet, you will want to choose an address from switch settings 4 through E. Another common subnet is 192.168.1. If your network uses addresses in this range, the compatible default

selections are 1, 2 and 3.

If your PC address is not in one of the above private subnets, you will have to change your subnet mask to 255.255.0.0 in order to talk to your drive. To change your subnet mask:

1. On Windows XP, right click on “My Network Places” and select properties. On Windows 7, click Computer. Scroll down the left pane until you see “Network”. Right click and select properties. Select “Change adapter settings”

2. You should see an icon for your network interface card (NIC). Right click and select properties.

Page 10

STP-10 Hardware Manual

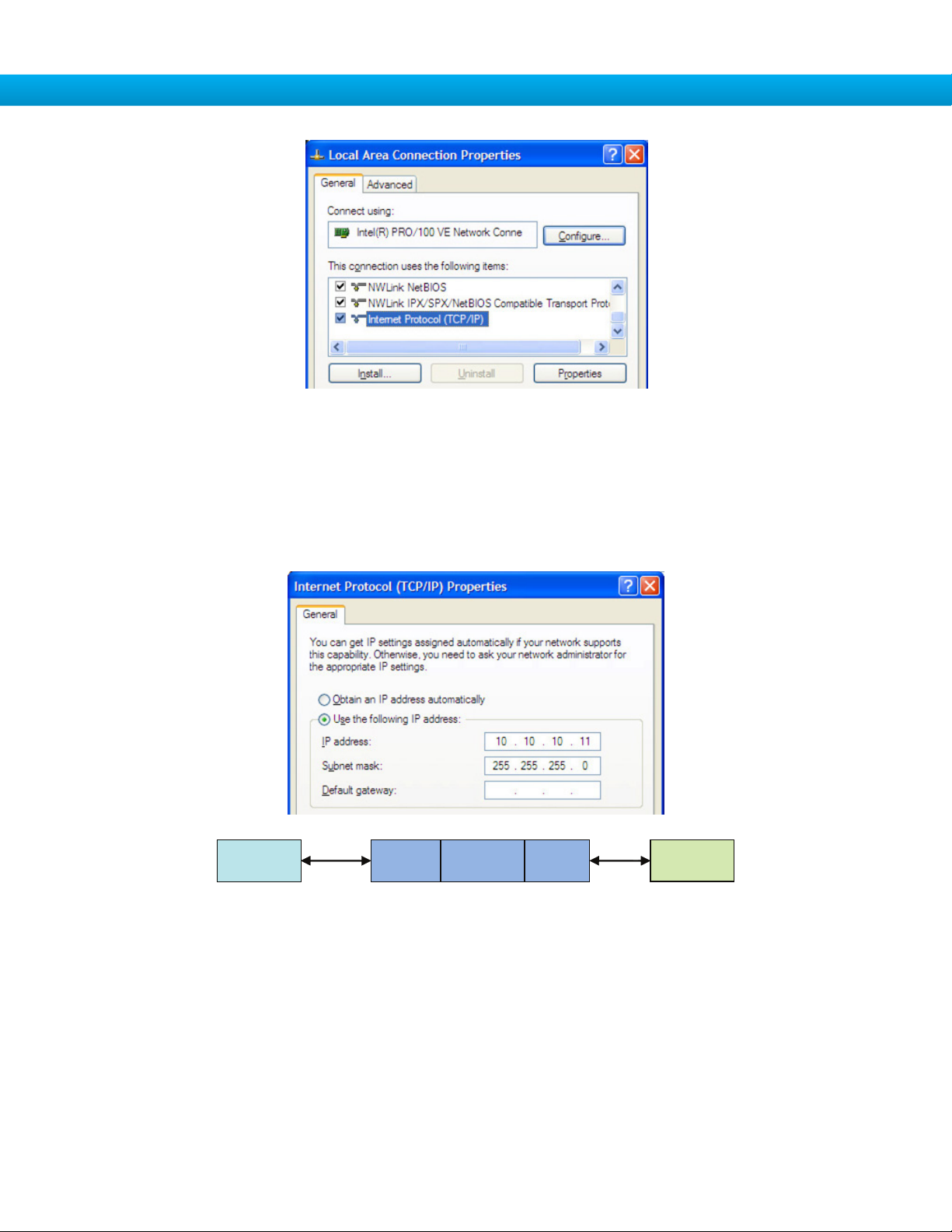

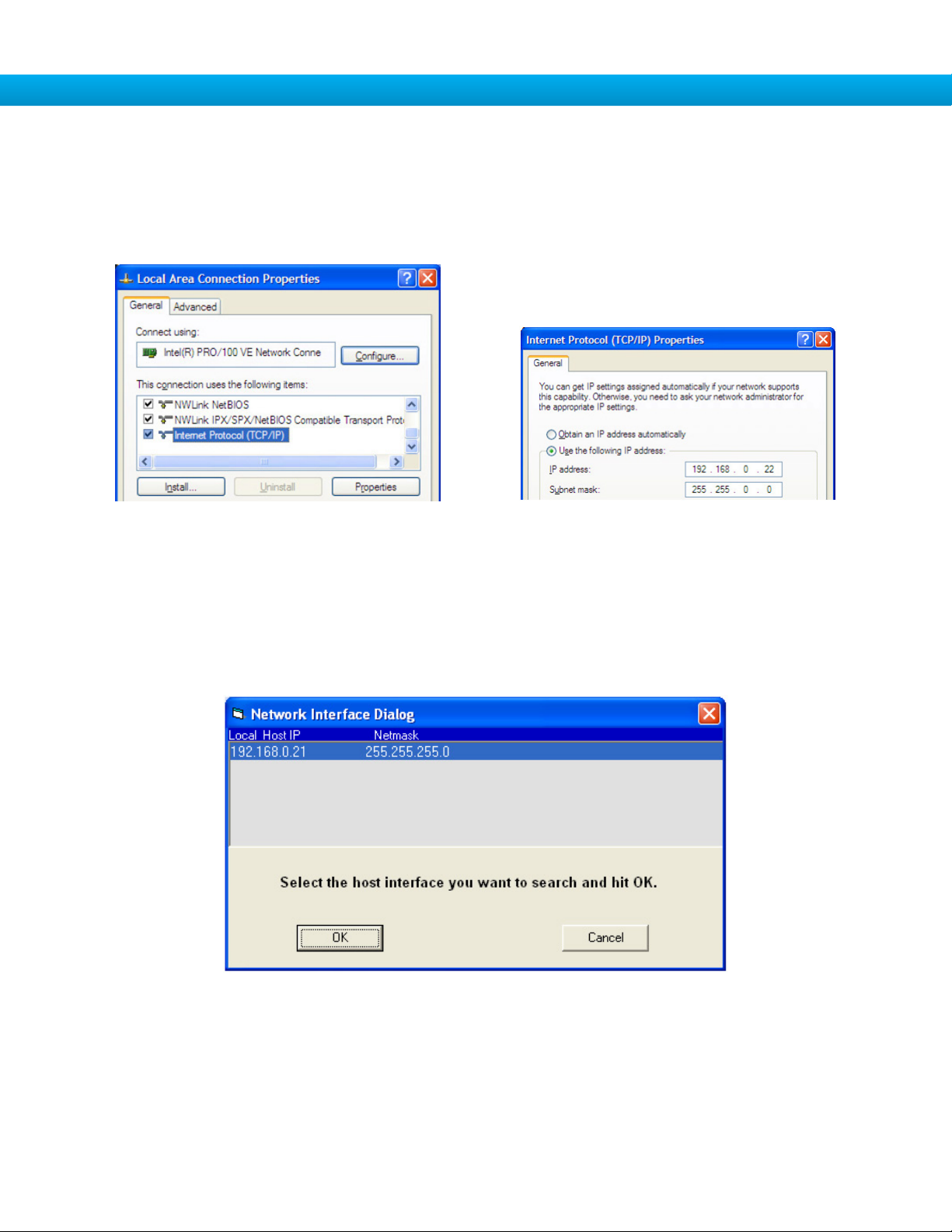

3. Scroll down until you see “Internet Properties (TCP/IP)”. Select this item and click the Properties button. On Windows 7 and Vista, look for “(TCP/IPv4)”

4. If the option “Obtain an IP address automatically” is selected, your PC is getting an IP address and a subnet mask from the DHCP server. Please cancel this dialog and proceed to the next section of this manual: “Using DHCP”.

5. If the option “Use the following IP address” is selected, life is good. Change the subnet mask to “255.255.0.0” and click OK.

Using DCHP

If you want to use your drive on a network that where all or most of the devices use dynamic IP addresses supplied by a DHCP server, set the rotary switch to “F”. When the drive is connected to the network and powered on, it will obtain an IP address and a subnet mask from the server that is compatible with your PC. The only catch is that you won’t know what address the server assigns to your drive. Bimba IQ® Stepper can nd your drive using the Drive Discovery feature, as long as your network isn’t too

large. With the drive connected to the network and powered on, select Drive Discovery from the Drive menu.

You will see a dialog such as this:

Normally, Drive Discovery will only detect one network interface card (NIC), and will select it automatically. If you are using a laptop and have both wireless and wired network connections, a second NIC may appear. Please select the NIC that you use to connect

to the network to which you’ve connected your drive. Then click OK. Drive Discovery will notify you as soon as it has detected a drive.

If you think this is the correct drive, click Yes. If you’re not sure, click Not Sure and Drive Discovery will look for additional drives on you network. Once you’ve told Drive Discovery which drive is yours, it will automatically enter that drive’s IP address in the IP

address text box so that you are ready to communicate.

Page 11

Option 2: Connect a Drive Directly to Your PC

STP-10 Hardware Manual

This is the simplest option:

1. Connect one end of a CAT5 Ethernet cable into the LAN card (NIC) on your PC and the other into the drive. You don’t need a special “crossover cable”; the drive will automatically detect the direct connection and make the necessary physical layer

changes.

2. Set the IP address on the drive to “10.10.10.10” by setting the rotary switch at “0”.

3. To set the IP address of your PC:

a. On Windows XP, right click on “My Network Places” and select properties.

b. On Windows 7, click Computer. Scroll down the left pane until you see “Network”. Right click and select properties.

Select “Change adapter settings”

4. You should see an icon for your network interface card (NIC). Right click and select properties.

a. Scroll down until you see “Internet Properties (TCP/IP)”. Select this item and click the Properties button.

b. On Windows 7 and Vista, look for “(TCP/IPv4)”

Page 12

STP-10 Hardware Manual

5. Select the option “Use the following IP address”. Then enter the address “10.10.10.11”. This will give your PC an IP address that is on the same subnet as the drive. Windows will know to direct any trafc intended for the drive’s IP address to this

interface card.

6. Next, enter the subnet mask as “255.255.255.0”.

7. Be sure to leave “Default gateway” blank. This will prevent your PC from looking for a router on this subnet.

8. Because you are connected directly to the drive, anytime the drive is not powered on your PC will annoy you with a small message bubble in the corner of your screen saying “The network cable is unplugged.”

PC NIC1 NIC2 LAN DRIVE

Option 3: Use Two Network Interface Cards (NICs)

This technique allows you to keep your PC connected to your LAN, but keeps the drive off the LAN, preventing possible IP conicts or excessive trafc.

1. If you use a desktop PC and have a spare card slot, install a second NIC and connect it directly to the drive using a CAT5 cable. You don’t need a special “crossover cable”; the drive will automatically detect the direct connection and make the

necessary physical layer changes.

2. If you use a laptop and only connect to your LAN using wireless networking, you can use the built-in RJ45 Ethernet connection as your second NIC.

3. Set the IP address on the drive to “10.10.10.10” by setting the rotary switch at “0”.

Page 13

STP-10 Hardware ManualSTP-10 Hardware Manual

RX+

–TX–

TX+

GND

RS-485/422

+RX- +TX- GND +RX- +TX- GND +RX- +TX- GND

to PC TX+

to PC TX-

to PC RX+

to PC RX-

to PC GND

Drive #1 Drive #2 Drive #3

4. To set the IP address of the second NIC:

a. On Windows XP, right click on “My Network Places” and select properties.

b. On Windows 7, click Computer. Scroll down the left pane until you see “Network”. Right click and select properties.

Select “Change adapter settings”

5. You should see an icon for your newly instated NIC. Right click again and select properties.

a. Scroll down until you see “Internet Properties (TCP/IP)”. Select this item and click the Properties button.

b. On Windows 7 and Vista, look for “(TCP/IPv4)”

6. Select the option “Use the following IP address”. Then enter the address “10.10.10.11”. This will give your PC an IP address that is on the same subnet as the drive. Windows will know to direct any trafc intended for the drive’s IP address to this

interface card.

7. Next, enter the subnet mask as “255.255.255.0”. Be sure to leave “Default gateway” blank. This will prevent your PC from

looking for a router on this subnet.

Connecting to a Host using RS-485 Option Card

RS-485 allows you to connect more than one drive to a single host PC, PLC, HMI or other computer. It also

allows the communication cable to be long (more than 1000 feet). But the device to which you connect must

have an RS-485 port.

Pin diagram is shown to the right. Wiring diagrams can be found on the next page. We recommend the use of Category 5 cable. It is widely used for computer networks, it is inexpensive, easy to get and certied for quality and data integrity.

The STP-10 drives can be used with either two wire or four wire RS-485 implementations. The connection can be point to point

(i.e. one drive and one host) or a multi-drop network (one host and up to 32 drives).

Four Wire Systems utilize separate transmit and receive wires. One pair of wires must connect the host computer’s transmit signals to each drive’s RX+ and RX- terminals. Another pair connects the TX+ and TX- drive terminals to the host computer’s

receive signals. A logic ground terminal is provided on each drive and can be used to keep all drives at the same ground potential.

This terminal connects internally to the DC power supply return (V-), so if all the drives on the RS-485 network are powered from

the same supply it is not necessary to connect the logic grounds. You should still connect one drive’s GND terminal to the host computer ground.

Four wire systems are better than two wire types because the host can send and receive data at the same time, increasing system throughput. Furthermore, the host never needs to disable its transmitter, which simplies your software.

RS-485 Four Wire System

Page 14

STP-10 Hardware Manual

+RX- +TX- GND +RX- +TX- GND +RX- +TX- GND

to PC TX+ (B)

to PC TX- (A)

to PC GND

Drive #1 Drive #2 Drive #3

Two Wire Systems transmit and receive on the same pair of wires, which can lead to trouble. The host must not only disable its transmitter before it can receive data, it must do so quickly, before a drive begins to answer a query. The STP-10 drives include a “transmit delay” parameter that can be adjusted to compensate for a host that is slow to disable its transmitter. This adjustment

can be made over the network using the TD command, or it can be set using the IQ® Stepper software. It is not necessary to set the transmit delay in a four wire system.

RS-232 to RS-485 2-wire Converter

Model 485-25E from Integrity Instruments (800-450-2001) works well for converting your PC’s RS-232 port to RS-485. It comes

with everything you need. Connect the adaptor’s “B” pin to the STP-10 drive’s TX+ and RX+ terminals. Connect “A” to the drive’s TX- and RX- terminals.

RS-485 Two Wire System

Converting USB to RS-485

The USB-COMi-M from www.byterunner.com is an excellent choice for USB to RS-485 conversion. Set SW1 to ON and SW2-4 to OFF. On the USB-COMi-M screw terminal connector: pin 1 goes to RX- and TX-. Connect pin 2 to RX+ and TX+. Pin 6 is ground. The DB-9 is not used.

Assigning Multi-Drop Addresses

Before wiring all of the drives in a multi-drop network, you’ll need to connect each drive individually to the host computer so that a unique address can be assigned to each drive. Use the programming cable and the IQ® Stepper software that came with your drive for this purpose.

Connect the drive to your PC, then launch the IQ® Stepper software. Finally, apply power to your drive. If you have already congured your drive, then you should click the Upload button so that the IQ® Stepper settings match those of your drive. Click on the Motion button, then select the “SCL” operating mode. If you have an IQ® drive, you may want to select “IQ® Programmer”. Either way, you’ll see the RS-485 Address panel appear. Just click on the address character of your choice. You can use the numerals 0..9 or the special characters ! “ # $ % & ‘ ( ) * + , - . / : ; < = > ? @ . Just make sure that each drive on your network has a

unique address. If you are using a 2 wire network, you may need to set the Transmit Delay, too. 10 milliseconds works on the adapters we’ve tried. Once you’ve made your choices, click Download to save the settings to your drive.

Page 15

STP-10 Hardware Manual

Connecting the Power Supply

If you need information about choosing a power supply, please read Choosing a Power Supply located on page 27 in this manual.

Connect the motor power supply “+” terminal to the driver terminal labeled “V+”. Connect power supply “-” to the drive terminal labeled “V-”. Use 18 or 20 gauge wire. The STP drives contain an internal fuse that connects to the power supply + terminal.

This fuse is not user replaceable. If you want to install a user servicable fuse in your system install a fast acting fuse in line with the

+ power supply lead. Use 7 amps for the STP-10.

The green ground screw on the corner of the chassis should be connected to earth ground.

Be careful not to reverse the wires. Reverse connection will destroy your driver and void your warranty.

If you plan to use a regulated power supply, you may encounter a problem with regeneration. If you rapidly decelerate a load from

a high speed, much of the kinetic energy of that load is transferred back to the power supply. This can trip the overvoltage protec-

tion of a switching power supply, causing it to shut down. We offer the RGC-050 “regeneration clamp” to solve this problem. If in doubt, buy an RGC-050 for your rst installation. If the “regen” LED on the RGC-050 never ashes, you don’t need the clamp.

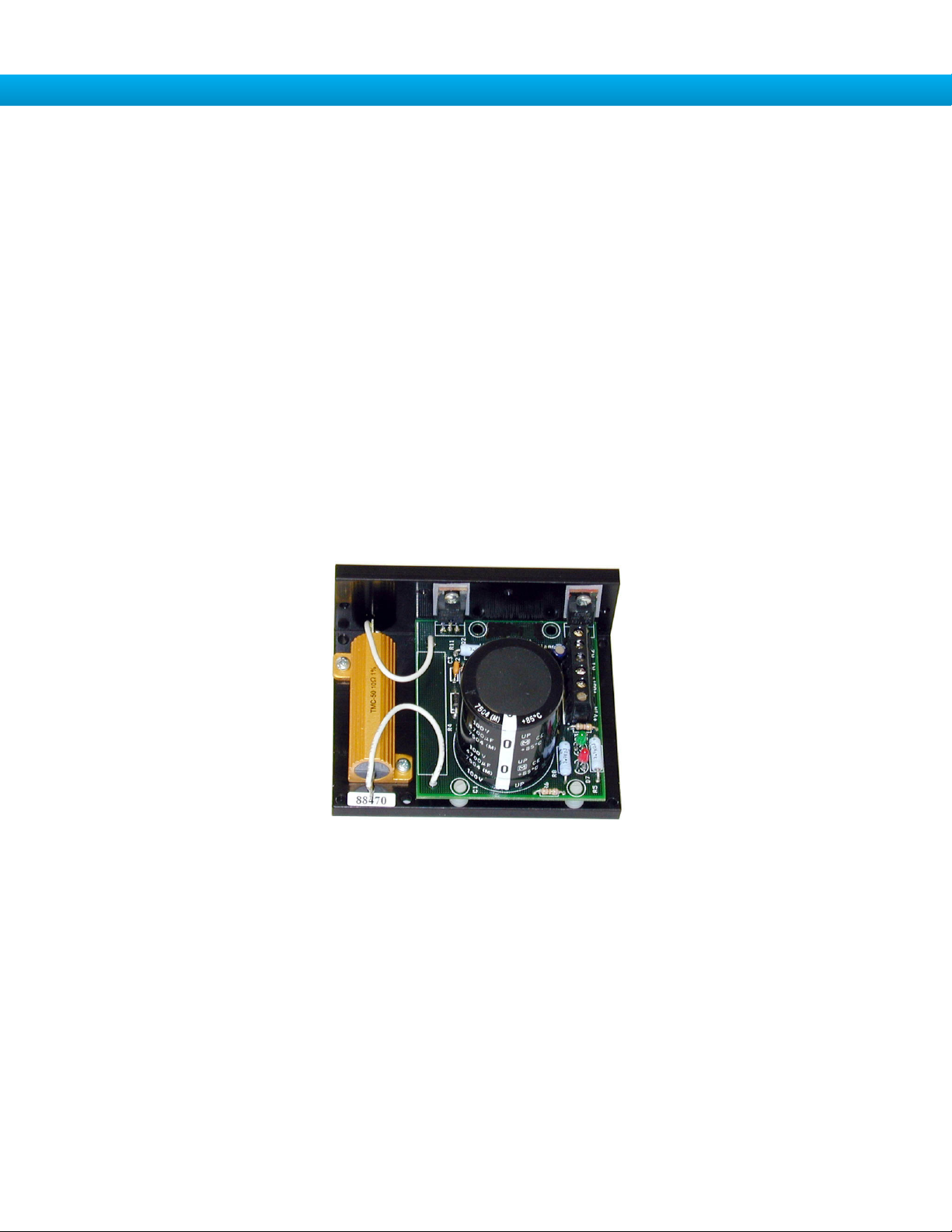

RGC-050 Regen Clamp

Page 16

STP-10 Hardware Manual

A+

A–

B+ B–

lead

motor

Red

Blue

Yellow

White

4 Leads

A+

A–

B+

B–

lead

motor

Red

Black

Red/

Wht

Green

Grn/Wht

White

A+

A–

B+B–

lead

motor

Grn/Wht

White

Green

Red

Red/

Wht

Black

6 Leads Series Connected 6 Leads Center Tap Connected

A+

A–

B+ B–

lead

motor

8 Leads Series Connected 8 Leads Parallel Connected

A+

A–

B+

B–

lead

motor

Orange

Org/Wht

Blk/Wht

Black

Red

Red/

Wht

Yel/ Wht

Yellow

Orange

Org/

Wht

Blk/Wht

Black

Red

Red/Wht

Yel/ Wht

Yel low

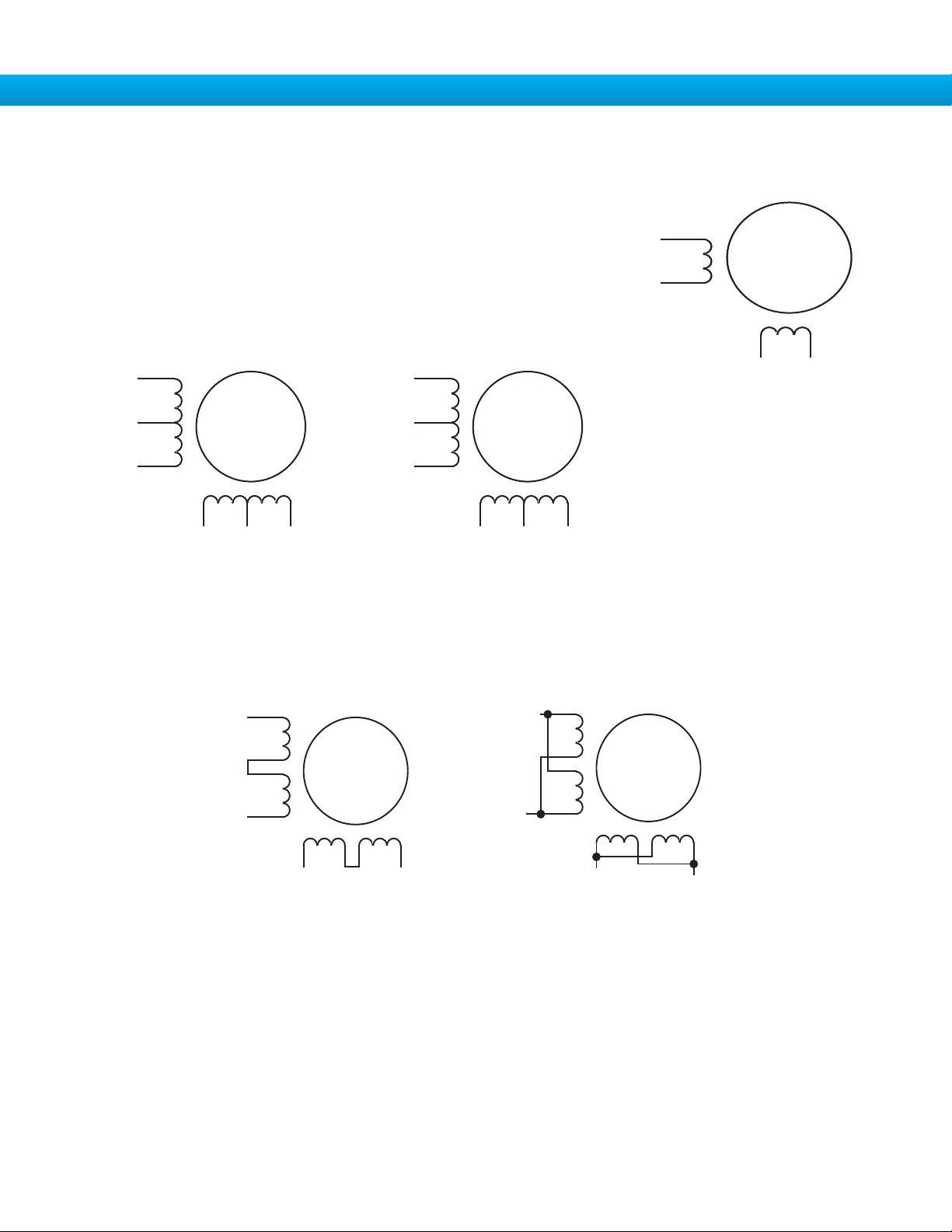

Connecting the Motor

Never connect or disconnect the motor while the power is on.

Four lead motors can only be connected one way. Please follow the sketch at the right.

Six lead motors can be connected in series or center tap. In series mode, motors produce more torque at low speeds, but cannot run as fast as in the center tap conguration. In series operation, the motor should be operated at 30% less than the rated cur-

rent to prevent overheating. Winding diagrams for both connection methods are shown

below. NC means not connected.

Eight lead motors can also be connected in two ways: series and parallel. As with six lead motors, series operation gives you less

torque at high speeds, but may result in lower motor losses and less heating. In series operation, the motor should be operated

at 30% less than the unipolar rated current. The motors recommended in this manual should be connected in parallel. The wiring

diagrams for eight lead motors are shown below.

Page 17

STP-10 Hardware Manual

encoder Z+ (5)

do not connect (10)

encoder B- (4)

do not connect (9)

encoder B+ (3)

do not connect (13)

do not connect (14)

shield (15)

(12) do not connect

(11) do not connect

(6) encoder Z-

(1) encoder A+

(7) +5VDC 200mA

(2) encoder A-

(8) GND

Front View

inside drive

A-

A+

GND

+5V

HD-15 Connector

B-

B+

Z-

Z+

12.5K

8.3K

12.5K

8.3K

12.5K

8.3K

Connecting an Encoder (Requires the Optional Encoder Feedback Card)

The encoder connections use a HD-15 connector, which you must connect to your encoder as shown below. See back page for

mating connector information.

If your encoder is single ended, connect the encoder outputs to the A+, B+ and Z+ inputs. Leave A-, B- and Z- unconnected. (Z

is the encoder index signal and is optional.)

Pin Assignments (facing drive)

Internal Circuit

Page 18

STP-10 Hardware Manual

Front View

X COMMON

X3 / Enable

X5 / CWJOG

X4 / Alarm Reset

Analog IN2

Analog IN1

X2 / DIR-

X2 / DIR+

X1 / STEP +

X1 / STEP -

GND

+5V OUT

Y COMMON

Y3 / FAULT

Y2 / MOTION

Y1 / BRAKE

2 3

20 21 22 23 24 25

X6 / CCWJOG

IN/OUT

X8/CCWLIMIT+ X8/CCWLIMIT-

X7/CWLIMIT-

X7/CWLIMIT+

Y4-

Y4+

Connecting Input Signals

The STP drives have three types of inputs:

• High speed digital inputs for step & direction commands or encoder following, 5 volt logic

• Digital inputs for other signals, 12 - 24 volt logic

• Analog inputs for analog speed and positioning modes

All drives include eight digital inputs and two analog inputs.

• CW & CCW Limit: can be used to inhibit motion in a given direction, forcing the motor and load to travel within mechanical

limits. Can be congured for active closed, active open or not used.

• IN1/STEP & IN2/DIR: digital signals for commanding position. Quadrature signals from encoders can also be used. These

inputs can also be connected to sensors, switches and other devices for use with Q commands such as Wait Input, Seek

Home, Feed to Sensor, If Input and others.

• IN3,4,5,6: software programmable inputs can be used for motor enable, alarm reset or jogging. These inputs can also be

connected to sensors, switches and other devices for use with Q Wait Input, Seek Home, Feed to Sensor, If Input and other

commands.

• Analog In: analog velocity or position command signal. Can be congured for 0-10V, 0-5V, ±10V or ±5V, with or without offset.

Connector Pin Diagram

IN/OUT1 (DB-25) Connector

High Speed Digital Inputs

The STP Series drives include two high speed inputs called STEP and DIR. They accept 5 volt single-ended or differential signals, up to 2 MHz. Normally these inputs connect to an external controller that provides step & direction command signals. You can

also connect a master encoder to the high speed inputs for following applications. Or you can use these inputs with Wait Input, If Input, Feed to Sensor, Seek Home and other such commands.

Page 19

IN/OUT 1

COM

X2/DIR-

DIR X2/DIR+

X1/STEP-

STEP X1/STEP+

Indexer

with

Sourcing

Outputs

IN/OUT 1

+5V OUT

X2/DIR+

DIR X2/DIR-

X1/STEP+

STEP X1/STEP-

Indexer

with Sinking Outputs

IN/OUT 1

DIR+

X2/DIR+

DIR- X2/DIR-

X1/STEP+

STEP-

STEP+

X1/STEP-

Indexer

with

Differential

Outputs

IQ Drive

Master

Encoder

GND

X2/DIR-

X2/DIR+

X1/STEP-

X1/STEP+

GND

B-

B+

A-

A+

Connection diagrams follow.

STP-10 Hardware Manual

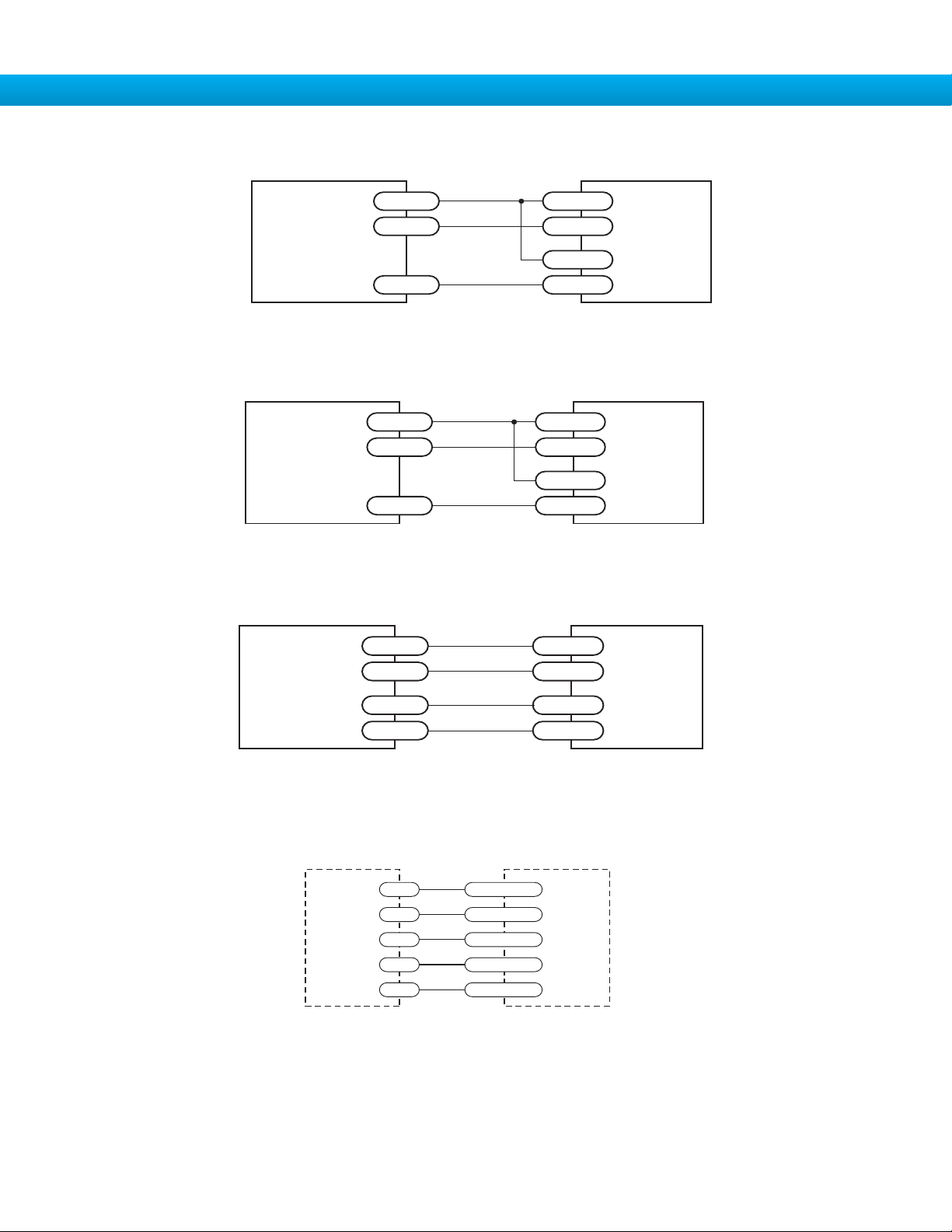

Connecting to indexer with Sourcing Outputs

Connecting to Indexer with Sinking Outputs

Connecting to Indexer with Differential Outputs

(Many High Speed Indexers have Differential Outputs)

Wiring for Encoder Following

Page 20

STP-10 Hardware Manual

DRIVE

+12-24V

GND

X2/DIR-

OUT1 X2/DIR+

X1/STEP-

OUT2 X1/STEP+

PLC

with

Sourcing

Outputs

DRIVE

+12-24V

X2/DIR+

DIR X2/DIR-

X1/STEP+

STEP X1/STEP-

PLC

with

Sinking

Outputs

DRIVE

X2/DIR+

X2/DIR-

X1/STEP+

- X1/STEP-

+24VDC

Power

Supply

2200

direction switch

run/stop switch

(closed=run)

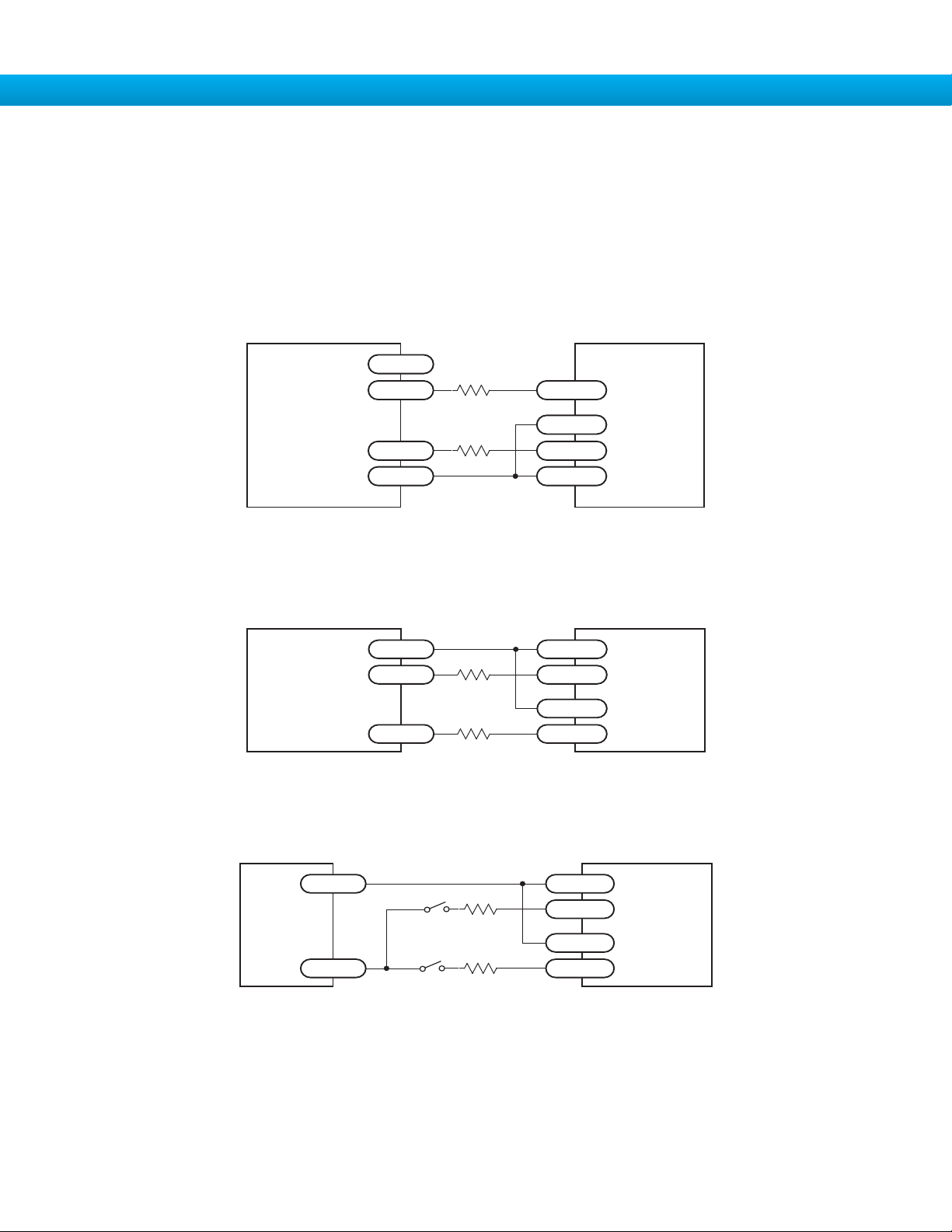

Using High Speed Inputs with 12-24 Volt Signals

Most PLCs don’t use 5 volt logic. You can connect signal levels as high as 24 volts to the STEP and DIR inputs if you add external

dropping resistors, as shown below.

• For 12 volt logic, add 820 ohm, 1/4 watt resistors

• For 24 volt logic, use 2200 ohm, 1/4 watt resistors

The maximum voltage that can be applied to an input terminal is 24 volts DC. Never apply AC voltage to an input terminal.

Connecting to PLC with Sourcing (PNP) Outputs

(Most PLC’s use 24 volt logic)

Connecting to PLC with Sinking (NPN) Outputs

(Most PLC’s use 24 volt logic)

Using Mechanical Switches at 24 Volts

Page 21

Other Digital Inputs

2200

inside drive

XCOM

X3/EN

X4/RST

X8/CCWLIM-

X8/CCWLIM+

2200

X7/CWLIM-

X7/CWLIM+

DB-25 Connector

IN/OUT1

X3..X6

XCOM

DRIVE

OUT+

OUT–

12-24

VDC

Power

Supply

DRIVE

switch or relay

(closed=logic low)

X3..X6

XCOM

12-24

VDC

Power

Supply

As we mentioned in the previous section, the high speed STEP and DIR inputs are congured for ve volt logic. All other digital inputs are designed for opera-

tion between 12 and 24 volts DC.

Single Ended Inputs

The STP drives include four single ended, optically isolated input circuits that

can be used with sourcing or sinking signals, 12 to 24 volts. This allows con-

nection to PLCs, sensors, relays and mechanical switches. Because the input

circuits are isolated, they require a source of power. If you are connecting to a

PLC, you should be able to get power from the PLC power supply. If you are using relays or mechanical switches, you will need a 12-24 V power supply.

What is COM?

“Common” is an electronics term for an electrical connection to a common voltage. Sometimes “common” means the same thing as “ground”, but not always. In the case of the STP drives, if you are using sourcing (PNP) input

signals, then you will want to connect COM to ground (power supply -). If you

are using sinking (NPN) signals, then COM must connect to power supply +.

STP-10 Hardware Manual

Note: If current is owing into or out of an input, the logic state of that input is low or closed. If no current is owing, or the input

is not connected, the logic state is high or open.

The diagrams below and on the following page show how to connect the inputs to various commonly used devices.

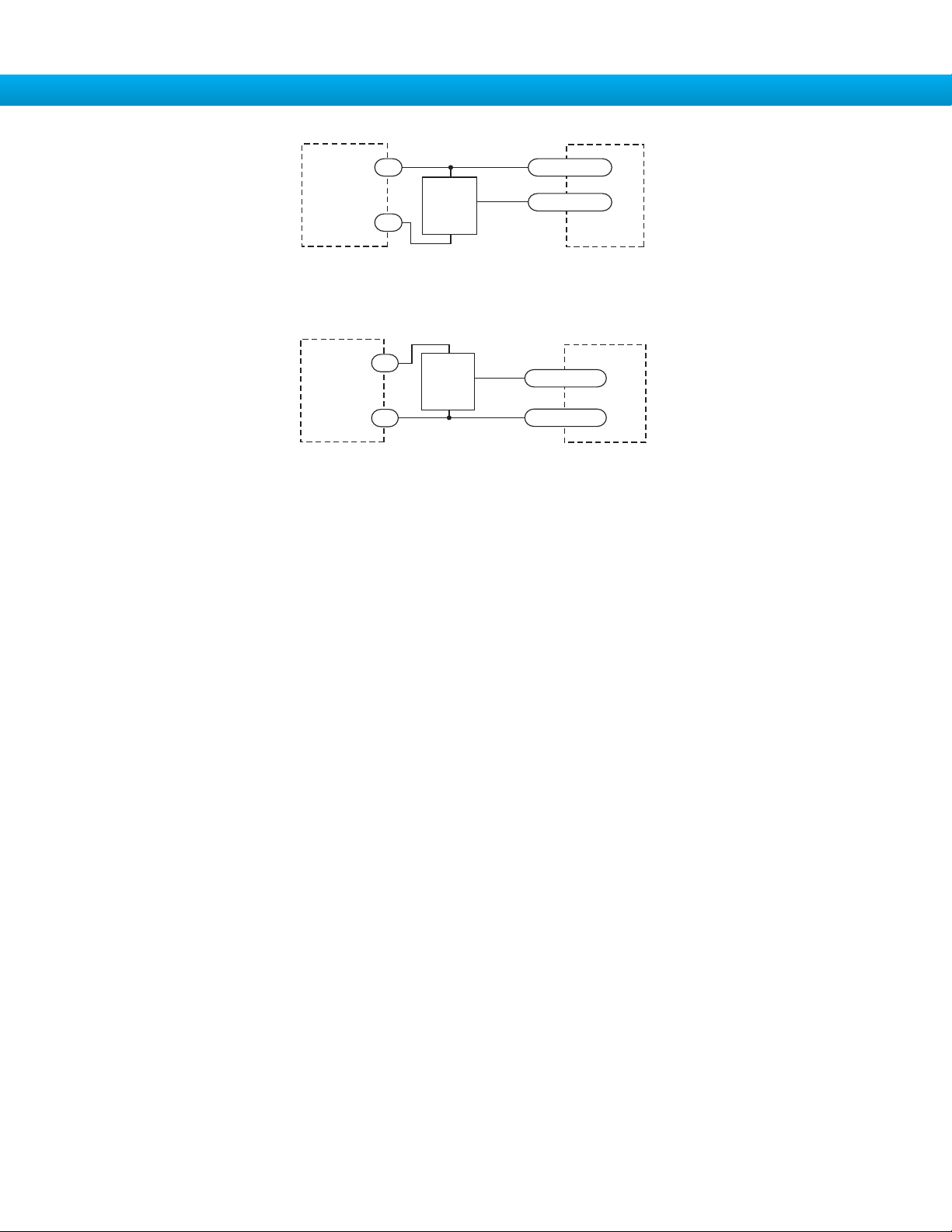

Connecting an Input to a Switch or Relay

Connecting another IQ drive to the STP

(When output closes, input goes low).

Page 22

STP-10 Hardware Manual

DRIVE

NPN

Proximity

Sensor

X3..X6

XCOM

output

–

12-24

VDC

Power

Supply

DRIVE

PNP

Proximity

Sensor

X3..X6

output

–

XCOM

12-24

VDC

Power

Supply

Connecting an NPN Type Proximity Sensor to an input

(When prox sensor activates, input goes low).

Connecting a PNP Type Proximity Sensor to a an input

(When prox sensor activates, input goes low).

Page 23

STP-10 Hardware Manual

DRIVE

Power

Supply

–

Limit

Sensor

output

–

CW LIMIT+

CW LIMIT-

DRIVE

12-24

VDC

SUPPLY

CW LIMIT+

CW LIMIT-

CCW LIMIT+

CCW LIMIT-

inside drive

2200

X8/CCWLIM-

X8/CCWLIM+

2200

X7/CWLIM-

X7/CWLIM+

Connecting Limit Switches

The CWLIMIT and CCWLIMIT inputs are used for connecting end of travel sensors. These inputs are differential, which allows you to use signals that are sinking (NPN), sourcing (PNP) or differential (line driver). By connecting switches or sensors that are

triggered by the motion of the motor or load, you can force the motor to operate within certain limits. This is useful if a program or operator error could cause damage to your system by traveling too far.

The limit inputs are optically isolated. This allows you to choose a voltage for your limit circuits of 12 to 24 volts DC. This also allows you to have long wires on limit sensors that may be far from the drive with less risk of introducing noise to the drive electronics. The schematic diagram of the limit switch input circuit is shown below.

Wiring a Mechanical Limit Switch

You can use normally open or normally closed limit switches. Either way, wire them as shown here. Be sure to set the polarity using the IQ® Stepper software for the STP-10-Q.

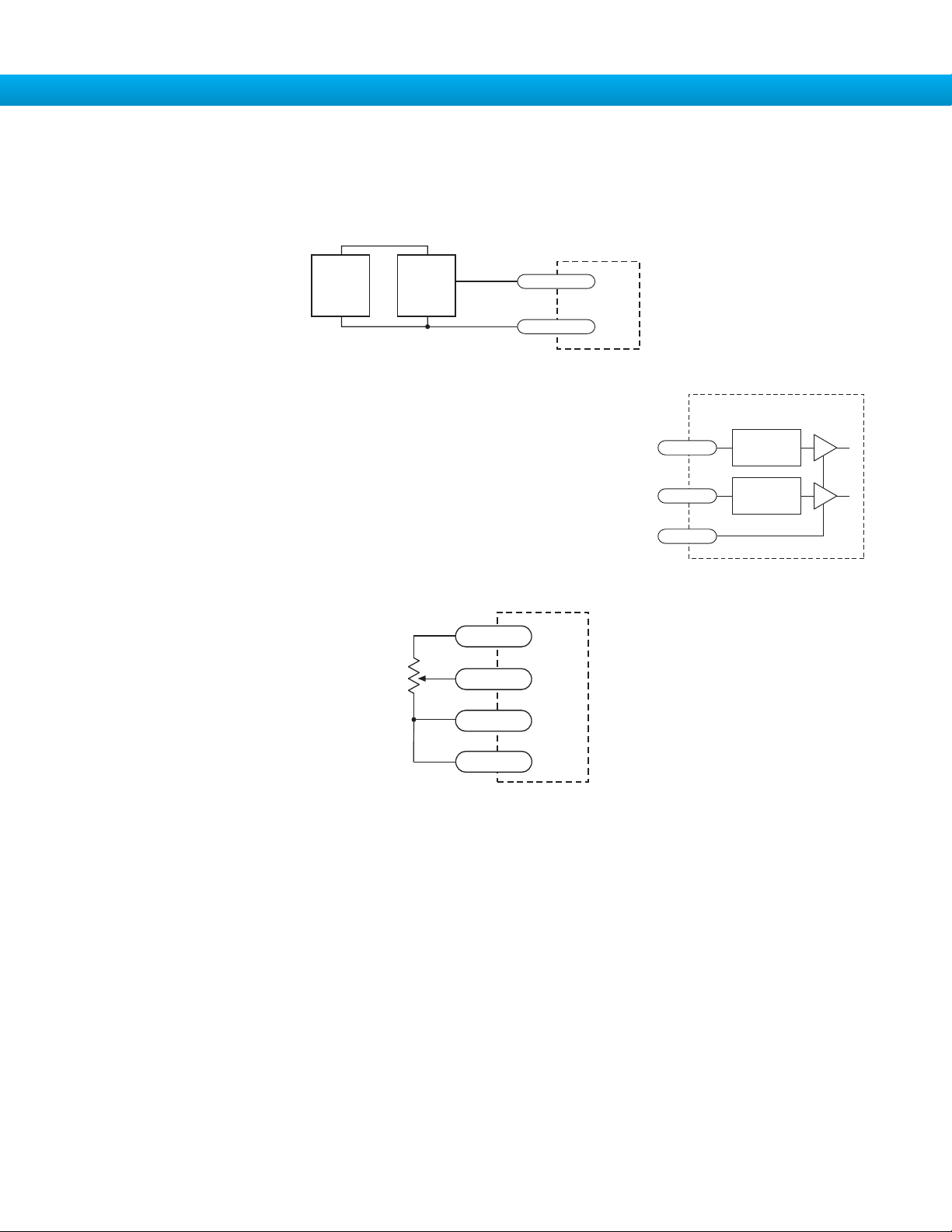

Wiring a Limit Sensor

Some systems use active limit sensors that produce a voltage output rather than a switch or relay closure. These devices must be

wired differently than switches.

If your sensor has an open collector output or a sinking output, wire it like this:

Page 24

STP-10 Hardware Manual

DRIVE

Power

Supply

–

Proximity

Sensor

output

–

CW LIMIT+

CW LIMIT-

inside drive

AIN1

AIN2

GND

DB-25 Connector

Signal

Conditioning

Signal

Conditioning

1-10kW

pot

ccw

DRIVE

GND

AIN

+5V OUT

AIN2

If the sensor output goes low at the limit, select the option “closed” (in the software). If the output is open, or high voltage, choose “open”.

Other sensors have sourcing outputs. That means that current can ow out of the sensor output, but not into it. In that case, wire the sensor this way:

Analog Inputs

The STP drives feature two analog inputs. Each input can accept a signal range of 0 to 5 VDC, ±5 VDC, 0 to 10 VDC or ±10 VDC. The drive can be congured to operate

at a speed or position that is proportional to the analog signal.

A shielded cable is recommended for electrically noisy environments.

Use the IQ® Stepper software to set the signal range, offset, deadband and lter fre-

quency.

Connecting a Potentiometer to Analog Input 1

Page 25

Programmable Outputs

IN/OUT1

YCOM

Y1/2/3

5-24 VDC

Power Supply

+ –

Load

IN/OUT1

YCOM

Y4+

Y4-

IN/OUT1

Y4-

Y4+

5-24 VDC

Power Supply

+ –

Load

PLC

IN/OUT1

5-24 VDC

Power Supply

+ –

YCOM

Y1/2/3

COM

PLC

IN/OUT1

5-24 VDC

Power Supply

+ –

Y4-

Y4+

COM

The STP drives feature four digital outputs. These outputs can be set to automically

control a motor brake, to signal a fault condition, to indicate when the motor is moving or to provide an output frequency proportional to motor speed (tach signal). Or the

outputs can be turned on and off by program instructions like Set Output.

The outputs can be used to drive LEDs, relays and the inputs of other electronic devices like PLCs and counters. For Y4, the “+” (collector) and “-” (emitter) terminals of each transistor are available at the connector. This allows you to congure this output

for current sourcing or sinking. The Y1-3 outputs can only sink current. The Y COM terminal must be tied to power supply (-).

Diagrams of each type of connection follow.

Do not connect the outputs to more than 30VDC. The current through each output terminal must not exceed 100 mA.

STP-10 Hardware Manual

Sinking Output

Using Y1, Y2, Y3

Sourcing Output Using Y1, Y2, Y3

Sinking Output

Using Y4

Sourcing Output

Using Y4

Page 26

STP-10 Hardware Manual

IN/OUT1

YCOM

Y1/2/3

1N4935 suppression diode

5-24 VDC

Power Supply

+ –

relay

IN/OUT1

Y4-

Y4+

1N4935 suppression diode

5-24 VDC

Power Supply

+ –

relay

Driving a Relay

Using Y1, Y2, Y3

Driving a Relay

Using Y4

Page 27

STP-10 Hardware Manual

Choosing a Power Supply

When choosing a power supply, there are many things to consider. If you are manufacturing equipment that will be sold to others, you probably want a supply with all the safety agency approvals. If size and weight are an issue use a switching supply.

You must also decide what size of power supply (in terms of voltage and current) is needed for your application.

Voltage

PWM drives work by switching the voltage to the motor terminals on and off while monitoring current to achieve a precise level of phase current. To do this efciently and silently, you’ll want to have a power supply with a voltage rating at least ve times that of

the motor. Depending on how fast you want to run the motor, you may need even more voltage than that.

If you choose an unregulated power supply, make sure the no load voltage of the supply does not exceed the drive’s maximum

input voltage specication.

Current

The maximum supply current you could ever need is the sum of the two phase currents. However, you will generally need a lot less than that, depending on the motor type, voltage, speed and load conditions. That’s because the STP drives use switching ampliers, converting a high voltage and low current into lower voltage and higher current. The more the power supply voltage

exceeds the motor voltage, the less current you’ll need from the power supply. A motor running from a 48 volt supply can be expected to draw only half the supply current that it would with a 24 volt supply.

We recommend the following selection procedure:

1. If you plan to use only a few drives, get a power supply with at least twice the rated phase current of the motor.

2. If you are designing for mass production and must minimize cost, get one power supply with more than twice the rated current of the motor. Install the motor in the application and monitor the current coming out of the power supply and into the drive at various motor loads. This will tell you how much current you really need so you can design in a lower cost power supply.

Page 28

STP-10 Hardware Manual

Recommended Motors

Holding Torque

Part Number oz-in kg-cm amps ohms mH g-cm

MTR-DC17T-275-F 62.8 4.52 2.0 1.7 3.0 68

MTR-DC23T-598-F 177 12.7 5.0 0.4 1.2 300

MTR-DC23T-598D-F 177 12.7 5.0 0.4 1.2 300

MTR-DC23T-598-S 177 12.7 5.0 0.4 1.2 300

MTR-DC23T-598D-S 177 12.7 5.0 0.4 1.2 300

MTR-DC23W-598-S 177 12.7 5.0 0.4 1.2 300

MTR-DC23W-598D-S 177 12.7 5.0 0.4 1.2 300

MTR-DC23T-601-F 264 19.0 5.0 0.5 1.6 480

MTR-DC23T-601D-F 264 19.0 5.0 0.5 1.6 480

MTR-DC23T-601-S 264 19.0 5.0 0.5 1.6 480

MTR-DC23T-601D-S 264 19.0 5.0 0.5 1.6 480

MTR-DC23W-601-S 264 19.0 5.0 0.5 1.6 480

MTR-DC23W-601D-S 264 19.0 5.0 0.5 1.6 480

MTR-DC34T-506-F 1260 90.7 5.6 0.48 5.4 2746

MTR-DC34T-506D-F 1260 90.7 5.6 0.48 5.4 2746

MTR-DC34T-506-S 1260 90.7 5.6 0.48 5.4 2746

MTR-DC34T-506D-S 1260 90.7 5.6 0.48 5.4 2746

MTR-DC34W-506-S 1260 90.7 5.6 0.48 5.4 2746

MTR-DC34W-506D-S 1260 90.7 5.6 0.48 5.4 2746

Drive Current

Setting

Resistance Inductance Rotor Inertia

Note: The “Drive Current Setting” shown here differs from the rated current of each motor because the rated current is RMS and the drive current setting is peak sine. If you are using a motor not listed here, for best results set the drive current at the motor’s rated current x 1.2.

Page 29

STP-10 Hardware Manual

Specications and Sizing

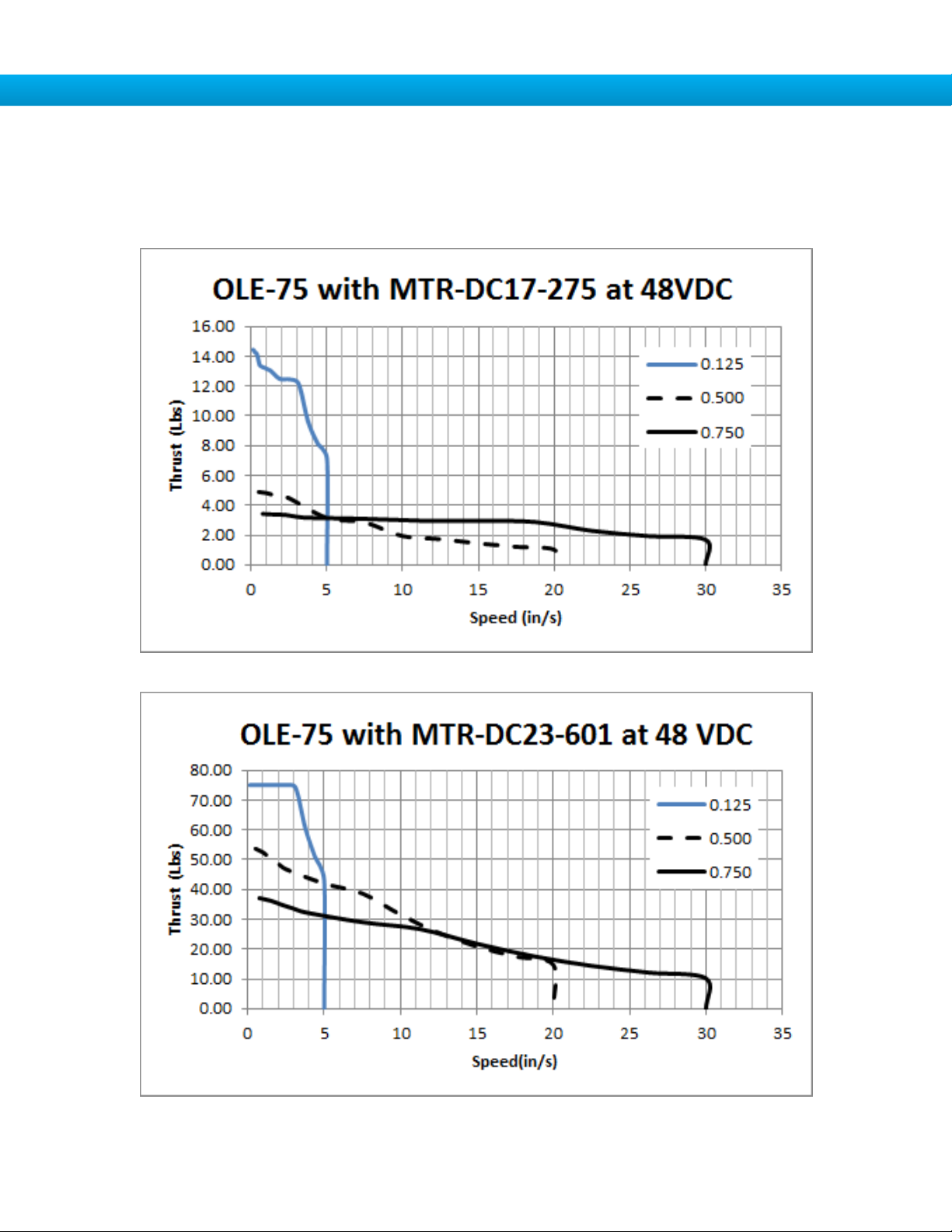

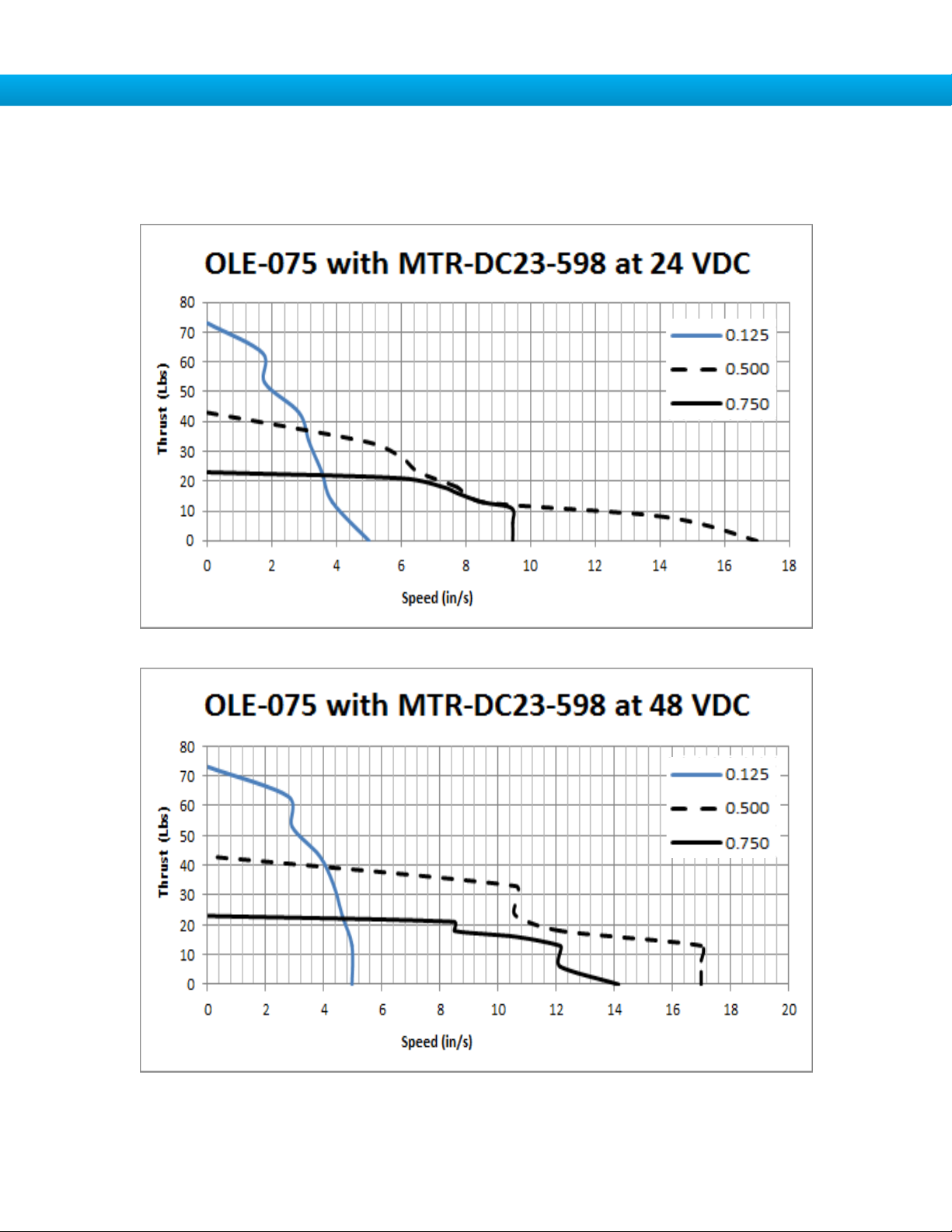

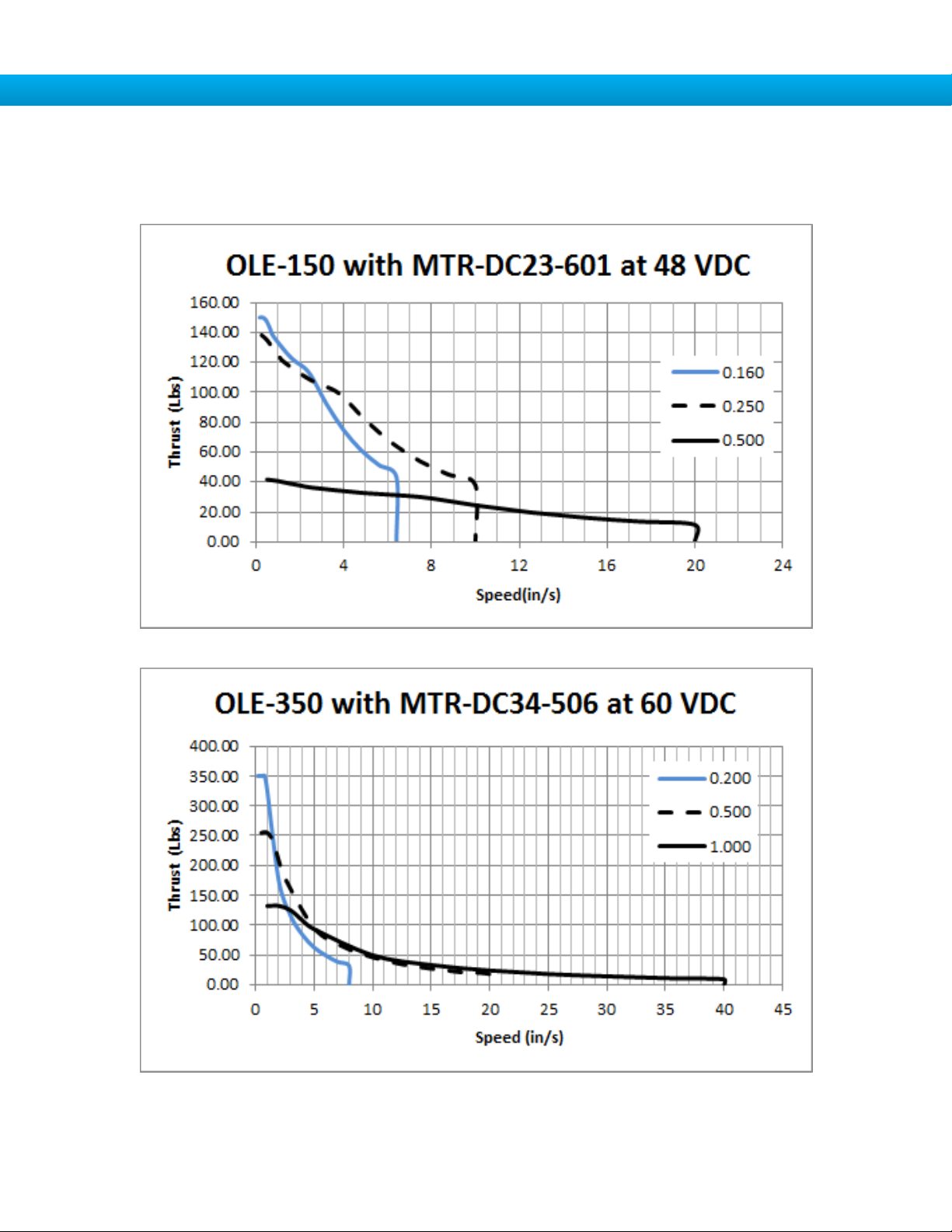

Speed/Thrust Performance, Vertical Orientation, Pounds and Inches/Second Maximum Continuous

Page 30

STP-10 Hardware Manual

Page 31

STP-10 Hardware Manual

Page 32

STP-10 Hardware Manual

Motor Heating

Step motors convert electrical power from the driver into mechanical power to move a load. Because step motors are not perfectly efcient, some of the electrical power turns into heat on its way through the motor. This heating is not so much dependent on the

load being driven but rather the motor speed and power supply voltage. There are certain combinations of speed and voltage at which a motor cannot be continuously operated without damage.

We have characterized the recommended motors in our lab and provided curves showing the maximum thrust versus speed for

each motor at commonly used power supply voltages. Please refer to these curves which demonstrate 100% duty cycle when

planning your application.

Please also keep in mind that a step motor typically reaches maximum temperature after 30 to 45 minutes of operation. If you run the motor for one minute then let it sit idle for one minute, that is a 50% duty cycle. Five minutes on and ve minutes off is also 50% duty. However, one hour on and one hour off has the effect of 100% duty because during the rst hour the motor will reach

full (and possibly excessive) temperature.

The actual temperature of the motor depends on how much heat is conducted, convected or radiated out of it. Our measure-

ments were made in a 40°C (104°F) environment with the motor mounted to an aluminum plate sized to provide a surface area

consistent with the motor power dissipation. Your results may vary.

Page 33

Motor Dimensions

STP-10 Hardware Manual

OLE-75, -150; No Encoder

Code DC Motor A B C D E F

P6 MTR-DC23T-598-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06 P7 MTR-DC23W-598-S P8 P9 MTR-DC23W-601-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06

OLE-75, -150; Encoder Version

120" SHIELDED CABLE

0.79 0.25

MTR-DC23T-601-S 0.79

120" ENCODER CABLE

120" SHIELDED CABLE

0.23

0.25 0.23

L H

0.59 1.498/1.502

0.59

1.498/1.502 0.06

0.06

Code DC Motor A B C D E F

E6 MTR-DC23T-598D-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06 E7 MTR-DC23W-598D-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06 E8 MTR-DC23T-601D-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06 E9 MTR-DC23W-601D-S 0.79 0.25 0.23 0.59 1.498/1.502 0.06

Page 34

STP-10 Hardware Manual

OLE-350; No Encoder

Code DC Motor A B C D E F

P10 MTR-DC34T-506-S 1.46 0.50 0.45 1.00 2.873/2.877 0.08 P11 MTR-DC34W-506-S 1.46 0.50 0.45 1.00 2.873/2.877 0.08

OLE-350; Encoder Version

120" SHEILDED CABLE

120" ENCODER CABLE

120" SHIELDED CABLE

H L

L H

Code DC Motor A B C D E F

E10 MTR-DC34T-506-S 1.46 0.50 0.45 1.00 2.873/2.877 0.08 E11 MTR-DC34W-506D-S 1.46 0.50 N/A 1.00 2.873/2.877 0.08

Page 35

STP-10 Hardware Manual

3.0

1.775

5.0

6X SLOT 0.16 WIDE, FULL R

0.663

1.98

0.61

4.74

Mounting the Drive

You can mount your drive on the wide or the narrow side of the chassis using #6 screws. If possible, the drive should be securely fastened to a smooth, at metal surface that will help conduct heat away from the chassis. If this is not possible, then forced airow from a fan may be required to prevent the drive from overheating.

• Never use your drive in a space where there is no air ow or where other devices cause the surrounding air to be more than 40°C.

• Never put the drive where it can get wet or where metal or other electrically conductive particles can get on the circuitry.

• Always provide air ow around the drive. When mouting multiple STP drives near each other, maintain at least one half inch of space between drives.

Mechanical Outline

Page 36

STP-10 Hardware Manual

Technical Specications

Amplier

Digital MOSFET. 20 kHz PWM. ST5: 24 - 48 VDC, motor current: 0.5 to 5.0 amps/phase peak of sine

STP-10: 24 - 48 VDC, motor current: 0.5 to 10 amps/phase peak of sine

Digital Inputs

Step & Direction: differential, optically isolated, 5V logic. 330 ohms internal resistance.

0.5 µsec minimum pulse width. 2 µsec minimum set up time for direction signal.

All other digital inputs: optically isolated, 12 - 24V logic. 2200 ohms. Maximum current: 10 mA.

Analog Inputs

±10VDC, 12 bit ADC, 100k ohms internal impedance.

Outputs

Photodarlington, 100 mA, 30 VDC max. Voltage drop: 1.2V max at 100 mA.

Physical

1.775 x 3 x 5 inches overall. 10 oz (280 g)

Ambient temperature range: 0°C to 40°C.

Page 37

STP-10 Hardware Manual

Mating Connectors and Accessories

Mating Connectors

Motor/power supply: PCD P/N ELV06100, included with drive. IN/OUT1: DB-25 male. Bimba P/N 5-747912-2. Shell Kit Bimba P/N 5-748678-3. Included. Optional encoder feedback: HD-15 male. Norcomp P/N 180-015-102-001. Shell Kit Bimba P/N 5-748678-1. Not included.

Accessories

Breakout Box for DB-25 Connector BOB-1, includes cable

Screw Terminal Connectors that mate directly to the DB-25 connector on the front panel of the drive: Phoenix Contact P/N 2761622.

This connector is not available from Bimba. You must purchase it from a Phoenix distributor.

Mating Cable for IN/OUT connector with “ying leads” Black Box P/N: BC00702

This cable is not available from Bimba. You must purchase it from Black Box. Useful for wired applications. This shielded cable has a DB-25 connector on each

end. You can cut off the female end to create a 6 foot “DB-25 to ying lead cable”.

It’ll be easier to wire if you get the cable color chart from Black Box’s web site.

Regeneration Clamp:

Bimba BIM-RGC-050

Power supplies: Bimba PWR-320A48 (48 VDC, 6.7A) Bimba PWR-150A24 (24 VDC, 6.3A)

Page 38

STP-10 Hardware Manual

Front View

X COMMON

X3 / Enable

X5 / CWJOG

X4 / Alarm Reset

Analog IN2

Analog IN1

X2 / DIR-

X2 / DIR+

X1 / STEP +

X1 / STEP -

GND

+5V OUT

Y COMMON

Y3 / FAULT

Y2 / MOTION

Y1 / BRAKE

2 3

20 21 22 23 24 25

X6 / CCWJOG

IN/OUT

X8/CCWLIMIT+ X8/CCWLIMIT-

X7/CWLIMIT-

X7/CWLIMIT+

Y4-

Y4+

RX+

–TX–

TX+

GND

RS-485/422

encoder Z+ (5)

do not connect (10)

encoder B- (4)

do not connect (9)

encoder B+ (3)

do not connect (13)

do not connect (14)

shield (15)

(12) do not connect

(11) do not connect

(6) encoder Z-

(1) encoder A+

(7) +5VDC 200mA

(2) encoder A-

(8) GND

Front View

Code Error

solid green no alarm, motor disabled flashing green no alarm, motor enabled 1 red, 1 green motor stall (optional encoder only) 1 red, 2 green move attempted while drive disabled 2 red, 1 green ccw limit 2 red, 2 green cw limit 3 red, 1 green drive overheating 3 red, 2 green internal voltage out of range 3 red, 3 green blank Q segment 4 red, 1 green power supply overvoltage 4 red, 2 green power supply undervoltage 4 red, 3 green bad instruction in Si program 5 red, 1 green over current / short circuit 5 red, 2 green motor resistance out of range 6 red, 1 green open motor winding 6 red, 2 green bad encoder signal (optional encoder only) 7 red, 1 green serial communication error 7 red, 2 green flash memory error 8 red, 1 green internal voltage out of range

Alarm Codes

In the event of an error, the red and green LEDs on the main board will ash in alternating red-green patterns as shown below.

The pattern repeats until the alarm is cleared.

Connector Diagrams

DB-25 I/O Connector

HD-15 Encoder Connector

Page 39

STP-10 Hardware Manual

Bimba Manufacturing Company

P.O. Box 68 Monee, Illinois 60449-0068

Phone: 708-534-8544 Toll Free: 800-44-BIMBA Fax: 708-235-2014

Email: cs@bimba.com www.bimba.com Form HM-STP-10-004C

BIMBA BRANDS I ACRO I MEAD I MFD I PNEUMADYNE I TRD

PNEUMATIC ACTUATORS • ELECTRIC ACTUATORS • HYDRAULIC ACTUATORS • VALVES • AIR PREPARATION • SAFETY & PRODUCTION
