Welcome to the Billion BIPAC-7402(W) Router. Your Billion router is an “all-in-one” unit,
combining an ADSL modem, ADSL router and Ethernet network switch, providing everything
you need to get the machines on your network connected to the Internet over your ADSL
broadband connection. With features such as an ADSL Quick-Start wizard and DHCP Server,
you can be online in no time at all and with a minimum of fuss and configuration, catering for
first-time users to the guru requiring advanced features and control over their Internet
connection and network.
Features

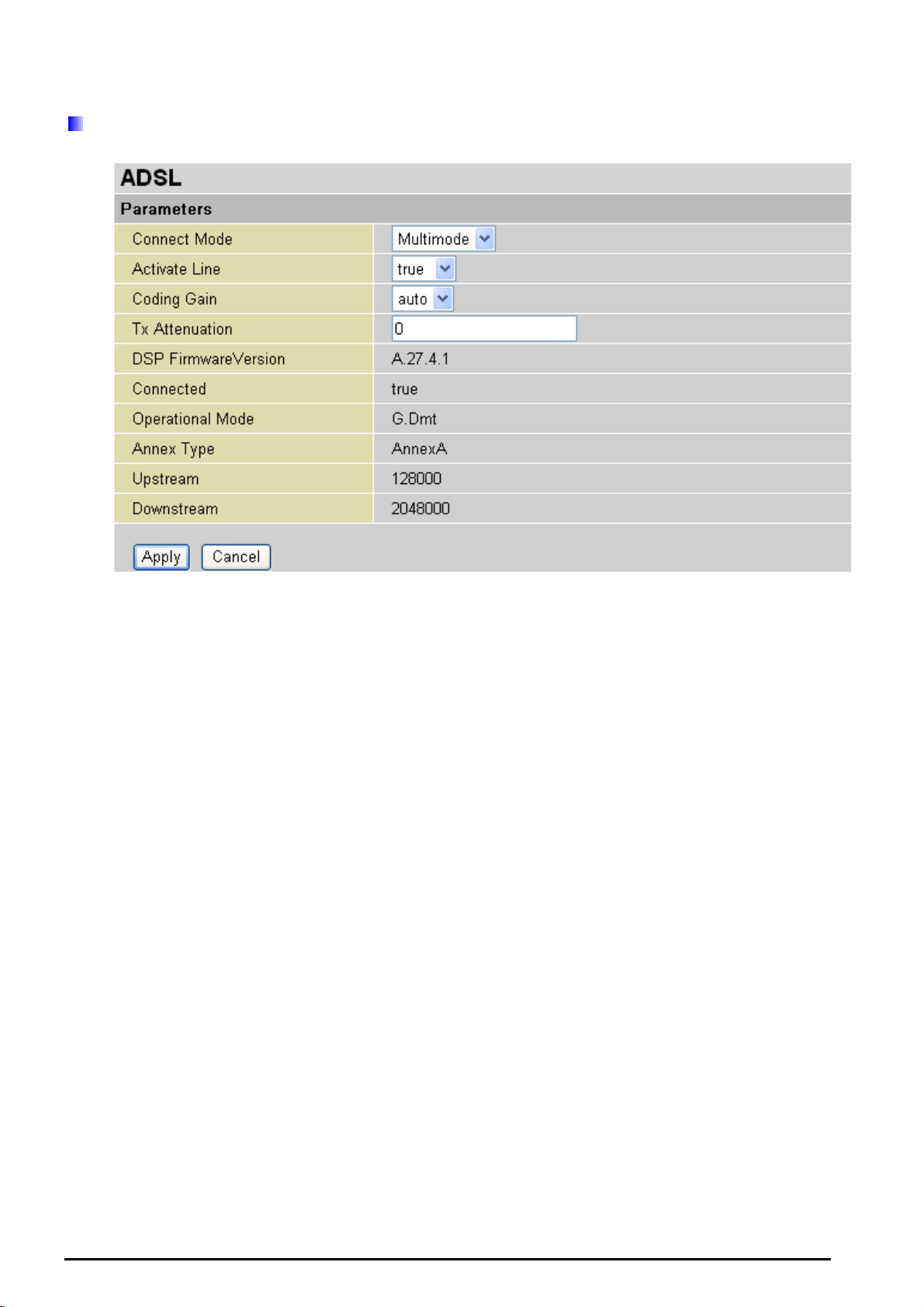

ADSL Multi-Mode Standard
Supports downstream transmission rates of up to 8Mbps and upstream transmission rates
of up to 1024Kbps. It also supports rate management that allows ADSL subscribers to
select an Internet access speed suiting their needs and budgets. It is compliant with MultiMode standard (ANSI T1.413, Issue 2; G.dmt(G.992.1); G.lite(G992.2)). The Annex A and
B are supported in different H/W platforms.
Wireless Ethernet 802.11b (7402W Only)
Provides a wireless Ethernet 802.11b access point for extending the communication
media to WLAN.
Fast Ethernet Switch
A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI
and MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or cross-over cable
can be used directly for auto detection.
Multi-Protocol to Establish A Connection
Supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483
encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516) and IPoA
(RFC1577) to establish a connection with the ISP. The product also supports VC-based
and LLC-based multiplexing.
Quick Installation Wizard
Supports a WEB GUI page to install this device quickly. With this wizard, end users can
enter the information easily which they get from their ISP, then surf the Internet
immediately.
Universal Plug and Play (UPnP) and UPnP NAT Traversal
This protocol is used to enable simple and robust connectivity among stand-alone devices
and PCs from many different vendors. It makes network simple and affordable for users.
UPnP architecture leverages TCP/IP and the Web to enable seamless proximity
networking in addition to control and data transfer among networked devices. With this
feature enabled, users can now connect to Net meeting or MSN Messenger seamlessly.
Network Address Translation (NAT)
Allows multi-users to access outside resources such as the Internet simultaneously with
one IP address/one Internet access account. Many application layer gateway (ALG) are
supported such as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping,
NetMeeting, IP phone and others.

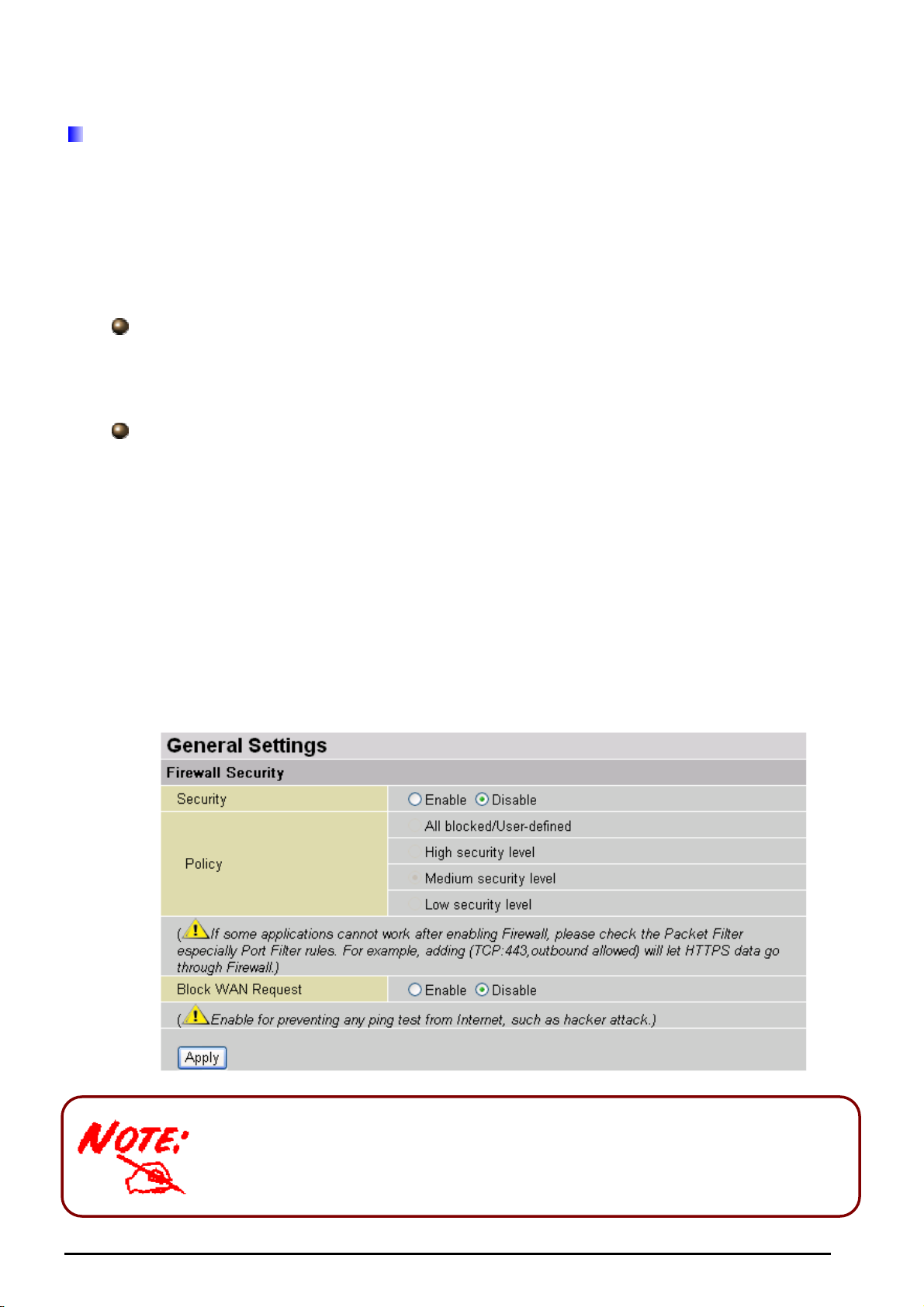

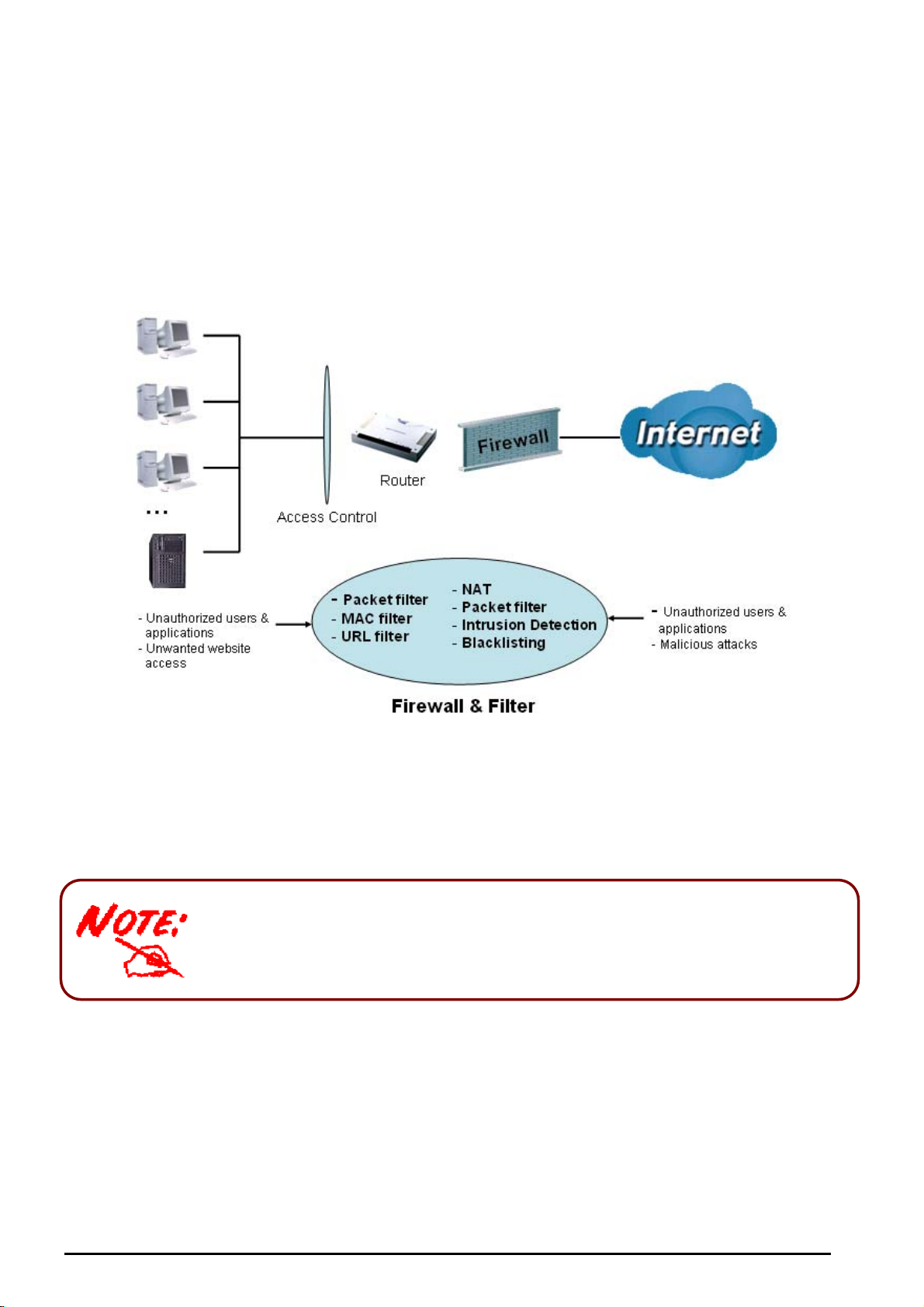

Firewall

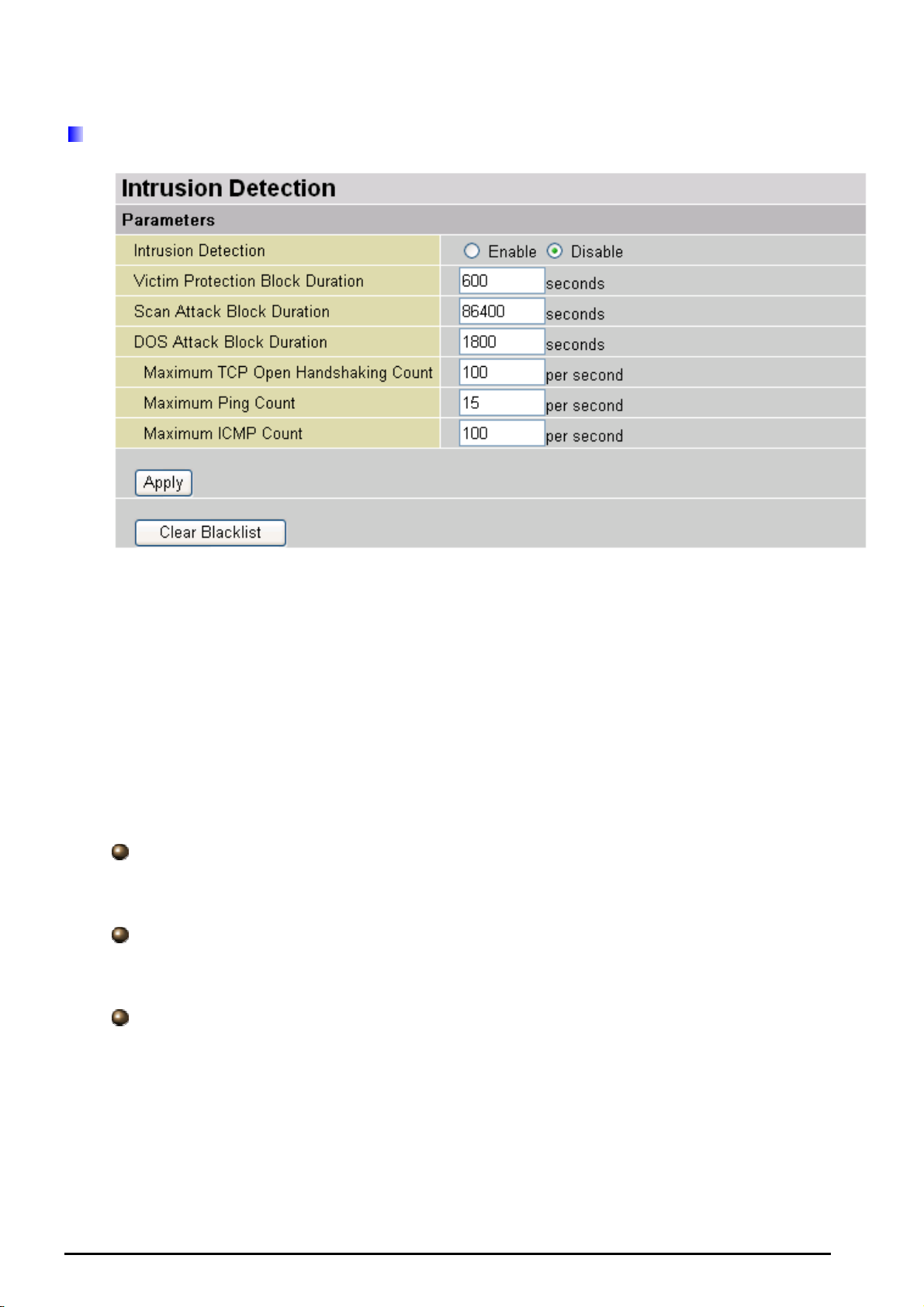

Supports SOHO firewall with NAT technology, automatically detects and blocks Denial of

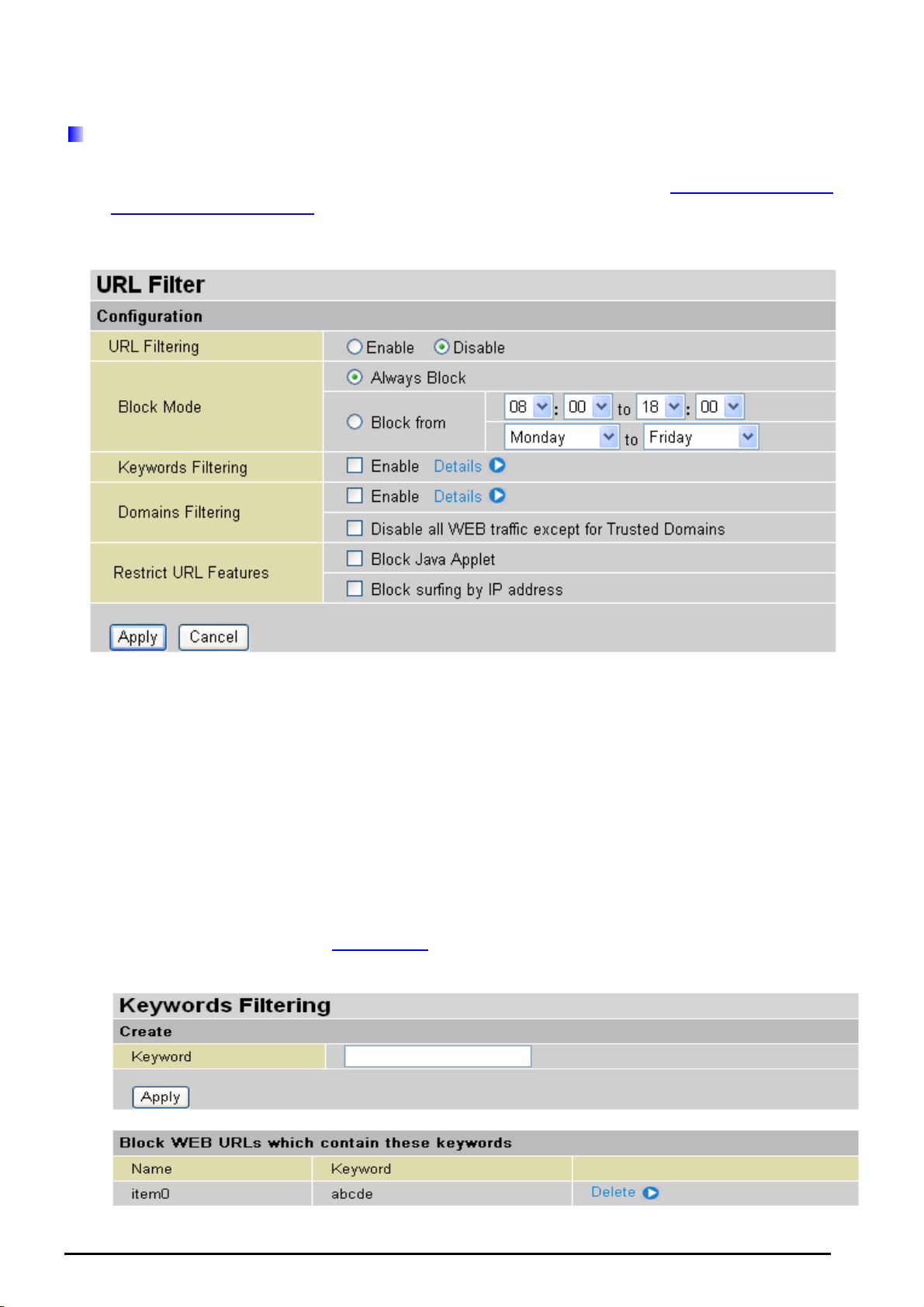

Service (DoS) attacks. URL blocking, packet filtering and SPI (Stateful Packet Inspection)
are also supported. The hacker’s attack will be recorded associated with timestamp in the
security logging area. More firewall functions will always be implemented through updated
firmware releases.
Domain Name System (DNS) relay
Provides an easy way to map the domain name (a friendly name for users such as
www.yahoo.com) and IP address. When a local machine sets its DNS server with this
router’s IP address, every DNS conversion request packet from the PC to this router will
be forwarded to the real DNS in the outside network.
Dynamic Domain Name System (DDNS)
The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname.
This dynamic IP address is the WAN IP address. For example, to use the service, you
must first apply for an account from a DDNS service like http://www.dyndns.org/. More
than 5 DDNS servers are supported.

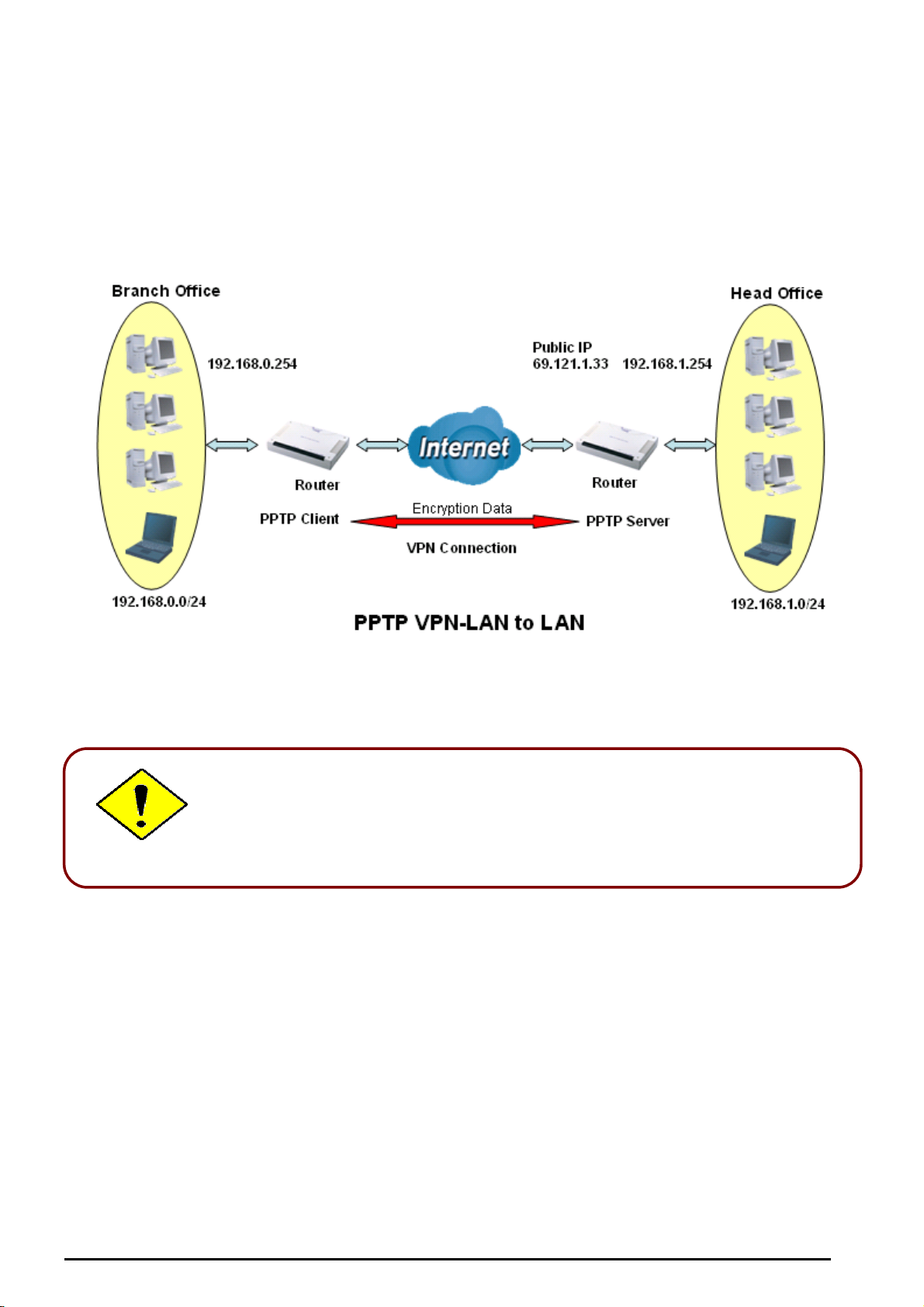

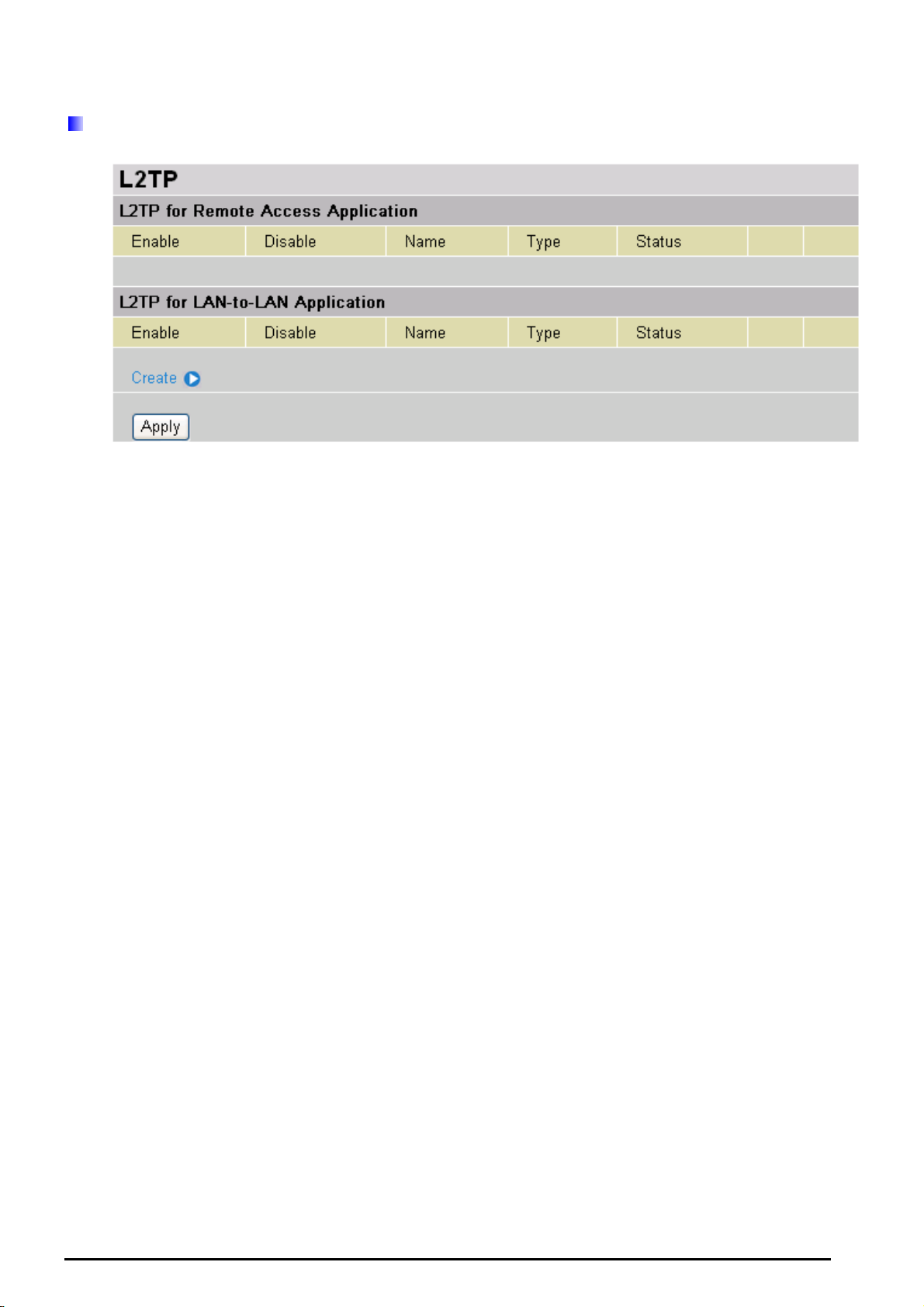

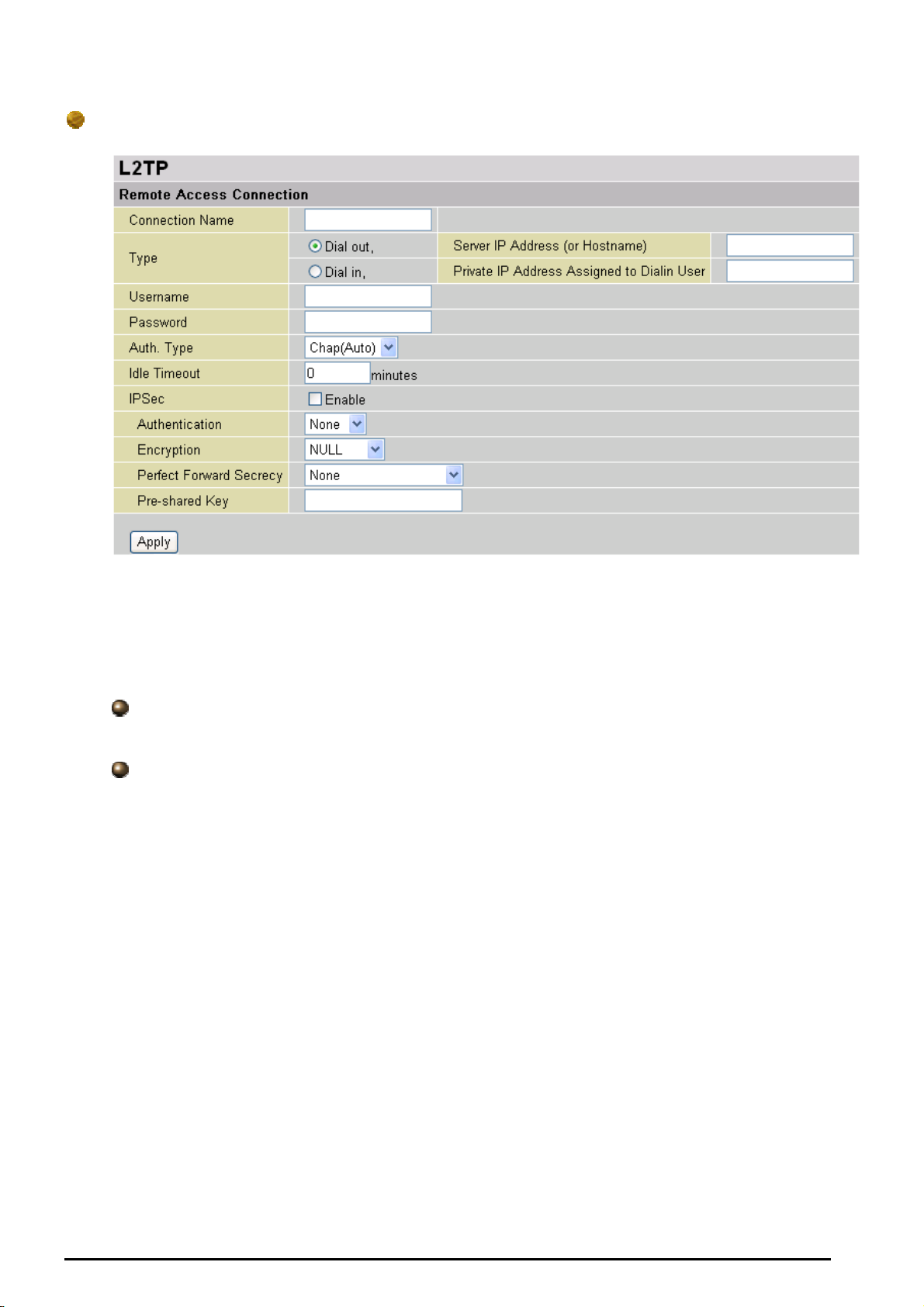

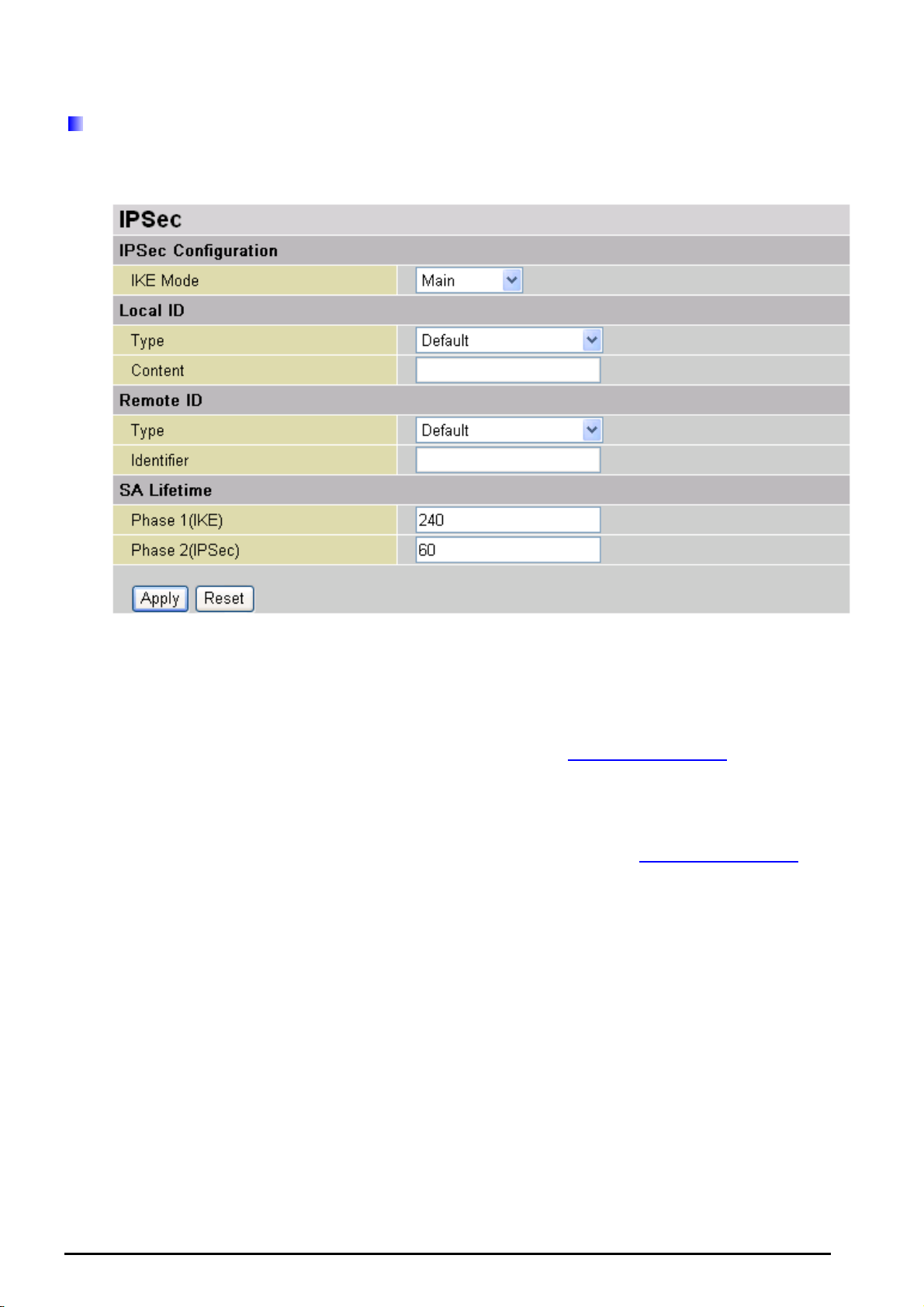

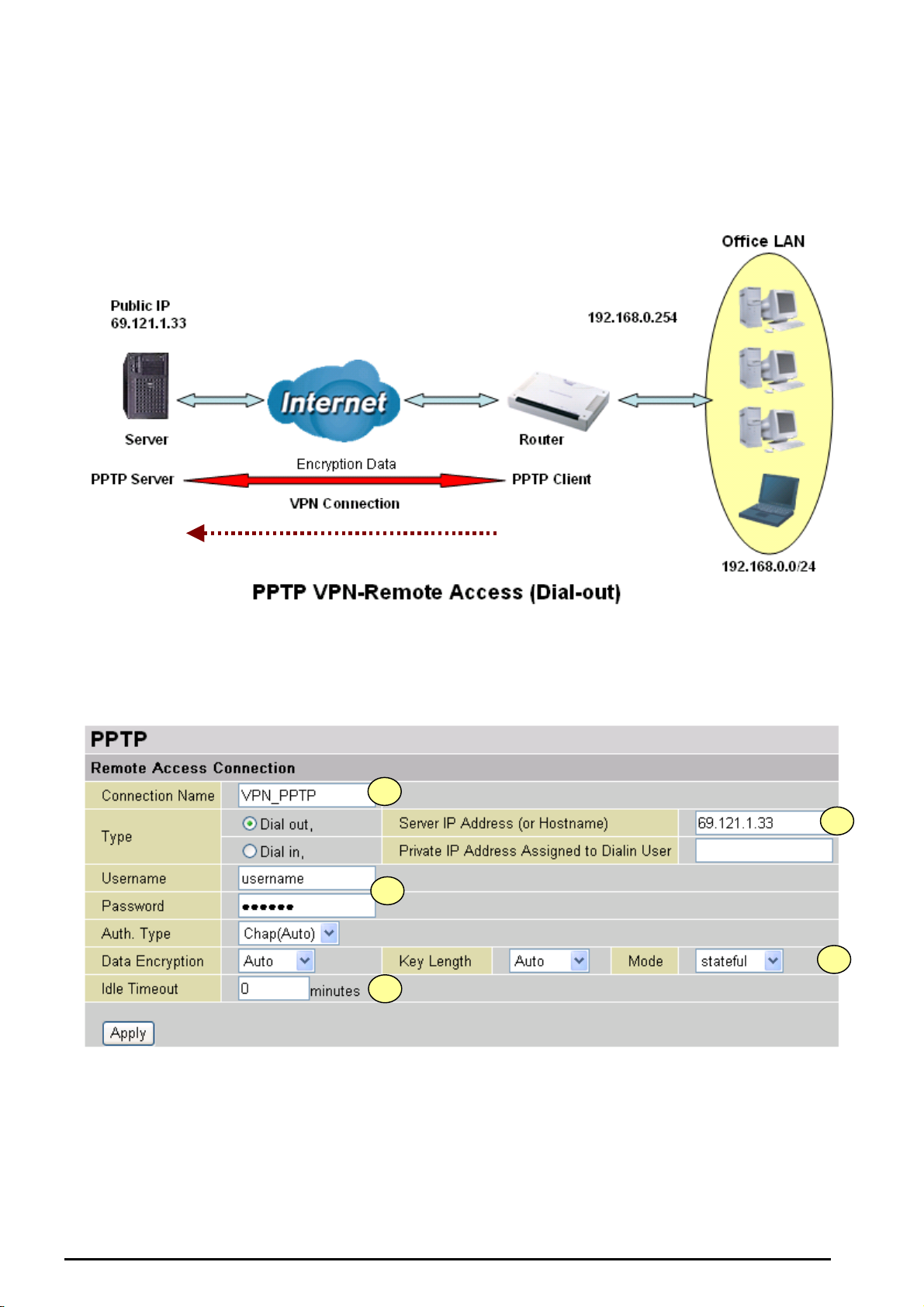

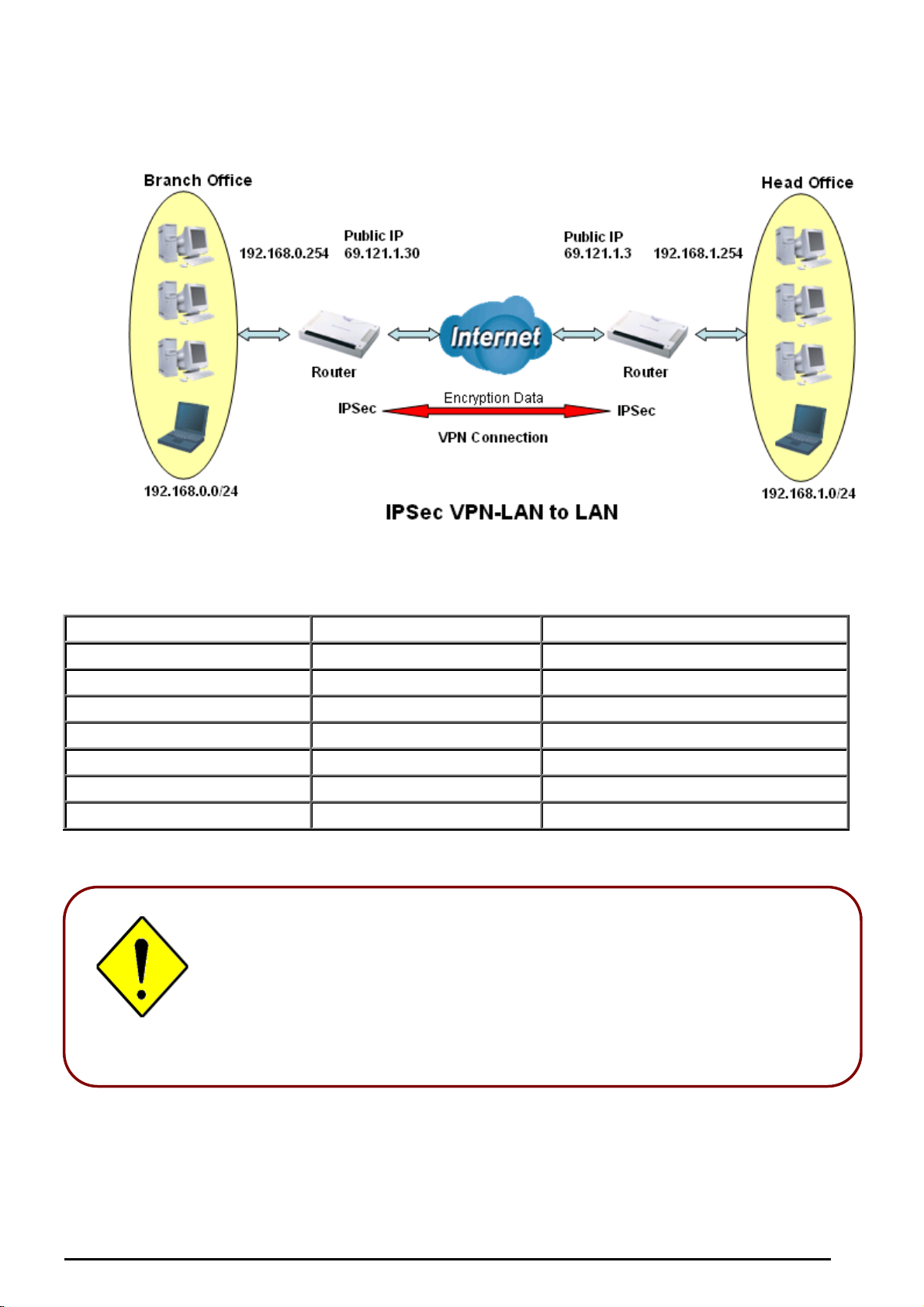

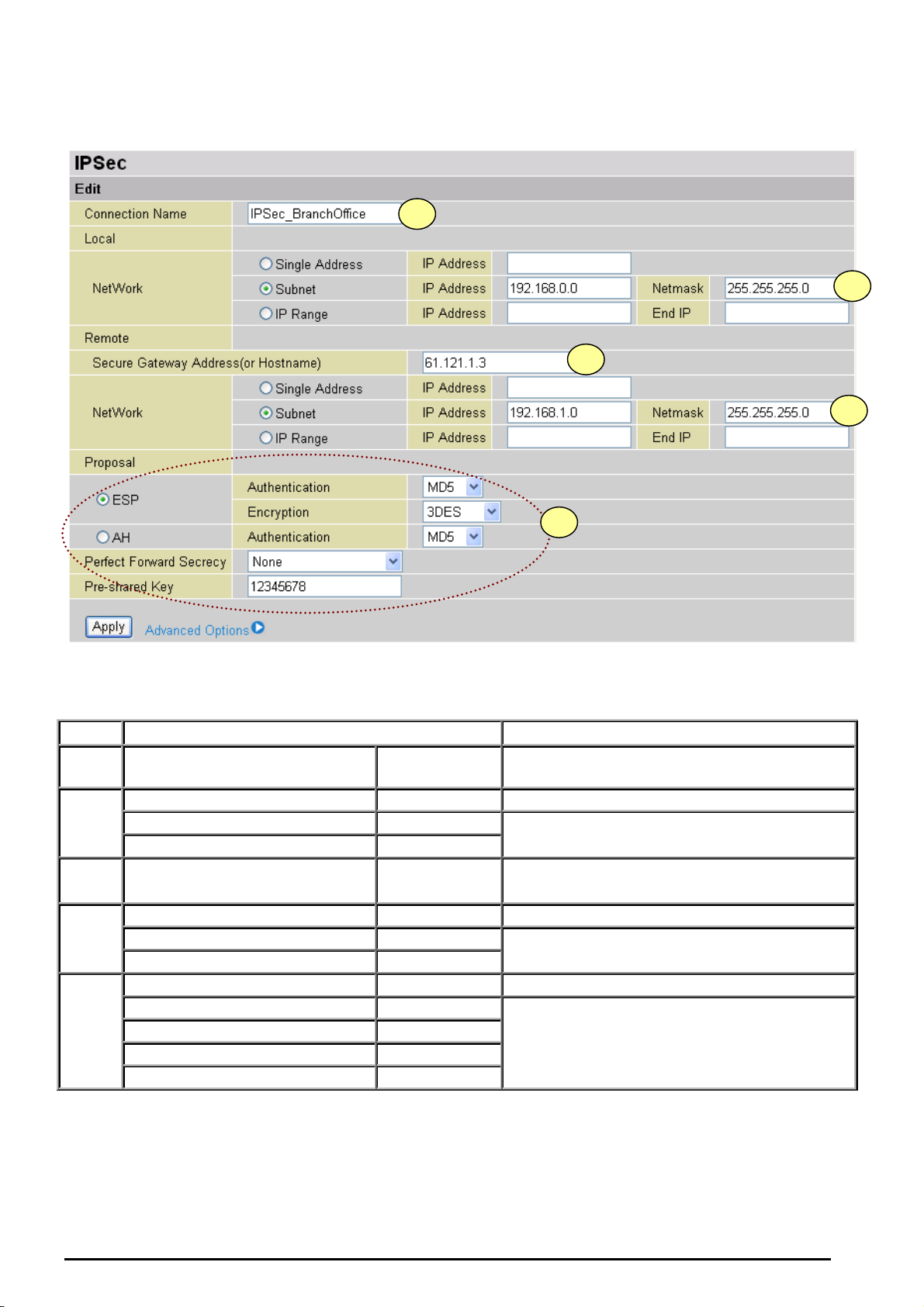

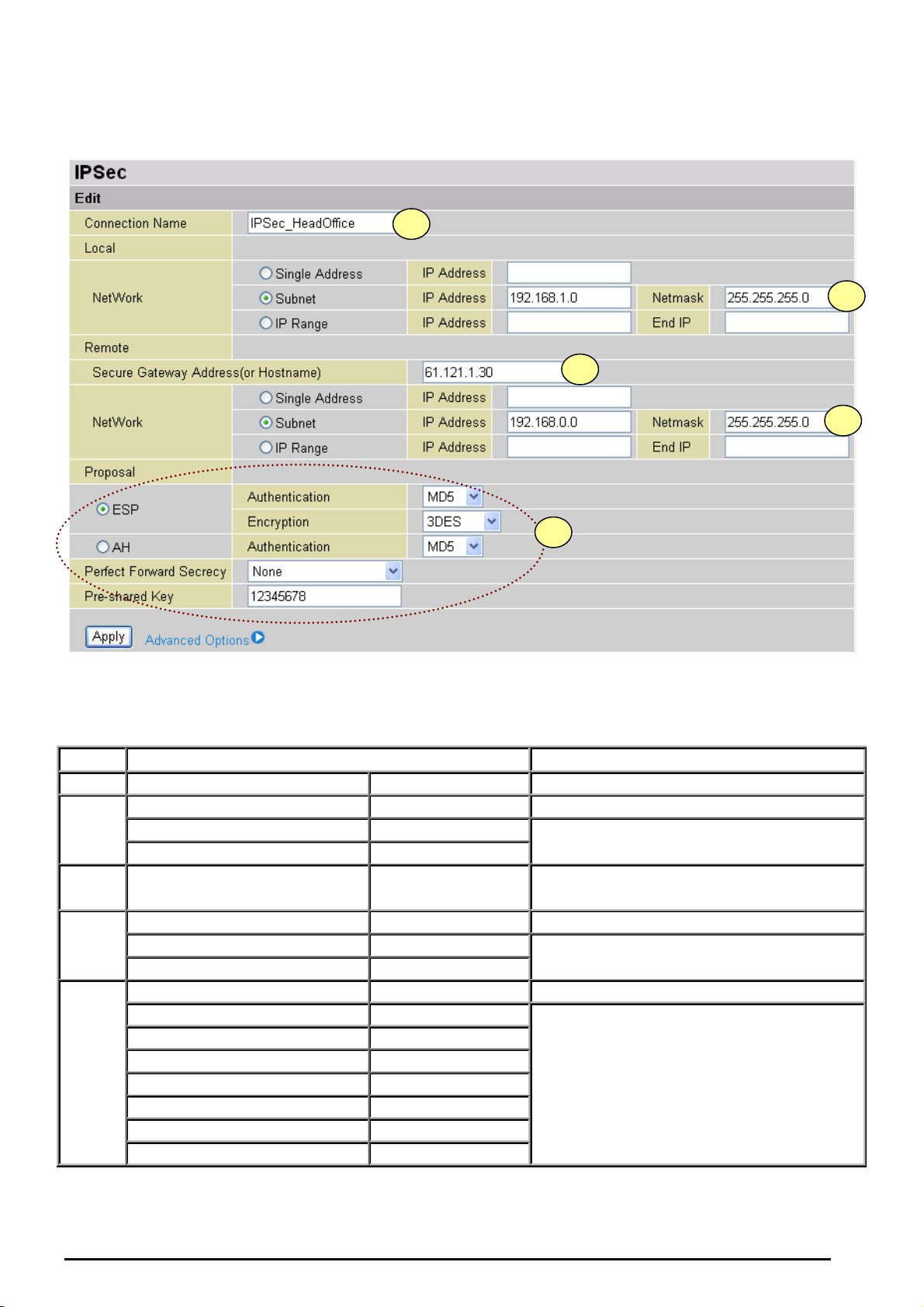

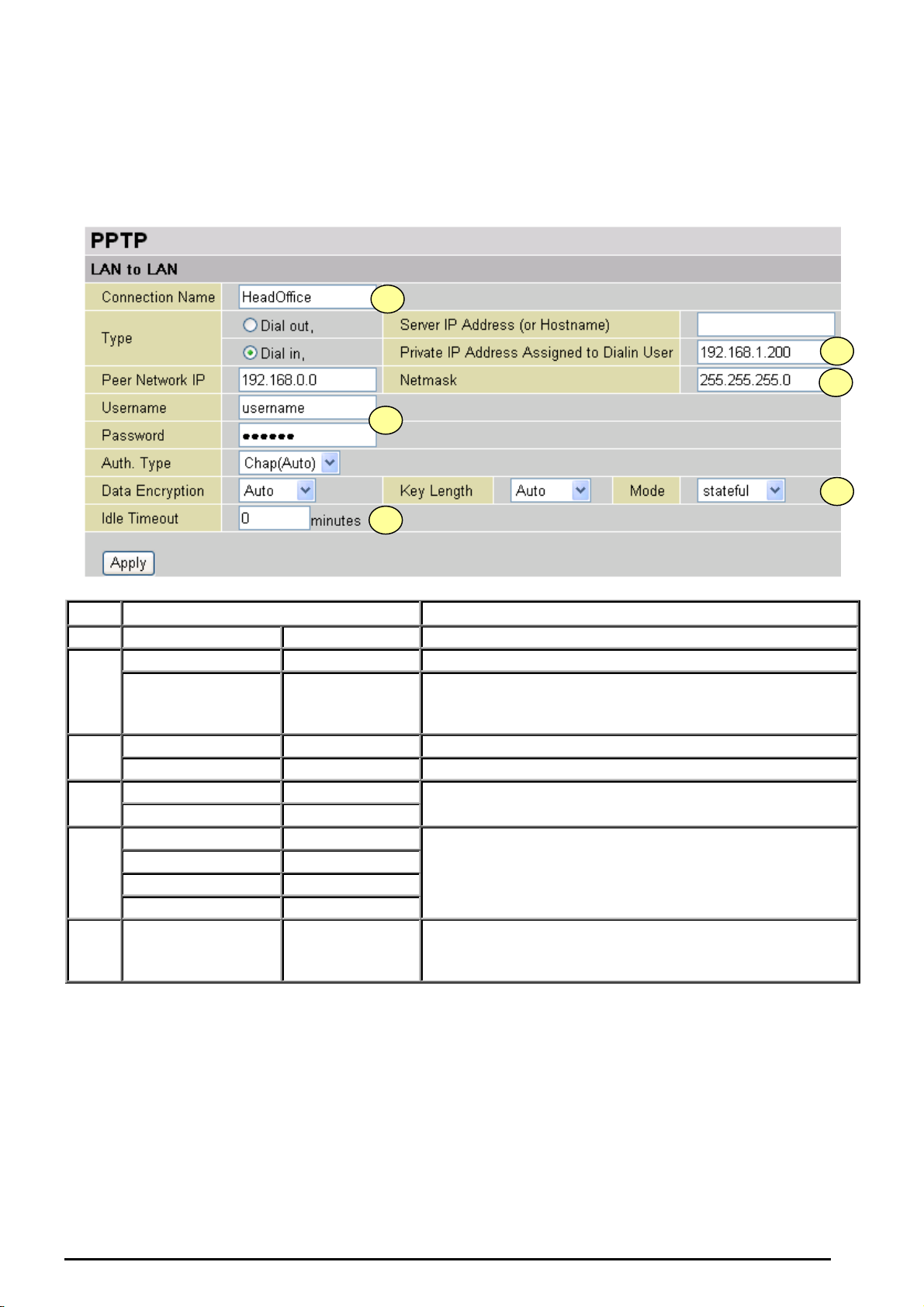

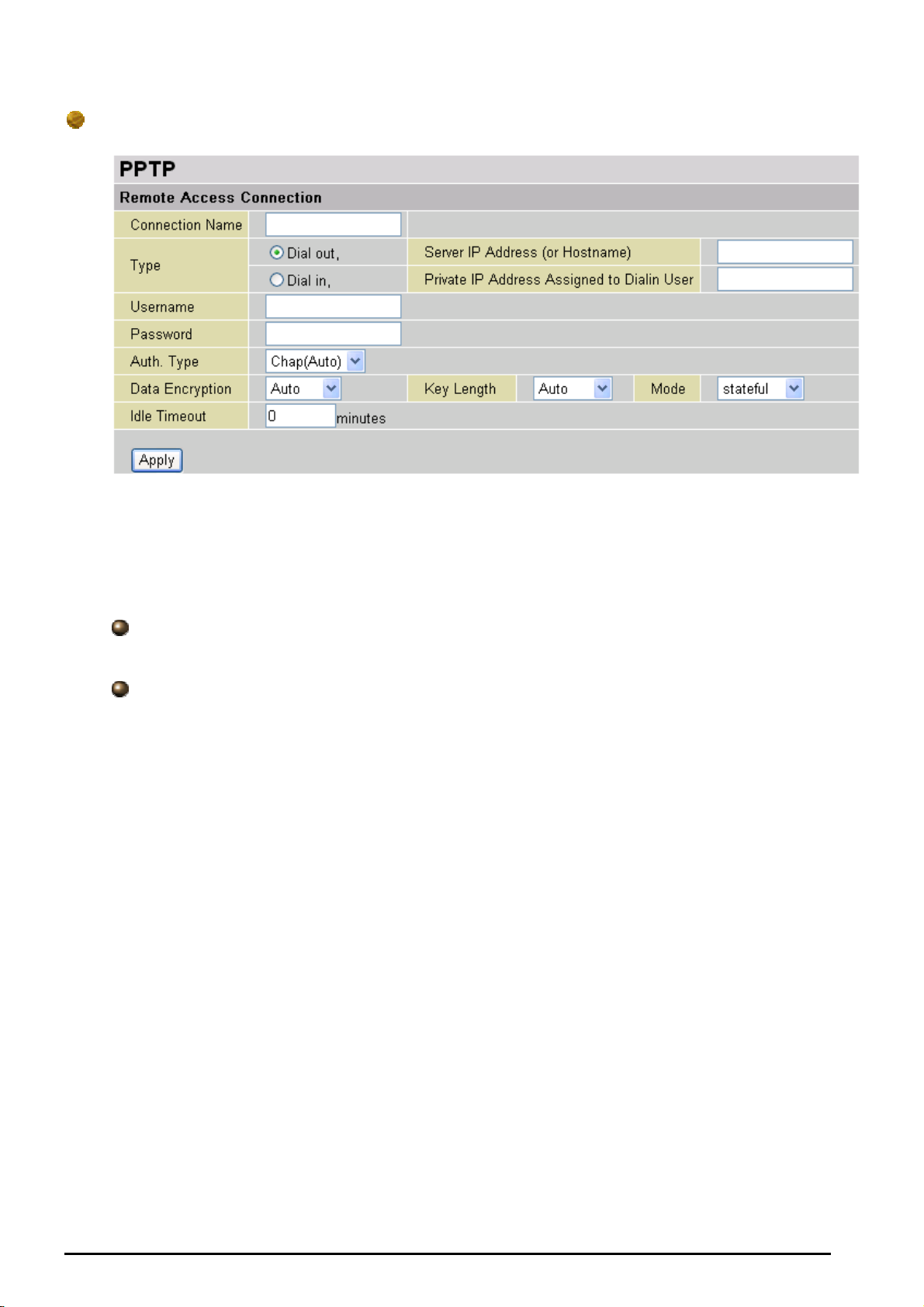

Virtual Private Network (VPN)
Allows user to make a tunnel with a remote site directly to secure the data transmission

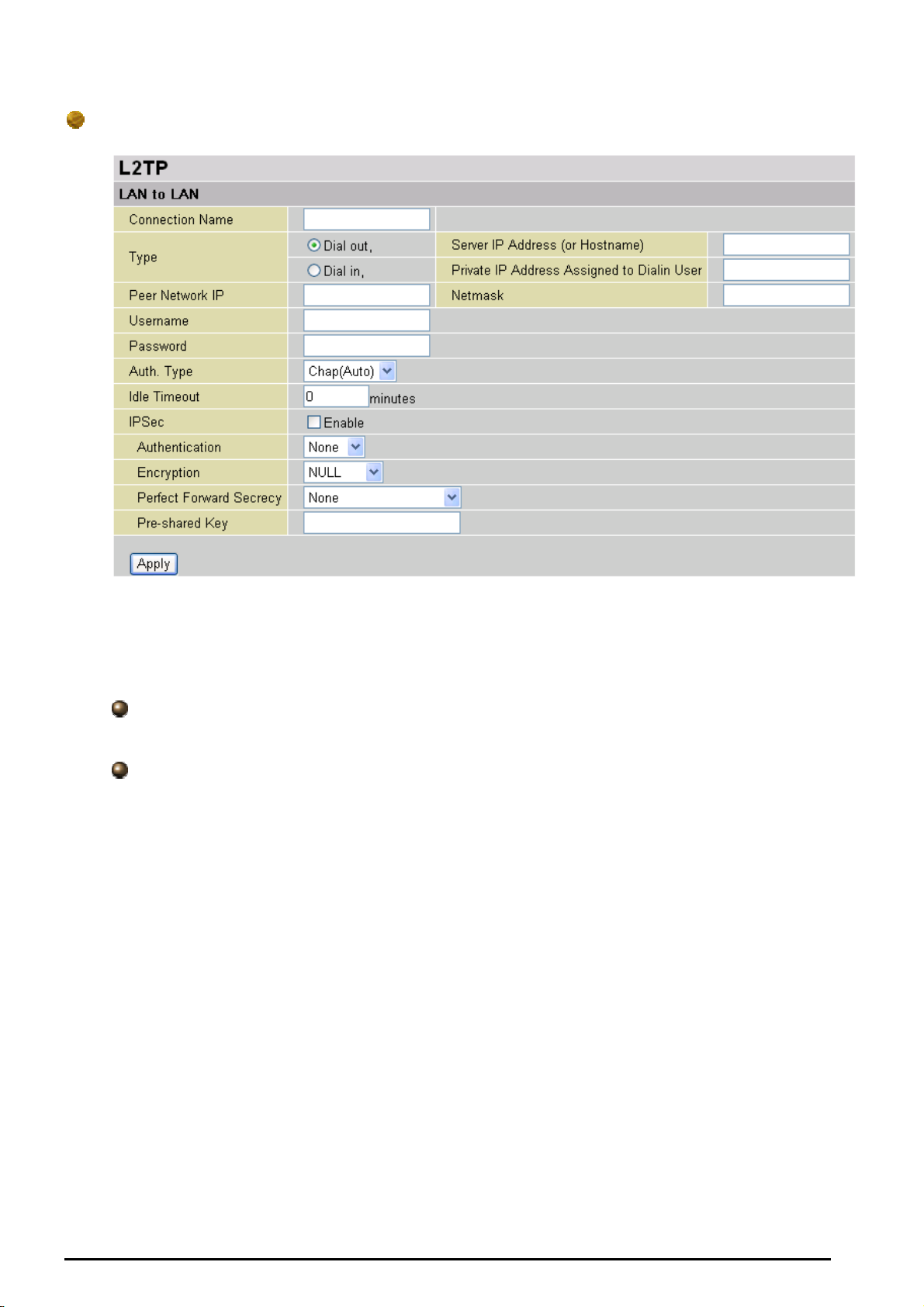

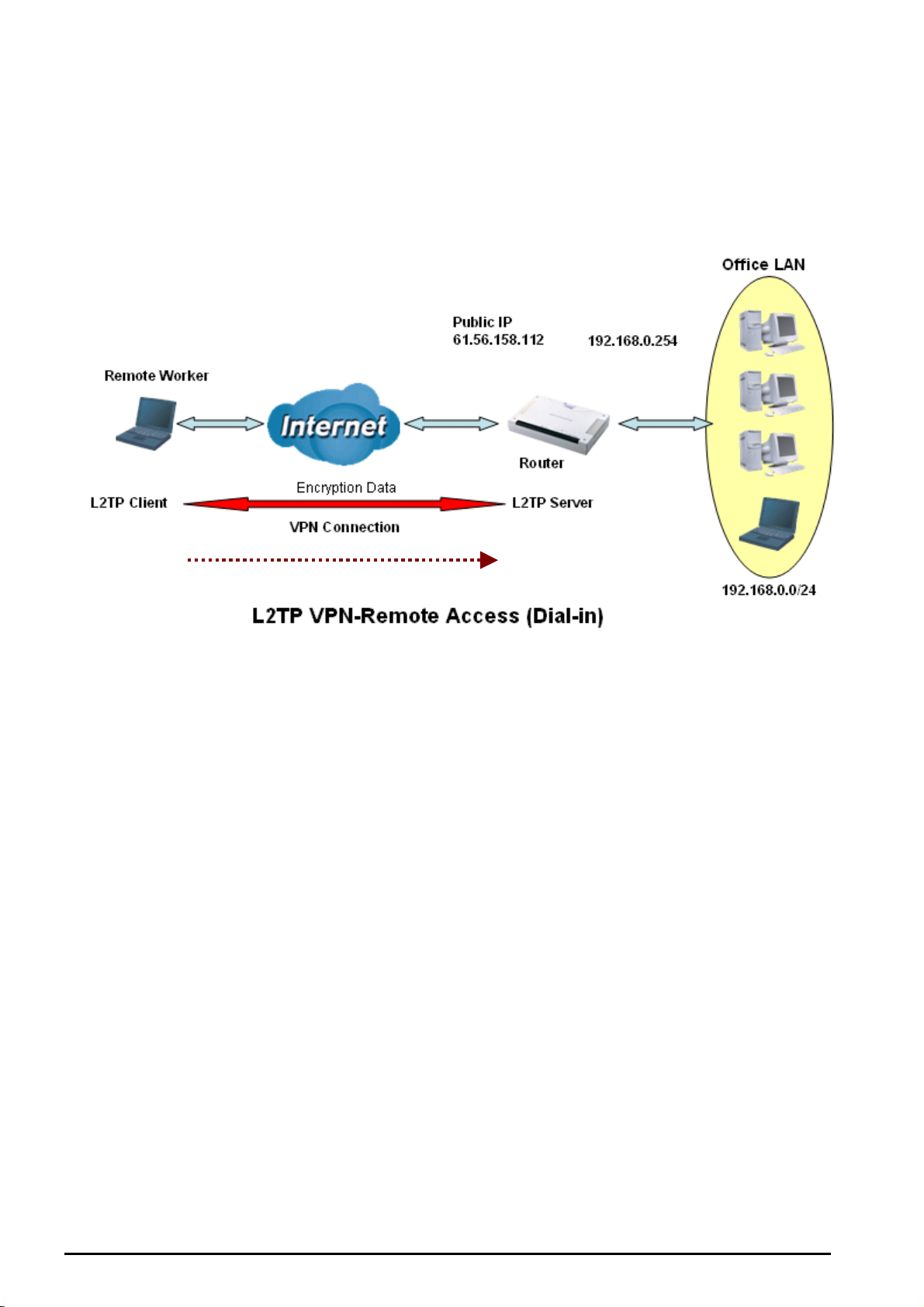

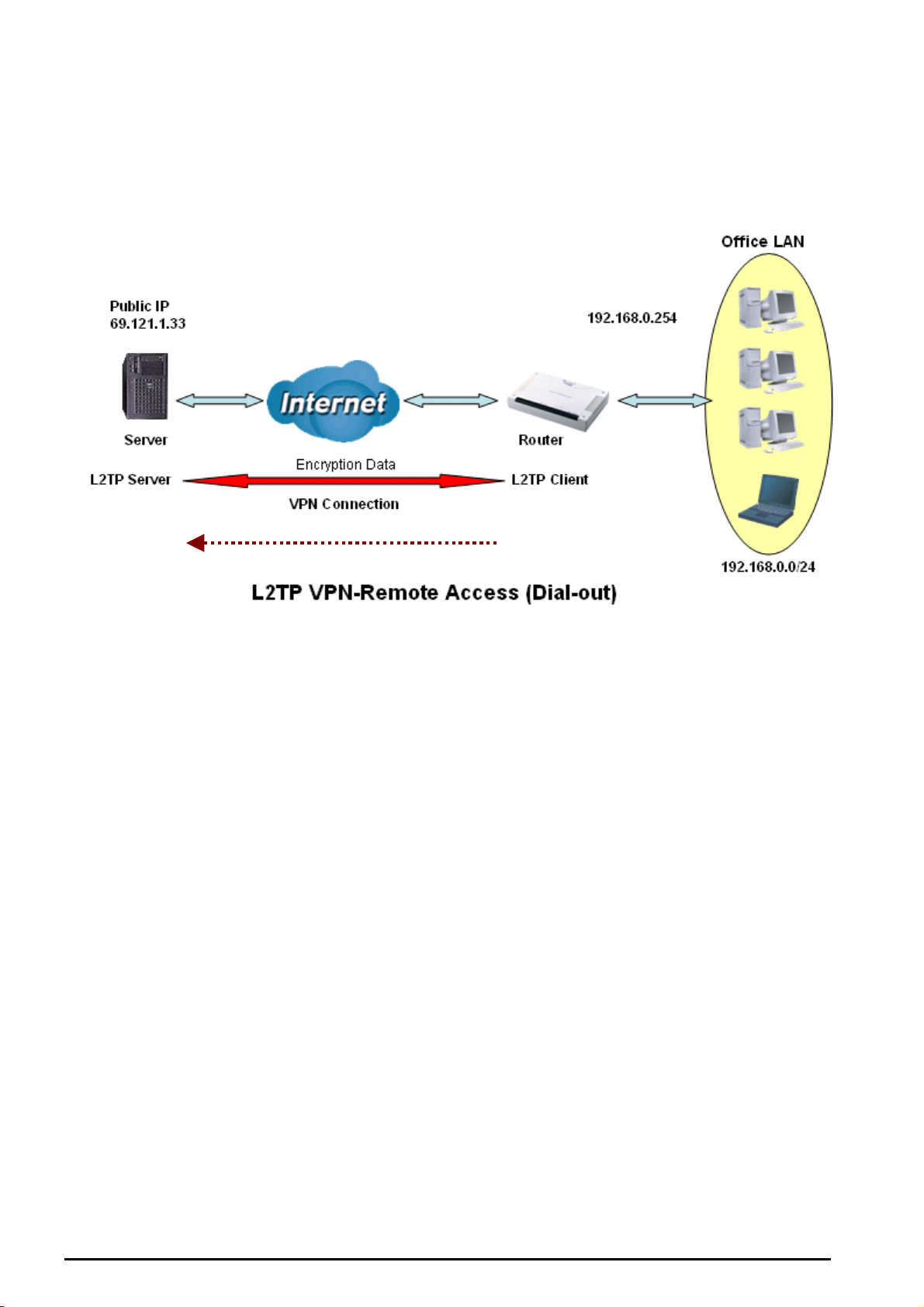

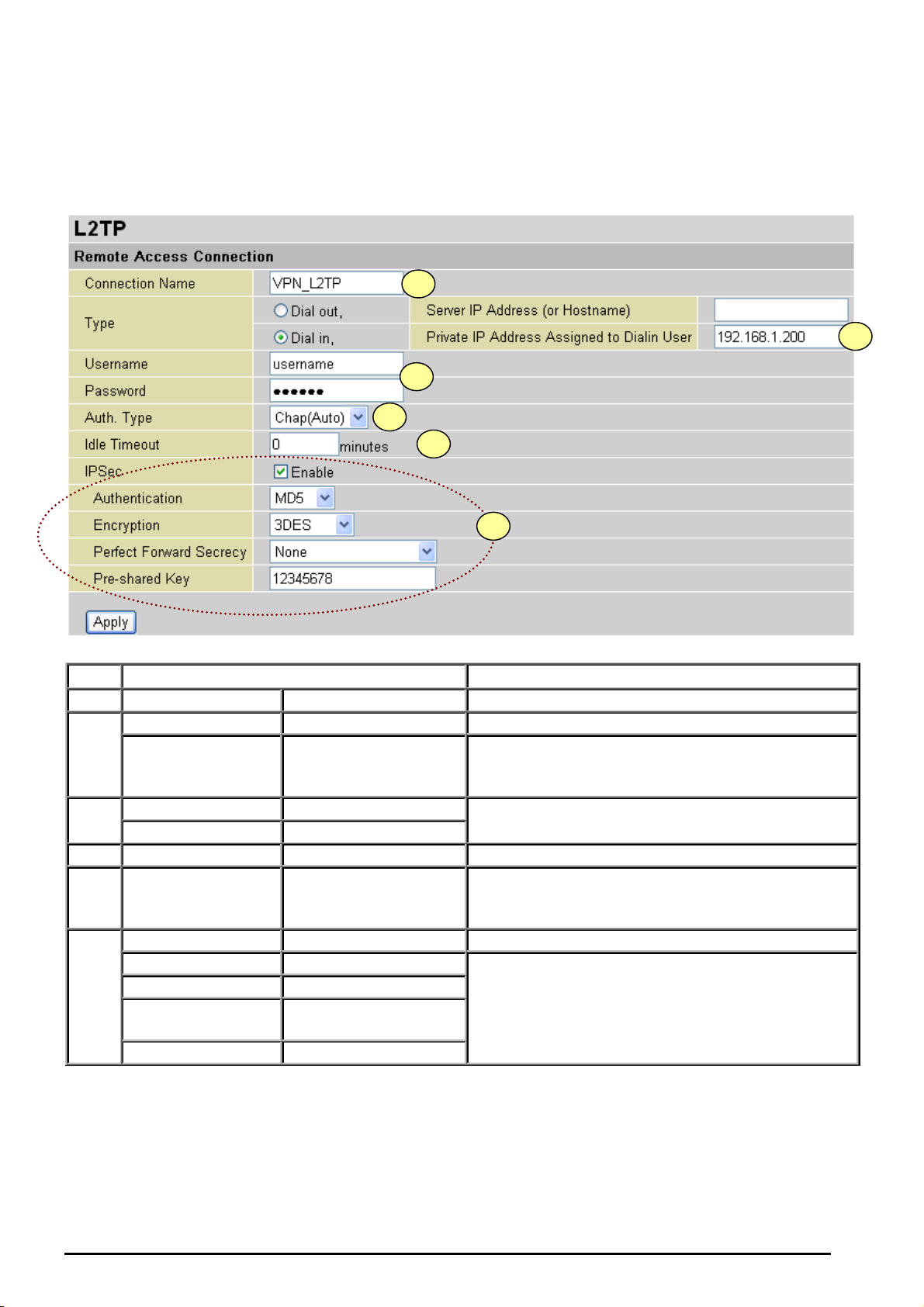

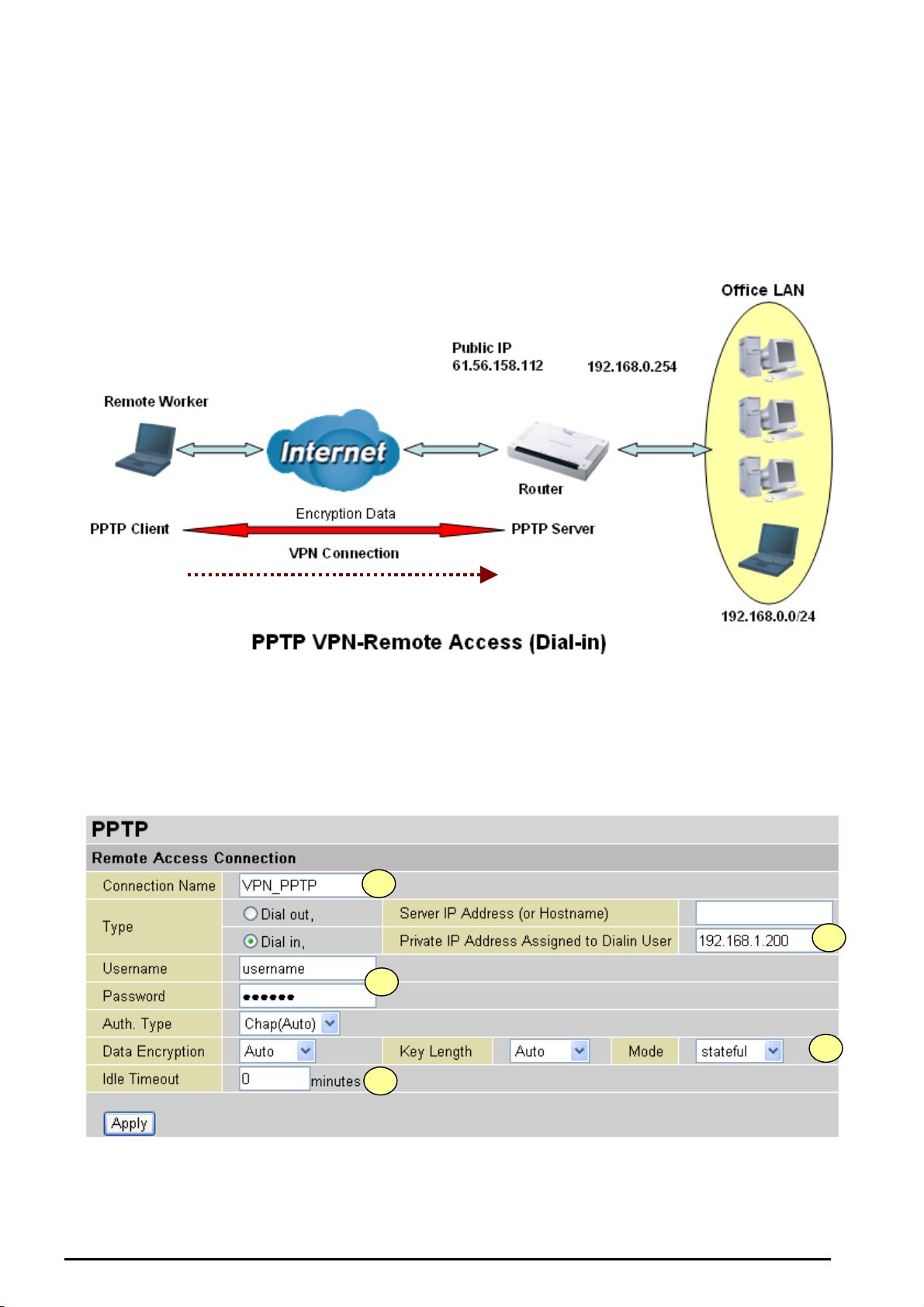

among the connection. User can use embedded PPTP and L2TP client/server, IKE and

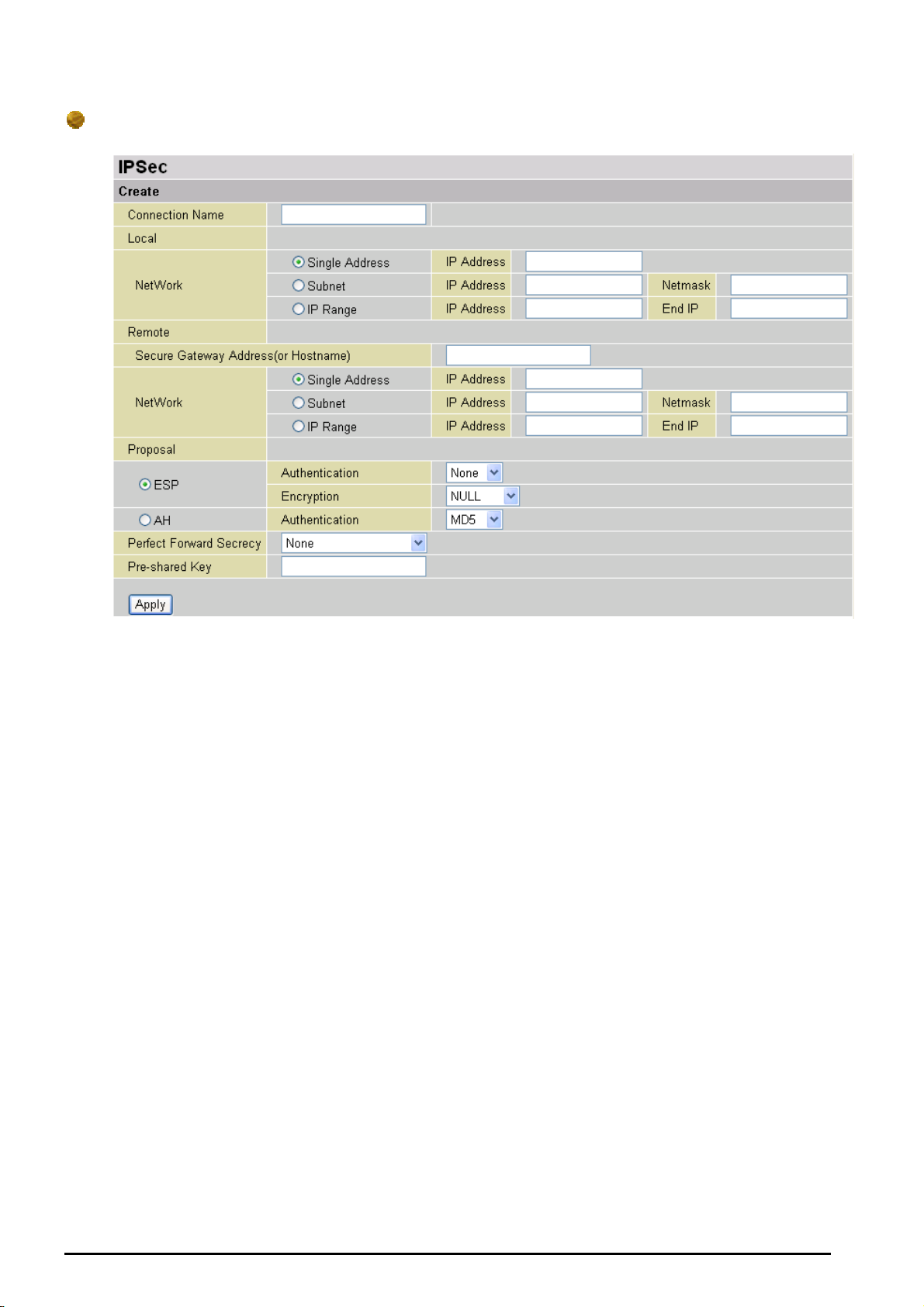

IPSec which are supported by this router to make a VPN connection or users can run the
PPTP client in PC and the router already provides IPSec and PPTP pass through function
to establish a VPN connection if the user likes to run the PPTP client in his local computer.

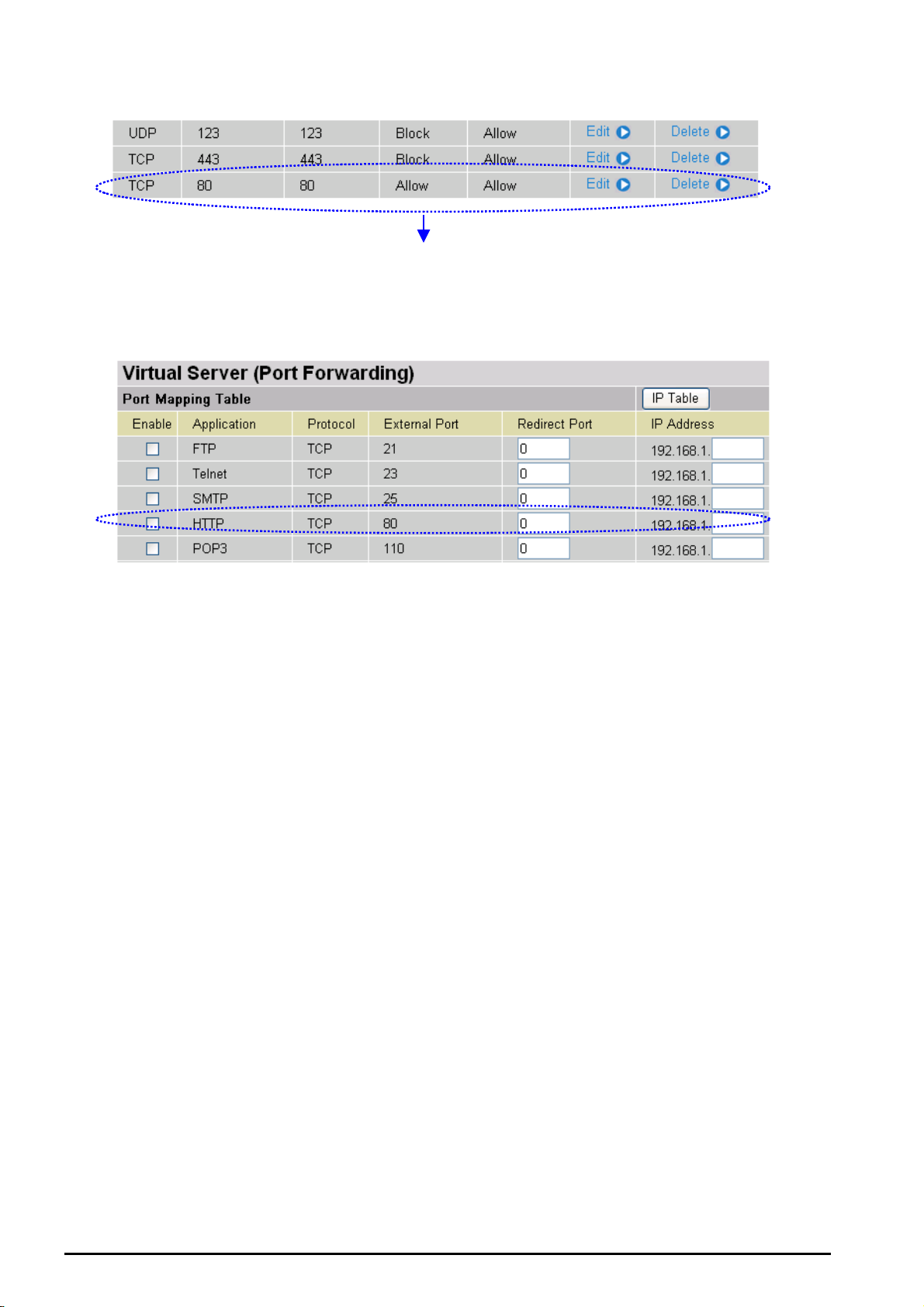

Virtual Server (“port forwarding”)
Users can specify some services to be visible from outside users. The router can detect
incoming service requests and forward either a single port or a range of ports to the
specific local computer to handle it. For example, a user can assign a PC in the LAN
acting as a WEB server inside and expose it to the outside network. Outside users can
browse inside web servers directly while it is protected by NAT. A DMZ host setting is also
provided to a local computer exposed to the outside network, Internet.

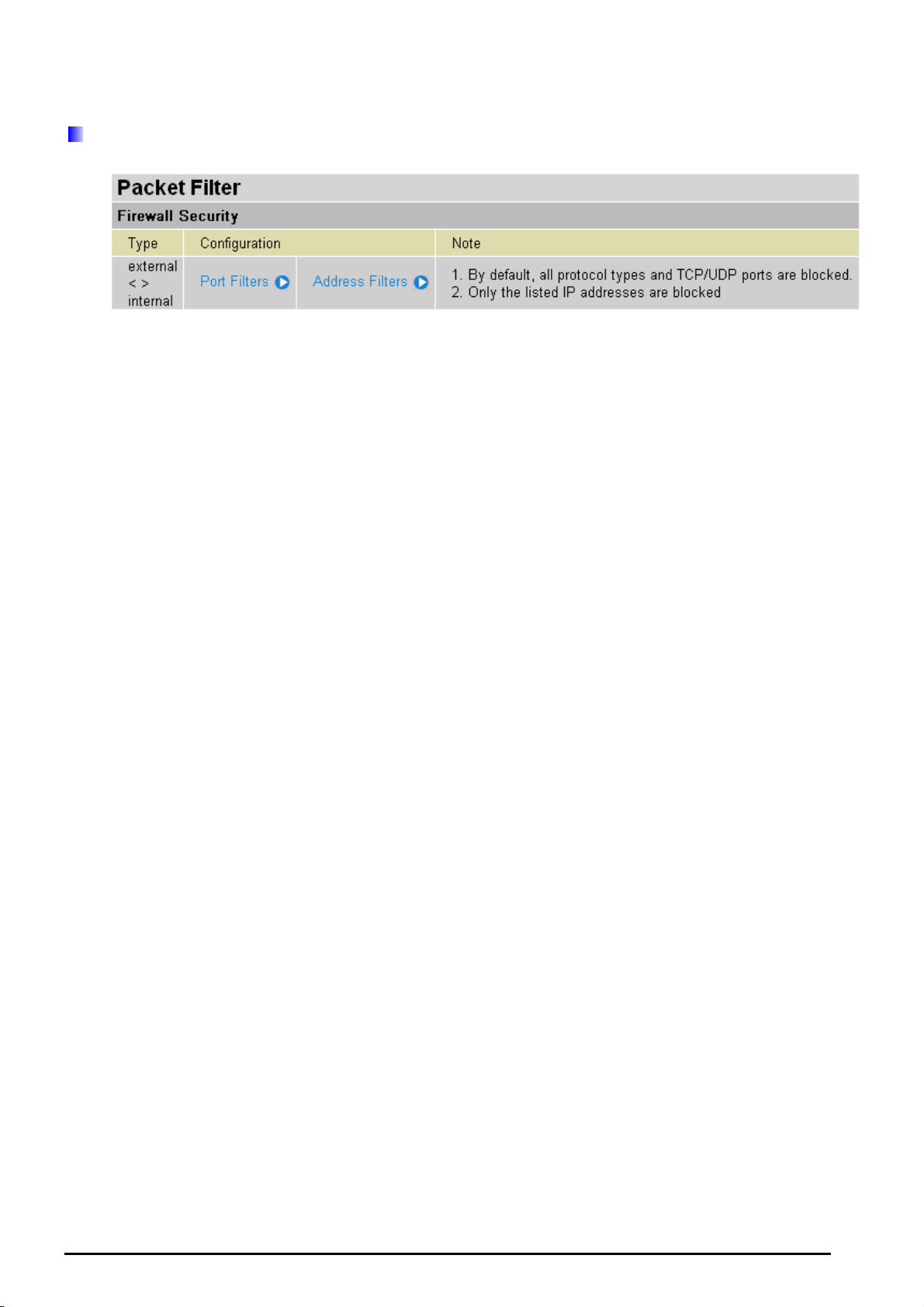

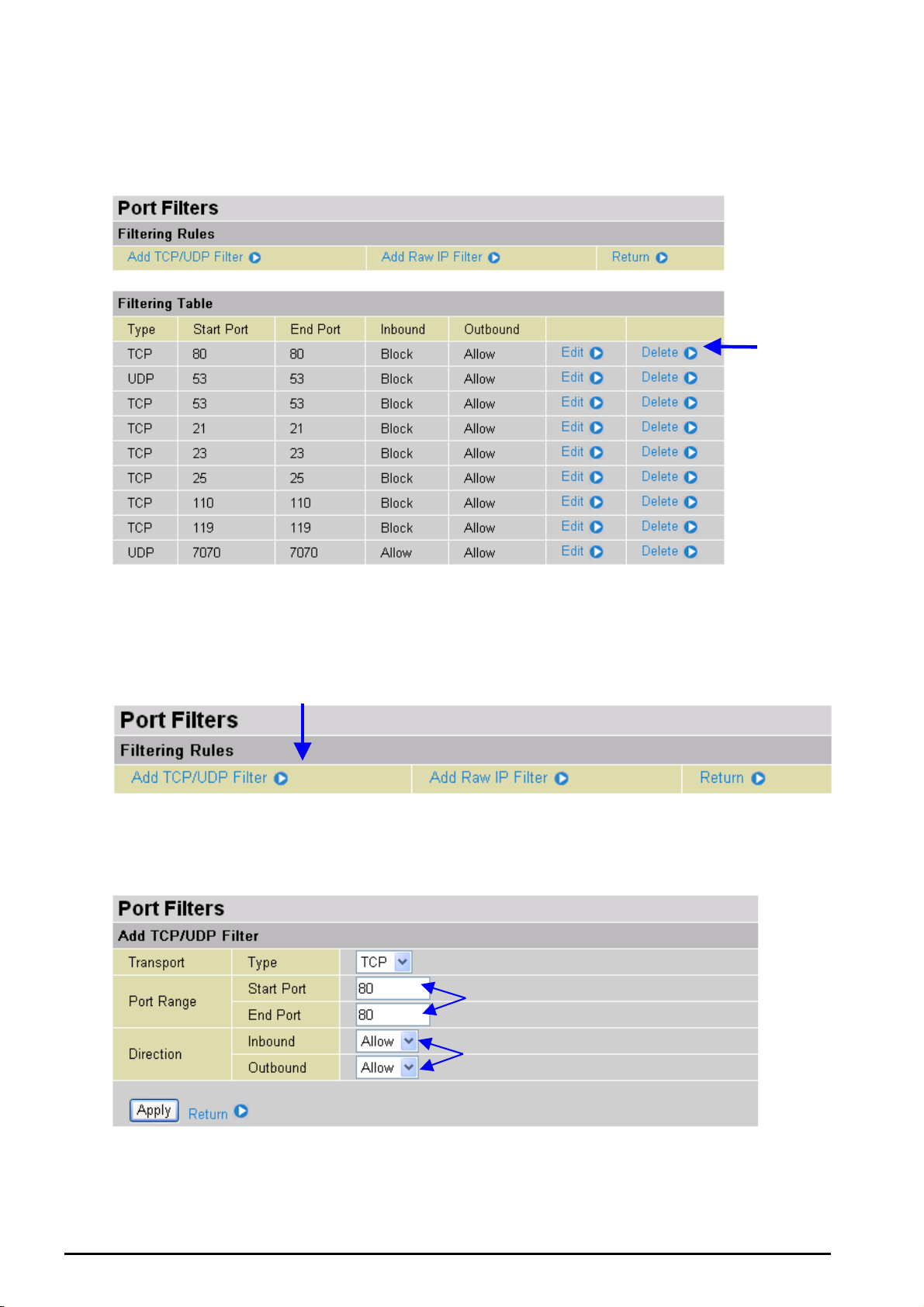

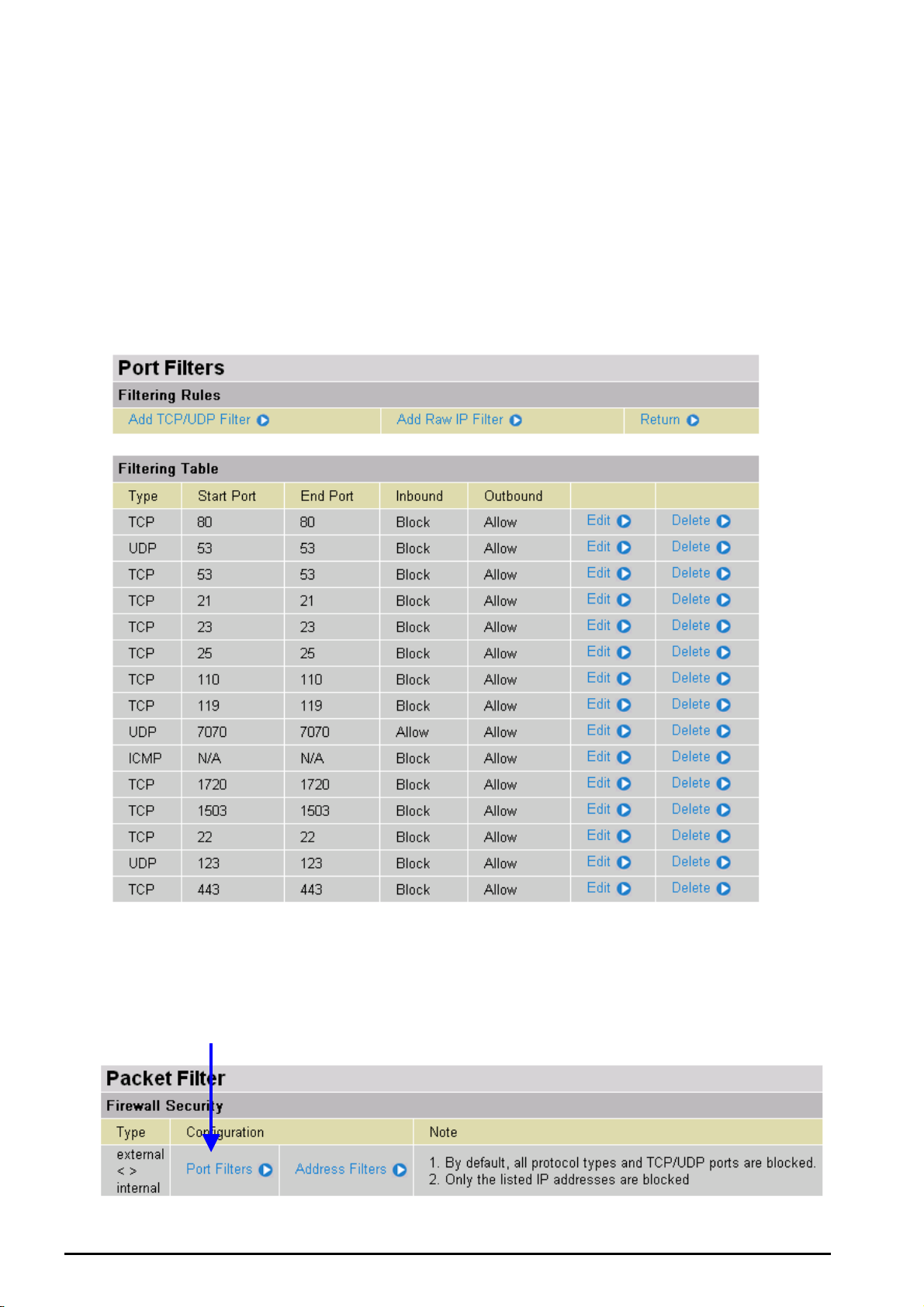

Rich Packet Filtering
Not only filters the packet based on IP address, but also based on Port numbers. It will
filter packets from and to the Internet, and also provides a higher level of security control.

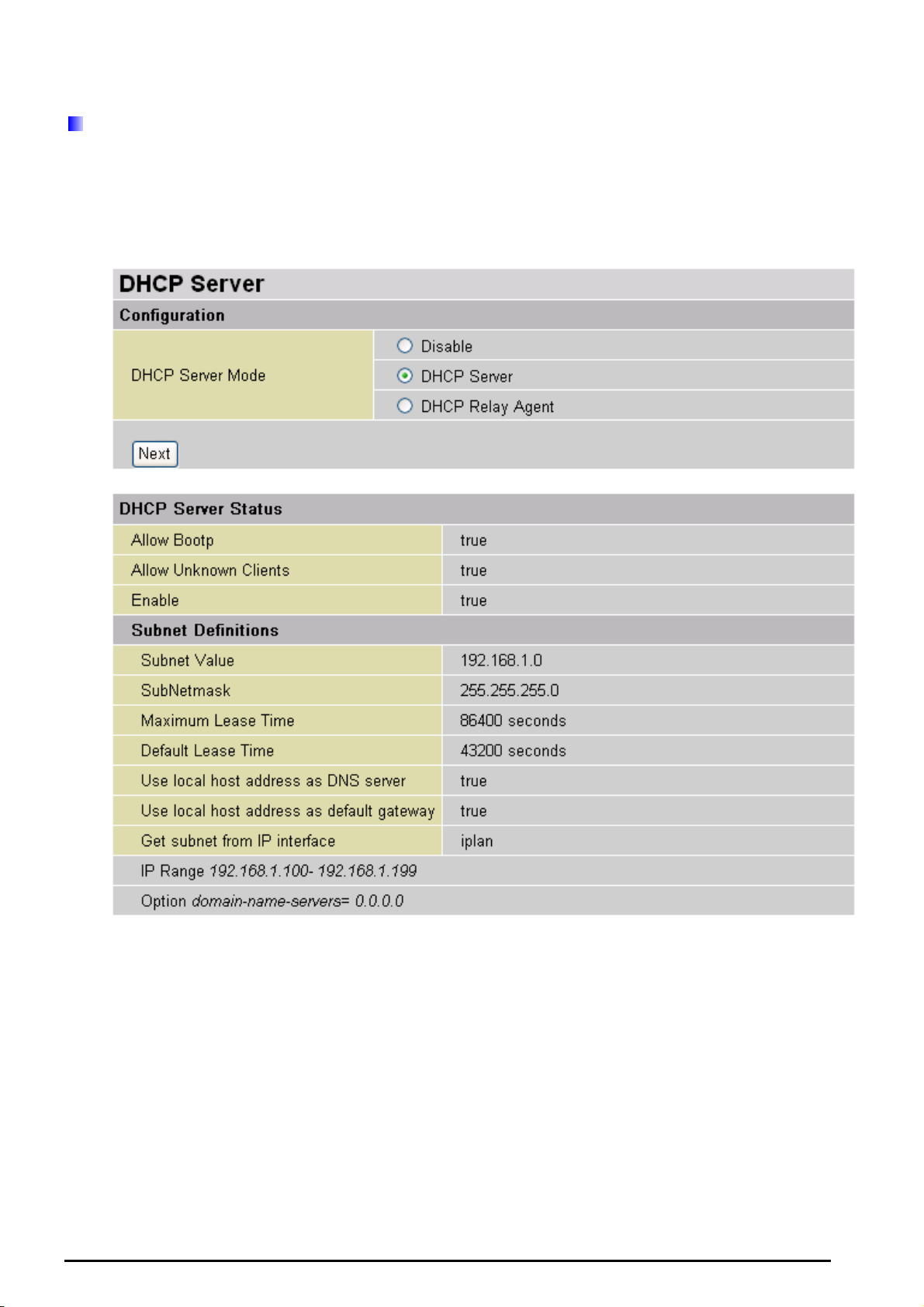

Dynamic Host Configuration Protocol (DHCP) client and server
In the WAN site, the DHCP client can get an IP address from the Internet Service Provider
(ISP) automatically. In the LAN site, the DHCP server can allocate a range of client IP
addresses and distribute them including IP address, subnet mask as well as DNS IP
address to local computers. It provides an easy way to manage the local IP network.
Static and RIP1/2 Routing
Supports an easy static routing table or RIP1/2 routing protocol to support routing
capability.
Simple Network Management Protocol (SNMP)
It is an easy way to remotely manage the router via SNMP.
Web based GUI
Supports web based GUI for configuration and management. It is user-friendly and comes
with on-line help. It also supports remote management capability for remote users to
configure and manage this product.

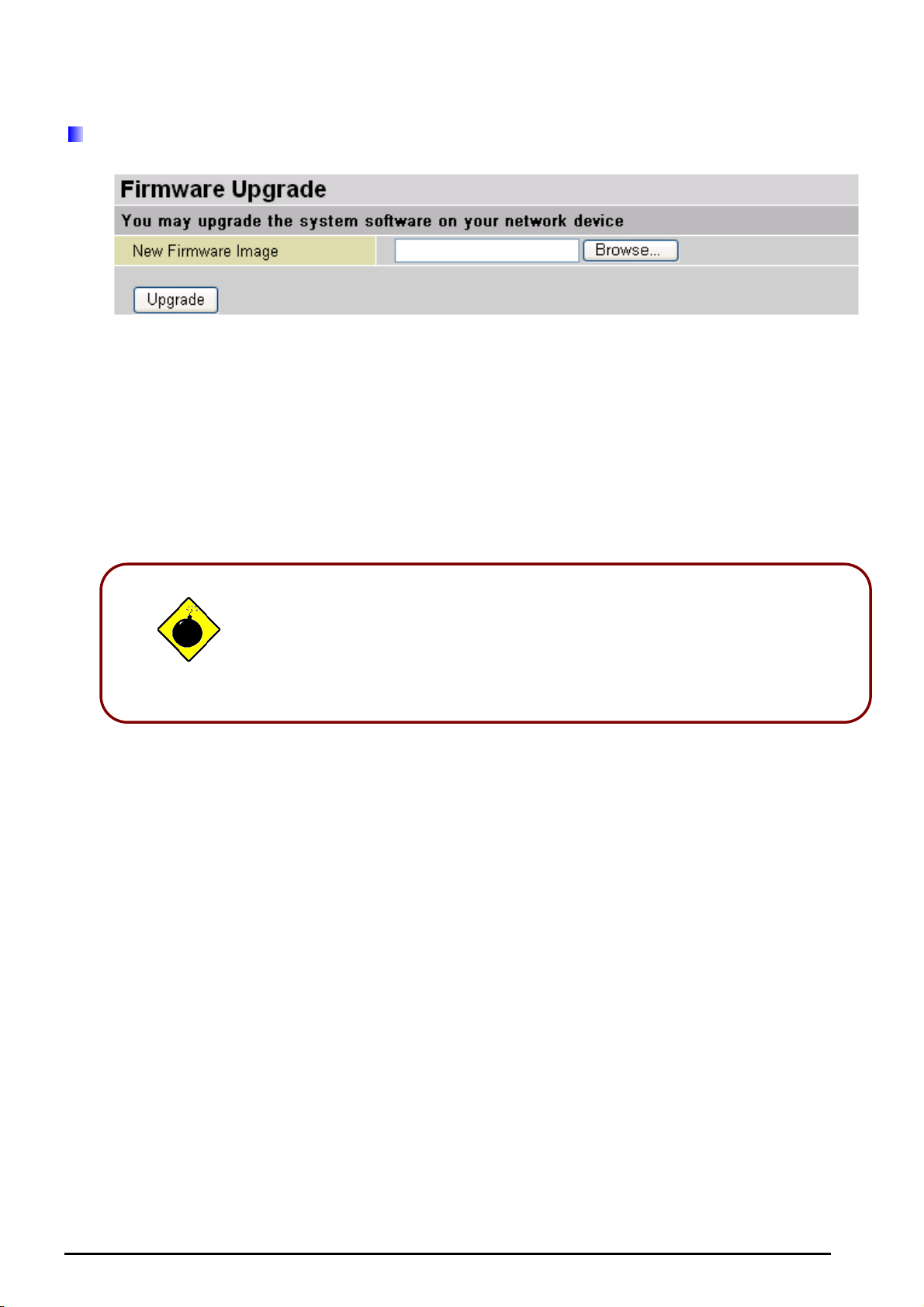

Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
Rich management interfaces
Supports flexible management interfaces with local console port, LAN port, and WAN port.
Users can use terminal applications through the console port to configure and manage the
device, or Telnet, WEB GUI, and SNMP through LAN or WAN ports to configure and
manage the device.
*Billion 7402W has a wireless interface and antenna. Billion 7402 router does
not have an antenna or wireless interface.
Power ON/OFF switch
Connect the supplied power adapter to this jack.

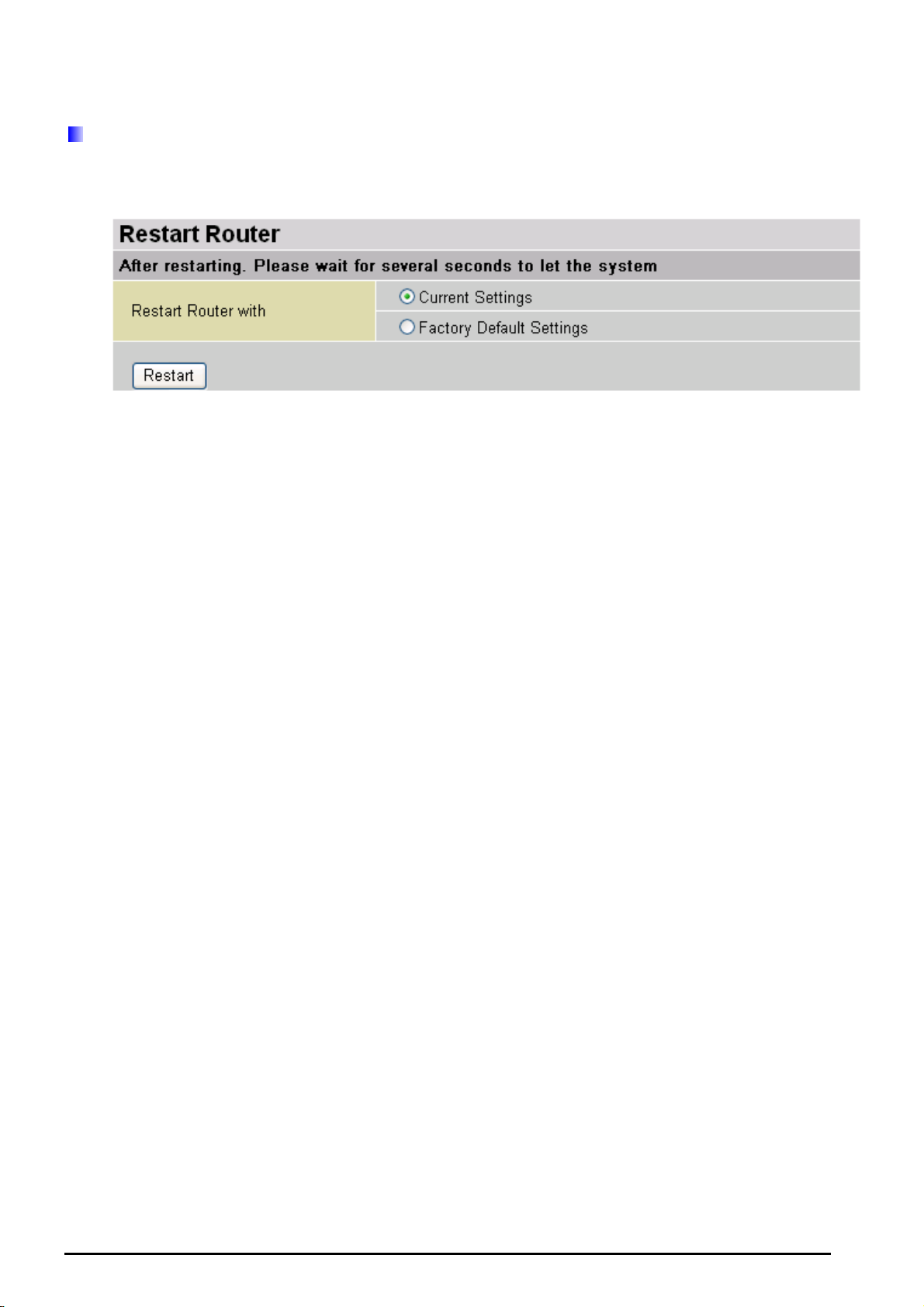

After the device is powered on, press it to reset the device or
restore to factory default settings.
0-3 seconds: reset the device
6 seconds above: restore to factory default settings (this is used when you cannot login to the router. E.g.: forgot the
password)
2 3
4
5
6
Chapter 2: Installing the Router
LAN
1X — 4X
(RJ-45 connector)
CONSOLE
LINE
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
four LAN ports when connecting to a PC or an office/home
network of 10Mbps or 100Mbps.
Connect a PS2/RS-232 cable to this port when connecting to a
PC’s RS-232 port (9-pin serial port).
Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
One of the most common causes of problems is bad cabling or ADSL line(s). Make sure that all
connected devices are turned on. On the front of the product is a bank of LEDs. Verify that the
LAN Link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your Billion router (e.g.
telephones, fax machines, analogue modems) have a line filter connected between them and
the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified
and licensed electrician), and ensure that all line filters are correctly installed and the right way
around. Missing line filters or line filters installed the wrong way around can cause problems
with your ADSL connection, including causing frequent disconnections.
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me,
etc. The product provides a very easy and user-friendly interface for configuration.
PCs must have an Ethernet interface installed properly and be connected to the router either
directly or through an external repeater hub, and have TCP/IP installed and configured to obtain
an IP address through a DHCP server or a fixed IP address that must be in the same subnet as
the router. The default IP address of the router is 192.168.1.254 and the subnet mask is
255.255.255.0 (i.e. any attached PC must be in the same subnet, and have an IP address in the
range of 192.168.1.1 to 192.168.1.253). The best and easiest way is to configure the PC to get
an IP address automatically from the router using DHCP. If you encounter any problems
accessing the router’s web interface it may also be advisable to uninstall any kind of software
firewall on your PCs, as they can cause problems accessing the 192.168.1.254 IP address of
the router. Users should make their own decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please
check your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter
must be installed. If not, please refer to your Windows-related or other operating system
manuals.
Any TCP/IP capable workstation can be used to communicate with o
through the BIPAC-7402(W). To configure other types of workstations,
lease consult the manufacturer’s documentation.
Connecting your router
1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone network.
2. Power on the device.
3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.
(For 7402W Only: the WLAN LED will be lit steadily).

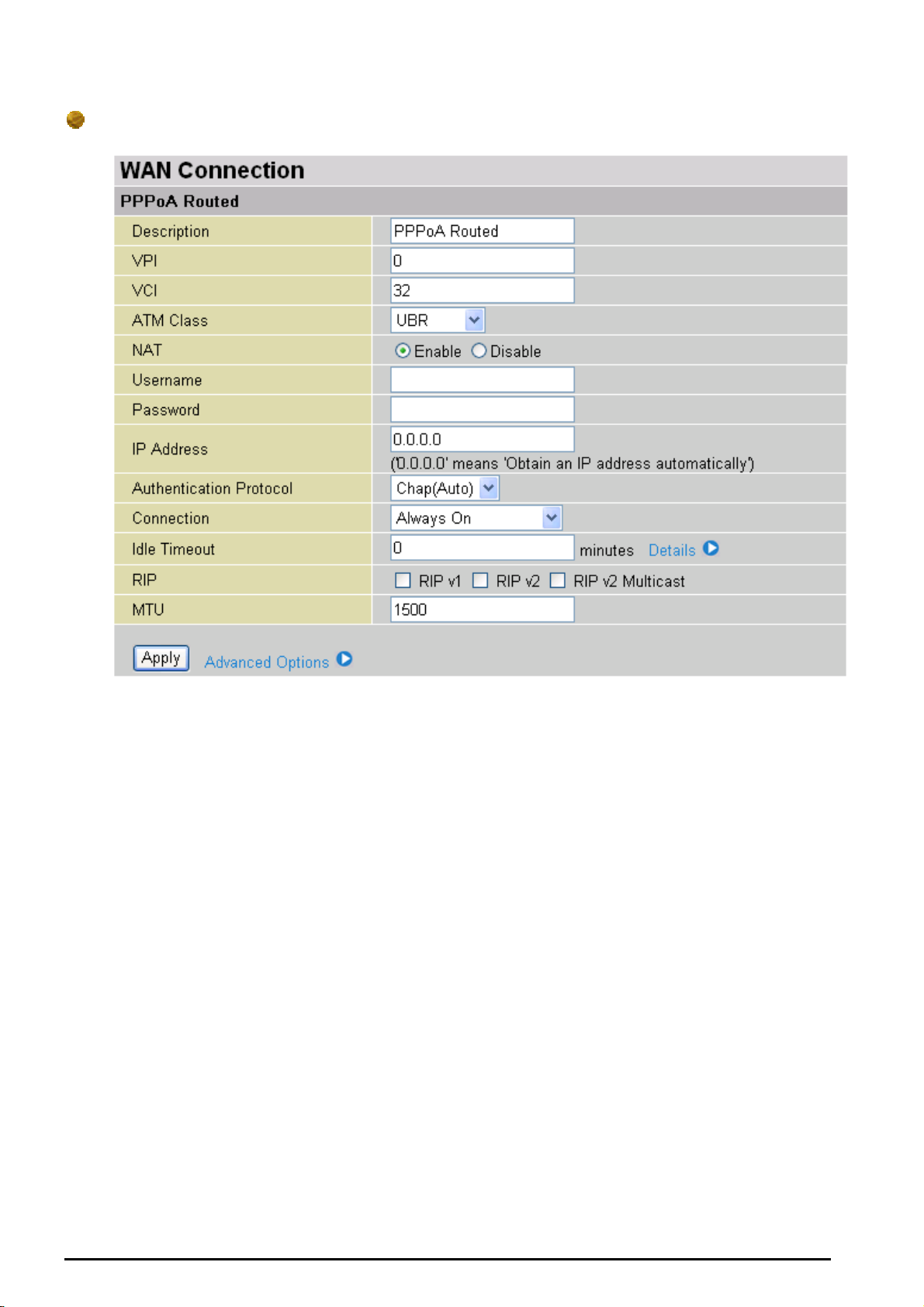

Before configuring this device, you have to check with your ISP (Internet Service Provider) what
kind of service is provided such as PPPoE, PPPoA, RFC1483, or IPoA.
Gather the information as illustrated in the following table and keep it for reference.

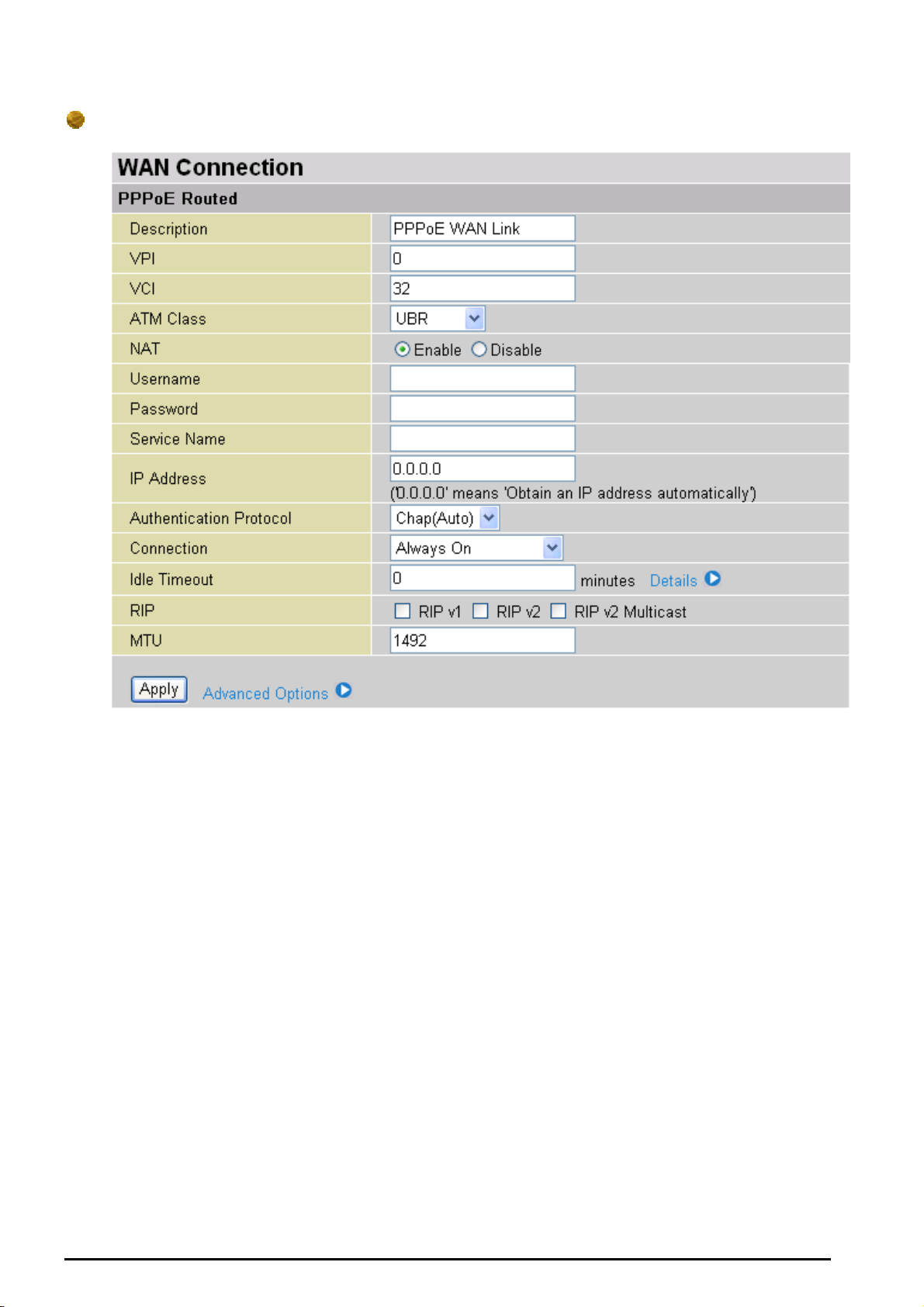

PPPoE VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, Service
Name, and Domain Name System (DNS) IP address (it can be automatically
assigned by your ISP when you connect or be set manually).
PPPoA VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, and
Domain Name System (DNS) IP address (it can be automatically assigned by
your ISP when you connect or be set manually).

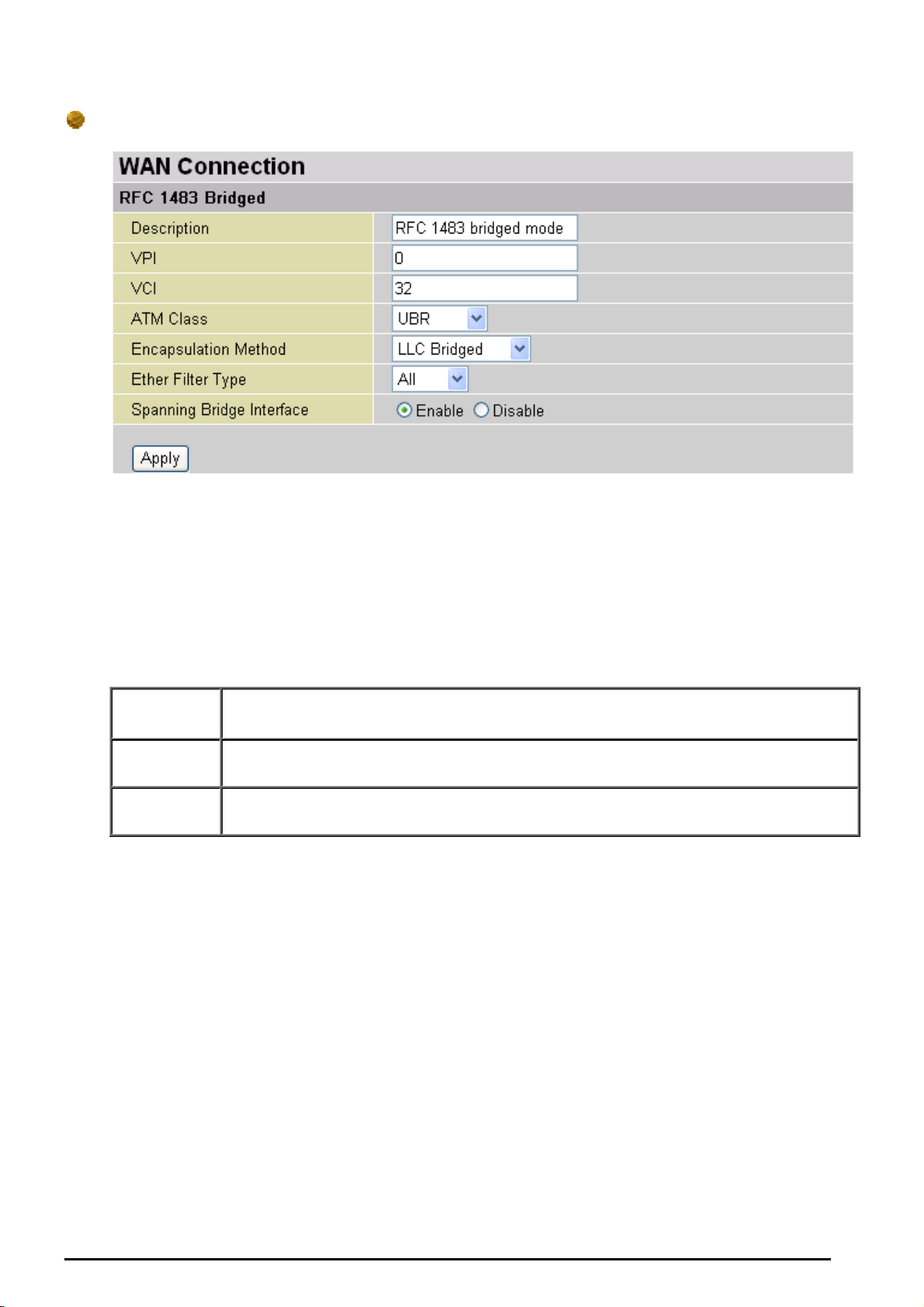

RFC1483 Bridged VPI/VCI, VC-based/LLC-based multiplexing to use Bridged Mode.

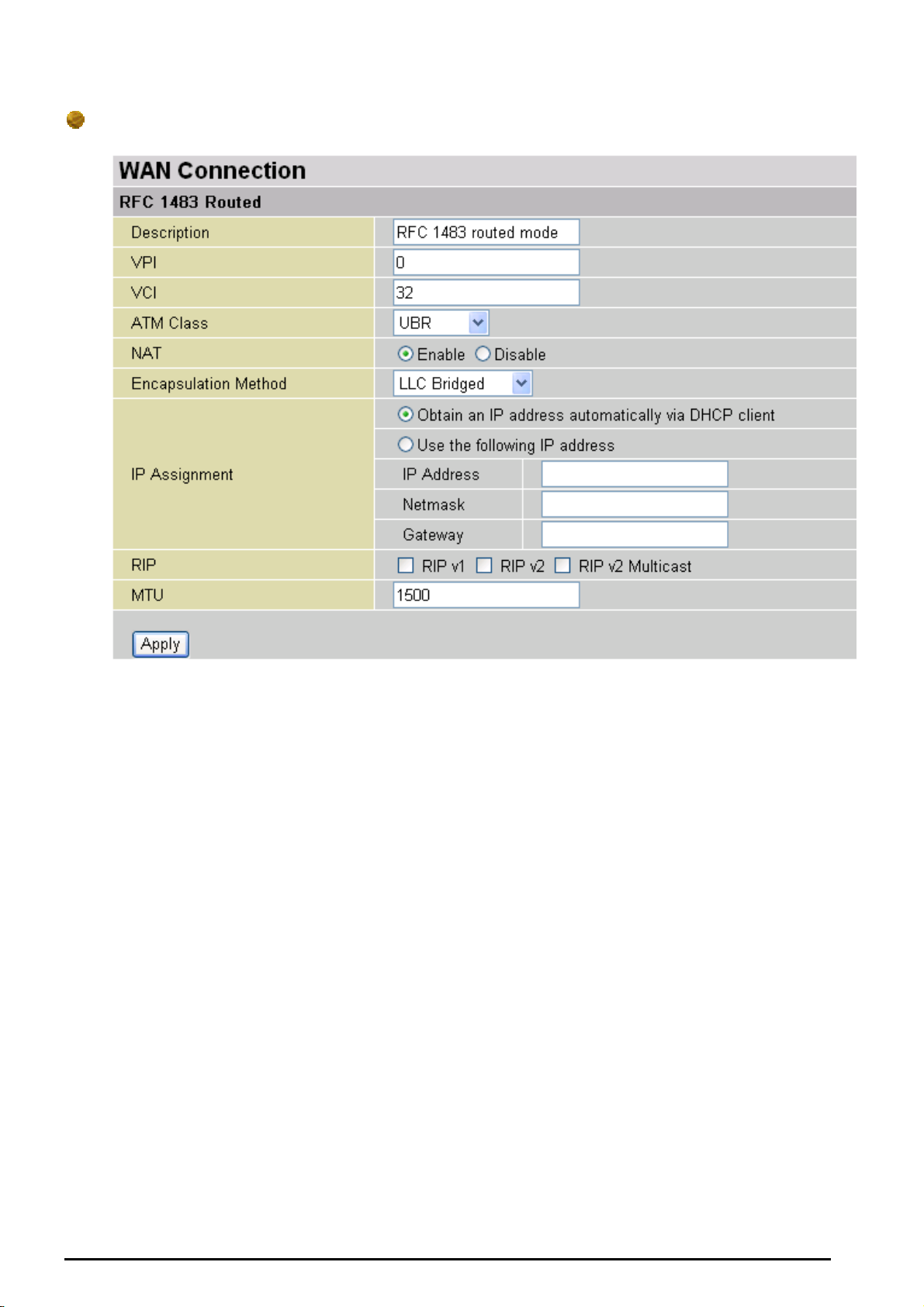

RFC1483 Routed VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask,
Gateway address, and Domain Name System (DNS) IP address (it is fixed IP
address).
IPoA VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask,
Gateway address, and Domain Name System (DNS) IP address (it is fixed IP
Open your web browser, enter the IP address of your router, which by default is 192.168.1.254,
and click “Go”, a user name and password window prompt will appear. The default username
and password are “admin” and “admin”. (See Figure 3.14)
Figure 3.14: User namd & Password Prompt Widonw
Congratulation! You are now successfully logon to the BIPAC-7402 / 7402W ADSL Router!

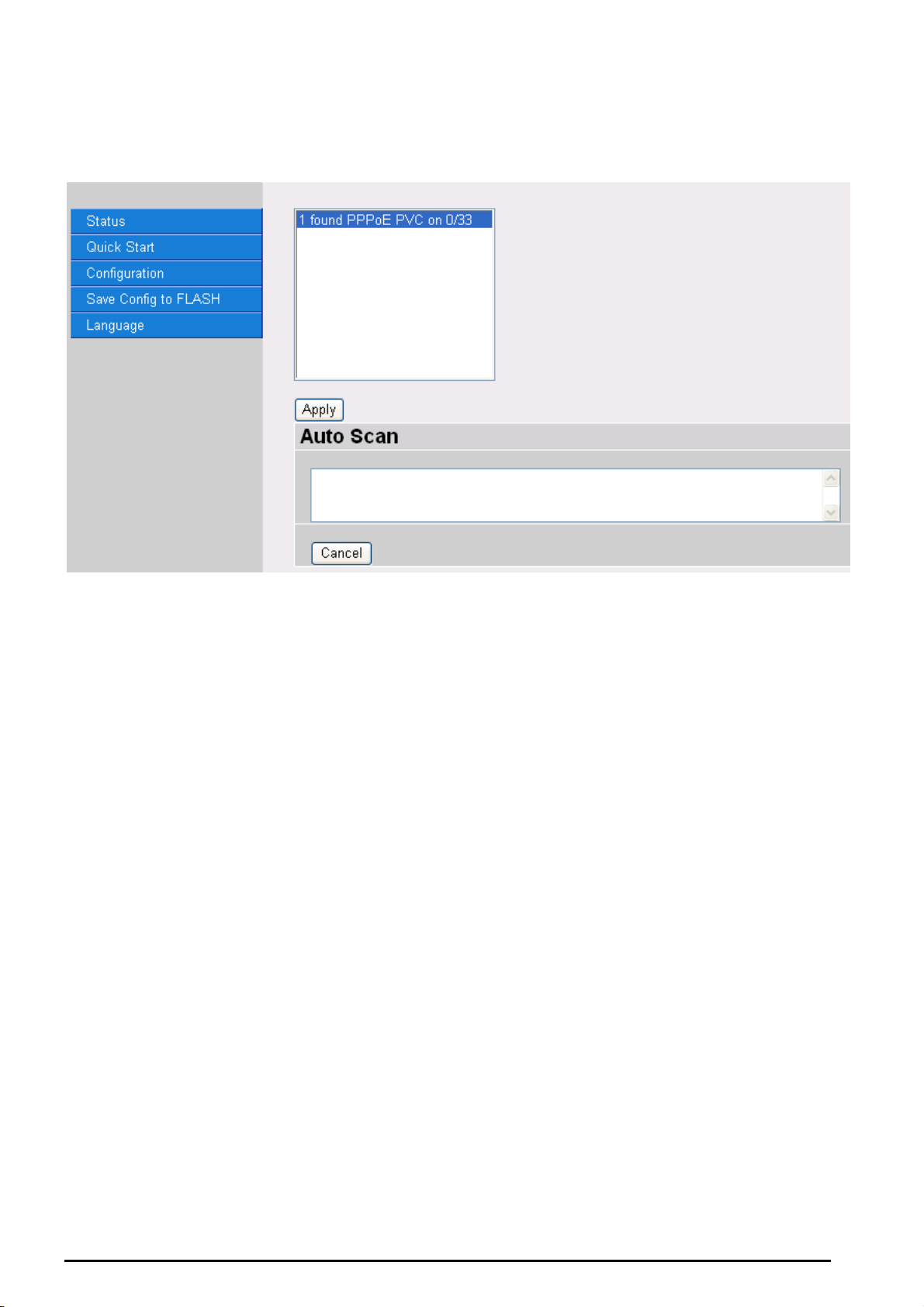

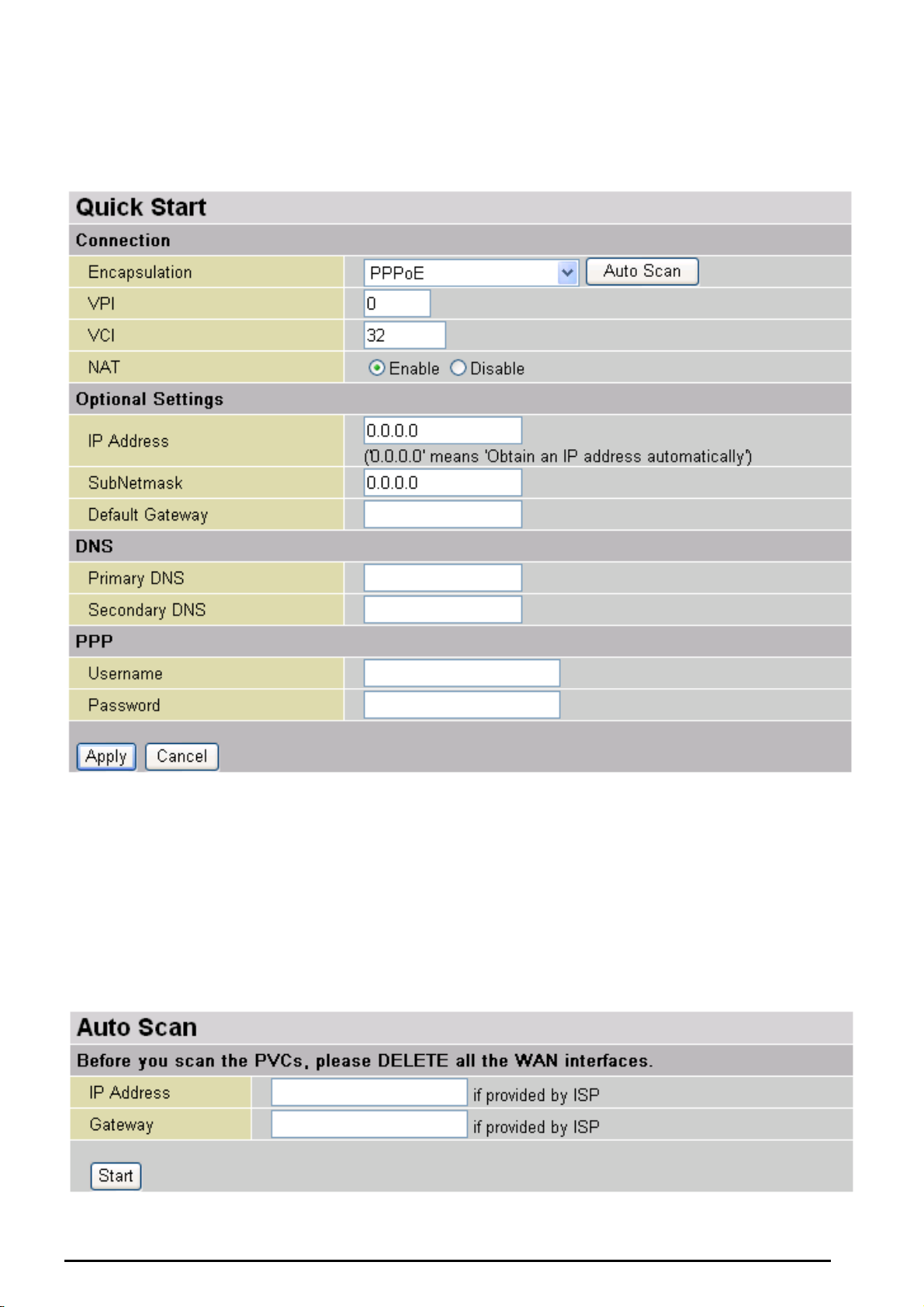

Quick Start
Configuration (LAN, WAN, System, Firewall, VPN, QoS, Virtual Server and Advanced)
Save Config to FLASH
Language (provides user interface in English and German languages).
Please see the relevant sections of this manual for detailed instructions on how to configure
your Billion router.
This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the
mapping of Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way
of determining the MAC address of the network interface of your PCs to use with the router’s

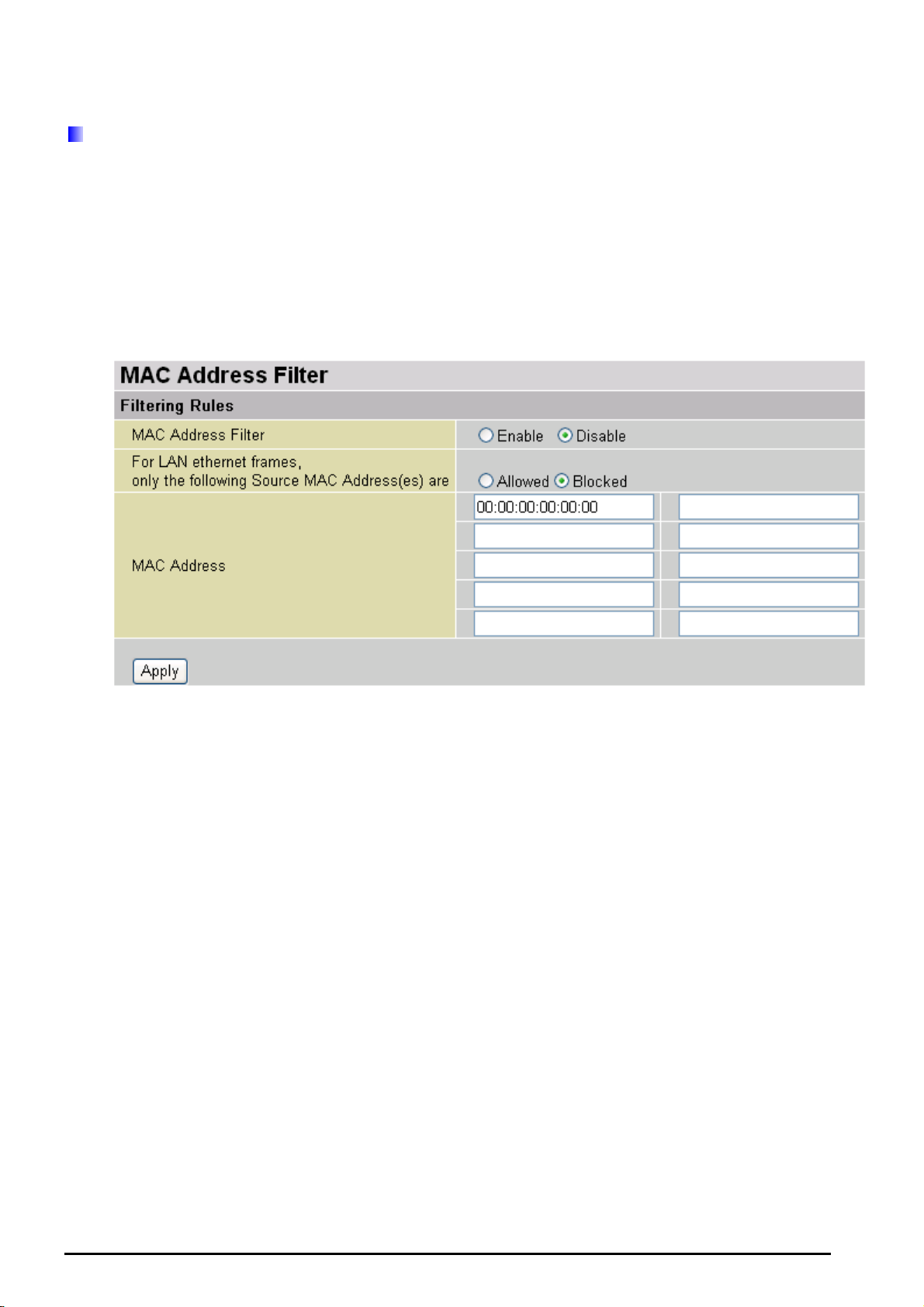

Firewall – MAC Address Filter function. See the Firewall section of this manual for more
information on this feature.
IP Address: A list of IP addresses of devices on your LAN (Local Area Network).
MAC Address: The MAC (Media Access Control) addresses for each device on your LAN.
Interface: The interface name (on the router) that this IP Address connects to.
Static: Static status of the ARP table entry:
“no” for dynamically-generated ARP table entries
“yes” for static ARP table entries added by the user
Routing Table:
Valid: It indicates a successful routing status.
Destination: The IP address of the destination network.
Netmask: The destination netmask address.
Gateway/Interface: The IP address of the gateway or existing interface that this route will use.
Cost: The number of hops counted as the cost of the route.
RIP Routing Table:
Destination: The IP address of the destination network.
Netmask: The destination netmask address.
Gateway: The IP address of the gateway that this route will use.
Cost: The number of hops counted as the cost of the route.
Leased: The DHCP assigned IP addresses information.
IP Address: A list of IP addresses of devices on your LAN (Local Area Network).
Expired: The expired IP addresses information.
Permanent: The fixed host mapping information
Leased Table
IP Address: The IP address that assigned to client.
Client UID/hw addr: The MAC address of client.
Client Host Name: The Host Name (Computer Name) of client.
Expiry: The current lease time of client.
Expired Table
Please refer the Leased Table.
Permanent Table
Name: The name you assigned to the Permanent configuration.
IP Address: The fixed IP address for the specify client.
MAC Address: The MAC Address that you want to assign the fixed IP address
Maximum Lease Time: The maximum lease time interval you allow to clients

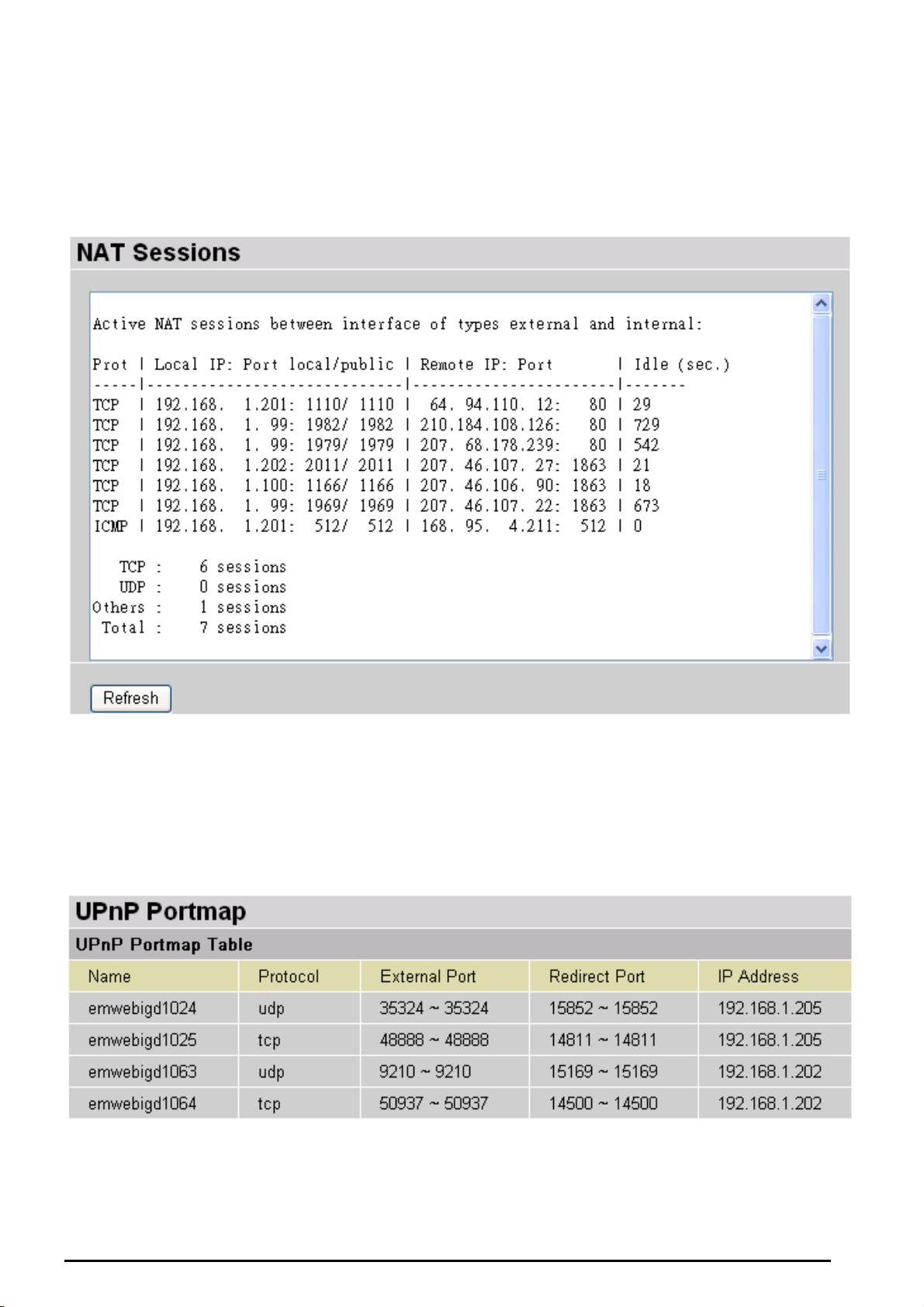

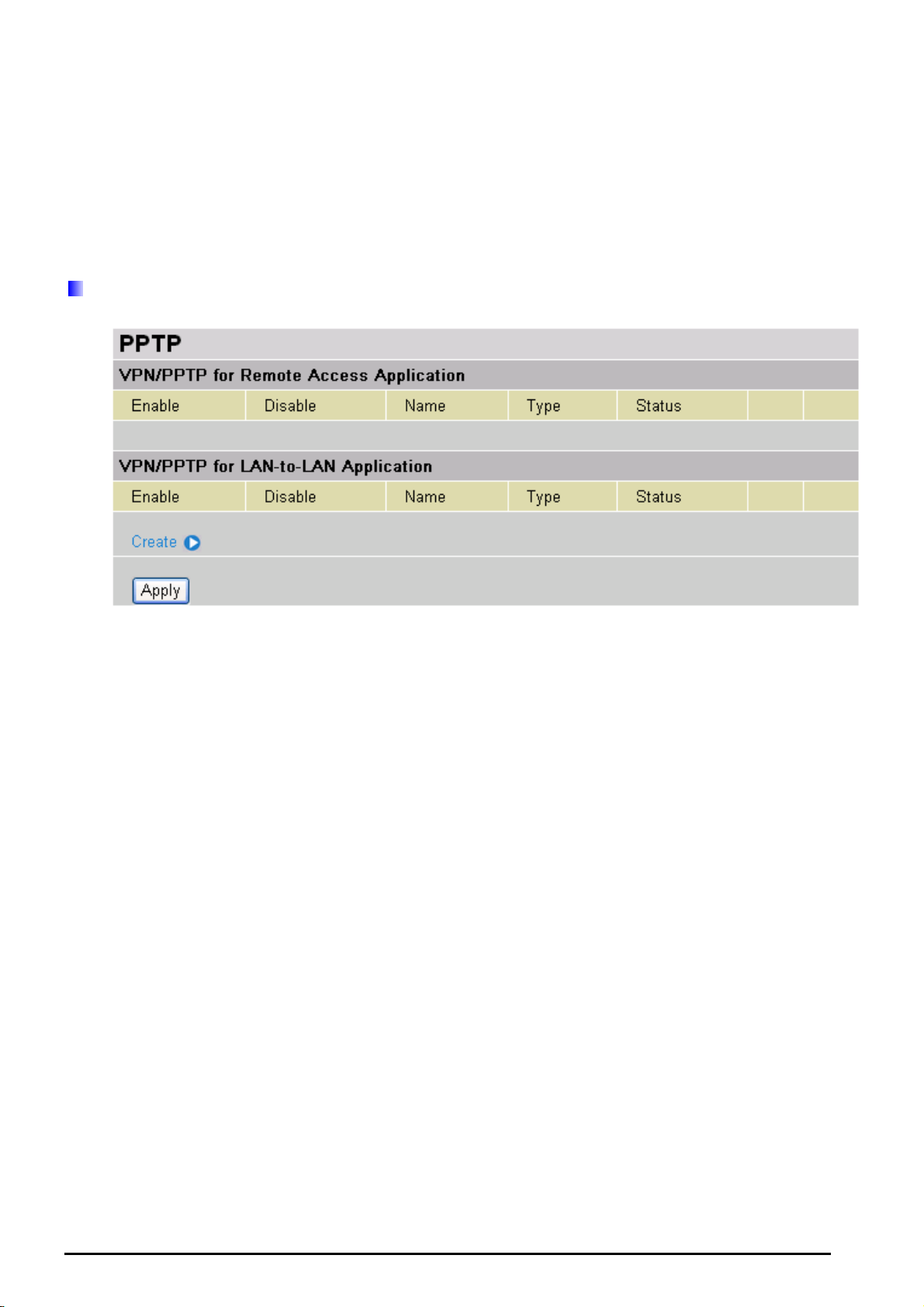

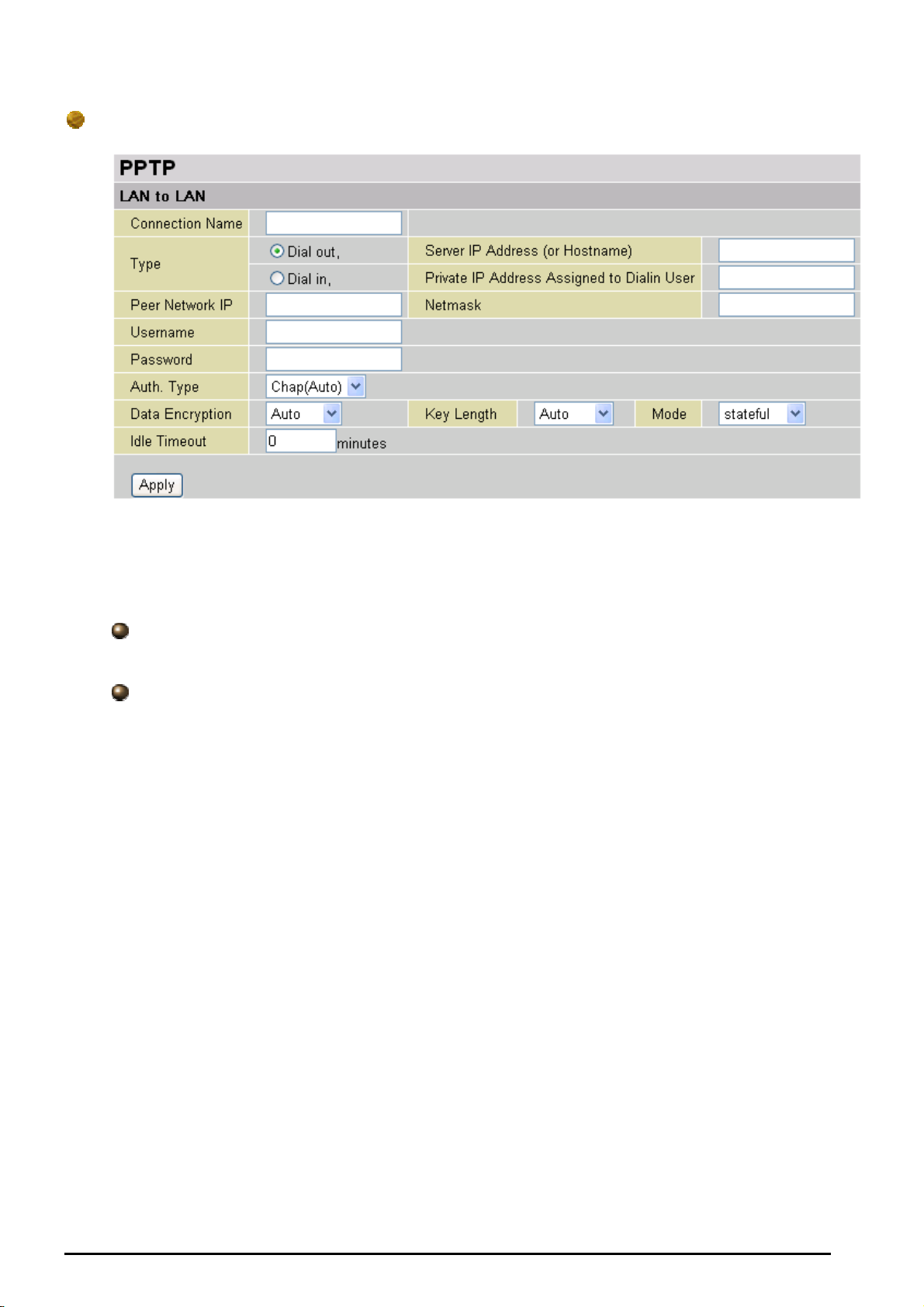

This shows details of your configured PPTP VPN Connections.
Name: The name you assigned to the particular PPTP connection in your VPN configuration.
Type: The type of connection (dial-in/dial-out).
Enable: Whether the connection is currently enabled.
Active: Whether the connection is currently active.
Tunnel Connected: Whether the VPN Tunnel is currently connected.
Call Connected: If the Call for this VPN entry is currently connected.
Encryption: The encryption type used for this VPN connection.
This shows details of your configured IPSec VPN Connections.
Name: The name you assigned to the particular VPN entry.
Active: Whether the VPN Connection is currently Active.
Connection State: Whether the VPN is Connected or Disconnected.
Statistics: Statistics for this VPN Connection.
Local Subnet: The local IP Address or Subnet used.
Remote Subnet: The Subnet of the remote site.
Remote Gateway: The Remote Gateway IP address.
SA: The Security Association for this VPN entry.
This shows details of your configured L2TP VPN Connections.
Name: The name you assigned to the particular L2TP connection in your VPN configuration.
Type: The type of connection (dial-in/dial-out).
Enable: Whether the connection is currently enabled.
Active: Whether the connection is currently active.
Tunnel Connected: Whether the VPN Tunnel is currently connected.
Call Connected: If the Call for this VPN entry is currently connected.
Encryption: The encryption type used for this VPN connection.
Email Status
Details and status for the Email Account you have configured the router to check. Please see
the Advanced section of this manual for details on this function.
This page displays the router’s Event Log entries. Major events are logged to this window, such
as when the router’s ADSL connection is disconnected, as well as Firewall events when you
have enabled Intrusion or Blocking Logging in the Configuration – Firewall section of the
interface. Please see the Firewall section of this manual for more details on how to enable
Firewall logging.
Error Logging
Any errors encountered by the router (e.g. invalid names given to entries) are logged to this
window.
When you click this item, you get following sub-items to configure the ADSL router.
LAN, WAN, System, Firewall, VPN, QoS, Virtual Server and Advanced
These functions are described below in the following sections.
LAN (Local Area Network)
There are four items within the LAN section: Ethernet, Wireless, Wireless Security, Port
Setting and DHCP Server.

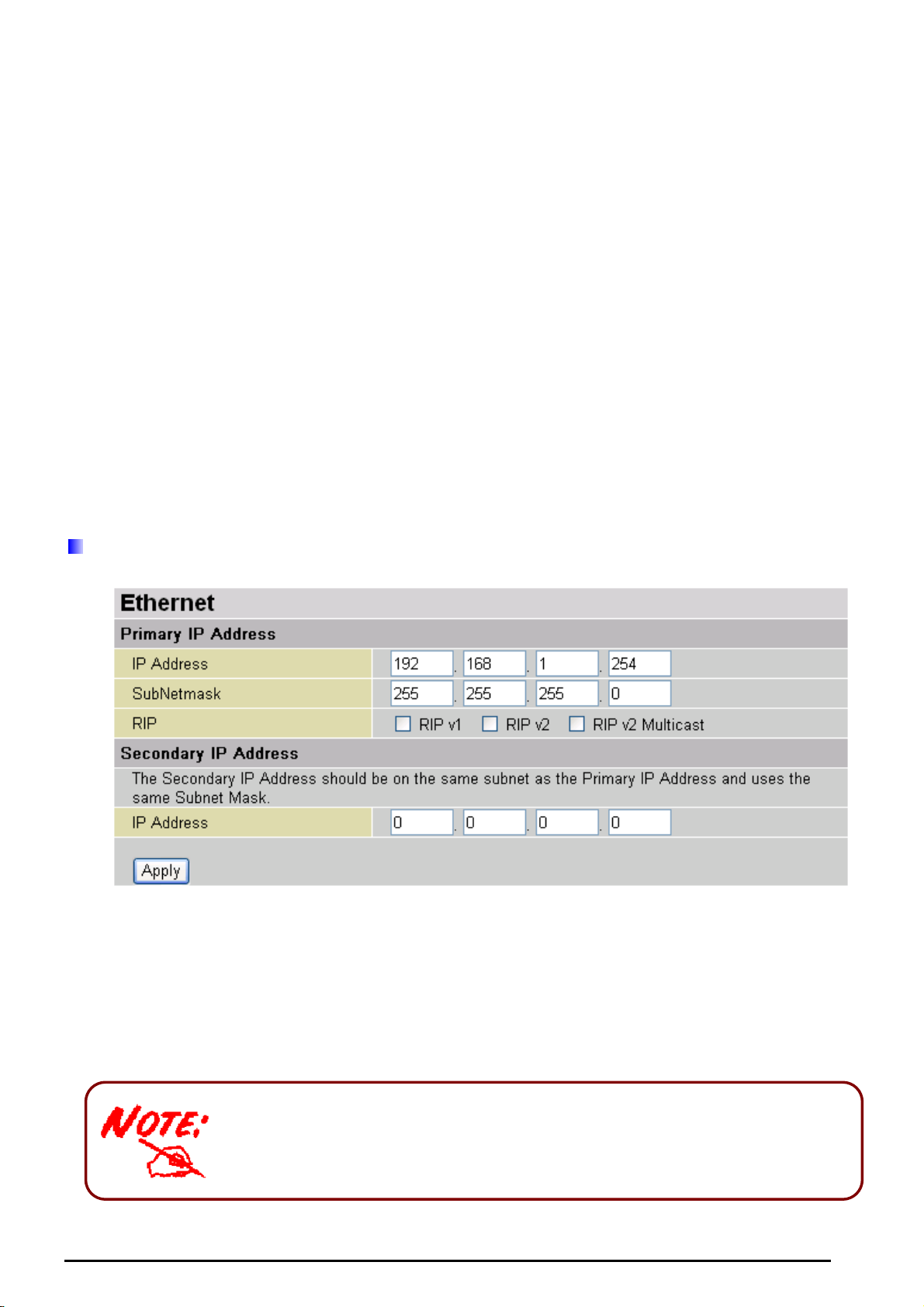

Ethernet
The router supports two Ethernet IP addresses in the LAN, and two different LAN subnets
through which you can access the Internet at the same time. Users usually only have one
subnet in their LAN, so there is no need to configure a Secondary IP address. The default
IP address for the router is 192.168.1.254.
RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.
The Subnet mask of Secondary IP Address depends on the setting o
Primary IP Address.
WLAN Service: Default setting is set to Enable.
ESSID: Enter the unique ID given to the Access Point (AP), which is already built-in to the
router’s wireless interface. To connect to this device, your wireless clients must have the
same ESSID as the device.
ESSID Broadcast:
Disable: Any client that using the “any” setting cannot discover the Access Point (AP)
in question.
Enable: Any client that using the “any” setting can discover the Access Point (AP) in
question.
Regulation Domain: There are five Regulation Domains for you to choose from, including
North America (N.America), Europe, France, etc. The Channel ID will be different based
on this setting.
Channel ID: Select the ID channel that you would like to use.
Reset: Reset the Access Point (AP), which is already built-in to the router’s wireless
interface.
Connected: True or False. That it is the connection status between the system and the
build-in wireless card.
Card Type: The name of Chipset, which is already build-in to the router’s wireless
interface.
AP Firmware Version: The Access Point firmware version.
Primary Firmware Version:The initial boot code firmware version in build-in wireless card.

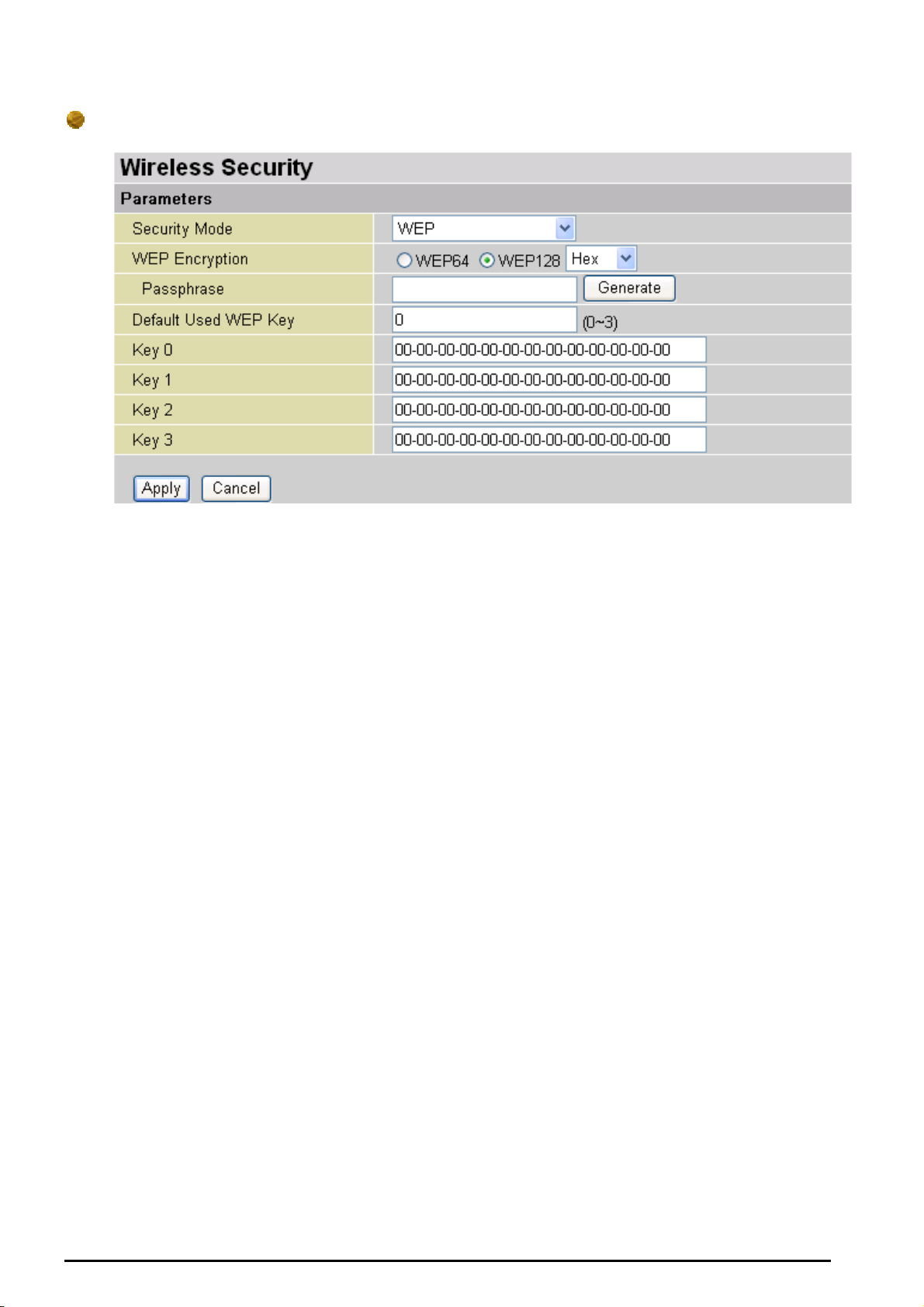

WEP Encryption: To prevent unauthorized wireless stations from accessing data
transmitted over the network, the router offers highly secure data encryption, known as
WEP. If you require high security for transmissions, there are two alternatives to select
from: WEP 64 and WEP 128. WEP 128 will offer increased security over WEP 64.
Passphrase: This is used to generate WEP keys automatically based upon the input
string and a pre-defined algorithm in WEP64 or WEP128. You can input the same string in
both the AP and Client card settings to generate the same WEP keys. Please note that
you do not have to enter Key (0-3) as below when the Passphrase is enabled.
Default Used WEP Key: Select the encryption key ID, please refer to Key (0-3) below.
Key (0-3): Enter the key to encrypt wireless data. To allow encrypted data transmission,
the WEP Encryption Key values on all wireless stations must be the same as the router.
There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX
codes are required for WEP64 and WEP128 respectively, the separator is “-“. For example,
using WEP64, 11-22-33-44-55 is a valid key, whilst 1122334455 is invalid.

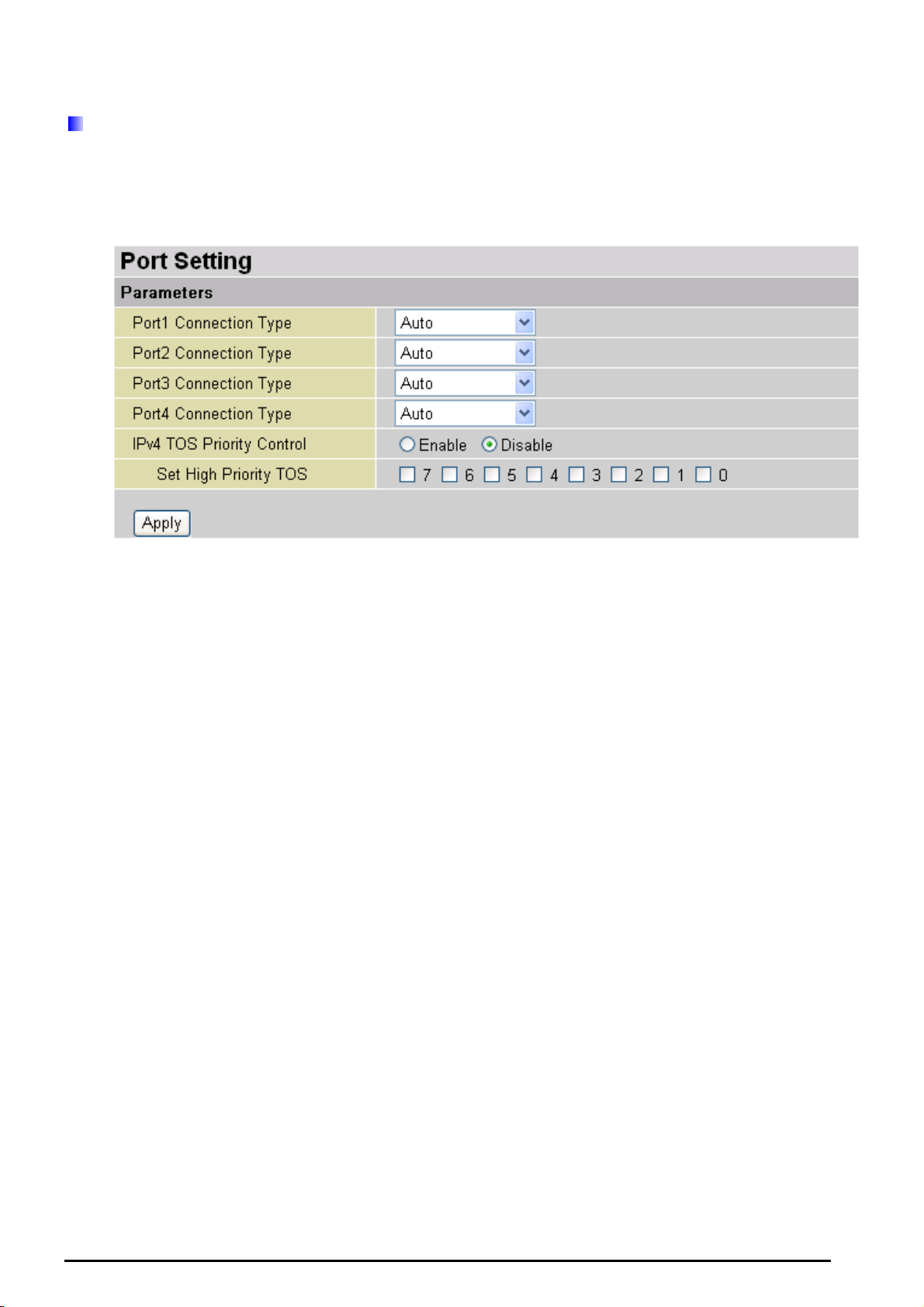

This section allows you to configure the settings for the router’s Ethernet ports to solve
some of the compatibility problems that may be encountered while connecting to the
Internet, as well allowing users to tweak the performance of their network.
Port # Connection Type: Five options to choose from: Auto, 10M half-duplex, 10M full-
duplex, 100M half-duplex or 100M full-duplex. Sometimes, there are Ethernet compatibility
problems with legacy Ethernet devices, and you can configure different types to solve
compatibility issues. The default is Auto, which users should keep unless there are
specific problems with PCs not being able to access your LAN.
IPv4 TOS priority Control (Advanced users): TOS, Type of Services, is the 2
nd
octet of
an IP packet. Bits 6-7 of this octet are reserved and bit 0-2 are used to specify the priority
(precedence) of the packet, and bits 3-5 are specified the delay, throughput and reliability.
This feature uses bits 0-2 to classify the packet’s priority. If the packet is high priority, it will
flow first. Therefore, when this feature is enabled, the router’s Ethernet switch will check
nd
the 2
octet of each IP packet. If the value in the Precedence of TOS field matches the
checked values in the table (0 to 7), this packet will be treated as high priority.
You can disable or enable the DHCP (Dynamic Host Configuration Protocol) server or
enable the router’s DHCP relay functions. The DHCP protocol allows your router to
dynamically assign IP addresses to PCs on your network if they are configured to obtain
IP addresses automatically.
To disable the router’s DHCP Server, check Disabled and click Next, then click Apply.
When the DHCP Server is disabled you will need to manually assign a fixed IP address to
each PCs on your network, and set the default gateway for each PCs to the IP address of
the router (by default this is 192.168.1.254).
To configure the router’s DHCP Server, check DHCP Server and click Next. You can then
configure parameters of the DHCP Server including the IP pool (starting IP address and
ending IP address to be allocated to PCs on your network), lease time for each assigned
IP address (the period of time the IP address assigned will be valid), DNS IP address and
the gateway IP address. These details are sent to the DHCP client (i.e. your PC) when it
requests an IP address from the DHCP server. Click Apply to enable this function. If you
check “Use Router as a DNS Server”, the ADSL Router will perform the domain name
lookup, find the IP address from the outside network automatically and forward it back to
the requesting PC in the LAN (your Local Area Network).
If you check DHCP Relay Agent and click Next, then you will have to enter the IP address
of the DHCP server which will assign an IP address back to the DHCP client in the LAN.
Use this function only if advised to do so by your network administrator or ISP.

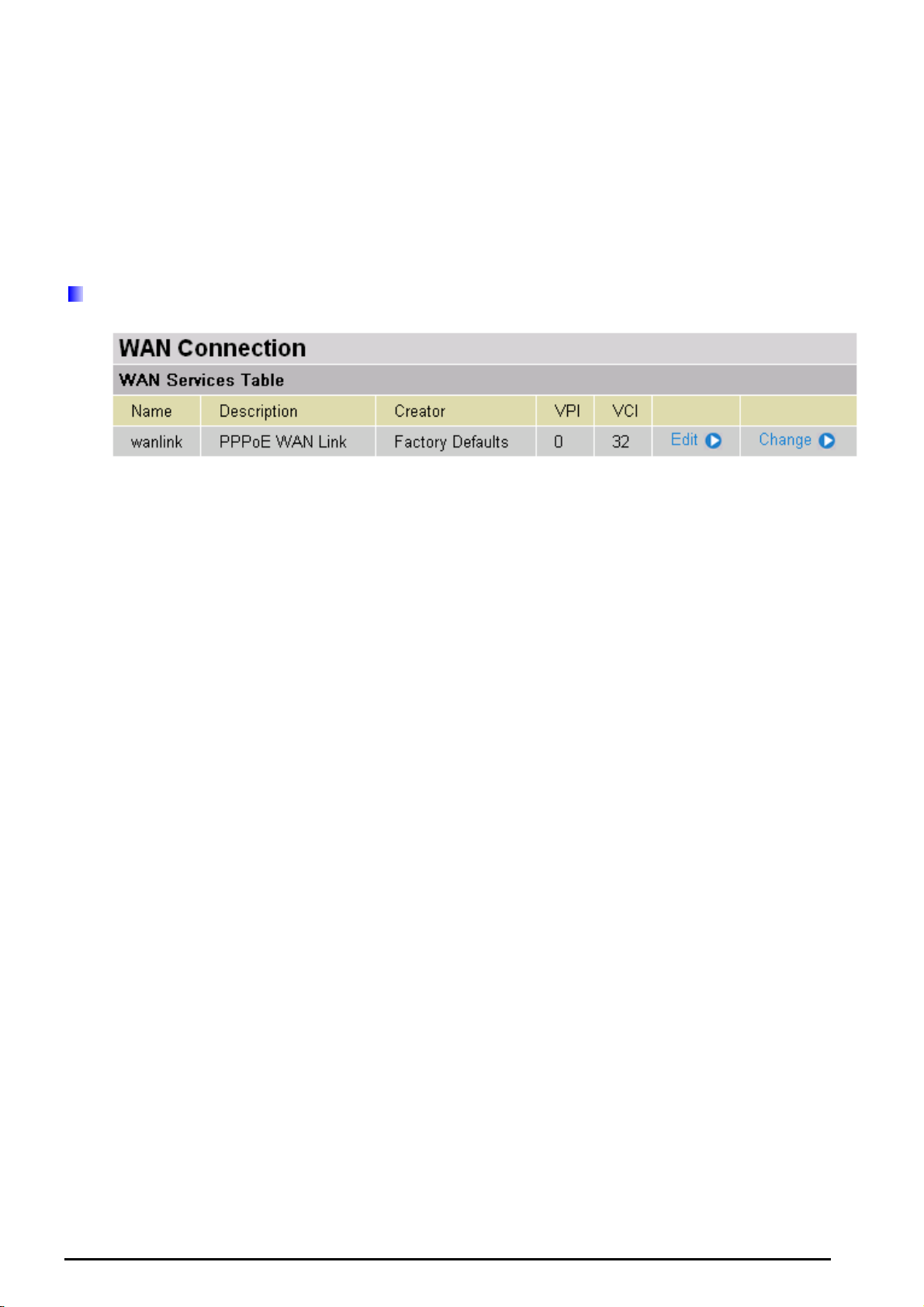

Description: Your description of this connection.
VPI and VCI: Enter the information provided by your ISP.
ATM Class:The Quality of Service for ATM layer.
NAT: The NAT (Network Address Translation) feature allows multiple users to access the
Internet through a single IP account, sharing the single IP address. If users on your LAN
have public IP addresses and can access the Internet directly, the NAT function can be
disabled.
Encapsulation method: Select the encapsulation format, the default is LlcBridged. Select
the one provided by your ISP.
DHCP client: Enable or disable the DHCP client, specify if the Router can get an IP
address from the Internet Service Provider (ISP) automatically or not. Please click Obtain an IP address automatically via DHCP client to enable the DHCP client function or click
Specify an IP address to disable the DHCP client function, and specify the IP address
manually. The setting of this item is specified by your ISP.
RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-
specific headers) that IP will attempt to send through the interface.
Description: A user-definable name for this connection.
VPI/VCI: Enter the information provided by your ISP.
ATM Class:The Quality of Service for ATM layer.
NAT: The NAT (Network Address Translation) feature allows multiple users to access the
Internet through a single ISP account, sharing a single IP address. If users on your LAN
have public IP addresses and can access the Internet directly, the NAT function can be
disabled.
Username: Enter the username provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive). This will usually be in the format of
“username@ispname” instead of simply “username”.
Password: Enter the password provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive).
Service Name: This item is for identification purposes. If it is required, your ISP will
provide you the information. Maximum input is 20 alphanumeric characters.
IP Address:specify if the Router can get an IP address from the Internet Server Provider
(ISP) automatically or not. Please click Obtain an IP address automatically via DHCP
client to enable the DHCP client function or click Specify an IP address to disable the
DHCP client function, and specify the IP address manually. The setting of this item is
specified by your ISP.
Authentication Protocol: Default is Chap(Auto). Your ISP will advise you whether to use
Chap or Pap.
Connection:
Always on: If you want the router to establish a PPPoE session when starting up and
to automatically re-establish the PPPoE session when disconnected by the ISP.
Connect to Demand: If you want to establish a PPPoE session only when there is a
packet requesting access to the Internet (i.e. when a program on your computer attempts
to access the Internet).
Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity
on the line for a predetermined period of time.
Detail: You can define the destination port and packet type (TCP/UDP) without
checking by timer. It allows you to set which outgoing traffic will not trigger and reset the
idle timer.
RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-
specific headers) that IP will attempt to send through the interface.
Advanced Options (PPPoE)
LLC Header: Selects encapsulation mode, true for using LLC or false for using VC-Mux.
Create Route: This setting specifies whether a route is added to the system after IPCP
(Internet Protocol Control Protocol) negotiation is completed. If set to enabled, a route will
be created which directs packets to the remote end of the PPP link.
Specific Route: Specifies whether the route created when a PPP link comes up is a
specific or default route. If set to enabled, the route created will only apply to packets for
the subnet at the remote end of the PPP link. The address of this subnet is obtained
during IPCP negotiation.
Subnet Mask: sets the subnet mask used for the local IP interface connected to the PPP
transport. If the value 0.0.0.0 is supplied, the netmask will be calculated from the class of
the IP address obtained during IPCP negotiation.
Route Mask: Sets the subnet mask used by the route that is created when a PPP link
comes up. If it is set to 0.0.0.0, the subnet mask is determined by the IP address of the
remote end of the link. The class of the IP address is obtained during IPCP (Internet
Protocol Control Protocol) negotiation.
MRU : Maximum Receive Unit. This is negotiated during the LCP protocol stage.
Discover Primary / Secondary DNS: This setting enables/disables whether the
primary/secondary DNS server address is requested from a remote PPP peer using IPCP.
Give DNSto Relay: Controls whether the PPP Internet Protocol Control Protocol (IPCP)
can request the DNS server IP address for a remote PPP peer. Once IPCP has
discovered the DNS server IP address, it automatically gives the address to the local DNS
relay so that a connection can be established.
Give DNSto Client: Controls whether the PPP Internet Protocol Control Protocol (IPCP)
can request a DNS server IP address for a remote PPP peer. Once IPCP has discovered
the DNS server IP address, it automatically gives the address to the local DNS client so
that a connection can be established.
Give DNSto DHCP Server: Similar to the above, but gives the DNS server address to the
DHCP server.
Discover Primary NBNS / Discover Secondary NBNS: This setting enables/disables
whether the primary/secondary NBNS server address is requested from a remote PPP
peer using IPCP. The default setting for this command is disabled.
Discover Subnet Mask:Specifies if the subnet mask given by IPCP negotiation process
is to be used.
Give Subnet Mask To DHCP Server: Enable to change your DHCP Server settings by
using the given information in IPCP negotiation process.
VPI and VCI: Enter the information provided by your ISP.
ATM Class:The Quality of Service for ATM layer.
Encapsulation method: Select the encapsulation format, this is provided by your ISP.
Ether Filter Type: Specify the type of ethernet filtering performed by the named bridge
interface.
All
Ip
Pppoe
Allows all types of ethernet packets through the port.
Allows only IP/ARP types of ethernet packets through the port.
Allows only PPPoE types of ethernet packets through the port.
Spanning Bridge Interface: Enable/Disable spanning tree function of modem.
Description: User-definable name for the connection.
VPI/VCI: Enter the information provided by your ISP.
ATM Class:The Quality of Service for ATM layer.
NAT: The NAT (Network Address Translation) feature allows multiple users to access the
Internet through a single IP account, sharing a single IP address. If users on your LAN
have public IP addresses and can access the Internet directly, the NAT function can be
disabled.
Username: Enter the username provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive). This will usually be in the format of
“username@ispname” instead of simply “username”.
Password: Enter the password provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive).
IP Address: Specify an IP address allowed to logon and access the router’s web server.
Note: IP 0.0.0.0 indicates all users who are connected to this router are allowed to logon
the device and modify data.
Authentication Protocol Type: Default is Chap (Auto). Your ISP will advise you whether
Always on: If you want the router to establish a PPPoA session when starting up and
to automatically re-establish the PPPoA session when disconnected by the ISP.
Connect to Demand: If you want to establish a PPPoA session only when there is a
packet requesting access to the Internet (i.e. when a program on your computer attempts
to access the Internet).
Idle Timeout: Auto-disconnect the broadband firewall gateway when there is no activity
on the line for a predetermined period of time.
Detail: You can define the destination port and packet type (TCP/UDP) without
checking by timer. It allows you to set which outgoing traffic will not trigger and reset the
idle timer.
RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-
specific headers) that IP will attempt to send through the interface.
Advanced Options (PPPoA)
LLC Header: Selects encapsulation mode, true for using LLC or false for using VC-Mux.
Create Route: This setting specifies whether a route is added to the system after IPCP
(Internet Protocol Control Protocol) negotiation is completed. If set to enabled, a route will
be created which directs packets to the remote end of the PPP link.
Specific Route: Specifies whether the route created when a PPP link comes up is a
specific or default route. If set to enabled, the route created will only apply to packets for
the subnet at the remote end of the PPP link. The address of this subnet is obtained
during IPCP negotiation.
Subnet Mask: sets the subnet mask used for the local IP interface connected to the PPP
transport. If the value 0.0.0.0 is supplied, the netmask will be calculated from the class of
the IP address obtained during IPCP negotiation.
Route Mask: Sets the subnet mask used by the route that is created when a PPP link
comes up. If it is set to 0.0.0.0, the subnet mask is determined by the IP address of the
remote end of the link. The class of the IP address is obtained during IPCP (Internet
Protocol Control Protocol) negotiation.
MRU : Maximum Receive Unit. This is negotiated during the LCP protocol stage.
Discover Primary / Secondary DNS: This setting enables/disables whether the
primary/secondary DNS server address is requested from a remote PPP peer using IPCP.
The default setting for this command is enabled. Give DNSto Relay: Controls whether the PPP Internet Protocol Control Protocol (IPCP)
can request the DNS server IP address for a remote PPP peer. Once IPCP has
discovered the DNS server IP address, it automatically gives the address to the local DNS
relay so that a connection can be established.
Give DNSto Client: Controls whether the PPP Internet Protocol Control Protocol (IPCP)
can request a DNS server IP address for a remote PPP peer. Once IPCP has discovered
the DNS server IP address, it automatically gives the address to the local DNS client so
that a connection can be established.
Give DNSto DHCP Server: Similar to the above, but gives the DNS server address to the
DHCP server.
Discover Primary NBNS / Discover Secondary NBNS: This setting enables/disables
whether the primary/secondary NBNS server address is requested from a remote PPP
peer using IPCP. The default setting for this command is disabled.
Discover Subnet Mask:Specifies if the subnet mask given by IPCP negotiation process
is to be used.
Give Subnet Mask To DHCP Server: Enable to change your DHCP Server settings by
using the given information in IPCP negotiation process.
Description: User-definable name for the connection.
VPI/VCI: Enter the information provided by your ISP.
ATM Class:The Quality of Service for ATM layer.
NAT: The NAT (Network Address Translation) feature allows multiple users to access the
Internet through a single IP account, sharing a single IP address. If users on your LAN
have public IP addresses and can access the Internet directly, the NAT function can be
disabled.
DHCP client: Enable or disable the DHCP client, specifying if the router can obtain an IP
address from the Internet Service Provider (ISP) automatically or not. Please click Obtain
an IP address automatically via DHCP client to enable the DHCP client function or click
Specify an IP address to disable the DHCP client function, and specify the IP address
manually. The setting of this item is specified by your ISP.
RIP: RIP v1, RIP v2, and RIP v2 Multicast. Check to enable RIP function.
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding media-
specific headers) that IP will attempt to send through the interface.
A Domain Name System (DNS) contains a mapping table for domain name and IP
addresses. On the Internet, every host has a unique and user-friendly name (domain
name) such as www.abc.com and an IP address. An IP address is a 32-bit number in the
form of xxx.xxx.xxx.xxx, for example 192.168.1.254. You can think of an IP address as a
telephone number for devices on the Internet, and the DNS will allow you to find the
telephone number for any particular domain name. As an IP Address is hard to remember,
the DNS converts the friendly name into its equivalent IP Address.
You can obtain a Domain Name System (DNS) IP address automatically if your ISP has
provided it when you logon. Usually when you choose PPPoE or PPPoA as your WAN ISP protocol, the ISP will provide the DNS IP address automatically. You may leave the
configuration field blank. Alternatively, your ISP may provide you with an IP address of
their DNS. If this is the case, you must enter the DNS IP address.
If you choose one of the other three protocols ─ RFC1483 Routed/Bridged and IPoA
check with your ISP, it may provide you with an IP address for their DNS server. You must
enter the DNS IP address if you set the DNS of your PC to the LAN IP address of this
router.
Connect Mode: The default is Multimode; it will detect the ADSL line code, G.dmt, G.lite,
and T1.413 automatically. But in some area, it cannot detect the ADSL line code well. At
this time, please adjust the ADSL line code to G.dmt or T1.413 first. If it still fails, please
try the other values such as ALCTL, ADI, etc.
Activate Line: Aborting (false) your ADSL line and making it active (true) again for taking
effect with setting of Connect Mode.
Coding Gain: Configure the ADSL coding gain from 0 dB to 7dB, or automatic.
Tx Attenuation:Setting ADSL transmission gain, the value is between 0~12.
DSP FirmwareVersion: Current ADSL line code firmware version.
Connected: Display current ADSL line sync status.
Operational Mode: Display current ADSL mode standard (Operational Mode) your Router
is using when ADSL line has sync.
Annex Type: ADSL Annex A, which works over a standard telephone line. Annex B,
which works over an ISDN line.
Upstream: Display current upstream rate of your ADSL line.
Downstream: Display current downstream rate of your ADSL line.
There are six items within the System section: Time Zone, Remote Access, Firmware
Upgrade, Backup/Restore, Restart and User Management.

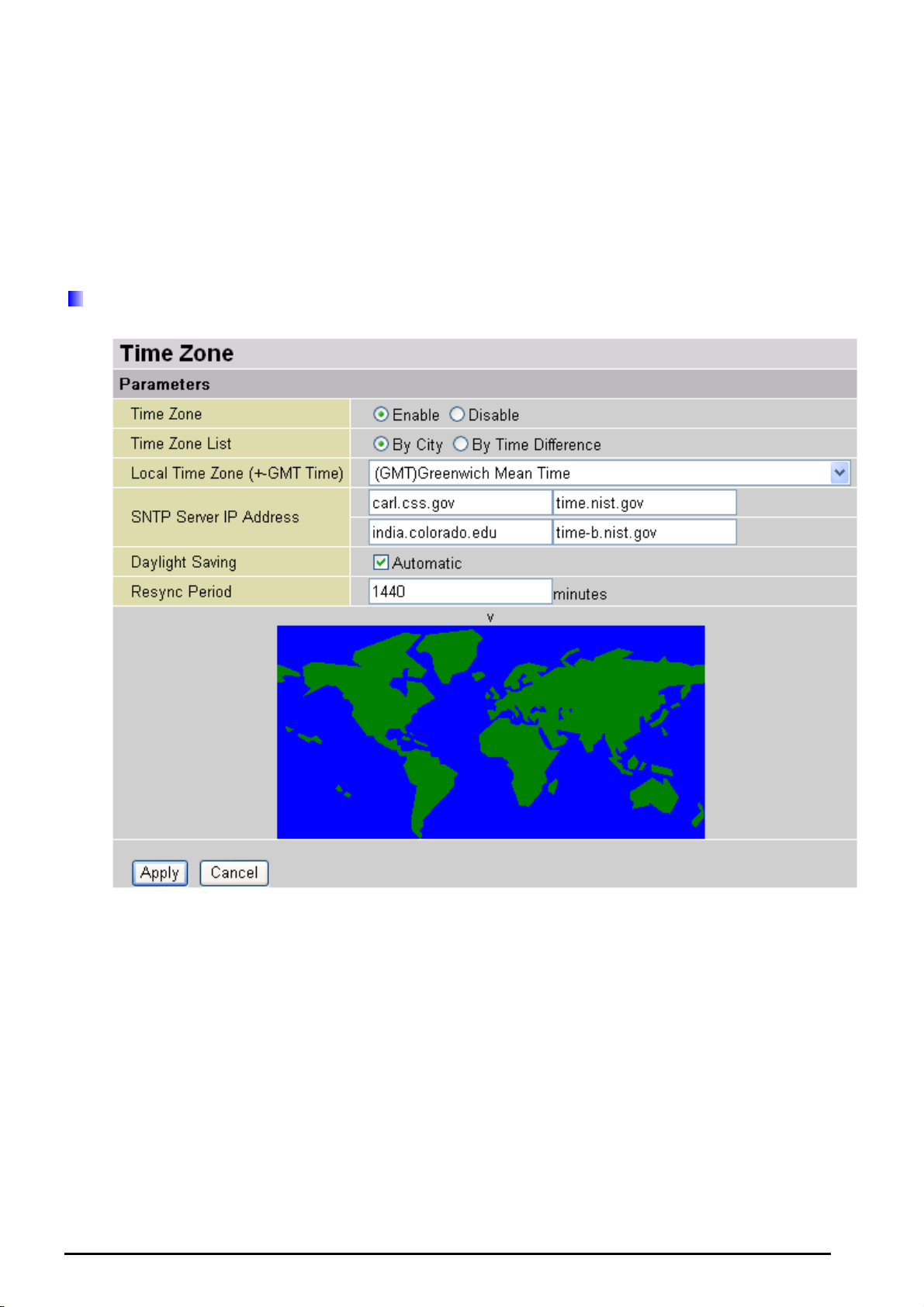

Time Zone
The router does not have a real time clock on board; instead, it uses the Simple Network
Time Protocol (SNTP) to get the current time from an SNTP server outside your network.
Choose your local time zone, click Enable and click the Apply button. After a successful
connection to the Internet, the router will retrieve the correct local time from the SNTP
server you have specified. If you prefer to specify an SNTP server other than those in the
drop-down list, simply enter its IP address as shown above. Your ISP may provide an
SNTP server for you to use.
Resync Poll Interval (in minutes) is the periodic interval the router will wait before it re-
synchronizes the router’s time with that of the specified SNTP server. In order to avoid
unnecessarily increasing the load on your specified SNTP server you should keep the poll
interval as high as possible – at the absolute minimum every few hours or even days.

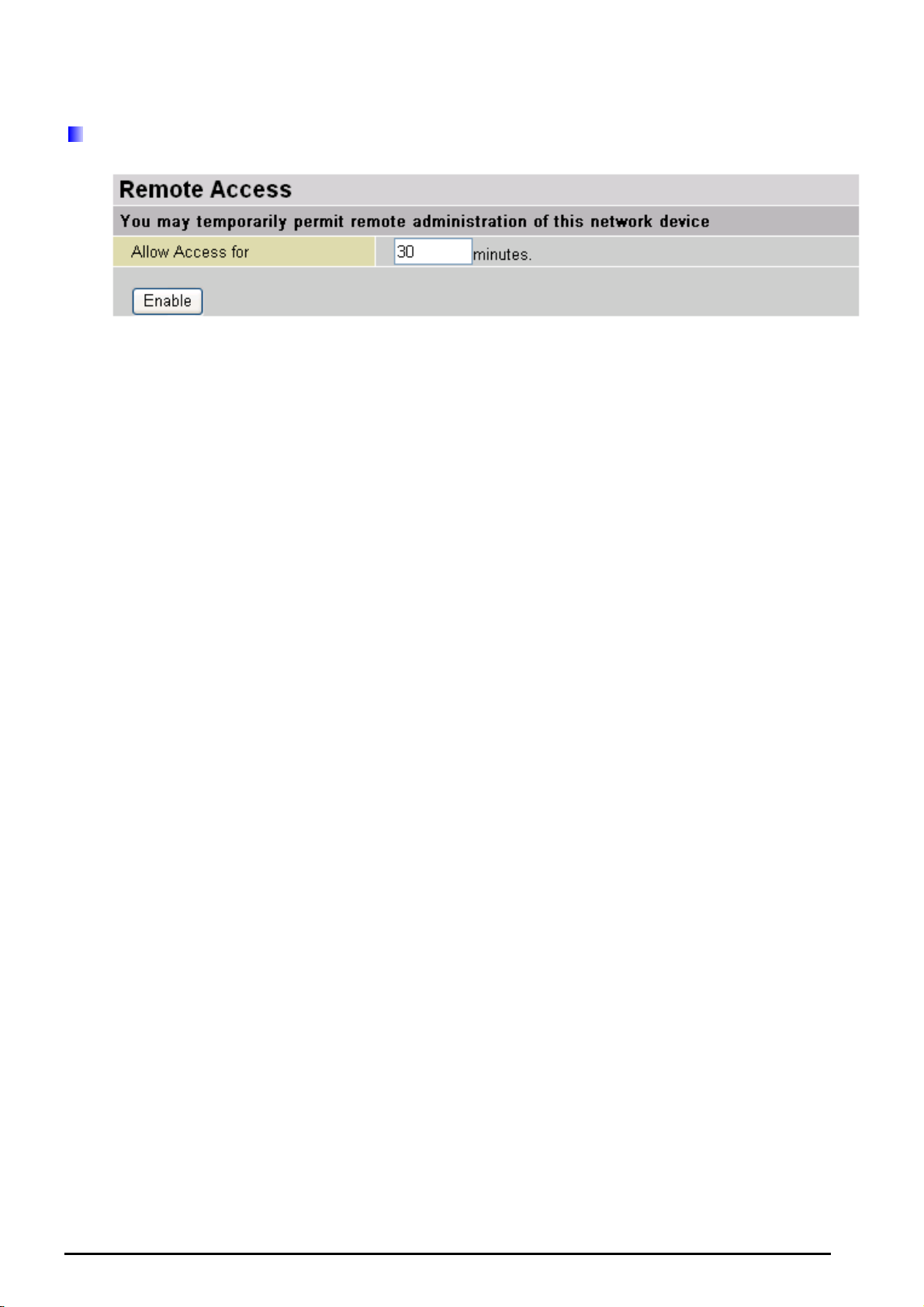

To temporarily permit remote administration of the router (i.e. from outside your LAN),
select a time period the router will permit remote access for and click Enable. You may
change other configuration options for the web administration interface using Device Management options in the Advanced section of the GUI.
If you wish to permanently enable remote access, choose a time period of 0 minutes. This
setting cannot be saved into flash when timer set to zero.
Your router’s “firmware” is the software that allows it to operate and provides all its
functionality. Think of your router as a dedicated computer, and the firmware as the
software it runs. Over time this software may be improved and modified, and your router
allows you to upgrade the software it runs to take advantage of these changes.
Clicking on Browse will allow you to select the new firmware image file you have
downloaded to your PC. Once the correct file is selected, click Upgrade to update the
firmware in your router.
Warning
DO NOT power down the router or interrupt the firmware upgrading
while it is still in process. Improper operation could damage the router.

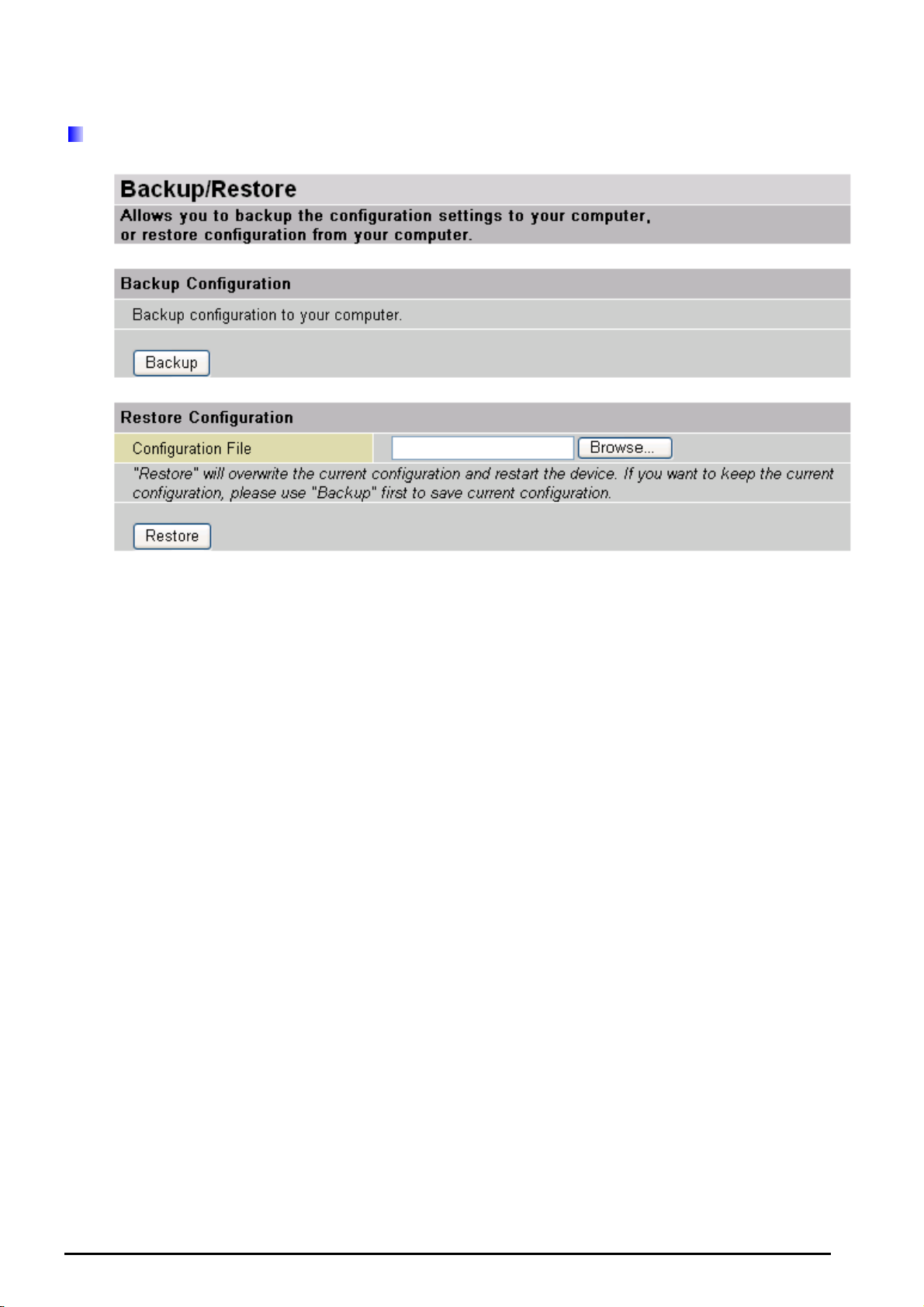

These functions allow you to save and backup your router’s current settings to a file on
your PC, or to restore a previously saved backup. This is useful if you wish to experiment
with different settings, knowing that you have a backup handy in the case of any mistakes.
It is advisable to backup your router’s settings before making any significant changes to
your router’s configuration.
Press Backup to select where on your local PC to save the settings file. You may also
change the name of the file when saving if you wish to keep multiple backups.
Press Browse to select a file from your PC to restore. You should only restore settings
files that have been generated by the Backup function, and that were created when using
the current version of the router’s firmware. Settings files saved to your PC should not be manually edited in any way.
After selecting the settings file you wish to use, pressing Restore will load those settings
Click Restart with option Current Settings to reboot your router (and restore your last
saved configuration).
If you wish to restart the router using the factory default settings (for example, after a
firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to reset to factory default settings.
You may also reset your router to factory settings by holding the small Reset pinhole
button on the back of your router in for 10-12 seconds whilst the router is turned on.

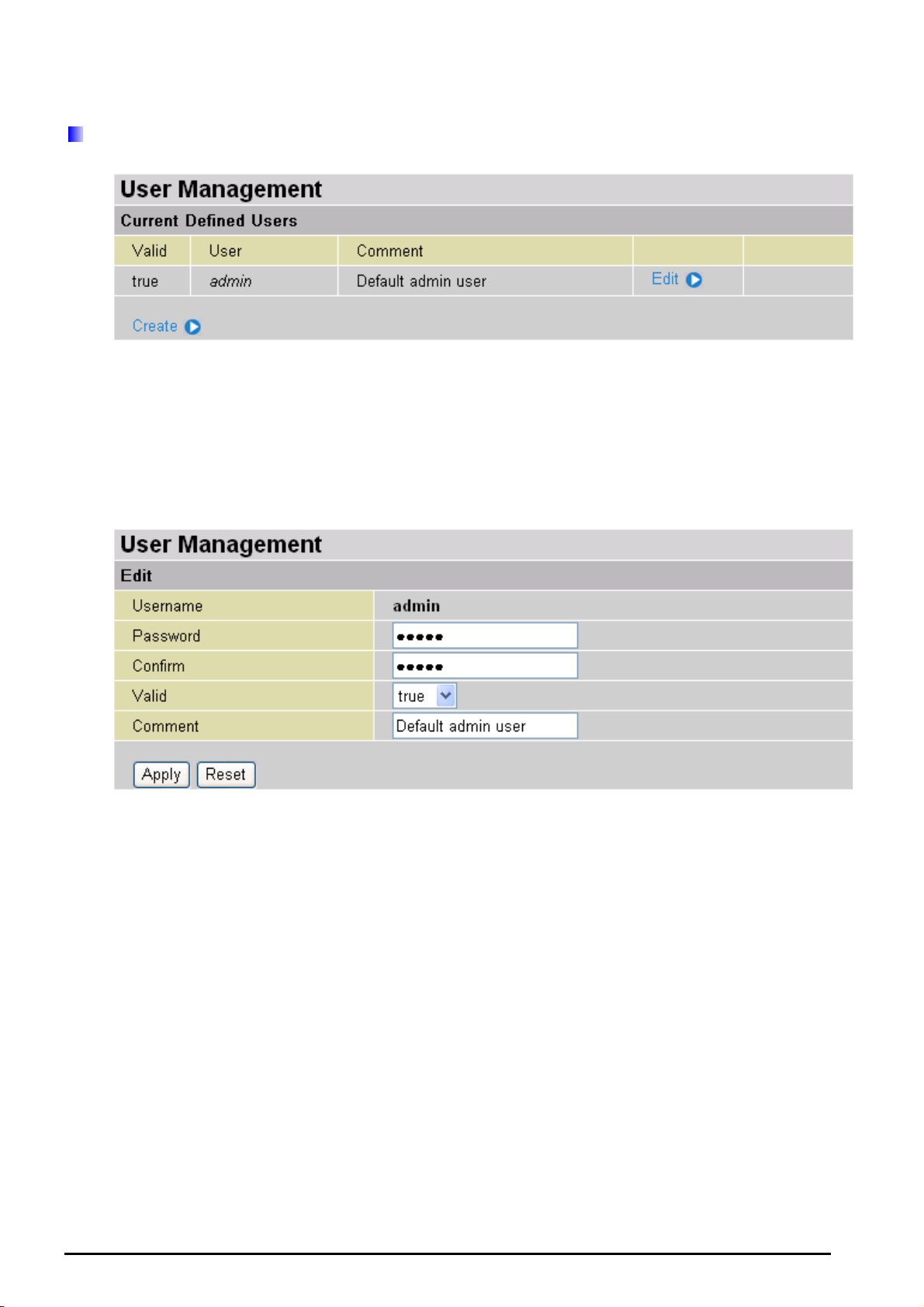

In order to prevent unauthorized access to your router’s configuration interface, it requires
all users to login with a password. You can set up multiple user accounts, each with their
own password.
You are able to Edit existing users and Create new users who are able to access the
device’s configuration interface. Once you have clicked on Edit, you are shown the
following options:
You can change the user’s password, whether their account is active and Valid, as well
as add a comment to each user account. These options are the same when creating a
user account, with the exception that once created you cannot change the username. You
cannot delete the default admin account, however you can delete any other created
accounts by clicking Delete when editing the user.
You are strongly advised to change the password on the default “admin” account when
you receive your router, and any time you reset your configuration to Factory Defaults.
Your router includes a full SPI (Stateful Packet Inspection) firewall for controlling Internet
access from your LAN, as well as helping to prevent attacks from hackers. In addition to this,
when using NAT (Network Address Translation. Please see the WAN configuration section for
more details on NAT) the router acts as a “natural” Internet firewall, as all PCs on your LAN will
use private IP addresses that cannot be directly accessed from the Internet.
Firewall: Prevents access from outside your network. The router provides three levels of
security support:
NAT natural firewall: This masks LAN users’ IP addresses which are invisible to outside users
on the Internet, making it much more difficult for a hacker to target a machine on your network.
This natural firewall is on when NAT function is enabled.
When using Virtual Servers your PCs will be exposed to the degree
specified in your Virtual Server settings provided the ports specified are
opened in your firewall packet filter settings.
Firewall Security and Policy (General Settings): Inbound direction of Packet Filter rules to
prevent unauthorized computers or applications accessing your local network from the Internet.
Intrusion Detection: Enable Intrusion Detection to detect, prevent and log malicious attacks.
Access Control: Prevents access from PCs on your local network:
Firewall Security and Policy (General Settings): Outbound direction of Packet Filter rules to
prevent unauthorized computers or applications accessing the Internet.
MAC Filter rules: To prevent unauthorized computersaccessing the Internet.
URL Filter: To block PCs on your local network from unwanted websites.
You can find six items under the Firewall section: General Settings, Packet Filter, Intrusion
Detection, MAC Address Filter, URL Filter and Firewall Log.
You can select disable to disable Firewall feature, to add all filter rules by yourself, or
enable the Firewall using preset filter rules and modify the port filter rules as required. The
Packet Filter is divided into two sections: Port Filters and Address Filters, used to filter
packets based-on Applications (Port) or IP addresses.
There are four options when you enable the Firewall, they are:
All blocked/User-defined: no pre-defined port or address filter rules by default,
meaning that all inbound (Internet to LAN) and outbound (LAN to Internet) packets
will be blocked. Users have to add their own filter rules for further access to the
Internet.
High/Medium/Low security level: the pre-defined port filter rules for High, Medium
and Low security are displayed in Port Filters of Packet Filter.
Select either High, Medium or Lowsecurity level to enable the Firewall. The only
difference between these three security levels is the preset port filter rules in the Packet
Filter. Firewall functionality is the same for all levels; it is only the list of preset port filters
that changes between each setting.
If you choose the preset security levels and then add custom filters, you may temporarily
disable the firewall and recover your custom filter settings by re-selecting the same
security level.
The “Block WAN Request” is a stand-alone function and not relate to whether security
enable or disable. Mostly it is for preventing any scan tools from WAN site by hacker.
Any remote user who is attempting to perform this action may result in
blocking all the accesses to configure and manage of the device from the
Internet.
Address Filters are used to block traffic to/from particular IP addresses. They can be used
to block IP addresses either on the Internet or on your local network. There are no predefined address filter rules; you can add the filter rules to meet your requirements. There
are two kinds of address filters, one is inbound, and the other is outbound. The rules can
be set to prevent unauthorized users (hosts or network) to access the Internet from LAN
(outbound) and/or access LAN from the Internet (inbound).
Host IP Address: This is the IP address you wish to block access to or from.
Host Subnet Mask: This is the subnet mask for the IP address range you wish to block.
Direction: Whether you want to block access to the Internet (“outbound”), from the
Internet (“inbound”) or both to and from the Internet (“both”).
Tip: To block access to/from a single IP address, enter that IP address as the Host IP
Address and use a Host Subnet Mask of “255.255.255.255”.
Example: Configuring your firewall to allow for a publicly accessible web server
on your LAN
The pre-defined port filter rule for HTTP (TCP port 80) is the same no matter whether the
firewall is set to a high, medium or low security level. To setup a web server located on the local
network when the firewall is enabled, you have to configure the Port Filters setting for HTTP.
As you can see from the diagram below, when the firewall is enabled with one of the three
presets (Low/Medium/High), inbound HTTP access is not allowed.
Configuring Packet Filter
1. Click Packet Filter - you will get the following page:
7. Configure your Virtual Server (“port forwarding”) settings so that incoming HTTP requests
on port 80 will be forwarded to the PC running your web server:
To enable the HTTP service in Virtual Server settings, input the web server PC’s IP
address.
Tip: If you wish to setup permanent remote management of your router, you may enter
The router’s Intrusion Detection System (IDS) is used to detect hacker attacks and
intrusion attempts from the Internet. If the IDS function of the firewall is enabled, inbound
packets are filtered and blocked depending on whether they are detected as possible
hacker attacks, intrusion attempts or other connections that the router determines to be
suspicious.
Blacklist: If the router detects a possible attack, the source IP or destination IP address
will be added to the Blacklist. Any further attempts using this IP address will be blocked for
the time period specified as the Block Duration. The default setting for this function is
false (disabled). Some attack types are denied immediately without using the Blacklist
function, such as Land attack and Echo/CharGen scan.
Block Duration:
DoS Attack Block Duration: This is the duration for blocking hosts that attempt a
possible Denial of Service (DoS) attack. Possible DoS attacks this attempts to block
include Ascend Kill and WinNuke. Default value is 1800 seconds.
Scan Attack Block Duration: This is the duration for blocking hosts that attempt a
possible Scan attack. Scan attack types include X’mas scan, IMAP SYN/FIN scan
and similar attempts. Default value is 86400 seconds.
Victim Protection Block Duration: This is the duration for blocking Smurf attacks.
Default value is 600 seconds.
Victim Protection: If enabled, IDS will block Smurf attack attempts. Default is false.
Max TCP Open Handshaking Count: This is a threshold value to decide whether a SYN
Flood attempt is occurring or not. Default value is 100 TCP SYN per seconds.
Max PING Count: This is a threshold value to decide whether an ICMP Echo Storm is
occurring or not. Default value is 15 ICMP Echo Requests (PING) per second.
A MAC (Media Access Control) address is the unique network hardware identifier for each
PC on your network’s interface (i.e. its Network Interface Card or Ethernet card). Using
your router’s MAC Address Filter function, you can configure the switch to only accept
traffic from specified machines, or else to block specific machines from accessing your
LAN.
There are no pre-defined MAC address filter rules; you can add the filter rules to meet
your requirements
Enable/Disable: To enable or disable the MAC Address Filter function.
Allowed/Blocked: To allow or block the following MAC addresses to surf outside network
only. If you check Allowed, please be sure your PC’s MAC address is listed. If you check
Blocked, please be sure your PC’s MAC address is not listed.
MAC Address: There are 10 entries to enter the MAC addresses you want manage.
URL (Uniform Resource Locator – e.g. an address in the form of http://www.abc.com or
http://www.example.com) filter rules allow you to prevent users on your network from
accessing particular websites by their URL. There are no pre-defined URL filter rules; you
can add filter rules to meet your requirements.
Enable/Disable: To enable or disable URL Filter feature.
Always Block: Select to always check the URL filter rules (i.e. at all hours of the day).
Block from: Specify the time period to check the URL filter rules (e.g. during work hours).
Keywords Filtering: Allows blocking by specific keywords within a particular URL rather
than having to specify a complete URL (e.g. to block any image called “advertisement.gif”).
When enabled, your specified keywords list will be checked to see if any keywords are
present in URLs accessed to determine if the connection attempt should be blocked.
Please note that the URL filter blocks web browser (HTTP) connection attempts using port
80 only.
For example, if the URL is
/abcde.html, it will be dropped as the keyword “abcde” occurs in

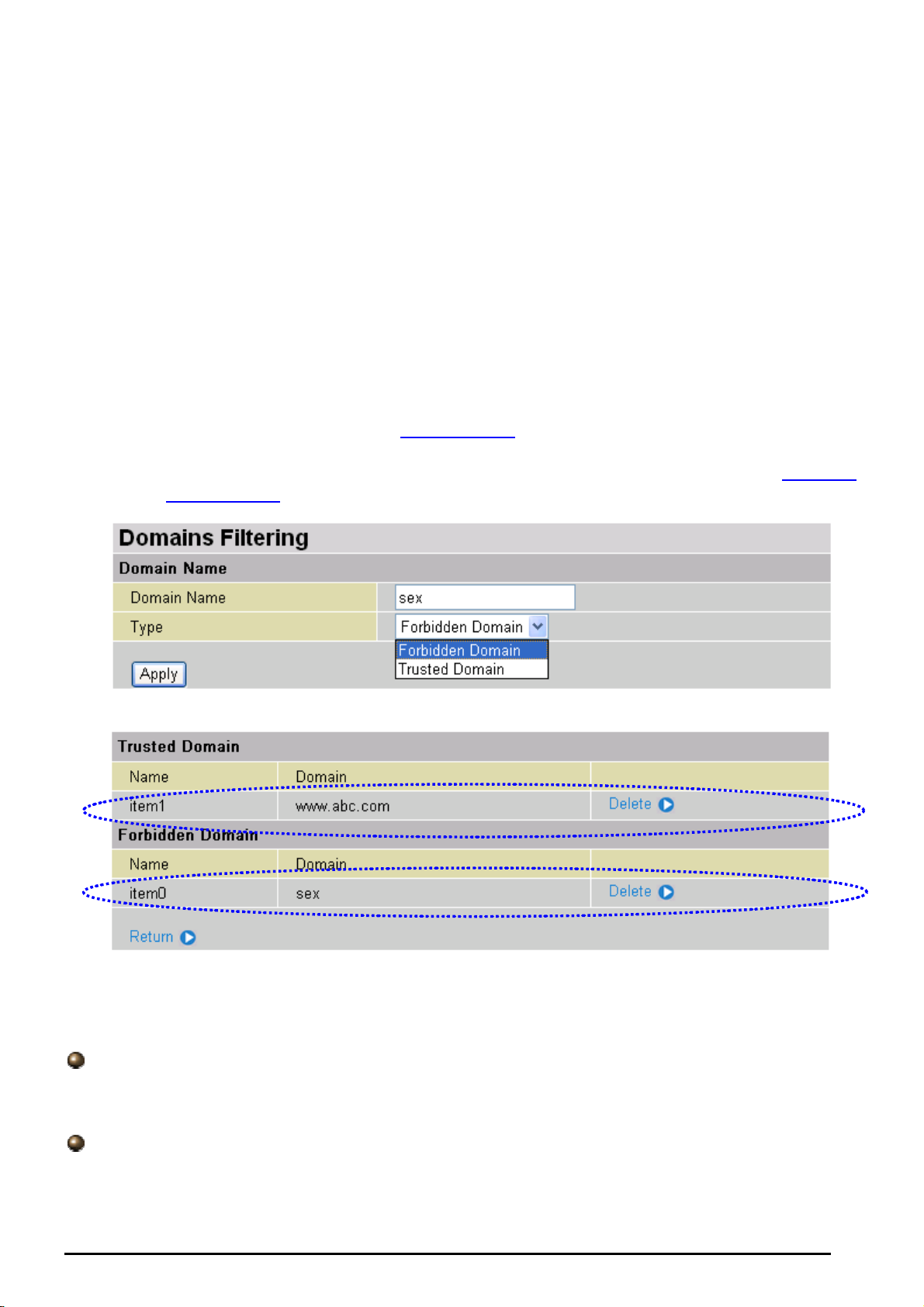

Domains Filtering: This function checks the domain name in URLs accessed against
your list of domains to block or allow. If it is matched, the URL request will be sent
(Trusted) or dropped (Forbidden). The checking procedure is:
1. Check the domain in the URL to determine if it is in the trusted list. If yes, the
connection attempt is sent to the remote web server.
2. If not, check if it is listed in the forbidden list, and if present then the connection
attempt is dropped..
3. If the packet does not match either of the above two items, it is sent to the remote web
server.
4. Please be note that the domain only should be specified, not the full URL. For
example to block traffic to
www.sex.com, enter “sex” or “sex.com” instead of
“www.sex.com”. In the example below, the URL request for will be sent to the remote
web server because it is listed in the trusted list, whilst the URL request for
or
www.sex.com will be dropped, because sex.com is in the forbidden list.
www.sex
Restrict URL Features:
Block Java Applet: This function can block Web content which including the Java
Applet. It is for preventing someone who wants to damage your system via standard HTTP
protocol.
Block surfing by IP address: Preventing someone who uses the IP address as URL for

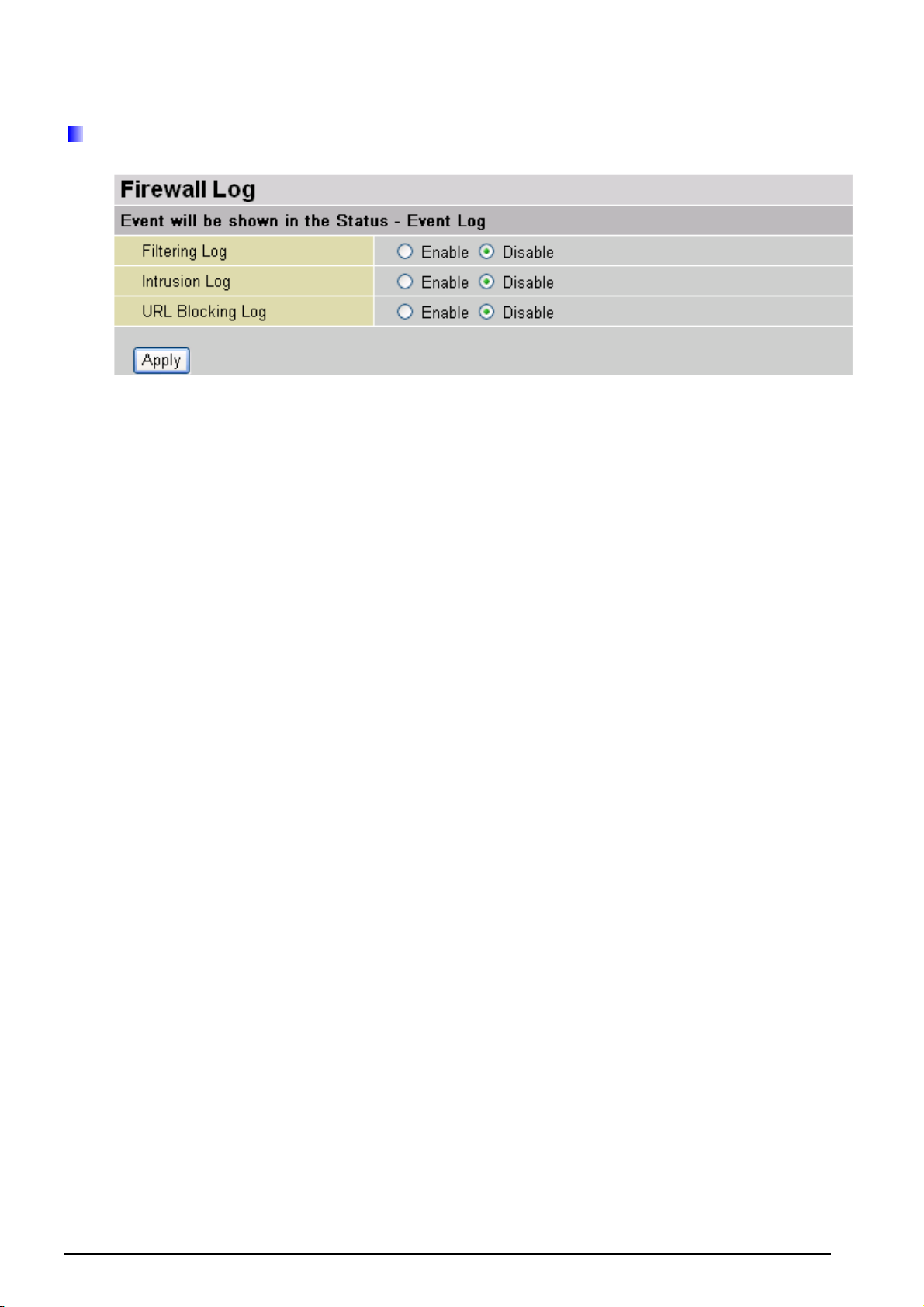

Your router support three main types of VPN (Virtual Private Network), PPTP, IPSec and L2TP,
and these are the two major section choices from the menu on the left.
PPTP
There are two types of PPTP VPN supported, Remote Access and LAN-to-LAN (please
refer below for more information.). Click Create to configure a new VPN connection.
Connection Name: This allows you to identify this particular connection, e.g. “Connection
to office”.
Type: Check Dial Out if you want your router to operate as a client (connecting to a
remote VPN server, e.g. your office server), check Dial In operates as a VPN server.
When configuring your router as a Client, enter the remote Server IPAddress(or
Hostname) you wish to connection to.
When configuring your router as a server, enter the Private IP Address Assigned
to Dial in User address.
Username: If you are a Dial-Out user (client), enter the username provided by your Host.
If you are a Dial-In user (server), enter your own username.
Password: If you are a Dial-Out user (client), enter the password provided by your Host.
If you are a Dial-In user (server), enter your own password.
PPP Authentication Type: Default is Auto if you want the router to determine the
authentication type to use, or else manually specify CHAP (Challenge Handshake
Authentication Protocol) or PAP (Password Authentication Protocol) if you know which
type the server is using (when acting as a client), or else the authentication type you want
clients connecting to you to use (when acting as a server). When using PAP, the
password is sent unencrypted, whilst CHAP encrypts the password before sending, and
also allows for challenges at different periods to ensure that the client has not been
replaced by an intruder.
Data Encryption: Data sent over the VPN connection can be encrypted by an MPPE
algorithm. Default is Auto, so that this setting is negotiated when establishing a
connection, or else you can manually Enable or Disable encryption.
Key Length: The data can be encrypted by MPPE algorithm with 40 bits or 128 bits.
Default is Auto, it is negotiated when establishing a connection. 128 bit keys provide
Connection Name: A user-define description of the connection.
Type: Check Dial Out if you want your router to operate as a client (connecting to a
remote VPN server, e.g. your office server), check Dial In operates as a VPN server.
When configuring your router establish the connection to a remote LAN, enter the
remote Server IPAddress(or Hostname) you wish to connection to.
When configuring your router as a server to accept incoming connections, enter the
Private IP Address Assigned to Dial in User address.
Peer Network IP: Enter Peer network IP address.
Netmask: Enter the subnet mask of peer network based on the Peer Network IP setting.
Username: If you are a Dial-Out user (client), enter the username provided by your Host.
If you are a Dial-In user (server), enter your own username.
Password: If you are a Dial-Out user (client), enter the password provided by the your
Host. If you are a Dial-In user (server), enter your own password.
PPP Authentication Type: Default is Auto if you want the router to determine the
authentication type to use, or else manually specify CHAP (Challenge Handshake
Authentication Protocol) or PAP (Password Authentication Protocol) if you know which
type the server is using (when acting as a client), or else the authentication type you want
clients connecting to you to use (when acting as a server). When using PAP, the
password is sent unencrypted, whilst CHAP encrypts the password before sending, and
also allows for challenges at different periods to ensure that the client has not been
replaced by an intruder.
Data Encryption: Data sent over the VPN connection can be encrypted by an MPPE
algorithm. Default is Auto, so that this setting is negotiated when establishing a
connection, or else you can manually Enable or Disable encryption.
Connection Name: A user-defined name for the connection (e.g. “connection to office”).
Local:
Local Network: Set the IP address, subnet or address range of the local network.
Single Address: The IP address of the local host.
Subnet: The subnet of the local network. For example, IP: 192.168.1.0 with netmask
255.255.255.0 specifies one class C subnet starting from 192.168.1.1 (i.e. 192.168.1.1
through to 192.168.1.254).
IP Range: The IP address range of the local network. For example, IP: 192.168.1.1,
end IP: 192.168.1.10
Remote:
Secure Gateway Address (or hostname): The IP address or hostname of the remote
VPN device that is connected and establishes a VPN tunnel.
Network: Set the IP address, subnet or address range of the remote network.
Proposal:
Proposal:
Select the IPSec security method. There are two methods of checking the
authentication information, AH (authentication header) and ESP (Encapsulating Security
Payload). Use ESP for greater security so that data will be encrypted and authenticated.
Using AH data will be authenticated but not encrypted.
Authentication: Authentication establishes the integrity of the datagram and ensures it is
not tampered with in transmit. There are three options, Message Digest 5 (MD5), Secure
Hash Algorithm (SHA-1) or NONE. SHA-1 is more resistant to brute-force attacks than
MD5, however it is slower.
MD5: A one-way hashing algorithm that produces a 128−bit hash.
SHA-1: A one-way hashing algorithm that produces a 160−bit hash.
Encryption: Select the encryption method from the pull-down menu. There are four
options, DES, 3DES, AES and NONE. NONE means it is a tunnel only with no encryption.
3DES and AES are more powerful but increase latency.
DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method.
3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an
encryption method.
AES: Stands for Advanced Encryption Standards, it uses 128 bits as an encryption
method.
Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman public-
key cryptography to change encryption keys during the second phase of VPN negotiation.
This function will provide better security, but extends the VPN negotiation time. DiffieHellman is a public-key cryptography protocol that allows two parties to establish a shared
secret over an unsecured communication channel (i.e. over the Internet). There are three
modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for Modular
Exponentiation Groups.
Pre-shared Key: This is for the Internet Key Exchange (IKE) protocol, a string from 4 to
128 characters. Both sides should use the same key. IKE is used to establish a shared
security policy and authenticated keys for services (such as IPSec) that require a key.
Before any IPSec traffic can be passed, each router must be able to verify the identity of
its peer. This can be done by manually entering the pre-shared key into both sides (router
or hosts).
Click Advanced Option to change the following settings:
IKE Mode: Select IKE mode to Main mode or Aggressive mode.
Local ID:
Type: Specify local ID type.
Content: Input ID’s information, like domain name
www.ipsectest.com.
Remote ID:
Type: Specify Remote ID type.
Identifier: Input remote ID’s information, like domain name
www.ipsectest.com.
SA Lifetime: Specify the number of minutes that a Security Association (SA) will stay
active before new encryption and authentication key will be exchanged. There are two
kinds of SAs, IKE and IPSec. IKE negotiates and establishes SA on behalf of IPSec, an
IKE SA is used by IKE.
Phase 1 (IKE): To issue an initial connection request for a new VPN tunnel. The range
can be from 5 to 15,000 minutes, and the default is 240 minutes.
Phase 2 (IPSec): To negotiate and establish secure authentication. The range can be
from 5 to 15,000 minutes, and the default is 60 minutes.
A short SA time increases security by forcing the two parties to update the keys. However,
every time the VPN tunnel re-negotiates, access through the tunnel will be temporarily
disconnected.
Select the Apply button to update the settings.
There are two types of L2TP VPN supported, Remote Access and LAN-to-LAN (please
refer below for more information.). Click Create to configure a new VPN connection.
Connection Name: This allows you to identify this particular connection, e.g. “Connection
to office”.
Type: Check Dial Out if you want your router to operate as a client (connecting to a
remote VPN server, e.g. your office server), check Dial In operates as a VPN server.
When configuring your router as a Client, enter the remote Server IPAddress(or
Hostname) you wish to connection to.
When configuring your router as a server, enter the Private IP Address Assigned
to Dial in User address.
Username: If you are a Dial-Out user (client), enter the username provided by your Host.
If you are a Dial-In user (server), enter your own username.
Password: If you are a Dial-Out user (client), enter the password provided by your Host.
If you are a Dial-In user (server), enter your own password.
PPP Authentication Type: Default is Auto if you want the router to determine the
authentication type to use, or else manually specify CHAP (Challenge Handshake
Authentication Protocol) or PAP (Password Authentication Protocol) if you know which
type the server is using (when acting as a client), or else the authentication type you want
clients connecting to you to use (when acting as a server). When using PAP, the
password is sent unencrypted, whilst CHAP encrypts the password before sending, and
also allows for challenges at different periods to ensure that the client has not been
replaced by an intruder.
Idle Time: Auto-disconnect the VPN connection when there is no activity on the
connection for a predetermined period of time. 0 means this connection is always on.
IPSec: Enable for enhancing your LT2P VPN security.
Authentication: Authentication establishes the integrity of the datagram and ensures it is
not tampered with in transmit. There are three options, Message Digest 5 (MD5), Secure
Hash Algorithm (SHA-1) or NONE. SHA-1 is more resistant to brute-force attacks than
MD5, however it is slower.
MD5: A one-way hashing algorithm that produces a 128−bit hash.
SHA-1: A one-way hashing algorithm that produces a 160−bit hash.
Encryption: Select the encryption method from the pull-down menu. There are four
options, DES, 3DES, AES and NONE. NONE means it is a tunnel only with no encryption.
3DES and AES are more powerful but increase latency.
DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method.
3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an
encryption method.
AES: Stands for Advanced Encryption Standards, it uses 128 bits as an encryption
method.
Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman public-
key cryptography to change encryption keys during the second phase of VPN negotiation.
This function will provide better security, but extends the VPN negotiation time. DiffieHellman is a public-key cryptography protocol that allows two parties to establish a shared
secret over an unsecured communication channel (i.e. over the Internet). There are three
modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for Modular
Exponentiation Groups.
Pre-shared Key: This is for the Internet Key Exchange (IKE) protocol, a string from 4 to
128 characters. Both sides should use the same key. IKE is used to establish a shared
security policy and authenticated keys for services (such as IPSec) that require a key.
Before any IPSec traffic can be passed, each router must be able to verify the identity of
its peer. This can be done by manually entering the pre-shared key into both sides (router
or hosts).
Connection Name: A user-define description of the connection.
Type: Check Dial Out if you want your router to operate as a client (connecting to a
remote VPN server, e.g. your office server), check Dial In operates as a VPN server.
When configuring your router establish the connection to a remote LAN, enter the
remote Server IPAddress(or Hostname) you wish to connection to.
When configuring your router as a server to accept incoming connections, enter the
Private IP Address Assigned to Dial in User address.
Peer Network IP: Enter Peer network IP address.
Netmask: Enter the subnet mask of peer network based on the Peer Network IP setting.
Username: If you are a Dial-Out user (client), enter the username provided by your Host.
If you are a Dial-In user (server), enter your own username.
Password: If you are a Dial-Out user (client), enter the password provided by the your
Host. If you are a Dial-In user (server), enter your own password.
PPP Authentication Type: Default is Auto if you want the router to determine the
authentication type to use, or else manually specify CHAP (Challenge Handshake
Authentication Protocol) or PAP (Password Authentication Protocol) if you know which
type the server is using (when acting as a client), or else the authentication type you want
clients connecting to you to use (when acting as a server). When using PAP, the
password is sent unencrypted, whilst CHAP encrypts the password before sending and
also allows for challenges at different periods to ensure that the client has not been
replaced by an intruder.
Idle Time: Auto-disconnect the VPN connection when there is no activity on the
connection for a predetermined period of time. 0 means this connection is always on. Click
Apply after changing settings.
IPSec: Enable for enhancing your LT2P VPN security.
Authentication: Authentication establishes the integrity of the datagram and ensures it is
not tampered with in transmit. There are three options, Message Digest 5 (MD5), Secure
Hash Algorithm (SHA-1) or NONE. SHA-1 is more resistant to brute-force attacks than
MD5, however it is slower.
MD5: A one-way hashing algorithm that produces a 128−bit hash.
SHA-1: A one-way hashing algorithm that produces a 160−bit hash.
Encryption: Select the encryption method from the pull-down menu. There are four
options, DES, 3DES, AES and NONE. NONE means it is a tunnel only with no encryption.
3DES and AES are more powerful but increase latency.
DES: Stands for Data Encryption Standard, it uses 56 bits as an encryption method.
3DES: Stands for Triple Data Encryption Standard, it uses 168 (56*3) bits as an
encryption method.
AES: Stands for Advanced Encryption Standards, it uses 128 bits as an encryption
method.
Perfect Forward Secrecy: Choose whether to enable PFS using Diffie-Hellman public-
key cryptography to change encryption keys during the second phase of VPN negotiation.
This function will provide better security, but extends the VPN negotiation time. DiffieHellman is a public-key cryptography protocol that allows two parties to establish a shared
secret over an unsecured communication channel (i.e. over the Internet). There are three
modes, MODP 768-bit, MODP 1024-bit and MODP 1536-bit. MODP stands for Modular
Exponentiation Groups.
Pre-shared Key: This is for the Internet Key Exchange (IKE) protocol, a string from 4 to
128 characters. Both sides should use the same key. IKE is used to establish a shared
security policy and authenticated keys for services (such as IPSec) that require a key.
Before any IPSec traffic can be passed, each router must be able to verify the identity of
its peer. This can be done by manually entering the pre-shared key into both sides (router
or hosts).
Example: Configuring a Remote Access PPTP VPN Dial-in Connection
A remote worker establishes a PPTP VPN connection with the head office using Microsoft's
VPN Adapter (included with Windows 2000/ME, etc.). The router is installed in the head office,
connected to a couple of PCs and Servers.
Dial-in
Configuring PPTP VPN in the Office
The input IP address 192.168.1.200 will be assigned to the remote worker. Please make sure
this IP is not used in the Office LAN.
Connection Name VPN_PPTP Given a name of PPTP connection
1
Dial in Check Dial in
Private IP
2
Address Assigned
to Dialing User
Username username
3
Password 123456
Auth.Type Chap(Auto)
Data Encryption Auto
4
Key Length Auto
Mode stateful
Idle Time 0
5
192.168.1.200 An assigned IP address for the remote worker
Input username & password to authenticate
remote worker
Keep as default value in most of the cases,
PPTP server & client will determine the value
automatically. Refer to manual for details if you
want to change the setting.
The connection will be disconnected when there
is no traffic in a predefined period of time. Idle
Example: Configuring a LAN-to-LAN PPTP VPN Connection
The branch office establishes a PPTP VPN tunnel with head office to connect two private
networks over the Internet.. The routers are installed in the head office and branch office
accordingly.
Both office LAN networks MUST in different subnet with LAN to LAN
The IP address 192.168.1.201 will be assigned to the router located in the branch office. Please
make sure this IP is not used in the head office LAN.
Item Function Description
Connection Name HeadOffice Given a name of PPTP connection
1
Dial in Check Dial in
Private IP
2
Address Assigned
to Dialing User
Peer Network IP 192.168.0.0 Branch office network
3
Netmask 255.255.255.0
Username username
4
Password 123456
Auth.Type Chap(Auto)
Data Encryption Auto
5
Key Length Auto
Mode stateful
Idle Time 0
6
192.168.1.200 IP address assigned to branch office network
Input username & password to authenticate branch
office network
Keep as default value in most of the cases, PPTP
server & client will determine the value automatically.
Refer to manual for details if you want to change the
setting.
The connection will be disconnected when there Is no
traffic in a predefined period of time. Idle time 0 means
The IP address 69.1.121.30 is the Public IP address of the router located in head office. If you
registered the DDNS (please refer to the DDNS section of this manual), you can also use the
domain name instead of the IP address to reach the router.
Item Function Description
Connection Name BranchOffice Given a name of PPTP connection
1
Dial out Check Dial out
2
Server IP Address
(or Hostname)
Peer Network IP 192.168.1.0
3
Netmask 255.255.255.0
Username username
4
Password 123456
Auth.Type Chap(Auto)
Data Encryption Auto
5
Key Length Auto
Mode stateful
Idle Time 0
6
69.121.1.33 IP address of the head office router (in WAN side)
Head office network
Input username & password to authenticate branch
office network
Keep as default value in most of the cases, PPTP
server & client will determine the value automatically.
Refer to manual for details if you want to change the
setting.
The connection will be disconnected when there Is no
traffic in a predefined period of time. Idle time 0 means
Example: Configuring a Remote Access L2TP VPN Dial-in Connection
A remote worker establishes a L2TP VPN connection with the head office using Microsoft's
VPN Adapter (included with Windows XP/2000/ME, etc.). The router is installed in the head
