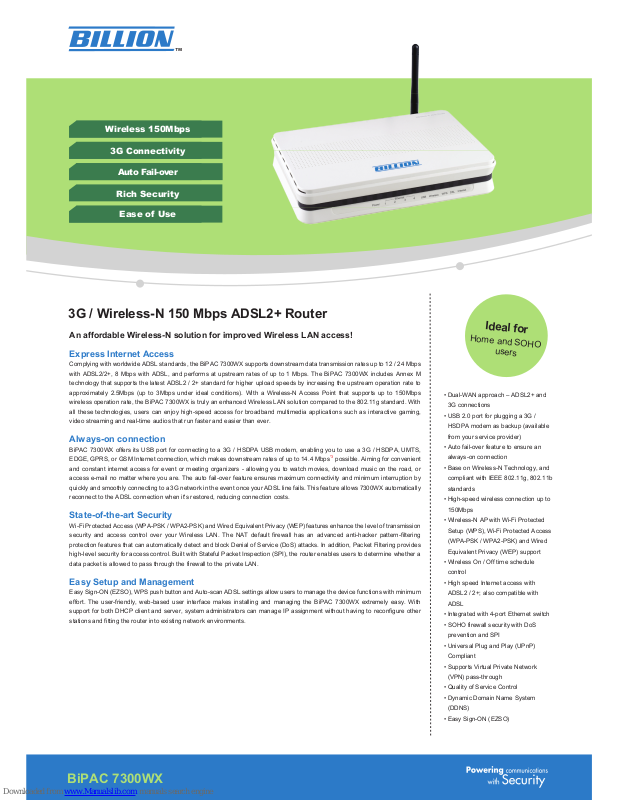

Page 1
An affordable Wireless-N solution for improved Wireless LAN access!
Express Internet Access
Complying with worldwide ADSL standards, the BiPAC 7300WX supports downstream data transmission rates up to 12 / 24 Mbps
with ADSL2/2+, 8 Mbps with ADSL, and performs at upstream rates of up to 1 Mbps. The BiPAC 7300WX includes Annex M
technology that supports the latest ADSL2 / 2+ standard for higher upload speeds by increasing the upstream operation rate to
approximately 2.5Mbps (up to 3Mbps under ideal conditions). With a Wireless-N Access Point that supports up to 150Mbps
wireless operation rate, the BiPAC 7300WX is truly an enhanced Wireless LAN solution compared to the 802.11g standard. With
all these technologies, users can enjoy high-speed access for broadband multimedia applications such as interactive gaming,
video streaming and real-time audios that run faster and easier than ever.
Always-on connection
BiPAC 7300WX offers its USB port for connecting to a 3G / HSDPA USB modem, enabling you to use a 3G / HSDPA, UMTS,
EDGE, GPRS, or GSM Internet connection, which makes downstream rates of up to 14.4 Mbps*3 possible. Aiming for convenient
and constant internet access for event or meeting organizers - allowing you to watch movies, download music on the road, or
access e-mail no matter where you are. The auto fail-over feature ensures maximum connectivity and minimum interruption by
quickly and smoothly connecting to a 3G network in the event once your ADSL line fails. This feature allows 7300WX automatically
reconnect to the ADSL connection when it's restored, reducing connection costs.
State-of-the-art Security
Wi-Fi Protected Access (WPA-PSK / WPA2-PSK) and Wired Equivalent Privacy (WEP) features enhance the level of transmission
security and access control over your Wireless LAN. The NAT default firewall has an advanced anti-hacker pattern-filtering
protection features that can automatically detect and block Denial of Service (DoS) attacks. In addition, Packet Filtering provides
high-level security for access control. Built with Stateful Packet Inspection (SPI), the router enables users to determine whether a
data packet is allowed to pass through the firewall to the private LAN.
Easy Setup and Management
Easy Sign-ON (EZSO), WPS push button and Auto-scan ADSL settings allow users to manage the device functions with minimum
effort. The user-friendly, web-based user interface makes installing and managing the BiPAC 7300WX extremely easy. With
support for both DHCP client and server, system administrators can manage IP assignment without having to reconfigure other
stations and fitting the router into existing network environments.
• Dual-WAN approach – ADSL2+ and
3G connections
• USB 2.0 port for plugging a 3G /
HSDPA modem as backup (available
from your service provider)
• Auto fail-over feature to ensure an
always-on connection
• Base on Wireless-N Technology, and
compliant with IEEE 802.11g, 802.11b
standards
• High-speed wireless connection up to
150Mbps
• Wireless-N AP with Wi-Fi Protected
Setup (WPS), Wi-Fi Protected Access
(WPA-PSK / WPA2-PSK) and Wired
Equivalent Privacy (WEP) support
• Wireless On / Off time schedule
control
• High speed Internet access with
ADSL2 / 2+; also compatible with
ADSL
• Integrated with 4-port Ethernet switch
• SOHO firewall security with DoS
prevention and SPI
• Universal Plug and Play (UPnP)
Compliant
• Supports Virtual Private Network
(VPN) pass-through
• Quality of Service Control
• Dynamic Domain Name System
(DDNS)
• Easy Sign-ON (EZSO)
3G / Wireless-N 150 Mbps ADSL2+ Router
BiPAC 7300WX
Wireless 150Mbps
3G Connectivity
Auto Fail-over
Rich Security
Ease of Use
Ideal for
Home and SOHO
users
Page 2
Copyright © Billion Electric Co., Ltd. All rights reserved.
ADSL Compliance
• Compliant with ADSL Standards
- Full-rate ANSI T1.413 Issue 2
- G.dmt (ITU G.992.1)
- G.lite (ITU G.992.2)
- G.hs (ITU G.994.1)
- ADSL over ISDN / U-R2
• Compliant with ADSL2 Standards
- G.dmt.bis (ITU G.992.3)
- ADSL2 Annex M (ITU G.992.3 Annex M)
(available for BiPAC 7300WXA model only)
• Compliant with ADSL2+ Standards
- G.dmt.bis plus (ITU G.992.5)
- ADSL2+ Annex M (ITU G.992.5 Annex M)
(available with BiPAC 7300WXA model only)
Network Protocols and Features
• NAT, static routing and RIP-1 / 2
• Universal Plug and Play (UPnP) Compliant
• Transparent Bridging
• Dynamic Domain Name System (DDNS)
• Virtual Server and DMZ
• SNTP, DNS relay and IGMP proxy
• IGMP snooping for video service
• Management based-on IP protocol, port number
and address
• SMTP Client
Firewall & Virtual Private Network
(VPN)
• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
• Prevents DoS attacks including Land Attack and
Ping of Death, etc.
• Remote access control for web base access
• Anti probe function
• Packet filtering, MAC filtering, URL content
filtering
• Password protection for system management
• VPN pass-through
Quality of Service Control
• Supports the DiffServ approach
• Traffic prioritization and bandwidth management
based-on IP protocol, port number and address
Wireless LAN
• Compatible with IEEE 802.11g, 802.11b
standards.
• Up to 150Mbps wireless operation rate
*2
• 2.4 GHz–2.484 GHz frequency range
• WPS (Wi-Fi Protected Setup)
• 64 / 128 bits WEP supported for encryption
• Wireless Security with WPA-PSK / WPA2-PSK
support
• 802.1x radius supported
• WDS repeater function support
• WLAN on/off time schedule control
ATM and PPP Protocols
• ATM Adaptation Layer Type 5 (AAL5)
• Multiple Protocol over AAL5 (RFC 2684, formerly
RFC 1483)
• Bridged or routed Ethernet encapsulation
• VC and LLC based multiplexing
• PPP over Ethernet (PPPoE)
• PPP over ATM (RFC 2364)
• MAC Encapsulated Routing (RFC 1483 MER)
• OAM F4 / F5
Management
• Easy Sign-ON (EZSO) and Auto-scan ADSL
settings
• Web-based GUI for remote and local
management
• Firmware upgrades and configuration data
transfer via web-based interface
• Embedded Telnet server for remote and local
management
• Available syslog
• Supports DHCP server / client / relay
• SNMP v1 / v2 / v3, MIB supported
• Wake on LAN
• Mail Alert for WAN IP changed, IDS, Failover /
Failback
Hardware Specifications
Physical Interface
• DSL: ADSL port
• Ethernet: 4-port 10 / 100M auto-crossover (MDI /
MDI-X) switch
• USB 2.0 supports 3G / HSDPA modem backup
• Factory default reset button
• WPS push button
• Power jack
• Power switch
• WLAN: 1 antenna
Physical Specifications
• Dimensions: 7.28" x 4.86" x 1.42"
(185mm x 123.5mm x 36mm)
Power Requirements
• Input: 12V DC, 1.2A
Models & Supported Standards
• BiPAC 7300WXA: Supports Annex A and Annex M
• BiPAC 7300WXU: Supports Annex B and U-R2
• Annex A and Annex M: ADSL over POTS
• Annex B and U-R2: ADSL over ISDN
Operating Environment
• Operating temperature: 0°C - 40°C
• Storage temperature: -20°C - 70°C
• Humidity: 20% - 95% non-condensing
Billion Electric Co., Ltd.
8F, No.192, Sec.2, Chung Hsing Road,
Hsin-Tien District, New Taipei City, 23146 Taiwan
www.billion.com
TEL : +886-2-2914-5665
FAX : +866-2-2918-6731, +886-2-2918-2895
E-mail : sales@billion.com
Features & Specifications
* Notes:
1. This router may require firmware modification for certain ADSL2/2+/Annex M DSLAMs.
2. Actual throughput and performance depends on the environment. Normally, the wireless speed is faster if you are closer to the router.
The farther from the router you are, the more wireless range, and the speed will be slower.
3. The 3G / HSDPA data rate depends on your local service provider and your 3G / HSDPA modem.
4. Specifications on this datasheet are subject to change without prior notice.
Compatible 3G USB modems
*3
This list is continuously updated at http://www.billion.com/compatible-3G.html
3G Brand 3G Model
ONDA
Option
NOVATEL
Zoom
Vodafone
Huawei
Sierra
Quanta
MF628, MF638, MDC525UP, MO825UP,
MF622, MDC502HS
ICON225
MC950D
4595
K3520-Z
E270, E220
Aircard 880U, 875U, 888
GKXQCX
DSL
4 3 2 1
Ethernet
Ethernet Cable
Ethernet Cable
Ethernet Cable
Phone Cable
LineADSL
Phone
Internet
Splitter
Power Adapter
Switching
HUB
USB
