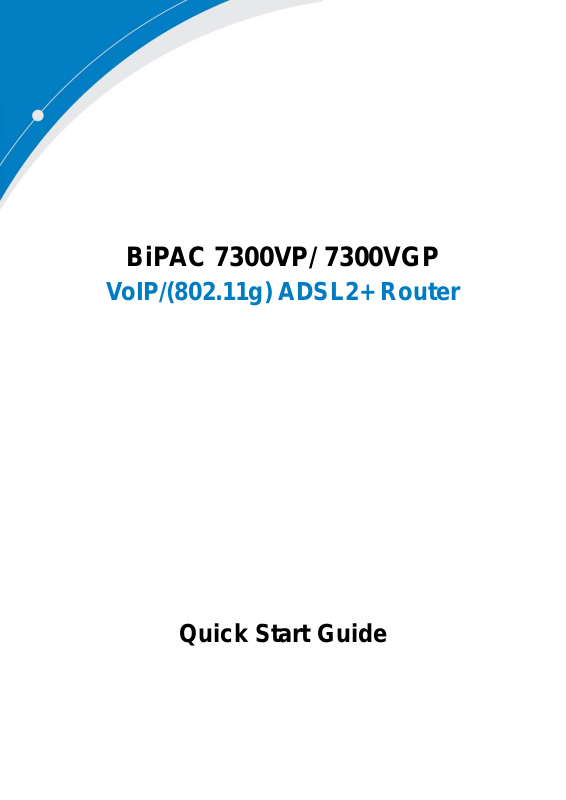

BiPAC 7300VP/ 7300VGP
VoIP/(802.1 1g) ADSL2+ Router
Quick Start Guide
Billion BiPAC 7300VGP Series ADSL2+ Router
A
For more detailed instructions on configuring and using
the VoIP/802.11g ADSL2+ Router, please refer to the
on-line manual.
Package Contents
VoIP/(802.11g) ADSL2+ Router
CD-ROM containing the on-line manual
RJ-11 ADSL/telephone Cable
Ethernet (CAT-5 LAN) Cable
AC-DC power adapter (12VDC, 1.2A)
This Quick Start Guide
Warning
ttention
Do not use the BiPAC 7300VGP Series in high humidity or high
temperatures.
Do not use the same power source for the BiPAC 7300VGP
Series as other equipment.
Do not open or repair the case yourself. If the BiPAC 7300VGP
Series are too hot, turn off the power immediately and have it
repaired at a qualified service center.
Avoid using this product and all accessories outdoors.
Place the BiPAC 7300VGP Series on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
1
Quick Start Guide
The Front LEDs
LED Description
1 PWR： Lights when the power is ON.
2 SYS： Lights when the system is ready.
Steady glow when connected to an Ethernet device.
Glows green for 100Mbps; Orange for 10Mbps.
Blinking light when data is Transmitted / Received.
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
3-6
7
LAN Port
1-4：
WLAN：
(7300VGP
only)
8-9 Phone： Lit green when the phone is off-hook.
10 LINE：
Lit when the inbound and outbound calls transmitted
through PSTN.
11 VoIP： Lit when SIP registration is OK.
12 PPP： Steady glow when there is a PPPoA / PPPoE connection.
13 ADSL：
Lights when successfully connected to an ADSL DSLAM
(linesync).
2
Billion BiPAC 7300VGP Series ADSL2+ Router
The Rear Ports
8 6 7 5 4
Port Description
2
1
3
1
2 PWR
3 RESET
4
5
6 LINE
7 ADSL
Power
Switch
LAN
Phone
Power ON/OFF switch.
Connect the supplied power adapter to this jack.
After the router is powered on, press this recessed button using
the end of paper clip or other small pointed object to reset the
router or to restore it to factory default settings.
1. Recovery procedures for non-working routers (e.g. after a
failed firmware upgrade flash):
2. Recovery procedures for a lost web interface password:
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the
four LAN ports when connecting to a PC or an office/home
network of 10Mbps or 100Mbps.
Connect RJ-11 cable to this port when connecting to an analog phone
set.
Connect RJ-11 cable to this port when connecting to the telephone
wall jack
Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
Antenna
8
(7300VGP
only)
Connect the detachable antenna to this port.
3
Quick Start Guide
Connecting BiPAC 7300VGP series
1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.
2. Power on the device.
3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.
4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.
5. Connect an RJ11 cable to LINE port when connecting to the telephone wall jack
4
Billion BiPAC 7300VGP Series ADSL2+ Router
Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic
View). In the Control Panel, double-click on
Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
5
Quick Start Guide
Configuring PC in Windows 2000
Go to Start / Settings / Control Panel. In the Control
1.
Panel, double-click on Network and Dial-up
Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
6
Billion BiPAC 7300VGP Series ADSL2+ Router
Configuring PC in Windows 98/Me
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP ->
NE2000 Compatible, or the name of your
Network Interface Card (NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and
click OK to finish the configuration.
7
Quick Start Guide
Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
8
Billion BiPAC 7300VGP Series ADSL2+ Router
Configuring Your (802.11g)/VoIP ADSL2+ Router
Easy Sign On:
User just installs all of cables and uses the browser to surf Internet. At this time, the EZSO WEB
GUI will be popped up and request you to input some basic information you get from ISP. After
this, you can surf Internet right away.
PPPoE / PPPoA
1. Please wait when the connection is trying. 2.Enter the username and password provide
1. To configure this device, you must have IE 5.0 / Netscape 4.5 or
above installed
2. You may configure the router for Internet access in two ways:
Easy Sign On (EZSO) Web Configurator
by your ISP.
3. If login failed, Please input the correct
username and password again.
DHCP
1. Please wait when the connection is trying. 2. Login Successfully.
4. Login Successfully.
9
Quick Start Guide
Web Configuator:
1. Open the web browser and type
http://192.168.1.254 in the browser’s
address box. This number is the default IP
address for this router. Press Enter.
2. A username and password window will
appear. The default username and
password are admin and admin. Press
OK to proceed.
3. You will get a status report on web page.
10
Billion BiPAC 7300VGP Series ADSL2+ Router
Verifying Your Local Network Connection with the Device
To see if this ADSL Router is
visible on the local network, go
to Start / Run. In the Run dialog
box, type “ping 192.168.1.254”
then press OK.
A command prompt window will
pop out. If your ping is
successful which means your
local network is able to reach to
the device, then the command
prompt window will close up
automatically.
Connection fails, when you see
“Request timed out” in the
command prompt window. You
may need to check your set up.
Product Support and Contact Information
Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.
If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer
where you purchased this product.
Contact Billion
AUSTRALIA
http://www.billion.com.au
©2006 Billion Electric Co, PC Range P/L. All Rights Reserved.
WORLDWIDE
http://www.billion.com
Mac OS is a registered Trademark of Apple Computer, Inc.
Windows 98, Windows NT, Windows 2000, Windows Me and Windows XP are registered Trademarks of Microsoft
