Page 1
BIPAC 7100SG/7100G
802.1 1g ADSL Router
Quick Start Guide
Page 2
Page 3
Billion BIPAC 7100SG/7100G 802.11g ADSL Router
A
For more detailed instructions on configuring and using
the 802.11g ADSL Router, please refer to the on-line
manual.
Package Contents
Billion BIPAC 7100SG/7100G ADSL Router
CD-ROM containing the online manual
RJ-11 ADSL/telephone Cable
Ethernet (CAT-5 LAN) Cable
AC-DC power adapter (12VDC, 1A)
This Quick Start Guide
Warning
Do not use the BIPAC 7100SG/7100G in high humidity or high
temperatures.
Do not use the same power source for the BIPAC
7100SG/7100G as other equipment.
Do not open or repair the case yourself. If the BIPAC
7100SG/7100G is too hot, turn off the power immediately and
have it repaired at a qualified service center.
Avoid using this product and all accessories outdoors.
Place the BIPAC 7100SG/7100G on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage the router.
ttention
1
Page 4
Quick Start Guide
The Front LEDs
7100SG
1
5
2
LED Meaning
1
2
3 WLAN
4
5
PWR Lit green when power adapter is connected.
SYS
LAN Lit green when the LAN link is connected.
ADSL
When lit, it indicates that the device is working properly.
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
When lit, it indicates that the ADSL (Line) port is connected
to the DSLAM and working properly.
2
Page 5
7100G
Billion BIPAC 7100SG/7100G 802.11g ADSL Router
1
5
2
LED Meaning
1
2
3
PWR Lit green when power adapter is connected.
SYS
WLAN
When lit, it indicates that the device is working properly.
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
LAN1 Lit green when the LAN1 link is connected.
LAN2 Lit green when the LAN2 link is connected.
4
LAN3 Lit green when the LAN3 link is connected.
LAN4 Lit green when the LAN4 link is connected.
5
ADSL
When lit, it indicates that the ADSL (Line) port is connected
to the DSLAM and working properly.
3
Page 6
Quick Start Guide

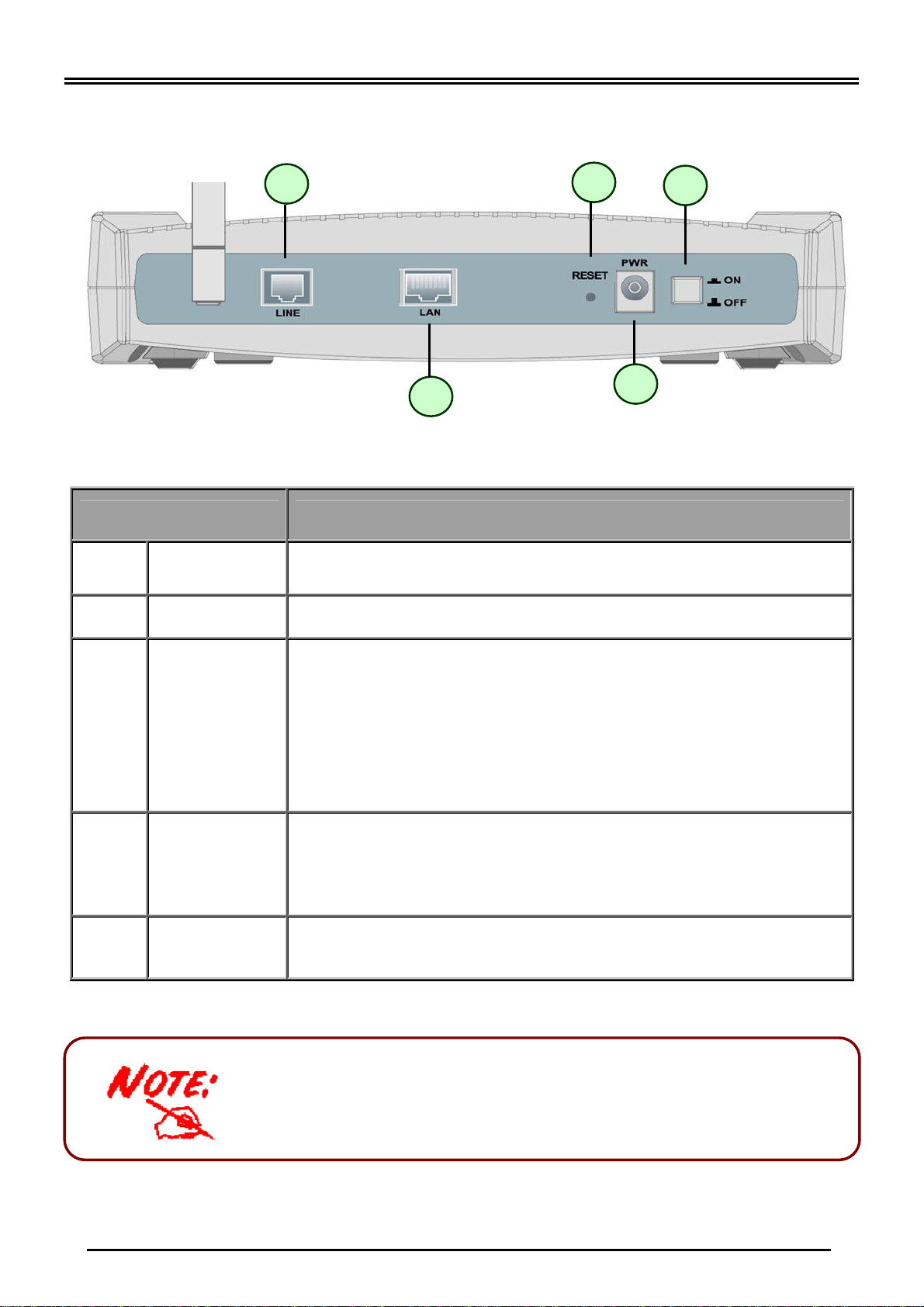

The Rear Ports
5
3
1
Port Meaning
1
2
3 RESET
Power Switch
PWR
4
Power ON/OFF switch
Connect the supplied power adapter to this jack.
After the device is powered on, press it to reset the device or
restore to factory default settings.
0-3 seconds: reset the device
6 seconds above: restore to factory default settings (this is used
when you can not login to the router, e.g. forgot the password)
2
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to the LAN ports
4
5
LAN
LINE
when connecting to a PC or an office/home network of 10Mbps or
100Mbps.
Connect the supplied RJ-11 (“telephone”) cable to this port when
connecting to the ADSL/telephone network.
BIPAC 7100G has 4 LAN ports, and each of them has the
same function as that of 7100SG.
4
Page 7
Billion BIPAC 7100SG/7100G 802.11g ADSL Router

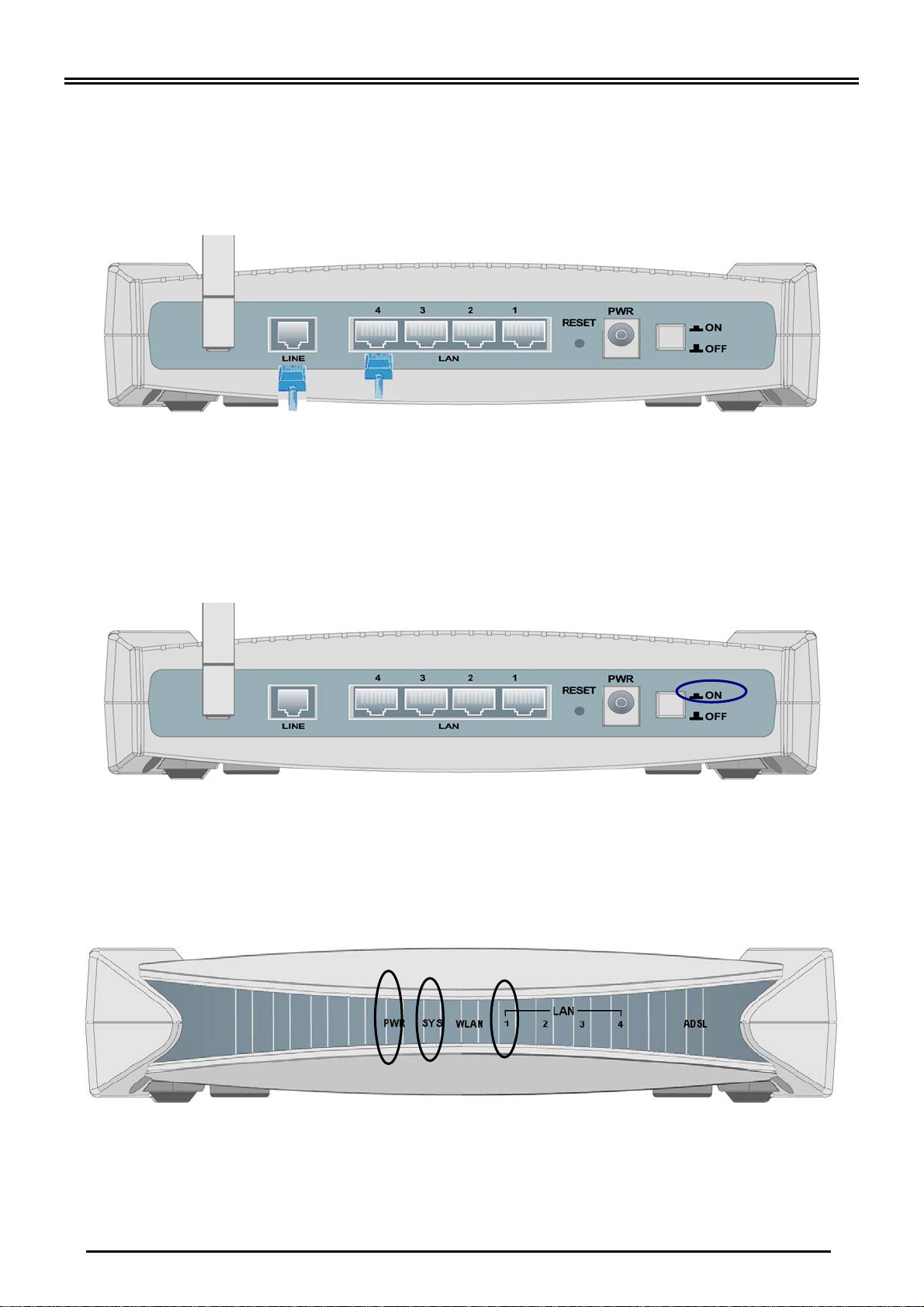

Connecting Your ADSL Router
1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.
2. Power on the device.
3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.
5

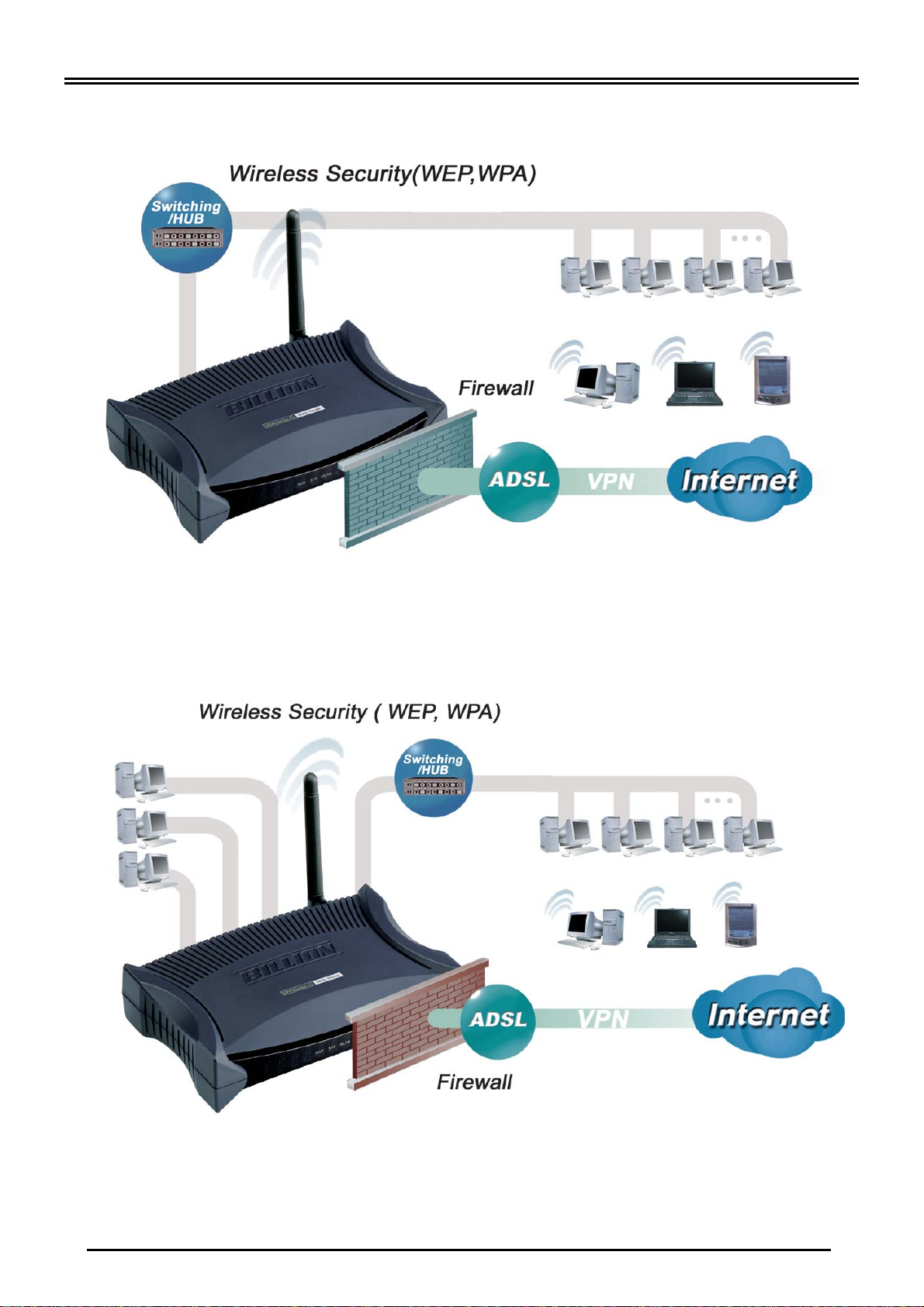

Page 8
Quick Start Guide
7100SG
7100G
6
Page 9
Billion BIPAC 7100SG/7100G 802.11g ADSL Router

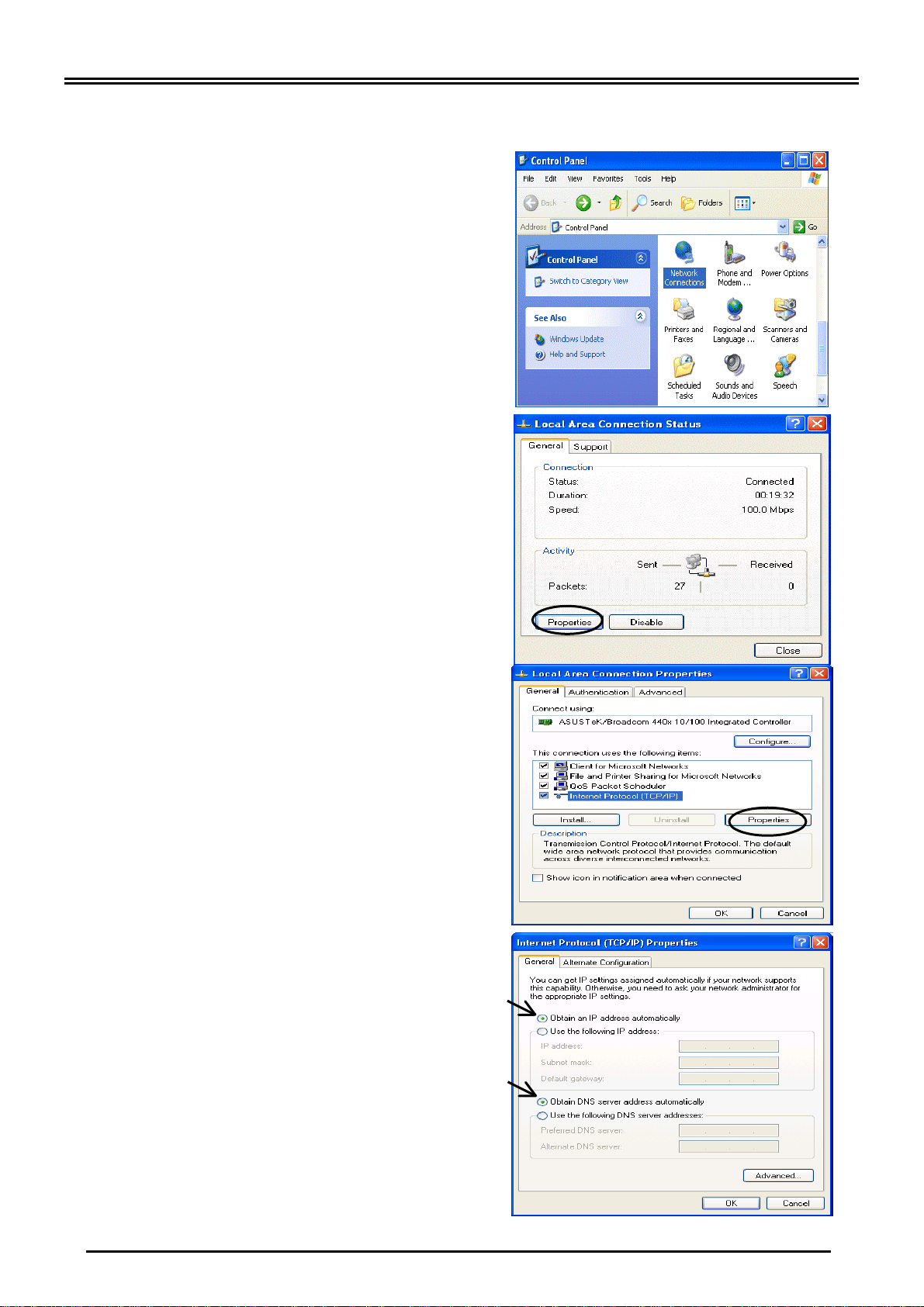

Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic
View). In the Control Panel, double-click on
Network Connections
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window, click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
7
Page 10
Quick Start Guide

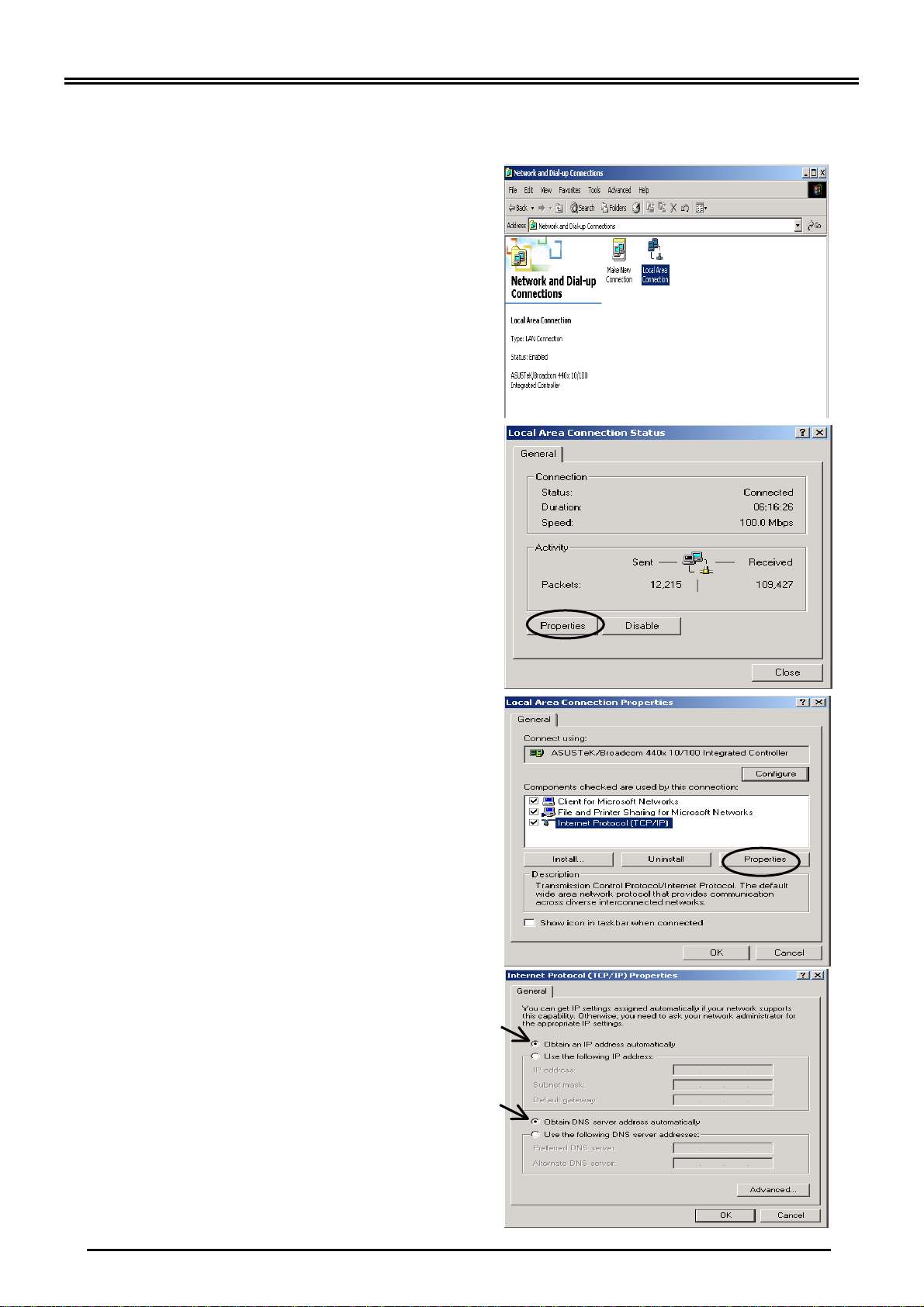

Configuring PC in Windows 2000
1. Go to Start / Settings / Control Panel. In the
Control Panel, double-click on Network and
Dial-up Connections.
2. Double-click Local Area Connection.
3. In the Local Area Connection Status
window click Properties.
4. Select Internet Protocol (TCP/IP) and click
Properties.
5. Select the Obtain an IP address
automatically and the Obtain DNS server
address automatically radio buttons.
6. Click OK to finish the configuration.
8
Page 11
Billion BIPAC 7100SG/7100G 802.11g ADSL Router

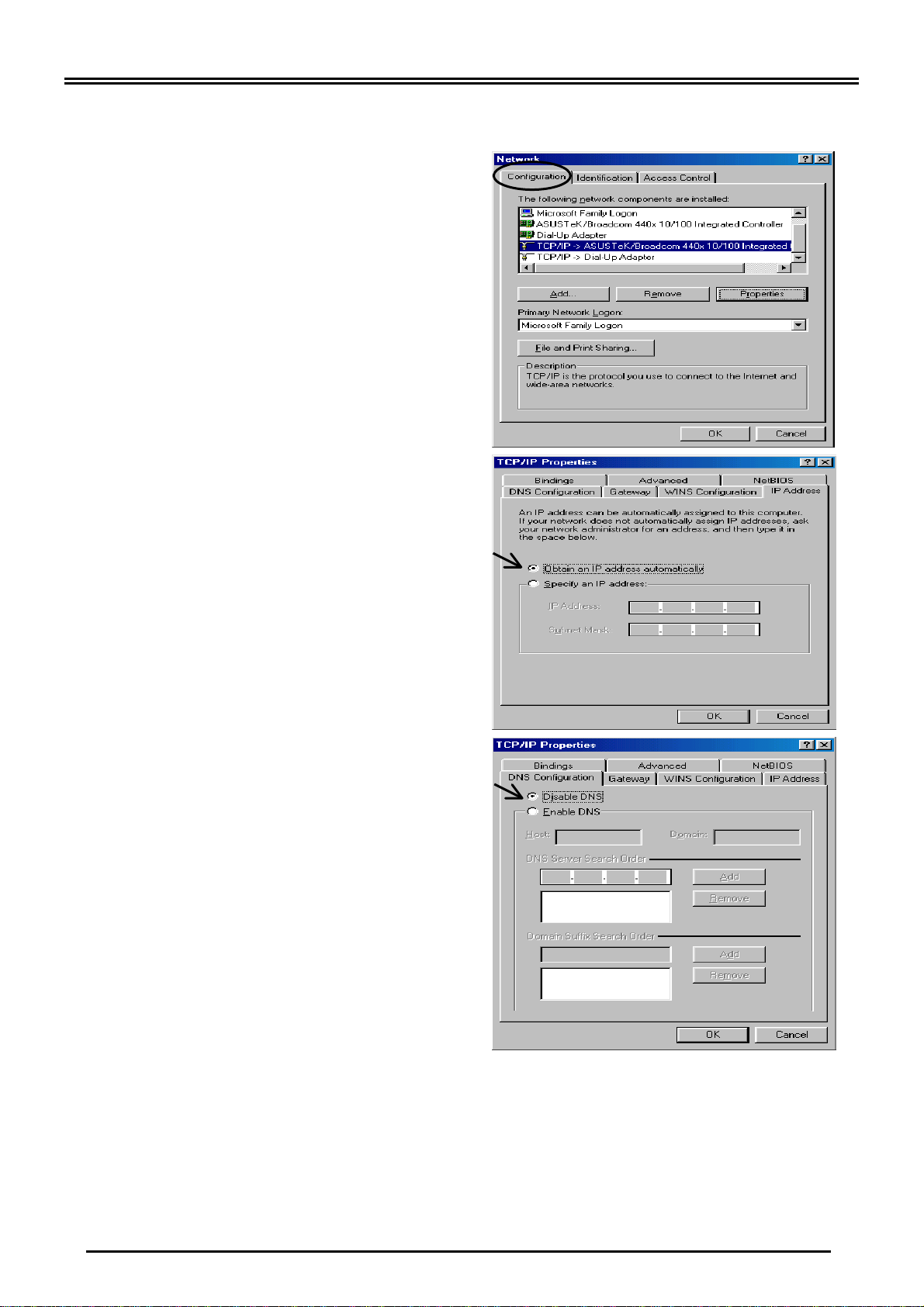

Configuring PC in Windows 98/Me
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Configuration tab.
2. Select TCP/IP ->
NE2000 Compatible, or the name of your
Network Interface Card (NIC) in your PC.
3. Select the Obtain an IP address
automatically radio button.
4. Then select the DNS Configuration tab.
5. Select the Disable DNS radio button and
click OK to finish the configuration.
9
Page 12
Quick Start Guide
Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In
the Control Panel, double-click on Network
and choose the Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address from a
DHCP server radio button and click OK.
10
Page 13
Billion BIPAC 7100SG/7100G 802.11g ADSL Router
Configuring Your ADSL Router

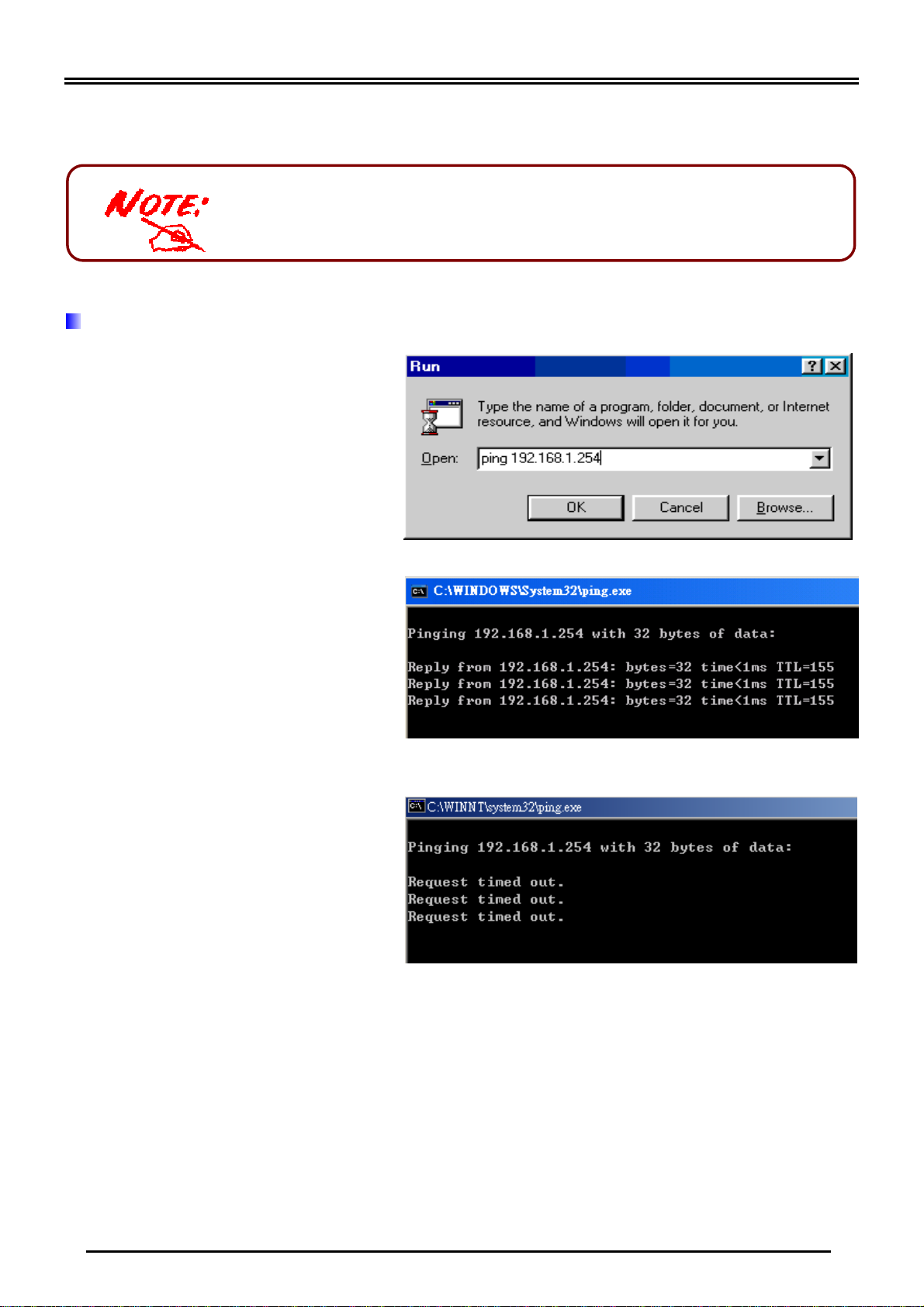

Verifying Your Local Network Connection with the Device
To see if this ADSL Router is
visible on the local network, go
to Start / Run. In the Run dialog
box, type “ping 192.168.1.254”
then press OK.
To configure this device, you must have IE 5.0 /
Netscape 4.5 or above installed
A command prompt window will
pop out. If your ping is
successful which means your
local network is able to reach to
the device, then the command
prompt window will close up
automatically.
Connection fails, when you see
“Request timed out” in the
command prompt window. You
may need to check your set up.
11
Page 14
Quick Start Guide

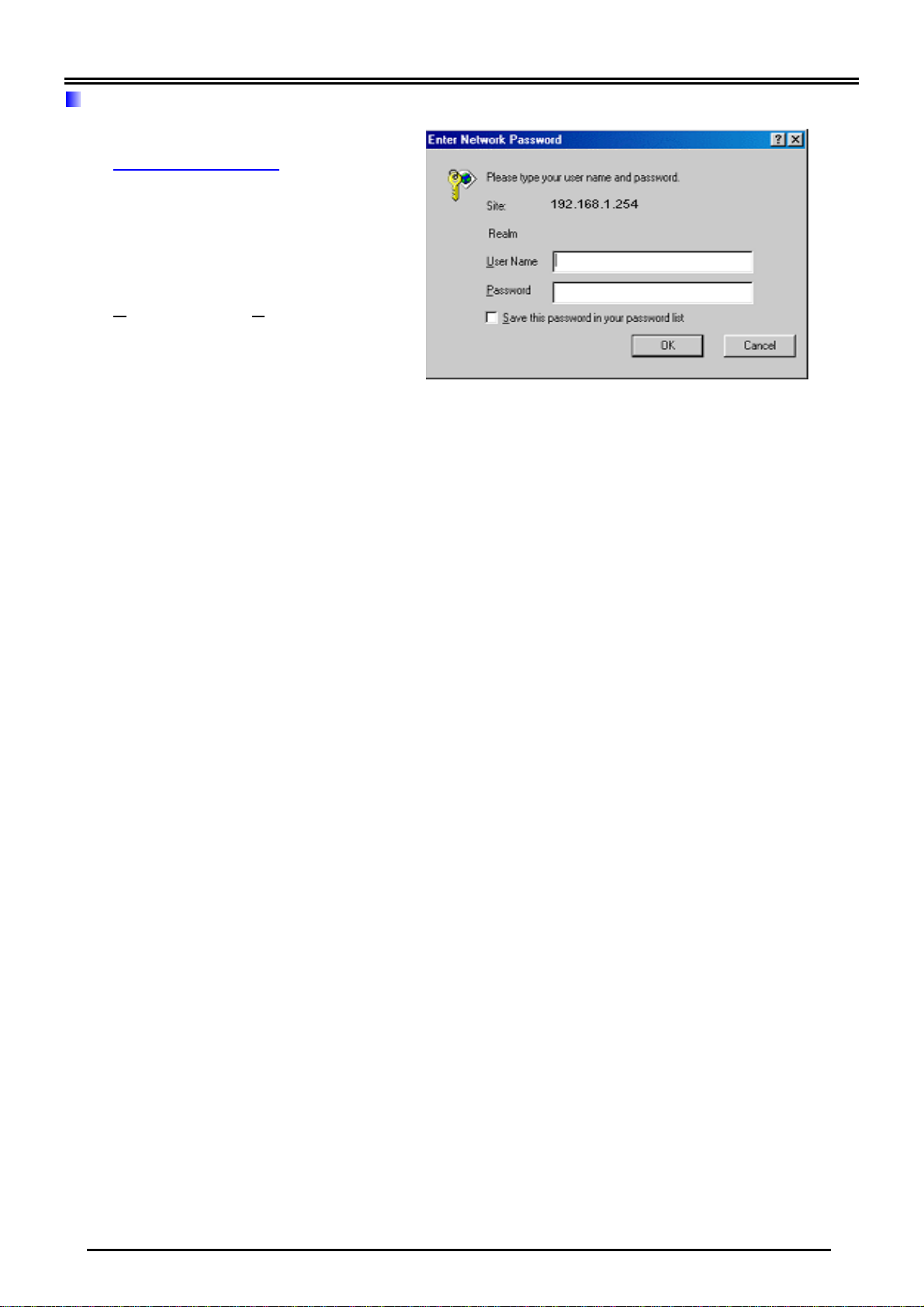

Connecting to the Router
Open the web browser and type
http://192.168.1.254 in the
browser’s address box. This
number is the default IP address
for this router. Press Enter.
A user name and password
window will appear. The default
User Name and Password are
“admin” and” password”.
Press OK to logon to the router
Product Support and Contact Information
Most problems can be solved by referring to the Troubleshooting section in the User’s Manual.
If you cannot resolve the problem with the Troubleshooting chapter, please contact the dealer
where you purchased this product.
Contact Billion
WORLDWIDE
http://www.billion.com
Mac OS is a registered Trademark of Apple Computer, Inc.
Windows 98, Windows NT, Windows 2000, Windows Me and Windows XP are registered Trademarks of Microsoft
Corporation.
12
