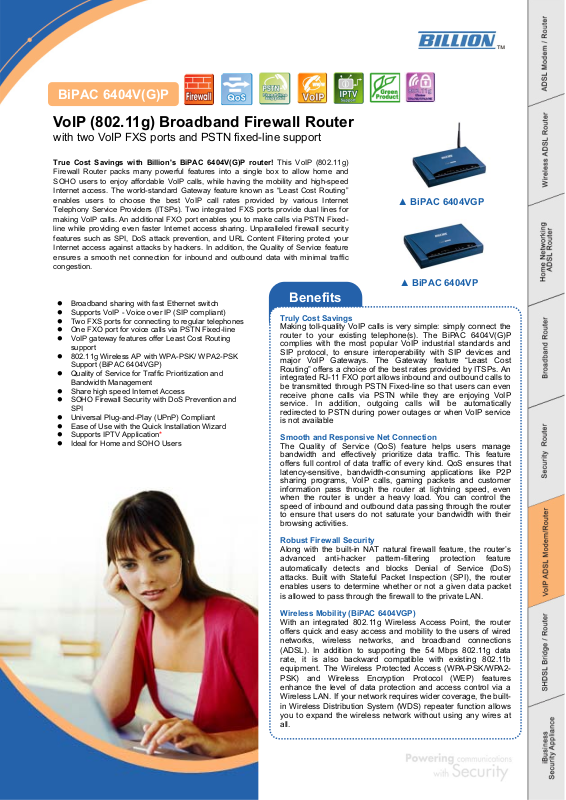

BiPAC 6404V(G)P

VoIP (802.11g) Broadband Firewall Router

with two VoIP FXS ports and PSTN fixed-line support

True Cost Savings with Billion's BiPAC 6404V(G)P router! This VoIP (802.11g)
Firewall Router packs many powerful features into a single box to allow home and
SOHO users to enjoy affordable VoIP calls, while having the mobility and high-speed
Internet access. The world-standard Gateway feature known as “Least Cost Routing”
enables users to choose the best VoIP call rates provided by various Internet
Telephony Service Providers (ITSPs). Two integrated FXS ports provide dual lines fo
making VoIP calls. An additional FXO port enables you to make calls via PSTN Fixed­line while providing even faster Internet access sharing. Unparalleled firewall securit
features such as SPI, DoS attack prevention, and URL Content Filtering protect you
Internet access against attacks by hackers. In addition, the Quality of Service feature
ensures a smooth net connection for inbound and outbound data with minimal traffi
congestion.

 Broadband sharing with fast Ethernet switch
 Supports VoIP - Voice over IP (SIP compliant)
 Two FXS ports for connecting to regular telephones
 One FXO port for voice calls via PSTN Fixed-line
 VoIP gateway features offer Least Cost Routing

support

 802.11g Wireless AP with WPA-PSK/ WPA2-PSK

Support (BiPAC 6404VGP)

 Quality of Service for Traffic Prioritization and

Bandwidth Management

 Share high speed Internet Access
 SOHO Firewall Security with DoS Prevention and

SPI

 Universal Plug-and-Play (UPnP) Compliant
 Ease of Use with the Quick Installation Wizard
 Supports IPTV Application*
 Ideal for Home and SOHO Users

Benefits

Truly Cost Savings

Making toll-quality VoIP calls is very simple: simply connect the
router to your existing telephone(s). The BiPAC 6404V(G)P
complies with the most popular VoIP industrial standards and
SIP protocol, to ensure interoperability with SIP devices and
major VoIP Gateways. The Gateway feature “Least Cost
Routing” offers a choice of the best rates provided by ITSPs. An
integrated RJ-11 FXO port allows inbound and outbound calls to
be transmitted through PSTN Fixed-line so that users can even
receive phone calls via PSTN while they are enjoying VoIP
service. In addition, outgoing calls will be automatically
redirected to PSTN during power outages or when VoIP service
is not available

Smooth and Responsive Net Connection

The Quality of Service (QoS) feature helps users manage
bandwidth and effectively prioritize data traffic. This feature
offers full control of data traffic of every kind. QoS ensures that
latency-sensitive, bandwidth-consuming applications like P2P
sharing programs, VoIP calls, gaming packets and custome
information pass through the router at lightning speed, even
when the router is under a heavy load. You can control the
speed of inbound and outbound data passing through the route
to ensure that users do not saturate your bandwidth with thei
browsing activities.

Robust Firewall Security

long with the built-in NAT natural firewall feature, the router’s
advanced anti-hacker pattern-filtering protection feature
automatically detects and blocks Denial of Service (DoS)
attacks. Built with Stateful Packet Inspection (SPI), the route
enables users to determine whether or not a given data packet
is allowed to pass through the firewall to the private LAN.

Wireless Mobility (BiPAC 6404VGP)

With an integrated 802.11g Wireless Access Point, the route
offers quick and easy access and mobility to the users of wired
networks, wireless networks, and broadband connections
(ADSL). In addition to supporting the 54 Mbps 802.11g data
rate, it is also backward compatible with existing 802.11b
equipment. The Wireless Protected Access (WPA-PSK/WPA2­PSK) and Wireless Encryption Protocol (WEP) features
enhance the level of data protection and access control via a
Wireless LAN. If your network requires wider coverage, the built­in Wireless Distribution System (WDS) repeater function allows
you to expand the wireless network without using any wires at
all.

▲ BiPAC 6404VGP

▲ BiPAC 6404VP

Features & Specifications

Network Protocols and Features

• PPPoE, DHCP client and fixed IP connection to ISP

• NAT, static routing and RIP-1/2

• Universal Plug and Play (UPnP) Compliant

• Dynamic Domain Name System (DDNS)

• Virtual Server and DMZ

• SNTP, DNS relay and IGMP proxy

• POP3 (email account checking)

• IGMP Snooping for video service

Firewall

• Built-in NAT firewall

• Stateful Packet Inspection (SPI)

• Prevents DoS attacks including IP Spoofing, Land Attack,
Smurf Attack, Ping of Death, TCP SYN Flooding, etc.

• Packet Filtering – port, source IP address, destination IP
address, MAC address

• URL Content Filtering – string or domain name detection in
URL strings

VoIP

• Two RJ-11 FXS ports for connecting to regular telephones

• One RJ-11 FXO port for PSTN Fixed-line

• Compliant with SIP standard (RFC3261)

• Supports G.711 A/μ law, and G.729 Audio Codec standards

• Supports Telephony Features: call waiting, silence
suppression, voice activity detection (VAD), comfort noise
generation (CNG), G.168 echo cancellation, and caller ID
(Bell 202,V23)

• Voice over data, QoS control to ensure higher voice quality

• Automatic fallback to PSTN Fixed-line when power outages
occur or VoIP service is not available.

• VoIP gateway features offer Least Cost Routing support

Quality of Service Control

• Supports the DiffServ approach

• Traffic prioritization and bandwidth management based-on
IP protocol, port number and address

IPTV Application*

• IGMP Snooping

• Virtual LAN (VLAN)

Wireless 802.11g (BiPAC 6404VGP)

• Compliant with IEEE 802.11g and 802.11b standards

• 2.4 GHz – 2.484G Hz frequency range

• Up to 54 Mbps wireless operation rate

• 64/128 bits WEP supported for encryption

• Wireless security with WPA-PSK/WPA2-PSK support

• WDS repeater function support

Management

• Quick Installation Wizard

• Web-based GUI for remote and local management

• Firmware upgrade and configuration data upload and download
via Web-based GUI

• Embedded Telnet server for remote and local management

• Available Syslog monitoring

• SNMP v3, MIB-I and MIB-II support

• Supports DHCP server/client/relay

Hardware Specifications

Physical Interface

• WLAN: Antenna (BiPAC 6404VGP)

• WAN: RJ-45 Ethernet port for connecting to ADSL/Cable device

• Telephone: 2-port FXS

1-port FXO (For PSTN Fixed-line support)

• LAN: 3-port 10/100M auto-crossover (MDI/MDI-X) Switch

• Console: Ethernet Port # 3 can also be connected to console

• Factory default reset button

• Power jack

• Power switch

Physical Specifications

• Dimensions: 8.27" x 5.83" x 1.42"

(210mm x 148mm x 36mm)

Power Requirements

• Input: 12VDC, 1.2A

Operating Environment

• Operating temperature: 0 ~ 40 °C

• Storage temperature: -20 ~ 70 °C

• Operating Humidity: 20% ~ 95% non-condensing

Billion Electric Co., Ltd.

8F, No. 192, Sec. 2, Chung Hsing Road,
Hsin Tien City 23146, Taipei County, Taiwan
Tel: +886- (2) 2914-5665
Fax: [phone]

www.billion.com

*Notes:

1. IPTV application may require subscribing to IPTV services from a Telco/ISP.

2. Specifications in this datasheet are subject to change without prior notice.
