Bil-Jax 2622T 101-67T User Manual

OPERATOR’S

MANUAL

BOOM PERSONNEL LIFT

This equipment is designed and manufactured in compliance with the duties, responsibilities and standards set forth in the ANSI, CE CSA and/or AS standards in effect at the time of manufacture.

This equipment will meet or exceed applicable ANSI, CE, CSA and/or AS codes and standards when operated in accordance with manufacturer’s recommendations.

It is the responsibility of the user to follow all regional codes and regulations that govern the safe operation of this equipment.

Obtain, read and obey all safety precautions before performing maintenance or repairs or attempting to operate this equipment. This includes all manufacturer

recommendations as well as those directives set forth by government and local authorities.

To ensure proper and safe use of this equipment, it is strongly recommended that only trained and authorized personnel attempt to operate and maintain the boom lift.

This manual shall be considered a permanent and necessary component of the machine and shall be kept with the boom lift at all times.

Owners and Lessors should complete a full inspection of all components and perform a test of all functions, including brake functions, before commissioning or reselling the machine. Repair or replace all damaged or malfunctioning components.

Bil-Jax, Inc. is dedicated to the continuous improvement of this and all Bil-Jax products. Therefore, equipment information is subject to change without notice. Direct any questions or concerns regarding errors or discrepancies in this manual to the Bil-Jax Service Department.

“Bil-Jax” is a registered trademark and “A Step Above” and “Summit Series” are trademarks of Bil-Jax, Inc. Contact Bil-Jax for replacement manuals.

125 Taylor Parkway Archbold, Ohio 43502

Phone (800) 537-0540 (419) 445-8915 Fax (419) 445-0367

P/N B33-01-0100-01 http://www.

biljax.com

TABLE OF CONTENTS

Table of Contents 1 Illustrations 2 Tables 2

1 Safety 3

Legend: Safety Advisories 4 Before Operation 5 During Operation 5 Maintenance Safety 7 Damaged Equipment Policy 8

2 Specifications 9

Range of Motion 10 Specifications 11 Warranty 12

3 Operations 13

Ground Control Station 14 Platform Control Station 16 Normal Operating Procedure 18 Manual Boom Operations 20 Battery Recharge 22 Boom Lift Transport 23

4 Operator Service 25

Daily Service Checks 26 Weekly Service Checks 28 Monthly Service Checks 29 Troubleshooting 30 Error Code Definitions 31

5 Replacement Decals 49

6 ANSI Reprint 53 7 Material Safety Data 59

8 Equipment Options 63

Material Lifting Hook 64 Platform Rotator 65 Replacement Decals 66

Inspection Form 68

LIST OF ILLUSTRATIONS

Figure 2-1 Range of Motion 10 Figure 3-1 Ground Control Panel 14 Figure 3-2 Platform Control Panel 16 Figure 3-3 Outrigger Controls 18 Figure 3-4 Boom Travel Latch 18 Figure 3-5 Platform Travel Latch 19 Figure 3-6 Hand Pump and Controls for Manual Operation 20 Figure 3-7 Manual Lowering Valve 21 Figure 3-8 Battery Charger Faceplate 22 Figure 3-9 Trailer Hitching 23 Figure 3-10 Boom Lift and Transport Instructions 24 Figure 4-1 Outrigger Position Switches 26 Figure 4-2 Hydraulic Reservoir 27 Figure 4-3 Wheel Nut Tightening Sequence 29 Figure 5-1 Decal Placements 51 Figure 6-1 Minimum Safe Approach Distances 57 Figure 8-1 Material Lifting Hook Configuration 64 Figure 8-2 Material Lifting Hook Installation 64 Figure 8-3 Manual Platform Rotator 65 Figure 8-6 Material Lift Decal Placement 66 Figure 8-7 Optional Components Decal Placement 66

LIST OF TABLES

Table 1-1 Minimum Safe Approach Distances 5 Table 3-1 Charger Fault Codes 22 Table 4-1 Troubleshooting Steps 30 Table 4-2 Error Code Definitions 31 Table 5-1 Replacement Decal Descriptions 50 Table 8-1 Replacement Decals – Optional Components 66

1 SAFETY

Proper training is required for the safe operation of any mechanical device. Failure to follow all instructions and safety precautions in this manual and attached to the lift will result in death or personal injury.

Prior to Operation:

 Read, understand and obey all instructions and safety precautions in this

manual and attached to the lift.

 Read, understand and obey all applicable government regulations.  Become familiar with the proper use of all controls.  Inexperienced users should receive instruction before attempting to

operate or maintain the machine.

The use of intelligence and common sense is the best practice when following any safety policy.

BIL-JAX 2622T

LEGEND: SAFETY ADVISORIES

The following safety advisories are used throughout this manual to indicate specific hazards when operating or maintaining the machine. Read, understand and obey all safety advisories to prevent improper service, damage to equipment, personal injury or death.

DANGER

Warns of operation near electrical power sources that could lead to personal injury or death.

WARNING

Describes conditions or practices that could lead to personal injury or death.

CAUTION

Contains information important in the prevention of errors that could damage machine or components.

NOTE: Contains additional information

important for performing a procedure.

BEFORE OPERATION DURING OPERATION

DANGER

1 – SAFETY

Ensure the following general safety precautions are followed before operating the telescoping boom lift:

ALWAYS inspect the usage area for potential hazards, such as unstable or unlevel surfaces, overhead obstructions and electrically charged wires or conductors. ALWAYS watch for moving vehicles in the operating area.

ALWAYS conduct a thorough inspection of the machine before operation. Check for damaged or worn parts, hydraulic leaks, damaged wiring, loose wiring conductors, damaged outriggers, low tire pressure, uneven tire wear or tire damage. Check for any improperly operating components. NEVER operate equipment if any damage is observed or suspected. Repair damaged or malfunctioning equipment before operation.

ALWAYS wear proper clothing. Wear protective equipment as required by government regulations. Keep loose clothing, jewelry, gloves and hair away from moving parts.

ALWAYS wear a safety harness and energyabsorbing lanyard, such as the safety harness and lanyard provided by Bil-Jax.

ALWAYS inspect platform floor and outrigger footpads for mud, grease, debris or other foreign material. ALWAYS remove any such material from the equipment before operation.

ALWAYS tag any part of the equipment known or suspected to be damaged or malfunctioning. ALWAYS remove a malfunctioning, damaged or defective machine from service. NEVER operate a machine that has any known or suspected defect.

ALWAYS comply with the instructions found in Safety and/or Service Bulletins distributed by the manufacturer. Bulletins may contain critical procedures that supersede the information contained in manuals.

NEVER operate this equipment while under the influence of drugs or alcohol, while taking prescription medications that may leave the operator drowsy or prone to dizziness, or while feeling ill.

NEVER modify, alter or change the equipment in any way that would affect its original design or operation.

NEVER deface, modify or obscure any decals or markings on equipment.

NEVER operate the equipment in any way for which it is not intended.

Ensure the following general safety precautions are followed while operating the telescoping boom lift:

ALWAYS position lift away from power lines to ensure that no part of the lift can accidentally reach into an unsafe area. This includes full extension of the boom through 700º rotation.

This machine is NOT insulated for use near electrical power lines and DOES NOT provide protection from contact with or close proximity to any electrically charged conductor. Operator must maintain safe clearances at all times (3.05 meters minimum) and must always allow for platform movement due to gusty winds. Always contact power company before working near power lines. Assume every power line is live. Power lines can be blown by the wind. Refer to Table 1-1 for minimum safe approach distances between the machine and electrical power lines.

Voltage Range

(Phase to Phase)

0 to 300V Avoid Contact Over 300V to 50KV 10 3.05 Over 50KV to 200KV 15 4.60 Over 200KV to 350KV 20 6.10 Over 350KV to 500KV 25 7.62 Over 500KV to 750KV 35 10.67 Over 750KV to 1000KV 45 13.72

Minimum Safe Approach Distance

(Feet) (Meters)

Table 1-1. Minimum Safe Approach Distances

ALWAYS keep away from a machine that is exposed to energized power lines. If the machine contacts energized power lines, NEVER touch or operate the machine until power lines are shut off.

ALWAYS operate only on a firm and level surface. NEVER operate on surfaces that do not support the equipment with its rated load capacity or on surfaces that do not support force exerted by the outriggers during boom operation. Operate only on surfaces that can support a pressure of 1.8 kg/cm

(25 psi) to

ensure safe operation. ALWAYS keep personnel away from potential pinch

and shear points and from potential crush hazards as indicated by decals attached to the machine.

ALWAYS maintain sure footing on the work platform. ALWAYS keep the safety bar lowered unless

personnel are entering or exiting the work platform.

BIL-JAX 2622T

ALWAYS wear proper footgear. ALWAYS keep the platform free of debris.

ALWAYS keep personnel and obstructions clear of the machine when repositioning boom or basket.

ALWAYS cordon the area surrounding the outriggers to keep personnel, vehicles and moving equipment away from the machine while in use.

ALWAYS stay clear of overhead obstructions, including wires and cables.

ALWAYS engage boom travel latches before towing trailer.

ALWAYS exercise caution when rotating the boom (slew) from the ground control station. ALWAYS watch for personnel inside the radius of the turntable and boom arm when rotating the boom lift from the ground or platform controls.

ALWAYS remove personnel from the boom lift before attempting to free an elevated platform that has become caught or snagged on an adjacent structure or obstacle.

NEVER operate the machine on any surface other than firm and level ground. NEVER operate the machine from a position on truckbeds, trailers, floating vessels or scaffolding without written approval from the manufacturer.

NEVER operate lift on slopes exceeding 12.5º. NEVER allow electrode contact with any part of the

machine while welding from the platform. NEVER use the machine as a ground for welding.

NEVER operate without the outriggers fully extended or when the machine is not level.

NEVER position an elevated platform against another object to steady the platform

NEVER operate boom lift in conditions where wind speeds exceed 12.5 m/sec (45 km/h or 28 mph). Steady or gusty winds that exceed 12.5 m/sec (45 km/h) may affect stability and boom operation.

NEVER allow ropes, electric cords, hoses or other equipment to become entangled in the machine while raising or lowering platform.

NEVER exceed the load limits set by the manufacturer. Use only the Material Lifting Hook, supplied as an option and manufactured by Bil-Jax, when lifting materials. Safely stow all tools and equipment.

NEVER exceed load ratings by transferring loads to the lift at elevated heights.

NEVER use the platform to lift a load that exceeds the platform dimensions. NEVER lift a load in such a way that the center of gravity is higher than the top guardrail of the platform.

NEVER modify the platform or carry materials that would increase the surface area of the platform. Increasing the area exposed to the wind may decrease machine stability. NEVER attach overhanging loads when raising or lowering the platform.

NEVER use the boom or platform to push or pull or to lift any part of the trailer.

NEVER use the boom or platform to place a load against any structure, materials or equipment.

NEVER climb on the boom. Refer to Section 3 for the instructions for manual operation.

NEVER leave an elevated platform unattended. NEVER leave the keys in the boom lift while

unattended or not in use.

NEVER override or bypass the manufacturer’s safety devices.

NEVER attach a safety harness to an adjacent structure, pole, or to nearby equipment while working from the boom platform.

NEVER raise the outriggers or move the trailer with materials or personnel on board, or while boom is raised or extended.

NEVER sit, stand or climb on cage bars. ALWAYS keep both feet firmly on the work cage floor when working from an elevated platform.

NEVER attempt to increase the working height with boxes, ladders, stools or any other materials.

NEVER operate this equipment when exposed to high winds, thunderstorms, ice or any weather conditions that would compromise operator safety.

MAINTENANCE SAFETY

1 – SAFETY

Ensure the following general safety precautions are followed while performing maintenance on the telescoping boom lift:

General Maintenance

ALWAYS perform maintenance proc

edures according to manufacturer’s guidelines. NEVER disregard or bypass proper maintenance procedures.

ALWAYS inspect hydraulic system to ensure that all lines, connectors and fittings are properly fastened and in good condition.

ALWAYS turn the key switch OFF and remove key before performing maintenance.

Whenever possible, ALWAYS perform maintenance with the boom and platform in a fully lowered, stowed position. ALWAYS secure the boom before performing maintenance on hydraulic cylinders.

ALWAYS disconnect power to the hydraulic pump drive motor before making electrical checks to the hydraulic valves.

ALWAYS keep all mechanical parts properly adjusted and lubricated according to maintenance schedule and manufacturer’s specifications.

ALWAYS perform a function check of operating controls before each use and after repairs have been made.

ALWAYS locate and protect against possible pinch points before performing any maintenance or repairs.

ALWAYS use only manufacturer-approved parts to repair or maintain equipment. If any portion of this equipment is rebuilt or repaired, retesting is required in accordance with factory instructions.

ALWAYS maintain a safe distance while testing the hydraulic components. ALWAYS relieve hydraulic pressure before loosening or removing hydraulic components. NEVER test or operate the hydraulic components while personnel are near the equipment.

NEVER exceed the manufacturer’s recommended relief valve settings.

NEVER touch or allow metal tools to contact any components that are sensitive to static discharge. ALWAYS use static discharge prevention mats and grounding devices when handling electronic components.

NEVER adjust, repair, replace or bypass any hydraulic or electrical control or safety device. These include, but are not limited to, hydraulic load control and flow control valves, solenoid valves and limit switches. ALWAYS consult an authorized Bil-Jax technician if repairs are necessary.

NEVER modify, alter or change the equipment without first consulting an authorized Bil-Jax technician, and NEVER in any way that would affect its original design or operation.

Battery Maintenance

re the following general safety precautions are

Ensu followed when performing battery maintenance on the telescoping boom lift.

ALWAYS check the battery fluid level daily. ALWAYS wear safety glasses when working with or

near batteries. ALWAYS avoid contact with battery acid. Battery

acid causes serious burns and should be kept away from skin or eyes. If contact occurs, flush with water and consult a physician immediately.

ALWAYS disconnect ground cable first when removing battery.

ALWAYS connect ground cable last when installing battery.

ALWAYS charge batteries in open, well-ventilated areas.

ALWAYS replace batteries using only parts recommended by manufacturer. ALWAYS use only batteries with sealed caps over cells.

NEVER smoke while servicing batteries.

NEVER allow water or foreign particles into the DC electric motor housing. Inclusion of water or foreign particles may cause serious damage to the motor. If the motor becomes wet, consult an authorized BilJax service technician for proper dry i ng instructions.

NEVER add unauthorized fluids to the hydraulic system or battery. NEVER mix hydraulic oils. Consult manufacturer specifications. Refer to Section 4 for hydraulic system maintenance procedures.

NEVER charge batteries near flammable materials. NEVER allow batteries to overcharge and boil. NEVER short across battery posts to check for

current. NEVER break a live circuit at the battery. NEVER disconnect battery from charger while

charger is connected to a live power source. NEVER jumpstart other vehicles using the boom lift

batteries.

BIL-JAX 2622T

DAMAGED EQUIPMENT POLICY

Safety Statement

At Bil-Jax, we are dedicated to the safety of all users of our products. All Bil-Jax lifts are designed, manufactured and tested to comply with current applicable ANSI and/or CE codes and regulations.

Damage Policy

There may be occasions when a Bil-Jax lift is involved in an incident that results in structural damage to the lift. Such damage can seriously compromise the ability of the lift to perform in a safe manner. Therefore, whenever a Bil-Jax lift is damaged structurally or when there is suspected internal damage to the structure, Bil-Jax may require that the lift be returned to our facility for reconditioning. For any questions concerning structural damage or the Damaged Equipment Policy, please contact an authorized Bil-Jax representative or your regional Bil-Jax dealer

Damage Repair Notice

There may be occasions when a Bil-Jax lift is involved in an accident resulting in damage to non-structural components. When such damage occurs and repairs are made by the owner or area distributor, please notify Bil-Jax of these nonmaintenance repairs and request a repair form to be filled out and returned to BilJax.

2 SPECIFICATIONS

Bil-Jax, Inc. is dedicated to the continuous improvement of this and all Bil-Jax products. Therefore, equipment information is subject to change without notice.

The following information is based on ideal working conditions. Machine performance may vary based on work environment and on machine options.

Direct any questions or concerns regarding equipment specifications to your regional Bil-Jax representative or to the Bil-Jax Service Department.

BIL-JAX 2622T

RANGE OF MOTION

40 ft

12.2m

30 ft

9.1m

20 ft

6.1m

10 ft

15 ft

4.6m

5ft

1.5m

5ft

1.5m

15 ft

4.6m

25 ft

7.6m

Figure 2-1. Range of Motion

2 – INTRODUCTION

SPECIFICATIONS SERIAL NUMBER_____________________________

Working Height

Maximum Platform Height

Maximum Horizontal Outreach

From Centerline

From Outrigger Footpad Edge

Rated Platform Capacity

Maximum Occupants Tongue Weight

Total Weight

Turntable Rotation Leveling Capability Platform Dimensions

Height

Length

Width

Stowed Dimensions

Height

Length

Width

Outrigger Footprint

Length

Width

Footpad Diameter

Parking Brake Towing Brake

31 ft 7 in

10.1 m

25 ft 7 in

8.1 m

19 ft 11 in

6.1 m

14 ft

4.3 m

440 lbs

200 kg

120 lbs

54 kg

2,560 lbs

1,160 kg

700º Non-Continuous

12.5º

3 ft 7 in

1.1 m

2 ft 6 in

0.8 m

4 ft

1.2 m

6 ft 6 in

2.0 m

16 ft 4 in

5.0 m

5 ft 3 in

1.7 m

11 ft

3.7 m

11 ft

3.4 m

10 in

0.3 m

Standard, Mechanical

Mechanical Surge

Rated Towing Speed

Tire Size Control System Battery Charger

Standard CE

Hydraulic Pressure

Reservoir Capacity

Hydraulic System Capacity

Hydraulic Oil (Standard) Platform Rotation/Type (Optional) Maximum Decibel Level

Standard DC Mode – Ground Standard DC Mode – Platform DC/Gas Option – Ground DC/Gas Option - Platform

Function Speeds

Boom Raise (Fast) Boom Raise (Slow) Boom Lower (Fast) Boom Lower (Slow) Boom Extend (Fast) Boom Extend (Slow) Boom Retract (Fast) Boom Retract (Slow) Turntable Rotation (Fast) Turntable Rotation (Slow) Platform Level (Fast) Platform Level (Slow) Outrigger Extend Outrigger Retract

Localized Pressure per Outrigger

Operation Temperature Range

65 mph

105 km/h

ST 225/75 R15D

24V DC

4 x 6V 245 amp-hr

110/120 Volt

220 Volt

3,000 psi

206 bar

3.1 Gallons

11.7 L

5.1 Gallons

19.3 L

Dexron III/Mercon ATF

90º/Manual

60 dB 55 dB 70 dB 65 dB

30-35 Seconds 50-55 Seconds 45-50 Seconds

120-150 Seconds

30-35 Seconds 75-90 Seconds 40-45 Seconds

100-110 Seconds

82-90 Seconds

240-270 Seconds

8-10 Seconds 12-16 Seconds 15-20 Seconds 25-30 Seconds

25 psi

1.8 kg/cm

176.5 kPa

-20º to 110º Fahrenheit

-29º to 43º Celsius

BIL-JAX 2622T

WARRANTY

Bil-Jax, Inc. warrants this product for one year, beginning on the date of delivery, to be free from defects of material and workmanship provided the unit is operated and maintained in compliance with the guidelines established in the Operations and Maintenance Manuals. Major structural components, including trailer tongue and boom weldments, are warranted for five years against defects due to material or workmanship. Bil-Jax will, at its option, repair or replace any unit or component part that fails to function properly during normal use.

The warranty does not apply if the lift and/or its components have been altered, changed, or repaired without the consent of Bil-Jax. Repairs, damage, or defects resulting from the following are not covered under the terms of the warranty: negligence, misuse, accidental damage, inadequate or improper maintenance, acts of nature, damage caused by chemicals or abrasive materials, and normal wear and tear, such as rust or corrosion. Components not covered under this warranty include tires, filters, covers, and routine maintenance items. Components not manufactured by Bil-Jax are covered by their respective manufacturer’s warranties. A list of those components and their warranties is available upon written request to Bil-Jax.

Bil-Jax shall not in any event be liable for the cost of any special, indirect, or consequential damages to any person, product, or thing. Bil-Jax’s maximum liability under this warranty is limited to the amount paid to Bil-Jax for the product. This warranty is in lieu of all other warranties expressed or implied. Bil-Jax neither assumes nor authorizes any or other entity to assume on its behalf any other liability in connection with the sale, rental, or use of this product.

Warranty Claims Process In order to qualify for warranty coverage, the following conditions must be met:

1. Return of completed “Warranty Registration” form to Bil-Jax within 15 days of receipt of product;

2. Notification to Bil-Jax within 72 hours of any claimed defect, injury, or damage resulting from the claimed defect; and

3. Warranty is limited to parts that are determined to be defective. This does not include parts worn out due to normal use.

4. Bil-Jax authorized dealers or distributors are responsible for filing claims under warranty. Listed below is the warranty claims procedure.

5. Contact Bil-Jax Service Department at 800-537-0540 to report the claim and verify warranty coverage. Machine serial number must be provided.

6. Identify the components to be claimed under warranty along with description of failure. A Returned Merchandise Authorization (RMA) number will be issued by BilJax.

7. Replacement parts will then be sent by Bil-Jax to the dealer or distributor. All parts are invoiced at dealer/distributor list price. Credits will be issued when defective parts are returned to Bil-Jax and found to be defective under warranty.

8. After completing repairs, submit warranty claim form and defective parts to Bil-Jax. Warranty claim form and parts must be received within 30 days of claim in order to be eligible for credit. RMA number must be referenced on warranty claim form. Returned parts are to be sent prepaid and will be credited when part is received and verified. Warranty labor rate will be paid at current rate set by Bil-Jax. The amount of labor hours reimbursed will be determined by Bil-Jax and will be limited to 4 hours unless approved by Bil-Jax.

Failure to follow the warranty claims process may result in delay in processing claim or denial of the claim. Bil-Jax reserves the right to limit or adjust warranty claims with regard to parts, labor and travel time. Components purchased from suppliers other than Bil-Jax are not covered under the terms of this warranty.

3 OPERATION

The Bil-Jax Telescoping Boom Lift is equipped with multiple operator control stations. Equipment power and outrigger controls are located at ground level. Boom lift and rotation controls are located at ground level and on the work platform.

Before attempting boom lift operation, Operators should:

 Attend a training program as required by government regulations.  Obtain, read and obey all safety precautions as indicated by

manufacturer’s recommendations and all federal, state and local regulations.

 Become familiar with the location and use of all controls.  Verify that there are no overhead obstructions or live power sources

in the work area that could interfere with the safe operation of the boom lift.

 Position the boom lift on a firm and level surface.  Conduct a Pre-Operation inspection by performing all recommended

Daily Service Checks. Refer to Section 4.

 Unhitch equipment trailer from the tow vehicle.

BIL-JAX 2622T

GROUND CONTROL STATION

The ground control station is used to operate outriggers and control boom motion. To access the ground control station, open the control panel access cover found on the turntable. Turn the key switch to the ground controls setting.

1. Key Switch 1a. Platform Controls Position 1b. Ground Controls Position

2. Battery Condition Indicator

3. Engine Start (DC/Gas Option Only)

4. Engine Choke (DC Gas Option Only)

5. Display Panel

6. Emergency Stop

7. Boom Extend

8. Boom Retract

9. Boom Raise

10. Boom Down

Figure 3-1. Ground Control Panel

11. Boom Rotation – Clockwise

12. Boom Rotation – Counterclockwise

13. Platform Tilt – Up

14. Platform Tilt – Down

15. Speed Buttons

16. Outrigger Extend

17. Outrigger Retract

18. Auto Level

19. Outrigger Buttons

20. Outrigger Status Indicator LED

21. Power Indicator LED

3 – OPERATION

The ground control station includes the following controls and Indicators. Refer to Figure 3-1 for control locations.

1. Key Switch

ng the key switch to the

Turni

PLATFORM (1A) icon

selects operation from the platform. Turning the key switch to the

GROUND (1B) icon selects operation

from the ground control panel. The center (power off) position interrupts all electric and hydraulic power operations except emergency lowering. Removing the key protects against operation by unauthorized persons. The key may be removed with the key switch in any selected position.

2. Battery Condition Indicator

Indicato

r LEDs light up to indicate the level of charge remaining in the batteries. A lighted green LED indicates an adequate charge level. Lighted yellow LEDs indicate the need for charging soon. A lighted red LED warns that the battery charge level is low; boom operations should be halted until the batteries are recharged.

3-4. Engine Start and Choke (Hybrid Model only)

Start a cold e

ngine by pressing the Engine

button while pressing and holding the

START (3)

CHOKE (4)

button. To start/restart a warm engine, press the

START button only.

5. Display Panel

The DISPLAY PANEL is a lighted text window that displays the present operating status or an existing error condition when the key switch is on.

6. Emergency Stop Button

Whe

n pushed in, the emergency

STOP button

disconnects electrical power to the ground and platform control stations. The emergency

STOP

pushbutton should only be pressed to immediately stop all boom motion. To resume control, pull out the emergency

STOP button.

7-8. Boom Extend/Retract Buttons

Pressing and holding a desired

BOOM EXTEND (7) button at the same time extends

SPEED button and the

the telescopic boom. Pressing and holding a desired

SPEED button and the BOOM RETRACT (8) button at the

same time retracts the boom. Boom motion continues until the buttons are released or until the boom reaches a hard stop or a safe travel limit.

9-10. Boom Raise/Down Buttons

Pressing and holding a desired

BOOM RAISE (9) button at the same time will raise the

boom. Pressing a desired

BOOM DOWN (10) button at the same time will lower

SPEED button and the

the boom. Boom motion continues until the buttons are released or until the boom reaches a hard stop or a safe travel limit.

11-12. Boom Rotation Buttons

Pressing and holding a desired

BOOM ROTATION CLOCKWISE (11) or COUNTERCLOCK- WISE (12) button at the same time enables the boom

SPEED button and the

to rotate in the direction selected. The boom will rotate through 700 degrees until the buttons are released or the stop is reached.

13-14. Platform Tilt Buttons

Press and hold any

PLATFORM TILT (13 and 14) button at the same time

SPEED button and the desired

to level the work platform (levels the platform only, not the boom lift).

15. Speed Buttons

The

SPEED buttons along the lower right side of the

control panel must be pressed and held while selecting a boom function. Four speeds are available to control the positioning of the boom lift.

16-20. Outrigger Controls

For automatic outrigger extension/retraction: Select

EXTEND (16) or RETRACT (17) outrigger button and

AUTO LEVEL (18) button at the same time. To

the manually extend or retract the outriggers: Select

EXTEND or RETRACT outrigger button and one of the OUTRIGGER buttons (19) at the same time. The

outrigger indicator LEDs light up when the outriggers are properly deployed and the boom weight is on the outriggers. Each of the outer outrigger LEDs indicates load is on the outrigger footpad. Each of the inner outrigger LEDs, when flashing, indicate that side is low and needs to be further raised for leveling. The Auto Level LED lights up and a buzzer sounds when the boom is level.

BIL-JAX 2622T

PLATFORM CONTROL STATION

The platform control station is used to control boom motion. To access the platform control station, turn the key switch at the ground control station to the platform controls setting and enter the work cage.

1. Engine Start (DC/Gas Model Only)

2. Engine Choke (DC/Gas Model Only)

3. Horn Button

4. Battery Condition Indicator

5. Emergency Stop Button

6. Speed Buttons

7. Boom Rotation – Clockwise

Figure 3-2. Ground Control Panel

8. Boom Rotation – Counterclockwise

9. Boom Raise

10. Boom Down

11. Boom Extend

12. Boom Lower

13. Platform Tilt – Up

14. Platform Tilt – Down

3 – OPERATION

The platform control station includes the following controls and Indicators. Refer to Figure 3-2 for control locations.

1-2. Engine Start and Choke (DC/Gas Model only)

Start a cold e

ngine by pressing the

then press the engine

START button (2) to start the

CHOKE button (1),

engine. To start/restart a warm engine, press the

START button only.

3. Horn Button

Pressin

HORN button to warn personnel in the area of a

g the button will sound the horn. Use the

falling object hazard, impending boom motions, or the need for assistance.

4. Battery Condition Indicator

Indicato

r LEDs light up to indicate the level of charge remaining in the batteries. A lighted green LED indicates a good charge level. Lighted yellow LEDs indicate the need for charging soon. A lighted red LED warns that the battery charge level is low; boom operations should be halted until the batteries are recharged.

5. Emergency Stop Button

n pushed in, the emergency

Whe

STOP button

disconnects electrical power to the ground and platform control stations. The emergency

STOP

pushbutton should only be pressed to immediately stop all boom motion. To resume control, pull out the emergency

STOP button.

6. Speed Buttons

The

SPEED buttons along the lower right side of the

control panel must be pressed and held while selecting boom functions. Four speeds are available to control the positioning of the boom lift.

7-8. Boom Rotation Buttons

Pressing and holding a desired

BOOM ROTATION CLOCKWISE (7) or COUNTERCLOCK- WISE (8) button at the same time enables the boom

SPEED button and the

to rotate in the direction selected. The boom will rotate through 700 degrees until the buttons are released or the stop is reached.

9-10. Boom Raise/Down Buttons

Pressing and holding a desired

BOOM RAISE (9) button at the same time will raise the

boom. Pressing a desired

BOOM DOWN (10) button at the same time will lower

SPEED button and the

the boom. Boom motion continues until the buttons are released or until each boom reaches a hard stop or a safe travel limit.

11-12. Boom Extend/Retract Buttons

Pressing and holding a desired

BOOM EXTEND (11) button at the same time extends

SPEED button and the

the telescopic boom. Pressing and holding a desired

SPEED button and the BOOM RETRACT (12) button at

the same time retracts the boom. Boom motion continues until the buttons are released or until the boom reaches a hard stop or a safe travel limit.

13-14. Platform Tilt Buttons

Press and hold any

PLATFORM TILT button at the same time to level the

SPEED button and the desired

work platform (levels the platform only, not the boom lift).

Outlet

The outlet is provided for running electrical power tools from the work platform. A connecting power cord must be plugged into a suitable power source. The power plug is located on the trailer frame, in front of the accessory equipment stowage plate. The outlet is rated for a 15-ampere load. Do not overload the accessory power circuit.

BIL-JAX 2622T

NORMAL OPERATING PROCEDURE

Perform the following procedures to operate the BilJax Telescoping Boom Lift.

 Read and obey all safety precautions and

operating instructions, as well as all applicable government regulations.

 Conduct a Pre-Operation Inspection by

performing all recommended Daily Service Checks. Refer to Section 4.

 Position the boom lift at the work area. Make

sure the boom lift is on a firm and level surface and there are no potential hazards such as overhead obstructions or electrically charged conductors. Do not operate the boom lift if such hazards exist.

 Apply the boom lift parking brake or chock the

wheels.

 Lower the tongue jack and unhitch the boom lift

from the tow vehicle.

WARNING

Failing to unhitch the boom lift before operation may lead to damage to equipment or tow vehicle and makes the boom lift unstable, which can cause personnel injury or death.

 Turn the key switch on the ground control station

to operate ground controls. If power does not come on, make sure both emergency buttons (ground and platform) are pulled out and the main power disconnect is plugged in.

 The control microprocessor will perform self-

diagnostics to test the operating system. After several seconds, the DISPLAY PANEL window will read:

BIL – JAX

A STEP ABOVE

 Verify that the control status indicator LED is lit.

If the control status indicator LED is not lit or is flashing, the outrigger buttons will not work. A flashing control status LED indicates that one or more of the booms is raised and needs to be stowed. Refer to Figure 3-1 and Figure 3-3.

STOP

and the two appropriate

OUTRIGGER buttons at

the same time.

Figure 3-3. Outrigger Controls

NOTE: The safety interlock system prevents all

boom operations if the boom is not level or if one or more outriggers are not supporting the vehicle load.

NOTE: The Range of Motion Diagrams at the

ground and platform control stations display the range of platform motion (safe operating zone) facing away from the trailer tongue. Verify that the operating zone is clear of obstructions through 700º of turntable rotation.

 Verify that the auto level indicator LED is lit. If

the auto level indicator is not lit, the boom may not be level.

 Pull the latch release on the boom travel latch,

raise the latch handle and swing the latch U-bolt down. Refer to figure 3-4.

 Extend the outriggers manually or using the

AUTO LEVEL button. When the boom is leveled

properly, a buzzer will sound and two LEDs at

OUTRIGGER button and the LED at the AUTO

each

button will be lit.

LEVEL

Auto Level: Press and hold the

AUTO LEVEL

buttons at the same time.

EXTEND and

Manual Level: Extend the two outriggers closest to the trailer coupler first. Lower each pair of outriggers by pressing the

EXTEND button

Figure 3-4. Boom Travel Latch

3 – OPERATION

 Open the platform travel latch (Figure 3-5) and

pivot the platform upright. Platform locking pins will engage in the pivot locking holes when the platform is in a full upright position. Verify that the platform is locked into place.

Figure 3-5. Platform Travel Latch

 Verify that the platform is properly attached to

the mounting bracket on the boom end. The Retaining Pin should be fully inserted through the platform and the mounting bracket on the boom end.

WARNING

Failure to verify proper attachment of the platform to the boom end could cause the platform to separate from the boom, resulting in serious injury or death to the operator.

 Should the platform become tilted out of the

normal vertical axis, press and hold the desired

SPEED button and one of the PLATFORM TILT

buttons at the same time to adjust.

 Monitor the Battery Condition Indicator during

operation and charge the batteries as necessary.

 Always fully retract, rotate and lower the boom

to the stowed position before exiting the platform.

 When all boom lift operations are complete, fully

retract the telescoping boom extension. Center boom over the boom rest and fully lower boom until seated in the stowed position for transport. Safety switches prevent outrigger retraction until boom is completely lowered and stowed for transport.

 Unfasten the safety harness and exit platform.  Disengage platform locking pins and return

platform to a stowed position. Engage the boom and platform travel latches.

 Turn the key switch to the ground controls

position.

 Press and hold the outrigger RETRACT button

and the

AUTO LEVEL button until all outriggers are

fully retracted to their upright positions. Inspect the area beneath lift and trailer for obstructions before retracting outriggers.

 Turn the key switch to the OFF position and

remove key.

 Use the ground control panel to operate the

boom lift functions. Raise, lower, extend and rotate the boom by pressing and holding the desired

SPEED and function buttons at the same

time. Become familiar with the location and function of all controls. Learn to smoothly start and stop all boom motions.

 Fully lower the boom onto the boom rest to

position the platform for boarding. Turn the key switch to the platform control position.

 Raise the safety bar and enter the work

platform. Put on the safety harness and attach the lanyard to the Fall Protection Attachment Point on the side of the platform support beam.

 Use the platform control panel to operate the

boom lift functions. Raise, lower, extend and rotate the boom by pressing the desired

SPEED

and function buttons at the same time. Become familiar with the location and function of all controls. Learn to smoothly start and stop all boom motions.

BIL-JAX 2622T

MANUAL BOOM OPERATION

Manual retraction, rotation and lowering functions allow the Telescoping Boom Lift to be moved and lowered during hydraulic power interruption or failure. In each instance, refer to Figure 3-6.

The following procedures for manual retraction, rotation and lowering require a person on the ground to operate the manual controls and hand pump.

The hydraulic hand pump is located in the pump compartment. In case of a power failure, the hand pump and selected hydraulic valve settings can be used to manually retract the Telescoping boom or rotate the boom turntable.

To begin manual retraction or rotation, turn Proportional Valve counterclockwise until it stops, and insert pump handle into the pump handle fitting.

Manual Retraction

Pushing and holding the Retract button while simultaneously actuating Hand Pump will retract the extension boom section.

Manual Rotation

To rotate the turntable counterclockwise: Push and hold the Rotation button and simultaneously actuate Hand Pump.

To rotate the turntable clockwise: Pull the Rotation button out and simultaneously actuate Hand Pump.

NOTE: Return proportional valve to its original

position before lowering the lift or resuming normal operation.

1. Hand Pump

2. Proportional Valve

3. Rotation Button

4. Retract Button

Figure 3-6. Hand Pump and Controls for Manual Lift Operation

3 – OPERATION

Manual Lowering Each Manual Lowering Valve is equipped with a

plunger, found at the base of the lift cylinder (Figure 3-7). Use the plunger to lower the platform in case of a complete electrical power failure, a load shift, or other emergency. To lower the work platform, pull the valve plunger forward. Continue pulling the plunger to completely lower the boom.

Figure 3-7. Manual Lowering Valve

BIL-JAX 2622T

BATTERY RECHARGE

Recharge boom lift batteries after each 8-hour work shift or as needed. When boom lift is not in use, batteries should be recharged at least once per week. Under normal circumstances, battery recharge should take approximately 10-12 hours. However, a full recharge may take up to 24 hours, if the battery charge is extremely low.

WARNING

Recharge batteries in a well-ventilated area only. Do no charge batteries near fire, spark or other potential ignition sources. Batteries may emit highly explosive hydrogen gas while charging. Failure to properly ventilate the charge gases may result in serious injury or death. Always charge boom lift batteries away from flammable materials.

To recharge the boom lift batteries:

 Move the boom lift to a well-ventilated area with

direct access to 120v (CE: 220v) electrical outlet. Keep the boom lift and batteries away from open flame or other potential ignition sources.

 Attach a 12 AWG multi-strand, grounded

extension cord with a maximum length of 15 meters to the receptacle located on the cargo plate in front of the turntable.

NOTE: Using an underrated or long power cord

will reduce the output of the battery charger and may extend charge time.

 Plug the extension cord into outlet. Verify that

the green CHARGING indicator LED is lit on the battery charger faceplate (Figure 3-8).

Linear Battery Charger

CHARGING

CHARGE CURRENT

PUSH

FOR

BATTERYVOLTAGE

FUSE 15A SLO BLO

Figure 3-8. Battery Charger Faceplate

80% CHARGED

CHECK BATTERY

 The CHARGING indicator LED remains lit

continuously during the first stage of the charge cycle. The bulk mode CHARGE CURRENT will be displayed on the battery charger faceplate.

 Press and hold the BATTERY VOLTAGE button to

display the detected battery voltage.

 If a battery fault is detected, the appropriate fault

code will appear on the CHARGE CURRENT display. The red CHECK BATTERY indicator LED will become lit. See Table 3-1 for battery charger fault codes.

WARNING

Do not disconnect any output leads or connectors between the batteries and the charger when the charger is on. To stop a charge in progress, always unplug the extension cord from the AC power source.

 When the battery charge reaches 80% of

capacity, the yellow 80% CHARGED indicator LED will become lit and the green CHARGING indicator LED will begin to flash.

 When the batteries have reached a full charge,

the green and yellow indicator LEDs will turn themselves off. CC (Charge Complete) will appear on the CHARGE CURRENT display. After two hours, this display will fade and the CHARGE CURRENT will read 00.

 Unplug the extension cord from the outlet and

the charger receptacle on the boom lift. Store the extension cord for next use.

CAUTION

Always unplug the battery charger power cord before moving the boom lift. Failure to disconnect power cord will cause damage to the equipment.

Table 3-1. Charger Fault Codes

Code Description Limits Cause

F1 Over Voltage

F2 Over Current >60 amperes Battery Fault F3 Bulk Mode Timeout 14 hrs Max. Battery Fault

F5 FCT Mode Timeout 2.5 hrs Max. Battery Fault F6 Self-Test Error Charger Fault

ARD Mode

Timeout

>112% charge

voltage

6 hrs Max. Battery Fault

Loose battery or

charger

connection

BOOM LIFT TRANSPORT

CAUTION

3 – OPERATION

The boom lift trailer includes a single axle, two-inch ball hitch, hydraulic surge brakes, mechanical parking brake, safety chains, brake lights and side marker lights. Proper boom transport requires the proper attachment and inspection of these components before towing. Refer to Figure 3-9.

1. Trailer Hitch

2. Trailer Parking Brake

3. Release Lever

4. Safety Chains

5. Trailer-to-Vehicle Power Plug

Figure 3-9. Trailer Hitching

Use the following procedure to hitch and tow the boom lift.

 Back the tow vehicle to the trailer. Verify that the

ball and hitch are aligned and that the trailer hitch has proper clearance above the ball. Use the tongue jack as needed.

CAUTION

Obtain, read and obey all recommendations set forth by the tow vehicle manufacturer before attempting to transport equipment. Verify that equipment weight does not exceed the vehicle’s towing capacity. Exceeding the tow vehicle’s rated capacity may result in damage to tow vehicle or boom lift.

 On the tongue jack, pull the pivot locking pin and

swivel jack 90 degrees to the travel position. Reengage pivot locking pin.

 Attach the safety chains to the tow vehicle.

Verify that the chains cross under the trailer tongue. If necessary, cross the chains first over then under the tow bar to prevent dragging.

Failure to attach safety chains properly before towing will allow trailer tongue to drop in case of ball hitch failure, resulting in damage to trailer and equipment.

 If equipped, connect the breakaway cable to the

tow vehicle. Leave adequate slack to prevent brakes from dragging.

 Connect the trailer lights to the tow vehicle

power plug.

Verify the following before towing the lift. Make adjustments as necessary.

 The trailer jack and outriggers are in their travel

positions.

 Boom travel latches are engaged, securing the

booms in their fully stowed positions.

 All on-board equipment is secured.  The key switch is in the OFF position. Remove

the key.

 The parking brake is disengaged.  The trailer tires are adequately and evenly

inflated.

Periodically check the wheel nut torque according to manufacturer’s recommendations. Frequent torque checks are required when a wheel is recently installed.

Prior to towing, while the trailer wheels are elevated for boom lift operatio

n, inspect for loose wheels and for wheel lug wear. If a loose wheel mounting is suspected, remove and inspect wheel lugs for damage. NEVER tow a boom lift with worn or damaged wheel components.

 Lift release lever and lower the hitch onto the

 Use the tongue jack to verify secure coupling. If

 Release the trailer parking brake.

ball using the tongue jack. Push down the release lever to secure the ball.

using the jack will raise the bumper of the tow vehicle 2-3 inches, the ball hitch coupling is secure.

BIL-JAX 2622T

BOOM LIFT TRANSPORT LIFTING INSTRUCTIONS TRANSPORT INSTRUCTIONS

Refer to Figure 3-10.

 Completely lower and retract boom.  Secure boom and platform travel latches.  Remove all loose materials from machine.  Retract all outriggers to fully stowed position.  Attach rigging only to the designated forklift

pockets (A).

 Adjust rigging to keep the machine level and to

minimize the risk of damage to machine.

 When using a forklift, use only the designated

forklift pockets. Follow all forklift operating instructions as indicated by the forklift manufacturer.

 Only trained and authorized personnel should

attempt to lift the boom using a crane or forklift.

Refer to Figure 3-10.

 Verify that truck or trailer is parked on a firm and

level surface.

 Completely lower and retract boom.  Secure boom and platform travel latches.  Retract all outriggers to fully stowed position.  Load boom onto truck or trailer.  Chock the wheels (B) and apply parking brake.  Place a wooden block under the tongue, near

the trailer hitch (C).

 Lower jack until trailer tongue rests on the

wooden block. Swing up and lock the jack (D) so that the weight of the tongue now rests on the wooden block.

 Secure the boom lift to the trailer bed using

straps or chains. Use only the two attachment points beneath the machine, adjacent to the outriggers (E).

 Adjust as necessary to prevent damage to

rigging or machine.

Figure 3-10. Lift and Transport Instruction

4 OPERATOR SERVICE

Performing the appropriate maintenance procedures will extend the life of the boom lift and will help ensure the safety of personnel operating the equipment.

Repair, replacement or adjustment of any hydraulic or electrical control device should be performed only by fully trained and authorized personnel. These include, but are not limited to, hydraulic load valves, hydraulic flow control valves, solenoid valves and limit switches. These are safety related controls. Improper adjustment or tampering with these devices may impair boom lift function and result in safety or damage hazards.

Persons performing maintenance or repairs on the machine should be trained in accordance with the manufacturer’s recommendations. Contact your regional Bil-Jax representative if additional information is needed.

Critical or suspect areas identified during any scheduled inspection of the machine shall be examined by qualified personnel in accordance with applicable government regulations.

Never operate the machine if a defect or malfunction is identified or suspected. All defects and malfunctions must be repaired, and all maintenance performed, before returning a machine to service.

This manual contains a list of recommended maintenance procedures to be performed daily, weekly and monthly. Refer to the appropriate Summit Series Parts and Service Manual for a list of annual service checks.

It is the practice of Bil-Jax, Inc. to issue Service and/or Safety Bulletins, which may include updates to the information contained in this manual. In such instances, procedures co nt ained in Bil-Jax Service Bulletins or Safety Bulletins supersede the information contained in manuals.

Always follow maintenance schedule, regardless of use

BIL-JAX 2622T

DAILY SERVICE CHECKS

The following Maintenance Procedures should be performed daily or before each operation.

Verify that all decals are correctly applied and in plain view.

 Refer to Section 5 for decal locations.

Verify that all controls and indicators at ground and platform control stations operate properly.

 Lower outriggers to level the boom lift.  Raise and extend all booms.  Press emergency STOP button.  Verify that booms remain elevated and do not drift.  Pull out STOP button and lower the booms.  If either control station is unresponsive, refer to Table

4-1 for troubleshooting procedures.

 If display panel displays an error code, refer to Table

4-2 for error code definitions.

Verify operation of running and brake lights. Verify correct tire inflation.

 In cold climates, inflate tires to 55 psi.

Inspect tires for damage or loose or missing lug nuts.

 Repair or replace as necessary.

Inspect structural components and platform for obvious damage or debris.

 Repair or replace as necessary.

Inspect machine for missing, loose or damaged fasteners, including pins and bolts.

Verify that boom down limit switches operate correctly.

 Down limit switches are actuated when the boom is in

a fully lowered, stowed position. Limit switches must be operational to raise or lower outriggers.

 If outrigger controls are unresponsive when boom is

fully lowered and stowed, inspect down limit switches for loose mounting or visible damage.

 Repair or replace as needed.

Verify that outrigger safety interlocks operate correctly.

 Begin with the outriggers fully extended and the boom

 Verify that boom functions are unresponsive when

 Repeat this procedure for each outrigger.  Raise all outriggers until the footpads are not in

 Lower one outrigger until the footpad makes contact

 If the LED is lit before the footpad makes contact with

 Repeat this procedure for each outrigger.  Repair or replace as needed. Refer to Figure 4-1.

lift level. Raise one outrigger until the footpad is not in contact with the ground.

one outrigger is raised.

contact with the ground. Verify that all outrigger status LEDs on the ground control panel are unlit.

with the ground and the outrigger begins lifting the trailer.

the ground or if the LED remains unlit after the weight is transferred to the outrigger, the position switch or wiring is faulty.

Figure 4-1. Outrigger Position Switches

4 – OPERATOR SERVICE

Inspect hydraulic system and fluid levels.

 Check all hydraulic hoses and fittings for leaks and

damage. Tighten or replace as necessary to prevent hydraulic oil or pressure loss.

 The hydraulic oil level should be checked with the

booms down, all outriggers raised and the trailer wheels on a level surface.

 Hydraulic oil level should be visible in, but not above,

the sight gauge.

 If the hydraulic oil level is not visible to at least half

way up the sight gauge (Figure 4-2), add clean hydraulic fluid as necessary while all booms and outriggers are fully retracted and stowed. Pour slowly to avoid creating air pockets in the reservoir. Do not fill above sight gauge. Overfilling the hydraulic reservoir may cause damage to hydraulic lines and may result in equipment malfunction.

CAUTION

Do not mix hydraulic oils. Do not add any fluid to the hydraulic system that is not expressly recommended by the manufacturer. Adding unauthorized fluids to the hydraulic system may cause damage to equipment

 The hydraulic reservoir is originally filled with Dexron

III/Mercon ATF with a viscosity rating of 175.

 Manufacturer recommends a higher viscosity

hydraulic oil when operating equipment routinely i n extreme climates.

1. Filter Element

2. Fill Port

3. Sight Gauge

Figure 4-2. Hydraulic Reservoir

BIL-JAX 2622T

WEEKLY SERVICE CHECKS

Perform the following service checks at least once each week in addition to all recommended Daily Service Checks:

Check Battery electrolyte level.

 If battery charge is low, add enough water to bring the

electrolyte level to the top of the plates.

 If batteries are fully charged, raise electrolyte level to

full mark in each cell.

Inspect all electrical wiring.

 Check for cuts, loose terminals, broken wires, chaffing

and corrosion.

 Repair all damage, remove corrosion and seal

exposed connections.

Inspect transport hitch components for damage. Inspect boom lift for missing, loose or damaged

hardware.

 Repair or replace as necessary.

Inspect all hydraulic system components including pump and motor and cylinders for damage, leaks, loss of pressure or speed, and unusual noise or vibration.

 Repair or replace as necessary.

4 – OPERATOR SERVICE

MONTHLY SERVICE CHECKS ADDITIONAL SERVICE INFORMATION

Perform the following service checks at least once each month:

Clean all battery terminals. Check battery for loose connections or damaged

wires. Verify proper operation of manual lowering

valves and hand pump

 Refer to Section 3 for manual boom operating

procedures.

Lubricate all compartment hinges and latches, slew ring and mating gear.

 Use NLGI Grade 2 multi-purpose grease.

Check wheel nut torque.

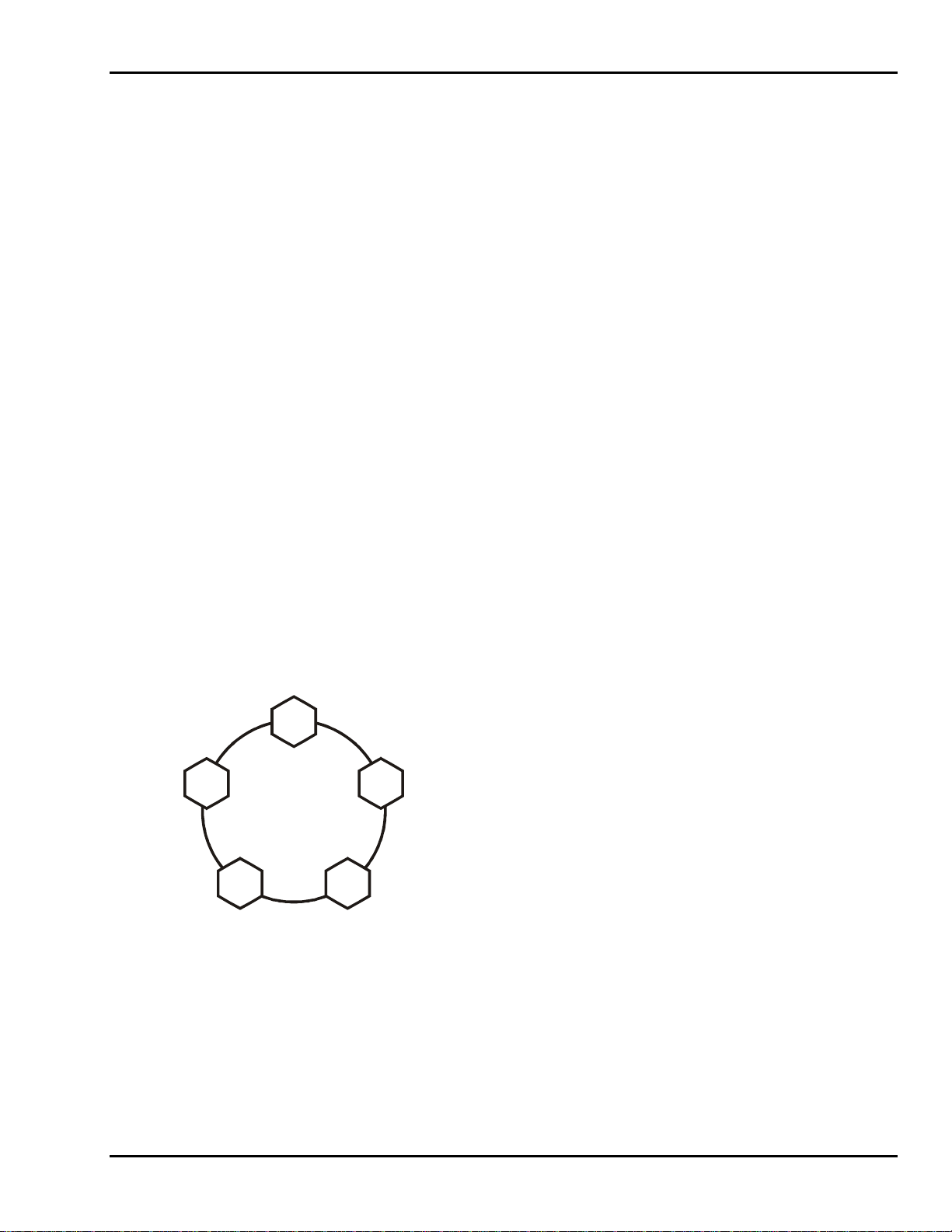

 Refer to Figure 4-3 for correct wheel nut tightening

sequence.

 Evenly tighten wheel nuts to 34 N*m in the tightening

sequence shown.

 Repeat sequence, tightening wheel nuts to 81 N*m

and to 136 N*m.

NOTE: When wheels are newly installed or

replaced, verify wheel nut torque after 75 and 150 km of travel and monthly thereafter. Follow this procedure each time the wheel is removed and reinstalled.

Refer to the Bil-Jax Parts and Service Manual for a comprehensive list of Annual service checks.

Seals on hydraulic cylinders should be replaced every five years or as indicated by machine performance.

All service checks should be performed on a machine that has been stored without use for a period exceeding thirty days.

Check for air in the hydraulic system if the machine has been stored without use for a period exceeding thirty days, or if the machine was stored without use during a seasonal climate change. Air trapped in the hydraulic system will affect machine performance. Follow procedures for bleeding air from the hydraulic system, found in the Bil-Jax Parts and Service manual.

Owners and lessors should complete a full inspection of all components and perform a test of all functions, including brake functions, before commissioning or reselling machine. Always repair or replace all damaged or malfunctioning components before commissioning or reselling machine.

When a change in ownership occurs, it is the responsibility of the seller to provide the new owner with all manuals for the machine. It is the responsibility of the buyer to notify the manufacturer of the unit model and serial number and the name and address of the new owner within 60 days.

Use the Service Checklists found at the back of this manual to record all Service Checks as well as any maintenance, repairs or alterations performed on the machine.

Records of frequent safety checks need not be made. However, where a safety hazard is found, it shall be reported in writing to the owner of the machine, and a record of any corrective action shall be maintained for five years or as required b y the authority having jurisdiction.

Refer to the Bil-Jax Parts and Service Manual for a comprehensive list of Annual service checks.

Figure 4-3. Wheel Nut Tightening Sequence

BIL-JAX 2622T

PROBLEM CAUSE SOLUTION

No lights on panel when key switch is turned to the on position.

Hydraulic function does not work and display window shows an error message

Outrigger indicator LED lights do not function.

One or more boom controls do not function

One or more boom controls function improperly

One or more boom controls function intermittently.

TROUBLESHOOTING

Refer to Table 4-1 for basic troubleshooting operations. Additional information can be found in the Bil-Jax Parts and Service Manual. Contact the Bil-Jax Service Department with any questions or before attempting any advanced troubleshooting operations.

Table 4-1. Troubleshooting Steps

a. Emergency STOP engaged. b. Battery charge is low. c. Battery ground or in-series ca ble is loose. d. Battery main disconnect unplugged. e. Blown Fuse. a. Fault detected by safety interlock

microprocessor.

b. Boom Lift electric or electronic failure

a. Key switch turned to the OFF or platform

controls position. b. Emergency c. Outriggers not deployed. a. Key switch is turned to the

incorrect control position. b. Battery charge is low. c. Emergency d. Battery ground or in-series cable loose. e. All outriggers not properly deployed. f. Hydraulic pump inoperative.

g. Loose wiring connector.

h. Valve solenoid not operating properly.

i. Fault detected by system interlock.

j. Broken or loose wire.

STOP engaged.

OFF or

STOP engaged.

a. Disengage Emergency STOP buttons. b. Recharge as needed. c. Inspect and repair battery connections. d. Plug in main disconnect. e. Check and replace fuse. a. Refer to Table 4-2 for error code

definition and correction.

b. Refer to Table 4-2 for error code

definition and correction.

a. Turn key switch to ground controls

position. b. Disengage emergency STOP buttons. c. Deploy all outriggers. a. Turn key switch to ground or platform

controls position. b. Recharge battery. c. Disengage Emergency STOP buttons. d. Inspect and repair battery connections. e. Deploy all outriggers and level boom lift. f. Inspect pump; replace or repair as

needed. g. Check wiring terminals in control box

and at valve manifold; replace or repair

as needed. h. Clean valve solenoid and recheck

function(s); replace or repair as needed. i. Check display for system status. Refer

to Table 4-2 for error code definitions

and correction. j. Inspect wiring in control box a nd at

valve manifold and valve coil; repair or

replace as needed.

4 – OPERATOR SERVICE

ERROR CODE DEFINITIONS

The DISPLAY PANEL located on the ground control panel indicates the present operating status of the boom lift. If an error condition is detected, the appropriate error code will be displayed on this panel. Refer to Table 4-2 for a list of Error Code Definitions and solutions.

Table 4-2. Error Code Definitions

Error Message

Displayed

001 MACHINE IS IN DOWN ONLY MODE

002 LOSS OF PLATFORM

COMMUNICATION

003 LOSS OF DRIVE

COMMUNICATION

004 LOSS OF PC

COMMUNICATION

Error Explanation &

Possible Causes

The Machine has gone into DOWN ONLY mode. When error condition is removed, error is cleared.

NOTE: This error will not be displayed when boom is down or if so equipped, when the Load Sense Module has detected an overloaded condition.

Possible causes include:

1. Machine went out of level during use

2. Load sense has detected an overload condition

3. Moment sense has detected an overload

condition The Lower Control has lost communication with the Platform Control. To clear this error, the error condition must be removed and the power must be cycled off then back on.

NOTE: During this error condition, the Platform Control "Engine On" LED will blink a “2 blink” error code and the Lower Control “Power” LED will blink a “2 blink” error code.

Possible causes include:

1. Lower control incorrectly configured

2. Faulty Boom Cable

3. Faulty Upper Control

4. Faulty Lower Control

The Lower Control has lost communication with the Drive Control.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Platform Control "Engine On" LED will blink a “2 blink” error code and the Lower Control “Power” LED will blink a “2 blink” error code.

Possible causes include:

1. Lower Control incorrectly configured

2. Faulty Boom Cable

3. Faulty Upper Control

4. Faulty Lower Control The Lower Control has lost communication with the PC. When error condition is removed, error is cleared.

NOTE: During this error condition, the Lower Control “Power” LED will blink a “4 blink” error code.

Possible causes include:

1. Faulty cable between PC and Lower Control

2. PC’s program is not running

3. Faulty PC

4. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Check outrigger and level LED indicators and if required re-level machine

2. Reduce boom load

3. Reduce boom load

1. Correctly configure Lower Control

2. Replace Boom Cable

3. Replace Upper Control

4. Replace Lower Control

1. Correctly configure Lower Control

2. Replace Boom Cable

3. Replace Upper Control

4. Replace Lower Control

1. Replace cable between PC and Lower Control

2. Disconnect PC or run PC’s program

3. Replace PC

4. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

005 PLATFORM

CONTROL

HAS STUCK KEY

006 DRIVE CONTROL

HAS STUCK KEY

007 DRIVE CONTROL

HAS STUCK JOYSTICK

008 GROUND CONTROL

HAS STUCK KEY

009 BOOM UP WITHOUT

OUTRIGGERS ON

GROUND

Error Explanation &

Possible Causes

The Platform Control has detected a stuck or pressed key on power up.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Platform Control “Engine On” LED will blink a “1 blink” error code.

Possible causes include:

1. Platform Control has a stuck key

2. Faulty Platform Control

The Drive Control has detected a stuck or pressed key on power up.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Drive Control “Engine On” LED will blink a “1 blink” error code.

Possible causes include:

1. Drive Control has a stuck key

2. Faulty Drive Control The Drive Control has detected a stuck joystick on power up.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Drive Control “Engine On” LED will blink a “2 blink” error code.

Possible causes include:

1. Drive Control has a stuck joystick

2. Faulty Drive Control The Lower Control has detected a stuck or pressed key on power up.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Lower Control “Power” LED will blink a “1 blink” error code.

Possible causes include:

1. Lower Control has a stuck key

2. Faulty Lower Control The Lower Control has detected the boom is up without all four outriggers on the ground.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: Alarm will sound during this error condition. Possible causes include:

1. Faulty boom down or outrigger limit switches

2. Faulty boom down or outrigger limit switch wiring

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Free stuck or pressed key on Platform Control

2. Replace Platform Control

1. Free stuck or pressed key on Drive Control

2. Replace Drive Control

1. Free or replace stuck joystick on Drive Control

2. Replace Drive Control

1. Free stuck or pressed key on Lower Control

2. Replace Lower Control

1. Check and repair boom and outrigger limit switches

2. Repair or replace boom and outrigger limit switch wiring

3. Replace Lower Control

4 – OPERATOR SERVICE

Error Message

Displayed

010 LEVEL SENSOR HAS

ERRATIC OUTPUT

011 TRYING TO DRIVE

W/ TRAILER BRAKE OFF

012 ANGLE SENSOR IS

DISCONNECTED OR BAD

013 PRESSURE SENSOR IS

DISCONNECTED OR BAD

014 CHECK ENGINE

LOW OIL PRESSURE

Error Explanation &

Possible Causes

The Lower Control has detected a rapidly changing output from the level sensor.

This is a self clearing error. When error condition is removed, error is cleared.

Possible causes include:

1. Faulty Level Sensor

2. Faulty Level Sensor wiring

3. Faulty Lower Control

An attempt was made to drive machine without engaging the trailer brake.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: This error only occurs on machines equipped with the Drive & Set option.

Possible causes include:

1. Trailer brake not engaged

2. Faulty trailer brake switch

3. Faulty trailer brake switch wiring

4. Faulty Lower Control

The Lower Control has detected the angle sensor output is out of range.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: This error only occurs on machines equipped with the Moment Sense option.

Possible causes include:

1. Faulty angle sensor

2. Faulty angle sensor wiring

3. Lower Control incorrectly configured

4. Faulty Lower Control The Lower Control has detected the pressure sensor output is out of range.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: This error only occurs on machines equipped with the Moment Sense option.

Possible causes include:

1. Faulty pressure sensor

2. Faulty pressure sensor wiring

3. Lower Control incorrectly configured

4. Faulty Lower Control The Lower Control has detected the engine had low oil pressure while running.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: This error only occurs on machines equipped with the X-Boom option.

Possible causes include:

1. Engine oil low

2. Faulty oil pressure sensor

3. Faulty oil pressure sensor wiring

4. Lower Control incorrectly configured

5. Faulty Lower Control

What To Check &

Corrective Action To Clear Error

1. Check Level Sensor

2. Repair or replace Level Sensor wiring

3. Replace Lower Control NOTE: With machine powered and level, Level

Sensor should have a steady approximately 24 volt supply voltage and a steady approximately 2.50 volt output on both X and Y outputs with respect to the Level Sensor ground connection.

1. Engage trailer brake

2. Check and repair trailer brake switch

3. Repair or replace trailer brake switch wiring

4. Replace Lower Control

1. Check angle sensor

2. Repair or replace angle sensor wiring

3. Correctly configure Lower Control

4. Replace Lower Control

1. Check pressure sensor

2. Repair or replace pressure sensor wiring

3. Correctly configure Lower Control

4. Replace Lower Control

1. Check engine oil level

2. Check oil pressure sensor

3. Repair or replace oil pressure sensor wiring

4. Correctly configure Lower Control

5. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

015 MACHINE IS

NOT LEVEL

016 LIFT BOOM

017 STOW BOOM

018 LOSS OF LOAD SENSE

COMMUNICATION

Error Explanation &

Possible Causes

The Lower Control has detected the machine has all four outriggers on the ground but is not level.

This is a self clearing error. When error condition is removed, error is cleared.

Possible causes include:

1. Machine has gone out of level with use

2. Faulty level sensor

3. Faulty level sensor wiring

4. Faulty Lower Control The Lower Control has detected the Boom must be raised before the requested function can be performed.

This is a self clearing error. When error condition is removed, error is cleared.

Possible causes include:

1. Trying to rotate boom while boom is down

2. Trying to extend boom while boom is down

3. Trying to retract boom while boom is down

4. Faulty boom down limit switch

5. Faulty boom down limit switch wiring

6. Faulty Lower Control The Lower Control has detected the boom must be lowered before the requested function can be performed.

This is a self clearing error. When error condition is removed, error is cleared.

Possible causes include:

1. Trying to auto level machine while boom is raised

2. Trying to extend outriggers while boom is raised

3. Trying to retract outriggers while boom is raised

4. Faulty boom down limit switch

5. Faulty boom down limit switch wiring

6. Faulty Lower Control

The Lower Control has lost communication with the Load Sense Module.

This is a latched error. To clear this error, first the error condition must be removed and second the power must be cycled off then back on.

NOTE: During this error condition, the Load Sense Module "Status" LED will blink a red “2 blink” error code and the Lower Control “Power” LED will blink a “5 blink” error code.

NOTE: This error only occurs on machines equipped with the Load Sense option.

Possible causes include:

1. Lower control incorrectly configured

2. Faulty Boom Cable

3. Faulty Load Sense Module

4. Faulty Lower Control

What To Check &

Corrective Action To Clear Error

1. Check outrigger and level LED indicators and if required re-level machine

2. Check level sensor

3. Repair or replace level sensor wiring

4. Replace Lower Control

1. Check that boom is raised before trying to rotate boom

2. Check that boom is raised before trying to extend boom

3. Check that boom is raised before trying to retract boom

4. Check and repair boom down limit switch

5. Repair or replace boom down limit switch wiring

6. Replace Lower Control

1. Check that boom is down before trying to auto level machine

2. Check that boom is down before trying to extend outriggers

3. Check that boom is down before trying to retract outriggers

4. Check and repair boom down limit switch

5. Repair or replace boom down limit switch wiring

6. Replace Lower Control

1. Correctly configure Lower Control

2. Replace Boom Cable

3. Replace Load Sense Module

4. Replace Lower Control

Error Message

Displayed

019 BOOM FUNCTION

DISABLED

020 LOSS OF LOAD CELL CONNECTION

021 OPEN CIRCUIT

PRIMARY UP

022 SHORTED CIRCUIT

PRIMARY UP

023 OPEN CIRCUIT

PRIMARY DOWN

Error Explanation &

Possible Causes

The Load Sense Module has detected an overloaded boom condition which caused the Lower Control to disable all boom functions.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: This error only occurs on machines equipped with the Load Sense option.

Possible causes include:

1. Too much weight in basket or on hook

2. Lower Control incorrectly configured

3. Faulty Load Cell

4. Faulty Load Cell wiring

5. Faulty Load Sense Module

6. Faulty Lower Control The Load Sense Module has detected a loss of connection to the Load Cell.

This is a self clearing error. When error condition is removed, error is cleared.

NOTE: This error only occurs on machines equipped with the Load Sense option.

Possible causes include:

1. Faulty Load Cell

2. Faulty Load Cell wiring

3. Faulty Load Sense Module The Lower Control has detected an open circuit on the Primary Up solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Primary Up solenoid wiring

2. Faulty Primary Up solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Primary Up solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Primary Up solenoid wiring

2. Faulty Primary Up solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Primary Down solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Primary Down solenoid wiring

2. Faulty Primary Down solenoid

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Reduce weight in basket or on hook

2. Correctly configure Lower Control

3. Replace Load Cell

4. Repair or replace Load Cell wiring

5. Replace Load Sense Module

6. Replace Lower Control

1. Replace Load Cell

2. Repair or replace Load Cell wiring

3. Replace Load Sense Module

1. Repair or replace Primary Up solenoid wiring

2. Replace Primary Up solenoid

3. Replace Lower Control

1. Repair or replace Primary Up solenoid wiring

2. Replace Primary Up solenoid

3. Replace Lower Control

1. Repair or replace Primary Down solenoid wiring

2. Replace Primary Down solenoid

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

024 SHORTED CIRCUIT

PRIMARY DOWN

025 OPEN CIRCUIT

SECONDARY UP

026 SHORTED CIRCUIT

SECONDARY UP

027 OPEN CIRCUIT

SECONDARY DOWN

028 SHORTED CIRCUIT

SECONDARY DOWN

029 OPEN CIRCUIT

JIB UP

030 SHORTED CIRCUIT

JIB UP

Error Explanation &

Possible Causes

The Lower Control has detected excessive current on the Primary Down solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Primary Down solenoid wiring

2. Faulty Primary Down solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Secondary Up solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Secondary Up solenoid wiring

2. Faulty Secondary Up solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Secondary Up solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Secondary Up solenoid wiring

2. Faulty Secondary Up solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Secondary Down solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Secondary Down solenoid wiring

2. Faulty Secondary Down solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Secondary Down solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Secondary Down solenoid wiring

2. Faulty Secondary Down solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Jib Up solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Jib Up solenoid wiring

2. Faulty Jib Up solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Jib Up solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Jib Up solenoid wiring

2. Faulty Jib Up solenoid

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Primary Down solenoid wiring

2. Replace Primary Down solenoid

3. Replace Lower Control

1. Repair or replace Secondary Up solenoid wiring

2. Replace Secondary Up solenoid

3. Replace Lower Control

1. Repair or replace Secondary Up solenoid wiring

2. Replace Secondary Up solenoid

3. Replace Lower Control

1. Repair or replace Secondary Down solenoid wiring

2. Replace Secondary Down solenoid

3. Replace Lower Control

1. Repair or replace Secondary Down solenoid wiring

2. Replace Secondary Down solenoid

3. Replace Lower Control

1. Repair or replace Jib Up solenoid wiring

2. Replace Jib Up solenoid

3. Replace Lower Control

1. Repair or replace Jib Up solenoid wiring

2. Replace Jib Up solenoid

3. Replace Lower Control

4 – OPERATOR SERVICE

Error Message

Displayed

031 OPEN CIRCUIT

JIB DOWN

032 SHORTED CIRCUIT

JIB DOWN

033 OPEN CIRCUIT

EXTEND

034 SHORTED CIRCUIT

EXTEND

035 OPEN CIRCUIT

RETRACT

036 SHORTED CIRCUIT

RETRACT

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Jib Down solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Jib Down solenoid wiring

2. Faulty Jib Down solenoid

3. Fault Lower Control The Lower Control has detected excessive current on the Jib Down solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Jib Down solenoid wiring

2. Faulty Jib Down solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Extend boom solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Extend boom solenoid wiring

2. Faulty Extend boom solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Extend boom solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Extend boom solenoid wiring

2. Faulty Extend boom solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Retract boom solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Retract boom solenoid wiring

2. Faulty Retract boom solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Retract boom solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Retract boom solenoid wiring

2. Faulty Retract boom solenoid

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Jib Down solenoid wiring

2. Replace Jib Down solenoid

3. Replace Lower Control

1. Repair or replace Jib Down solenoid wiring

2. Replace Jib Down solenoid

3. Replace Lower Control

1. Repair or replace Extend boom solenoid wiring

2. Replace Extend solenoid

3. Replace Lower Control

1. Repair or replace Extend boom solenoid wiring

2. Replace Extend solenoid

3. Replace Lower Control

1. Repair or replace Retract boom solenoid wiring

2. Replace Retract boom solenoid

3. Replace Lower Control

1. Repair or replace Retract boom solenoid wiring

2. Replace Retract boom solenoid

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

037 OPEN CIRCUIT

PLATFORM LEVEL UP

038 SHORTED CIRCUIT

PLATFORM LEVEL UP

039 OPEN CIRCUIT

PLATFORM LEVEL

DOWN

040 SHORTED CIRCUIT

PLATFORM LEVEL

DOWN

041 OPEN CIRCUIT

PLATFORM CW

042 SHORTED CIRCUIT

PLATFORM CW

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Platform Level Up solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Platform Level Up solenoid wiring

2. Faulty Platform Level Up solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Platform Level Up solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Platform Level Up solenoid wiring

2. Faulty Platform Level Up solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Platform Level Down solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Platform Level Down solenoid wiring

2. Faulty Platform Level Down solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Platform Level Down solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Platform Level Down solenoid wiring

2. Faulty Platform Level Down solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Platform CW solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Platform CW solenoid wiring

2. Faulty Platform CW solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Platform CW solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Platform CW solenoid wiring

2. Faulty Platform CW solenoid

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Platform Level Up solenoid wiring

2. Replace Platform Level Up solenoid

3. Replace Lower Control

1. Repair or replace Platform Level Up solenoid wiring

2. Replace Platform Level Up solenoid

3. Replace Lower Control

1. Repair or replace Platform Level Down solenoid wiring

2. Replace Platform Level Down solenoid

3. Replace Lower Control

1. Repair or replace Platform Level Down solenoid wiring

2. Replace Platform Level Down solenoid

3. Replace Lower Control

1. Repair or replace Platform CW solenoid wiring

2. Replace Platform CW solenoid

3. Replace Lower Control

1. Repair or replace Platform CW solenoid wiring

2. Replace Platform CW solenoid

3. Replace Lower Control

Error Message

Displayed

043 OPEN CIRCUIT

PLATFORM CCW

044 SHORTED CIRCUIT

PLATFORM CCW

045 OPEN CIRCUIT

TURNTABLE CW

046 SHORTED CIRCUIT

TURNTABLE CW

047 OPEN CIRCUIT

TURNTABLE CCW

048 SHORTED CIRCUIT

TURNTABLE CCW

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Platform CCW solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Platform CCW solenoid wiring

2. Faulty Platform CCW solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Platform CW solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Platform CCW solenoid wiring

2. Faulty Platform CCW solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Turntable CW solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Turntable CW solenoid wiring

2. Faulty Turntable CW solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Turntable CW solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Turntable CW solenoid wiring

2. Faulty Turntable CW solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Turntable CCW solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Turntable CCW solenoid wiring

2. Faulty Turntable CCW solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Turntable CCW solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Turntable CCW solenoid wiring

2. Faulty Turntable CCW solenoid

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Platform CCW solenoid wiring

2. Replace Platform CCW solenoid

3. Replace Lower Control

1. Repair or replace Platform CCW solenoid wiring

2. Replace Platform CCW solenoid

3. Replace Lower Control

1. Repair or replace Turnta ble CW solenoid wiring

2. Replace Turntable CW solenoid

3. Replace Lower Control

1. Repair or replace Turnta ble CW solenoid wiring

2. Replace Turntable CW solenoid

3. Replace Lower Control

1. Repair or replace Turntable CCW solenoid wiring

2. Replace Turntable CCW solenoid

3. Replace Lower Control

1. Repair or replace Turntable CCW solenoid wiring

2. Replace Turntable CCW solenoid

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

049 OPEN CIRCUIT

OUTRIGGER RETRACT

050 SHORTED CIRCUIT

OUTRIGGER RETRACT

051 OPEN CIRCUIT

OUTRIGGER EXTEND

052 SHORTED CIRCUIT

OUTRIGGER EXTEND

053 OPEN CIRCUIT

LF OUTRIGGER

054 SHORTED CIRCUIT

LF OUTRIGGER

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Outrigger Retract solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Outrigger Retract solenoid wiring

2. Faulty Outrigger Retract solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Outrigger Retract solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Outrigger Retract solenoid wiring

2. Faulty Outrigger Retract solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Outrigger Extend solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Outrigger Extend solenoid wiring

2. Faulty Outrigger Extend solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Outrigger Extend solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Outrigger Extend solenoid wiring

2. Faulty Outrigger Extend solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the LF Outrigger solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty LF Outrigger solenoid wiring

2. Faulty LF Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the LF Outrigger solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty LF Outrigger solenoid wiring

2. Faulty LF Outrigger solenoid

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Outrigger Retract solenoid wiring

2. Replace Outrigger Retract solenoid

3. Replace Lower Control

1. Repair or replace Outrigger Retract solenoid wiring

2. Replace Outrigger Retract solenoid

3. Replace Lower Control

1. Repair or replace Outrigger Extend solenoid wiring

2. Replace Outrigger Extend solenoid

3. Replace Lower Control

1. Repair or replace Outrigger Extend solenoid wiring

2. Replace Outrigger Extend solenoid

3. Replace Lower Control

1. Repair or replace LF Outrigger solenoid wiring

2. Replace LF Outrigger solenoid

3. Replace Lower Control

1. Repair or replace LF Outrigger solenoid wiring

2. Replace LF Outrigger solenoid

3. Replace Lower Control

Error Message

Displayed

055 OPEN CIRCUIT

RF OUTRIGGER

056 SHORTED CIRCUIT

RF OUTRIGGER

057 OPEN CIRCUIT

LR OUTRIGGER

058 SHORTED CIRCUIT

LR OUTRIGGER

059 OPEN CIRCUIT

RR OUTRIGGER

060 SHORTED CIRCUIT

RR OUTRIGGER

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the RF Outrigger solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty RF Outrigger solenoid wiring

2. Faulty RF Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the RF Outrigger solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty RF Outrigger solenoid wiring

2. Faulty RF Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the LR Outrigger solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty LR Outrigger solenoid wiring

2. Faulty LR Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the LR Outrigger solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty LR Outrigger solenoid wiring

2. Faulty LR Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the RR Outrigger solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty RR Outrigger solenoid wiring

2. Faulty RR Outrigger solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the RR Outrigger solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty RR Outrigger solenoid wiring

2. Faulty RR Outrigger solenoid

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Repair or replace RF Outrigger solenoid wiring

2. Replace RF Outrigger solenoid

3. Replace Lower Control

1. Repair or replace RF Outrigger solenoid wiring

2. Replace RF Outrigger solenoid

3. Replace Lower Control

1. Repair or replace LR Outrigger solenoid wiring

2. Replace LR Outrigger solenoid

3. Replace Lower Control

1. Repair or replace LR Outrigger solenoid wiring

2. Replace LR Outrigger solenoid

3. Replace Lower Control

1. Repair or replace RR Outrigger solenoid wiring

2. Replace RR Outrigger solenoid

3. Replace Lower Control

1. Repair or replace RR Outrigger solenoid wiring

2. Replace RR Outrigger solenoid

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

061 OPEN CIRCUIT ENGINE THROTTLE

062 SHORTED CIRCUIT

ENGINE THROTTLE

063 OPEN CIRCUIT

ENGINE STARTER

064 SHORTED CIRCUIT

ENGINE STARTER

065 OPEN CIRCUIT

ENGINE CHOKE

066 SHORTED CIRCUIT

ENGINE CHOKE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Engine Throttle relay output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Engine Throttle relay wiring

2. Faulty Engine Throttle relay

3. Faulty Lower Control The Lower Control has detected excessive current on the Engine Throttle relay output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Engine Throttle relay wiring

2. Faulty Engine Throttle relay

3. Faulty Lower Control The Lower Control has detected an open circuit on the Engine Starter relay output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Engine Starter relay wiring

2. Faulty Engine Starter relay

3. Faulty Lower Control The Lower Control has detected excessive current on the Engine Starter relay output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Engine Starter relay wiring

2. Faulty Engine Starter relay

3. Faulty Lower Control The Lower Control has detected an open circuit on the Engine Choke relay output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Engine Choke relay wiring

2. Faulty Engine Choke relay

3. Faulty Lower Control The Lower Control has detected excessive current on the Engine Choke relay output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Engine Choke relay wiring

2. Faulty Engine Choke relay

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Engine Throttle relay wiring

2. Replace Engine Throttle relay

3. Replace Lower Control

1. Repair or replace Engine Throttle relay wiring

2. Replace Engine Throttle relay

3. Replace Lower Control

1. Repair or replace Engine Starter relay wiring

2. Replace Engine Starter relay

3. Replace Lower Control

1. Repair or replace Engine Starter relay wiring

2. Replace Engine Starter relay

3. Replace Lower Control

1. Repair or replace Engine Choke relay wiring

2. Replace Engine Choke relay

3. Replace Lower Control

1. Repair or replace Engine Choke relay wiring

2. Replace Engine Choke relay

3. Replace Lower Control

Error Message

Displayed

067 OPEN CIRCUIT

ENGINE STOP

068 SHORTED CIRCUIT

ENGINE STOP

069 OPEN CIRCUIT

PROPORTIONAL

070 SHORTED CIRCUIT

PROPORTIONAL

071 OPEN CIRCUIT

MOTOR CONTROL

ENABLE

072 SHORTED CIRCUIT

MOTOR CONTROL

ENABLE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Engine Stop relay output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Engine Stop relay wiring

2. Faulty Engine Stop relay

3. Faulty Lower Control The Lower Control has detected excessive current on the Engine Stop relay output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Engine Stop relay wiring

2. Faulty Engine Stop relay

3. Faulty Lower Control The Lower Control has detected an open circuit on the Proportional valve solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA at 100%.

Possible causes include:

1. Faulty Proportional valve solenoid wiring

2. Faulty Proportional valve solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Proportional valve solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Proportional valve solenoid wiring

2. Faulty Proportional valve solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Motor Control Enable output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Motor Control Enable wiring

2. Faulty Motor Control

3. Faulty Lower Control The Lower Control has detected excessive current on the Motor Control Enable output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Motor Control Enable wiring

2. Faulty Motor Control

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Engine Stop relay wiring

2. Replace Engine Stop relay

3. Replace Lower Control

1. Repair or replace Engine Stop relay wiring

2. Replace Engine Stop relay

3. Replace Lower Control

1. Repair or replace Proportional valve solenoid

wiring

2. Replace Proportional valve solenoid

3. Replace Lower Control

1. Repair or replace Proportional valve solenoid

wiring

2. Replace Proportional valve solenoid

3. Replace Lower Control

1. Repair or replace Motor Control Enable wiring

2. Replace Motor Control

3. Replace Lower Control

1. Repair or replace Motor Control Enable wiring

2. Replace Motor Control

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

073 OPEN CIRCUIT

SPARE OUTPUT

074 SHORTED CIRCUIT

SPARE OUTPUT

075 OPEN CIRCUIT

AC SWITCH

076 SHORTED CIRCUIT

AC SWITCH

077 OPEN CIRCUIT

STROBE

078 SHORTED CIRCUIT

STROBE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Spare solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This output is not used and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Lower Control The Lower Control has detected excessive current on the Motor Control Enable output when it was energized during startup self diagnostics.

NOTE: This output is not used and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Lower Control The Lower Control has detected an open circuit on the AC Switch output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty AC Switch wiring

2. Faulty AC Switch

3. Faulty Lower Control The Lower Control has detected excessive current on the AC Switch output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty AC Switch wiring

2. Faulty AC Switch

3. Faulty Lower Control The Lower Control has detected an open circuit on the Strobe output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. This load is less than 70mA and this error is suppressed to avoid false errors.

Possible causes include:

1. Faulty Strobe wiring

2. Faulty Strobe

3. Faulty Lower Control The Lower Control has detected excessive current on the Strobe output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Strobe wiring

2. Faulty Strobe

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Replace Lower Control

1. Repair or replace AC Switch wiring

2. Replace AC Switch

3. Replace Lower Control

1. Repair or replace AC Switch wiring

2. Replace AC Switch

3. Replace Lower Control

1. Repair or replace Strobe wiring

2. Replace Strobe

3. Replace Lower Control

1. Repair or replace Strobe wiring

2. Replace Strobe

3. Replace Lower Control

Error Message

Displayed

079 OPEN CIRCUIT

DRIVE PWM

080 SHORTED CIRCUIT

DRIVE PWM

081 OPEN CIRCUIT

DRIVE ENABLE

082 SHORTED CIRCUIT

DRIVE ENABLE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Drive PWM valve solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA at 100%.

Possible causes include:

1. Faulty Drive PWM valve solenoid wiring

2. Faulty Drive PWM valve solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Drive PWM valve solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Drive PWM valve solenoid wiring

2. Faulty Drive PWM valve solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Drive Enable solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Drive Enable solenoid wiring

2. Faulty Drive Enable solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Drive Enable solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Drive Enable solenoid wiring

2. Faulty Drive Enable solenoid

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Drive PWM valve solenoid wiring

2. Replace Drive PWM valve

3. Replace Lower Control

1. Repair or replace Drive PWM valve solenoid wiring

2. Replace Drive PWM valve

3. Replace Lower Control

1. Repair or replace Drive Enable solenoid wiring

2. Replace Drive Enable solenoid

3. Replace Lower Control

1. Repair or replace Drive Enable solenoid wiring

2. Replace Drive Enable solenoid

3. Replace Lower Control

BIL-JAX 2622T

Error Message

Displayed

083 OPEN CIRCUIT

DRIVE ENGAGE

084 SHORTED

CIRCUIT

DRIVE ENGAGE

085 OPEN CIRCUIT

LEFT WHEEL

FORWARD

086 SHORTED

CIRCUIT

LEFT WHEEL

FORWARD

087 OPEN CIRCUIT

LEFT WHEEL REVERSE

088 SHORTED

CIRCUIT

LEFT WHEEL REVERSE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Drive Engage solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Drive Engage solenoid wiring

2. Faulty Drive Engage solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Drive Enable solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Drive Engage solenoid wiring

2. Faulty Drive Engage solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Left Wheel Forward solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Left Wheel Forward solenoid wiring

2. Faulty Left Wheel Forward solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Left Wheel Forward solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Left Wheel Forward solenoid wiring

2. Faulty Left Wheel Forward solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Left Wheel Reverse solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Left Wheel Reverse solenoid wiring

2. Faulty Left Wheel Reverse solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Left Wheel Reverse solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Left Wheel Reverse solenoid wiring

2. Faulty Left Wheel Reverse solenoid

3. Faulty Lower Control

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Drive Engage solenoid wiring

2. Replace Drive Engage solenoid

3. Replace Lower Control

1. Repair or replace Drive Engage solenoid wiring

2. Replace Drive Engage solenoid

3. Replace Lower Control

1. Repair or replace Left Wheel Forward solenoid wiring

2. Replace Left Wheel Forward solenoid

3. Replace Lower Control

1. Repair or replace Left Wheel Forward solenoid wiring

2. Replace Left Wheel Forward solenoid

3. Replace Lower Control

1. Repair or replace Left Wheel Reverse solenoid wiring

2. Replace Left Wheel Reverse solenoid

3. Replace Lower Control

1. Repair or replace Left Wheel Reverse solenoid wiring

2. Replace Left Wheel Reverse solenoid

3. Replace Lower Control

Error Message

Displayed

089 OPEN CIRCUIT

RIGHT WHEEL FORWARD

090 SHORTED CIRCUIT

RIGHT WHEEL FORWARD

091 OPEN CIRCUIT

RIGHT WHEEL REVERSE

092 SHORTED CIRCUIT

RIGHT WHEEL REVERSE

Error Explanation &

Possible Causes

The Lower Control has detected an open circuit on the Right Wheel Forward solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Right Wheel Forward solenoid wiring

2. Faulty Right Wheel Forward solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Right Wheel Forward solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Right Wheel Forward solenoid wiring

2. Faulty Right Wheel Forward solenoid

3. Faulty Lower Control The Lower Control has detected an open circuit on the Right Wheel Reverse solenoid output when it was energized during startup self diagnostics.

NOTE: A load of less than 70mA will be detected as an open circuit. The typical load is approximately 800mA.

Possible causes include:

1. Faulty Right Wheel Reverse solenoid wiring

2. Faulty Right Wheel Reverse solenoid

3. Faulty Lower Control The Lower Control has detected excessive current on the Right Wheel Reverse solenoid output when it was energized during startup self diagnostics.

Possible causes include:

1. Faulty Right Wheel Reverse solenoid wiring

2. Faulty Right Wheel Reverse solenoid

3. Faulty Lower Control

4 – OPERATOR SERVICE

What To Check &

Corrective Action To Clear

Error

1. Repair or replace Right Wheel Forward solenoid wiring

2. Replace Right Wheel Forward solenoid

3. Replace Lower Control

1. Repair or replace Right Wheel Forward solenoid wiring

2. Replace Right Wheel Forward solenoid

3. Replace Lower Control

1. Repair or replace Right Wheel Reverse solenoid wiring

2. Replace Right Wheel Reverse solenoid

3. Replace Lower Control

1. Repair or replace Right Wheel Reverse solenoid wiring

2. Replace Right Wheel Reverse solenoid

3. Replace Lower Control

BIL-JAX 2622T

5 DECAL REPLACEMENT

Decals contain information that is required for the safe and proper use of the aerial work platform. Decals should be considered necessary components of the machine and should be checked before each use to verify that they are correctly attached and legible.

Use the following guides to find the correct location of all decals.

BIL-JAX 2622T

Table 5-1. Decal Descriptions

Decal No. Decal Description Qty

0202-0523 Made in USA 1 B06-00-0034 DANGER: Electric Shock 1 B06-00-0037 Lubricate Semi-Annually 1 B06-00-0062 NOTICE: AC Power 2 B06-00-0068 NOTICE: Hydraulic System Oil 1 B06-00-0161B Bil-Jax Logo, 6” Black Transfer 2

B06-00-0173 B06-00-0403 NOTICE: Emergency Lowering 2

B06-00-0404 WARNING: Outrigger Crush Toe 8 B06-00-0405 WARNING: Pinch Point 16

B06-00-0468

B06-00-0471

B06-00-0473

B06-00-0475 B06-00-0477 WARNING: Forklift Pockets 2 B06-00-0478 B06-00-0481 CAUTION: Transport Safety Latch 1

B06-00-0482 DANGER: Electrocution Hazard 2

NOTICE: Fall Protection Attachment Point

WARNING: Operating Instructions (Ground)

DANGER: Before Use/Main Instruction/Hazards (Platform)

NOTICE: Operator’s Manual Missing

WARNING: Read/Understand Operator’s Manual

NOTICE: Platform Charger/Power Plug Here

Decal No. Decal Description Qty

B06-00-0484 DANGER: Battery/Charger Safety 1 B06-00-0491 B06-00-0493 CAUTION: Prior to Towing 1

B06-00-0494 NOTICE: Hazardous Materials 1 B06-00-0495

B06-00-0496 B06-00-0503 NOTICE: Handle Applications 1

B06-00-0504 NOTICE: Emergency Hand Pump 1 B06-00-0505 B06-00-0521 DANGER: Tip Over Hazard 5 B06-00-0541 B06-00-0542 WARNING: Max. Towing Speed 2

B06-00-0543 WARNING: Wheel Crush Toe 2 B06-00-0544 WARNING: Towing Hazards 2 B06-00-0545 Bil-Jax Website Transfer 2 B06-00-0550 WARNING: Unhitch Lift Before Use 2 B06-00-0555 NOTICE: Range of Motion 2 B06-00-0556 2622T, 6” Black Transfer 2 B06-00-0557 NOTICE: Max Load 1

WARNING: Operating Instructions (Platform)

CAUTION: Compartment Access Restricted

CAUTION: Generator Plate Capacity 200 lbs.

DANGER: Before Use/Main Instruction/Hazards (ground)

CAUTION: Manual Boom Functions

Identification Plates

B06-00-0490 VIN Plate 1 B06-00-0499 ANSI ID Plate 1 B06-00-0524 Annual Inspection Plate 1 B06-00-0526 Key Tag 1

CE/CAN/AUS Machines

B06-00-0167 Black/Yellow Hazard - 2” Wide 4 B06-00-0568 WARNING: Tip Over Hazard 4

BIL-JAX 2622T

0482

0405

0506

0568

0521

0555

0167

0404

0037

0477

0545

0556

0478

0543

0503

0504

0495

0505

0068

0560

0405

0494

0541

0468

0062

0405

0493

0473

0550

0491

0475

0557

0062

0471

0496

0161B

0542

0481

0405

0202-0523

0552

05520405

05520521

0555

0560

0544

0495

0550

0484

0034

Figure 5-1. Decal Placement

BIL-JAX 2622T

6 ANSI REPRINT

The following sections are reprinted from the ANSI A92.2-2001 code in effect at the time of manufacture and govern the safe use of the Bil-Jax Model 2622T Telescoping Boom Lift. It is the responsibility of all

owners and operators of this machine to read, understand and obey the recommendations set forth by the ANSI code.

Permission to reprint this material has been granted by the Scaffold Industry Association.

7. Responsibilities of Dealers and Installers

7.1 General Responsibilities. Each dealer or installer as applicable shall comply with the requirements of this section.

7.2 Vehicle Specifications. Each dealer or installer, or both, who sells an aerial device shall inform the owner or user, or both, of the manufacturer’s minimum vehicle specifications.

7.3 Vehicle Weight Distribution. The installer shall be responsible for the weight distribution of the completed mobile unit in accordance with the requirements of the aerial device and the applicable regulations. Allowance shall be made for the weight of readily removable tools and material specified by the user.

7.4 Manuals. Upon delivery of the equipment to the owner or user, the dealer or installer shall provide the manuals as required by Paragraph 6.4 of this standard and manuals for auxiliary equipment added by the installer.

7.5 Installations. The installer shall comply with Sections 5 and 6 of this standard relating to proper installation and shall follow the instructions of the manufacturer. In the event the original manufacturer no longer exists, an equivalent entity may provide these instructions. The installer of an aerial device shall, before the mobile unit is placed in operation, perform stability tests in accordance with the requirements of 4.5.1 and 4.5.2, the operational and visual tests in accordance with the requirements of 6.6.1 and 6.6.2 a, and the appropriate electrical tests required in 5.4.3 of this standard. The installer shall, when installing an aerial device on a chassis which is a highway vehicle, comply with all requirements of the Federal Motor Vehicle Safety Standards in effect at the time of installation. Certification as a manufacturer (alteration, intermediate or final) of a motor vehicle under the Federal Motor Vehicle Safety Standards is required. The travel height of a mobile unit shall be posted in a location that is readily visible to the vehicle operator. For insulated aerial devices, the installer shall assure conformance to the Qualification test requirements of 5.3.2 by either obtaining certification of the test and performing a periodic test after insulation, or by performing the Qualification test.

7.5.1 Quality Assurance. The installer shall have a documented quality assurance program which will ensure compliance with this standard.

7.6 Welding. All welds made by the installer, whose failure could result in motion of the platform(s) shall meet the Structural Welding Code AWS D1.1-98 and AWS D1.2-98. The installer shall establish applicable welding quality assurance procedures for all weldments.

7.7 Training. The dealer or installer shall offer training or training materials that aid owners and users in the operation, inspection, testing and maintenance of the aerial

device. The training shall be offered initially and subsequently on request.

7.7.1 Dealer or Installer as User. Whenever a dealer or installer directs personnel to operate the aerial device (inspecting, sales demonstrations, or any form of use), the dealer or installer shall assume the responsibilities of users as specified in Section 9 of this standard. All personnel authorized to operate this aerial device shall have been trained.

8. Responsibilities of Owners

8.1 General Responsibilities. Each owner shall comply with the requirements of this section. The following responsibilities pertain to the owner’s inspection, testing, maintenance, modification, training and transfer of ownership. These activities shall be performed by qualified person(s).

8.2 Inspection and Testing Classifications.

8.2.1 Initial Inspection and Test. Prior to initial use, all new or modified mobile units shall be inspected and tested to ensure compliance with the provisions of this standard. Verification by the manufacturer, the installer, or an equivalent entity(s) meets this requirement.

8.2.2 Regular Inspection and Tests. The inspection procedure for mobile units is divided into two classifications based upon the intervals at which inspections and tests shall be performed. Intervals shall be set by the owner in accordance with the manufacturer’s recommendations. Such intervals are dependant upon component function and exposure to wear, deterioration and other agents which adversely affect component life. Two classifications are designated: (1) Frequent Inspection and Test: Daily to Monthly intervals. (2) Periodic Inspection and Test: One to Twelve Month

intervals.

8.2.3 Frequent Inspection and Test. Items determined to by the owner in accordance with the manufacturer’s recommendations for each specific aerial device shall be inspected for defects. The following tests and inspections shall be performed by the operator once daily, prior to first use: (1) Operating controls and associated mechanisms for

conditions interfering with proper operation. (2) Visual and audible safety devices for malfunction. (3) Hydraulic and pneumatic systems for observable

deterioration or excessive leakage. (4) Fiberglass and other insulating components for visible

damage or contamination. (5) Missing or illegible operational and instructional

markings. (6) Electrical systems of/or related to the aerial device for

malfunction, signs of excessive deterioration, dirt and

moisture accumulation. (7) Visual inspection of bolts, pins and other fasteners for

loose, deformed or missing fasteners and other locking

BIL-JAX 2622T

devices. Any suspected items shall be carefully examined or tested and a determination made by a qualified person as to whether they constitute a safety hazard. All unsafe items shall be replaced or repaired before use.

8.2.4 Periodic Inspection or Test. An inspection of the mobile unit shall be performed at the intervals defined in 8.2.2 depending upon its activity, severity of service, and environment, or as specifically indicated below. (These inspections shall include the requirements of 8.2.3): (1) Structural members for deformation, cracks or corrosion. (2) Parts, such as pins, bearings, shafts, gears, rollers,

locking devices, chains, chain sprockets, wire and synthetic ropes and sheaves, for wear, cracks or

distortion. (3) Hydraulic and pneumatic relief valve settings. (4) Hydraulic system for proper oil level. (5) Hydraulic and pneumatic fittings, hoses and tubing for

evidence of leakage, abnormal deformation or excessive

abrasion. (6) Compressors, pumps, motors and generators for loose

fasteners, leaks, unusual noises or vibrations, loss of

operating speed and excessive heating. (7) Hydraulic and pneumatic valves for malfunction and

visible cracks in the external valve housing, for leaks

and sticking spools. (8) Visually inspect any vacuum prevention systems and

verify function of such systems on Category “A” aerial

devices. (9) Hydraulic and pneumatic cylinders and holding valves

for malfunction and visible damage. (10) Hydraulic and pneumatic filters for cleanliness and the

presence of foreign material in the system indicating

other component deterioration. (11) Electrical systems and components for deterioration or

wear including those not readily visible on a frequent

inspection. (12) Performance test of all boom movements. (13) Condition and tightness of bolts and other fasteners. (14) Welds, as specified by the manufacturer. (15) Legible and proper identification, operational and

instructional markings. (16) If the aerial device is rated as an insulated device, the

electrical insulating components and system(s) shall be

thoroughly inspected for lack of cleanliness and other

components that compromise insulation. Then these

components and system(s) shall be tested for

compliance with the rating of the aerial device in

accordance with one of the applicable methods and

procedures as outlined in Section 5.4.3 of this standard:

(a) If the aerial device is used for AC bare-hand work,

the unit shall undergo a 60 Hz test as shown in Table 2 at least every three years;

(b) If the aerial device is used for DC bare-hand work,

the unit shall undergo a DC test as shown in Table 2 at least every three years.

crosses the insulating system(s), or the repair or replacement of an insulating component(s), the unit shall be dielectrically tested in accordance with section 5.4.3;

(d) An insulated replacement boom shall be tested to

insure conformance to 5.3.3 by the supplier;

(e) Bare-hand work units shall be tested as shown in

Table l after any major repair to the insulated boom or any insulated boom replacement. Any suspected items shall be carefully examined or tested and a determination made by a qualified person as to whether they constitute a safety hazard. All unsafe items shall be replaced or repaired before use.

8.3 Inspection and Test Records.

(1) Items to be inspected shall be designated to the

operator or other authorized person making frequent inspections. Records of frequent inspections need not be made. However, where a safety hazard is found, it shall be reported in writing to a person responsible for the corrective action and that report and a record of the correction shall be maintained for five years, or as required by applicable regulations.

(2) Written, dated and signed reports and records shall be

made of periodic inspections and tests and retained for a period of five years or as required by applicable

8.4.1.1 Maintenance. Maintenance and frequency of maintenance

8.4.1.2 Maintenance Training. The owner shall train their

8.4.1.3 Modifications. No modifications or additions which affect

8.6 Weight Distribution. Changes in loading or additions made

8.7 Transfer of Ownership. When a change in ownership of an

8.8 Markings. The markings on the aerial device shall not be

8.9 Parts. When parts or components are replaced they shall

8.10 Safety Bulletins. Owners shall comply with safety related

8.11 Manuals. The owner shall insure that the operating

8.12 Training, Retraining, and Famili ariz ation of Ope rators.

regulations.

shall be determined by the owner in accordance with the manufacturer’s recommendations. Welding repairs of components or welds, designated as critical in the manufacturers manual, shall be made in accordance with the manufacturers recommendations. Should the original manufacturer no longer exist an equivalent entity may determine the required procedure.

maintenance personnel in inspection and maintenance of the aerial device in accordance with the manufacturer’s recommendations and Section 8 of this standard.

the stability, mechanical, hydraulic, or electrical integrity or the safe operatio without the written approval of the manufacturer. If such modifications or changes are made, the capacity, operation, and maintenance instruction markings shall be changed accordingly. In no case shall the safety factors be reduced below those specified in this standard or below the manufacturers design safety factors, whichever are greater. Should the original manufacturer no longer exist, an equivalent entity may approve required modification.

to the mobile unit after the final acceptance that affect weight distribution shall meet applicable regulations by governmental agencies. In no case shall axle loads of the fully loaded vehicle exceed the Gross Axle Weight Ratings (GAWR) assigned by the manufacturer. Note: Any change in weight distribution may adversely affect stability.

aerial device occurs, it shall be the responsibility of the seller to provide the manufacturer's manual(s) for that aerial device to the purchaser. It is the responsibility of the purchaser to notify the manufacturer of the unit model and serial number and the name and address of the new owner within 60 days.

removed, defaced, or altered. All missing or illegible markings shall be promptly replaced.

be identical in specification and function to the original aerial device parts or components or shall provide an equal or greater factor of safety.

bulletins as received from the manufacturer, dealer or installer.

manual(s) is stored on the mobile unit.

n of the aerial device shall be made

6 — ANSI REPRINT

8.12.1 Owner as a Renter or Lessor. When an owner functions as a renter or lessor he shall have the same responsibilities as specified under Section 11 of this standard.

8.12.2 General Training. Only personnel who have received general instructions regarding the inspection, application and operation of aerial devices, including recognition and avoidance of hazards associated with their operation, shall operate an aerial device. Such items covered shall include, but not necessarily be limited to, the following issues and requirements: (1) The purpose and use of manuals. (2) That operating manuals are an integral part of the

aerial device and must be properly stored on the

vehicle when not in use. (3) A pre-start inspection. (4) Responsibilities associated with problems or

malfunctions affecting the operation of the aerial

device. (5) Factors affecting stability. (6) The purpose of placards and decals. (7) Workplace inspection. (8) Applicable safety rules and regulations, such as Part 4,

ANSI C2-1997, National Electrical Safety Code

(applies to utility workers as defined in ANSI C2). The

above standard is an example; other industries using

aerial devices have safety rules pertinent to that

industry. (9) Authorization to operate. (10) Oper ator warnin gs and instructions. (11) Actual operation of the aerial device. Under the

direction of a qualified person, the trainee shall operate

the aerial device for a sufficient period of time to

demonstrate proficiency in the actual operation of the

aerial device. (12) Proper use of personal fall protection equipment.

8.12.3 Retraining. The operator shall be retrained, when so directed by the user, based on the user’s observation and evaluation of the operator.

8.12.4 Familiarization. When an operator is directed to operate an aerial device he/she is not familiar with, the operator, prior to operating, shall be instructed regarding the following items and issues: (1) The location of the manuals. (2) The purpose and function of all controls. (3) Safety devices and operating characteristics specific to

the aerial device.

9. Responsibility of Users.

9.1 General Responsibilities. Each User shall comply with the requirements of this section.

9.2 Personnel. Only trained and authorized personnel shall be permitted to operate the aerial device.

9.3 Training, Retraining, and Familiarization of Operators.

9.3.1 General Training. Only personnel who have received general instructions regarding the inspection, application and operation of aerial devices, including recognition and avoidance of hazards associated with their operation, shall operate an aerial device. Such items covered shall include, but not necessarily be limited to, the following issues and requirements: (1) The purpose and use of manuals. (2) That operating manuals are an integral part of the

aerial device and must be properly stored on the vehicle when not in use.

(3) A pre-start inspection.

(4) Responsibilities associated with problems or

malfunctions affecting the operation of the aerial

device. (5) Factors affecting stability. (6) The purpose of placards and decals. (7) Workplace inspection. (8) Applicable safety rules and regulations, such as Part 4,

ANSI C2-1997, National Electrical Safety Code.

(Applies to utility workers as defined in ANSI C2). The

above standard is an example; other industries using

aerial devices have safety rules pertinent to that

industry. (9) Authorization to operate. (10) Oper ator warnin gs and instructions. (11) Actual operation of the aerial device. Under the

direction of a qualified person, the trainee shall operate

the aerial device for a sufficient period of time to

demonstrate proficiency in the actual operation of the

aerial device. (12) Proper use of personal fall protection equipment.

9.3.2 Retraining. The operator shall be retrained, when so directed by the user, based on the user’s observation and evaluation of the operator.

9.3.3 Familiarization. When an operator is directed to operate an aerial device he/she is not familiar with, the operator, prior to operating, shall be instructed regarding the following items and issues: (1) The location of the manuals. (2) The purpose and function of all controls. (3) Safety devices and operating characteristics specific to

the aerial device.

9.4 Application. The employer and assigned operator shall

9.5 Mobile Operation. Before and during driving, the driver

9.6 Alterations. Altering or disabling of safety devices, guards,

9.7.1 Bare-Hand Work. For bare-hand work, a Category “A”

9.8 Lower Controls. The lower controls of aerial devices shall

10. Responsibilities of Operators

10.1 General Responsibilities. Each operator shall comply with

10.2 Operation. During operation of the aerial device all platform

10.3 Work Platform. The operator shall not use railings, planks,

insure that the aerial device is used only for intended applications as defined in the operating manual, and that recognized safety practices are observed.

shall: (1) Avoid traveling on any surface that adversely affects

vehicle stability.

(2) Maintain a safe distance from obstacles and overhead

lines.

(3) Maintain communications between the driver and the (4) Under all travel conditions, the driver shall limit travel

or interlocks if so equipped shall be prohibited.

aerial device shall be used.

not be used for continuous operation with personnel in the platform.

the requirements of this section.

occupants shall use appropriate fall protection connected to the aerial device at the platform position.

ladders or any other device in or on the work platform for achieving additional working height or reach.

operator. speed in accordance with conditions of the ground

surface, congestion, and slope.

BIL-JAX 2622T

10.4 Brakes. The vehicle parking brake(s) shall be set at all times that the boom is elevated except when the aerial device is being used in accordance with 9.5.

10.5 Loading. Any loading which includes a horizontal load shall be avoided unless the mobile unit is designed for that application.

10.6 Observations. Observations during operation for any defects shall be conducted on an ongoing basis.

10.6.1 Pre-start Inspection. Items determined by the owner in accordance with the manufacturer’s recommendations for each specific aerial device shall be inspected for defects prior to each day’s operation. The following tests and inspections shall be performed by the operator once daily, prior to first use: (1) Operating controls and associated mechanisms for

conditions interfering with proper operation. (2) Visual and audible safety devices for malfunction. (3) Hydraulic or pneumatic systems for observable

deterioration or excessive leakage. (4) Fiberglass and other insulating components for visible

damage or contamination. (5) Missing or illegible operational and instructional

markings. (6) Electrical systems of/or related to the aerial device for

malfunction, signs of excessive deterioration, dirt and

moisture accumulation. (7) Visual inspection of bolts, pins, and other fasteners for

loose, deformed or missing fasteners and other locking

devices. Any suspected items shall be carefully

examined or tested and a determination made by a

qualified person as to whether they constitute a safety

hazard. All unsafe items shall be replaced or repaired

before use.

10.7 Worksite. Before the aerial device is used the worksite shall

10.8 Precautions. Before and during each use the operator shall:

10.9 Mobile Operation. Before engaging in mobile operation the

10.10 Personnel. Only trained and authorized personnel shall be

10.11 Training, Retraining, and Familiarization of Operators.

10.11.1 General Training. Only personnel who have received

be surveyed for hazards such as:

(1) Untamped earth fills. (2) Ditches. (3) Drop-offs and floor obstructions. (4) Debris. (5) Overhead obstructions and electrical conductors. (6) Weather conditions. (7) Presence of unauthorized persons.

(1) Check for overhe ad obstructions and electrical

conductors. (2) Insure that the load on the platform and/or load lifting

devices are in accordance with the manufacturer's

rated capacity. (3) Insure that outriggers and stabilizers are used if the

manufacturer's instructions require their use. (4) Insure that gua rdrails are properly installed, and the

gates are closed. (5) Use outrigger pads when necessary to provide firm

footing.

operator shall determine that the aerial device is specifically designed for mobile operation.

permitted to operate the aerial device.

general instructions regarding the inspection, application and operation of aerial devices, including recognition and avoidance of hazards associated with their operation, shall

operate an aerial device. Such items covered shall include, but not necessarily be limited to, the following issues and requirements: (1)

The purpose and use of manuals.

(2) That operating manuals are an integral part of the

aerial device and must be properly stored on the

vehicle when not in use. (3) A pre-start inspection. (4) Responsibilities associated with problems or

malfunctions affecting the operation of the aerial

device. (5) Factors affecting stability. (6) The purpose of placards and decals. (7) Workplace inspection. (8) Applicable safety rules and regulations, such as Part 4,

ANSI C2-1997, National Electrical Safety Code

(applies to utility workers as defined in ANSI C2). The

above standard is an example; other industries using

aerial devices have safety rules pertinent to that

industry. (9) Authorization to operate. (10) Operator warnings and instructions. (11) Actual operation of the aerial device. Under the

direction of a qualified person, the trainee shall operate

the aerial device for a sufficient period of time to

demonstrate proficiency in the actual operation of the

aerial device. (12) Proper use of personal fall protection equipment.

10.11.2 Retraining. The operator shall be retrained, when so

10.11.3 Familiarization. When an operator is directed to operate an

directed by the user, based on the user’s observation and evaluation of the operator.

aerial device he/she is not familiar with, the operator, prior to operating, shall be instructed regarding the following items and issues: (1) The location of the manuals. (2) The purpose and function of all controls. (3) Safety devices and operating characteristics specific to

the aerial device.

Responsibilities of Renters, Lessors or Lessees

11.1 General Responsibilities. Each renter or lessor or lessee

11.1.1 Lessor or Lessee as Dealer or Installer. When a lessor or

11.1.2 Lessor or Lessee as Owner. When a lessor or lessee

11.1.3 Lessor or Lessee as User. When a lessor or lessee uses

11.1.4 Lessor or Lessee as Operator. When a lessor or lessee

11.2 Ownership Duties. The renter or lessor shall carry out the

shall comply with the requirements of the applicable section or sections below.

lessee uses the aerial device as a dealer or installer he shall have the same responsibilities as specified under Section 7 of this standard.

uses the aerial device as an owner he shall have the same responsibilities as specified under Section 8 of this standard.

the aerial device as a user he shall have the same responsibilities as specified under Section 9 of this standard.

uses the aerial device as an operator he shall have the same responsibilities as specified under Section 10 of this standard.

duties of ownership specified in this standard which are not assigned to the renting entity or lessee as the user.

6 — ANSI REPRINT

11.3 Obligations. Upon delivery each renter or lessor of an aerial device shall provide the operators manual and the ANSI/SIA A92.2-xxxx Manual of Responsibilities for dealers, owners, users, operators, lessors and lessees of Vehicle Mounted Elevating and Rotating Aerial Devices. These manuals shall be stored on the mobile unit.

11.4 Training. The renter or lessor shall offer training or training materials that aid the renting entity or lessee in the operation, inspection, testing and maintenance of the aerial device. This training shall be offered initially and subsequently on request.

11.4.1 General Training. Only personnel who have received general instructions regarding the inspection, application and operation of aerial devices, including recognition and avoidance of hazards associated with their operation, shall operate an aerial device. Such items covered shall include, but not necessarily be limited to, the following issues and requirements: (1) The purpose and use of manuals. (2) That operating manuals are an integral part of the

aerial device and must be properly stored on the

vehicle when not in use. (3) A pre-start inspection. (4) Responsibilities associated with problems or

malfunctions affecting the operation of the aerial

device. (5) Factors affecting stability. (6) The purpose of placards and decals. (7) Workplace inspection.

(8) Applicable safety rules and regulations, such as Part 4,

ANSI C2-1997, National Electrical Safety Code (applies to utility workers as defined in ANSI C2). The above standard is an example; other industries using aerial devices have safety rules pertinent to that

industry. (9) Authorization to operate. (10) Operator warnings and instructions. (11) Actual operation of the aerial device. Under the

direction of a qualified person, the trainee shall operate

the aerial device for a sufficient period of time to

demonstrate proficiency in the actual operation of the

aerial device. (12) Proper use of personal fall protection equipment.

11.4.2 Familiarization. When an operator is directed to operate an aerial device he/she is not familiar with, the operator, prior to operating, shall be instructed regarding the following items and issues:

(1) The location of the manuals. (2) The purpose and function of all controls. (4) Safety devices and operating characteristics specific to

the aerial device.

11.5 Communications. In the event the manufacturer or installer provides the renter or lessor manuals, bulletins, or other materials for the information of the user of an aerial device, the renter or lessor shall pass them on to the user without any undue delay.

Figure 6-1. Minimum Safe Approach Distances

Do not allow machine, personnel, or conductive materials inside prohibited zone. Maintain M.S.A.D. from all energized lines and parts as well as those shown. Assume all electrical parts and wires are energized unless known otherwise.

Diagrams shown are only for purposes of illustrating M.S.A.D. work positions, not all work positions.

DENOTES

PROHIBITED

Voltage Range

(Phase to Phase)

0 to 300V Avoid Contact Over 300V to 50KV 10 3.05 Over 50KV to 200KV 15 4.60 Over 200KV to 350KV 20 6.10 Over 350KV to 500KV 25 7.62 Over 500KV to 750KV 35 10.67 Over 750KV to 1000KV 45 13.72

Minimum Safe Approach Distance

ZONE

(Feet) (Meters)

Minimum Safe Approach Distances

BIL-JAX 2622T

7 MATERIAL SAFETY

The following Material Safety Data Sheets describe the correct procedures for the safe handling of chemical components within the Model 2622T Telescoping Boom Lift, as well as any potential health and safety hazards related to these chemicals. Material Safety Data Sheets are included here in accordance with applicable federal and state regulations. Read and observe all safety precautions. Maintain awareness of potential health and safety hazards.

MATERIAL SAFETY DATA SHEET

FOR LEAD ACID BATTERIES, WET, FILLED WITH ACID

SECTION I – GENERAL INFORMATION

Manufacturer’s Name: Crown Battery Mfg. Company EMERGENCY NO: 800 487-2879 Street Address: 1445 Majestic Drive OR 800 OIL-TANK City, State, Zip Fremont, Ohio 43420 Phone Number: 419 334-7181 REVISION DATE: 5/18/2000

SECTION II -- MATERIAL IDENTIFICATION AND INFORMATION

COMPONENTS PERCENT OSHA ACGIH OTHER LIMITS CAS NUMBER Hazardous Components PEL TLV 1% or greater Carcinogens 0.01% or greater

METALLIC LEAD METAL 25.5% 0.05 mg/m3 0.05 mg/m3 LEAD SULFATES 18.2% 0.05 mg/m3 0.05 mg/m3 NONE 7439-92-1 LEAD OXIDES 18.0% 0.05 mg/m3 0.05 mg/m3 NONE 7439-92-1 POLYPROPYLENE CASE MTL 6.4% SEPARATORS 3.5% SULFURIC ACID (H2SO4) 5.2% 1.0 mg/m3 1.0 mg/m3 NONE 7664-93-9 WATER 19.2%

REGULATORY INFORMATION: Those ingredients listed above are not subject to the reporting requirements of 313

of Title III of the Superfund Amendments and Reauthorization Act. The items are covered in an exemption as a “Manufactured Article”. 372.30(b)

NONE 7439-92-1

SECTION III -- PHYSICAL / CHEMICAL CHARACTERISTICS

Boiling Point Approximately 203F Vapor Density: Greater Than 1 Vapor Pressure 14 @ 37% @ 80 F Melting Point: -36 F to -10.6 F Solubility in Water 100% Water Reactive: Yes, Produces Heat Specific Gravity 1.245 - 1.295 Battery Electrolyte Appearance & Odor Clear Liquid with Sharp Pungent Odor

SECTION IV -- FIRE AND EXPLOSION HAZARD DATA

Flash Point: Not Combustible Auto Ignition Temperature N/A Flammability Limits in Air % by Volume: N/A Extinguishing Media: Dry Chemical Carbon Dioxide, Water Fog, Water Special Fire Fighting Procedures released when acid decomposes. Wear NIOSH approved self-contained breathing apparatus.

Unusual Hazards acid resistant clothing. Sulfuric acid reacts violently with metals, nitrates, chlorates, carbides, fulminates, picrates and other organic materials. Reacts with most metals to yield explosive/flammable hydrogen gas. This reaction is intensified when sulfuric acid is diluted with water to form battery electrolyte.

: Water applied to sulfuric acid generates heat and causes acid to splatter. Wear full-cover

: Sulfuric Acid Fumes, Sulfur Dioxide Gas or Carbon Monoxide may be

BIL-JAX 2622T

MATERIAL SAFETY DATA SHEET

FOR LEAD ACID BATTERIES, WET, FILLED WITH ACID (Continued)

SECTION V -- HEALTH HAZARD DATA

Primary Routes of Entry: Inhalation: YES Skin: YES Ingestion: YES Health Hazards: Acute EYES, SKIN, RESPIRATORY SYSTEM & DIGESTIVE SYSTEM Chronic: EYES, SKIN, RESPIRATORY SYSTEM & DIGESTIVE SYSTEM Signs and Symptoms of Exposure: IRRITATION OF EXPOSED AREA, BURNS AND RESPIRATORY PROBLEMS NO POSSIBILITY OF EXPOSURE OF LEAD WILL OCCUR UNLESS BATTERY IS DESTROYED. Medical Conditions Generally Aggravated By Exposure: EXPOSURE TO MIST MAY CAUSE LUNG DAMAGE & AGGRAVATE PULMONARY CONDITION. Emergency First Aid Procedures: SEEK MEDICAL ASSISTANCE FOR FURTHER TREATMENT, OBSERVATION AND SUPPORT IF NECESSARY. Eye Contact: WASH WITH COPIOUS QUANTITIES OF COOL WATER FOR AT LEAST 15 MINUTES Skin Contact: FLUSH AREA WITH LARGE AMOUNTS OF COOL WATER FOR AT LEAST 15 MINUTES Inhalation: REMOVE TO FRESH AIR, IF BREATHING IS DIFFICULT - GIVE OXYGEN Ingestion: GIVE MILK TO DRINK, DO NOT

SECTION VI -- REACTIVITY DATA

Stability: STABLE Conditions to Avoid: N/A Incompatibility: AVOID COMBUSTIBLES, ORGANIC MATERIALS, AND STRONG REDUCING AGENTS Hazardous Decomposition Products: SULFUR TRIOXIDE, CARBON MONOXIDE, SULFURIC ACID FUMES, & SULFUR DIOXIDE Hazardous Polymerization: MAY OCCUR Conditions to Avoid: N/A

INDUCE VOMITING. CALL PHYSICIAN

SECTION VII -- SPILL OR LEAK PROCEDURES

Steps to be taken in case material is released or spilled:

Waste disposal method: CONSULT STATE ENVIRONMENTAL AGENCY. INDIVIDUAL STATE REGULATIONS VARY Precautions to be taken in Handling & Storage: SEPARATE FROM INCOMPATIBLE MATERIALS, KEEP AWAY FROM FIRE, SPARKS AND HEAT Other Precautions and/or Special Hazards: CONTACT WITH METALS MAY PRODUCE TOXIC SULFUR DIOXIDE FUMES & MAY ALSO RELEASE FLAMMABLE HYDROGEN GAS. THIS REACTION IS INTENSIFIED WHEN DILUTED. NFPA Rating: HEALTH: 3 FLAMMABILITY: 0 REACTIVITY: 2 SPECIAL: 0 HMIS Rating: HEALTH: 3 FLAMMABILITY: 0 REACTIVITY: 2 PERSONAL PROTECTION: X

CONTAIN SPILL, USING NON-COMBUSTIBLE MATERIALS: VERMICULITE, DRY SAND & EARTH. NEUTRALIZE WITH LIME, SODA ASH, SODIUM BICARBONATE, ETC.

SECTION VIII -- CONTROL AND PROTECTIVE MEASURES

Respiratory Protection: ABOVE P.E.L.: NIOSH APPROVED, FITTED, FULL FACE RESPIRATOR Protective Gloves: ACID RESISTANT Eye Protection: FULL FACE PROTECTION Ventilation: LOCAL EXHAUST: VENTILATED AREA PREFERRED MECHANICAL: IF BELOW P.E.L. SPECIAL: MUST BE ACID & EXPLOSIVE RESISTANT OTHER: MUST BE ACID & EXPLOSIVE RESISTANT Other Protective Equipment: ACID RESISTANT CLOTHING AND BOOTS Hygienic Work Practices: N/A

7 — MATERIAL SAFETY

MATERIAL SAFETY DATA SHEET

DEXRON III/MERCON AUTOMATIC TRANSMISSION FLUID (HYDRAULIC OIL)

SECTION I -- GENERAL INFORMATION

TRADE NAME: CITGO TRANSGARD™ ATF, DEXRON III/MERCON EMERGENCY TELEPHONE NUMBERS: 918.495.4700 (medical); 800.424.9300 (chemical) CHEMICAL FAMILY: AUTOMATIC TRANSMISSION FLUID, LUBRICATING OIL CAS NUMBER: MIXTURE. REVISION DATE: 10/29/98 HAZARDOUS INGREDIENTS: CONTAINS NO INGREDIENTS NOW KNOWN TO BE HAZARDOUS AS

SECTION II -- HEALTH HAZARD DATA

PRIMARY ROUTES OF ENTRY: INHALATION, SKIN ABRASION AND INGESTION. CARCINOGENIC: NO SYMPTOMS (INGESTION, CONTACT, INHALATION): EYES: FLUSH WITH WATER FOR 15 MINUTES SKIN: WASH THOROUGHLY WITH WARM SOAPY WATER. INGESTION: DO NOT INDUCE VOMITTING-SEEK MEDICAL ATTENTION. CONDITIONS AGGRAVATED BY EXPOSURE: NONE KNOWN AIR EXPOSURE LIMITS: P.E.L. 5 mg/m3 (OSHA) T.L.V. 10mg/m3 (ACGIH)

HEALTH: 0 FIRE: 1 SPECIFIC: X REACTIVITY: 0

SECTION III -- PHYSICAL DATA

BOILING POINT/FREEZING POINT: N/A VAPOR PRESSURE (PSIA): N/A SPECIFIC GRAVITY (H20=1): 0.86 SOLUBILITY IN WATER: NEGLIGIBLE; INSOLUBLE IN COLD WATER PH OF CONCENTRATE: N/A APPEARANCE AND ODOR: RED LIQUID, MILD PETROLEUM ODOR

DEFINED IN OSHA 29 CFR 1910.1000 AND OSHA 29 CFR 1910.1200.

MILD, TRANSIENT SKIN OR EYE IRRITATION MAY OCCUR.

SECTION IV -- FIRE AND EXPLOSION HAZARD DATA

FLASH POINT (METHOD USED): CLOSED: 339º F (Pensky-Martens); OPEN: 390º F (Cleveland). FLAMMABLE LIMITS: NOT DETERMINED LEL: N/A UEL: N/A EXTINGUISHING MEDIA: DRY CHEMICAL, FOAM, CO2, WATER FOG. TREAT AS CLASS B FIRE. UNUSUAL FIRE AND EXPLOSION HAZARDS: PRODUCES COMBUSTIBLE VAPOR AT TEMPERATURES ABOVE FLASH POINT

SECTION V -- REACTIVITY DATA

STABILITY: STABLE CONDITIONS TO AVOID: AVOID EXTREMES OF HEAT; IGNITION SOURCES. INCOMPATIBILITY (MATERIALS TO AVOID): STRONG OXIDIZING MATERIALS. HAZARDOUS DECOMPOSITION PRODUCTS: INCOMPLETE COMBUSTION MAY CAUSE CARBON OXIDES. HAZARDOUS POLYMERIZATION: WILL NOT OCCUR.

SECTION VI -- SPECIAL PROTECTION INFORMATION

RESPIRATORY PROTECTION (SPECIFIC TYPE): NONE REQUIRED VENTILATION: NORMAL LOCAL EXHAUST: NORMAL MECHANICAL EXHAUST (GENERAL): X PROTECTIVE GLOVES: OIL IMPERVIOUS GLOVES RECOMMENDED EYE PROTECTION: SAFETY GLASSES RECOMMENDED OTHER PROTECTIVE EQUIPMENT: PROTECTIVE CLOTHING RECOMMENDED

SPECIAL LABELLING INSTRUCTIONS: NOT REQUIRED SPECIAL PACKAGING RECOMMENDATIONS: NONE HANDLING AND STORAGE RECOMMENDATIONS: AVOID EXTREMES OF COLD OR HEAT. STORE IN CLEAN DRY AREA.

SPILL OR LEAK PROCEDURES: IN CASE OF LEAK OR SPILL, DIKE AND ABSORB WITH INERT MATERIAL. FOLLOW

DISCLAIMER: THE INFORMATION CONTAINED HEREIN HAS BEEN COMPILED FROM SOURCES

CONSIDERED TO BE DEPENDABLE AND IS ACCURATE TO THE BEST OF THE SELLER’S

KNOWLEDGE. THE SELLER MAKES NO WARRANTY WHATSOEVER, EXPRESSED OR IMPLIED, REGARDING THE ACCURACY

OF SUCH DATA OR THE RESULTS TO BE OBTAINED FROM THE USE THEREOF.

ALL LOCAL, STATE AND FEDERAL REGULATIONS FOR DISPOSAL.

BIL-JAX 2622T

8 EQUIPMENT OPTIONS

The Bil-Jax lift may be equipped with one or more optional components designed for the convenience and safety of operators when using the equipment to accomplish specific tasks.

Always use only those components manufactured and/or authorized by Bil-Jax, Inc. Never make any adjustments or modifications or otherwise alter the equipment in any way that is not expressly recommended by the manufacturer.

When operating a machine equipped with optional components, observe all safety precautions set forth by the manufacturer, as well as all government codes and regulations regarding this equipment and its components.

Consult rental agency or equipment manufacturer regarding which optional components may be installed on the boom lift. For questions regarding safe use, contact your regional Bil-Jax dealer before attempting operation

BIL-JAX 2622T

MATERIAL LIFTING HOOK

If the boom lift is equipped with a material lifting hook, observe the following procedure for material lift operation:

 Remove platform controls from the work

platform by releasing the latch on the back of the platform control box.

 Disconnect platform control box from the load

sense module located on the boom lift bulkhead.

 Remove the electric loopback plug from the

receptacle on the bottom right of the ground control panel (Figure 8-1) and insert the platform control cable into the open receptacle.

1. To Boom Cable.

Do Not Remove.

2. To Platform Controls.

a. Disconnect platform controls. b. Replace with loopback plug from ground

controls.

c. Plug platform controls into open receptacle

on the bottom right of ground control panel.

Figure 8-1. Material Lifting Hook Configuration

Figure 8-2. Material Lifting Hook Installation

 Operate the material lifting hook remotely, using

the platform control box for optimal control.

WARNING

Always observe the manufacturer’s weight lifting limitations when using the material lifting hook. Always use lifting straps or wire rope slings that are rated at a minimum 500 lbs lifting capacity. Never stand beneath an elevated load or position an elevated load above personnel. Falling objects can cause serious injury or death.

DANGER

This machine is not insulated for use near electrical power lines and DOES NOT provide protection from contact with or close proximity to any electrically charged conductor. Operator must maintain safe clearances at all times and always allow for platform movement such as wind-induced sway. Refer to Table 1-1 for minimum safe approach distances between the machine and electrical power lines.

 Reverse the procedure to reattach the work

platform.

 Insert the removed electric loopback plug into

the open receptacle on the load sense module, replacing the platform control cable.

 Remove the retaining pin holding the platform to

boom lift. Firmly secure platform to prevent equipment damage.

 Remove the platform from the boom by lifting

cage up and away from the mounting bracket on the boom nose.

 Attach the material lifting hook to the mounting

bracket on the boom nose and insert the retaining pin (Figure 8-2).

PLATFORM ROTATOR

The optional platform rotator allows the operator to rotate the elevated work platform 90º around a vertical axis by actuating a rotator handle found below the platform control panel.

To operate manual platform rotator, turn the rotator handle in the direction of desired rotation (clockwise or counterclockwise). Motion continues in the desired direction until rotator handle is released or the platform reaches a safe travel limit.

WARNING

Installation of a manual platform rotator may reduce the rated load limit of the work platform. Follow all manufacturer’s recommendations and safety precautions when operating a boom lift equipped for platform rotation.

8 — EQUIPMENT OPTIONS

Figure 8-3. Manual Platform Rotator

BIL-JAX 2622T

REPLACEMENT DECALS

Refer to Table 8-1 and Figure 8-6 to Figure 8-7 for a descriptions and locations of replacement decals for optional components. Refer to Section 5 for a comprehensive list of standard decals on the Bil-Jax Model 2622T Telescoping Boom Lift.

Table 8-1. Replacement Decals

Decal No. Description of Decal

B06-00-0474 NOTICE: Max. Load (All

Configurations)

B06-00-0485 NOTICE: Material/Lifting

Configuration Set-Up (Material Lift Option Only)

B06-00-0497 NOTICE: Load Capacity for Material

Lifting Hook (Material Lift Option

Only) B06-00-0527 WARNING: Drive and Set Hazards B06-00-0528 NOTICE: Drive and Set Instruction B06-00-0529 NOTICE: Manual Platform Rotation

(Manual Rotation Option Only)

All decals related to optional equipment have a quantity of one (1) unless otherwise noted.

Figure 8-6. Material Lift Decal Placement

Figure 8-7. Decal Locations

8 — EQUIPMENT OPTIONS

Inspection Form for BilJax Summit Series® Aerial Work Platforms

Machine Model No. Serial No. Date of Manufacture: Inspection Performed by: Date of Inspection: Inspection Location:

Inspection and Maintenance of the above listed machine shall be performed only b y fully trained, authorized and, where applicable, certified personnel. All service checks shall be performed in accordance with manufacturer’s recommendations (see the appropriate BilJax Parts and Service Manual) and ANSI/SIA A92.2-2001. Copy this form as needed. Direct any questions to the BilJax Customer Service Department: 1.800.537.0540 or visit BilJax online at www.biljax.com.

Inspector: Initial in the space provided beside each service check as it is completed. Sign and date form after Inspection. Owner: Keep this form for your records.

Frequency Key: D=Daily (or before each use); W=Weekly; M=Monthly; A=Annually

Service Check Description Frequency Initials

Verify that all decals are correctly applied and in plain view. D Verify that all controls and indicators at ground and platform control stations

operate properly. Verify operation of running and brake lights. D Verify proper tire inflation. D Inspect tires for damage or loose or missing lug nuts. D Inspect structural components for obvious damage or debris. D Inspect machine for loose, damaged or missing fasteners, including pins and bolts. D Verify that boom down limit switches operate correctly. D Verify that outrigger safety interlocks operate correctly. D Inspect hydraulic system and fluid levels. D Check battery electrolyte level. W Inspect electrical wiring W Inspect transport hitch for damage W Inspect boom for missing, loose or damaged hardware. W Inspect all hydraulic system components including pump and motor and cylinders

for damage, leaks, loss of pressure or speed, and unusual noise or vibration. Clean all battery terminals. M Check battery connections. M Verify proper operation of manual lowering valves and hand pump. M Lubricate all compartment hinges and latches, slew ring and mating gear using

NLGI Grade 2 multi-purpose grease. Check Wheel Nut torque. M Replace Hydraulic Oil and Hydraulic Filter. A Inspect pivot pins and cylinders, including rod ends for wear or damage. A Visually inspect all welds for wear, damage or corrosion. A Inspect outriggers for wear or damage. A Verify proper level sensor operation A Inspect and adjust axle and parking brake. A Load test all boom functions with a 500lb (227kg) load (440lb/200kg load if

machine is equipped with jib/platform rotate). Check slew ring for wear or damage. A

Inspector Signature_________________________________ Date___/____/_______

Bil-Jax, Inc.

125 Taylor Parkway Archbold, Ohio 43502 800-537-0540

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect that could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Bil-Jax, Inc.

If the NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, the NHTSA cannot become involved in any individual problems between operators, users, or lessors, and Bil-Jax, Inc.

To contact the NHTSA you may either call the Auto Safety Hotline toll-free at 800-424-9393 (366-0123 in the Washington, DC area) or write to:

NHTSA U.S. DEPARTMENT of TRANSPORTATION 400 7th Street SW (NSA-11) Washington, DC 20590

You can also obtain other information regarding motor vehicle safety by calling the Hotline.

BIL-JAX SUMMIT SERIES QUICK START GUIDE

Obtain, read and obey all Safety Guidelines:

 In this manual  Attached to the boom lift  Indicated by federal, state and local regulations

Position the boom lift in work area Unhitch from the tow vehicle and disengage all boom travel latches Turn Key Switch to ground control station for outrigger extension and leveling Extend outriggers and level the boom

 Press and hold the outrigger EXTEND and AUTO LEVEL buttons  A buzzer will sound and all LEDs will become lit on the Outrigger Control Panel

when the boom is level

Turn Key Switch to platform control station. Enter the work platform and attach safety harness to the Fall Protection

Attachment Point Press and hold the desired SPEED and function buttons to operate boom lift

NOTES

Distributed by:

125 Taylor Parkway Archbold, OH 43502 Phone (419) 445-8915 (800) 537-0540 Fax (419) 445-0367

http://www.biljax.com

Bil-Jax 2622T 101-67T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

OPERATOR’S

BOOM PERSONNEL LIFT

LIST OF TABLES

BEFORE OPERATION DURING OPERATION

MAINTENANCE SAFETY

General Maintenance

Battery Maintenance

DAMAGED EQUIPMENT POLICY

Safety Statement

Damage Policy

Damage Repair Notice

SPECIFICATIONS SERIAL NUMBER_____________________________

WARRANTY

GROUND CONTROL STATION

The ground control station includes the following controls and Indicators. Refer to Figure 3-1 for control locations.

1. Key Switch

2. Battery Condition Indicator

3-4. Engine Start and Choke (Hybrid Model only)

6. Emergency Stop Button

The platform control station includes the following controls and Indicators. Refer to Figure 3-2 for control locations.

1-2. Engine Start and Choke (DC/Gas Model only)

3. Horn Button

4. Battery Condition Indicator

5. Emergency Stop Button

Figure 3-7. Manual Lowering Valve

Refer to Figure 3-10.

MATERIAL SAFETY DATA SHEET

MATERIAL SAFETY DATA SHEET

Bil-Jax, Inc.

REPORTING SAFETY DEFECTS
