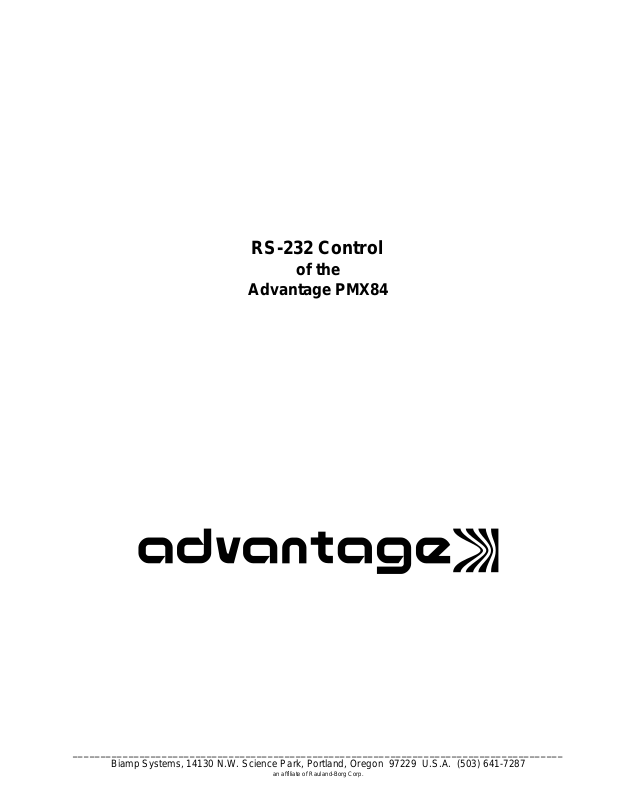

RS-232 Control
of the
Advantage PMX84
________________________________________________________________________________________
Biamp Systems, 14130 N.W. Science Park, Portland, Oregon 97229 U.S.A. (503) 641-7287
an affiliate of Rauland-Borg Corp.
Introduction
Hexadecimal, ASCII-Hex, and "Pseudo-Hex" Numbers
Throughout this document, hexadecimal numbers shall be represented by preceding the number with "0x". For example: the hexadecimal equivalent of the decimal number 255 is 0xFF.
Individual ASCII characters, except control characters, will be enclosed in single quotes. For example: the ASCII character 'A' has the hexadecimal value 0x41. The ASCII "carriage return" control character shall be represented as . An ASCII code chart is included with this document for your convenience.
When an 8-bit binary data value is being transmitted over a serial data communications link, it is a common practice to transmit the byte as two "ASCII-hex" characters - one character represents the most significant nibble of the data value and the other character represents the least significant nibble (a nibble is 4-bits; half of a byte). Each ASCII-hex character is in the range of '0' thru '9' or 'A' thru 'F' (from the ASCII code chart, 0x30 thru 0x39 or 0x41 thru 0x46). For example, the hexadecimal equivalent of the decimal number 61 is 0x3D. To transmit this in an ASCII-hex format, first transmit the ASCII character '3' (whose hex value is 0x33), followed by the ASCII character 'D' (whose hex value is 0x44). This is the standard way to transmit an ASCII-hex value. In some cases, the lower case characters 'a' thru 'f' (0x61 thru 0x66) are accepted in addition to the upper case letters 'A' thru 'F'.
The Advantage PMX84 does not utilize standard ASCII-hex format. The PMX84 computer commands implement what I call "pseudo-hex" notation (also sometimes referred to as a "poor man's" ASCII-hex notation). Instead of representing the hexadecimal value using the ASCII characters '0' thru '9' and 'A', 'B', 'C', 'D', 'E', and 'F', the pseudo-hex format uses the ASCII characters '0' thru '9' and the characters ':', ';', '<', '=', '>', and '?'. As you can see by studying the ASCII code chart, a binary nibble may be converted to its equivalent pseudo-hex character by simply adding 0x30.
A binary/decimal/hexadecimal/pseudo-hex conversion chart is included at the end of this manual for your convenience.
Computer Control of the Advantage PMX84 page 1
Data Communications Parameters
Serial Port Data Communications Parameters
The PMX84 normally communicates through its standard RS-232 serial interface at a data rate ("baud" rate) of 2400 bits per second with 8 data bits, no parity, and 1 stop bit. Although the factory default setting is 2400 bits per second, operation at 9600 bits per second is also possible by changing an internal jumper strap. The PMX84 utilizes a subset of the standard 7-bit ASCII character set. The eighth data bit (bit 7 - the most significant bit) of each character transmitted by the computer should always be 0. The computer should not echo the characters it receives from the PMX84.
Since the PMX84's standard RS-232 serial interface only has a single-character input buffer for its incoming serial data, a form of flow control must be implemented by the computer in order to guarantee that no characters are lost. Neither hardware (DTR or RTS) nor XON/XOFF (also known as DC1/DC3 or control-S/control-Q) handshaking is supported by the PMX84. However, each character which the PMX84 receives with its standard RS-232 serial interface will be "echoed" back to the computer. Flow control may be implemented by the computer software by simply waiting for each character's echo from the PMX84 before transmitting the next character, since the PMX84 doesn't retrieve and echo an incoming character until it has finished processing the previous character.
PMX-Link Data Communications Parameters
The PMX-Link is a serial communications interface which was designed primarily to allow multiple PMX84s to be linked together in such a way that all units react to the same remote control button events. Although the PMX-Link is not a true RS-232 interface, the voltage levels and impedances associated with the PMX-Link are compatible with RS-
232. The PMX-Link operates at a bit rate of 2400 bits per second with 8 data bits, no parity, and 1 stop bit. The PMX-Link bit rate is not adjustable.
The PMX-Link is a one-way communications link. The PMX84 does not echo the characters it receives and there is no flow control mechanism. The PMX-Link has a small (8 byte) input buffer which allows it to receive short bursts of data at the full data rate (approximately one character every 4.2 msec), however, when performing computer control using the PMX-Link, the computer should avoid sending characters to the PMX84 at an average rate of greater than approximately 20 characters per second (approximately one character every 50 msec).
page 2 Computer Control of the Advantage PMX84
Computer Control
The Advantage PMX84 has an RS-232-compatible serial interface which allows it to be controlled by a computer or by a system controller such as those provided by AMX or Crestron. In addition to its standard RS-232 serial interface, the PMX84 has an RS-232 compatible expansion port ("PMX-Link") which may also be used for computer control. The PMX84 offers the following three methods of computer control:
Control Button Emulation. This method of computer control allows the computer to
emulate Biamp's standard infrared remote control transmitter or wall-mount remote control panel. Using this method, the computer outputs ASCII characters which are equivalent to the characters which would be generated by a remote control connected to remote port 1 of the PMX84. These ASCII characters are transmitted from the computer to the PMX84's standard RS-232 compatible serial port. Control Button Emulation is simple to perform, however, it only provides "one-way" control of the PMX84 - it allows the computer to send simple commands to the PMX84, but it does not provide any mechanism for requesting status information from the PMX84.
PMX-Link. This method of computer control is similar in concept to Control Button
Emulation, however, in addition to emulating a remote control connected to remote port 1, the PMX-Link allows emulation of all four remote ports plus all sixteen logic inputs of the PMX84. Using this method, the computer or controller transmits binary "serial key codes" to the PMX84 using the RS-232 compatible PMX-Link. Computer control using the PMX-Link is simple to perform, however, like Control Button Emulation, it only provides "one-way" control of the PMX84 - it allows the computer to send simple commands to the PMX84, but it does not provide any mechanism for requesting status information from the PMX84. As a general rule, the PMX-Link should be used for computer control only in installations where the four remote control ports and sixteen logic inputs are not being used.
Advanced Computer Control. This method of computer control provides advanced
commands which allow "two-way" control of the PMX84. Using Advanced Computer Control commands, the computer may request status information from the device as well as send commands to the device. The computer communicates with the PMX84 using the PMX84's standard RS-232 compatible serial port.
Computer Control of the Advantage PMX84 page 3
Control Button Emulation
Control Button Emulation is the simplest form of computer control of the Advantage PMX84. This method of operation allows the computer to emulate the operation of a standard Biamp remote control transmitter connected to remote port 1.
For each button on a standard Biamp remote control, there is a corresponding ASCII character. In order to emulate a remote control button, the computer simply transmits the corresponding ASCII character to the PMX84's standard RS-232 serial port. Each character received by the PMX84 will be echoed back to the computer.
The standard Biamp remote control devices never exceed a transmission rate of 9 characters per second. If the computer wishes to perform Control Button Emulation at a rate of greater than 20 characters per second (50 msec per character), flow control should be implemented by waiting for the echo of each character before transmitting the next character. At slower speeds, flow control should not be necessary.
The following table summarizes the ASCII character codes for Control Button Emulation corresponding to each of the 40 remote control buttons for remote 1 of the PMX84. These button codes are also summarized on the ASCII code chart provided at the end of this manual. The remote control buttons on the standard Biamp transmitter are numbered from left to right going from bottom to top with the lower left-hand button being button number 1.
Control Button Emulation ASCII Codes (remote 1)
button 1 'B' (0x42) button 2 'C' (0x43) button 3 'D' (0x44) button 4 'E' (0x45) button 5 'F' (0x46) button 6 'G' (0x47) button 7 'H' (0x48) button 8 'I' (0x49) button 9 'J' (0x4A) button 10 'K' (0x4B) button 11 'L' (0x4C) button 12 'M' (0x4D) button 13 'N' (0x4E) button 14 'O' (0x4F) button 15 'P' (0x50) button 16 'Q' (0x51) button 17 'R' (0x52) button 18 'S' (0x53) button 19 'T' (0x54) button 20 'U' (0x55)
button 21 'V' (0x56) button 22 'W' (0x57) button 23 'X' (0x58) button 24 'Y' (0x59) button 25 'Z' (0x5A) button 26 '[' (0x5B) button 27 '\' (0x5C) button 28 ']' (0x5D) button 29 '^' (0x5E) button 30 '_' (0x5F) button 31 '`' (0x60) button 32 'b' (0x62) button 33 'c' (0x63) button 34 'd' (0x64) button 35 'e' (0x65) button 36 'f' (0x66) button 37 'g' (0x67) button 38 'h' (0x68) button 39 'i' (0x69) button 40 'j' (0x6A)
page 4 Computer Control of the Advantage PMX84
Device Select Prefix Characters
When using Advanced Computer Control, up to eight PMX84s may be linked together and individually controlled by the computer (if each device is first assigned a unique device number). When using Control Button Emulation, a limited subset of device addressing may be performed, which allows individual control of up to four PMX84s (with device numbers 1 thru 4). This is accomplished by transmitting a device select prefix code immediately prior to each control button ASCII character code. The device select prefix code is inspected by each device to determine whether or not the device should react to the button code which immediately follows. (Note: do not transmit prefix codes prior to repeat codes.) If a button code is not immediately preceded by a device select prefix character, then all PMX84s in the system will react to that button code. The following table summarizes the ASCII characters to use for selecting various devices. This information is also summarized in the ASCII code chart provided at the end of this manual.
Device Select Prefix Codes
select device 1 'l' (0x6C) select device 2 'm' (0x6D) select devices 1 & 2 'n' (0x6E) select device 3 'o' (0x6F) select devices 1 & 3 'p' (0x70) select devices 2 & 3 'q' (0X71) select devices 1 & 2 & 3 'r' (0x72) select device 4 's' (0x73) select devices 1 & 4 't' (0x74) select devices 2 & 4 'u' (0x75) select devices 1 & 2 & 4 'v' (0x76) select devices 3 & 4 'w' (0x77) select devices 1 & 3 & 4 'x' (0x78) select devices 2 & 3 & 4 'y' (0x79) select devices 1 & 2 & 3 & 4 'z' (0x7A)
Computer Control of the Advantage PMX84 page 5
Computer Control using the PMX-Link
This method of computer control is very similar to Control Button Emulation. However, by interfacing to the PMX84 using the PMX-Link, the computer is able to emulate all 200 of the button "events" which the PMX84 supports. This includes emulation of remote control activity from all four remote ports as well as from the 16 logic inputs. Each button event has a corresponding 8-bit "serial key code" (see the following table). The computer (or other controller) may emulate a button event by transmitting the corresponding 8-bit serial key code to the PMX-Link.
As mentioned earlier, the proper data communications settings are: 2400 bits per second, no parity, 1 stop bit. To avoid overrunning the PMX-Link's input buffer, the average transmission rate should not exceed 20 characters per second.
Unlike Control Button Emulation, the PMX-Link does not support device select prefix codes.
page 6 Computer Control of the Advantage PMX84
PMX-Link Serial Key Codes
button
event #
0 - 39 0x00 - 0x27 Remote Port 1 Buttons 1 - 40
40 - 79 0x28 - 0x4F Remote Port 2 Buttons 1 - 40
80 - 119 0x50 - 0x77 Remote Port 3 Buttons 1 - 40
120 - 159 0x78 - 0x9F Remote Port 4 Buttons 1 - 40
160 0xA0 Logic Input 1 Contact Closed 161 0xA1 Logic Input 2 Contact Closed 162 0xA2 Logic Input 3 Contact Closed 163 0xA3 Logic Input 4 Contact Closed 164 0xA4 Logic Input 1 Contact Opened 165 0xA5 Logic Input 2 Contact Opened 166 0xA6 Logic Input 3 Contact Opened 167 0xA7 Logic Input 4 Contact Opened 168 0xA8 Logic Input 5 Contact Closed 169 0xA9 Logic Input 6 Contact Closed 170 0xAA Logic Input 7 Contact Closed 171 0xAB Logic Input 8 Contact Closed 172 0xAC Logic Input 5 Contact Opened 173 0xAD Logic Input 6 Contact Opened 174 0xAE Logic Input 7 Contact Opened 175 0xAF Logic Input 8 Contact Opened 176 0xB0 Logic Input 9 Contact Closed 177 0xB1 Logic Input 10 Contact Closed 178 0xB2 Logic Input 11 Contact Closed 179 0xB3 Logic Input 12 Contact Closed 180 0xB4 Logic Input 9 Contact Opened 181 0xB5 Logic Input 10 Contact Opened 182 0xB6 Logic Input 11 Contact Opened 183 0xB7 Logic Input 12 Contact Opened 184 0xB8 Logic Input 13 Contact Closed 185 0xB9 Logic Input 14 Contact Closed 186 0xBA Logic Input 15 Contact Closed 187 0xBB Logic Input 16 Contact Closed 188 0xBC Logic Input 13 Contact Opened 189 0xBD Logic Input 14 Contact Opened 190 0xBE Logic Input 15 Contact Opened 191 0xBF Logic Input 16 Contact Opened 192 0xC0 Logic Inputs 1 - 4 All Opened 193 0xC1 Logic Inputs 5 - 8 All Opened 194 0xC2 Logic Inputs 9 - 12 All Opened 195 0xC3 Logic Inputs 13 - 16 All Opened 196 0xC4 Logic Inputs 1 - 8 All Opened 197 0xC5 Logic Inputs 9 - 16 All Opened 198 0xC6 Logic Inputs 1 - 16 All Opened 199 0xC7 Power-Up / Reset Event
serial key
code (hex)
control button event
Computer Control of the Advantage PMX84 page 7
Advanced Computer Control
The Advanced Computer Control command set includes commands which allow the PMX84 to return information about the system to the computer, unlike Control Button Emulation and the PMX-Link which are basically one-way control mechanisms. The following list summarizes the commands available using Advanced Computer Control, including the ASCII command character associated with each command:
!
do-macro perform the actions for the specified button macro.
!
get-macro-definition retrieve the definition for the specified button macro.
"
define-macro define the specified button macro.
"
virtual-macro perform the specified macro actions.
#
do-button perform the actions associated with the specified button.
#
get-button-definition retrieve the definition for the specified button.
$
define-button define the specified button.
%
get-matrix-status retrieve the on/off status for the entire assignment matrix.
&
set-matrix-status set the on/off status for the entire assignment matrix.
'
do-matrix-action perform the specified matrix assignment switch action.
(
get-logic-status retrieve the on/off status of all logic outputs.
)
set-logic-status set the on/off status of all logic outputs.
*
do-logic-action perform the specified logic output action.
+
sleep-for-10-sec. sleep for 10 seconds, ignoring all commands.
,
read-memory retrieve data from non-volatile configuration memory.
-
write-memory store data in non-volatile configuration memory.
.
set-factory-defaults resets configuration parameters to factory defaults.
/
get-version retrieve the model information and firmware version date.
Each Advanced Computer Control command requires at least two parameter bytes (four pseudo-hex nibbles) to be sent prior to the command character. Each command will be explained in detail on the following pages.
Some of the commands cause the PMX84 to return information to the computer. For each string of information returned to the computer, the PMX84 terminates the string by transmitting the ASCII carriage return character (0x0D - represented in this document as ).
As mentioned earlier, the Advantage PMX84 will echo all characters it receives, regardless of whether or not the characters are valid commands or parameters. Characters greater than 0x7F are reserved and should not be transmitted by the computer. The PMX84 utilizes a subset of the standard ASCII character set. The following characters have meaning to the PMX84:
page 8 Computer Control of the Advantage PMX84
character hexadecima
operation
l
ASCII control characters (0x00 - 0x1F) no operation
SPACE
ASCII
!
thru
0
thru
@ A B
thru
a b
thru
k
thru
{
thru
0x80 thru 0xFF (0x80 - 0xFF) RESERVED
character
/
?
`
j z
DEL
(0x20) no operation
(0x21 - 0x2F) Advanced Computer Control
commands
(0x30 - 0x3F) pseudo-hex parameters for Advanced
Computer Control commands (0x40) Control Button Emulation Repeat Code (0x41) no operation
(0x42 - 0x60) Control Button Emulation commands
(buttons 01 - 31) (0x61) no operation
(0x62 - 0x6A) Control Button Emulation commands
(buttons 32 - 40)
(0x6B - 0x7A) Control Button Emulation Device Select
Prefix commands
(0x7B - 0x7F) no operation
An ASCII code chart showing all PMX84 commands and codes is provided later in this document for your convenience. One key point to observe is that the computer may feel free to transmit spaces, tabs, carriage returns, line feeds, or any other control characters at any time (even between two nibbles of a pseudo-hex parameter byte) without having any affect on the operation of the PMX84. The PMX84 will simply echo them and then ignore them.
Device Type Bitmask and Device Number Bitmask
In a system which has more than one Advantage product connected to the computer, the Device Type Bitmask and Device Number Bitmask command parameters provide a mechanism for the computer to individually address a particular device (or a combination of devices). Every command in the Advanced Computer Control command set requires that a Device Type Bitmask and a Device Number Bitmask be transmitted as the last two parameter bytes before the computer transmits the command character itself. These two bitmask parameters bytes provide a device addressing capability to specify which of the devices in the system should execute the command. All devices which are not specifically addressed by these two bitmask values will ignore the command.
The Device Type Bitmask parameter byte supports up to eight distinct device types - one bit per device type. The eight device types are:
0x01 (bit 0) Biamp Advantage DRC 4+4 digital remote control 0x02 (bit 1) Biamp Advantage EQ28X digitally-controlled graphic equalizer 0x04 (bit 2) Biamp Advantage SPM522D stereo preamp/mixer 0x08 (bit 3) Biamp Advantage PMX84 programmable matrix switch 0x10 (bit 4) (reserved for future product)
Computer Control of the Advantage PMX84 page 9
0x20 (bit 5) (reserved for future product) 0x40 (bit 6) (reserved for future product) 0x80 (bit 7) (reserved for future product)
The Advantage PMX84 will only respond to Advanced Computer Control commands if bit 3 of the Device Type Bitmask parameter byte is a '1'. A command may be directed to more than one device type in the system by setting all of the corresponding bits in the Device Type Bitmask to '1's.
The Device Number Bitmask parameter byte supports up to eight distinct device numbers
- one bit per device number. The eight device numbers are:
0x01 (bit 0) Select Device Number 1 0x02 (bit 1) Select Device Number 2 0x04 (bit 2) Select Device Number 3 0x08 (bit 3) Select Device Number 4 0x10 (bit 4) Select Device Number 5 0x20 (bit 5) Select Device Number 6 0x40 (bit 6) Select Device Number 7 0x80 (bit 7) Select Device Number 8
A particular Advantage PMX84 will only respond to Advanced Computer Control commands if the bit in the Device Number Bitmask parameter byte corresponding to its device number is a '1'. A command may be directed to more than one device number in the system by setting all of the corresponding bits in the Device Number Bitmask to '1's.
The Advanced Computer Control command set supports, in theory, up to sixty-four devices in a system - eight devices of each of the eight device types. In order for any particular device in the system to respond to an Advanced Computer Control command, the appropriate bit in both the Device Type and Device Number bitmask parameter bytes must be set to '1'.
page 10 Computer Control of the Advantage PMX84
Advanced Computer Control Data Structures
Matrix Status Data Structure
The PMX84 maintains a 4-byte data structure representing the on/off status of all 32 matrix assignment switches. Each binary bit corresponds to one assignment switch (see illustration). A '1' bit means the switch is on, and a '0' bit means the switch is off. For example, if bit 5 of the matrix[2] byte is a '1', audio input channel 6 is assigned to audio output 2.
PMX84 Matrix Status Data Structure
4-byte array with elements numbered matrix[0] thru matrix[3]
(msb) (lsb)
matrix[3]
(transmitted first)
matrix[2]
matrix[1]
matrix[0]
(transmitted last)
01234567
7→17→27→37→48→18→28→38→4
5→15→25→35→46→16→26→36→4
3→13→23→33→44→14→24→34→4
1→11→21→31→42→12→22→32→4
Logic Status Data Structure
The PMX84 maintains a 2-byte data structure representing the on/off status of all 16 logic outputs. Each binary bit corresponds to one logic output (see illustration). A '1' bit means the open collector logic output is on (a low impedance to ground), and a '0' bit means the open collector logic output is off (high impedance). For example, if bit 2 of the logic[1] byte is a '1', logic output 11 is on.
PMX84 Logic Status Data Structure
2-byte array with elements numbered logic[0] thru logic[1]
(msb) (lsb)
logic[1]
(transmitted first)
logic[0]
(transmitted last)
01234567
910111213141516
12345678
Computer Control of the Advantage PMX84 page 11
Button Definitions vs. Button Macros
The Advantage PMX84, like other members of the Advantage family of digitally controlled products, provides programmable or "definable" buttons. This allows the sound contractor to determine how the unit will behave for each remote control button. However, unlike the earlier Advantage products, the PMX84 firmware splits the programmable buttons into two separate parts - a "button macro", which specifies what actions are to be performed, and a "button definition" which specifies which button macro is assigned to a particular button. When the PMX84 detects that a remote control button has been pressed, it first looks-up the button definition for that button to determine which (if any) button macro is associated with that button. If a button macro has been assigned to that button, the PMX84 then looks-up the specified button macro to determine what actions to perform.
The PMX84 provides support for 200 buttons or button events (for a list of all 200 button events, see page 7). The PMX84 reserves space in its non-volatile memory for each of the 200 buttons or button events. It also allocates space for 50 button macros. A particular button macro may be assigned to more than one button - defining 4 buttons, for example, to all perform the same actions only requires 1 button macro, not 4.
Button Definition Data Structure
The PMX84 maintains data structures for 200 buttons or button events (button 0 thru button 199). Each button definition data structure consists of two bytes - one byte specifies which button macro, if any, has been assigned to the button and the other byte specifies what character, if any, should be "echoed" (transmitted) out the PMX84's serial port when that button event occurs. A macro number assignment of 0xff indicates that no macro has been assigned to the button and therefore the button is a "NOP" (it performs no operation). An echo character assignment of 0x00 means that no character will be transmitted out the serial port when that button event occurs.
PMX84 Button Definition Data Structure
2-byte array with elements numbered button[0] thru button[1]
button[1]
(transmitted first)
button[0]
(transmitted last)
(msb) (lsb)
ECHO CHARACTER
MACRO NUMBER ASSIGNMENT
01234567
0x00 means no echo character assigned
0xff means NOP (no macro assigned)
page 12 Computer Control of the Advantage PMX84
Button Macro Data Structure
The PMX84 maintains data structures for 50 button macro definitions (macro 0 thru macro 49). Each button macro data structure consists of twelve bytes - eight bytes specifying actions for the 32 matrix assignment switches and four bytes specifying actions for the 16 logic outputs. Each action code consists of two bits with the following bit patterns:
0 0 NOP (no operation) 0 1 turn OFF 1 0 turn ON 1 1 toggle
PMX84 Button Macro Data Structure
12-byte array with elements numbered macro[0] thru macro[11]
macro[11]
(transmitted first)
macro[10]
macro[9]
macro[8]
macro[7]
macro[6]
macro[5]
macro[4]
macro[3]
macro[2]
macro[1]
(msb) (lsb)
LOGIC 16
LOGIC 12 LOGIC 11 LOGIC 10 LOGIC 9
LOGIC 8 LOGIC 7 LOGIC 6 LOGIC 5
LOGIC 4 LOGIC 3 LOGIC 2 LOGIC 1
MATRIX
Switch 8-4
MATRIX
Switch 7-4
MATRIX
Switch 6-4
MATRIX
Switch 5-4
MATRIX
Switch 4-4
MATRIX
Switch 3-4
MATRIX
Switch 2-4
LOGIC 15 LOGIC 14 LOGIC 13
MATRIX
Switch 8-3
MATRIX
Switch 7-3
MATRIX
Switch 6-3
MATRIX
Switch 5-3
MATRIX
Switch 4-3
MATRIX
Switch 3-3
MATRIX
Switch 2-3
MATRIX
Switch 8-2
MATRIX
Switch 7-2
MATRIX
Switch 6-2
MATRIX
Switch 5-2
MATRIX
Switch 4-2
MATRIX
Switch 3-2
MATRIX
Switch 2-2
MATRIX
Switch 8-1
MATRIX
Switch 7-1
MATRIX
Switch 6-1
MATRIX
Switch 5-1
MATRIX
Switch 4-1
MATRIX
Switch 3-1
MATRIX
Switch 2-1
01234567
LOGIC OUTPUT ACTIONS
MATRIX ASSIGNMENT SWITCH ACTIONS
macro[0]
(transmitted last)
MATRIX
Switch 1-4
MATRIX
Switch 1-3
MATRIX
Switch 1-2
MATRIX
Switch 1-1
Computer Control of the Advantage PMX84 page 13
Advanced Computer Control Command Notation
For the following descriptions of the Advanced Computer Control command set, the following conventions will be used:
Each ASCII character which represents a pseudo-hex nibble will be shown in italics, with the following letters representing certain types of parameters:
a a pseudo-hex nibble specifying an action code. b one of the pseudo-hex nibbles specifying a button data structure. Also used to as a
pseudo-hex nibble to select a memory bank.
c a pseudo-hex nibble specifying a checksum value. d one of the pseudo-hex nibbles in the device number bitmask which indicates which
device numbers should accept the following command.
e a pseudo-hex nibble specifying a memory address in the non-volatile configuration
memory of the PMX84 (the ending address of a range of addresses).
k a pseudo-hex nibble specifying a button serial key code. l one of the pseudo-hex nibbles specifying a logic output status data structure. m one of the pseudo-hex nibbles specifying a macro data structure or a matrix status data
structure.
n a pseudo-hex nibble specifying a button number or macro number. o a pseudo-hex nibble specifying a command option byte. s a pseudo-hex nibble specifying a memory address in the non-volatile configuration
memory of the PMX84 (the starting address of a range of addresses).
x a pseudo-hex nibble specifying a generic data value.
page 14 Computer Control of the Advantage PMX84
! do-macro
Description:
The do-macro command causes the PMX84 to look-up and perform the actions for the specified button macro.
Syntax of Command:
nn08dd!
where:
nn = Macro Number + 128 (pseudo-hex) 08 = PMX84 Device Type Bitmask dd = Device Number Bitmask (pseudo-hex)
! = do-macro command character (0x21)
Syntax of Response:
(no response)
Example:
950820!
This example causes PMX84 number 6 to immediately look-up and perform the actions for button macro number 21.
Comments:
The decimal value 128 must be added to the Macro number. This indicates to the PMX84 that this is the do-macro form of the command.
Computer Control of the Advantage PMX84 page 15
! get-macro-definition
Description:
The get-macro-definition command causes the PMX84 to return the definition of the specified button macro. The button macro definition will be returned in the Button Macro Data Structure format.
Syntax of Command:
nn08dd!
where:
nn = Macro Number (pseudo-hex) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
! = get-macro-definition command character (0x21)
Syntax of Response:
mmmmmmmmmmmmmmmmmmmmmmmm
where:
mmmmmmmmmmmmmmmmmmmmmmmm =
hex)
Example:
Button Macro Data Structure (pseudo-
command: response:
1;0801! 0000000255555555555555::
This example causes PMX84 number 1 to retrieve its button macro definition for macro number 27 (0x1B) and return it to the computer. In this example, the macro definition was: assign input 1 to outputs 1, 2, 3, and 4; un-assign all other inputs and outputs; turn on logic output 1; leave logic outputs 2-16 the way they were.
Comments:
page 16 Computer Control of the Advantage PMX84
" define-macro
Description:
The define-macro command provides a new button macro definition for the specified macro number. The PMX84 will store this new button macro definition in its macro definition lookup table, replacing the definition that was there.
Syntax of Command:
mmmmmmmmmmmmmmmmmmmmmmmmnn08dd"
where:
mmmm...mmmm = Button Macro Data Structure (pseudo-hex)
nn = Macro Number (pseudo-hex)
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
" = define-macro command character (0x22)
Syntax of Response:
(no response)
Example:
000000020000000000000002030801"
This example causes PMX84 number 1 to redefine macro number 03 to assign input 1 to output 1 and to turn on logic output number 1 and to leave all other matrix switch assignments and logic outputs the way they were.
Comments:
Computer Control of the Advantage PMX84 page 17
" virtual-macro
Description:
The virtual-macro command causes the specified button macro actions to be immediately performed. The actions are defined using the Button Macro Data Structure. The button macro definition is not stored in the PMX84's nonvolatile memory, nor is the macro definition associated with a macro number. The virtual-macro command allows the computer to specify the actions to be performed without having the PMX84 look-up an entry in its button macro definition table.
Syntax of Command:
mmmmmmmmmmmmmmmmmmmmmmmm8008dd"
where:
mmmm...mmmm = Button Macro Data Structure (pseudo-hex)
80 = command identifier 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
" = virtual-macro command character (0x22)
Syntax of Response:
(no response)
Example:
000000020000000000000002800801"
This example causes PMX84 number 1 to assign input 1 to output 1 and to turn on logic output number 1 and to leave all other matrix switch assignments and logic outputs the way they were.
Comments:
This command specifies actions (NOP, turn off, turn on, toggle) to be performed for all 32 matrix assignment switches and all 16 logic outputs. To perform a single matrix assignment switch or logic output action, refer to the do-matrix-action and do-logic­action commands. To set all matrix assignment switches or all logic outputs to a known state, refer to the set-matrix-status and set-logic-status commands.
page 18 Computer Control of the Advantage PMX84
# do-button
Description:
The do-button command causes the PMX84 to look-up the button definition for the button (or button "event") with the specified button serial key code and, if a button macro has been assigned to that button, perform the button macro actions. The button serial key code is a number from 0 to 199 (0x00 to 0xC7).
Syntax of Command:
kk?>08dd#
where:
kk = Button Serial Key Code (pseudo-hex) ?> = command identifier 0xFE (pseudo-hex) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
# = do-button command character (0x23)
Syntax of Response:
(no response)
Example:
32?>080?#
This example causes PMX84 numbers 1, 2, 3, and 4 to look-up and perform the actions defined in their respective button definition tables for button 11 of remote port 2 (serial key code 0x32).
Comments:
Computer Control of the Advantage PMX84 page 19
# get-button-definition
Description:
The get-button-definition command causes the PMX84 to return the definition of the button (or button "event") for the specified button serial key code. The button definition will be returned in the Button Definition Data Structure format. The button serial key code is a number from 0 to 199 (0x00 to 0xC7).
Syntax of Command:
kk08dd#
where:
kk = Button Serial Key Code (pseudo-hex) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
# = get-button-definition command character (0x23)
Syntax of Response:
bbbb
where:
bbbb = Button Definition Data Structure (pseudo-hex)
Example:
command: response:
580801# 4:07
This example causes PMX84 number 1 to retrieve its button definition for button number 9 of remote port 3 (serial key code 0x58) and return it to the computer. In this example, the echo character is defined to be 'J' (0x4A), and macro number 07 is assigned to this button.
Comments:
page 20 Computer Control of the Advantage PMX84
$ define-button
Description:
The define-button command provides a new button definition for the button (or button "event") corresponding to the specified button serial key code. The PMX84 will store this new button definition in its button definition lookup table, replacing the definition that was there.
Syntax of Command:
bbbbkk08dd$
where:
bbbb = Button Definition Data Structure
kk = Button Serial Key Code 0 - 199 (pseudo-hex)
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
$ = define-button command character (0x24)
Syntax of Response:
(no response)
Example:
4213000801$
This example provides a new button definition for button number 1 of remote port 1 (serial key code 0x00) of PMX84 number 1. The new button definition sets the echo character to 'B' (0x42) and assigns button macro number 19 (0x13) to this button.
Comments:
Computer Control of the Advantage PMX84 page 21
% get-matrix-status
Description:
The get-matrix-status command causes the PMX84 to return the on/off status of all 32 matrix assignment switches. The settings will be returned in the Matrix Status Data Structure format.
Syntax of Command:
08dd%
where:
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex) % = get-matrix-status command character (0x25)
Syntax of Response:
mmmmmmmm
where:
mmmmmmmm = Matrix Status Data Structure (pseudo-hex)
Example:
command: response:
0801% 88442211
This example causes PMX84 number 1 to retrieve the current status of all 32 matrix assignment switches. In this example, inputs 1 and 2 are assigned to output 1, inputs 3 and 4 are assigned to output 2, inputs 5 and 6 are assigned to output 3, and inputs 7 and 8 are assigned to output 4.
Comments:
page 22 Computer Control of the Advantage PMX84
& set-matrix-status
Description:
The set-matrix-status command establishes new settings for the on/off status of all 32 matrix assignment switches. The new settings will immediately become effective.
Syntax of Command:
mmmmmmmm08dd&
where:
mmmmmmmm = Matrix Status Data Structure (pseudo-hex)
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
& = set-matrix-status command character (0x26)
Syntax of Response:
(no response)
Example:
000084210801&
This example causes PMX84 number 1 to set its matrix assignment switches to: input 1 assigned to output 1, input 2 assigned to output 2, input 3 assigned to output 3, and input 4 assigned to output 4 (all other assignment switches off).
Comments:
This command affects all 32 matrix assignment switches. To change the status of a single matrix assignment switch, refer to the do-matrix-action command.
Computer Control of the Advantage PMX84 page 23
' do-matrix-action
Description:
The do-matrix-action command causes the PMX84 to perform the specified matrix action (NOP, turn off, turn on, toggle) for the specified matrix assignment switch.
Syntax of Command:
aann08dd'
where:
aa = Action code (pseudo-hex). 00 = NOP,
01 = turn off, 02 = turn on, 03 = toggle. nn = Assignment Switch Number (pseudo-hex, see below) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
' = do-matrix-action command character (0x27)
pseudo-hex codes for assignment switch numbers (nn):
00 in 1 - out 1 01 in 1 - out 2 02 in 1 - out 3 03 in 1 - out 4 04 in 2 - out 1 05 in 2 - out 2 06 in 2 - out 3 07 in 2 - out 4
08 in 3 - out 1 09 in 3 - out 2 0: in 3 - out 3 0; in 3 - out 4 0< in 4 - out 1 0= in 4 - out 2 0> in 4 - out 3 0? in 4 - out 4
10 in 5 - out 1 11 in 5 - out 2 12 in 5 - out 3 13 in 5 - out 4 14 in 6 - out 1 15 in 6 - out 2 16 in 6 - out 3 17 in 6 - out 4
18 in 7 - out 1 19 in 7 - out 2 1: in 7 - out 3 1; in 7 - out 4 1< in 8 - out 1 1= in 8 - out 2 1> in 8 - out 3 1? in 8 - out 4
Syntax of Response:
(no response)
Example:
020>0801'
This example causes PMX84 number 1 to turn on the matrix assignment switch which assigns input 4 to output 3.
Comments:
page 24 Computer Control of the Advantage PMX84
( get-logic-status
Description:
The get-logic-status command causes the PMX84 to return the on/off status of all 16 logic outputs. The settings will be returned in the Logic Status Data Structure format.
Syntax of Command:
08dd(
where:
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
( = get-logic-status command character (0x28)
Syntax of Response:
llll
where:
llll = Logic Status Data Structure (pseudo-hex)
Example:
command: response:
0801( 0040
This example causes PMX84 number 1 to retrieve the current status of all 16 logic outputs. In this example, logic output 7 is on and all others are off.
Comments:
Computer Control of the Advantage PMX84 page 25
) set-logic-status
Description:
The set-logic-status command establishes new settings for the on/off status of all 16 logic outputs. The new settings will immediately become effective.
Syntax of Command:
llll08dd)
where:
llll = Logic Status Data Structure (pseudo-hex)
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
) = set-logic-status command character (0x29)
Syntax of Response:
(no response)
Example:
40030801)
This example causes PMX84 number 1 to turn on logic outputs 1, 2, and 15, and turn off all other logic outputs.
Comments:
This command affects all 16 logic outputs. To change the status of a single logic output, refer to the do-logic-action command.
page 26 Computer Control of the Advantage PMX84
* do-logic-action
Description:
The do-logic-action command causes the PMX84 to perform the specified logic action (NOP, turn off, turn on, toggle) for the specified logic output.
Syntax of Command:
aann08dd*
where:
aa = Action code (pseudo-hex). 00 = NOP,
01 = turn off, 02 = turn on, 03 = toggle. nn = Logic Output Number (pseudo-hex, see below) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
* = do-logic-action command character (0x2A)
pseudo-hex codes for logic output numbers (nn):
00 logic output 1 01 logic output 2 02 logic output 3 03 logic output 4 04 logic output 5 05 logic output 6 06 logic output 7 07 logic output 8
08 logic output 9 09 logic output 10 0: logic output 11 0; logic output 12 0< logic output 13 0= logic output 14 0> logic output 15 0? logic output 16
Syntax of Response:
(no response)
Example:
020<0801*
This example causes PMX84 number 1 to turn on logic output 13.
Comments:
Computer Control of the Advantage PMX84 page 27
+ sleep-for-10-seconds
Description:
The sleep-for-10-seconds command causes the PMX84 to "go to sleep" for 10 seconds, ignoring all serial port data communications, including Control Button commands as well as Advanced Computer Control commands. During this time, characters received by the serial port will be ignored and will not be echoed. This command was implemented to facilitate remote computer control of the PMX84 via modem (with an auto-answer modem at the PMX84). When an on-line session with a modem is finished and one modem or the other decides to disconnect or "hang up the phone", typically a spurt of unwanted spurious garbage characters occurs on the line. The PMX84 has no way of distinguishing between "garbage" characters and real characters. The last thing the computer should do before telling its modem to hang up is to issue the sleep-for-10­seconds command. This will allow plenty of time for the line to disconnect and the PMX84 will ignore all characters which it might receive during this hang-up process.
Syntax of Command:
ttdd+
where:
tt = Device Type Bitmask (pseudo-hex) 08 = PMX84
dd = Device Number Bitmask (pseudo-hex)
+ = sleep-for-10-seconds command character (0x2B)
Syntax of Response:
(no response)
Example:
????+
This example causes all Advantage devices in the system to sleep for 10 seconds, ignoring all data communications.
Comments:
Note that the command character '+' is typically also the character used to return a Hayes­compatible modem to its command mode.
page 28 Computer Control of the Advantage PMX84
10-Mar-97
, read-memory
Description:
The read-memory command allows the computer to read the contents of one or more locations of the PMX84's non-volatile configuration memory. The PMX84 has 1024 bytes of configuration memory, which is arranged as four banks of 256 bytes each.
Syntax of Command:
bbeess08dd,
where:
bb = memory Bank select.
00 = bank 0. 01 = bank 1. 02 = bank 2. 03 = bank 3.
ee = Ending memory address (pseudo-hex)
ss = Starting memory address (pseudo-hex)
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
, = read-memory command character (0x2C)
Syntax of Response:
xx...(up to 256 data values)...
where:
xx = Data byte (pseudo-hex). Value in end addr is sent first.
Example:
command:
0006000801,
response:
6<000000000102
This example causes PMX84 number 1 to return the data values which are currently stored in locations 00 thru 06 of bank 0 of the configuration memory. In this example, memory location 00 contains the pseudo-hex value 02 and memory location 06 contains the pseudo-hex value 6<.
Computer Control of the Advantage PMX84 page 29
Comments:
To read the contents of only one location, set both the starting and ending address to the same value (the desired address). The starting address should always be less than or equal to the ending address. Valid addresses for each bank are 0x00 thru 0xFF (pseudo­hex 00 thru ??). The data is sent in reverse order (last location first).
Contents of Bank 0:
0x00 - 0x0F Global Configuration Parameters 0x10 - 0xFF Button Definitions for Buttons 0 thru 119
Contents of Bank 1:
0x00 - 0x9F Button Definitions for Buttons 120 thru 199 0xA0 - 0xFF Button Macro Definitions for Macros 0 thru 7
Contents of Bank 2:
0x00 - 0xFB Button Macro Definitions for Macros 8 thru 28 0xFC - 0xFF unused (reserved)
Contents of Bank 3:
0x00 - 0xFB Button Macro Definitions for Macros 29 thru 49 0xFC - 0xFF reserved
page 30 Computer Control of the Advantage PMX84
10-Mar-97
- write-memory
Description:
The write-memory command allows the computer to store one or more data values in the PMX84's non-volatile configuration memory beginning at a specified location. The PMX84 has 1024 bytes of configuration memory, which is arranged as four banks of 256 bytes each. Each memory-write command may include up to 16 data values to be stored in a contiguous range of memory locations for the specified memory bank. This command provides the computer with a mechanism for setting or changing the global configuration parameters for the device. It also provides the computer with a method for totally messing things up.
Syntax of Command:
xx...(up to 16 data values)...ssoocc08dd-
where:
xx.. = up to 16 data values (pseudo-hex). The values are sent
in reverse order (highest memory address first)
ss = starting (lowest) memory address (pseudo-hex)
oo = options & byte count (pseudo-hex)
bits 3, 2, 1, 0 = number of data values - 1
bit 4 - reserved (must be 0)
bits 6, 5 - memory Bank select. 00 = bank 0.
01 = bank 1. 10 = bank 2. 11 = bank 3.
bit 7 - 1 = activate new global config params now.
cc = computed checksum value (pseudo-hex) 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
- = write-memory command character (0x2D)
Syntax of Response:
(no response)
Example:
0302010382740801-
This example causes PMX84 number 1 to store the values 0x01, 0x02, 0x03 in configuration memory bank 0 beginning at address 0x03 and causes the unit to retrieve and activate its global configuration parameters.
Computer Control of the Advantage PMX84 page 31
Comments:
In order to insure data integrity, a checksum value is included with this command. The checksum is computed by performing a simple 8-bit (modulo 256) sum of all of the data values plus the starting address value plus the option byte value and then performing a 1's complement of the sum. Note that the checksum calculation is performed on the actual 8­bit binary values, before any values are converted to pseudo-hex format for transmission. The PMX84 will perform the same calculation on the data values which it receives and compare its computed checksum to the received checksum. If the two values do not match, the PMX84 will ignore the entire command.
The PMX84 normally retrieves and activates its global configuration parameters from the non-volatile configuration memory only during its power-up sequence. If you use the write-memory command to change a global configuration parameter (which is why the command was provided), the PMX84 has to specifically be told to re-load and activate its configuration parameters after the new value is stored in its memory. Bit 7 of the options & byte count parameter may be set to tell the unit to automatically retrieve and activate its configuration parameters after the memory write operation is complete.
page 32 Computer Control of the Advantage PMX84
10-Mar-97
. set-factory-defaults
Description:
The set-factory-defaults command may be used to force the PMX84 to reset some or all of its configuration information to the factory default settings. The first two parameters for this command (< and >) are dummy parameters which were implemented to help prevent an accidental restoration of the factory defaults due to an error in data transmission.
Syntax of Command:
<>oo08dd.
where:
< = the ASCII character < (0x3C) > = the ASCII character > (0x3E)
oo = Option byte (pseudo-hex):
bit 0 - 1 = set Button Definition defaults bit 1 - 1 = set Button Macro Definition defaults bit 2 - 1 = set Global Config Parameter defaults
bit 7 - 1 = activate new Global Config Params now 08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
. = set-factory-defaults command character (0x2E)
Syntax of Response:
(no response)
Example:
<>84080?.
This example causes PMX84 numbers 1, 2, 3, and 4 to restore their global configuration parameters to the factory default settings and to retrieve and activate those new settings.
Comments:
Computer Control of the Advantage PMX84 page 33
/ get-version
Description:
The get-version command causes the PMX84 to return its model identification code and firmware version to the computer. The firmware version number is simply the release date of the firmware, in a slightly modified standard American format of mm:dd:yy. These values are decimal digits, not pseudo-hex notation. For example, February 12, 1996 would be represented as 02:12:96. The colon character (:) is used as a separator instead of the more conventional slash character, since the slash character is used as a computer command character by the PMX84.
Syntax of Command:
08dd/
where:
08 = Device Type Bitmask (pseudo-hex) dd = Device Number Bitmask (pseudo-hex)
/ = get-version command character (0x2F)
Syntax of Response:
02 mm:dd:yy
where:
02 = initial model i.d. (0x30 followed by 0x32)
= ASCII space character (0x20)
mm = 2-digit decimal month number
: = ASCII character : (0x3A)
dd = 2-digit decimal day of the month
: = ASCII character : (0x3A)
yy = 2-digit decimal year number
Example:
command: response:
0801/ 02 02:12:96
This example causes PMX84 number 1 to return its model identification code and firmware version.
Comments:
page 34 Computer Control of the Advantage PMX84
10-Mar-97
Advanced Computer Command Summary
nn08dd! do-macro
nn08dd! get-macro-definition mmmmmmmmmmmmmmmmmmmmmmmmnn08dd" define-macro mmmmmmmmmmmmmmmmmmmmmmmm8008dd" virtual-macro
kk?>08dd# do-button
kk08dd# get-button definition
bbbbkk08dd$ define-button
08dd% get-matrix-status
mmmmmmmm08dd& set-matrix-status
aann08dd' do-matrix-action
08dd( get-logic-status
llll08dd) set-logic-status
aann08dd* do-logic-action
08dd+ sleep-for-10-seconds
bbeess08dd, read-memory
....xxssoocc08dd- write-memory
<>oo08dd. set-factory-defaults
08dd/ get-version
a a pseudo-hex nibble specifying an action code. b one of the pseudo-hex nibbles specifying a button data structure. Also used to as a pseudo-hex nibble to select a
memory bank.
c a pseudo-hex nibble specifying a checksum value. d one of the pseudo-hex nibbles in the device number bitmask which indicates which device numbers should accept
the following command.
e a pseudo-hex nibble specifying a memory address in the non-volatile configuration memory of the PMX84 (the
ending address of a range of addresses).
k a pseudo-hex nibble specifying a button serial key code. l one of the pseudo-hex nibbles specifying a logic output status data structure. m one of the pseudo-hex nibbles specifying a macro data structure or a matrix status data structure. n a pseudo-hex nibble specifying a button number or macro number. o a pseudo-hex nibble specifying a command option byte. s a pseudo-hex nibble specifying a memory address in the non-volatile configuration memory of the PMX84 (the
starting address of a range of addresses).
x a pseudo-hex nibble specifying a generic data value.
Computer Control of the Advantage PMX84 page 35
.
ASCII Code Chart
with Decimal & Hexadecimal Equivalents and Advantage PMX84 Commands
000.
001.
SOH
002.
003.
004.
005.
ENQ
006.
ACK
007.
008.
009.
010.
011.
012.
013.
014.
015.
NUL
STX
ETX
EOT
BEL
BS
HT
LF
VT
FF
CR
SO
SI
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
0x08
0x09
0x0A
0x0B
0x0C
0x0D
0x0E
0x0F
016.
017.
018.
019.
020.
021.
022.
023.
024.
025.
026.
027.
028.
029.
030.
031.
DLE
DC1
DC2
DC3
DC4
NAK
SYN
ETB
CAN
EM
SUB
ESC
FS
GS
RS
US
0x10
032.
(space)
0x11
033.
do/get-macro
0x12
034.
def/virt-macro
0x13
035.
do/get-button
0x14
036.
define button
0x15
037.
get-matrix
0x16
038.
set-matrix
0x17
039.
do-matrix
0x18
040.
get-logic
0x19
041.
set-logic
0x1A
042.
do-logic
0x1B
043.
sleep 10 sec.
0x1C
044.
read memory
0x1D
045.
write memory
0x1E
046.
set defaults
0x1F
047.
get version
!
" # $
%
&
' ( )
* +
,
­. /
0x20
0x21
0x22
0x23
0x24
0x25
0x26
0x27
0x28
0x29
0x2A
0x2B
0x2C
0x2D
0x2E
0x2F
048.
0
nibble 0x0
049.
1
nibble 0x1
050.
2
nibble 0x2
051.
3
nibble 0x3
052.
4
nibble 0x4
053.
5
nibble 0x5
054.
6
nibble 0x6
055.
7
nibble 0x7
056.
8
nibble 0x8
057.
9
nibble 0x9
058.
:
nibble 0xA
059.
;
nibble 0xB
060.
<
nibble 0xC
061.
=
nibble 0xD
062.
>
nibble 0xE
063.
?
nibble 0xF
0x30
0x31
0x32
0x33
0x34
0x35
0x36
0x37
0x38
0x39
0x3A
0x3B
0x3C
0x3D
0x3E
0x3F
064.
@
repeat code
065.
A
066.
B
button 01
067.
C
button 02
068.
D
button 03
069.
E
button 04
070.
F
button 05
071.
G
button 06
072.
H
button 07
073.
I
button 08
074.
J
button 09
075.
K
button 10
076.
L
button 11
077.
M
button 12
078.
N
button 13
079.
O
button 14
0x40
0x41
0x42
0x43
0x44
0x45
0x46
0x47
0x48
0x49
0x4A
0x4B
0x4C
0x4D
0x4E
0x4F
080.
P
button 15
081.
Q
button 16
082.
R
button 17
083.
S
button 18
084.
T
button 19
085.
U
button 20
086.
V
button 21
087.
W
button 22
088.
X
button 23
089.
Y
button 24
090.
Z
button 25
091.
[
button 26
092.
\
button 27
093.
]
button 28
094.
^
button 29
095.
_
button 30
0x50
0x51
0x52
0x53
0x54
0x55
0x56
0x57
0x58
0x59
0x5A
0x5B
0x5C
0x5D
0x5E
0x5F
096.
`
button 31
097.
a
098.
b
button 32
099.
c
button 33
100.
d
button 34
101.
e
button 35
102.
f
button 36
103.
g
button 37
104.
h
button 38
105.
i
button 39
106.
j
button 40
107.
k
select none
108.
l
select 1
109.
m
select 2
110.
n
select 1,2
111.
o
select 3
0x60
0x61
0x62
0x63
0x64
0x65
0x66
0x67
0x68
0x69
0x6A
0x6B
0x6C
0x6D
0x6E
0x6F
112.
0x70
p
select 1,3
113.
0x71
q
select 2,3
114.
0x72
r
select 1,2,3
115.
0x73
s
select 4
116.
0x74
t
select 1,4
117.
0x75
u
select 2,4
118.
0x76
v
select 1,2,4
119.
0x77
w
select 3,4
120.
0x78
x
select 1,3,4
121.
0x79
y
select 2,3,4
122.
0x7A
z
select 1,2,3,4
123.
0x7B
{
124.
125.
0x7C
0x7D
}
126.
0x7E
~
127.
0x7F
DEL
page 36 Computer Control of the Advantage PMX84
10-Mar-97
HEXADECIMAL CONVERSION CHART
binary decimal hex pseudo 0000 0000 0. 0x00 00 0000 0001 1. 0x01 01 0000 0010 2. 0x02 02 0000 0011 3. 0x03 03 0000 0100 4. 0x04 04 0000 0101 5. 0x05 05 0000 0110 6. 0x06 06 0000 0111 7. 0x07 07 0000 1000 8. 0x08 08 0000 1001 9. 0x09 09 0000 1010 10. 0x0a 0: 0000 1011 11. 0x0b 0; 0000 1100 12. 0x0c 0< 0000 1101 13. 0x0d 0= 0000 1110 14. 0x0e 0> 0000 1111 15. 0x0f 0? 0001 0000 16. 0x10 10 0001 0001 17. 0x11 11 0001 0010 18. 0x12 12 0001 0011 19. 0x13 13 0001 0100 20. 0x14 14 0001 0101 21. 0x15 15 0001 0110 22. 0x16 16 0001 0111 23. 0x17 17 0001 1000 24. 0x18 18 0001 1001 25. 0x19 19 0001 1010 26. 0x1a 1: 0001 1011 27. 0x1b 1; 0001 1100 28. 0x1c 1< 0001 1101 29. 0x1d 1= 0001 1110 30. 0x1e 1> 0001 1111 31. 0x1f 1? 0010 0000 32. 0x20 20 0010 0001 33. 0x21 21 0010 0010 34. 0x22 22 0010 0011 35. 0x23 23 0010 0100 36. 0x24 24 0010 0101 37. 0x25 25 0010 0110 38. 0x26 26 0010 0111 39. 0x27 27 0010 1000 40. 0x28 28 0010 1001 41. 0x29 29 0010 1010 42. 0x2a 2: 0010 1011 43. 0x2b 2; 0010 1100 44. 0x2c 2< 0010 1101 45. 0x2d 2= 0010 1110 46. 0x2e 2> 0010 1111 47. 0x2f 2? 0011 0000 48. 0x30 30 0011 0001 49. 0x31 31 0011 0010 50. 0x32 32 0011 0011 51. 0x33 33 0011 0100 52. 0x34 34 0011 0101 53. 0x35 35 0011 0110 54. 0x36 36 0011 0111 55. 0x37 37 0011 1000 56. 0x38 38 0011 1001 57. 0x39 39 0011 1010 58. 0x3a 3: 0011 1011 59. 0x3b 3; 0011 1100 60. 0x3c 3< 0011 1101 61. 0x3d 3= 0011 1110 62. 0x3e 3> 0011 1111 63. 0x3f 3?
binary decimal 0100 0000 64. 0x40 40 0100 0001 65. 0x41 41 0100 0010 66. 0x42 42 0100 0011 67. 0x43 43 0100 0100 68. 0x44 44 0100 0101 69. 0x45 45 0100 0110 70. 0x46 46 0100 0111 71. 0x47 47 0100 1000 72. 0x48 48 0100 1001 73. 0x49 49 0100 1010 74. 0x4a 4: 0100 1011 75. 0x4b 4; 0100 1100 76. 0x4c 4< 0100 1101 77. 0x4d 4= 0100 1110 78. 0x4e 4> 0100 1111 79. 0x4f 4? 0101 0000 80. 0x50 50 0101 0001 81. 0x51 51 0101 0010 82. 0x52 52 0101 0011 83. 0x53 53 0101 0100 84. 0x54 54 0101 0101 85. 0x55 55 0101 0110 86. 0x56 56 0101 0111 87. 0x57 57 0101 1000 88. 0x58 58 0101 1001 89. 0x59 59 0101 1010 90. 0x5a 5: 0101 1011 91. 0x5b 5; 0101 1100 92. 0x5c 5< 0101 1101 93. 0x5d 5= 0101 1110 94. 0x5e 5> 0101 1111 95. 0x5f 5? 0110 0000 96. 0x60 60 0110 0001 97. 0x61 61 0110 0010 98. 0x62 62 0110 0011 99. 0x63 63 0110 0100 100. 0x64 64 0110 0101 101. 0x65 65 0110 0110 102. 0x66 66 0110 0111 103. 0x67 67 0110 1000 104. 0x68 68 0110 1001 105. 0x69 69 0110 1010 106. 0x6a 6: 0110 1011 107. 0x6b 6; 0110 1100 108. 0x6c 6< 0110 1101 109. 0x6d 6= 0110 1110 110. 0x6e 6> 0110 1111 111. 0x6f 6? 0111 0000 112. 0x70 70 0111 0001 113. 0x71 71 0111 0010 114. 0x72 72 0111 0011 115. 0x73 73 0111 0100 116. 0x74 74 0111 0101 117. 0x75 75 0111 0110 118. 0x76 76 0111 0111 119. 0x77 77 0111 1000 120. 0x78 78 0111 1001 121. 0x79 79 0111 1010 122. 0x7a 7: 0111 1011 123. 0x7b 7; 0111 1100 124. 0x7c 7< 0111 1101 125. 0x7d 7= 0111 1110 126. 0x7e 7> 0111 1111 127. 0x7f 7?
hex pseudo
binary decimal 1000 0000 128. 0x80 80 1000 0001 129. 0x81 81 1000 0010 130. 0x82 82 1000 0011 131. 0x83 83 1000 0100 132. 0x84 84 1000 0101 133. 0x85 85 1000 0110 134. 0x86 86 1000 0111 135. 0x87 87 1000 1000 136. 0x88 88 1000 1001 137. 0x89 89 1000 1010 138. 0x8a 8: 1000 1011 139. 0x8b 8; 1000 1100 140. 0x8c 8< 1000 1101 141. 0x8d 8= 1000 1110 142. 0x8e 8> 1000 1111 143. 0x8f 8? 1001 0000 144. 0x90 90 1001 0001 145. 0x91 91 1001 0010 146. 0x92 92 1001 0011 147. 0x93 93 1001 0100 148. 0x94 94 1001 0101 149. 0x95 95 1001 0110 150. 0x96 96 1001 0111 151. 0x97 97 1001 1000 152. 0x98 98 1001 1001 153. 0x99 99 1001 1010 154. 0x9a 9: 1001 1011 155. 0x9b 9; 1001 1100 156. 0x9c 9< 1001 1101 157. 0x9d 9= 1001 1110 158. 0x9e 9> 1001 1111 159. 0x9f 9? 1010 0000 160. 0xa0 :0 1010 0001 161. 0xa1 :1 1010 0010 162. 0xa2 :2 1010 0011 163. 0xa3 :3 1010 0100 164. 0xa4 :4 1010 0101 165. 0xa5 :5 1010 0110 166. 0xa6 :6 1010 0111 167. 0xa7 :7 1010 1000 168. 0xa8 :8 1010 1001 169. 0xa9 :9 1010 1010 170. 0xaa :: 1010 1011 171. 0xab :; 1010 1100 172. 0xac :< 1010 1101 173. 0xad := 1010 1110 174. 0xae :> 1010 1111 175. 0xaf :? 1011 0000 176. 0xb0 ;0 1011 0001 177. 0xb1 ;1 1011 0010 178. 0xb2 ;2 1011 0011 179. 0xb3 ;3 1011 0100 180. 0xb4 ;4 1011 0101 181. 0xb5 ;5 1011 0110 182. 0xb6 ;6 1011 0111 183. 0xb7 ;7 1011 1000 184. 0xb8 ;8 1011 1001 185. 0xb9 ;9 1011 1010 186. 0xba ;: 1011 1011 187. 0xbb ;; 1011 1100 188. 0xbc ;< 1011 1101 189. 0xbd ;= 1011 1110 190. 0xbe ;> 1011 1111 191. 0xbf ;?
hex pseudo
binary decimal 1100 0000 192. 0xc0 <0 1100 0001 193. 0xc1 <1 1100 0010 194. 0xc2 <2 1100 0011 195. 0xc3 <3 1100 0100 196. 0xc4 <4 1100 0101 197. 0xc5 <5 1100 0110 198. 0xc6 <6 1100 0111 199. 0xc7 <7 1100 1000 200. 0xc8 <8 1100 1001 201. 0xc9 <9 1100 1010 202. 0xca <: 1100 1011 203. 0xcb <; 1100 1100 204. 0xcc << 1100 1101 205. 0xcd <= 1100 1110 206. 0xce <> 1100 1111 207. 0xcf <? 1101 0000 208. 0xd0 =0 1101 0001 209. 0xd1 =1 1101 0010 210. 0xd2 =2 1101 0011 211. 0xd3 =3 1101 0100 212. 0xd4 =4 1101 0101 213. 0xd5 =5 1101 0110 214. 0xd6 =6 1101 0111 215. 0xd7 =7 1101 1000 216. 0xd8 =8 1101 1001 217. 0xd9 =9 1101 1010 218. 0xda =: 1101 1011 219. 0xdb =; 1101 1100 220. 0xdc =< 1101 1101 221. 0xdd == 1101 1110 222. 0xde => 1101 1111 223. 0xdf =? 1110 0000 224. 0xe0 >0 1110 0001 225. 0xe1 >1 1110 0010 226. 0xe2 >2 1110 0011 227. 0xe3 >3 1110 0100 228. 0xe4 >4 1110 0101 229. 0xe5 >5 1110 0110 230. 0xe6 >6 1110 0111 231. 0xe7 >7 1110 1000 232. 0xe8 >8 1110 1001 233. 0xe9 >9 1110 1010 234. 0xea >: 1110 1011 235. 0xeb >; 1110 1100 236. 0xec >< 1110 1101 237. 0xed >= 1110 1110 238. 0xee >> 1110 1111 239. 0xef >? 1111 0000 240. 0xf0 ?0 1111 0001 241. 0xf1 ?1 1111 0010 242. 0xf2 ?2 1111 0011 243. 0xf3 ?3 1111 0100 244. 0xf4 ?4 1111 0101 245. 0xf5 ?5 1111 0110 246. 0xf6 ?6 1111 0111 247. 0xf7 ?7 1111 1000 248. 0xf8 ?8 1111 1001 249. 0xf9 ?9 1111 1010 250. 0xfa ?: 1111 1011 251. 0xfb ?; 1111 1100 252. 0xfc ?< 1111 1101 253. 0xfd ?= 1111 1110 254. 0xfe ?> 1111 1111 255. 0xff ??
hex pseudo
Computer Control of the Advantage PMX84 page 37
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
