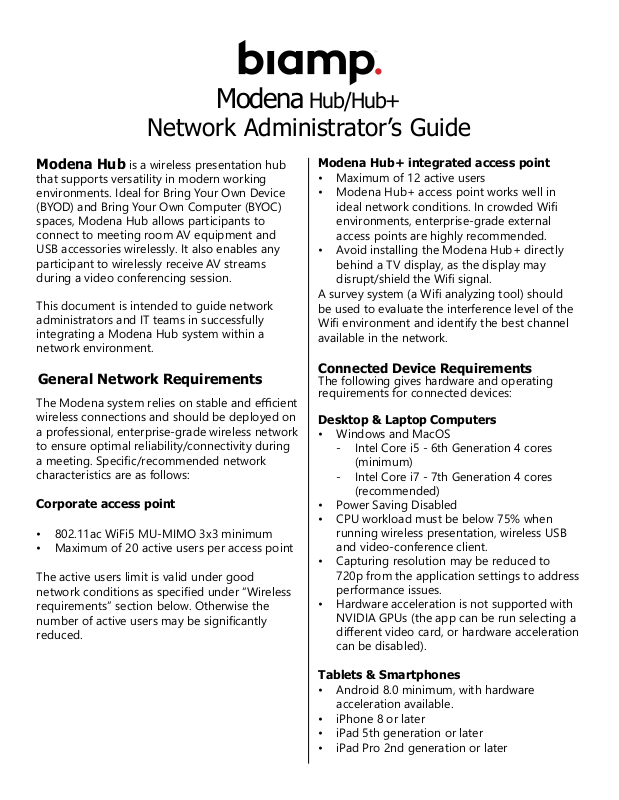

Biamp Modena Hub Network Administrator's Guide

Modena Hub/Hub+

Network Administrator’s Guide

Modena Hub is a wireless presentation hub

that supports versatility in modern working
environments. Ideal for Bring Your Own Device
(BYOD) and Bring Your Own Computer (BYOC)
spaces, Modena Hub allows participants to
connect to meeting room AV equipment and
USB accessories wirelessly. It also enables any
participant to wirelessly receive AV streams
during a video conferencing session.

This document is intended to guide network
administrators and IT teams in successfully
integrating a Modena Hub system within a
network environment.

General Network Requirements

The Modena system relies on stable and ecient

wireless connections and should be deployed on
a professional, enterprise-grade wireless network
to ensure optimal reliability/connectivity during

a meeting. Specic/recommended network

characteristics are as follows:

Corporate access point

• 802.11ac WiFi5 MU-MIMO 3x3 minimum

• Maximum of 20 active users per access point

The active users limit is valid under good

network conditions as specied under “Wireless

requirements” section below. Otherwise the

number of active users may be signicantly

reduced.

Modena Hub+ integrated access point

• Maximum of 12 active users

• Modena Hub+ access point works well in

ideal network conditions. In crowded Wi

environments, enterprise-grade external
access points are highly recommended.

• Avoid installing the Modena Hub+ directly
behind a TV display, as the display may

disrupt/shield the Wi signal.

A survey system (a Wi analyzing tool) should

be used to evaluate the interference level of the

Wi environment and identify the best channel

available in the network.

Connected Device Requirements

The following gives hardware and operating
requirements for connected devices:

Desktop & Laptop Computers

• Windows and MacOS

- Intel Core i5 - 6th Generation 4 cores
(minimum)

- Intel Core i7 - 7th Generation 4 cores
(recommended)

• Power Saving Disabled

• CPU workload must be below 75% when
running wireless presentation, wireless USB
and video-conference client.

• Capturing resolution may be reduced to
720p from the application settings to address
performance issues.

• Hardware acceleration is not supported with
NVIDIA GPUs (the app can be run selecting a

dierent video card, or hardware acceleration

can be disabled).

Tablets & Smartphones

• Android 8.0 minimum, with hardware
acceleration available.

• iPhone 8 or later

• iPad 5th generation or later

• iPad Pro 2nd generation or later

Network Ports

Some communication ports might be locked by default, typically for security reasons in routed or
restricted network segments such as public wireless access for guests. For optimal operation of
Modena Hub, ports in the table that follows should be open and without restriction.

LAN Trac

Port TCP/UDP Description Trac

direction

53 UDP • DNS Outbound No, optional
67 UDP • DHCP Outbound No, optional
80 TCP • Trac between Modena Hub and

Server for welcome page custom
background

• Welcome page for Android Room mode

• Internal URL background on Welcome
page, if HTTP (disabled by default)

• Log download

123 UDP • NTP trac with internal NTP server Outbound No, optional
443 TCP • Browser trac with Modena units web

interface

• Internal updates (pushed from Modena
Server)

• Internal URL background on Welcome
page, if HTTPS (disabled by default)

5353 UDP • Bonjour service (to connect the browser

using ModenaHubName.lcal)

8443 TCP • Communication from Modena Hub and

Server to apps and drivers

8445 TCP • Communication from Modena Hubs to

Modena Server

6000 UDP • Manual unit discovery

• Automatic units discovery (subnet only,
UDP broadcast must be enabled)

7000:7199 TCP • Streaming when using the Modena

apps

Outbound,
also Inbound
for Modena
Server

Outbound,
also Inbound
for Modena
Server

Inbound No, optional

Inbound If using

Outbound,
also Inbound
for Modena
Server

Inbound If using

Inbound If using

Required?

Yes

Yes

desktop apps
If using

Modena Server

desktop apps

desktop apps

7200:7319 TCP • Streaming when using the Modena

apps with Server rooms 2-7

20000:
40000

* UDP broadcast must be enabled to allow the automatic discovery of Modena units from the app.

UDP • Streaming when using the web app

(webRTC)

Inbound If using

desktop apps
with Server
rooms 2-7

Inbound If using web

app

Internet Trac

Port TCP/UDP Description Trac

direction

53 TCP • DNS Outbound No, optional
80 TCP • External URL background on Welcome

page, if HTTP (disabled by default)

123 UDP • NTP trac with external NTP server Outbound No, optional
443 TCP • Weather widget

• Automatic updates

• External URL background on Welcome
page, if HTTPS (disabled by default)

Outbound No, optional

Outbound No, optional

Required?

802.1x

IEEE standard 802.1x is a network protocol that enables security authentication to protect corporate
LAN and WLAN. Modena Hub supports this standard and acts as a trusted supplicant when
connecting to a network authentication server. Supported protocols are:

• EAP-MD5

• EAP-TLS

• EAP-PEAP/MSCHAPv2

• EAP-FAST

• EAP-TTLS/EAP-MSCHAPv2

Please refer to the Modena Hub network parameters page for information on how to congure 802.1x
in Modena.

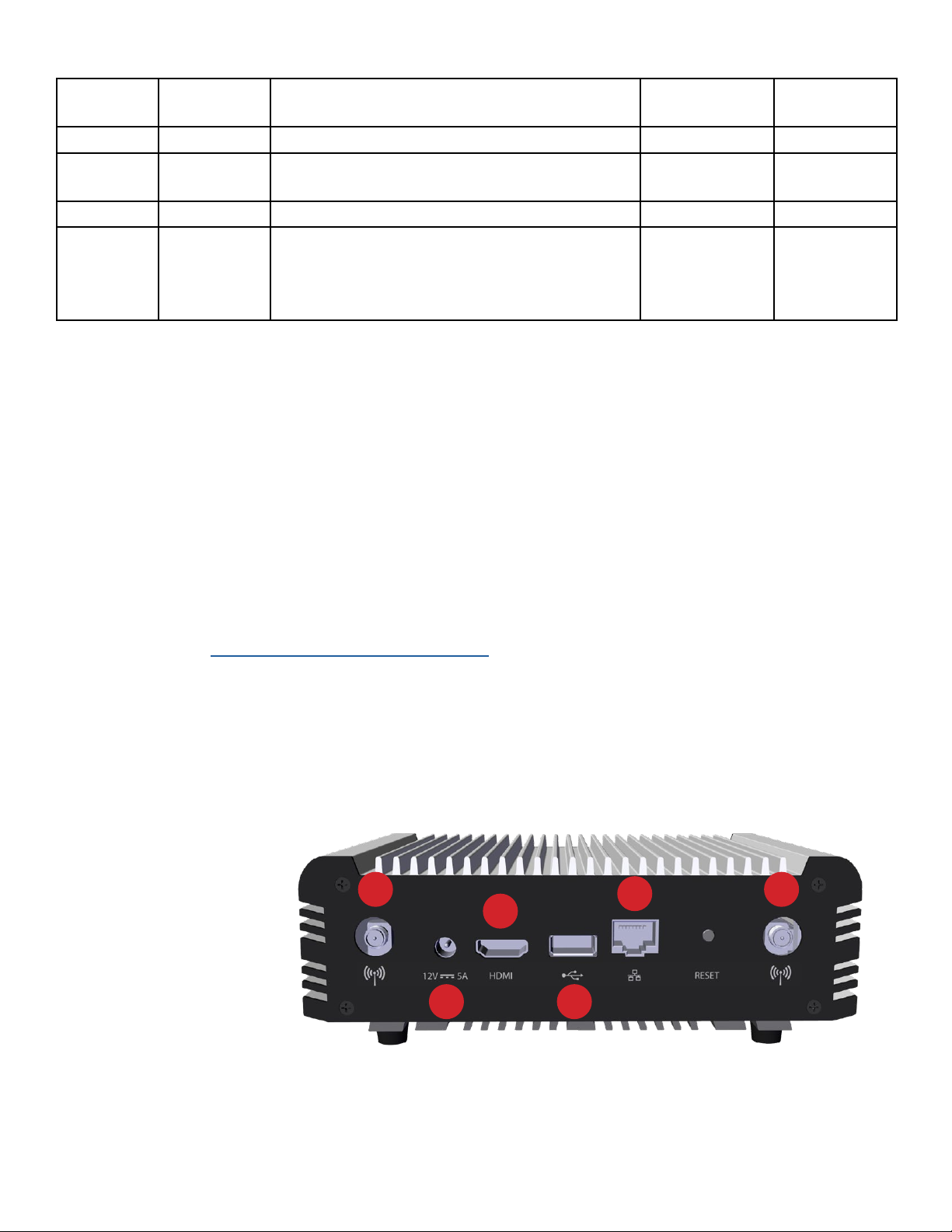

Physical Connections

Modena Hub/Hub+
unit has the following
external connections for
networking and audio/
video connections:

1. Antenna
connections
(Modena Hub+
version only)

2. Power connection

3. HDMI output

4. USB 2.0/3.0 port (Type A) input

5. RJ-45 1000Mbit Ethernet port

1

3

2

4

5

1

Requirements for connected A/V
devices

• All HDMI 1.4 compliant displays are
supported (for UHD the following resolutions

are supported: 3840x2160@30Hz;
4096x2160@24Hz; 3200x2000@60Hz)

• USB cameras must support
720p@30/25/20fps resolution. Depending
on the camera model, the resolution can be
automatically negotiated with Modena, or

must be manually congured in the camera

settings.

• For USB cameras, speakerphones, and all­in-one devices, please check the updated

compatibility list.

• If connecting multiple USB devices, typically
a USB camera and a USB audio device, an
active (powered) USB hub can be used to
provide more ports.

• Reboot the Modena Hub each time a USB
device is plugged into the USB port.

Wireless requirements

Wireless Connection

• 2.4Ghz 802.11n compatible Wi interface

• 5Ghz 802.11ac compatible Wi interface

(recommended)

• Minimum distance between device(s) and
access point: ~ 3 feet (~ 1 meter)

Signal Strength

• RSSI on connected devices: stable above

-65dBm (recommended > - 60dBm)

• SNR (RSSI - Noise) on connected devices:
stable above 25dB (recommended > 35dB)

Minimum Bandwidth

• 4 Mbps average / 15 Mbps peak per

connected client (upstream when presenting;

downstream when receiving)

• Additional 4 Mbps average / 15 Mbps peak
for the videoconference host when using the
Wireless USB feature

• Some USB devices have a longer start-up

time than others; wait until the device boot

sequence is complete before powering on the
Modena Hub.

Using an appropriate tool to measure network
performance is highly recommended. Modena
Hub has an iPerf3 server implementation on­board that can be launched from the Advanced
section of the web admin (see below). iPerf3
is a widely used, cross-platform tool that

can produce standardized performance

measurements for any network, with free clients
available for all major platforms.

Device set up

Modena Hub can be congured from a standard

web browser by connecting to the hub IP
address and entering the web administration
(see Network connection diagrams). To enter the
web admin, navigate to the hub IP address, click
the three-dot menu on the top right of the page
and select the Admin menu item. The default

password is “admin”.

Wired Connection

In this conguration, the Modena Hub/Hub+ base unit is connected to the company LAN via its

Network port. Users connect to Modena via their devices that are connected to the corporate LAN.
These devices may be connected to the corporate LAN wirelessly or via Ethernet connection. Guest
access to Modena can be provided with guest access to the corporate LAN.

Access to Modena and any of its specic features will depend upon permissions granted to the user.

Wired Connection Set-Up

1. Connect Modena’s Network port to
the corporate LAN.

• Make sure the Modena has both

a pathway and access to an active
DHCP server on the network.
Modena is set to DHCP by default
and will need to obtain an IP
address from DHCP server.

2. Connect Modena’s power supply to
power on the unit.

• If power is already connected but

the unit is powered o, press and

release the Power button on the
front of the unit to turn it back
on.

3. Get the Modena’s IP address one of
the following methods:

• Connect a display to Modena’s

HDMI port. The device’s IP
address will be displayed on the

“Welcome” screen.

Webcam HDMI TV

Ethernet

Wireless Devices on a Corporate Network

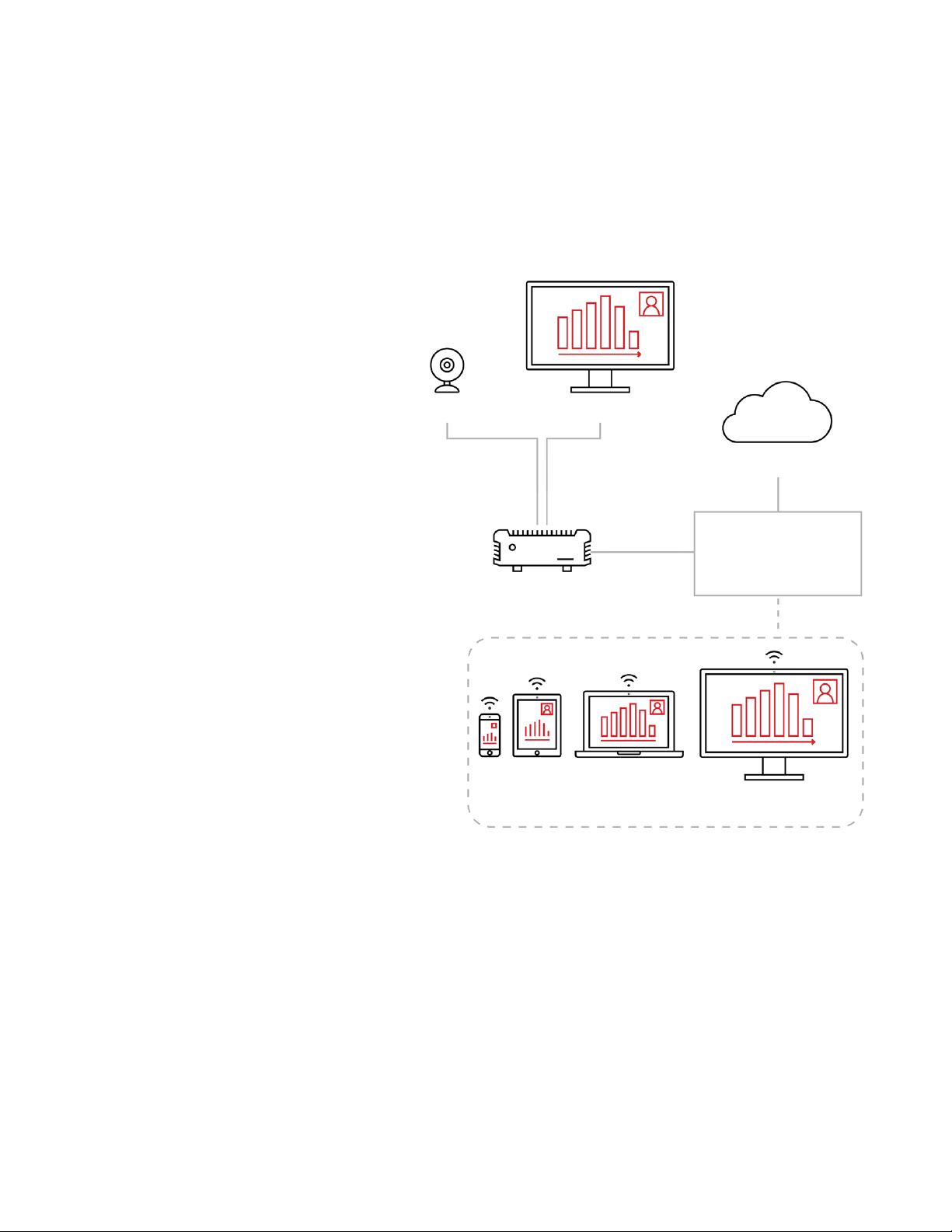

Figure 1. Wired Connection

Internet

Corporate Network

• Use a network tool to discover

what IP address has been
assigned to the device.

4. Type the device’s IP address into the

URL eld of a web browser to access

Modena’s web admin console.

Stand-Alone Mode (Modena Hub+ Only)

Modena may be congured to function in a ‘stand-alone mode,’ where the wired Network interface

port that would normally connect to the corporate LAN is disabled. Modena has no connection to the
Internet in this mode.

In this mode users can only connect to the system by connecting their device to the wireless access
point that comes built-in to Modena Hub+ models. They will be able to present to the display device
that is physically connected to Modena’s HDMI port and the device screens of any other users that

are connected to the same Modena system via Wi.

Modena’s stand-alone mode is a secure
presentation system isolated from both
the corporate LAN and the Internet.
Users do not have access to resources
hosted on the corporate network or
in a cloud server while connected to
the Modena system. Any presentation

HDMI TV

materials required must be accessible on
the user’s local device.

Stand-Alone Mode Set-Up

1. Make sure Modena’s network port is
not plugged into a network.

2. Connect Modena’s power supply to
power on the unit.

WIFI Hot Spot

• If power is already connected but

the unit is powered o, press and

release the Power button on the
front of the unit to turn it back on.

3. Open the wireless network settings
and connect to the Modena Hub+

Wireless Devices on Guest Network

network on the computer that

Modena will be congured. Factory

default settings are as follows:

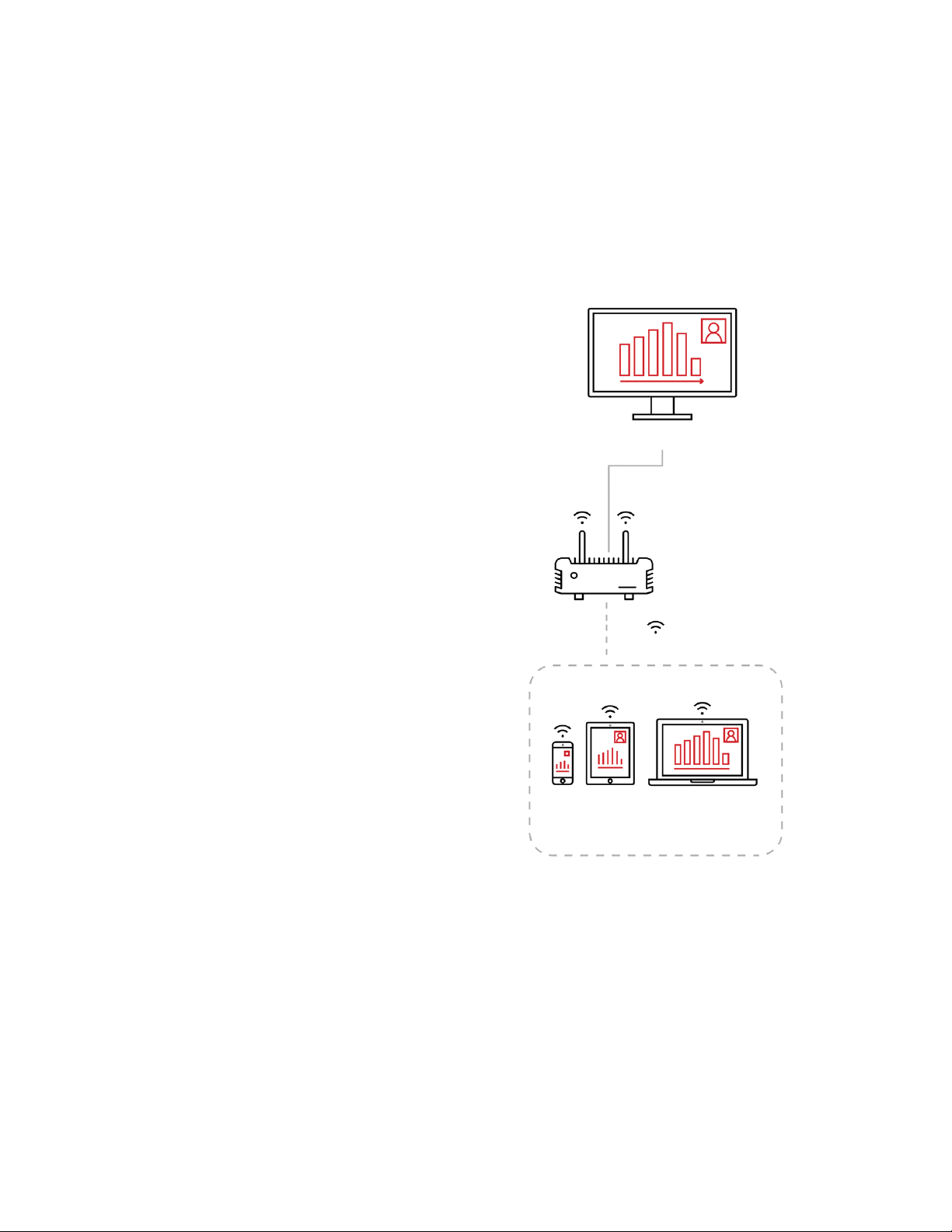

Figure 2. Stand Alone

• SSID: modenahub

• Security: WPA2

• Password: modenahub

4. Get Modena’s IP address on its wireless network. By default, this will be 10.3.2.1. If this setting
has changed, the current IP address can be found in two ways:

• Connect a display to Modena’s HDMI port. The device’s IP address will be displayed on the

“Welcome” screen.

• Use a network tool to discover what IP address has been assigned to the device.

5. Type the device’s IP address into the URL eld of a web browser to access Modena’s web admin
console.

Dual-network mode (Modena Hub+ only)

When congured for dual-network mode, both the wired Network interface port and the built-in

wireless access point will be functional. This allows corporate users to connect to Modena seamlessly
from their device’s regular corporate network connection, while guests can still access Modena via
WiFi without needing access to the corporate network.

This mode oers some degree of
exibility. By changing the “Share

mode” parameter in the Network

conguration page available in the
web admin, it may be congured

for an isolated, secure system or an
open, accessible system.

Webcam HDMI TV

Share Mode Settings:

• None - both the wireless
access point and wired network
interface port will be active and

WIFI Hot Spot

Ethernet

Internet

Corporate Network

accessible to users but mutually
isolated from one another.
This means that guests can be
provided access to Modena
without being given any access
to the local corporate LAN or the
Internet. Company users can still
access their corporate network
resources during presentations

Wireless Devices on

Guest Network

Wireless Devices on Corporate Network

by connecting to Modena via the
corporate LAN.

• Routing + NAT - Modena Hub+

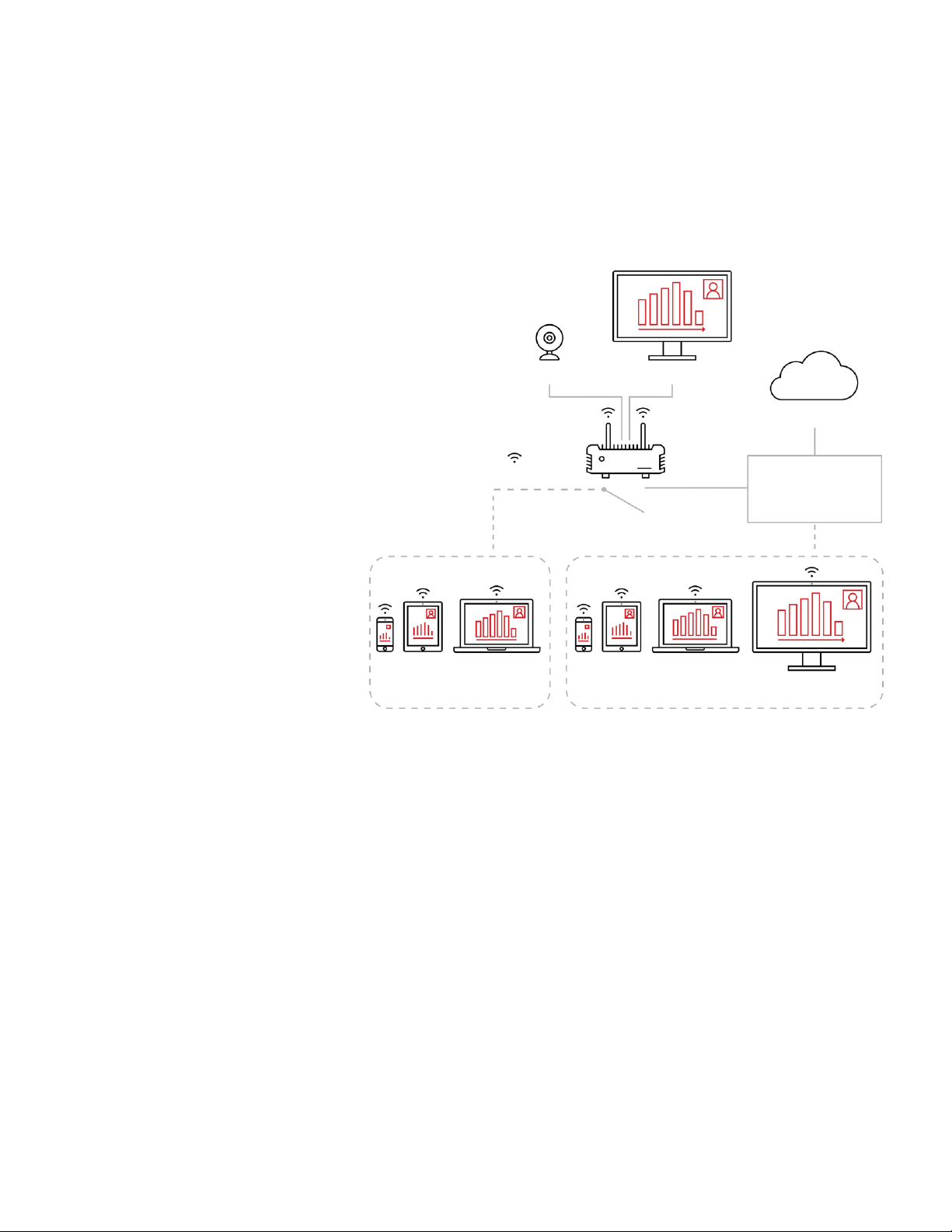

Figure 3. Dual Network

handles NAT between client
devices on its wireless network and the wired network interface port connected to the corporate
LAN. This allows devices connected to Modena’s wireless access point to access resources on the

corporate LAN as well as the Internet. There is no rewall between the wireless and wired subnets
in this conguration.

• Routing - Modena Hub+ routes trac between devices on its wireless network and the wired

network interface port connected to the corporate LAN, but it does not provide any NAT services.

There is no rewall between the wireless and wired subnets in this conguration. Trac between

the two subnets is handled by the corporate LAN’s routing tables.

• Bridge - Modena Hub+ will congure its WiFi access point as an extension of the corporate LAN

using the same IP address and subnet information as the wired network interface port. Client
devices connecting to Modena’s wireless access point will be virtually connecting to the corporate
LAN.

Contact:

Email

[e-mail]

Telephone
877-242-6796
[phone]

www.biamp.com
