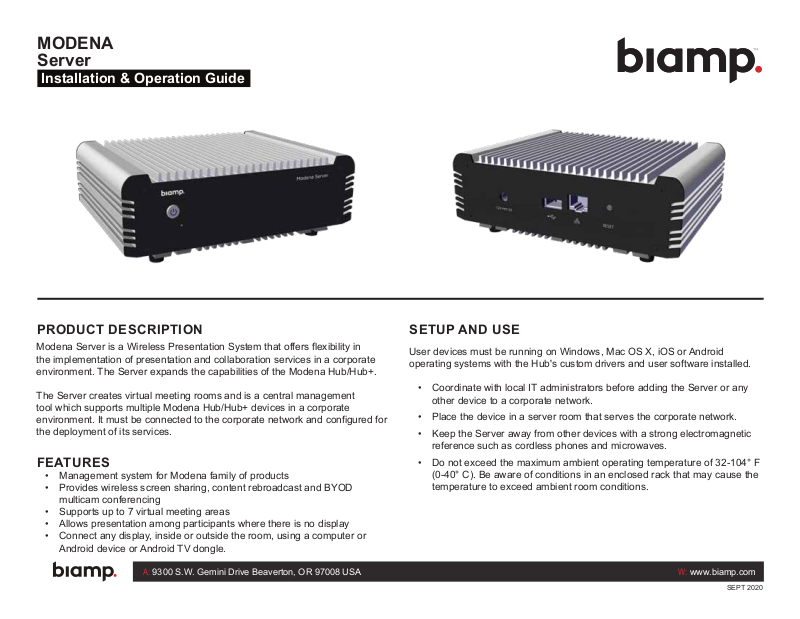

MODENA
Server
Installation & Operation Guide
PRODUCT DESCRIPTION
Modena Server is a Wireless Presentation System that offers flexibility in
the implementation of presentation and collaboration services in a corporate
environment. The Server expands the capabilities of the Modena Hub/Hub+.
The Server creates virtual meeting rooms and is a central management
tool which supports multiple Modena Hub/Hub+ devices in a corporate
environment. It must be connected to the corporate network and configured for
the deployment of its services.
FEATURES
• Management system for Modena family of products
• Provides wireless screen sharing, content rebroadcast and BYOD
multicam conferencing
• Supports up to 7 virtual meeting areas
• Allows presentation among participants where there is no display
• Connect any display, inside or outside the room, using a computer or
Android device or Android TV dongle.
SETUP AND USE
User devices must be running on Windows, Mac OS X, iOS or Android
operating systems with the Hub's custom drivers and user software installed.
• Coordinate with local IT administrators before adding the Server or any
other device to a corporate network.
• Place the device in a server room that serves the corporate network.
• Keep the Server away from other devices with a strong electromagnetic
reference such as cordless phones and microwaves.
• Do not exceed the maximum ambient operating temperature of 32-104° F
(0-40° C). Be aware of conditions in an enclosed rack that may cause the
temperature to exceed ambient room conditions.
SEPT 2020
Page 2
CONNECTIONS
Network Connection
1
3
Image 1. Back of Modena Server device
2
4
1. USB
Standard USB 3.0 Type-A maintenance port.
2. NETWORK
The Server uses a standard RJ45 network port with gigabit Ethernet capability.
Connect to the LAN with Cat5e or better cables (not included).
3. DCIN and Power
Connects with included power supply.
The Modena Server device is connected to the company LAN via its Network
port. Users connect to Modena Server rooms via their devices that are also
connected to the corporate LAN (wireless or via Ethernet connection).
Access to Modena and any of its specic features will depend upon
permissions granted to the user. Guest access can be provided through the
corporate LAN.
Webcam HDMI TV
Internet
Corporate
Network
4. RESET
Reset forces the system to restore the factory default conguration. Recover
reinstalls the original factory rmware and restores the factory default
conguration.
Wireless Devices on
Corporate Network
Image 2. Wireless Devices on a Corporate Network
Wired Connections
Wi
Internet
Connections
page 2 Installation and Operation Guide Modena Server
Page 3
GET STARTED
Network Setup
1. Connect Modena's Network (RJ-45) port to the corporate LAN. The
Server is set to DHCP by default and must obtain an IP address from the
DHCP server.
2. Conrm that the Modena Server has a pathway and access to an active
DHCP server on the network.
3. Connect the power source to the Server and an outlet.
Access Modena Server Management System
The Modena Server Management System allows the user to monitor and
manage parameters and settings of multiple installed devices.
An IP address is required to access the Management System. When the
Modena is connected to the company LAN, the IP address is assigned by the
DHCP server or statically assigned during conguration. The local network
administrator can access Modena's IP address from the corporate network.
1. Use a network tool to access the IP address for the Modena device.
2. Enter the IP into the address bar of your browser (Chrome, Edge, Firefox,
etc.).
3. Click the three dots at the top right of the page and select the Admin
menu to access the Server's admin console.
For more setup information, see Modena Server Management Support.
Virtual Rooms
The Modena Server allows participants to wirelessly connect to one of 7
Virtual Rooms with a personal device and share content from anywhere.
See Modena Server Virtual Rooms for more details.
Image 3. Virtual Rooms
Multicam
The Modena Server Multicam captures and combines the screens of up to 4
participants to create a multi-camera video-conferencing system. The device
allows participants to join using the camera of a personal device and videoconference software of choice. See Modena Server Multicam for more details.
Multicam
Multicam preview:
Preview Window
shows the output of
the Multicam Feed
Layout Control
Options
Image 4. Multicam
Grid view
Active speaker view
Active speaker and thumbnail view
Fill output
Modena Server Installation and Operation Guide page 3
Page 4
