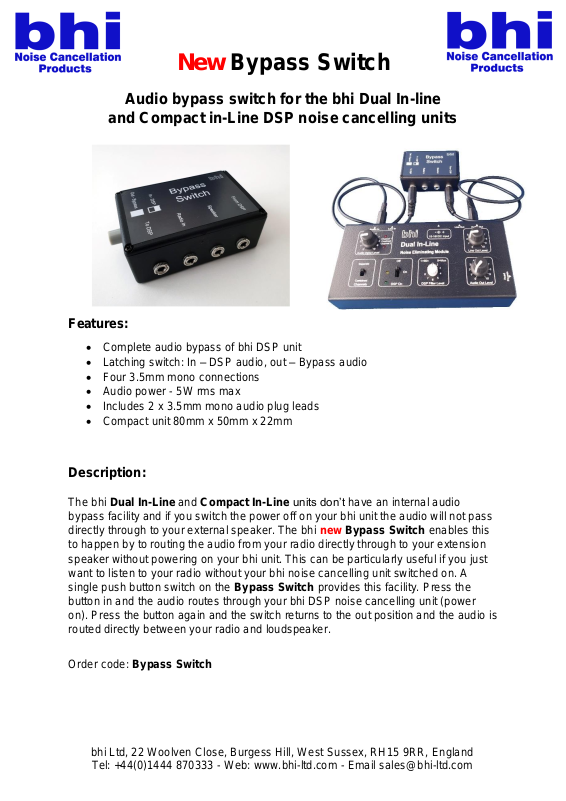

bhi Bypass Switch Data Sheet

Audio bypass switch for the bhi Dual In-line

and Compact in-Line DSP noise cancelling units

Features:

• Complete audio bypass of bhi DSP unit

• Latching switch: In – DSP audio, out – Bypass audio

• Four 3.5mm mono connections

• Audio power - 5W rms max

• Includes 2 x 3.5mm mono audio plug leads

• Compact unit 80mm x 50mm x 22mm

Description:

The bhi Dual In-Line and Compact In-Line units don’t have an internal audio
bypass facility and if you switch the power off on your bhi unit the audio will not pass
directly through to your external speaker. The bhi new Bypass Switch enables this
to happen by to routing the audio from your radio directly through to your extension
speaker without powering on your bhi unit. This can be particularly useful if you just
want to listen to your radio without your bhi noise cancelling unit switched on. A
single push button switch on the Bypass Switch provides this facility. Press the
button in and the audio routes through your bhi DSP noise cancelling unit (power
on). Press the button again and the switch returns to the out position and the audio is
routed directly between your radio and loudspeaker.

Order code: Bypass Switch

New Bypass Switch
