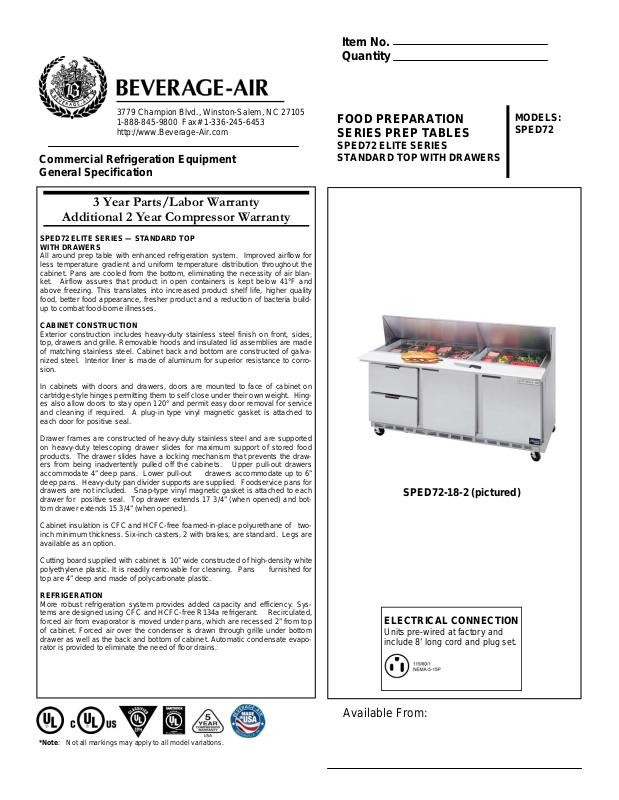

SPED72 ELITE SERIES — STANDARD TOP
WITH DRAWERS

All around prep table with enhanced refrigeration system. Improved airflow for
less temperature gradient and uniform temperature distribution throughout the
cabinet. Pans are cooled from the bottom, eliminating the necessity of air blan­ket. Airflow assures that product in open containers is kept below 41°F and
above freezing. This translates into increased product shelf life, higher quality
food, better food appearance, fresher product and a reduction of bacteria build­up to combat food-borne illnesses.

CABINET CONSTRUCTION

Exterior construction includes heavy-duty stainless steel finish on front, sides,
top, drawers and grille. Removable hoods and insulated lid assemblies are made
of matching stainless steel. Cabinet back and bottom are constructed of galva­nized steel. Interior liner is made of aluminum for superior resistance to corro­sion.

In cabinets with doors and drawers, doors are mounted to face of cabinet on
cartridge-style hinges permitting them to self close under their own weight. Hing­es also allow doors to stay open 120° and permit easy door removal for service
and cleaning if required. A plug-in type vinyl magnetic gasket is attached to
each door for positive seal.

Drawer frames are constructed of heavy-duty stainless steel and are supported
on heavy-duty telescoping drawer slides for maximum support of stored food
products. The drawer slides have a locking mechanism that prevents the draw­ers from being inadvertently pulled off the cabinets. Upper pull-out drawers
accommodate 4” deep pans. Lower pull-out drawers accommodate up to 6”
deep pans. Heavy-duty pan divider supports are supplied. Foodservice pans for
drawers are not included. Snap-type vinyl magnetic gasket is attached to each
drawer for positive seal. Top drawer extends 17 3/4” (when opened) and bot­tom drawer extends 15 3/4” (when opened).

Cabinet insulation is CFC an d HCFC-fr ee fo amed-i n-pl ace pol yure thane of two­inch minimum thickness. Six-in ch cast ers, 2 with brakes, are standa rd. Legs ar e
available as an option.

Cutting board supplied with cabinet is 10” wide constructed of high-density white
polyethylene plastic. It is readily removable for cleaning. Pans furnished for
top are 4” deep and made of polycarbonate plastic.

REFRIGERATION

More robust refrigeration system provides added capacity and efficiency. Sys­tems are designed using CFC and HCFC-free R134a refrigerant. Recirculated,
forced air from evaporator is moved under pans, which are recessed 2” from top
of cabinet. Forced air over the condenser is drawn through grille under bottom
drawer as well as the back and bottom of cabinet. Automatic condensate evapo­rator is provided to eliminate the need of floor drains.

FOOD PREPARATION
SERIES PREP TABLES

SPED72 ELITE SERIES
STANDARD TOP WITH DRAWERS

SPED72-18-2 (pictured)

ELECTRICAL CONNECTION

Units pre-wired at factory and
include 8’ long cord and plug set.

MODELS:
SPED72

*Note: Not all markings may apply to all model variations.

Available From:

Model Specified
Location

Food Prep Table — Standard Top With Drawers

Models: SPED72

Store#
Quantity

MODEL SPED72-08-2 SPED72-08-4 SPED72-10-2 SPED72-10-4 SPED72-12-2 SPED72-12-4 SPED72-18-2 SPED72-18-4
EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of drawers 2 4 2 4 2 4 2 4
Number of doors 2 1 2 1 2 1 2 1
Top Drawer Extension (when opened) 17 3/4” 17 3/4” 17 3/4” 17 3/4” 17 3/4” 17 3/4” 17 3/4” 17 3/4”
Bottom Drawer Extension (when opened) 15 3/4” 15 3/4” 15 3/4” 15 3/4” 15 3/4” 15 3/4” 15 3/4” 15 3/4”

INTERNAL DIMENSIONAL DATA

NET Capacity (cubic ft.)
NET Capacity (Liters)

Internal Length Overall (inches)
Internal Length Overall (mm)

Internal Depth Overall (inches)
Internal Depth Overall (mm)

Internal Height Overall—(inches)
Internal Height Overall—(mm)

ELECTRICAL DATA

Full Load Amperes 115/60/1 9.6 9.6 9.6 9.6 9.6 9.6 9.6 9.6

REFRIGERATION DATA

Horsepower 1/3 1/3 1/3 1/3 1/3 1/3 1/3 1/3

WEIGHT DATA

Gross Weight (Crated lbs) 425 425 425 425 455 465 442 400
Gross Weight (Crated kg) 193 193 193 193 206 211 201 181

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

29 1/4”

41 11/16”

72”

1829

743

1059

21.5
609

68”

1727

19”
483

23”
584

SPED72-08-6

72”

1829

29 1/4”

743

41 11/16”

1059

6

­17 3/4”
15 3/4”

21.5
609

68”

1727

19”
483

23”
584

9.6

1/3

425
193

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

29 1/4”

41 11/16”

72”

1829

743

1059

21.5
609

68”

1727

19”
483

23”
584

SPED72-10-6

72”

1829

29 1/4”

743

41 11/16”

1059

6

­17 3/4”
15 3/4”

21.5
609

68”

1727

19”
483

23”
584

9.6

1/3

425
193

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

SPED72-12-6

72”

1829

29 1/4”

743

41 11/16”

1059

6

­17 3/4”
15 3/4”

21.5
609

68”

1727

19”
483

23”
584

9.6

1/3

475
216

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

72”

1829

29 1/4”

743

41 11/16”

1059

21.5
609

68”

1727

19”
483

23”
584

SPED72-18-6

72”

1829

29 1/4”

743

41 11/16”

1059

6

­17 3/4”
15 3/4”

21.5
609

68”

1727

19”
483

23”
584

9.6

1/3

505
229

Note: Not all markings may apply to all model varia-

*N/A::

Not available at time of printing.

DRAWER SUPPORT CAPACITY

MODEL # OF PAN

SUPPORTS
(SUPPLIED)

SPED72 1 1 HALF SIZE AND

POSSIBLE PAN

COMBINATION

2 1/6TH SIZE

1 HALF SIZE AND

1 1/3RD SIZE

SPED72-08 SPED72-10 SPED72-12

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

PLAN VIEWS

SPED72-18 top assembly shown above. Refer to Top Pan Configurations at bottom,

left of spec sheet for appropriate top layout. Varies by cabinet.

SPED72-18

TOP PAN CONFIGURATIONS

BEVERAGE-AIR® CORPORATION

Specifications are subject to change without prior notice. 06/13
