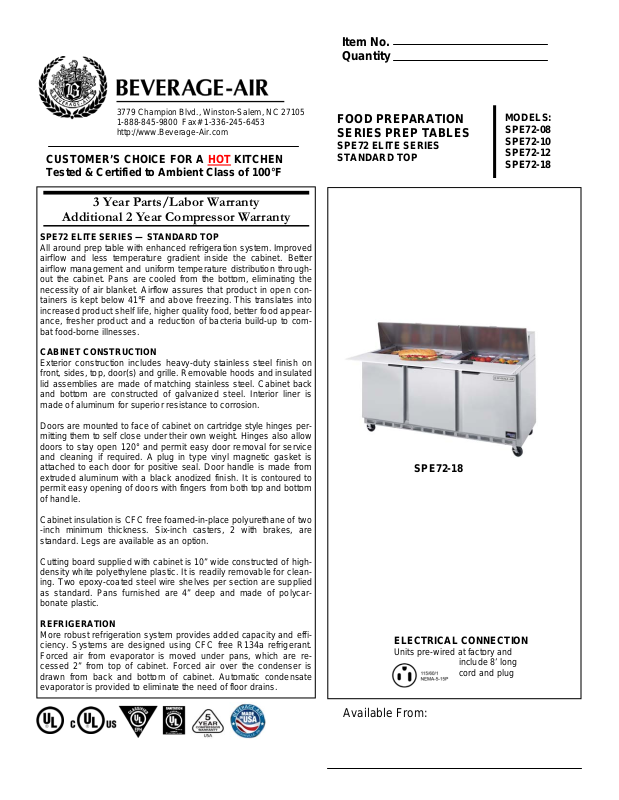

Beverage Air SPE72-08 User Manual
Item No.
Quantity
3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# 1-336-245-6453
http://www.Beverage-Air.com
CUSTOMER’S CHOICE FOR A HOT KITCHEN
Tested & Certified to Ambient Class of 100°F
3 Year Parts/Labor Warranty
Additional 2 Year Compressor Warranty
SPE72 ELITE SERIES — STANDARD TOP
All around prep table with enhanced refrigeration system. Improved
airflow and less temperature gradient inside the cabinet. Better
airflow management and uniform temperature distribution throughout the cabinet. Pans are cooled from the bottom, eliminating the
necessity of air blanket. Airflow assures that product in open containers is kept below 41°F and above freezing. This translates into
increased product shelf life, higher quality food, better food appearance, fresher product and a reduction of bacteria build-up to combat food-borne illnesses.
CABINET CONSTRUCTION
Exterior construction includes heavy-duty stainless steel finish on
front, sides, top, door(s) and grille. Removable hoods and insulated
lid assemblies are made of matching stainless steel. Cabinet back
and bottom are constructed of galvanized steel. Interior liner is
made of aluminum for superior resistance to corrosion.
Doors are mounted to face of cabinet on cartridge style hing es permitting them to self close under their own weight. Hinges also allow
doors to stay open 120° and permit easy door removal for service
and cleaning if required. A plug in type vinyl magnetic gasket is
attached to each door for positive seal. Door handle is m ade from
extruded aluminum with a black anodized finish. It is contoured to
permit easy opening of doors with fingers from both top and bottom
of handle.
Cabinet insulation is CFC free foamed-in-place polyurethane of t wo
-inch minimum thickness. Six-inch casters, 2 with brakes, are
standard. Legs are available as an option.
Cutting board supplied with cabinet is 10” wide constructed of highdensity white polyethylene plastic. It is readily removable for cleaning. Two epoxy-coated steel wire shelves per section are supplied
as standard. Pans furnished are 4” deep and made of polycarbonate plastic.
REFRIGERATION
More robust refrigeration system provides added capacity and efficiency. Systems are designed using CFC free R134a refrigerant.
Forced air from evaporator is moved under pans, which are recessed 2” from top of cabinet. Forced air over the condenser is
drawn from back and bottom of cabinet. Automatic condensate
evaporator is provided to eliminate the need of floor drains.
FOOD PREPARATION
SERIES PREP TABLES
SPE72 ELITE SERIES
STANDARD TOP
SPE72-18
ELECTRICAL CONNECTION
Units pre-wired at factory and
include 8’ long
cord and plug
MODELS:
SPE72-08
SPE72-10
SPE72-12
SPE72-18
Available From:
Model Specified
Location
Food Preparation Table — Standard Top
Models: SPE72-08, SPE72-10, SPE72-12, SPE72-18
MODEL SPE72-08
EXTERNAL DIMENSIONAL DATA
Length Overall (inches)
Length Overall (mm)
Depth Overall (inches)
Depth Overall (mm)
Height Overall— (inches)
Height Overall— (mm)
Number of doors 3
Depth with Door Open 90 o 51”
Clear Door Opening (inches) 19 1/2” x 21 1/2”
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)
NET Capacity (Liters)
Internal Length Overall (inches)
Internal Length Overall (mm)
Internal Depth Overall (inches)
Internal Depth Overall (mm)
Internal Height Overall—(inches)
Internal Height Overall—(mm)
Number of shelves 6
ELECTRICAL DATA
Full Load Amperes 115/60/ 1 9.6
ENERGY CONSUMPTION (KWH) 4.4
REFRIGERATION DATA
Horsepower 1/3
WEIGHT DATA
Gross Weight (Crated lbs) 395
Gross Weight (Crated kg) 179
72”
1829
29 1/4”
743
41 11/16”
1059
21.5
609
68”
1727
19”
483
23”
584
SPE72-10
72”
1829
29 1/4”
743
41 11/16”
1059
3
51”
19 1/2” x 21 1/2”
21.5
609
68”
1727
19”
483
23”
584
6
9.6
4.4
1/3
430
195
SPE72-12
72”
1829
29 1/4”
743
41 11/16”
1059
3
51”
19 1/2” x 21 1/2”
21.5
609
68”
1727
19”
483
23”
584
6
9.6
4.4
1/3
406
184
Store#
Quantity
SPE72-18
72”
1829
29 1/4”
743
41 11/16”
1059
3
51”
19 1/2” x 21 1/2”
21.5
609
68”
1727
19”
483
23”
584
6
9.6
4.4
1/3
406
184
PLAN VIEWS
SPE72-08
TOP VIEW
SPE72-10
TOP VIEW
SPE72-12
TOP VIEW
SPE72-18
TOP VIEW
BEVERAGE-AIR® CORPORATION
3779 Champion Blvd. • Winston-Salem, NC 27105 USA • (336) 245-6400 • Fax (336) 245-6453 • (888) 845-9800 • www.beverage-air.com
Specifications are subject to change without prior notice. 06/13
