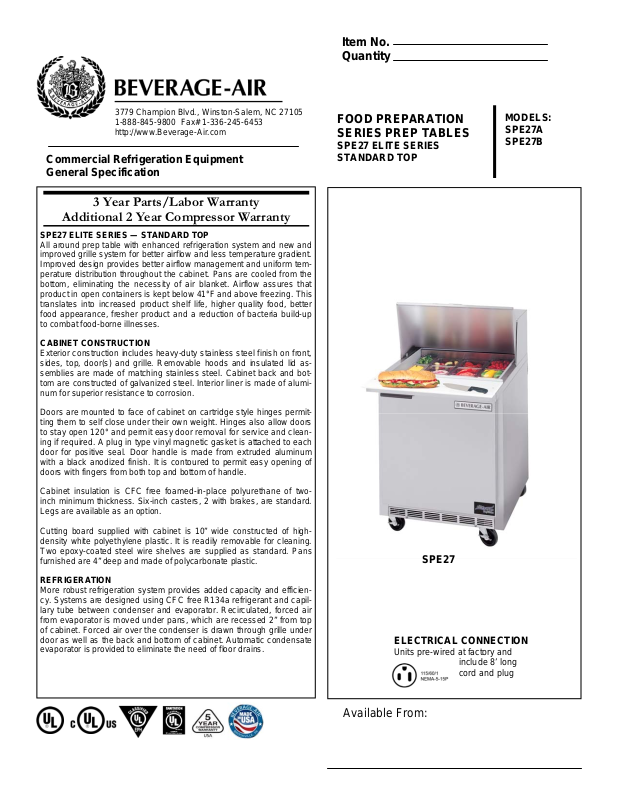

Beverage Air SPE27B User Manual

Item No.
Quantity

3779 Champion Blvd., Winston-Salem, NC 27105
1-888-845-9800 Fax# [phone]
http://www.Beverage-Air.com

Commercial Refrigeration Equipment
General Specification

3 Year Parts/Labor Warranty

Additional 2 Year Compressor Warranty

SPE27 ELITE SERIES — STANDARD TOP

All around prep table with enhanced refrigeration system and new and
improved grille system for better airflow and less temperature gradient.
Improved design provides better airflow management and uniform tem­perature distribution throughout the cabinet. Pans are cooled from the
bottom, eliminating the necessity of air blanket. Airflow assures that
product in open containers is kept below 41°F and above freezing. This
translates into increased product shelf life, higher quality food, better
food appearance, fresher product and a reduction of bacteria build-up
to combat food-borne illnesses.

CABINET CONSTRUCTION

Exterior construction includes heavy-duty stainless steel finish on front,
sides, top, door(s) and grille. Removable hoods and insulated lid as­semblies are made of matching stainless steel. Cabinet back and bot­tom are constructed of galvanized steel. Interior liner is made of alumi­num for superior resistance to corrosion.

Doors are mounted to face of cabinet on cartridge style hinges permit­ting them to self close under their own weight. Hinges also allow doors
to stay open 120° and permit easy door removal for service and clean­ing if required. A plug in type vinyl magnetic gasket is attached to each
door for positive seal. Door handle is made from extruded aluminum
with a black anodized finish. It is contoured to permit easy opening of
doors with fingers from both top and bottom of handle.

Cabinet insulation is CFC free foamed-in-place polyurethane of two­inch minimum thickness. Six-inch casters, 2 with brakes, are standard.
Legs are available as an option.

Cutting board supplied with cabinet is 10” wide constructed of high­density white polyethylene plastic. It is readily removable for cleaning.
Two epoxy-coated steel wire shelves are supplied as standard. Pans
furnished are 4” deep and made of polycarbonate plastic.

REFRIGERATION

More robust refrigeration system provides added capacity and efficien­cy. Systems are designed using CFC free R134a refrigerant and capil­lary tube between condenser and evaporator. Recirculated, forced air
from evaporator is moved under pans, which are recessed 2” from top
of cabinet. Forced air over the condenser is drawn through grille under
door as well as the back and bottom of cabinet. Automatic condensate
evaporator is provided to eliminate the need of floor drains.

FOOD PREPARATION
SERIES PREP TABLES

SPE27 ELITE SERIES
STANDARD TOP

SPE27

ELECTRICAL CONNECTION

Units pre-wired at factory and

include 8’ long
cord and plug

MODELS:
SPE27A
SPE27B

Available From:

Model Specified
Location

Store#
Quantity

Food Preparation Table — Standard Top

Models: SPE27A, SPE27B

MODEL SPE27A

EXTERNAL DIMENSIONAL DATA

Length Overall (inches)
Length Overall (mm)

Depth Overall (inches)
Depth Overall (mm)

Height Overall— (inches)
Height Overall— (mm)

Number of doors 1

Depth with Door Open 90 o 55 1/8”
Clear Door Opening (inches) 22 1/2” x 21 1/2”
INTERNAL DIMENSIONAL DATA
NET Capacity (cubic ft.)

NET Capacity (Liters)
Internal Length Overall (inches)

Internal Length Overall (mm)
Internal Depth Overall (inches)

Internal Depth Overall (mm)
Internal Height Overall—(inches)

Internal Height Overall—(mm)
Number of shelves 2
Number of pans 6 1/6 size &

ELECTRICAL DATA
Full Load Amperes 115/60/1 4

ENERGY CONSUMPTION (KWH) ­REFRIGERATION DATA

Horsepower 1/6
WEIGHT DATA
Gross Weight (Crated lbs) 202
Gross Weight (Crated kg) 92

27”
686

31”
787

41 11/16”

1059

7.3
207

23 1/16”

586
19”

483
23”

584

2 1/9 size

SPE27B

27”
686

31”
787

41 11/16”

1059

1

55 1/8”

22 1/2” x 21

7.3
207

23 1/16”

586
19”

483
23”

584

2

8 1/6 size

4

-

1/6

202

92

PLAN VIEWS

PAN

CONFIGURATION

BEVERAGE-AIR® CORPORATION

3779 Champion Blvd. • Winston-Salem, NC 27105 USA • [phone] • Fax [phone] • [phone] • www.beverage-air.com

Specifications are subject to change without prior notice. 06/13
