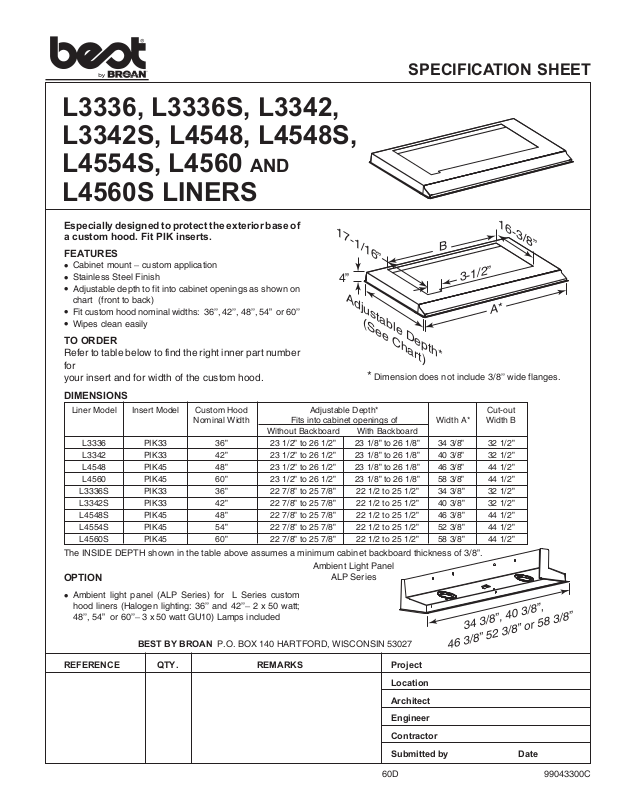

SPECIFICATION SHEET

L4554S, L4560
L4560S LINERS

Especially designed to protect the exterior base of
a custom hood. Fit PIK inserts.

FEATURES

Cabinet mount _ custom application

•

Stainless Steel Finish

•

Adjustable depth to fit into cabinet openings as shown on

•

chart (front to back)
Fit custom hood nominal widths: 36’’, 42’’, 48’’, 54” or 60’’

•

Wipes clean easily

•

TO ORDER

Refer to table below to find the right inner part number
for
your insert and for width of the custom hood.

DIMENSIONS

Liner Model Insert Model Custom Hood Adjustable Depth* Cut-out

Nominal Width Fits into cabinet openings of Width A* Width B

L3336 PIK33 36” 23 1/2” to 26 1/2” 23 1/8” to 26 1/8” 34 3/8” 32 1/2”
L3342 PIK33 42” 23 1/2” to 26 1/2” 23 1/8” to 26 1/8” 40 3/8” 32 1/2”
L4548 PIK45 48” 23 1/2” to 26 1/2” 23 1/8” to 26 1/8” 46 3/8” 44 1/2”

L4560 PIK45 60” 23 1/2” to 26 1/2” 23 1/8” to 26 1/8” 58 3/8” 44 1/2”
L3336S PIK33 36” 22 7/8” to 25 7/8” 22 1/2 to 25 1/2” 34 3/8” 32 1/2”
L3342S PIK33 42” 22 7/8” to 25 7/8” 22 1/2 to 25 1/2” 40 3/8” 32 1/2”
L4548S PIK45 48” 22 7/8” to 25 7/8” 22 1/2 to 25 1/2” 46 3/8” 44 1/2”
L4554S PIK45 54” 22 7/8” to 25 7/8” 22 1/2 to 25 1/2” 52 3/8” 44 1/2”
L4560S PIK45 60” 22 7/8” to 25 7/8” 22 1/2 to 25 1/2” 58 3/8” 44 1/2”

The INSIDE DEPTH shown in the table above assumes a minimum cabinet backboard thickness of 3/8”.

OPTION

AND

HA0025

17-1/16”

4”

Adjustable Depth*

(See Chart)

* Dimension does not include 3/8’’ wide flanges.

Without Backboard With Backboard

Ambient Light Panel

ALP Series

B

3-1/2”

16-3/8”

A*

Ambient light panel (ALP Series) for L Series custom

•

hood liners (Halogen lighting: 36’’ and 42’’_ 2 x 50 watt;
48’’, 54” or 60’’_ 3 x 50 watt GU10) Lamps included
