1 S a fet y w ar nings
1.1 Warning
Warning:risk of fire / flamma ble m ate rials
RECOMMENDATIONS：
This appliance is intended to be used in household and similar applications such as
staff kitchen areas in shops, offices and other working environments;
farm houses and by clients in hotels, motels and other residential type environments;
bed and breakfast type environments;
catering and similar non-retail applications.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
)
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
WARNING: Risk of fire / flammable materials.
WARNING
WARNING
recommended by the manufacturer.
WARNING
WARNING
unless they are of the type recommended by the manufacturer.
WARNING
and refrigerant.
: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
: Do not use mechanical devices or other means to accelerate the defrosting process, other than those
: Do not damage the refrigerant circuit.
: Do not use electrical appliances inside the food storage compartments of the appliance,
: Please abandon the refrigerator according to local regulators for it use flammable blowing gas
Do not use extension cords or ungrounded（two prong）adapters
DANGER:Risk of child entrapment.Before you throw away your old refrigerator or freezer:
-Take off the doors
-Leave the shelves in place so that children may not easily climb inside
The refrigerator must be disconnected from the source of electrical supply before attempting the installation
of accessory
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and
be recovered by a special recovering company with corresponding qualification other than
be disposed by combustion, so as to prevent damage to the environment or any other harm.
1
1.2 Meaning of safety warning symbols
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product
Prohibition symbol
Warning symbol
Note symbol
or endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be caused.
This is a cautioning symbol.
Instructions marked with this symbol require special caution.
Insufficient caution may result in slight or moderate injury,
or damage to the product.
This manual contains lots of important safety information
which shall be observed by the users.
1.3 Electricity related warnings
Do not pull the power cord when pulling the power plug of the
refrigerator. Please firmly grasp the plug and pull out it from
the socket directly.
To ensure safe use, do not damage the power cord or use the power cord
when it is damaged or worn.
Please use a dedicated power socket and the power socket shall
not be shared with other electrical appliances.
The power plug should be firmly contacted with the socket or else
fires might be caused.
Please ensure that the grounding electrode of the power socket is
equipped with a reliable grounding line.
Please turn off the valve of the leaking gas and then open the doors
and windows in case of leakage of gas and other flammable gases.
Do not unplug the refrigerator and other electrical appliances
considering that spark may cause a fire.
Do not use electrical appliances on the top of the appliance,
unless they are of the type recommended by the manufacturer.
Do not use electrical appliances in the food storage compartments
of the appliance, unless they are of the type recommended by supplier.
2
1.4 Warnings for using
Do not arbitrarily disassemble or reconstruct the refrigerator,
nor damage the refrigerant circuit; maintenance of the appliance
must be conducted by a specialist
Damaged power cord must be replaced by the manufacturer, its
maintenance department or related professionals in order to avoid
danger.
The gaps between refrigerator doors and between doors and refrigerator
body are small, be noted not to put your hand in these areas to prevent from
squeezing the finger. Please be gentle when close the refrigerator door to
avoid falling articles.
Do not pick foods or containers with wet hands in the freezing chamber when the
refrigerator is running, especially metal containers in order to avoid frostbite.
Do not allow any child to get into or climb the refrigerator; otherwise
suffocation or falling injury of the child may be caused.
Do not place heavy objects on the top of the refrigerator considering
that objectives may fall when close or open the door, and accidental
injuries might be caused.
Please pull out the plug in case of power failure or cleaning. Do not
connect the freezer to power supply within five minutes to prevent
damages to the compressor due to successive starts.
1.5 Warnings for placement
Do not put flammable, explosive, volatile and highly corrosive items
in the refrigerator to prevent damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
The refrigerator is intended for household use, such as storage of foods;
it shall not be used for other purposes, such as storage of blood,
drugs or biological products, etc.
3
Freezi ng cham ber
Do not store beer, beverage or other fluid contained in bottles or
enclosed containers in the freezing chamber of the refrigerator;
otherwise the bottles or enclosed containers may crack due to
freezing to cause damages.
1.6 Warnings for energy
1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2)The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or
in low-temperature compartments or cabinets, and that some products such as water ices should not be
consumed too cold;
3)The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of
food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
4)The precautions necessary to prevent an undue rise in the temperature of the frozen food while
defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5)The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or
cleaning could shorten the storage life.
6)The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach
of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being
locked inside
1.7 Warnings for disposal
Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.
Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and
be recovered by a special recovering company with corresponding qualification other than
be disposed by combustion, so as to prevent damage to the environment or any other harm.
When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and
shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.
Correct Disposal of this product：
This marking indicates that this product should not be disposed in accordance with
European Directive 2012/19/EU concerning used electrical and electronic appliances(WEEE).
To prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product
was purchased. They can take this product for environmental safe recycling.
4
2 Proper use of refrigerators
2.1 Placement
Before use, remove all packing materials, including bottom cushions,
foam pads and tapes inside of the refrigerator;
tear off the protective film on the doors and the refrigerator body.
Keep away from heat and avoid direct sunlight. Do not
place the freezer in moist or watery places to prevent rust
or reduction of insulating effect.
Do not spray or wash the refrigerator; do not put the refrigerator in
moist places easy to be splashed with water so as not to affect the
electrical insulation properties of the refrigerator.
The refrigerator is placed in a well-ventilated indoor place;
the ground shall be flat, and sturdy
Precautions before installation:
Information in the Instruction Manual is only for reference. The physical product may differ.
Before installation and adjusting of accessories, it shall be ensured that the refrigerator is
disconnected from power.
.
2.2 Installation in cabinet
Fridge size and cabinet size requirement.
1
4
1
4
1
16
7
16
21
1
21
4
21
7
8
16
3
180°
16
4
7
5
8
39
1
4
7
16
24
5
min 1 in
45
80 in
64
22 in
1
16
31
32
27
9 in
32
1
16
23
42 in
32
15
16
5
32
H+ in
7 in
7 in
25
32
25
32
5
32
27 in
in
9
16
1
4
=70 in+A
31 sq.in
22 in
3
64
25
in
32
Push the refrigerator into the cabinet and adjust it to make sure the edgefold of top baffle completely
touch the top edge of the cabinet, and the Stopper bracket of supporting leg completely touch
the bottom edge of the cabinet.
Edgefold of top baffle
Stopper bracket
Fix the supporting leg with screws, then install the screw caps.
Screw cap
Screw
6
Fix the top baffle to the top of the cabinet inner with screws, then install the screw caps.
Screw
Screw cap
Open the lower door of cabinet the maximum angle, and open the lower door of the refrigerator to the
corresponding position. Sliding the block to make sure inner edge align with the lower door edge of
refrigerator, then fix the block to the door of cabinet with screw and install screw caps. Fix the upper
refrigerator door to the cabinet door in the same way.
Screw Cap
Screw
Block
Take out the sealing strip from accessory bag, and press it in the gap between the cabinet and the
refrigerator, then adjust the limit hook to original position . Installation is completed.
Sealing strip
Limit hook
（The picture above is only for reference. The actual configuration will
depend on the physical product or statement by the distributor）
7
2.3 Door Right-Left Change
Lis t of to ols to b e prov ide d by the u ser
Cross screwdriver
5/16″
socket and ratchet
1)Power off the refrigerator, and remove all objects from the door trays.
2)Remove the upper hinge and hole caps of refrigerator door.
hol e caps
Putty knife
thin-blade screwdriver
Masking tape
upp er hing e
3)Remove the refrigerator door, the middle hinge and the hole cover.
R
hol e cover
:middle hi nge
8
3)Exchange the R:bottom hinge and R:upper hinge ,then install them according to below steps,
and install the top hole caps.
4) of refriger ato r doo r them for 180°，
Remove the two fixed blocks and rotate
and install them on other side of .
refrigera tor d oor
hol e caps
R:b ottom h inge
Step 3:
insta ll left upp er hinge
Step2 :
put re frigerat or
door o n left botto m
hing e vertical ly
5)Remove the the upper hinge of freezer door.
F:u pper hi nge
R:u pper hi nge
Step 1 :
inst all left bot tom hinge
180°
fix ed bloc k
6)Remove the freezer door, the bottom hinge and the hole caps.
F:b ottom h inge
hol e caps
9
7)Exchange the F:bottom hinge and F:upper hinge ,then install them according to below steps,
and install the top hole cover and lower hole caps.
8) for 180°，
Remove the two fixed blocks of freezer door and rotate them
and install them on other side of .
F:b ottom h inge
Step 3:
inst all left upp er hinge
freezer doo r
Step 2:
put re frigerat or
door o n left botto m
hing e vertical ly
F:u pper hi nge
Step 1 :
inst all left bot tom hinge
hol e cover
180°
hol e caps
fix ed bloc k

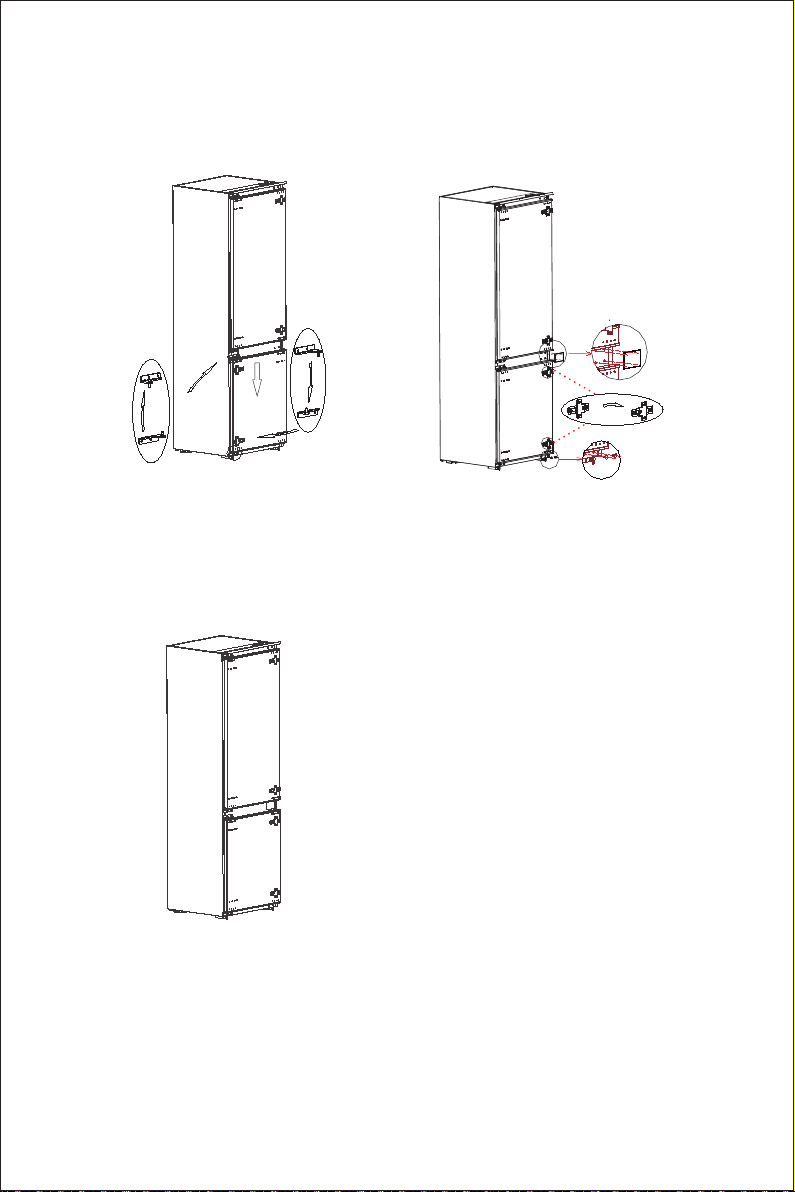

9). The picture after completion is shown as below
（The picture above is only for reference. The actual configuration will depend on
the physical product or statement by the distributor）
10
2.3 the LightChanging
Any replacement or maintenance of the LED lamps is intended to be made by
the manufacturer, its service agent or similar qualified person.
2.4 Starting
Before initial start, keep the refrigerator still for half an hour
before connecting it to power supply.
Before putting any fresh or frozen foods, the refrigerator shall have run
for 2-3 hours, or for above 4 hours in summer when the ambient
temperature is high.
21.34in
ni09.81
90
Spare enough space for convenient openin g of the doors and drawers or
statement by the distri butor.
41.73in
2.5 Energy saving tips
The applian ce sh oul d be located in th e coo les t are a of the room, awa y fro m hea t
producing a ppl ian ces or heating d uct s, an d out o f the direct sun lig ht.
Let hot foods c ool t o roo m tem perature bef ore p lac ing in the appli anc e. Ov erl oading
the applian ce fo rce s the compressor to r un lo nge r. Foods that fr eez e too s low ly may
lose qualit y, or s poi l.
Be sure to wrap f ood s pro perly, and wipe con tai ner s dry before pla cin g the m in th e
appliance . Thi s cut s down on frost build -up i nsi de the applian ce.
Appliance s tor age b in should not be l ine d wit h aluminum foil, wa x pap er
toweling. L ine rs in terfere with cold a ir ci rcu lation, maki ng th e app lia nce less effic ien t.
Organize an d lab el fo od to reduce doo r ope nin gs an d extended sea rch es. R emove as many
items as need ed at o ne ti me, and close the doo r as so on as p ossible.
11
, or paper
3 Structure and functions
3.1 Key components
LED ligh tin g
Shelf
Tem peratur econtro l pan el
Fru its a nd
vegeta ble s box
Storag e box
Drawer
Door tra y
（The picture a bov e is on ly for reference. T he ac tua l configuration w ill d epe nd on
the physica l pro duc t or st atement by the d ist rib utor）
Refrigerating chamber
The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and
other food in the short term.
Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
Foods are recommended to be sealed up before putting into the refrigerator.
The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.
Freezing chamber
The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be
consumed in short term.
Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food
shall be consumed within the shelf time.
Note: Storage of too much food during operation after the initial connection to power may adversely
affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise
the freezing effect will also be adversely affected.
consumed
12
3.2 Functions
①
②
③
④
A
（The picture a bov e is on ly for reference. T he ac tua l configurat ion w ill d epe nd on
the physica l pro duc t or statement by the d ist rib utor）
1)Key
A.Temperature setting button of refrigerator compartment
2)Display screen
①setting 1：46
②setting 2：43
③setting 3：39
④setting 4：36
3)Display
Once initially powered on the display screen is on full display for 3s.
and then the refrigerator runs according to setting 3.
Normal operation display
In case of a failure the corresponding LED blinks.
In case of no failures the actual temperature setting of refrigerator.
,
,
, it shows
indicator setting 1
indicator setting 2
indicator setting 3
indicator setting 4
Fault Code
Fault Description
Refrigerator temperature
sensor circuit
Refrigerator defrost sensor
Freezer defrost sensor
Ambient temperature sensor
)
temperature setting
4
Each time the button A is pressed once the changes one time.
After the has been completed, the refrigerator will run according to the set value after 30s.
The shift regulation is:
temperature setting , temperature setting
temperature setting
setting 1 setting 2 setting 3 setting 4
5)Lock/Unlock
When the temperature control panel is in lock state, it needs to long press temperature setting key
for 3 seconds for unlocking the panel, all LEDs will blink for 2 second when panel is unlocked.
When the temperature control panel is in unlock state, if there is no operation on control panel within
30 seconds, it will enter into lock state automatically.
13
6)Power off function
① entry mode:
In the unlocking state, set the key SET for 10S (when the display and control of the refrigerator are
all off, the SET button will take effect when the key is released). After 30S, the refrigerator will
enter the power off function mode, all loads are turned off, and the display and control of the refrigerator
will be all off in the power off mode.
② exit method:
In power off mode, press the SET key to exit the power off mode and the refrigerator will return to
normal control.
4. Maintenance and care of the refrigerator
4.1 Overall cleaning
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling
effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor.
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for
cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for
natural drying before the power is turned on.
Do not use hard brushes, clean steel balls, wire brushes,
abrasives, such as toothpastes, organic solvents (such as
alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items clean refrigerator considering that this may
damage the fridge surface and interior.
Do not rinse with water so as not to affect the electrical insulation
properties.
Please unplug the refrigerator for defrost and cleaning.
4.2 Defrosting
The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also
be manually removed by disconnection of the appliance from power supply
or by wiping with a dry towel.
deterg ent
4.3 Out of operation
Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for
several hours; during the power failure, the times of door opening shall be reduced, and no more fresh
food shall be put into the appliance.
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open
to prevent odor.
Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder,
freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them
with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated;
the inclination during movement shall be no more than 45°.
The appliance shall run continuously once it is started. Generally, the operation of the appliance
shall not be interrupted; or otherwise the service life may be impaired
15
5 Trouble shooting
5.1You may try to solve the following simple problems by yourself.
If them cannot be solved, please contact the after-sales department.
Check whether the appliance is connected to power or
Failed operation
Odor
Long-time operation
of the compressor
Light fails to get lit
whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long operation of the refrigerator is normal in summer
when the ambient temperature is high
It is not suggestible having too much food in the appliance at the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Check whether the refrigerator is connected to power supply and
whether the illuminating light is damaged
Have the light replaced by a specialist
Doors cannot be
properly closed
Loud noise
Door seal fai ls to
be tight
Water pan ove rfl ows
Hot housing
Surface conden sat ion
Abnormal noise
The door is stuck by food packages
The refrigerator is tilted
Check whether the floor is level and whether the refrigerator is placed stably
Check whether accessories are placed at proper locations
Remove fore ign m att ers o n the door seal
Heat the door s eal a nd th en cool it for res tor ati on
(or blow it wit h an el ect rical drier or use a ho t tow el fo r heating)
There is too mu ch fo od in t he ch amber or food store d con tai ns
too much wate r,r esu lti ng in heavy defrost ing
The doors are not cl ose d pro perly, resultin g in fr ost ing d ue to entry
of air and increas ed wa ter d ue to defrosting
Heat dissipati on of t he bu ilt-in condense r via t he ho usi ng, which is normal .
When housing bec ome s hot d ue to high ambient te mpe rat ure a nd
storage of to o muc h foo d,i t is recommended to p rov ide s oun d ventilation
to facilita te he at di ssi pation.
Condensation on the exterior surface and door seals of the refrigerator
is normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Buzz: The compressor may produce buzzes during operation, and the buzzes
are loud particularly upon start or stop. This is normal.
Creak: Refrigerant flowing inside of the appliance may produce creak,
which is normal.
16
F.LLI BERTAZZONI ITALIE
MANUEL D'INSTRUCTIONS
Réfrigérateur encastrable
MODÈLE: REF24PR
16
1.4 Avertissements pour l'utilisation
• Ne pas désassembler ou reconstruire arbitrairement le réfrigérateur,
ni endommager le circuit de réfrigérant; l'entretien de l'appareil doit
être fait par un spécialiste
• Le câble d'alimentation endommagé doit être remplacé par le
fabricant, son service de maintenance ou ses professionnels
associés afin d'éviter tout danger.
• Les espaces entre les portes du réfrigérateur et entre les portes et le
corps du réfrigérateur sont petits. Il est recommandé de ne pas
mettre la main dans ces zones pour éviter le pincement du doigt.
Veuillez être doux lorsque vous fermez la porte du réfrigérateur
pour éviter la chute des articles.
• Ne prenez pas les aliments ou les récipients avec les mains mouillées
dans la partie congélation lorsque le réfrigérateur est en marche,
surtout les récipients en métal afin d'éviter les engelures.
• Ne permettez à aucun enfant d’entrer ou grimper dans le
réfrigérateur; sinon une suffocation ou une chute de l'enfant peut
être provoquée.
• Ne placez pas d'objets lourds au dessus du réfrigérateur vu que ceux
ci risquent de tomber lorsque vous fermez ou ouvrez la porte, et des
blessures accidentelles pourraient être causées.
• Veuillez retirer la fiche en cas de coupure de courant ou de
nettoyage. Ne connectez pas le congélateur à l'alimentation
d’énergie dans les cinq minutes qui suivent pour éviter
d'endommager le compresseur en raison de démarrages successifs.
• Ne placez pas d'objets inflammables, explosifs, volatils et très
corrosifs dans le réfrigérateur pour éviter d'endommager le produit
ou de provoquer un incendie.
• Ne placez pas d'objets inflammables près du réfrigérateur pour
éviter les incendies.
• Le réfrigérateur est destiné à un usage domestique, tel que le
stockage d'aliments; il ne doit pas être utilisé à d'autres fins, telles
que le stockage de sang, de médicaments ou de produits
biologiques, etc.
1.5 Avertissements pour le placement
3
1
4
21
1
4
7
8
21
16
3
5
8
39
1
4
7
16
24
4
1
4
1
16
7
16
21
180°
7
16
min 1 in
45
80 in
64
22 in
1
16
31
32
27
9 in
32
1
16
23
42 in
32
15
16
5
32
H+ in
25
7 in
32
25
7 in
32
5
in
32
27 in
16
9
1
4
=70 in+A
25
in
32
31 sq.in
22 in
64
3
Vis
Bouchon à vis
Bouchon à vis
Vis
Bloc
Bande d’étanchéité
Crochet de limite
Fixer le déflecteur du haut vers le haut de l’armoire intérieure avec vis, puis installez les cache-vis.
Ouvrez la porte inférieure de l’armoire l’angle maximal et ouvrez la porte inférieure du
réfrigérateur à la position correspondante. Le patin pour rendre le bord intérieur bien sûr s’aligner
sur le bord inférieur de la porte du réfrigérateur, puis fixez le bloc à la porte de l’armoire avec vis et
installer des bouchons à vis. Fixez la porte du réfrigérateur supérieur à la porte de l’armoire de la
même manière.
Sortir de la bande de sac d’accessoires, appuyez dessus dans l’écart entre le cabinet et le
réfrigérateur, puis ajuster le crochet de limite à la position initiale. Installation est terminée.
(La photo ci-dessus est seulement pour la référence. La configuration réelle dépendra de l’instruction par
le distributeur ou le produit physique)
7
Liste des outils nécessaires pour ces travaux
Tournevis en croix
Tournevis à lame fine
un couteau à mastic
5/16 ″
Cliquet
Ruban adhésif de
masquage
Caches de trou
Charnière supérieure
R : charnière inférieure
Cache-trou
2.3 Changement du Porte droite-gauche
1) Mise hors tension du réfrigérateur et retirez tous les objets dans les plateaux de la porte.
2) Retirez la porte du réfrigérateur, la charnière et le cache du trou.
3) Retirez les caches supérieurs de charnière et trou de porte du réfrigérateur.
6
8
R : charnière inférieure
Étape 3 :
Installez la charnière
supérieure gauche
R: charnière
supérieure
Étape 1 :
Installez la charnière
inférieure gauche
Etape 2 :
Mett ez la porte
du réfri gérateur
sur la charnière
inférieure
gauche
verticalement
Caches de trou
Bloc fixe
F: charnière supérieure
F: charnière inférieure
Caches de trou
3) Echanger la charnière de la R: charnière inférieure et la R: charnière supérieure, puis installez-les
selon procédure ci-dessous et installez les capuchons de trou supérieur.
4) Retirez les deux blocs fixes de porte du réfrigérateur et les tourner de 180° et installez-les sur
l’autre côté du réfrigérateur.
5) Retirez la charnière supérieure de la porte du congélateur.
6) Retirez la porte du congélateur, la charnière et les caches de trou.
7
9
F: charnière inférieure
Étape 3 :
Installez la charnière
supérieure gauche
F: charnière supérieure
Étape 1 :
Installez la charnière
inférieure gauche
Etape 2 :
Mettez la po rte du
réfrig érateur sur la
charnière in férieure
gauche vertical ement
Cache-trou
Bloc fixe
Bouchons de trou
7) Echanger la charnière de la F: charnière inférieure et la F: charnière supérieure, puis installez-les
selon étapes ci-dessous et installez le cache de l’orifice supérieur et inférieur.
8) Retirez les deux blocs fixes de porte du congélateur et faire pivoter de 180° et les installer sur
l’autre côté de la porte du congélateur
9) L’image une fois le changement effectué se prés comme ci-dessous
(L’image ci-dessus est seulement pour cetteréférence. La configuration réelle dépendra de
l’instruction par le distributeur ou le produit physique)
10
18.90in
21.34in
41.73in
90
3Désignation et fonctions
3.1 Composants clés
LED clignotant
Balconnet de porte
Clayette
Panneau de contrôle de la
température
Boîte à fruits et légumes
Boîte de rangement
Tiroir
(L'image ci-dessus est seulement pour indication. La configuration réelle dépendra du produit
physique ou de la déclaration du distributeur)
Chambre frigorifique
• La chambre frigorifique est appropriée pour le stockage d'une variété de fruits, légumes, boissons
et autres aliments consommés à court terme.
• Les aliments cuisinés ne doivent pas être placés dans la chambre de réfrigération avant d'avoir été
refroidis à la température ambiante.
• Il est recommandé d’emballer les aliments avant de les mettre au réfrigérateur.
• Les clayettes en verre peuvent être ajustées vers le haut ou vers le bas pour un espace de
rangement raisonnable et une utilisation facile.
Chambre de congélation
• La chambre de congélation à basse température peut conserver les aliments frais pendant une
longue période et elle est principalement utilisée pour stocker des aliments congelés et faire de la
glace.
• La chambre de congélation est appropriée au stockage de la viande, du poisson, et 'autres aliments
à ne pas consommer à court terme.
• Les morceaux de viande doivent de préférence être divisés en petits morceaux pour un accès facile.
Veuillez noter que les aliments doivent être consommés dans le temps indiqué.
Remarque: Le stockage de trop d'aliments après le branchement initial peut nuire à la congélation.
Les aliments stockés ne doivent pas bloquer la sortie d'air; ou sinon l'effet de congélation sera
également affecté.
12
①
②
③
④
A
30
30
6) Contrôleur des fonction d'attente
①mode d'entrée :
Dans la l'état déverrouillé, définir la clé de SET à 10S (lorsque l'affichage
et la commande du réfrigérateur tout, le bouton de veille fonctionnera
lorsque le bouton est relâché). Après 30S, le réfrigérateur vient de la
manière de soin et de l'affichage fonction et la commande du réfrigérateur
seront tous hors de la mode d'attente.
②méthodes de retrait:
La mode d'attente, Appuyez sur le bouton SET pour quitter le mode veille
et le réfrigérateur retournera à la normale con.
15
16
Loading...
