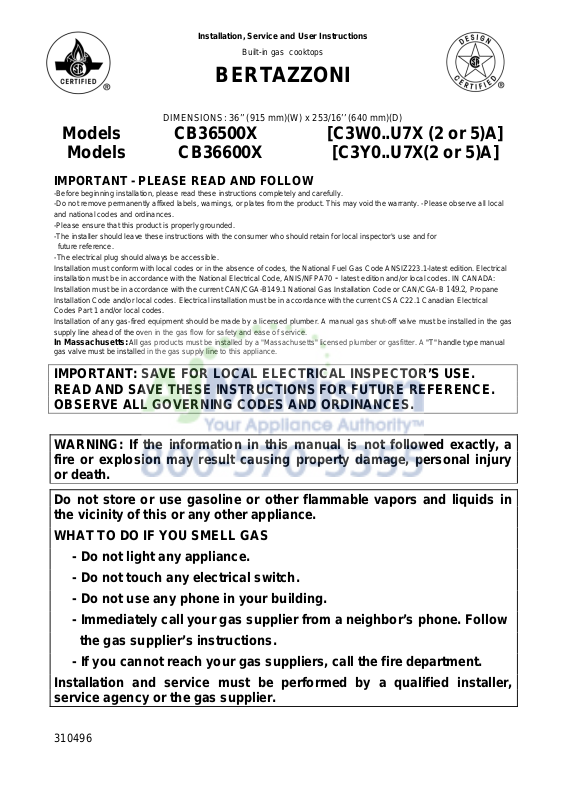

Installation, Service and User Instructions

Built-in gas cooktops

BERTAZZONI

Models

DIMENSIONS: 36’’ (915 mm)(W) x 253/16’’ (640 mm)(D)

CB36500X

[C3W0..U7X (2 or 5)A]

Models

CB36600X

[C3Y0..U7X(2 or 5)A]

IMPORTANT - PLEASE READ AND FOLLOW

-Before beginning installation, please read these instructions completely and carefully.

-Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty. -Please observe all local and national codes and ordinances.

-Please ensure that this product is properly grounded.

-The installer should leave these instructions with the consumer who should retain for local inspector's use and for future reference.

-The electrical plug should always be accessible.

Installation must conform with local codes or in the absence of codes, the National Fuel Gas Code ANSIZ223.1-latest edition. Electrical installation must be in accordance with the National Electrical Code, ANIS/NFPA70 - latest edition and/or local codes. IN CANADA: Installation must be in accordance with the current CAN/CGA-B149.1 National Gas Installation Code or CAN/CGA-B 149.2, Propane Installation Code and/or local codes. Electrical installation must be in accordance with the current CSA C22.1 Canadian Electrical Codes Part 1 and/or local codes.

Installation of any gas-fired equipment should be made by a licensed plumber. A manual gas shut-off valve must be installed in the gas supply line ahead of the



In Massachusetts: All

"T" handle type manual



gas valve must be installed











IMPORTANT:

USE.



READ AND

REFERENCE.



OBSERVE ALL











WARNING: If

exactly, a



fire or explosion

personal injury



or death.



Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS

-Do not light any appliance.

-Do not touch any electrical switch.

-Do not use any phone in your building.

-Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

-If you cannot reach your gas suppliers, call the fire department.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

310496

WARNING

Read this instruction booklet before installing and using the appliance.

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

This appliance has been designed for non-professional, domestic use only.

Warning: do not use this appliance to heat a room.

Installation instructions

This appliance shall only be installed by an authorized person. This appliance shall be installed in accordance with the manufacturer’s installation instructions, IMPORTANT: this appliance must be installed in accordance with the norms & standards of the country where it will be installed.

The installation of this appliance must conform to local codes and ordinances. In the absence of local codes, Installations must conforms to American National Standards, National Fuel Gas Code ANSI Z223.1 – latest edition** or B149.1.

If local codes permit,

certified design, max. 5

feet (1,5 m) long, ½”

line. Do not bend or

damage the flexible

female pipe thread.

The appropriate fitting

line, the flexible metal

connector and the



The appliance, when

or, in the absence

of local codes, with



The appliance and its

piping system any

pressure testing of that



The appliance must be

manual shutoff valve

during any pressure

or less than ½ psi (3.5

kPa).



For use with a pressure

it shall be properly

installed in order to be



The gas appliance pressure regulator must be set for the gas with which the appliance is used.

This appliance can be used with Natural Gas and LP Gas. It is shipped from the factory adjusted for use with Natural Gas: CONVERSION FIXED ORIFICES ARE LOCATED IN THE LITERATURE PACK SUPPLIED WITH THE UNIT.

A gas nozzle kit for the change of type of gas are contained inside the package tigether with the gas appliance installation kit and instruction booklet.

The maximum inlet gas supply pressure incoming to the gas appliance pressure regulator is 20’’ water column (5 kPa) .

The minimum gas supply pressure for checking the regulator setting shall be at least 1“ w.c. (249 Pa) above the inlet specified manifold pressure to the appliance (this operating pressure is 4” w.c. (1.00 kPa) for Natural Gas and 11” w.c. (2.75 kPa) for LP Gas.

ATTENTION: A manual valve shall be installed in an accessible location in the gas line external to the appliance for the purpose of turning on or shutting off gas to the appliance

WARNING: Do not use aerosol sprays in the vicinity of this appliance while it is in operation

Requirements

Room ventilation – Location and venting.

ATTENTION: An exhaust fan may be used with the appliance; in each case it shall be installed in conformity with the national standards in force.

ATTENTION: Exhaust hood operation may affect other vented appliances; in each case it shall be installed in conformity with the national standards in force.

2

Bertazzoni CB36500XLP Installation manual

INSTALLATION MANUAL

BACKGUARD INSTALLATION INSTRUCTION

Please follow the following installation instructions afther installing the cooktop:

1)Remove n°2 screws fixing worktop as shown in fig.1

2)Place front part of the backguard and attach it from bottom side with the two removed screws (point 2) as shown in fig .2

3)Fix the front part of the backguard with the screws supplied with the backguard kit (fig.3)

4)Assemble back part with front part of backguard and fix them with a screw supplied with the backguard kit (fig.4)

2



3



4

WORKTOP FRONTGUARD INSTALLATION INSTRUCTIONS

In order to increase the clearance between front edge of the worktop and the burners for your safety it is recomended to install the worktop frontguard supplied with the appliance. For installation instructions follow the instructions indicated in the following figures

3

PROXIMITY TO SIDE CABINET INSTALLATION

1. This rangetop may be installed directly adjacent to existing 36" (91.5 cm) high base cabinets. IMPORTANT: The top grate support MUST be 3/8" (.95 cm) above the adjacent base cabinet countertOP.

2.The rangetop CANNOT be installed directly adjacent to sidewalls, tall cabinets, tall appliances, or other side vertical surfaces above 36" (91.5 cm) high. There must be a minimum of 6" (15.2 cm) side clearance from the rangetop to such combustible surfaces above the 36" (91.5 cm) counter height.

3.3. Within the 6" (15.2 cm) side clearance to combustible vertical surfaces above 36" (91.4 cm) I the maximum wall cabinet depth must be 13" (33.0 cm) and wall cabinets within this 6" (15.2 cm) side clearance must be 18" (45.7 cm) above the 36" (91.4 cm) high countertop.

4.4. Wall cabinets above .the rangetop must be a minimum of 36" (91.4 cm) for the open top burner models and a minimum of 42" (106.7 cm) for the sealed burner models above the rangetop cooking surface for the full width of the rangetop. This minimum cooking surface.



6”(15.2cm) MIN



36”(91.5cm)



36”(91.5cm)



13”(33.0cm)MAX



18”(45.7cm)MIN



36”(91.5cm)



6”1/2(16.5cm)

H

1”(2.5cm) MIN

i

9/16” (1.8cm)

L

2”( 5 cm) MIN

120 VAC/60 Hz withing 48” (122.9cm) of right rear or rangetop
