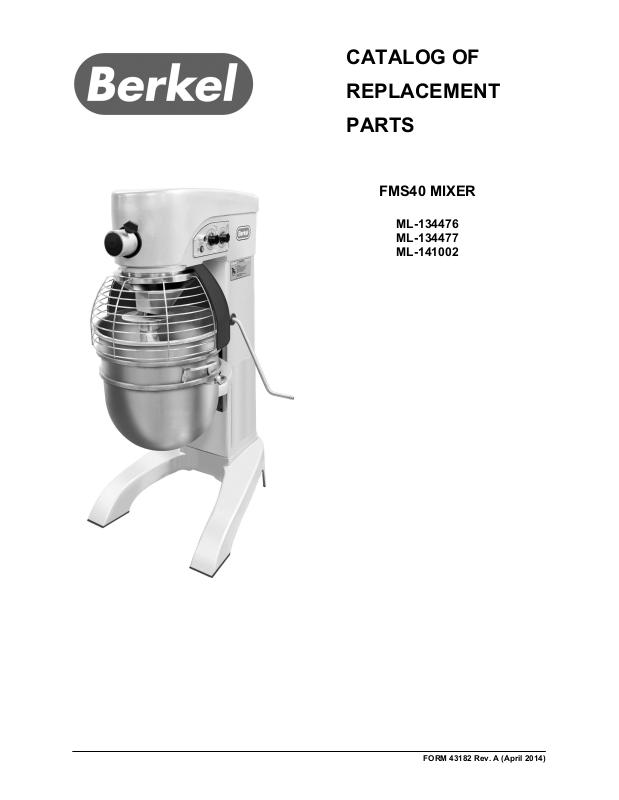

Berkel FMS40 Parts List

CATALOG OF

REPLACEMENT

PARTS

FMS40 MIXER

ML-134476
ML-134477
ML-141002

FORM 43182 Rev. A (April 2014)

FMS40 MIXER REPLACEMENT PARTS

F-43182 Rev. A (April 2014) - 2 - © 2014

Table of Contents

FMS40 MIXER REPLACEMENT PARTS

5 CONTROL PANEL
7 ELECTRICAL COMPONENTS

9 ATTACHMENT HUB
11 BASE AND PEDESTAL
13 BOWL SUPPORT
15 TRANSMISSION CASE AND MOTOR
17 TRANSMISSION
19 BOWL GUARD AND HEIGHT SENSOR
21 AGITATORS AND ACCESSORIES
23 WIRING HARNESSES

- 3 - F-43182 Rev. A (April 2014)

FMS40 MIXER REPLACEMENT PARTS

CONTROL PANEL

F-43182 Rev. A (April 2014) - 4 -

CONTROL PANEL

FMS40 MIXER REPLACEMENT PARTS

ILLUS.
PL-59035

10 00-917448 Switch Assy. - Stop....................................................................................................................1

11 SC-120-61 Mach. Screw M4 x 0.7 x 10mm Slotted Cheese Hd...................................................................6

PART NO. NAME OF PART AMT.

1 00-917354 PCB Assy. - Speed Select..........................................................................................................1

2 00-916988-00005 Timer Assy. (90-130 V., 60 Hz.).................................................................................................1

3 00-916988-00006 Timer Assy. (180-250 V., 60 Hz.)...............................................................................................1

4 00-916938 Spacer - Timer............................................................................................................................1

5 00-917442 Panel - Operator (Red)...............................................................................................................1

6 SC-022-72 Mach. Screw 5-40 x 7/16 Slotted Flat Hd...................................................................................2

7 00-917141 Knob - Control............................................................................................................................2

8 00-917448 Switch Assy. - Stop....................................................................................................................1

9 00-917446 Guard - Switch............................................................................................................................1

- 5 - F-43182 Rev. A (April 2014)

FMS40 MIXER REPLACEMENT PARTS

ELECTRICAL COMPONENTS

F-43182 Rev. A (April 2014) - 6 -

ELECTRICAL COMPONENTS

FMS40 MIXER REPLACEMENT PARTS

ILLUS.
PL-59036

10 WL-019-81 Lockwasher M4 External (SST)..................................................................................................2

11 SC-200-02 Mach. Screw M4 x 0.7 x 10mm Slotted Pan Hd. (SST).............................................................2

12 00-917840 Controller (100-120 V., 50-60 Hz., 1 Ph.)...................................................................................1

13 00-917577 Controller (200-230 V., 50-60 Hz., 1 Ph.)...................................................................................1

14 00-917578 Controller (200-230 V., 50-60 Hz., 3 Ph.)...................................................................................1

15 WL-019-81 Lockwasher M4 External (SST)..................................................................................................4

16 NS-047-24 Nut M4 x 0.7 Hex........................................................................................................................4

17 SD-039-50 Self-Tapping Screw M3.9 x 13 Phil. Pan Hd. (SST)...................................................................1

18 00-917472 Plate - Controller Mounting.........................................................................................................1

19 WL-019-74 Lockwasher M8 Spring (SST)....................................................................................................1

20 SC-121-57 Cap Screw M8 x 1.25 x 10mm Hex Socket Hd. (SST)...............................................................1

21 FE-024-88 Lock Nut 1/2 Electrical................................................................................................................1

22 FE-022-84 Connector - Strain Relief............................................................................................................1

23 00-917681 Cord & Plug Assy. (Incls. Strain Relief) (120 V.)........................................................................1

24 00-917682 Cord & Plug Assy. (Incls. Strain Relief) (230 V.)........................................................................1

25 SC-128-14 Mach. Screw M4 x 0.7 x 14mm Phil. Pan Hd.............................................................................4

26 SC-118-29 Mach. Screw M4 x 0.7 x 15mm Slotted Pan Hd. (SST).............................................................2

27 WL-019-81 Lockwasher M4 External (SST)..................................................................................................2

28 00-916269 Block - Terminal.........................................................................................................................1

29 00-917830 Brace - Controller Plate..............................................................................................................1

30 SD-039-50 Self-Tapping Screw M3.9 x 13 Phil. Pan Hd. (SST)...................................................................1

31 SD-039-50 Self-Tapping Screw M3.9 x 13 Phil. Pan Hd. (SST)...................................................................1

32 00-917764 Plate - Controller Mounting.........................................................................................................1

PART NO. NAME OF PART AMT.

1 00-916269 Block - Terminal.........................................................................................................................1

2 WL-019-81 Lockwasher M4 External (SST)..................................................................................................2

3 SC-118-29 Mach. Screw M4 x 0.7 x 15mm Slotted Pan Hd. (SST).............................................................2

4 00-087714-020-2 Relay (3.P.D.T.) (120 V.)............................................................................................................1

5 00-087714-020-3 Relay (3.P.D.T.) (240 V.)............................................................................................................1

6 WL-019-81 Lockwasher M4 External (SST)..................................................................................................2

7 SC-200-02 Mach. Screw M4 x 0.7 x 10mm Slotted Pan Hd. (SST).............................................................2

8 00-087714-042-1 Relay (2-Pole) (120 VAC) (30 Amp.)..........................................................................................1

9 00-087714-042-3 Relay (2-Pole) (240 VAC)...........................................................................................................1

- 7 - F-43182 Rev. A (April 2014)

FMS40 MIXER REPLACEMENT PARTS

ATTACHMENT HUB

F-43182 Rev. A (April 2014) - 8 -
