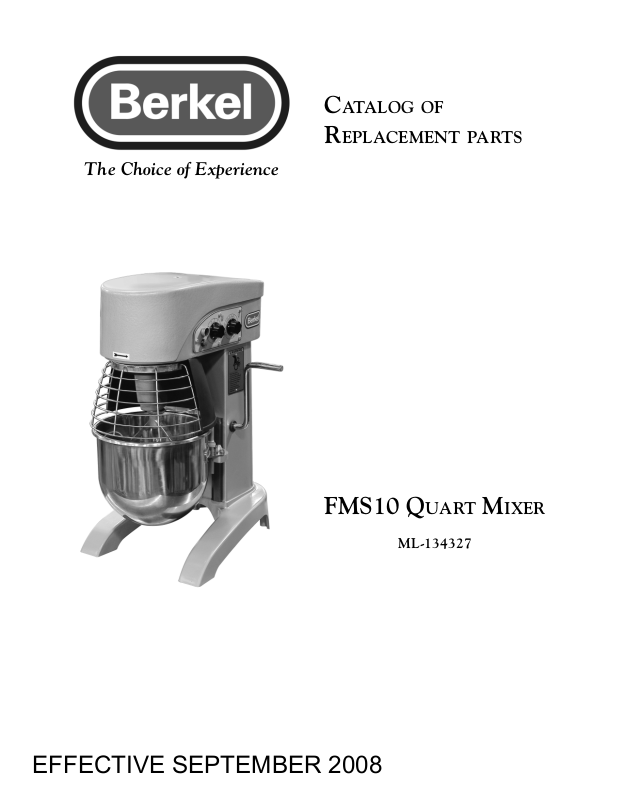

Berkel FMS10 Part Manual

The Choice of Experience

CATALOG OF
REPLACEMENT PARTS

FMS10 Q

EFFECTIVE SEPTEMBER 2008

UART MIXER

ML-134327

FMS10 QUART MIXER REPLACEMENT PARTS

3 CONTROL PANEL
5 ELECTRICAL COMPONENTS
7 BASE AND PEDESTAL
9 BOWL SUPPORT
11 TRANSMISSION CASE AND MOTOR
13 TRANSMISSION
15 BOWL AND BOWL GUARD
16 AGITATORS AND ACCESSORIES

Table of Contents

F-43165 (September 2008)

- 2 -

FMS10 QUART MIXER REPLACEMENT PARTS

2

1

3

4

5

10

9

8

7

6

PL-58868

CONTROL PANEL

ILLUS. PART NO. NAME OF PART AMT.
PL-58868

1 00-916901 PCB Assy. – Speed Select ......................................................................................................... 1

2 00-916988-00001 Timer Assy. (90-130 V., 60 Hz.) .................................................................................................1

3 00-916938 Spacer – Timer .......................................................................................................................... 1

4 00-916886 Panel – Operator (Red) .............................................................................................................1

5 SC-022-72 Mach. Screw 5-40 x 7/16 Slotted Flat Hd. ....................................................................................2

6 00-917141 Knob – Control ...........................................................................................................................2

7 00-917447 Switch – Start .............................................................................................................................1

8 00-917448 Switch Assy. – Stop.................................................................................................................... 1

9 00-916958 Guard – Switch .......................................................................................................................... 1

10 SC-019-34 Mach. Screw 8-32 x 1/2 Slotted Bndg. Hd...................................................................................5

- 3 -

F-43165 (September 2008)

FMS10 QUART MIXER REPLACEMENT PARTS

3

2

1

4

25

5

6

20

19

18

17

23

22

21

24

15

7

8

9

10

11

12

14

13

F-43165 (September 2008)

16

PL-58869

ELECTRICAL COMPONENTS

- 4 -

FMS10 QUART MIXER REPLACEMENT PARTS

ELECTRICAL COMPONENTS

ILLUS. PART NO. NAME OF PART AMT.
PL-58869

1 NS-009-12 Nut 8-32 Hex .............................................................................................................................. 2

2 WL-007-07 Lockwasher #8 External ............................................................................................................2

3 00-087714-00063 Relay (D.P.D.T.) (90 V.) .............................................................................................................. 1

4 00-917319 Plate – Relay .............................................................................................................................1

5 SC-021-15 Mach. Screw 8-32 x 1/2 Slotted Rd. Hd. .....................................................................................2

6 SC-021-15 Mach. Screw 8-32 x 1/2 Slotted Rd. Hd. .....................................................................................2

7 NS-009-12 Nut 8-32 Hex .............................................................................................................................. 2

8 WL-007-07 Lockwasher #8 External ............................................................................................................2

9 WL-019-96 Lockwasher M5 Helical ..............................................................................................................1

10 NS-047-49 Nut M5 x 38mm .........................................................................................................................2

11 WL-003-37 Lockwasher 1/4 Helical................................................................................................................5

12 SC-089-01 Cap Screw 1/4 -20 x 1/2 Hex Socket Hd. ......................................................................................5

13 SC-021-15 Mach. Screw 8-32 x 1/2 Slotted Rd. Hd. .....................................................................................2

14 00-916895 Plate – Relay Mounting ..............................................................................................................1

15 SC-009-68 Mach. Screw 8-32 x 3/4 Slotted Rd. Hd. .....................................................................................1

16 00-916928 Cord & Plug Strain Relief (120 V.) ............................................................................................. 1

17 WL-007-07 Lockwasher #8 External ............................................................................................................1

18 NS-009-12 Nut 8-32 Hex ..............................................................................................................................1

19 NS-047-15 Lock Nut 8-32 ............................................................................................................................1

20 00-916930 Switch – Reset (10 Amp.) .......................................................................................................... 1

21 WL-019-69 Lockwasher M5 External ...........................................................................................................1

22 SC-128-15 Mach. Screw M5 x 0.8 x 12mm Phil. Pan Hd. ...........................................................................1

23 NS-009-12 Nut 8-32 Hex ..............................................................................................................................2

24 WL-007-07 Lockwasher #8 External ............................................................................................................2

25 00-478191-00001 Control –Speed (90 V.) ..............................................................................................................1

00-916935 Harness – Main Wiring (120 V.) ................................................................................................. 1

00-916972-002-1 Tubing – Convoluted Slit ............................................................................................................1

- 5 -

F-43165 (September 2008)
