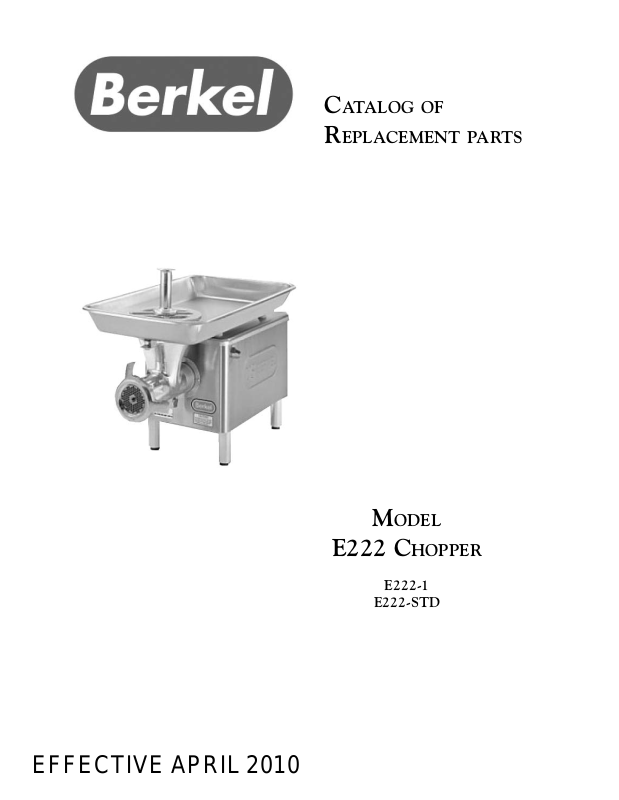

Berkel E222-STD Parts Manual
CATALOG OF
REPLACEMENT PARTS
EFFECTIVE APRIL 2010
M
ODEL
E222 CHOPPER
E222-1
E222-STD
MODEL E222 CHOPPER REPLACEMENT PARTS
Table of Contents
3 ELECTRICAL COMPONENTS
5 HOUSING UNIT
7 CHOPPER ASSEMBLY
Previous construction machines will be identifi ed by serial numbers 9234-01121-xxxx.
Current construction machines will be identifi ed by serial numbers 9234-11121-xxxx or 31-xxx-xxxx.
F-43214 (April 2010)
- 2 -
MODEL E222 CHOPPER REPLACEMENT PARTS
21-22
19-20
1
2-3
4-5
6-7-8
13
12
11
9
10
17
14-15-16
18
PL-59361
ELECTRICAL COMPONENTS
ILLUS. PART NO. NAME OF PART AMT.
PL-59361
1 01-402275-00171 Pin ..............................................................................................................................................1
2 01-402675-00069 Switch – Toggle (Previous Construction) ...................................................................................1
3 01-407109-0002B Switch – Heavy Duty (Current Construction) .............................................................................1
4 01-404175-00736 Cord – Switch To Motor (Current Construction) .........................................................................1
5 01-404175-00421 Cord – Switch (Previous Construction) ......................................................................................1
6 01-402675-00650 Clip (3/8 In.) (Previous Construction) ..........................................................................................1
7 00-255503 Mount – Cable Tie (Current Construction) (Not Shown) ............................................................1
8 00-113703 Tie – Cable (Current Construction) (Not Shown) .......................................................................1
9 01-402175-03431 Mach. Screw 8-32 x 3/8 Truss Hd. .............................................................................................AR
10 01-402175-03063 Cap Screw 5/16-18 x 7/8 Hex Hd. .................................................................................................4
11 01-402275-01060 Washer .......................................................................................................................................4
12 01-402275-03065 Lockwasher ................................................................................................................................4
13 01-402175-05060 Nut 5/16-18 Hex ...........................................................................................................................4
14 01-402675-00562 Bushing – 90 Deg. Strain Relief (Previous Construction) ..........................................................1
15 FE-026-06 Relief – Electrical Strain (Current Construction) ........................................................................1
16 FE-026-08 Lock Nut 3/4 Electrical (Current Construction) ............................................................................1
17 01-402675-00053 Light – Pilot ................................................................................................................................1
18 01-402675-00647 Guard – Toggle Switch ...............................................................................................................1
19 01-404175-00043 Cord Assy. – Connecting (230 V., 60 Hz., 1 Ph.) (Previous Construction) .................................1
20 01-404175-00031 Cord – Plug To Switch (110 V.) (Current Construction) ..............................................................1
21 01-404175-00737 Motor – Gear (115-230 V., 1.5 Hp.) (Current Construction) .......................................................1
22 01-404175-00396 Motor – Gear (115-230 V., 60 Hz., 1 Ph., 1 Hp.) (Previous Construction) .................................1
- 3 -
F-43214 (April 2010)
