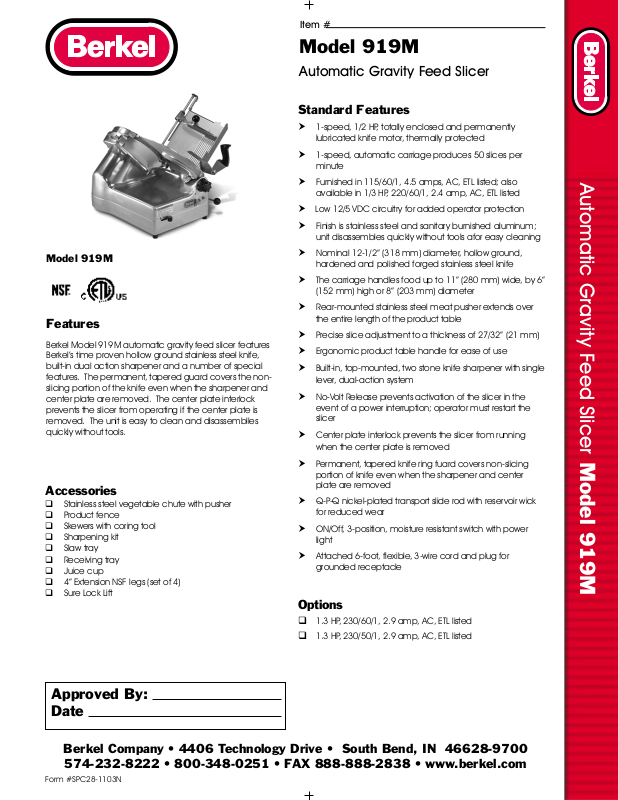

Model 919M
Features
Berkel Model 919M automatic gravity feed slicer features
Berkel’s time proven hollow ground stainless steel knife,
built-in dual action sharpener and a number of special
features. The permanent, tapered guard covers the nonslicing portion of the knife even when the sharpener and
center plate are removed. The center plate interlock
prevents the slicer from operating if the center plate is
removed. The unit is easy to clean and disassemblles
quickly without tools.
Accessories
! Stainless steel vegetable chute with pusher
! Product fence
! Skewers with coring tool
! Sharpening kit
! Slaw tray
! Receiving tray
! Juice cup
! 4” Extension NSF legs (set of 4)
! Sure Lock Lift
Item #
Model 919M
Automatic Gravity Feed Slicer
Standard Features
! 1-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor, thermally protected
! 1-speed, automatic carriage produces 50 slices per
minute
! Furnished in 115/60/1, 4.5 amps, AC, ETL listed; also
available in 1/3 HP, 220/60/1, 2.4 amp, AC, ETL listed
! Low 12/5 VDC circuitry for added operator protection
! Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools afor easy cleaning
! Nominal 12-1/2” (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
! The carriage handles food up to 11” (280 mm) wide, by 6”
(152 mm) high or 8” (203 mm) diameter
! Rear-mounted stainless steel meat pusher extends over
the entire length of the product table
! Precise slice adjustment to a thickness of 27/32” (21 mm)
! Ergonomic product table handle for ease of use
! Built-in, top-mounted, two stone knife sharpener with single
lever, dual-action system
! No-Volt Release prevents activation of the slicer in the
event of a power interruption; operator must restart the
slicer
! Center plate interlock prevents the slicer from running
when the center plate is removed
! Permanent, tapered knife ring fuard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
! Q-P-Q nickel-plated transport slide rod with reservoir wick
for reduced wear
! ON/Off, 3-position, moisture resistant switch with power
light
! Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Options
! 1.3 HP, 230/60/1, 2.9 amp, AC, ETL listed
! 1.3 HP, 230/50/1, 2.9 amp, AC, ETL listed
Automatic Gravity Feed Slicer Model 919M
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC28-1103N
Model 919M
Automatic Gravity Feed Slicer
Model No. Cutting Slice Knife Slicing Product Dimensions
Capacity Thickness Diameter Speed Width A Depth B Height C
919M 11” (280 mm) wide to 27/32” 12-1/2” 50 SPM 20” 29” 24”
Motor Electrical Weight Box Dimensions
1-speed 115/60/1 Net 114 lbs. (52 kg) 32” 30” 30”
1/2 HP Ship 152 lbs. (69 kg) (813 mm) (762 mm) (762 mm)
6” (152 mm) high (21 mm) (318 mm) (508 mm) (737 mm) (610 mm)
8” (203 mm) dia.
Specifications
Motor: 1-speed, 1/2 HP, totally enclosed, permanently
lubricated ball bearings, thermally protected.
Carriage: 1-speed, automatic carriage produces 50
slices per minute.
Electrical: Furnished in 115/60/1, 4.5 amp, AC, ETL
listed. Also available in 1/3 HP, 220/60/1, 2.4 amp, AC,
ETL listed. Low 12/5 VDC circuitry for added operator
protection.
Finish/construction: All food contact areas are
stainless steel including the pusher, gauge plate,
product table, center plate and knife; sanitary burnished aluminum ring guard and one-piece base with
non-slip feet. Slicer disassembles quickly without tools
for easy cleaning.
Knife: Nominal 12-1/2” (318 mm) diameter, hollow
ground, hardened and polished forged stainless steel.
Cutting Capacity: Carriage handles food up to 11”
(280 mm) wide by 6” (152 mm) high or 8” (203 mm)
diameter.
Slice Thickness: Precision gear system with eccentric
gear to prevent backlash, provides infinite slice adjustment and consistent cuts of hard or soft foods from tissue
thin to 27/32” (21 mm).
Full Gravity Feed: Full 45° angle feed requires less
mechanical pressure. Equipped with rear-mounted,
stainless steel meat pusher that runs the entire
length of the product table to hold product and
Automatic Gravity Feed Slicer Model 919M
minimize waste. An optional screw-in weight is also
available. Ergonomic style handle for ease of use.
Knife Sharpener: Built-in, top-mounted, two stone,
single lever, dual-action system for a lasting, razor-sharp
edge. Unit is removable and submersible for easy
cleaning.
Width Depth Height
A
B
C
No-Volt Release: Prevents activation of the slicer in the
event of a power interruption; operator must restart the slicer.
Center Plate Interlock: Deactivates the slicer when the
center plate is removed. Slicer will not run.
Knife Ring Guard: Permanent, tapered guard covers non-
slicing portion of knife edge even when the sharpener and
center plate are removed.
On/Off Switch: Highly reliable, moisture resistant, on/off
switch and power light.
Q-P-Q Nickel Plated Transport Slide Rod with Reservoir Wick: E-nickel plated rod undergoes Q-P-Q impregna-
tion increasing the lubricity of the stainless steel reducing
wear propertied of the rod and bushings.
Cord and Plug: Attached 6-foot flexible 3-wire cord and
plug for grounded receptacle.
Warranty: All parts, service and travel coverage for one
year, exclusive of wear items.
As we continually strive to improve our products, specifications
are necessarily subject to change without notice.
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC28-1103N © 2003 Berkel Company Litho in U.S.A.
