Berkel 919M User Manual
The Choice of Experience

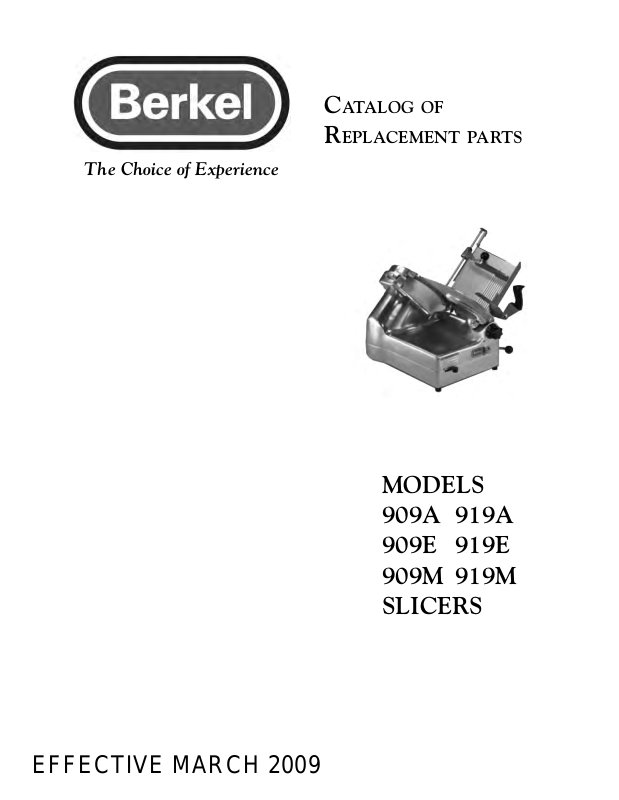

CATALOG OF
REPLACEMENT PARTS
EFFECTIVE MARCH 2009
MODELS
909A 919A
909E 919E
909M 919M
SLICERS
909 & 919 SERIES SLICERS REPLACEMENT PARTS
F-43176 (March 2009)
- 2 -
909 & 919 SERIES SLICERS REPLACEMENT PARTS
Table of Contents
5 ELECTRICAL COMPONENTS (909A & 919A)
7 ELECTRICAL COMPONENTS (909E, 909M, 919E, & 919M)
9 TOP COVER
11 BASE UNIT
13 GAUGE PLATE
15 KNIFE DRIVE MOTOR UNIT
17 KNIFE BOX
19 PRODUCT TABLE
20 POWER STROKE
23 LIFT ASSEMBLY (909 SERIES)
25 LIFT ASSEMBLY (919 SERIES)
27 SHARPENER ASSEMBLY
- 3 -
F-43176 (March 2009)
909 & 919 SERIES SLICERS REPLACEMENT PARTS
1
2
3
4
9
7
8
5
6
11
22
21
20
19
26
25
24
23
F-43176 (March 2009)
18
10
17
16
15
14
13
12
ELECTRICAL COMPONENTS (909A & 919A)
- 4 -
PL-58950
909 & 919 SERIES SLICERS REPLACEMENT PARTS
ELECTRICAL COMPONENTS (909A & 919A)
ILLUS. PART NO. NAME OF PART AMT.
PL-58950
1 01-402675-00896 Solenoid – Gauge Plate Lock ....................................................................................................1
2 01-402175-00436 Screw 3 x 3/8 Flat Hd. ................................................................................................................AR
3 01-402675-00869 Light – Pilot (LED) ......................................................................................................................1
4 01-402675-00900 Lens – Red ................................................................................................................................1
5 01-402275-00425 Rivet ...........................................................................................................................................2
6 01-402675-00647 Guard – Toggle Switch ...............................................................................................................1
7 01-402675-00910 Switch – On/Off ..........................................................................................................................1
8 01-402675-00905 Switch – On/Off (Use On Machines With Scales) ......................................................................1
9 01-404175-00703 Cord – Control ...........................................................................................................................1
10 01-402675-00680 Switch - Speed Control ..............................................................................................................1
11 01-404175-00704 Cord - Speed .............................................................................................................................1
12 01-402175-01310 Mach. Screw 4-40 x 1/4 Pan Hd. .................................................................................................2
13 01-402275-01010 Washer .......................................................................................................................................2
14 01-404175-00688 Switch – Mag Proximity Center Plate ........................................................................................1
15 01-402175-01310 Mach. Screw 4-40 x 1/4 Pan Hd. .................................................................................................2
16 01-402275-01010 Washer .......................................................................................................................................2
17 01-404175-00688 Switch – Mag Proximity No Travel .............................................................................................1
18 01-402175-07010 Nut 4-40 Hex (SST) ...................................................................................................................2
19 01-402175-01310 Mach. Screw 4-40 x 1/4 Pan Hd. .................................................................................................2
20 01-402275-01010 Washer .......................................................................................................................................2
21 01-404175-00688 Switch – Mag Proximity Lift ........................................................................................................1
22 01-404175-00701 Sensor – Meat Table ..................................................................................................................1
23 01-404175-00031 Cord – Plug to Switch ................................................................................................................1
24 01-402175-03341 Mach. Screw 10-24 x 3/8 Pan Hd. ..............................................................................................1
25 01-402275-03045 Lockwasher #10 Spring .............................................................................................................1
26 01-404675-01091 Control Box Assy. .......................................................................................................................1
- 5 -
F-43176 (March 2009)
909 & 919 SERIES SLICERS REPLACEMENT PARTS
1
11
THRU
15
8
9
10
6
7
2
3
4
5
PL-58945
ELECTRICAL COMPONENTS (909E, 909M, 919E, & 919M)
F-43176 (March 2009)
- 6 -
909 & 919 SERIES SLICERS REPLACEMENT PARTS
ELECTRICAL COMPONENTS (909E, 909M, 919E, & 919M)
ILLUS. PART NO. NAME OF PART AMT.
PL-58945
1 01-404175-00031 Cord – Plug To Switch................................................................................................................1
2 01-402675-00752 Breaker – Circuit (120 V., 12 Amp.) ...........................................................................................1
3 01-404675-01090 Box – Control Assy. ....................................................................................................................1
4 01-402175-01381 Screw 8-32 x 13/4 Pan Hd (Control Box Mounting).....................................................................2
5 01-402275-03030 Washer (Control Box Mounting) ................................................................................................. 2
6 01-402675-00869 Light – Pilot (LED) ......................................................................................................................1
7 01-402675-00900 Lens – Red ................................................................................................................................1
8 01-402675-00910 Switch – On/Off ..........................................................................................................................1
9 01-402675-00647 Guard – Toggle Switch ...............................................................................................................1
10 01-402275-00425 Rivet ..........................................................................................................................................AR
11 01-404175-00709 Sensor – Proximity Center Plate (909M & 919M) ......................................................................1
12 01-403375-01364 Bracket – Sensor Center Plate (909M & 919M) ........................................................................1
13 01-402175-00487 Screw 4-40 x 1/2 Phil. Pan Hd. (909M & 919M) .........................................................................AR
14 01-402175-07132 Set Screw 8-32 x 1/4 Cup Pt. (909M & 919M) ............................................................................2
15 01-404675-01112 Sensor Assy. (Incls. Items 11 thru 14) (909M & 919M) ..............................................................1
- 7 -
F-43176 (March 2009)
909 & 919 SERIES SLICERS REPLACEMENT PARTS
7
3-4
1-2
19
18
5
15
14
16
6
17
8
9
10
11
12
F-43176 (March 2009)
13
PL-58955
TOP COVER
- 8 -
909 & 919 SERIES SLICERS REPLACEMENT PARTS
TOP COVER
ILLUS. PART NO. NAME OF PART AMT.
PL-58955
1 01-403775-00442 Guard – Upper Knife ..................................................................................................................1
2 01-402175-03320 Mach. Screw 6-32 x 1/4 Pan Hd. .................................................................................................1
3 01-402175-00374 Screw – Tamper Proof ...............................................................................................................1
4 01-404975-09241 Bit – Tamper Proof 5/32 Hex ........................................................................................................1
5 01-402275-00573 Bushing – Knife Box ..................................................................................................................1
6 01-403375-01077 Pin – Center Plate ......................................................................................................................1
7 01-402375-00139 Plunger ......................................................................................................................................1
8 01-404675-00823 Plate Assy. – Center...................................................................................................................1
9 01-404175-00436 Magnet Assy...............................................................................................................................1
10 01-403375-01072 Screw – Knife 7/16-20 x 5/8 Hex (SST) .........................................................................................1
11 01-403475-00781 Washer – Knife ..........................................................................................................................1
12 01-403875-00025 Ring – Knife Box Cover .............................................................................................................1
13 01-404375-00192 Pulley Assy. – Knife....................................................................................................................1
14 01-402375-00141 Belt – Poly V ..............................................................................................................................1
15 01-403475-00765 Cover –Knife Box .......................................................................................................................1
16 01-402175-03452 Mach. Screw 1/4-20 x 5/8 Truss Hd. .............................................................................................1
17 01-403675-00070 Knife – Gravity Feed Slicer ........................................................................................................1
18 01-404575-00831 Guard Assy. – Knife ...................................................................................................................1
19 01-403375-01073 Post – Center Plate ....................................................................................................................1
- 9 -
