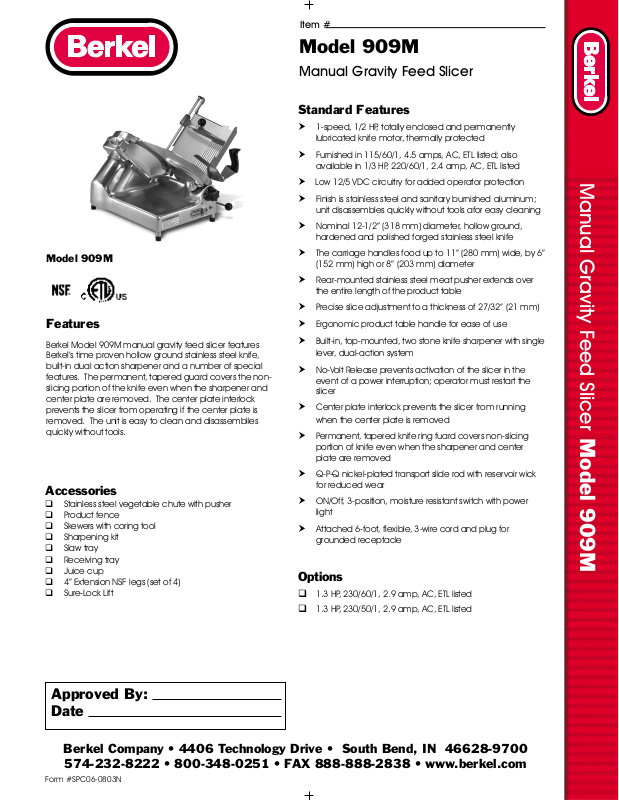

Berkel 909M User Manual
Model 909M
Features
Berkel Model 909M manual gravity feed slicer features
Berkel’s time proven hollow ground stainless steel knife,
built-in dual action sharpener and a number of special
features. The permanent, tapered guard covers the nonslicing portion of the knife even when the sharpener and
center plate are removed. The center plate interlock
prevents the slicer from operating if the center plate is
removed. The unit is easy to clean and disassemblles
quickly without tools.
Accessories
! Stainless steel vegetable chute with pusher
! Product fence
! Skewers with coring tool
! Sharpening kit
! Slaw tray
! Receiving tray
! Juice cup
! 4” Extension NSF legs (set of 4)
! Sure-Lock Lift
Item #
Model 909M
Manual Gravity Feed Slicer
Standard Features
! 1-speed, 1/2 HP, totally enclosed and permanently
lubricated knife motor, thermally protected
! Furnished in 115/60/1, 4.5 amps, AC, ETL listed; also
available in 1/3 HP, 220/60/1, 2.4 amp, AC, ETL listed
! Low 12/5 VDC circuitry for added operator protection
! Finish is stainless steel and sanitary burnished aluminum;
unit disassembles quickly without tools afor easy cleaning
! Nominal 12-1/2” (318 mm) diameter, hollow ground,
hardened and polished forged stainless steel knife
! The carriage handles food up to 11” (280 mm) wide, by 6”
(152 mm) high or 8” (203 mm) diameter
! Rear-mounted stainless steel meat pusher extends over
the entire length of the product table
! Precise slice adjustment to a thickness of 27/32” (21 mm)
! Ergonomic product table handle for ease of use
! Built-in, top-mounted, two stone knife sharpener with single
lever, dual-action system
! No-Volt Release prevents activation of the slicer in the
event of a power interruption; operator must restart the
slicer
! Center plate interlock prevents the slicer from running
when the center plate is removed
! Permanent, tapered knife ring fuard covers non-slicing
portion of knife even when the sharpener and center
plate are removed
! Q-P-Q nickel-plated transport slide rod with reservoir wick
for reduced wear
! ON/Off, 3-position, moisture resistant switch with power
light
! Attached 6-foot, flexible, 3-wire cord and plug for
grounded receptacle
Options
! 1.3 HP, 230/60/1, 2.9 amp, AC, ETL listed
! 1.3 HP, 230/50/1, 2.9 amp, AC, ETL listed
Manual Gravity Feed Slicer Model 909M
Approved By:
Date
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC06-0803N
Model 909M
Manual Gravity Feed Slicer
Model No. Cutting Slice Knife Product Dimensions
Capacity Thickness Diameter Width A Depth B Height C
909M 11” (280 mm) wide to 27/32” 12-1/2” 20” 29” 21”
Motor Electrical Weight Box Dimensions
1-speed 115/60/1 Net 90 lbs. (41 kg) 32” 26” 27”
1/2 HP Ship 120 lbs. (55 kg) (813 mm) (660 mm) (686 mm)
6” (152 mm) high (21 mm) (318 mm) (508 mm) (737 mm) (535 mm)
8” (203 mm) dia.
Specifications
Motor: 1-speed, 1/2 HP, totally enclosed, permanently
lubricated ball bearings, thermally protected.
Electrical: Furnished in 115/60/1, 4.5 amp, AC, ETL
listed. Also available in 1/3 HP, 220/60/1, 2.4 amp, AC,
ETL listed. Low 12/5 VDC circuitry for added operator
protection.
Finish/construction: All food contact areas are
stainless steel including the pusher, gauge plate,
product table, center plate and knife; sanitary burnished aluminum ring guard and one-piece base with
non-slip feet. Slicer disassembles quickly without tools
for easy cleaning.
Knife: Nominal 12-1/2” (318 mm) diameter, hollow
ground, hardened and polished forged stainless steel.
Cutting Capacity: Carriage handles food up to 11”
(280 mm) wide by 6” (152 mm) high or 8” (203 mm)
diameter.
Slice Thickness: Precision gear system with eccentric
gear to prevent backlash, provides infinite slice
adjustment and consistent cuts of hard or soft foods
from tissue thin to 27/32” (21 mm).
Full Gravity Feed: Full 45
mechanical pressure. Equipped with rear-mounted,
stainless steel meat pusher that runs the entire
length of the product table to hold product and
minimize waste. An optional screw-in weight is also
available. Ergonomic style handle for ease of use.
Manual Gravity Feed Slicer Model 909M
Knife Sharpener: Built-in, top-mounted, two stone,
single lever, dual-action system for a lasting, razor-sharp
edge. Unit is removable and submersible for easy
cleaning.
No-Volt Release: Prevents activation of the slicer in
the event of a power interruptin; operator must restart
the slicer.
° angle feed requires less
Width Depth Height
A
B
C
Center Plate Interlock: Deactivates the slicer when the
center plate is removed. Slicer will not run.
Knife Ring Guard: Permanent, tapered guard covers non-
slicing portion of knife edge even when the sharpener and
center plate are removed.
On/Off Switch: Highly reliable, moisture resistant, on/off
switch and power light.
Q-P-Q Nickel Plated Transport Slide Rod with Reservoir Wick: E-nickel plated rod undergoes Q-P-Q
empregnation increasing the lubricity of the stainless steel
reducing wear propertied of the rod and bushings.
Cord and Plug: Attached 6-foot flexible 3-wire cord and
plug for grounded receptacle.
Warranty: All parts, service and travel coverage for one
year, exclusive of wear items.
As we continually strive to improve our products, specifications
are necessarily subject to change without notice.
Berkel Company • 4406 Technology Drive • South Bend, IN 46628-9700
574-232-8222 • 800-348-0251 • FAX 888-888-2838 • www.berkel.com
Form #SPC06-0803N © 2003 Berkel Company Litho in U.S.A.
