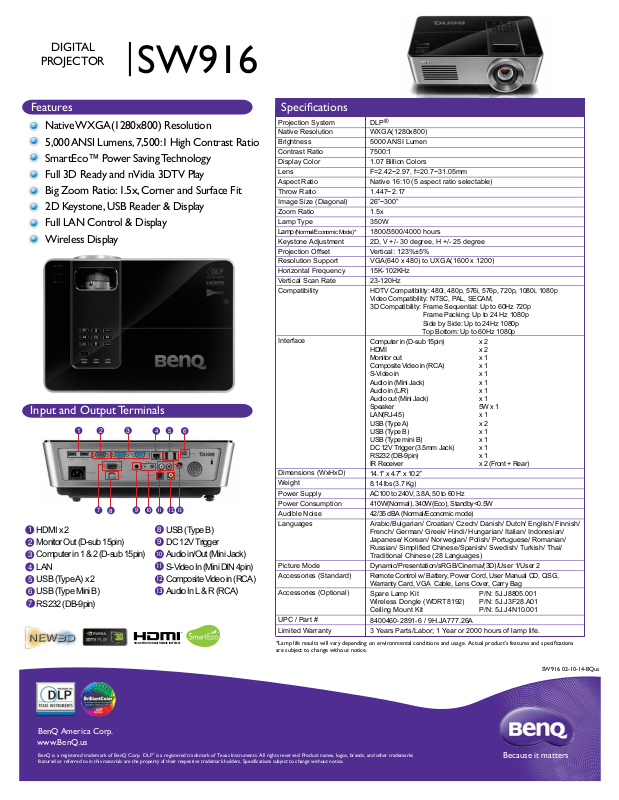

BenQ SW916 Product Sheet
DIGITAL
PROJECTOR
SW916
Features Specications
Native WXGA(1280x800) Resolution
5,000 ANSI Lumens, 7,500:1 High Contrast Ratio
SmartEco™ Power Saving Technology
Full 3D Ready and nVidia 3DTV Play
Big Zoom Ratio: 1.5x, Corner and Surface Fit
2D Keystone, USB Reader & Display
Full LAN Control & Display
Wireless Display
Projection System
Native Resolution
Brightness
Contrast Ratio
Display Color
Lens
Aspect Ratio
Throw Ratio
Image Size (Diagonal)
Zoom Ratio
Lamp Type
(Normal/Economic Mode)*
Lamp
Keystone Adjustment
Projection Offset
Resolution Support
Horizontal Frequency
Vertical Scan Rate
Compatibility
Interface
Input and Output Terminals
5
1
2
7
8
1
HDMI x 2
2
Monitor Out (D-sub 15pin)
3
Computer in 1 & 2 (D-sub 15pin)
4
LAN
USB (Type A) x 2
5
6
USB (Type Mini B)
7
RS232 (DB-9pin)
4
3
10 11
9
8
9
10
11
12
13
HIGH-DEFINITION MULTIMEDIA INTERFACE
6
12 13
USB (Type B)
DC 12V Trigger
Audio in/Out (Mini Jack)
S-Video In (Mini DIN 4pin)
Composite Video in (RCA)
Audio In L & R (RCA)
TM
Dimensions (WxHxD)
Weight
Power Supply
Power Consumption
Audible Noise
Languages
Picture Mode
Accessories (Standard)
Accessories (Optional)
UPC / Part #
Limited Warranty
*Lamp life results will vary depending on environmental conditions and usage. Actual product’s features and specications
are subject to change without notice.
®
DLP
WXGA(1280x800)
5000 ANSI Lumen
7500:1
1.07 Billion Colors
F=2.42~2.97, f=20.7~31.05mm
Native 16:10 (5 aspect ratio selectable)
1.447~2.17
26”~300”
1.5x
350W
1800/3500/4000 hours
2D, V +/- 30 degree, H +/- 25 degree
Vertical: 123%±5%
VGA(640 x 480) to UXGA(1600 x 1200)
15K-102KHz
23-120Hz
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM,
3D Compatibility: Frame Sequential: Up to 60Hz 720p
Frame Packing: Up to 24 Hz 1080p
Side by Side: Up to 24Hz 1080p
Top Bottom: Up to 60Hz 1080p
Computer in (D-sub 15pin) x 2
HDMI x 2
Monitor out x 1
Composite Video in (RCA) x 1
S-Video in x 1
Audio in (Mini Jack) x 1
Audio in (L/R) x 1
Audio out (Mini Jack) x 1
Speaker 5W x 1
LAN(RJ-45) x 1
USB (Type A) x 2
USB (Type B) x 1
USB (Type mini B) x 1
DC 12V Trigger (3.5mm Jack) x 1
RS232 (DB-9pin) x 1
IR Receiver x 2 (Front + Rear)
14.1” x 4.7” x 10.2”
8.14 lbs (3.7 Kg)
AC100 to 240V, 3.8A, 50 to 60 Hz
410W(Normal), 340W(Eco), Standby<0.5W
42/35 dBA (Normal/Economic mode)
Arabic/Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/
French/ German/ Greek/ Hindi/ Hungarian/ Italian/ Indonesian/
Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/
Russian/ Simplied Chinese/Spanish/ Swedish/ Turkish/ Thai/
Traditional Chinese (28 Languages)
Dynamic/Presentation/sRGB/Cinema/(3D)/User 1/User 2
Remote Control w/ Battery, Power Cord, User Manual CD, QSG,
Warranty Card, VGA Cable, Lens Cover, Carry Bag
Spare Lamp Kit P/N: 5J.J8805.001
Wireless Dongle (WDRT8192) P/N: 5J.J3F28.A01
Ceiling Mount Kit P/N: 5J.J4N10.001
8400460-2891-6 / 9H.JA777.26A
3 Years Parts/Labor; 1 Year or 2000 hours of lamp life.
BenQ America Corp.
www.BenQ.us
BenQ is a registered trademark of BenQ Corp. DLP® is a registered trademark of Texas Instruments. All rights reserved. Product names, logos, brands, and other trademarks
featured or referred to in this materials are the property of their respective trademark holders. Specifications subject to change without notice.
SW916 02-10-14-BQus
Because it matters
Distance Chart
Ceiling Installation
Floor Installation
Ceiling Mount Chart
SW916 Digital Projector
Image Size Distance (inch)
Diagonal Width
Inch mm
50 1270 42 26 62.2 77.6 93.0 3.0
60 1524 50 32 74.6 93.1 111.6 3.6
70 1778 60 37 87.1 108.7 130.2 4.2
80 2032 68 42 99.6 124.2 148.8 4.8
90 2286 76 48 112.0 139.7 167.4 5.4
100 2540 85 53 124.4 155.2 186.1 6.1
110 2794 93 58 136.9 170.8 204.6 6.6
120 3048 101 63 149.3 186.3 223.3 7.3
130 3302 110 68 161.8 201.8 241.9 7.9
140 3556 118 74 174.2 217.4 260.5 8.5
150 3810 127 79 186.7 232.9 279.1 9.1
160 4064 136 84 199.1 248.4 297.7 9.7
170 4318 144 90 211.6 263.9 316.3 10.3
180 4572 153 95 224.1 279.5 334.9 10.9
190 4826 161 101 236.4 295.0 353.5 11.5
200 5080 170 106 248.9 310.5 372.2 12.2
250 6350 212 132 311.2 388.2 465.2 15.2
300 7620 254 159 373.4 465.8 558.2 18.2
(inch)
Height
(inch)
3.05”
Min distance
Average
Max distance
Offset (inch)
A (inch)
@ Wide mode
Units: inch
Dimensions
10.2”
14.1”
24.8”
22.7”
21.1”
3.9”
6.8”
14.1”
5.3”
10.2”
Units: inch
4.7”
